Replacing the Speaker Module

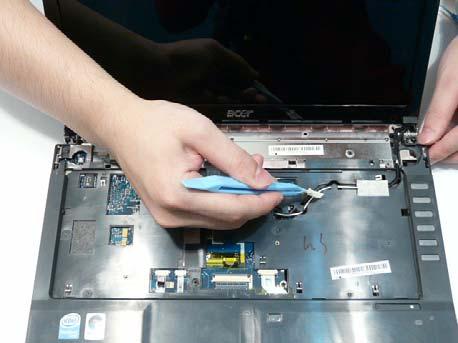

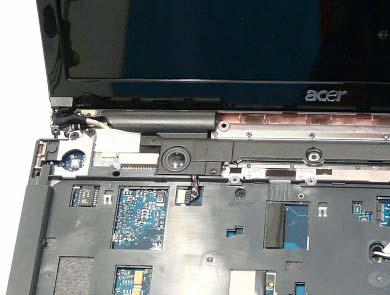

1. Align and replace the Speaker Module in the lower case. IMPORTANT: Be sure the LVDS and microphone cables pass over the Speaker Module. 2. Reconnect the Speaker cable.
3. Replace the adhesive tape to secure the LCD cables in place.
