Removing the RJ-11 Port

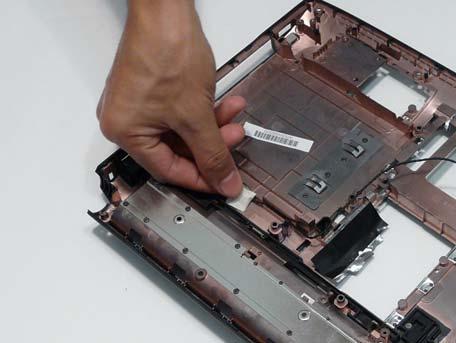

1. See “Removing the Mainboard” on page 81. 2. Turn the Lower Cover over and pull the Modem cable through the casing as shown.

3. Completely remove the Modem cable from the cable channel.

4. Turn the computer over. Pull the Modem cable completely through the casing as shown.

6. Detach the adhesive and lift the cable bundle out of the casing.

7. Remove the RJ-11 Port from the casing.
