Removing the Function Board

1. See “Removing the Upper Cover” on page 67. 2. Remove the three screws securing the board to the Upper Cover.

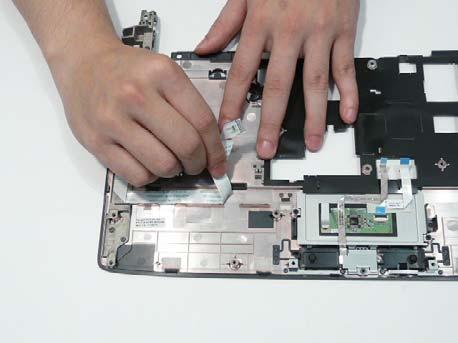

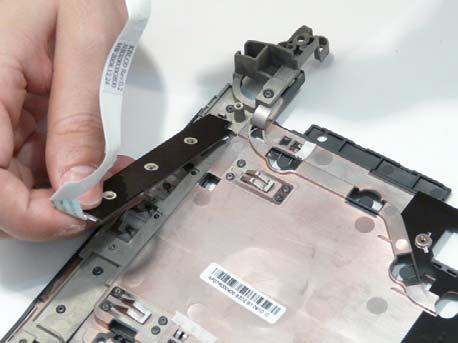

3. Lift the FFC away from the Upper Cover to detach the adhesive securing it in place.

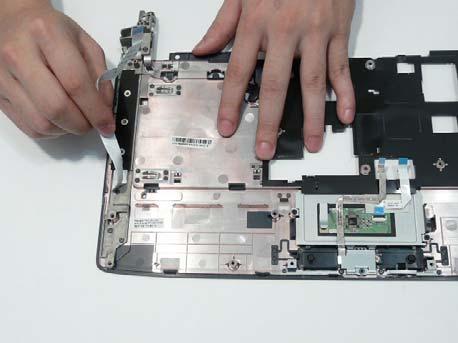

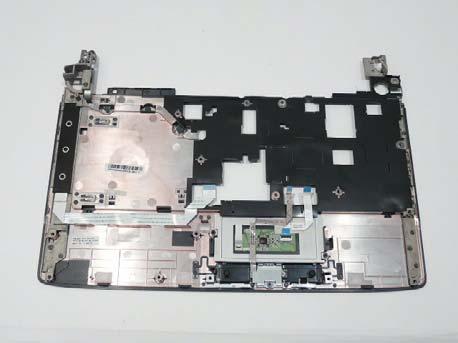

4. Remove the Function Board from the Upper Cover.

Step

Size

Function Board M2*3 3

Quantity Screw Type
