Removing the Modem Module

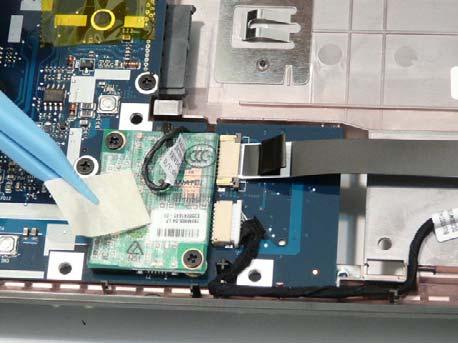

1. See “Removing the Upper Cover” on page 67. 2. Remove the adhesive tape securing the cable to the Modem.

3. Remove the two screws securing the module to the Mainboard.

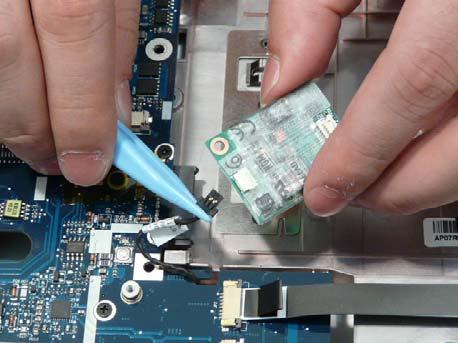

4. Lift the Modem Module clear of the Mainboard as shown.

Step

Size

Modem Module M2*3 2

Quantity Screw Type

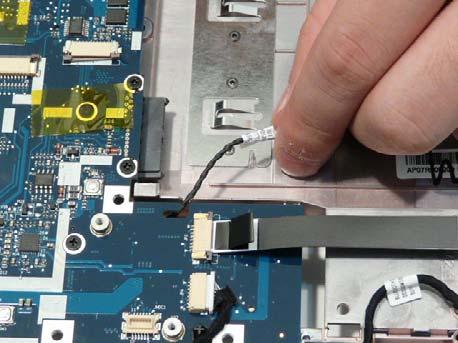

6. Remove the Modem cable from the Mainboard cutout as shown.
