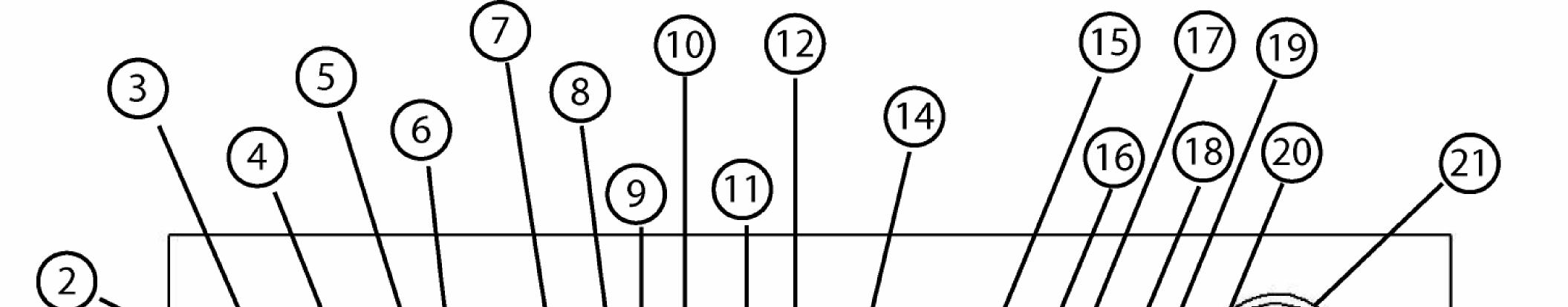

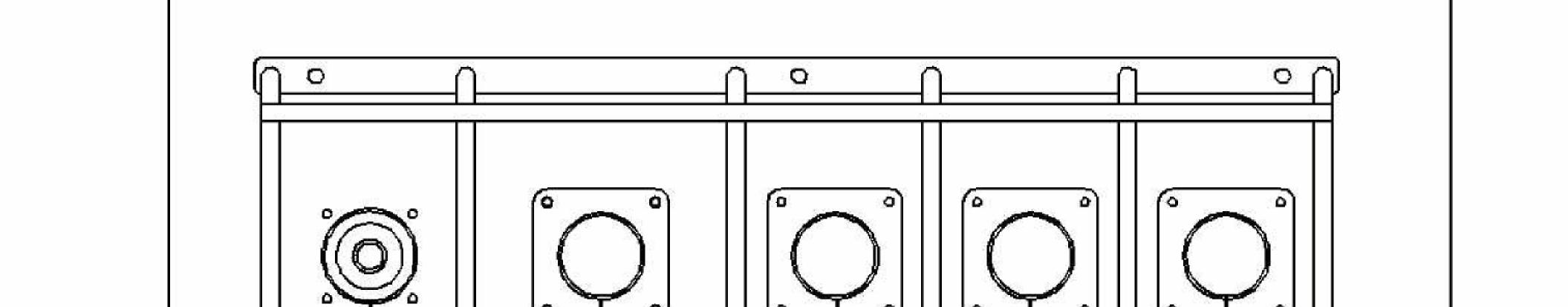

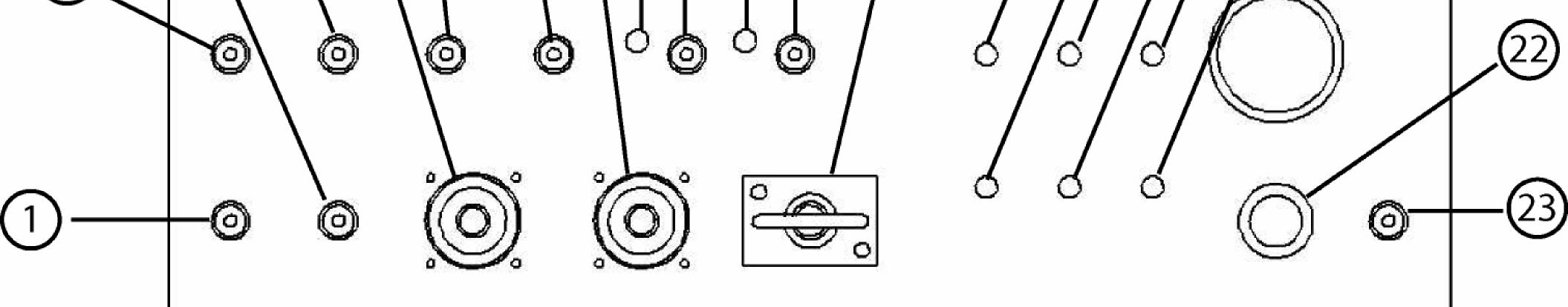

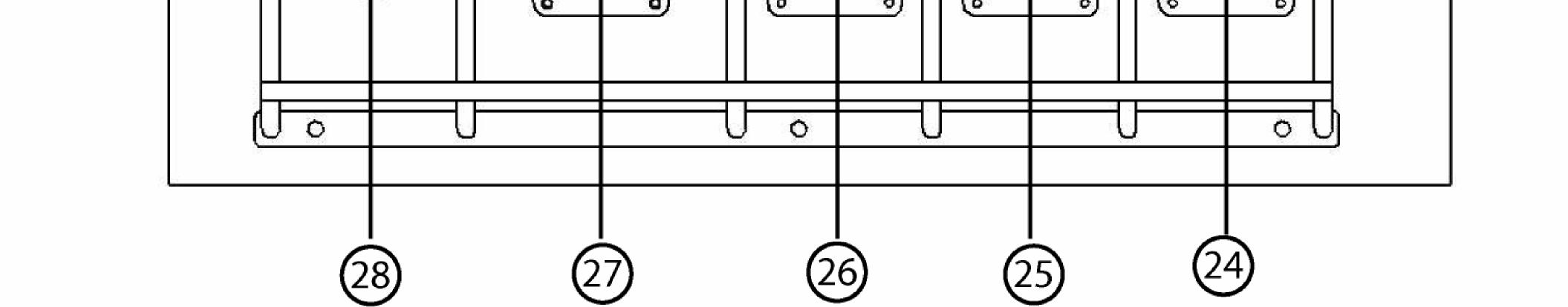

2. Upper control panel

2. Upper control panel

No. Name No.

Name 1 Travel speed select switch 14 System failure light 2 Emergency pump switch 15 Overload light 3 Plug for optional switch 16 Fuel level light 4 Plug for optional work light switch 17 Outreach limit light (Equipped only on SP21A/ ISP70) 5 Platform rotation switch 18 Engine failure light 6 Plug for optional head light switch 19 Tilt light 7 Fuel select switch 20 Emergency stop switch (for Duel fuel engine only) 21 Horn switch 8 Hydraulic generator light (Option for USA) 22 Engine start switch 9 Hydraulic generator switch (Option for USA) 23 Travel control lever 10 Horizontal / Vertical light 24 Boom elevation control lever 11 Horizontal / Vertical select switch 25 Boom telescope control lever 12 Platform level adjust switch 26 Boom rotation control lever 13 ---------------------------------------- 27 Steering switch
