XI Operating Point

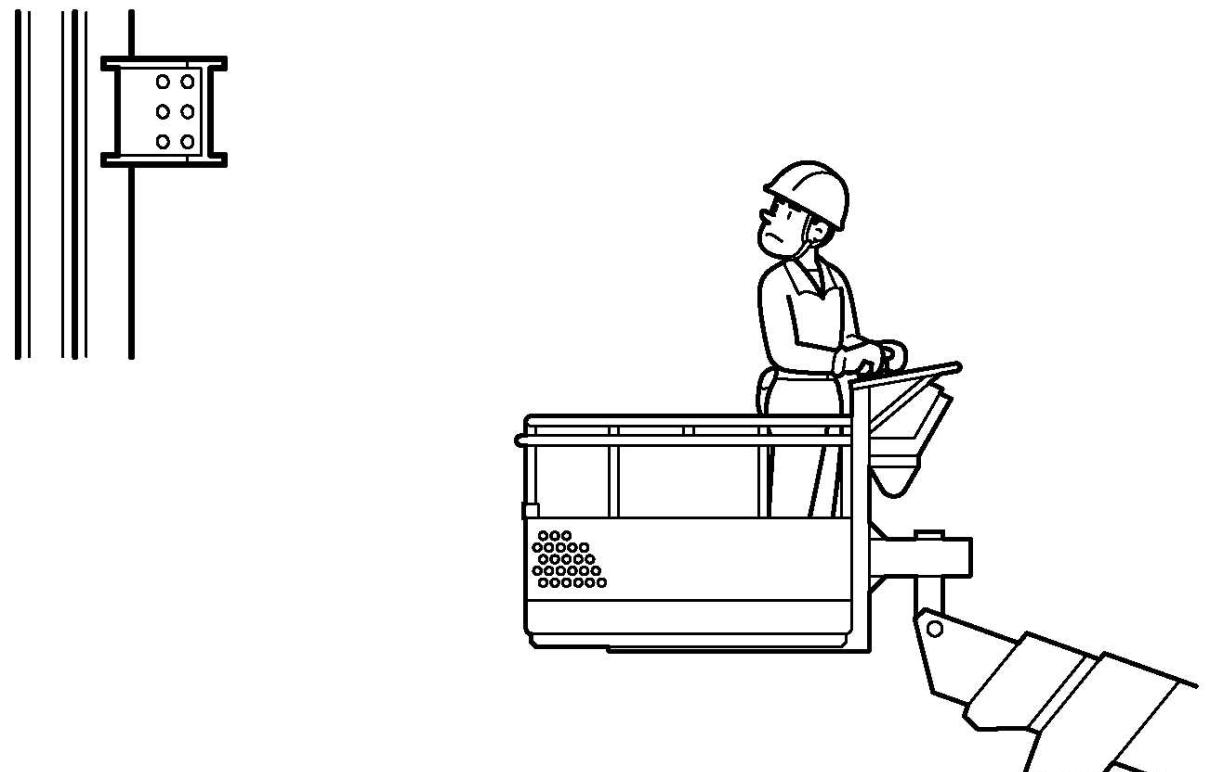

Danger: Park the machine on firm and level surface before elevating the platform. The machine may tip over, if parked on soft or uneven ground. The maximum ground contact pressure of the machine is: SP18AJ / ISP60J -------------- 7.0 kg/cm 2 (100 PSI) SP21AJ / ISP70J -------------- 8.0 kg/cm 2 (114 PSI) (1) Park the machine close to the working target.

Shortest distance

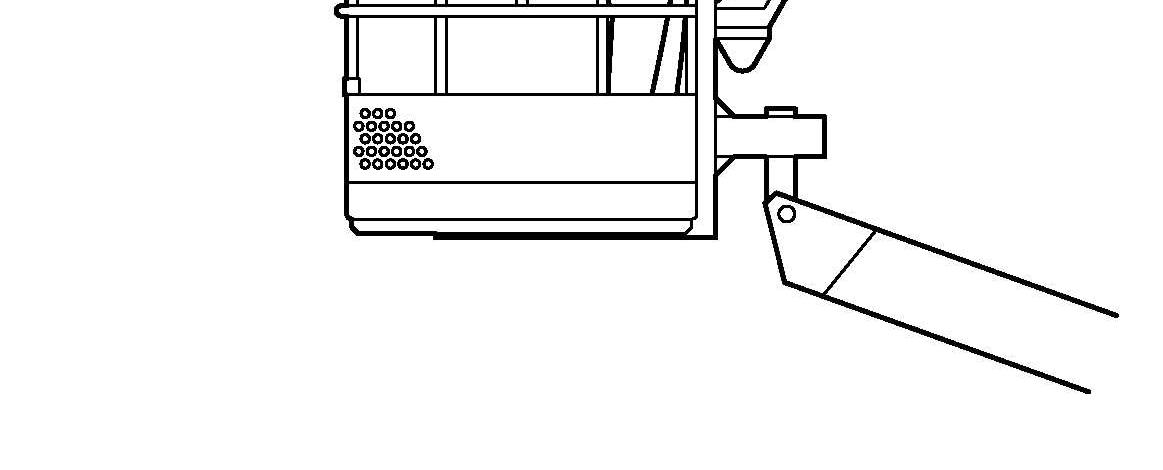

(2) Rotate and elevate the boom till the working target is in line with the boom extending direction.

(3) Extend the boom till the working target is within a comfortable working range.

ADVICE Rotate the platform, if necessary. (4) After finishing the work, reverse the above procedures to lower the platform.
