XII Towing

If the machine does not travel due to engine or main pump failure, disengage the clutch installed on each travel gearbox for towing the machine.

DANGER Never disengage the clutch on a slope as this may cause the machine to roll, which may results in serious injury or death.

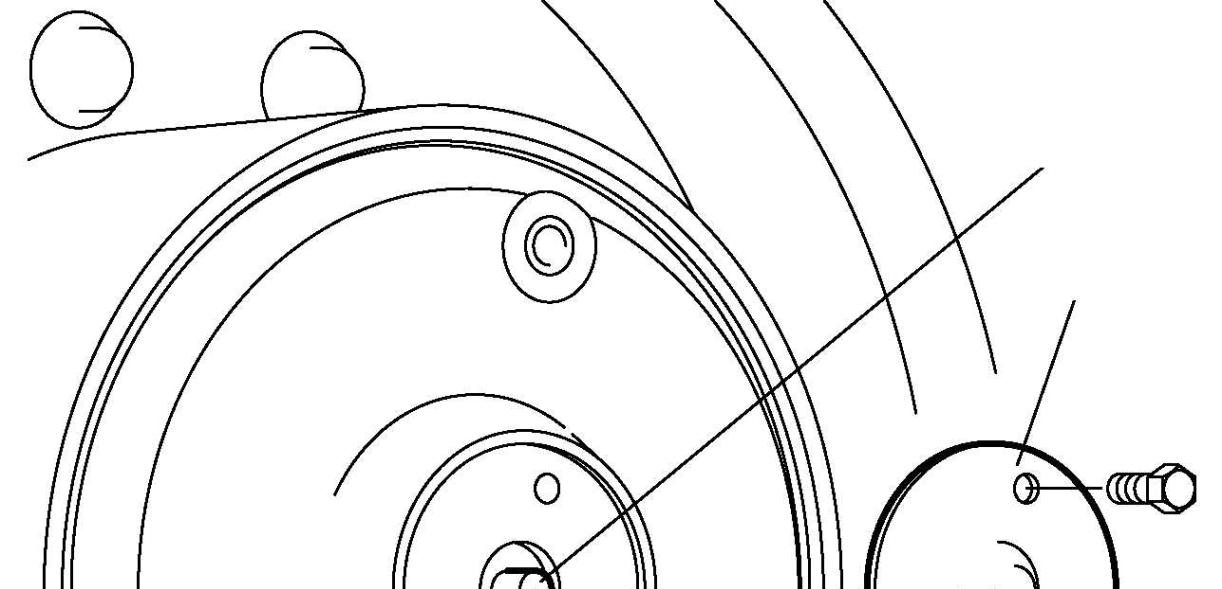

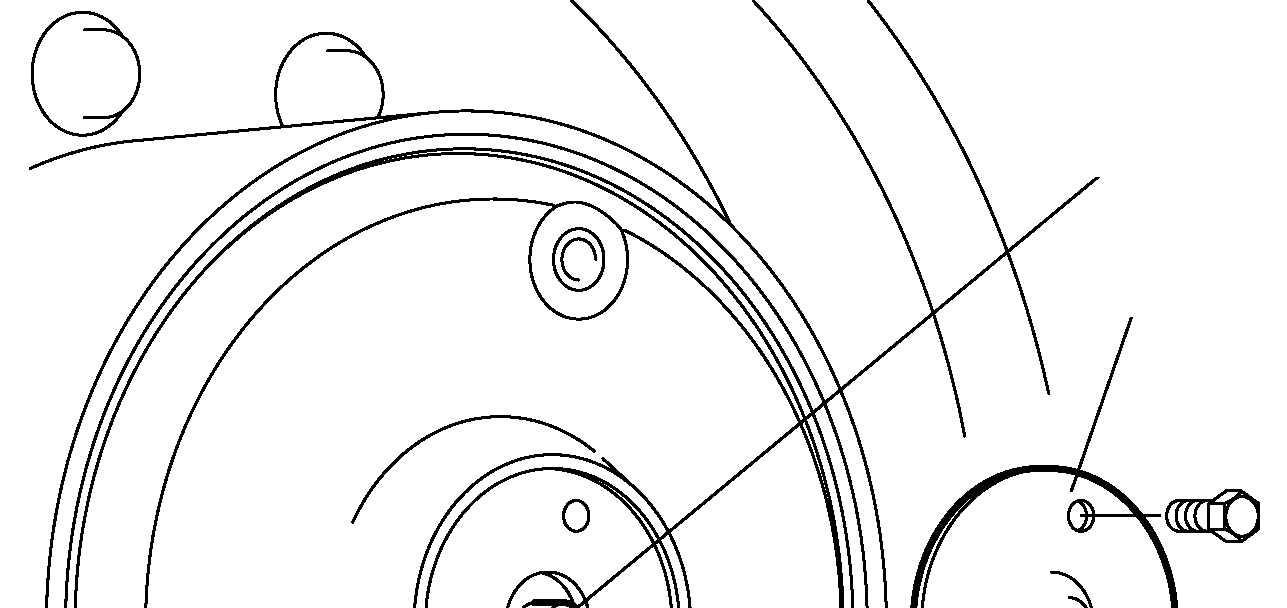

(1) Remove the cap on each travel gearbox.

Pin Cap

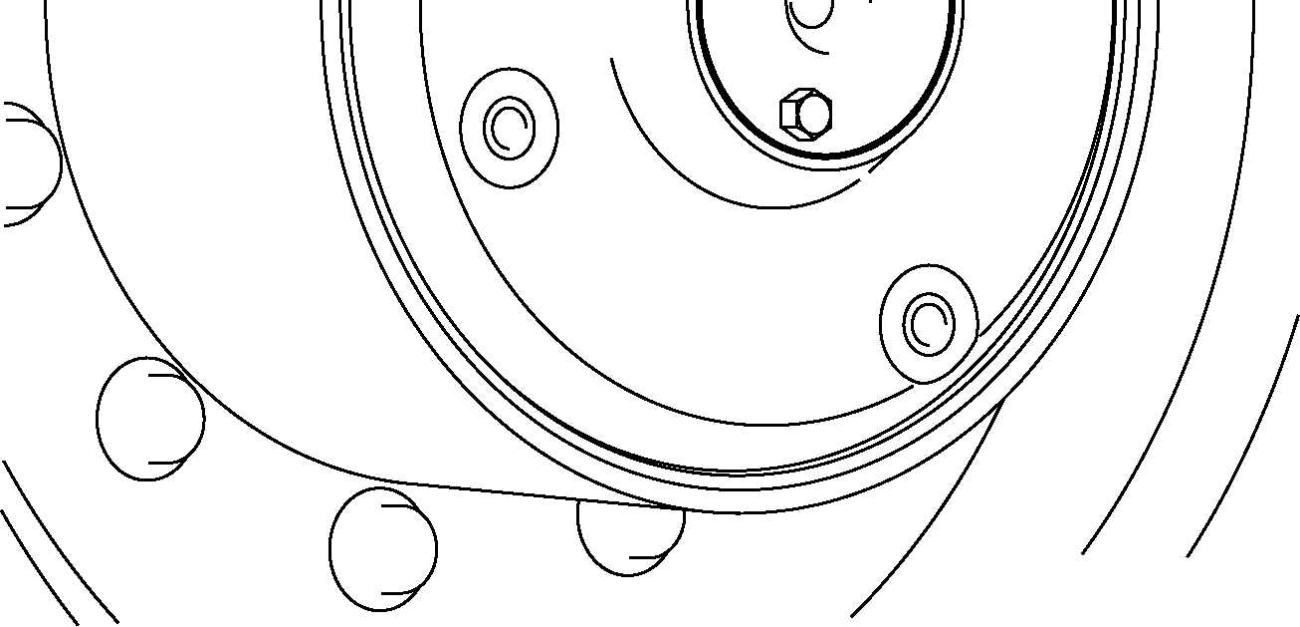

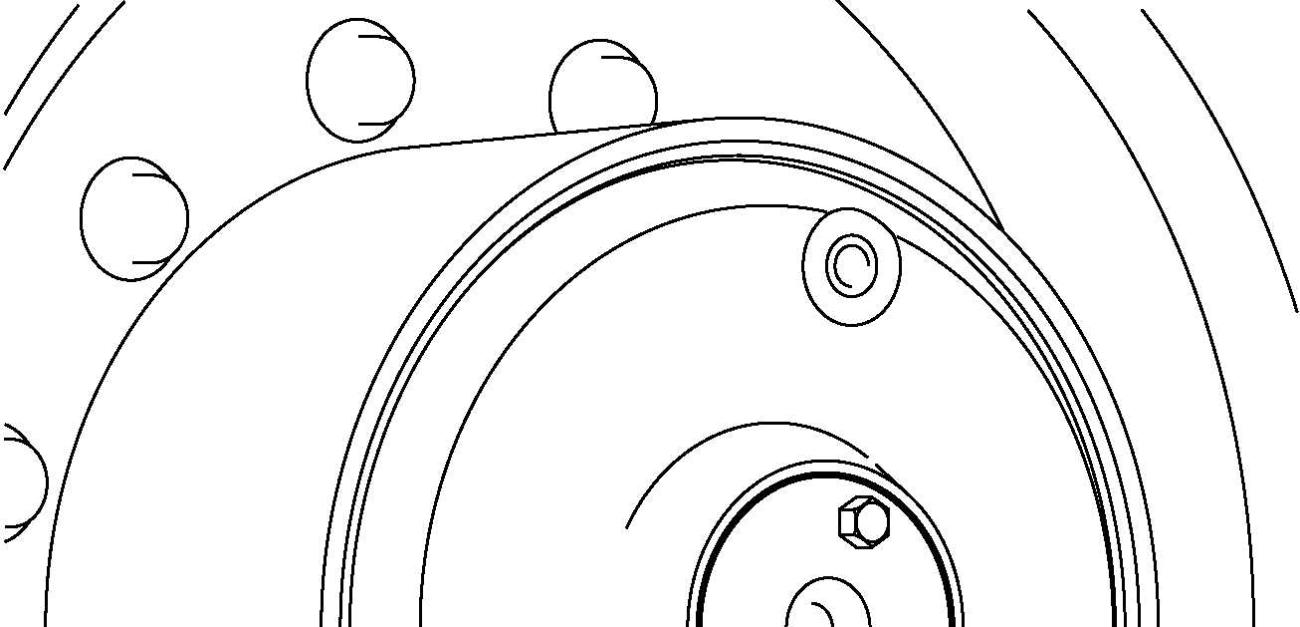

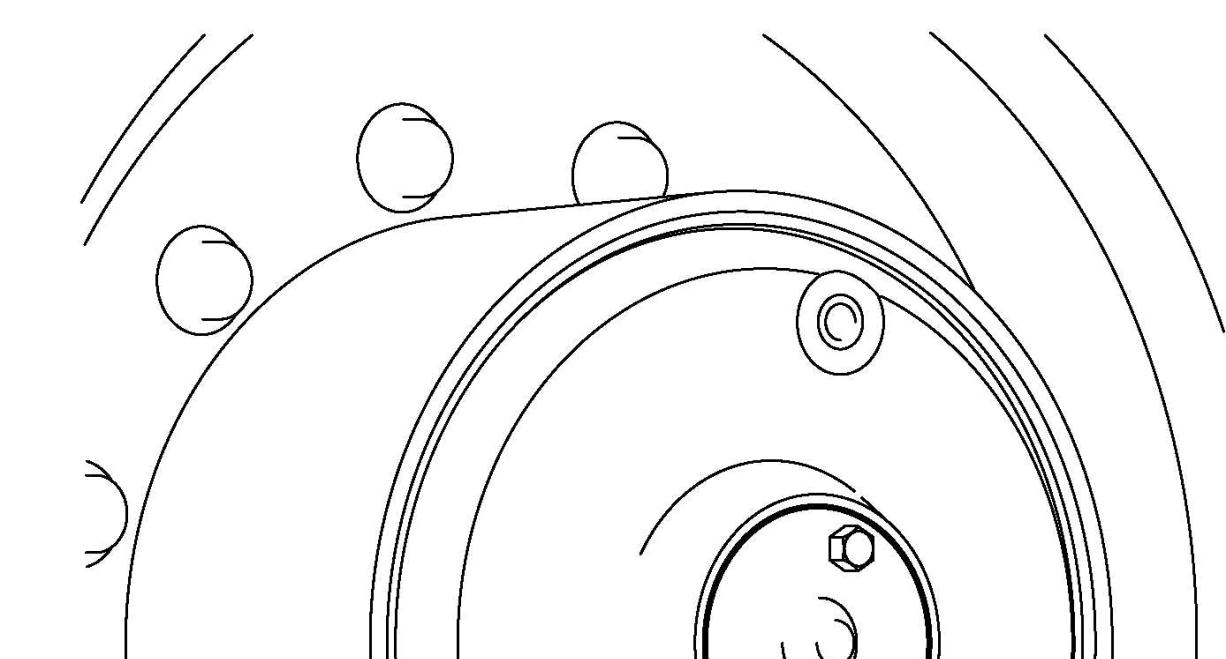

(2) Reverse the cap and reinstall it on each travel gearbox to disengage the clutch.

CAUTION Do not attempt the travelling operations while the clutch is disengaged, as this may damage the travel mechanism.

(3) Tow the machine by connecting a towing chain or rod to the towing rings installed on the chassis.

Towing ring Towing rings

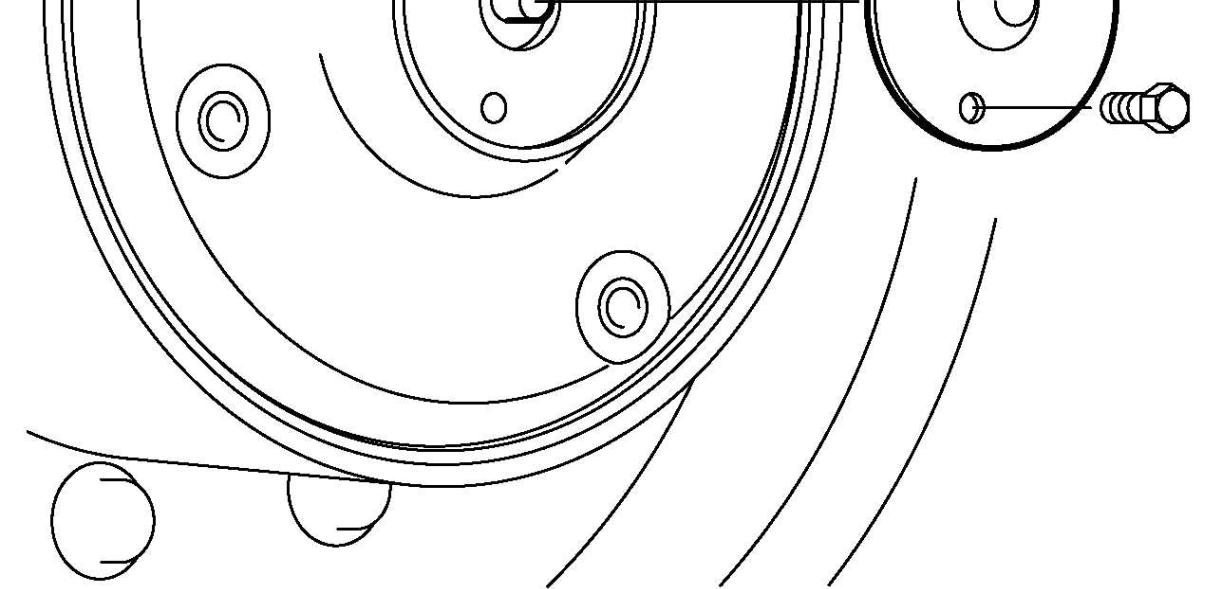

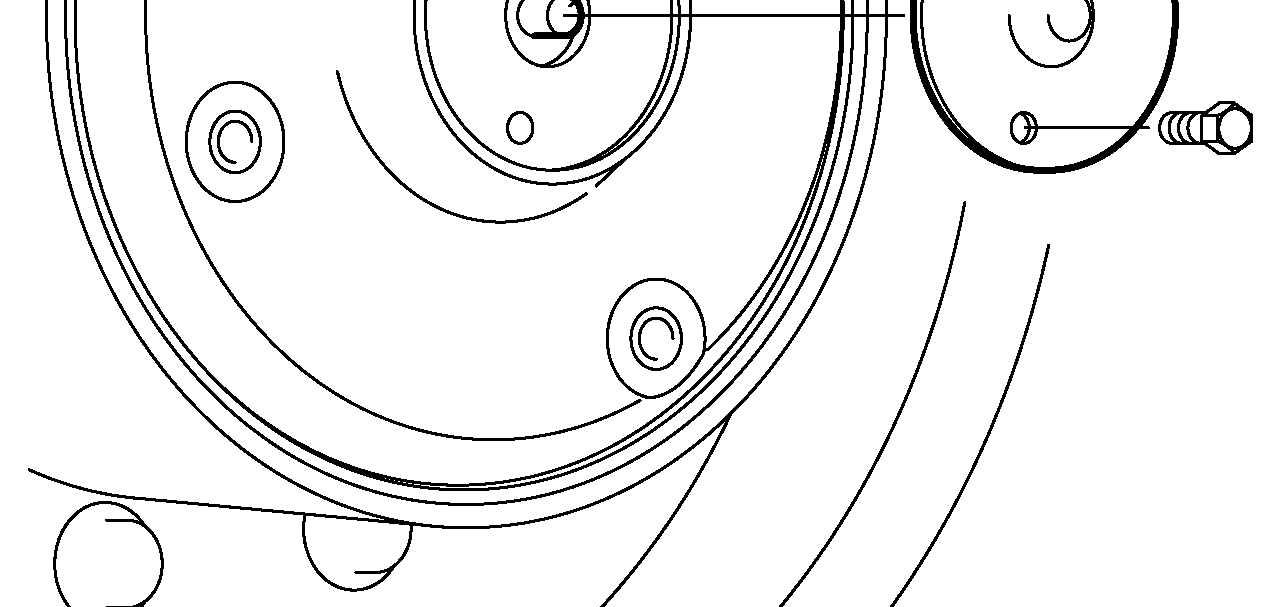

(1) Remove the cap from each travel gearbox.

Cap

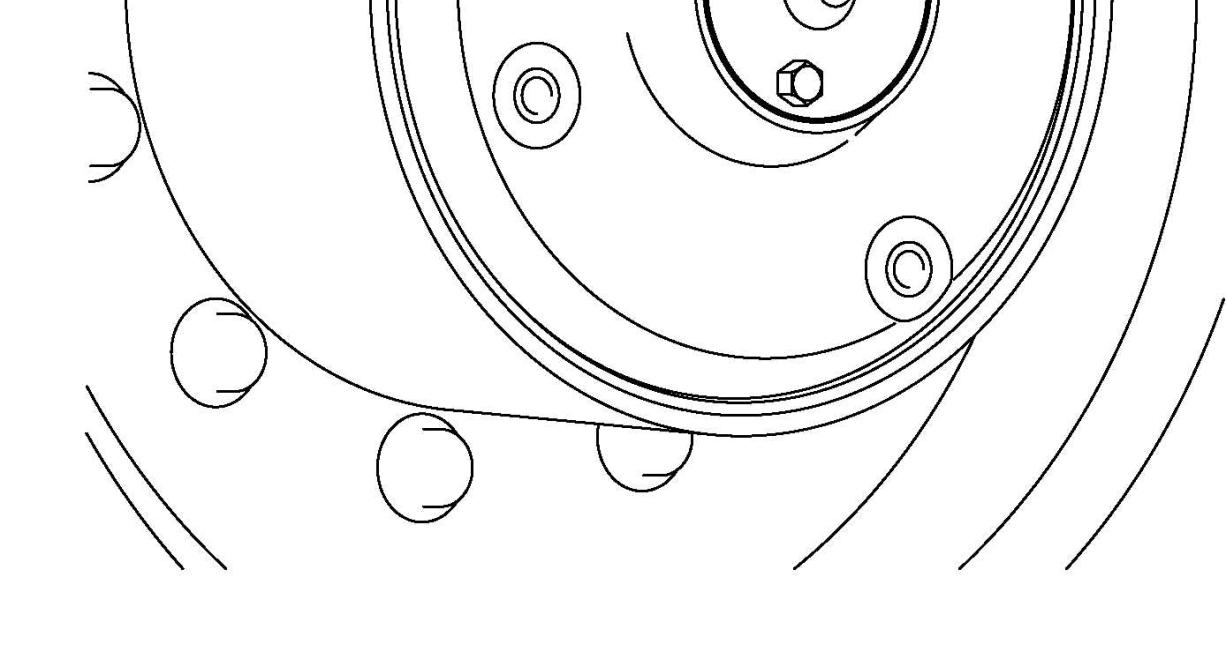

(2) Reverse the cap and re-install it on each travel gearbox to re-engage the clutch.
