Replacing the Webcam

1. See “Removing the Camera Module” on page 79. 2. Disengage the various cables from the hinges. 3. Remove the four (4) securing screws from the LCD Panel.

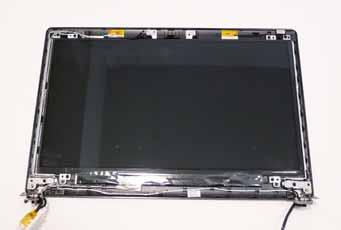

4. Lift the LCD Panel clear of the module as shown.

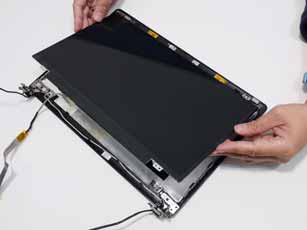

Step

Size

LCD Panel M2.3*3 4

Quantity Screw Type
