ODD Failure

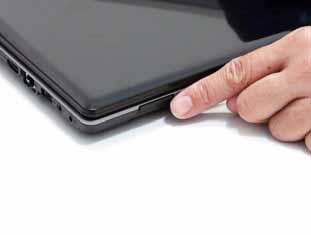

1. Insert the SD Dummy Card into the slot and push until the card clicks into place and is flush with the casing.

Replacing the SIM card

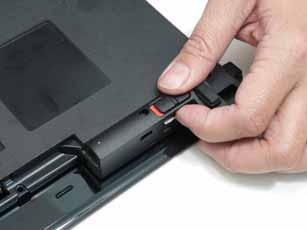

1. Push the 3G card all the way in to snap it in place.

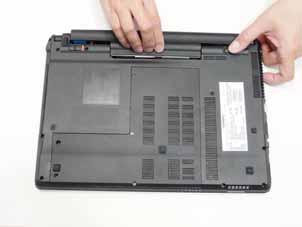

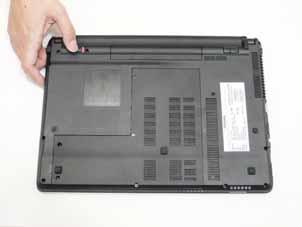

1. Slide the batter pack into place. 2. Slide the battery lock in the direction shown to secure the battery in place.

Troubleshooting

Common Problems

Use the following procedure as a guide for computer problems. NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses. 1. Obtain the failing symptoms in as much detail as possible. 2. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation. 3. Use the following table with the verified symptom to determine which page to go to.

4. If the Issue is still not resolved, see “Online Support Information” on page 243.

Symptoms (Verified) Go To

Power On Issue Page 114 No Display Issue Page 115 LCD Failure Page 117 Internal Keyboard Failure Page 117 TouchPad Failure Page 118 Internal Speaker Failure Page 118 ODD Failure Page 121 WLAN Failure Page 124 Thermal Unit Failure Page 124 Other Functions Failure Page 125 Intermittent Failures Page 126 Undermined Failures Page 126
