Removing the CPU

1. See See “Removing the Upper Cover” on page 58. 2. Remove the single securing screw from the USB Board.

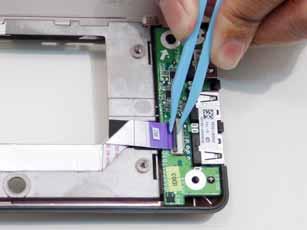

3. Release the FFC latch and remove the FFC cable from the mainboard connector.

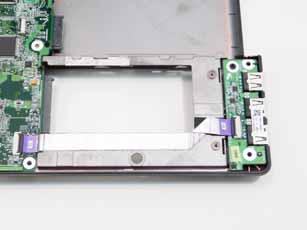

4. Release the FFC latch and remove the FFC cable from the USB connector.

Step

Size

USB Board M2.5*4L 1

Quantity Screw Type
