INSTALLING THE DIFFERENTIAL..............................................................................................................................D1

Crown wheel and pinion and differential

Installing the differential

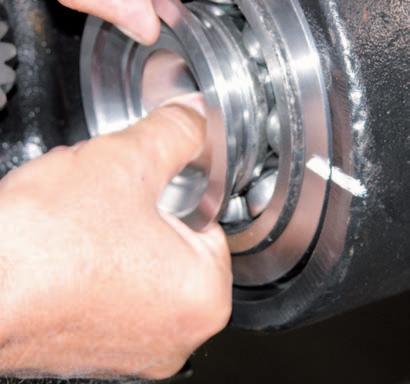

– Refit the O-rings (A) into the casing, piston side. – Assemble the piston with the press, then refit it in its housing. – Clamp with the retainer ring.

A B

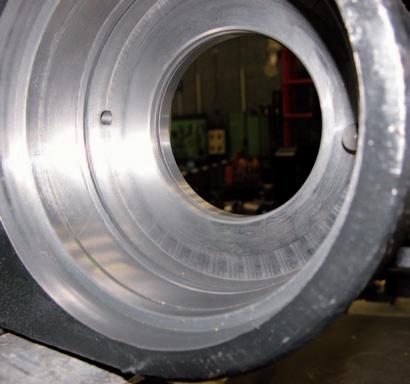

Note: to facilitate refitting with the centering pin (B), make a mark (C) on the piston and casing.

– Assemble the differential assembly. – Use "CLAASAgrigreaseEP2" to grease the pinion rods and washers.

455hsm45

– Assemble the casings by matching the marks (R). – Smear the screws with Loctite(270) and tighten at 12 ± 1 daN·m.

455hsm46 Fig. 93

C

Fig. 94

R
