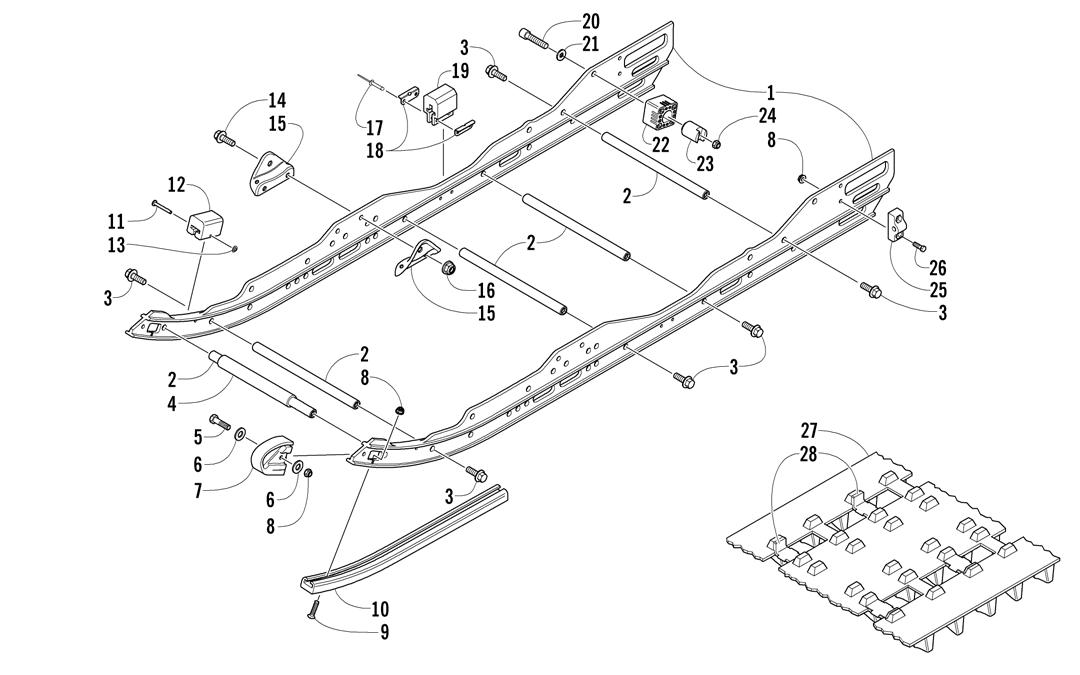

SLIDE RAIL AND TRACK ASSEMBLY

0740-724

SLIDE RAIL AND TRACK ASSEMBLY (Complete Skid Frame Assembly p/n 7998-909; p/n 7998-910 Black, Orange)

1 2604-887 2 Rail, Formed 2 0604-930 5 Axle, Inner 3 1623-248 10 Screw, Cap 4 2604-281 1 Spacer 5 8002-043 2 Screw, Cap 6 8050-217 4 Washer 7 2604-842 2 End Cap, Slide Rail 8 8047-366 8 Nut, Lock 9 0123-859 2 Screw, Machine 10 2604-543 2 Wearstrip, Slide Rail 11 0123-767 2 Rivet, Solid 12 0104-631 2 Pad, Shock 13 0123-766 2 Nut, Push 14 8020-132 4 Screw, Cap 15 2604-593 4 Bracket, Mounting - Front Arm 16 8047-426 4 Nut, Lock 17 8060-633 4 Rivet 18 0604-967 4 Bracket, Retaining 19 0604-918 2 Pad, Shock 20 8005-676 2 Screw, Cap 21 0623-044 2 Washer 22 2604-860 2 Block, Rear Arm Coupler 23 2604-046 2 Bushing, Rear Arm Coupler 24 8041-486 2 Nut, Lock 25 0704-352 2 Adjuster, Track 26 8002-042 4 Screw, Cap 27 1602-886 1 Track Assembly (inc. 28) 28 1602-134 34 ‹ Clip, Guide
