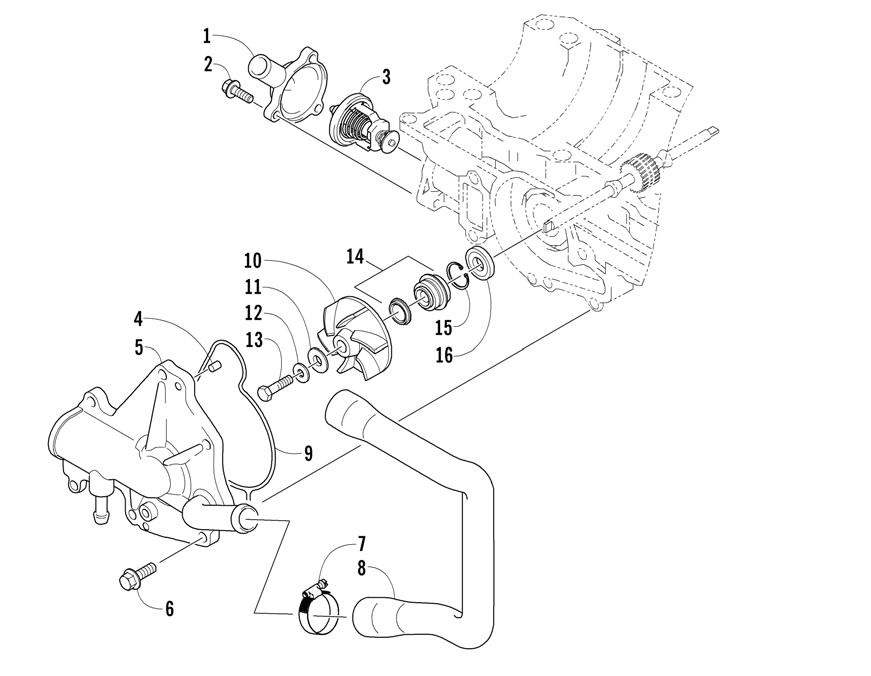

WATER PUMP AND THERMOSTAT

0740-806

1 3006-914 1 Cap 2 3004-512 3 Bolt 3 3007-041 1 Thermostat 4 3005-899 2 Pin, Dowel 5 3006-942 1 Cover, Water Pump 6 3004-341 6 Bolt 7 3006-324 2 Clamp 8 3006-521 1 Hose, Water Inlet

9 3006-356 1 O-Ring, Water Pump Cover 10 3005-697 1 Impeller, Water Pump 11 3003-432 1 Gasket 12 3003-431 1 Washer 13 3003-426 1 Bolt 14 3005-909 1 Seal, Water Pump - Kit 15 3004-009 1 Circlip 16 3004-760 1 Seal, Oil
