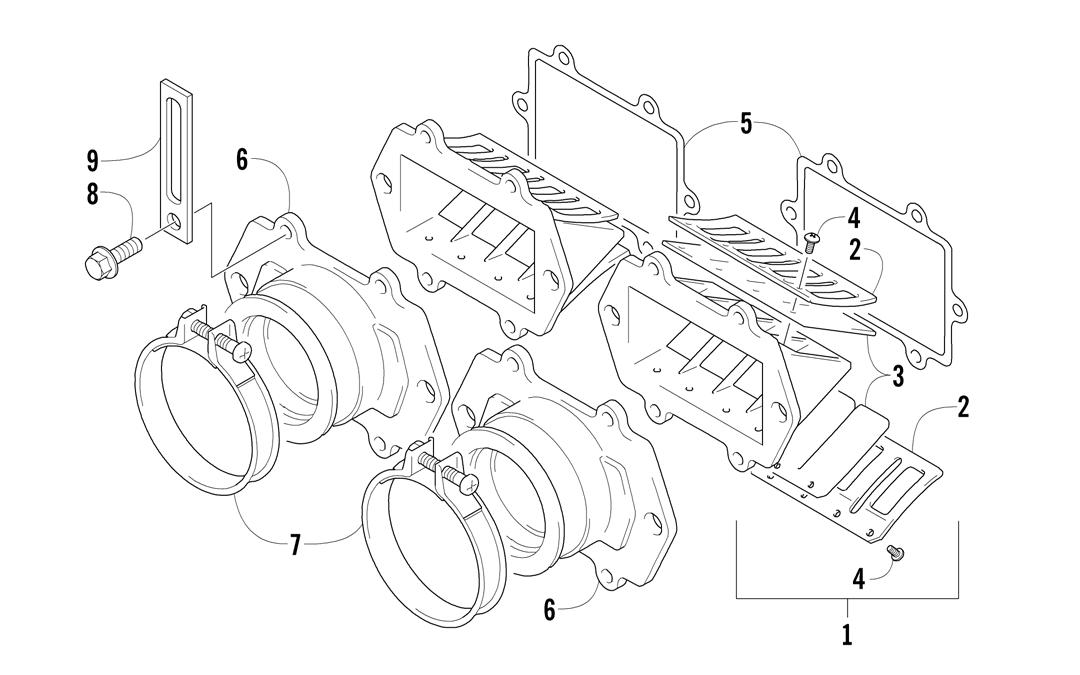

REED VALVE ASSEMBLY
0739-369
1 3006-510 2 Valve, Reed - Assembly (inc. 2-4) 2 3006-553 4 Stopper 3 3005-878 4 Valve, Reed 4 3004-506 16 Screw 5 3005-879 2 Gasket, Reed Valve 6 3006-713 2 Pipe, Intake 7 3004-463 2 Clamp 8 3004-376 12 Bolt 9 3002-964 1 Clamp, Wire
