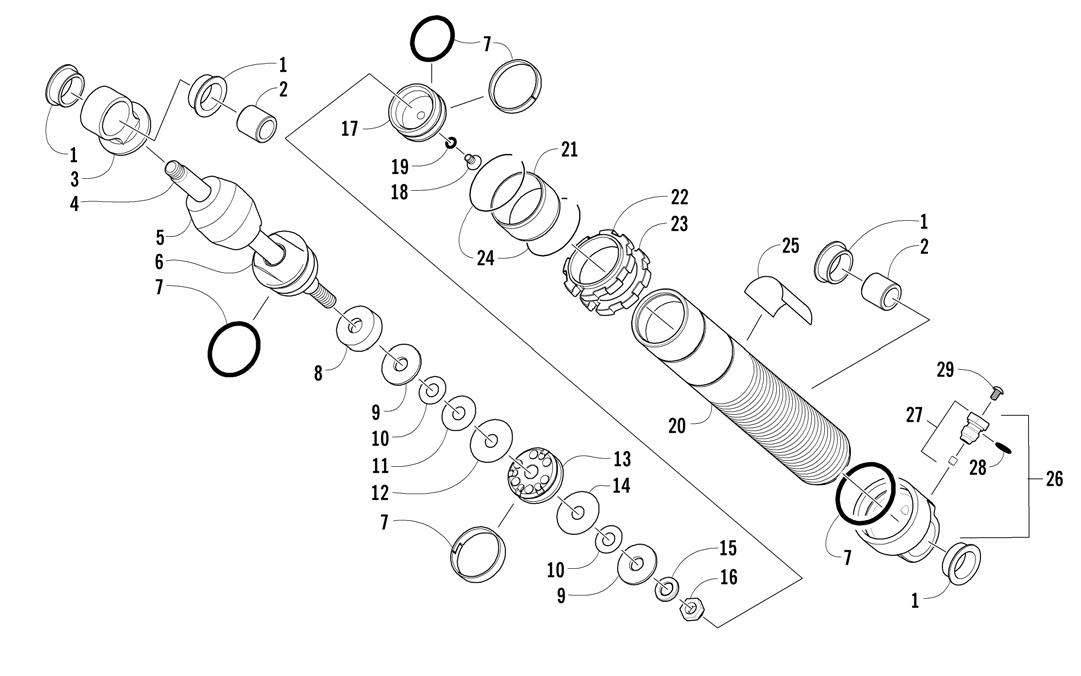

FRONT SUSPENSION SHOCK ABSORBER

FRONT SUSPENSION SHOCK ABSORBER

(Complete Shock Absorber p/n 1703-940) 0740-544 *Not Illustrated

1 0603-955 4 Bushing, Shock 2 1603-209 2 Sleeve, Eyelet 3 0603-910 1 Eyelet, Shock 4 2603-192 1 Rod, Shock 5 2603-284 1 Bumper, Shock 6 2604-413 1 Bearing - Assembly 7 2604-815 1 Kit, Seal/Rebuild 8 2603-194 1 Spacer 9 0603-540 2 Washer, Top Out 10 0603-332 2 Valve, 0.700 x 0.010 in. 11 0603-342 1 Valve, 1.100 x 0.006 in. 12 0603-349 1 Valve, 1.300 x 0.008 in. 13 2603-605 1 Piston, 0.120 in. - Orifice 14 0603-347 1 Valve, 1.250 x 0.010 in. 15 0603-389 1 Washer, Backup 16 0603-301 1 Nut, Lock 17 2604-816 1 Piston, Floating 18 1604-316 1 Screw, Relief (inc. 19) 19 1604-425 1 ‹ O-Ring 20 2603-222 1 Body, Shock 21 2603-246 1 Sleeve, Protector 22 2604-840 1 Nut, Adjuster 23 2604-841 1 Nut, Locking - Adjuster 24 2603-245 2 Retainer, Sleeve 25 2604-897 1 Decal, Shock 26 2604-817 1 End Cap, Shock (inc. 27-28) 27 0703-341 1 ‹ Valve, Pressure (inc. 28) 28 1604-318 1 ‹ ‹ O-Ring, Valve 29 0624-097 1 Screw, Valve * 2639-149 AR Oil, Gas Shock - 6 qt Case
