01 - Machine
09 - Description
15 - Service Point Locations
15 - Service Point Locations Introduction CAUTION Make sure the steps, handrails, and your footwear soles are clean and dry before
climbing onto the machine. Always face the machine when climbing on and off it.

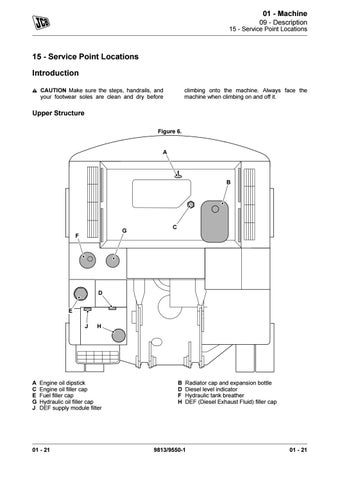

Upper Structure Figure 6. A
B
G
F
C
D E J
A C E G J
H
Engine oil dipstick Engine oil filler cap Fuel filler cap Hydraulic oil filler cap DEF supply module filter
01 - 21
B D F H
Radiator cap and expansion bottle Diesel level indicator Hydraulic tank breather DEF (Diesel Exhaust Fluid) filler cap
9813/9550-1
01 - 21
