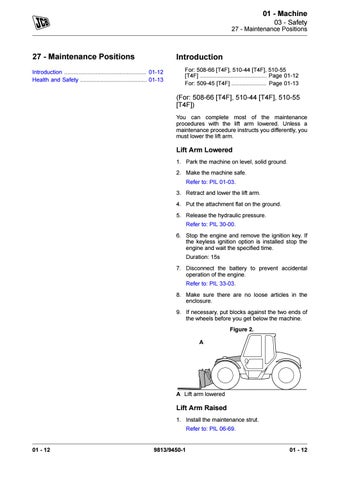

01 - Machine
03 - Safety
27 - Maintenance Positions
27 - Maintenance Positions
Introduction
Introduction .................................................... 01-12 Health and Safety .......................................... 01-13
For: 508-66 [T4F], 510-44 [T4F], 510-55 [T4F] .......................................... Page 01-12 For: 509-45 [T4F] ...................... Page 01-13
(For: 508-66 [T4F], 510-44 [T4F], 510-55 [T4F]) You can complete most of the maintenance procedures with the lift arm lowered. Unless a maintenance procedure instructs you differently, you must lower the lift arm.
Lift Arm Lowered 1. Park the machine on level, solid ground. 2. Make the machine safe. Refer to: PIL 01-03. 3. Retract and lower the lift arm. 4. Put the attachment flat on the ground. 5. Release the hydraulic pressure. Refer to: PIL 30-00. 6. Stop the engine and remove the ignition key. If the keyless ignition option is installed stop the engine and wait the specified time. Duration: 15s 7. Disconnect the battery to prevent accidental operation of the engine. Refer to: PIL 33-03. 8. Make sure there are no loose articles in the enclosure. 9. If necessary, put blocks against the two ends of the wheels before you get below the machine. Figure 2. A
A Lift arm lowered
Lift Arm Raised 1. Install the maintenance strut. Refer to: PIL 06-69. 01 - 12
9813/9450-1
01 - 12
