01 - Machine
09 - Description
15 - Service Point Locations

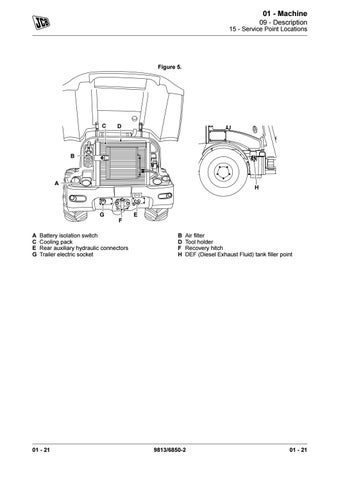

Figure 5.
C
D
B
A
H
G A C E G
F
Battery isolation switch Cooling pack Rear auxiliary hydraulic connectors Trailer electric socket
01 - 21
E B D F H
Air filter Tool holder Recovery hitch DEF (Diesel Exhaust Fluid) tank filler point
9813/6850-2
