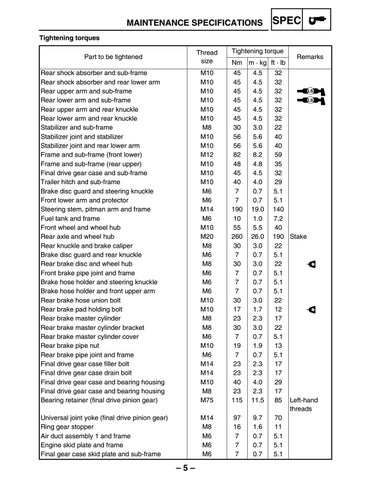

MAINTENANCE SPECIFICATIONS
SPEC
Tightening torques Thread size
Part to be tightened
Tightening torque Nm m · kg ft · lb
Rear shock absorber and sub-frame Rear shock absorber and rear lower arm Rear upper arm and sub-frame Rear lower arm and sub-frame Rear upper arm and rear knuckle Rear lower arm and rear knuckle Stabilizer and sub-frame Stabilizer joint and stabilizer Stabilizer joint and rear lower arm Frame and sub-frame (front lower) Frame and sub-frame (rear upper) Final drive gear case and sub-frame Trailer hitch and sub-frame Brake disc guard and steering knuckle Front lower arm and protector Steering stem, pitman arm and frame Fuel tank and frame Front wheel and wheel hub Rear axle and wheel hub Rear knuckle and brake caliper Brake disc guard and rear knuckle Rear brake disc and wheel hub Front brake pipe joint and frame Brake hose holder and steering knuckle Brake hose holder and front upper arm Rear brake hose union bolt Rear brake pad holding bolt Rear brake master cylinder Rear brake master cylinder bracket Rear brake master cylinder cover Rear brake pipe nut Rear brake pipe joint and frame Final drive gear case filler bolt Final drive gear case drain bolt Final drive gear case and bearing housing Final drive gear case and bearing housing Bearing retainer (final drive pinion gear)
M10 M10 M10 M10 M10 M10 M8 M10 M10 M12 M10 M10 M10 M6 M6 M14 M6 M10 M20 M8 M6 M8 M6 M6 M6 M10 M10 M8 M8 M6 M10 M6 M14 M14 M10 M8 M75
45 45 45 45 45 45 30 56 56 82 48 45 40 7 7 190 10 55 260 30 7 30 7 7 7 30 17 23 30 7 19 7 23 23 40 23 115
4.5 4.5 4.5 4.5 4.5 4.5 3.0 5.6 5.6 8.2 4.8 4.5 4.0 0.7 0.7 19.0 1.0 5.5 26.0 3.0 0.7 3.0 0.7 0.7 0.7 3.0 1.7 2.3 3.0 0.7 1.9 0.7 2.3 2.3 4.0 2.3 11.5
Universal joint yoke (final drive pinion gear) Ring gear stopper Air duct assembly 1 and frame Engine skid plate and frame Final gear case skid plate and sub-frame
M14 M8 M6 M6 M6
97 16 7 7 7
9.7 1.6 0.7 0.7 0.7
–5–
Remarks
32 32 LS 32 LS 32 32 32 22 40 40 59 35 32 29 5.1 5.1 140 7.2 40 190 Stake 22 5.1 LT 22 5.1 5.1 5.1 22 LT 12 17 22 5.1 13 5.1 17 17 29 17 85 Left-hand threads 70 11 5.1 5.1 5.1
