Page 6

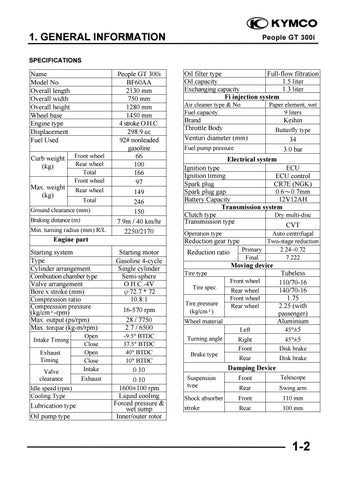

1. GENERAL INFORMATION

People GT 300i

SPECIFICATIONS

Name Model No. Overall length Overall width Overall height Wheel base Engine type Displacement Fuel Used Curb weight (kg) Max. weight (kg)

Front wheel Rear wheel Total Front wheel Rear wheel Total

Ground clearance (mm) Braking distance (m) Min. turning radius (mm) R/L

People GT 300i BF60AA 2130 mm 750 mm 1280 mm 1450 mm 4 stroke O.H.C. 298.9 cc 92# nonleaded gasoline 66 100 166 97 149 246 150 7.9m / 40 km/hr 2250/2170

Engine part Starting system Type Cylinder arrangement Combustion chamber type Valve arrangement Bore x stroke (mm) Compression ratio Compression pressure (kg/cm²-rpm) Max. output (ps/rpm) Max. torque (kg-m/rpm) Intake Timing Exhaust Timing Valve clearance Idle speed (rpm) Cooling Type

Lubrication type Oil pump type

Open Close Open Close Intake Exhaust

Oil filter type Full-flow filtration Oil capacity 1.5 liter Exchanging capacity 1.3 liter Fi injection system Air cleaner type & No Fuel capacity

Brand Throttle Body Venturi diameter (mm)

16-570 rpm 28 / 7750 2.7 / 6500 -9.5° BTDC 37.5° BTDC 40° BTDC 10° BTDC

0.10 0.10 1600±100 rpm Liquid cooling Forced pressure & wet sump Inner/outer rotor

Keihin Butterfly type

Fuel pump pressure

34 3.0 bar

Electrical system Ignition type ECU Ignition timing ECU control Spark plug CR7E (NGK) Spark plug gap 0.6~0.7mm Battery Capacity 12V12AH Transmission system Clutch type Dry multi-disc Transmission type CVT Operation type

Reduction gear type Starting motor Gasoline 4-cycle Single cylinder Semi-sphere O.H.C.-4V φ72.7 * 72 10.8:1

Paper element, wet 9 liters

Reduction ratio

Auto centrifugal Two-stage reduction Primary 2.24~0.72 Final 7.222

Moving device Tire type Front wheel Tire spec. Tire pressure (kg/cm²)

Rear wheel Front wheel Rear wheel

Wheel material Left Turning angle Brake type

Right Front Rear

Tubeless 110/70-16 140/70-16 1.75 2.25 (with passenger) Aluminium 45°±5 45°±5 Disk brake Disk brake

Damping Device Front

Telescope

Rear

Swing arm

Shock absorber

Front

110 mm

stroke

Rear

100 mm

Suspension type

1-2
