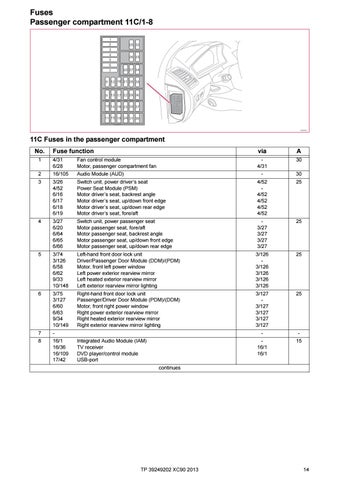

Fuses Passenger compartment 11C/1-8
11C Fuses in the passenger compartment No.
Fuse function
via
A
1
4/31 6/28
Fan control module Motor, passenger compartment fan
4/31
30
2
16/105
Audio Module (AUD)
-
30
3
3/26 4/52 6/16 6/17 6/18 6/19
Switch unit, power driver’s seat Power Seat Module (PSM) Motor driver’s seat, backrest angle Motor driver’s seat, up/down front edge Motor driver’s seat, up/down rear edge Motor driver’s seat, fore/aft
4/52 4/52 4/52 4/52 4/52
25
4
3/27 6/20 6/64 6/65 6/66
Switch unit, power passenger seat Motor passenger seat, fore/aft Motor passenger seat, backrest angle Motor passenger seat, up/down front edge Motor passenger seat, up/down rear edge
3/27 3/27 3/27 3/27
25
5
3/74 3/126 6/58 6/62 9/33 10/148
Left-hand front door lock unit Driver/Passenger Door Module (DDM)/(PDM) Motor, front left power window Left power exterior rearview mirror Left heated exterior rearview mirror Left exterior rearview mirror lighting
3/126 3/126 3/126 3/126 3/126
25
6
3/75 3/127 6/60 6/63 9/34 10/149
Right-hand front door lock unit Passenger/Driver Door Module (PDM)/(DDM) Motor, front right power window Right power exterior rearview mirror Right heated exterior rearview mirror Right exterior rearview mirror lighting
3/127 3/127 3/127 3/127 3/127
25
7
-
-
-
8
16/1 16/36 16/109 17/42
16/1 16/1
15
Integrated Audio Module (IAM) TV receiver DVD player/control module USB-port continues
TP 39249202 XC90 2013
14
