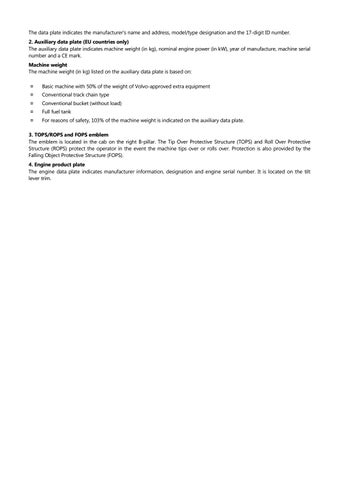

The data plate indicates the manufacturer's name and address, model/type designation and the 17-digit ID number. 2. Auxiliary data plate (EU countries only) The auxiliary data plate indicates machine weight (in kg), nominal engine power (in kW), year of manufacture, machine serial number and a CE mark. Machine weight The machine weight (in kg) listed on the auxiliary data plate is based on: ¤
Basic machine with 50% of the weight of Volvo-approved extra equipment
¤
Conventional track chain type
¤
Conventional bucket (without load)
¤
Full fuel tank
¤
For reasons of safety, 103% of the machine weight is indicated on the auxiliary data plate.
3. TOPS/ROPS and FOPS emblem The emblem is located in the cab on the right B-pillar. The Tip Over Protective Structure (TOPS) and Roll Over Protective Structure (ROPS) protect the operator in the event the machine tips over or rolls over. Protection is also provided by the Falling Object Protective Structure (FOPS). 4. Engine product plate The engine data plate indicates manufacturer information, designation and engine serial number. It is located on the tilt lever trim.
