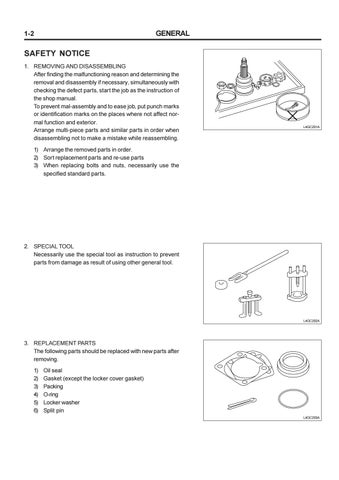

GENERAL
1-2
SAFETY NOTICE 1. REMOVING AND DISASSEMBLING After finding the malfunctioning reason and determining the removal and disassembly if necessary, simultaneously with checking the defect parts, start the job as the instruction of the shop manual. To prevent mal-assembly and to ease job, put punch marks or identification marks on the places where not affect normal function and exterior. Arrange multi-piece parts and similar parts in order when disassembling not to make a mistake while reassembling.
L4GC201A
1) Arrange the removed parts in order. 2) Sort replacement parts and re-use parts 3) When replacing bolts and nuts, necessarily use the specified standard parts.
2. SPECIAL TOOL Necessarily use the special tool as instruction to prevent parts from damage as result of using other general tool.
L4GC202A
3. REPLACEMENT PARTS The following parts should be replaced with new parts after removing. 1) 2) 3) 4) 5) 6)
Oil seal Gasket (except the locker cover gasket) Packing O-ring Locker washer Split pin L4GC203A
