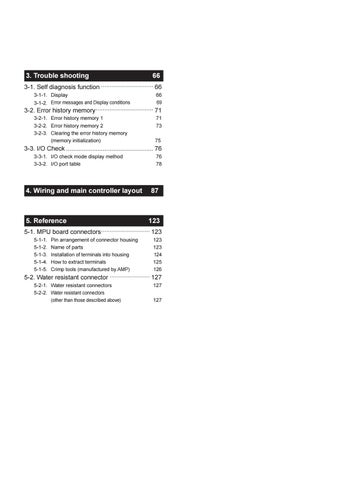

3. Trouble shooting
66
3-1. Self diagnosis function .............................. 66 3-1-1. Display 3-1-2. Error messages and Display conditions
66 69
3-2-1. Error history memory 1 3-2-2. Error history memory 2 3-2-3. Clearing the error history memory (memory initialization)
71 73
3-2. Error history memory ................................. 71
75
3-3. I/O Check .................................................. 76 3-3-1. I/O check mode display method 3-3-2. I/O port table
4. Wiring and main controller layout
5. Reference
76 78
87
123
5-1. MPU board connectors............................ 123 5-1-1. 5-1-2. 5-1-3. 5-1-4. 5-1-5.
Pin arrangement of connector housing Name of parts Installation of terminals into housing How to extract terminals Crimp tools (manufactured by AMP)
123 123 124 125 126
5-2. Water resistant connector ....................... 127 5-2-1. Water resistant connectors 5-2-2. Water resistant connectors (other than those described above)
127 127
