Automatic dilution and dosing systems
Flag adhesives for draft tubes in dishwashers and diluters.
Flag stickers for draining pipes in laundry installations. standard 3 copies in each Smart system
STOVILMATIC LIQUIDO STOVILMATIC LIQUIDO
BRILLMATIC BRILLMATIC
STOVILMATIC LIQUIDO STOVILMATIC LIQUIDO
BRILLMATIC BRILLMATIC
MAXISAN SUPER MAXISAN SUPER
STOVILMATIC LIQUIDO STOVILMATIC LIQUIDO
MAXISAN SUPER
BRILLMATIC BRILLMATIC
MAXISAN SUPER
STOVILMATIC LIQUIDO STOVILMATIC LIQUIDO
MAXISAN SUPER
BRILLMATIC BRILLMATIC
MAXISAN SUPER
MAXISAN SUPER
MAXISAN SUPER
Dosing Systems
PERISTALTIC DOSING PUMPS
Correct functioning of the electronic circuit even in voltage fluctuations.
NPR-4 PUMP FOR DETERGENT
• Peristaltic pump with dosing speed control.
• Designed for use on all single tank dishwashers.
Power supply
90 to 265 Vac 50-60 Hz, 24 Vac 50-60 Hz
Power consumption 3,5 W
Variable speed
Adjustable flow rate from 0.6 to 4 l/h
Maximum pressure 0,1 bar
Weight 1 kg
IN/OUT connections
4 mm x 6 mm
Membrane hoses Sekoflex 6x10
PR-4 PUMP FOR DETERGENT - 230 VAC: 01AA750003
PR-4 FOR DETERGENT
• Peristaltic pump with dosing speed control.
• Designed for use on all single tank dishwashers.
Power supply
90 to 265 Vac 50-60 Hz, 24 Vac 50-60 Hz
Power consumption 3,5 W
Variable speed
Adjustable flow rate from 0.6 to 4 l/h
Maximum pressure 0,1 bar
Weight 1 kg
IN/OUT connections
4 mm x 6 mm
Membrane hoses Sekoflex 6x10
PR-4 FOR DETERGENT - 24 VAC: 01AA750018
Dosing Systems
PERISTALTIC DOSING PUMPS
NPR-1 PUMP FOR RINSE AID
• Peristaltic pump with dosing speed control.
• Designed for use on all single tank or tunnel dishwashers.
Power supply
90 to 265 Vac 50-60 Hz, 24 Vac 50-60 Hz
Power consumption 3,5 W
Variable speed
Flow rate adjustable from 0.2 to 1 l/h
Maximum pressure 3 bar
Weight 1 kg
IN/OUT connections
4 mm x 6 mm
Membrane hoses
Sekobril 3x8
NPR-1 PUMP FOR RINSE AID - 230 VAC: 01AA750055
PR-1 FOR RINSE AID
• Peristaltic pump with dosing speed control.
• Designed for use on all single tank or tunnel dishwashers.
Power supply
90 to 265 Vac 50-60 Hz, 24 Vac 50-60 Hz
Power consumption
3,5 W
Variable speed
Flow rate adjustable from 0.2 to 1 l/h
Maximum pressure 3 bar
Weight 1 kg
IN/OUT connections
4 mm x 6 mm
Membrane hoses
Sekobril 3x8
PR-1 FOR RINSE AID - 230 VAC: 01AA751207
PR-1 FOR RINSE AID - 24 VAC: 01AA751205
Dosing Systems
SIMPLE AND FLEXIBLE DIGITAL DOSING DEVICE FOR THE DISHWASHER
2 PUMPS DOSING SYSTEM –WARE DOSE 30
• It offers a Bluetooth connection via a dedicated SekoBlue app for accurate and fast setting of dosing parameters.
• It offers the possibility to control the speed, time or quantity of dosing for both detergent and rinse aid pumps.
Power supply
100 - 240 Vac, 50 - 60 Hz
Power consumption
10 W
Pressure
3 bar
Pump flow rate
Detergent
8 l/h (Santoprene tube)
Pump flow rate
Rinse aid
1 l/h (SekoBril tube)
WARE DOSE 30: 01AA750518
ALLEGRINI LOGO STICKER: 018A520822
Accessories
SPARE PARTS FOR DISHWASHERS
Steel pipe fitting for detergent tank inlet
01AA750080
Ceramic weight and bottom filter for 4x6 pipe
01AA750083
Non-return valve for rinse agent inlet into boiler
01AA750087
White rotor roll for PR - NPR - PAPM – PRT
01AA720099
Double bracket for fixing PR - NPRPA - PM – PRT
01AA750085
Accessories
SPARE PARTS FOR DISHWASHERS
Single bracket for fixing PR - NPR - PA - PM – PRT
01AA750089
Sekoflex membrane hose for detergent
01AA751104
Sekobrill membrane hose for rinse aid
01AA750027
Lid for neutral ‘npr’ pump
01AA751016
Induction probe
01AA750507
Dosing Systems
MANUAL PUMP
PRODOSE MANUAL PUMP
It is a manual pump for dosing the detergent, the sanitiser and other concentrated chemicals.
Precise dosing
The same dosed quantity with each press.
Flow rate adjustment Internal flow rate adjustment: 7.5, 15, 22 and 30 cc per stroke.
Reliable
• Spring not in contact with the liquid.
• Supply and suction valves easily accessible for maintenance.
PRODOSE MANUAL PUMP: 01AA710052

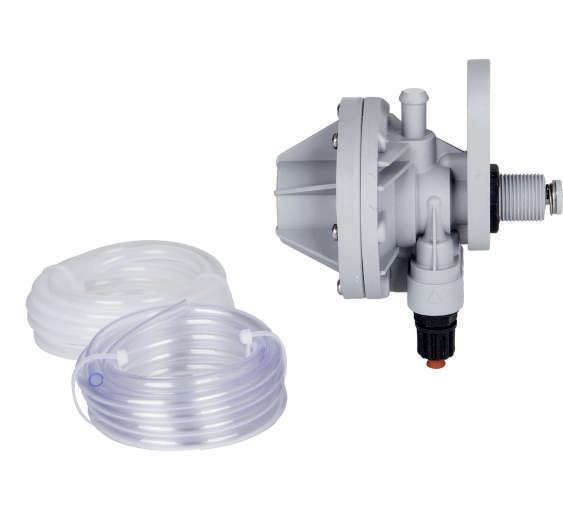

HYDRAULIC RINSE AID DISPENSER
HYDRAULIC RINSE AID DISPENSER: 01AA750017
Dilution Systems
DILUTION SYSTEM FOR BOTTLES AND FLOORS

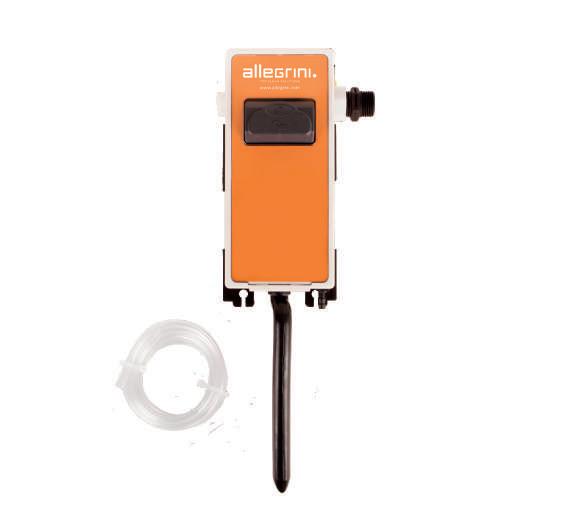

SLIDE-ACTIVATED DETERGENT DILUTERS
DETERGENT DILUTERS 4L/min - 4 PRODUCTS - SLIDE: 01AA750101
Tank holder
TANK HOLDER 5 L: 01AA750068
TANK HOLDER 10 L: 01AA750474
DETERGENT DILUTERS 4L/min - 1 PRODUCT - SLIDE: 01AA750103
BUTTON-ACTIVATED DETERGENT DILUTERS
DETERGENT DILUTERS 4L/min1 PRODUCT - BUTTON: 01AA750121
DETERGENT DILUTERS 4L/min4 PRODUCTS - BUTTON: 01AA750122
DETERGENT DILUTERS 16L/min1 PRODUCT - BUTTON: 01AA750102
Laundry
In the professional laundry sector, impeccable cleanliness is the result of a combination of several factors: the washing cycle chosen, the detergent suitable for the type of garments to be treated and the correct amount of product.
Allegrini has also thought about this: allowing you to use the product in the right dilutions, while avoiding waste and excessive costs.
No waste to achieve Allegrini quality.
Dosing Systems
COMMERCIAL AND INDUSTRIAL WASHING MACHINES
The Smart series combines technological development in peristaltic systems with perfect reliability in the dosing of chemicals in OPL and industrial washing machines. The innovations and careful design of all
components make the Smart series a product capable of handling any washing programme and ensure a high quality of work.
“SMART P PLUS” SYSTEM3 PRODUCTS
“SMART P PLUS” SYSTEM - 3 PRODUCTS: 01AA750096
Recommended for self-service facilities.
“SMART P PLUS” SYSTEM – 5 PRODUCTS
“SMART P PLUS” SYSTEM – 5 PRODUCTS: 01AA750065
Recommended for washing machines up to 25 kg.
Dosing Systems
COMMERCIAL AND INDUSTRIAL WASHING MACHINES
Lid for ‘SMART P’ pump
01AA751017

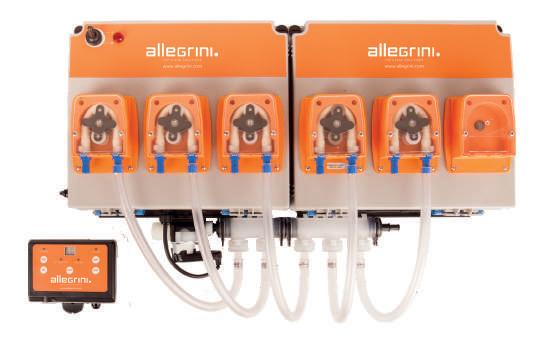

“SMART P PLUS” SYSTEM – 6 PRODUCTS
“SMART P PLUS” SYSTEM – 6 PRODUCTS: 01AA750105
Recommended for washing machines up to 25 kg.
01AA750072 Kit consolle smart custom ‘’Allegrini’’ with 5 m wire
Dosing Systems
INDUSTRIAL WASHING MACHINES
“SMART
H” SYSTEM –5 PRODUCTS
“SMART H” SYSTEM – 5 PRODUCTS: 01AA750066
Recommended for washing machines up to 25 kg.
Lid for ‘SMART H’ pump
01AA751018
Smartware is the unique software for managing washing formulas and consumption statistics.
Smartware allows you to:
• Create multiple dosing programmes.
• Transfer data to a smart memory card.
• Save programmes in folders and modify them at any time.
• Save statistics and manage for each Smart system.
SMARTWARE USB MEMORY CARD: 01AA750189
Accessories
SPARE PARTS FOR WASHING MACHINES
Smart system suction lance with level probe
01AA750015
To be combined with the 7-level control unit
Smart system suction lance without level probe
01AA750086
Probe with bottom filter recommended for LAV3
01AA750060
To be combined with the grey hank tube
7-level control unit
01AA750081
To be combined with smart system suction lance with level probe

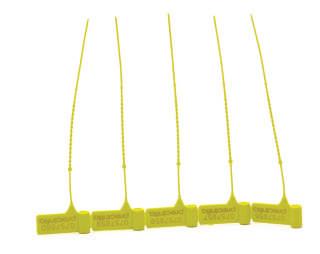

Numbered tamper-proof seals 50-piece kit
01AA750082
Accessories
SPARE PARTS FOR WASHING MACHINES
Fluxing nozzle 5
01AA750114
Fluxing nozzle 6
01AA750113
To be combined when ordering the panelled pump
Replacement solenoid valve for smart system with holder with holder
01AA710042
Grey tube skein recommended for 3LAV
01AA751006
Skein tubing 100 m 8x12 pvc crystal
01AA751004
Accessories
SPARE PARTS FOR WASHING MACHINES
Norprene membrane tube for Smart Pump H system
01AA700128
Sekobrill membrane tube for Smart Pump H system for surfactants
01AA700130
Smart H pump module
01AA751012
Panel-mounted pump for Smart Pump H system
spare part
01AA751014
Accessories
WATER TREATMENT SYSTEMS
FM5 ‘Brita’ water treatment
01AA750107

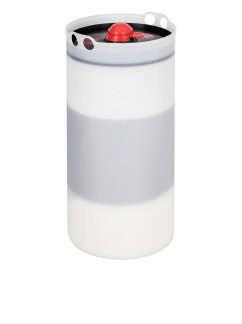

‘Brita’ replacement 12000L cartridge 3 filter layers (blue label)
01AA750131
‘Brita’ replacement 5000L cartridge 5 filter layers (red label)
01AA750112
FM5 ‘Brita’ flowmeter
01AA750108
