PROFFESSIONAL | ELEVATION TREATMENT INSTITUTIONAL | VMA

SCOPE OF WORK:

Produced complete architectural detailed design and working drawings. Studied classical elements and developed intricate details for classical style elevations to deliver to the FRP contractor. Involved in coordination with external teams.

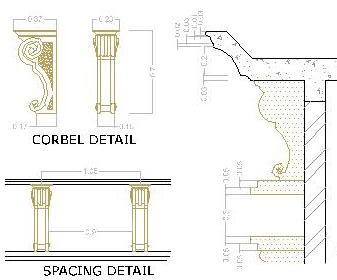

Detailed drawings for classical elements given to Fiber reinforced plastic contractor

NEW CONSTRUCTION | PRIMARY AND SECONDARY SCHOOL

PROJECT NAME : ASHOKA PRIMARY SCHOOL

Architectural Stye : Classical architecture

Size : 2600 sq. m | Height : 12m

Site location : Sinnar, Nasik, India

Current status : Completed

Client : Ashoka

Construction Method : Concrete

THE PROJECT: Elementary school designed for a small village. Maintaining the Builders signature classical style, an eclectic mix of corbels, cornices, external columns, façade artwork and authentic arcade made the structure exclusive yet simple. Steep contours allowed first floor to open to playground higher than the other school ground which were externally connected with landscaped steps.

SCOPE OF WORK: Worked on all phases of development from evolving a concept and schematics to design development to production of construction drawings and documents. Conducted site review along with the lead architect. Involved in coordination with external teams

Schematics

Schematic design with initial contemporary approach in brick and cement panel cladding – with elevation offsets and pergola roof encasing the structure

Elevation

Working Drawings

Plan showing the classroom layout and Elevation expressing contoured land and classical architectural elements- cornices, capitals, corbels, artwork cladding, screen and arcade

Elevation
