SYMBOLS, ABBREVIATIONS & MOUNTING HEIGHTS
SHEET NUMBERSHEET NAME
DWG SCHEDULE, KEY PLAN
T001 TITLE SHEET,
G001 GENERAL NOTES
& DIAGRAMS
ENERGY & SUSTAINABILITY A000 PROGRAM A001 SITE PLAN A101 1ST FLOOR PLAN A102 2ND FLOOR PLAN A103 ROOF PLAN A131 1ST FLOOR FURNITURE PLAN A132 2ND FLOOR FURNITURE PLAN A151 1ST FLOOR FRAMING PLAN A152 2ND FLOOR FRAMING PLAN A153 ROOF FRAMING PLAN A201 1ST FLOOR REFLECTED CEILING PLAN A202 2ND FLOOR REFLECTED CEILING PLAN A300 EXTERIOR ELEVATION A301 EXTERIOR ELEVATION A302 EXTERIOR ELEVATION A303 EXTERIOR ELEVATION A400 BUILDING SECTION A401 BUILDING SECTION A500 EXTERIOR WALL SECTIONS M001 MECHANICAL AA001 AUDIOVISUAL/ACOUSTICS
G002
G003 ACCESSIBILITY DIAGRAMS G004 CODE COMPLIANCE, LIFE SAFETY ANALYSIS, & OCCUPANCY Z001 ZONING ANALYSIS
EN001
Life and Safety - Level 2 Life and Safety - Level 1 EXIT ACCESS TRAVEL DISTANCES ARE SHORTER THAN THE ALLOWABLE 200’ OUTLINED IN TABLE 1017.2 PER NYC BUILDING CODE: Level 1 Egress Doors Minimum Egress Width As Per Table 6-1 Exit: Width: ACC. TRAVEL DISTANCE: Exit 1 (105) 36” 40’ Exit 2 (106) 36” 35’ Exit 3 (110) 36” 68’ Exit 4 (117) 36” 71’ OCCUPANCY CALCULATION FLOOR ROOM #ROOM NAMENET SF/OCCUPANT OCCUPANT 20 SF 25 SF 35 SF 50 SF 100 SF150 SF FIRST FLOOR 101 LOBBY 2,000 80 80 102 CAFE 500 25 25 103 GALLERY 961 27 27 104MECHANICAL 150 1 1 105 STAIRS 90 106 STAIRS 90 107AUDITORIUM 1,200 48 48 108 IT/AV 100 4 4 109 LIBRARY 3,333 95 95 110 STAIRS 90 111MECHANICAL 300 2 2 112 OFFICE 235 2 2 113 OFFICE 212 2 2 114 BATHROOM 25 1 1 115 ADA BATHROOM 80 1 1 116 CHILDREN'S ROOM 1,588 45 45 117 STAIRS 90 FIRST FLOOR TOTAL 333 SECOND FLOOR 201 COMMUNITY SPACE 3,228 160 160 202 BATHROOM 25 1 1 203 ADA BATHROOM 80 1 1 204 STAIRS 90 205 STAIRS 90 206 LIBRARY 2,803 80 80 207 READING ROOM 190 7 7 208 READING ROOM 190 7 7 209 READING ROOM 190 7 7 210 STAIRS 90 211 LIBRARY 2,308 65 65 212 BATHROOM 25 1 1 213 ADA BATHROOM 80 1 1 214 STAIRS 90 215 MEETING ROOM 560 28 28 216 MEETING ROOM 450 22 22 SECOND FLOOR TOTAL 380 TOTAL BUILDING OCCUPANCY 713 Level 1 Egress Doors Minimum Egress Width As Per Table 6-1 Exit: Width: ACC. TRAVEL DISTANCE: Exit 1 (205) 36” 40’ Exit 2 (204) 36” 35’ Exit 3 (210) 36” 68’ Exit 4 (214) 36” 71’ PLUMBLING CALCULATIONS FLOOR FIRST SECOND OCCUPANCY ADA NON-ADA 333 380 1 2 1 2 2 4 LAVATORIES 713 6 6 Construction Class: I-A Sprinklered Occupancy Group: B (Business)

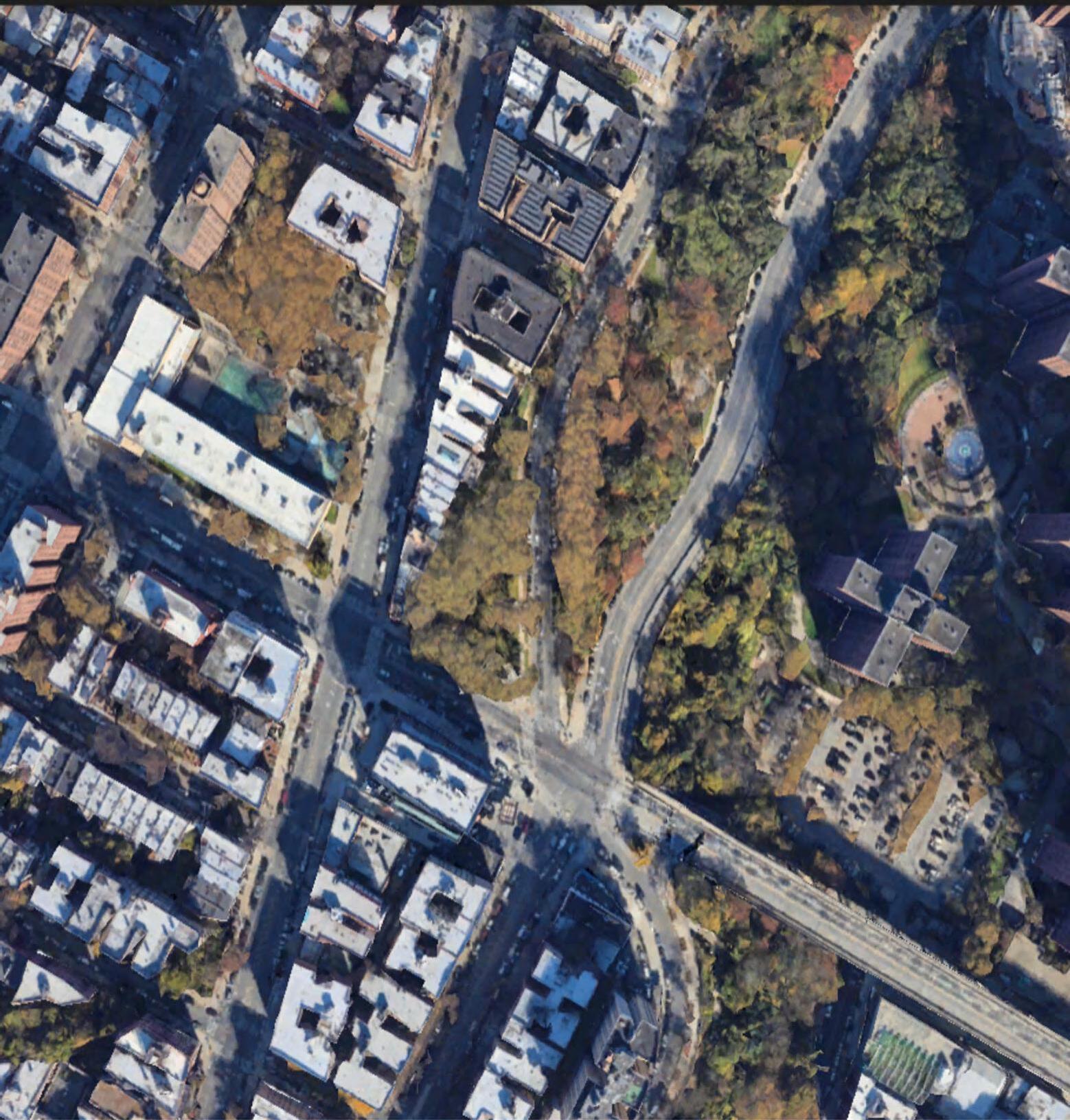

Dimensions: 133.35’x266.25’ Area: 15,346sf
Zoning district: C2-4
Zoning map: 3b
Block: 2107
Lot: 1
Far: 2
Lot coverage: 80%
Base height: -
Ground Floor: 11,044 Sqft
Second Floor: 10,299 Sqft
Total Floor Area: 21,343 Sqft
Site: 15,346 Sqft
Allowable FAR: 15,346 Sqft x 4.8 = 73,660.6 Sqft - Existing Structure
Total FAR: 73,660.6 Sqft
Site Dimensions: 133.35’x266.25’
Max. Coverage: 15,346 Sqft x 4.8 = 73,660.6 Sqft
Proposed Coverage: 11,044 Sqft 11,044 / 15,346 = x 100% = 71.96% 71.96 % < 80% FAR CALCULATIONS:

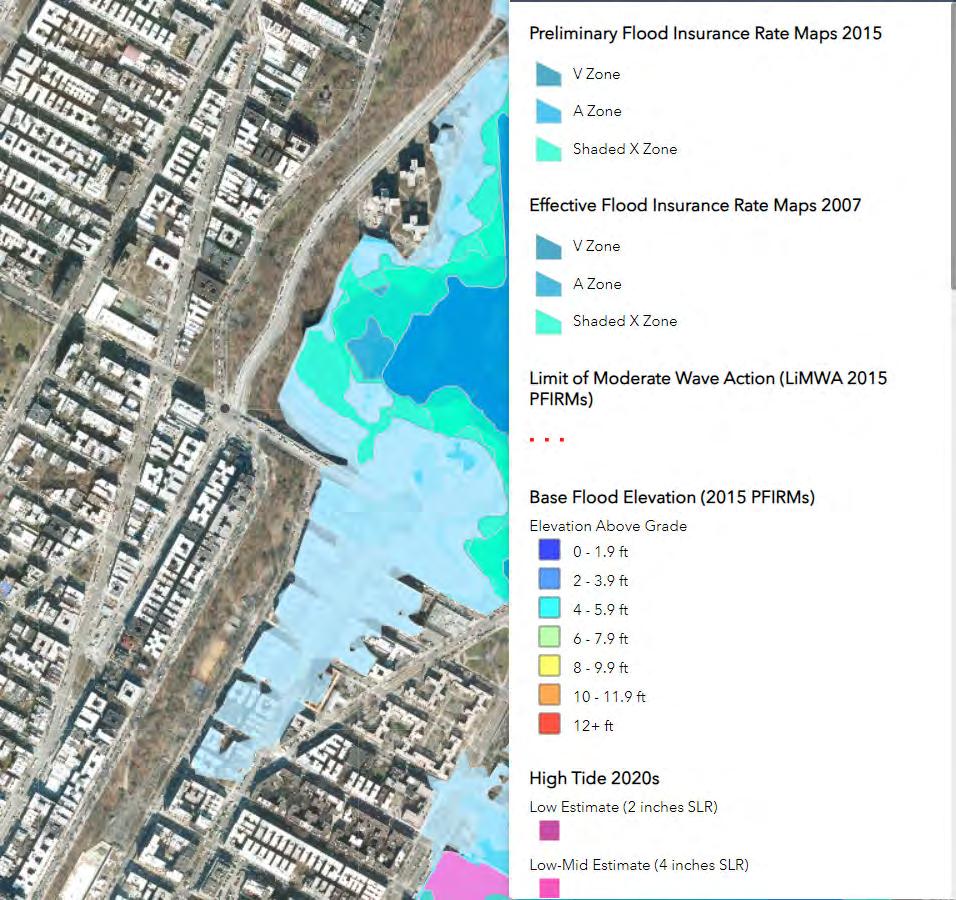

FLOOD ZONE COMPLIANCE The property is in Flood Zone X. The property is not located in a Special Flood Hazard Area. BUILDING AND ZONING INFORMATION
Max height:
Max Building Height from Highets Elevation: 25’ Site: 15,346 SQFT Floor 1: 11,044 SQFT Floor 2: 10,299 SQFT Total: 21,343 SQFT
25’

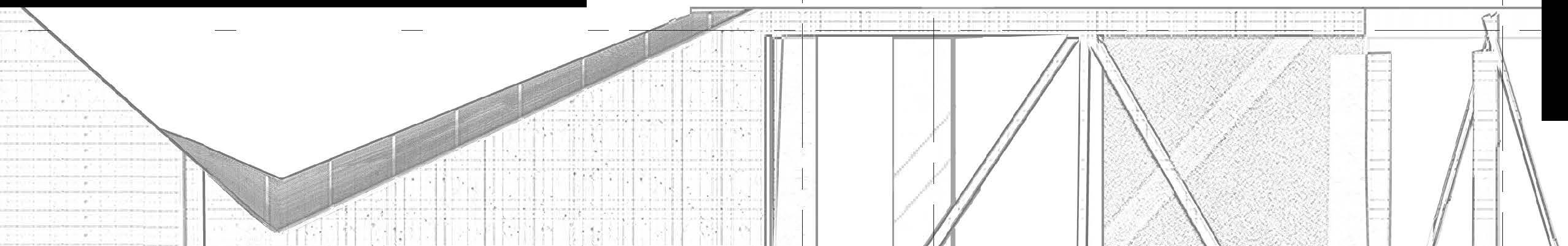

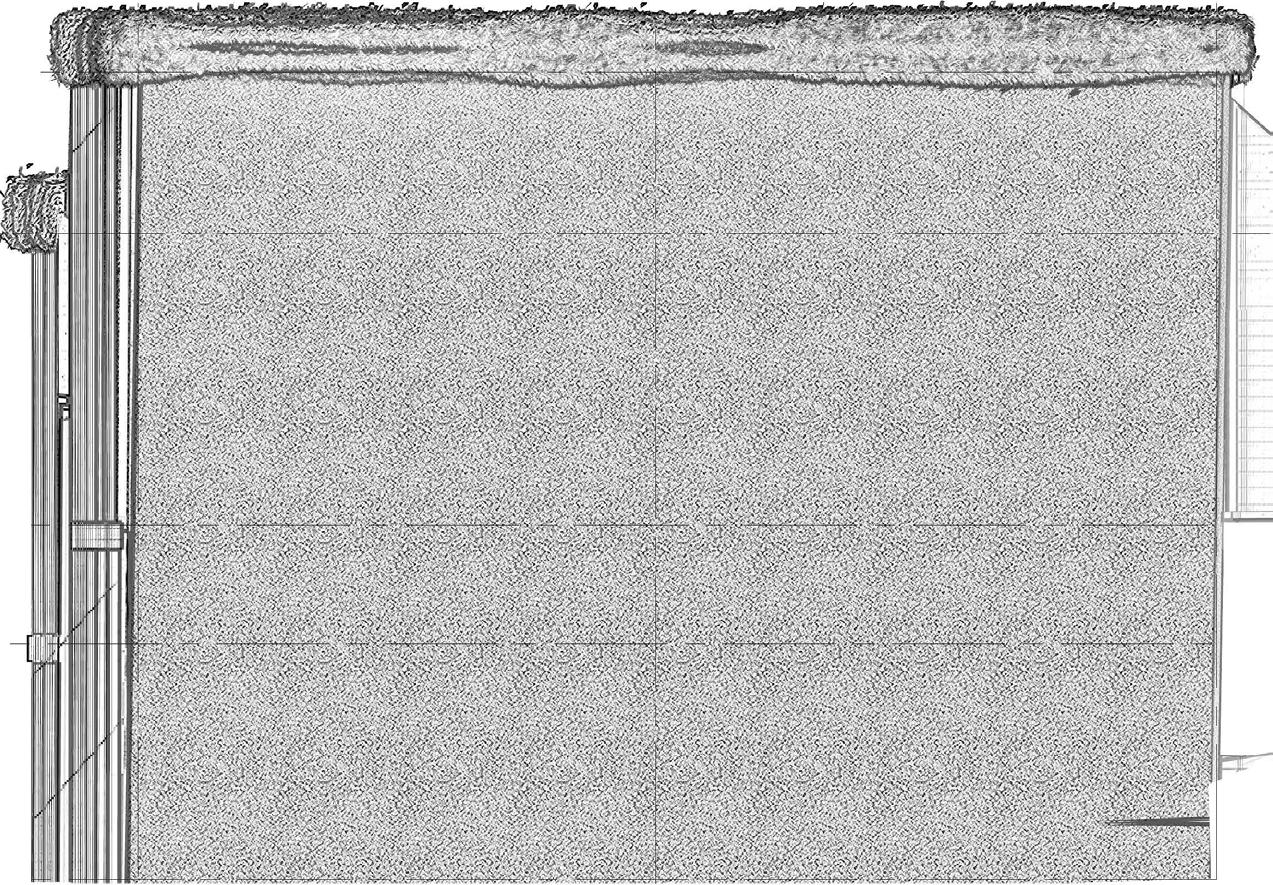

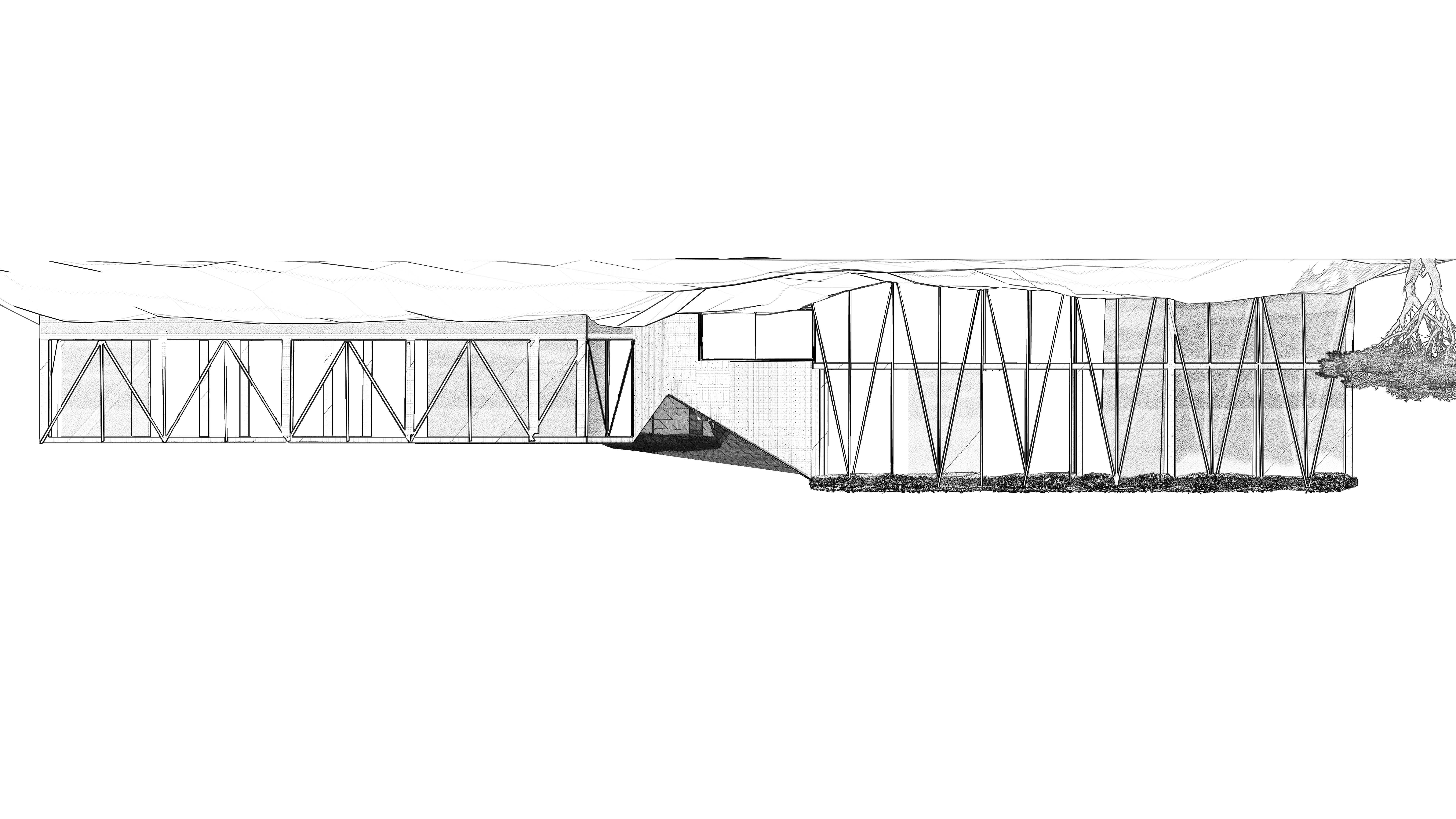

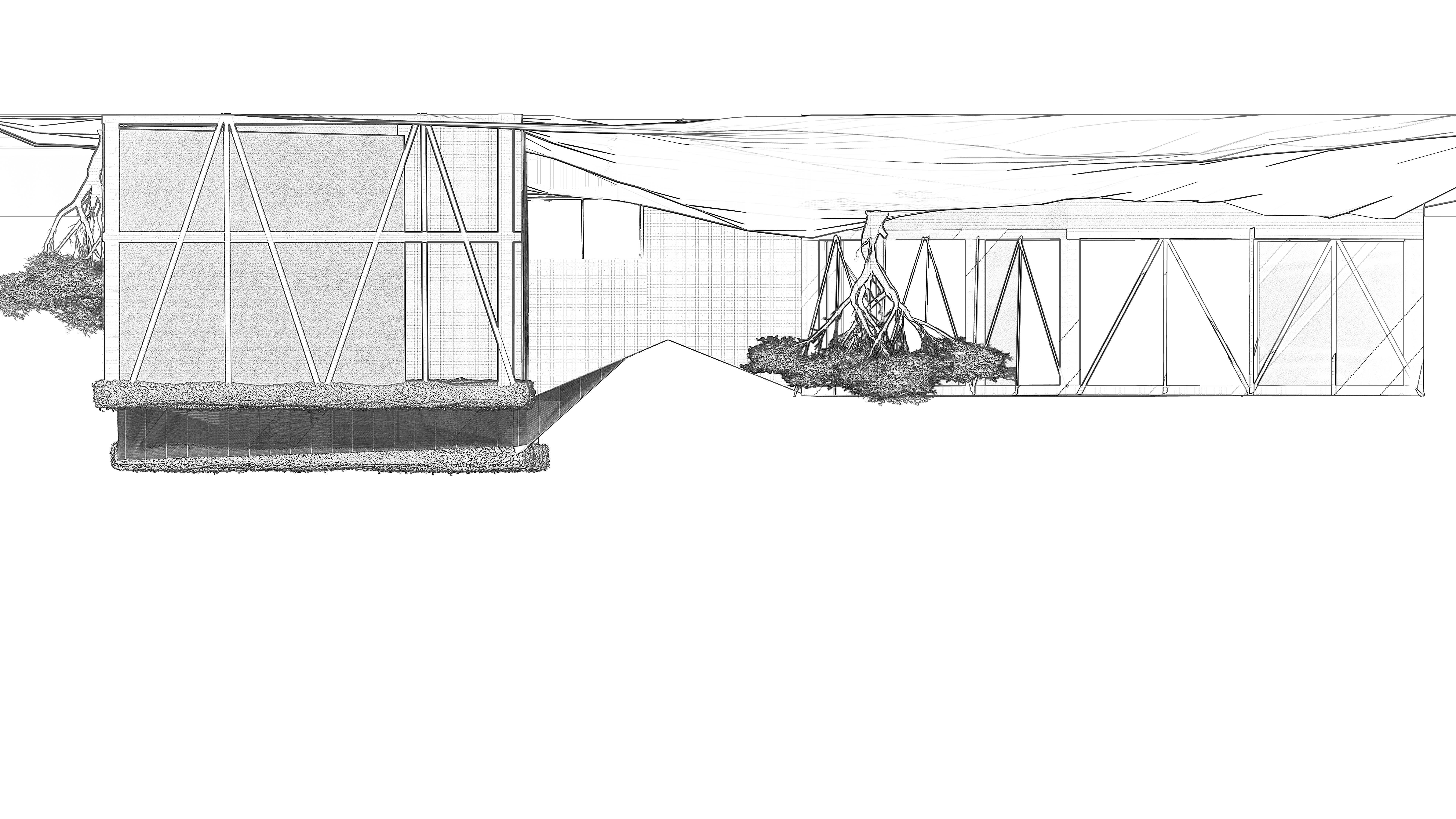

... ROOFB �351-011 �ROOFA ,/ 30-011 LEVEL2 B 17-611 /� LEVEL2A �LEVEL 1 ,/ 01-011 G F E .. .,.... -., . 7 6 /j ::__::;,:/i.:!.,:;t::/1..J:.:�;:,,�:,ak:cJii11:,�hf 5 4 3 2 1 L 1( N Habiba Elnagdy 25 EAST 13TH STREET, E200 NEW YORK, NEW YORK 10003 T 434 824 0614 https://issuu.com/habibaelnagdy THE NE\N SCHOOL PARSONS Fall 2023 SCEM.Arch Comprehensive Studio Head Professor: Hayes Slade Adjacent Professors: David Leven ChristopherMcVoy ARUP Structural Engineer: Kion Nemati Code/Life Safety Consultation: Jessica Doermann Daylight and Electric Lighting Engineer: Nathaniel Jones Facade/Envelope Consultation: Joyce Rabbah ThermaVMechcanical Consultation: Nathaniel Jones Acoustics/Audio Visual Consultation: Christopher Pollock IT/Security/Vertical Transportation: Elise lribarne and Ron Ronacher NUMBER: ISSUE/REVISION: PROJECT: The Nexus Library W. 155th Street & EdgecombeAve, New York, NY10023 DRAWING TITLE: SOUTH ELEVATION SEAL: DATE: SCALE: DRAWN: CHECKED: DRAWING: DATE: 12/11/2023 1/8" Habiba Elnagdy HayesSlade A303

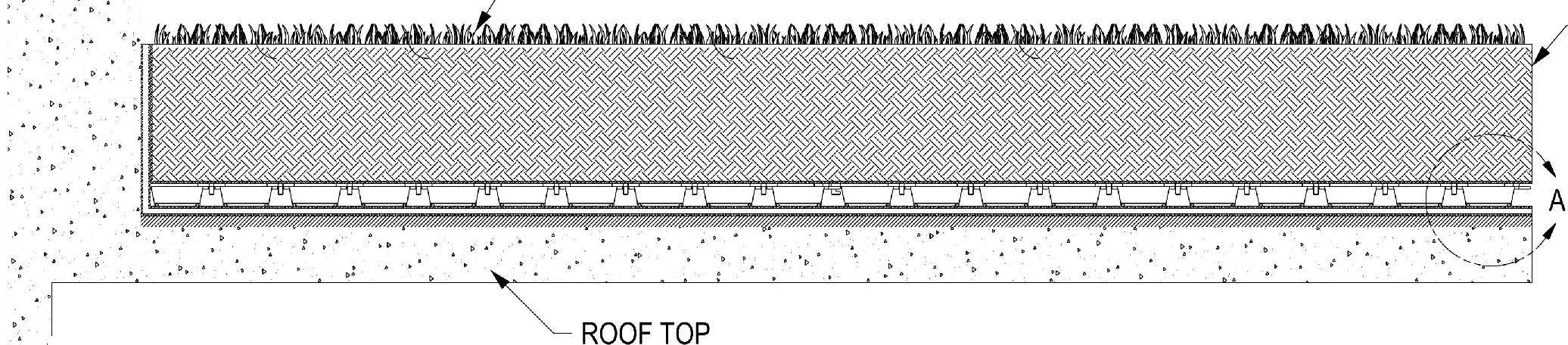

Habiba Elnagdy 25 EAST 13TH STREET, E200 NEW YORK, NEW YORK 10003 T 434 824 0614 https://issuu.com/habibaelnagdy THE NE\N SCHOOL PARSONS Fall 2023 SCEM.Arch Comprehensive Studio Head Professor: Hayes Slade Adjacent Professors: David Leven ChristopherMcVoy ARUP Structural Engineer: Kion Nemati Code/LifeSafetyConsultation: Jessica Doermann Day light and Electric Lighting Engineer: Nathaniel Jones Facade/Envelope Consultation: Joyce Rabbah ThermaVMechcanical Consultation: Nathaniel Jones Acoustics/Audio Visual Consultation: Christopher Pollock IT/Security/Vertical Transportation: Elise lribarne and Ron Ronacher NUMBER: ISSUE/REVISION: PROJECT: The Nexus Library W. 155th Street& EdgecombeAve, New York, NY10023 DRAWING TITLE: EXTERIOR WALL SECTIONS SEAL: DATE: SCALE: DRAWN: CHECKED: DRAWING: OATE: 12/11/2023 Habiba Elnagdy HayesSlade A500 1" PRE-FINISHED BRAKE METAL WRAP THERMAFIBER AND SMOKE SEAL SHAFT WALL CONCRETE CLT SHAFT WALL 3" = 1'-0" SHAFT WALL ASSEMBLY @ 3 PLY CLT - CONC. CURB 3" = 1'-0" CLT FLOOR OVERHANG AT CURTAINWALL 3" = 1'-0" GREEN ROOF DRAINGAGE FOR NATURAL TURF WOOD PLANKING SAND ROOT ZONE MIX NATURAL TURF
Acoustics Calculations
