INFINITY® TECHNOLOGY

INFINITY TECHNOLOGY FOR EXTREMELY LONG LIGHTING RUNS

TECHNOLOGY FOR EXTREMELY LONG LIGHTING RUNS

270 Park Avenue, Image © DBOX for Foster + Partners

380 V DC GRID

Svindersvik Bridge | Nacka, Sweden

02 THE CHALLENGE

THE ORIGIN OF INFINITY® TECHNOLOGY

The story of INFINITY® technology started in 2010 when GVA Lighting was approached with an unusual request to help delineate the tallest office building in Canada, standing 298 meters (978 feet) tall. The project had strict requirements and limitations placed.

The architect required: • No penetrations into the building • No unnecessary lengthy wiring on the facade of the building And luminaires had to be: • Industry-leading in surface brightness • Small with a clean aesthetic • Color-changing • Highly reliable • Reasonably priced

03 DELIBERATION

THE BRAINWORK BEHIND THE TECHNOLOGY Our analysis, experiments, and extensive engineering brainstorming revealed the following: • 18 mid-power LEDs per 300 mm (1 ft) module with a maximum power consumption of 5 W per module creates desirable luminance and uniformity • Low voltage design is not applicable; at 5 W per 300 mm (1 ft), Class 2 circuits can only power 6 linear meters (20 ft) of lighting, and Class 1 with a reasonable cable gauge - up to 30 meters (100 ft).

Large electrical load with low voltage power requires a large gauge wire and cables to handle high current and to minimize voltage drop Fixtures with built-in AC/DC power supplies are close to the solution; however: • They all have lifetime limitations due to temperaturesensitive electrolytic capacitors • Physical dimensions are larger than desired • Length is still limited to approximately 92 meters (300 ft) The luminaire components luminaire size: • Cable • Connectors • Inductors • Electrolytic capacitors

will

determine

the

The Conclusions we made: •

To meet size requirements, cable diameter should be 7~9 mm (0.35 in) or smaller

•

To avoid excessive cabling we must transfer the current through the modules (through-wiring)

•

The light source must be modular and completely environmentally protected

•

A centralized remote power supply is ideal for system reliability and maintenance

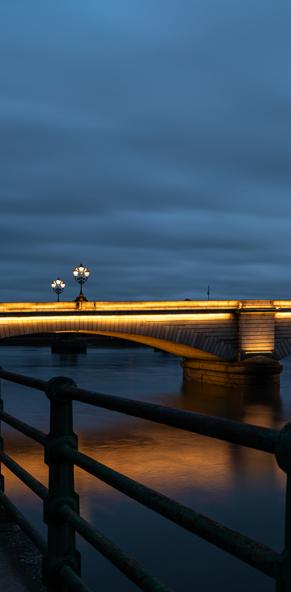

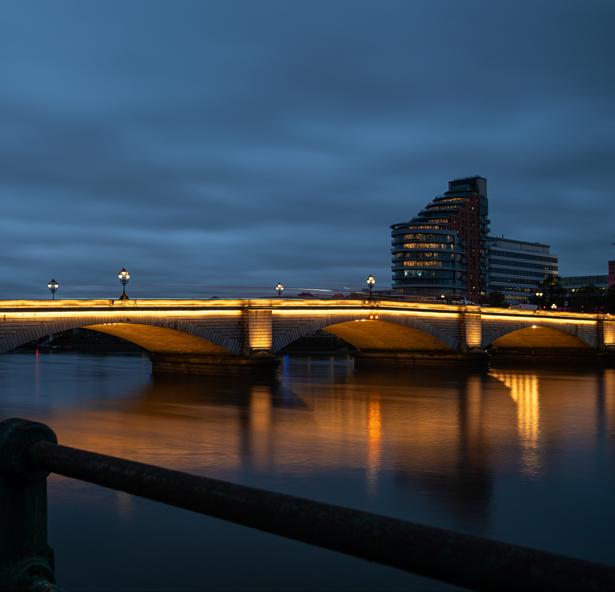

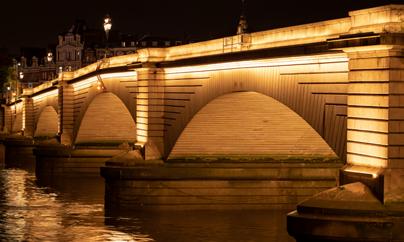

Putney Bridge, London | England

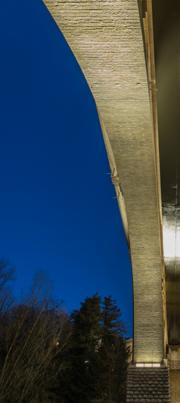

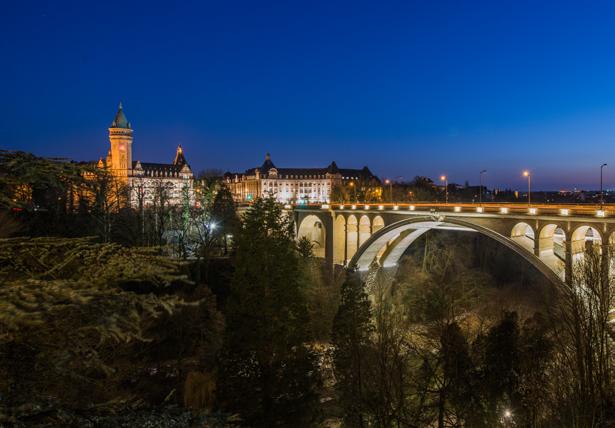

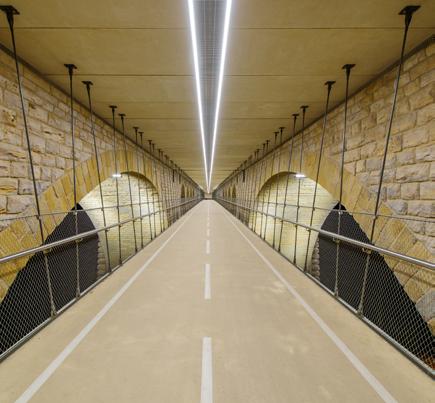

Pont Adolphe | Luxembourg City, Luxembourg

06 THE FORMULA

THE RESULT ATTRIBUTED TO INFINITY® TECHNOLOGY THE INFINITY® FORMULA = OHM'S LAW

CONSTANT POWER

A simple formula for success emerged.

1. To keep the luminaire small, we had to reduce the current to keep the connectors and cables small !

2. Since the brightness (total wattage) could not be reduced we had to increase the voltage !

The industry's psychological barrier regarding traditional line voltage (120 V AC in North America, 230 V AC in Europe) limits the ability to achieve much-desired long run lengths.

Concluding that the system voltage has to be higher than standard line voltage, it was determined that a range between 250 V and 600 V is most suitable; this is within the Low Voltage limits of both North America (600 V AC or DC) and Europe (1000 V AC or 1500 V DC by Low Voltage Directive and IEC standard).

VOLTAGE

CURRENT

Complete DC systems avoid bulky AC components AND achieve better electrical and optical parameters.

4. 380 V DC was selected !

It is the sweet spot •

Within IEC standards, CEC & NEC for Low Voltage Classification Provides a simple and effective design of AC/DC boost converters because the selected DC voltage is higher than the peak AC voltage (186 V in North America and 354 V in Europe) Within the standard voltage rating of commonly used electronic components, which are readily available & have a reasonable cost The voltage of choice for new Data Centers and Microgrids by Emerge Alliance

•

•

•

3. Voltage should be DC, not AC !

Since many line voltage luminaires feature built-in AC/DC power supplies with bulky inductors and capacitors, they cannot maintain the small size required.

More advanced line voltage luminaires feature ‘compact AC drivers’ which do not require large transformers or electrolytic capacitors; however, these lumianires still have limitations. These systems are prone to high flicker index and THD and they have difficulty with high speed control.

INFINITY® = TECHNOLOGY = APPLY HIGHER VOLTAGE+DIRECT CURRENT TO ACHIEVE: • • • •

long lighting circuits increase system reliability minimize lighting equipment dimensions huge savings on wiring and installation

07 THE CHALLENGE

THE ACHEIVEMENT OF INFINITY® TECHNOLOGY We achieved: • • • • • • • • •

Long lighting circuits of 300+ meters (1000+ feet) can be fed from a single power and data input point Compact luminaire size by eliminating bulky capacitors required for AC/DC converters Small cables and connectors resulting in small form factor Increased fixture reliability and lifespan by eliminating temperature sensitive electrolytic capacitors (typically rated for 4,000 hours @ 80°C) Compatibility with renewable energy sources such as solar and wind Energy saving by eliminating AC/DC conversion, which typically represents 10~15% of system losses Ideal Power Factor 1.0 or 0.99 for AC/DC source Lower system cost with fewer, higher-wattage power supplies Lower system cost with savings on cabling and connections with through-wiring design

The Problem was solved! We can build very long lighting circuits fed from a single power and data input point.1

TRADITIONAL LIGHTING POWER DISTRIBUTION

INFINITY® TECHNOLOGY

Now INFINITY goes even longer with a new record of 600+ meters (2000+ feet).

NEW RECORD

2010

2023

1. Some restrictions apply. Consult factory for maximum run length for your application.

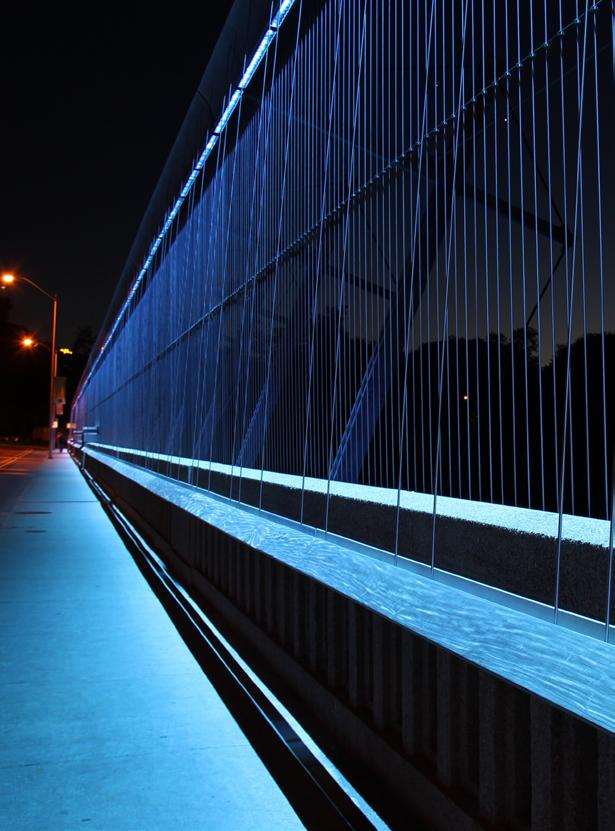

Prince Edward Viaduct | Toronto, Canada

TECHNOLOGY FOR LARGE SCALE PROJECTS

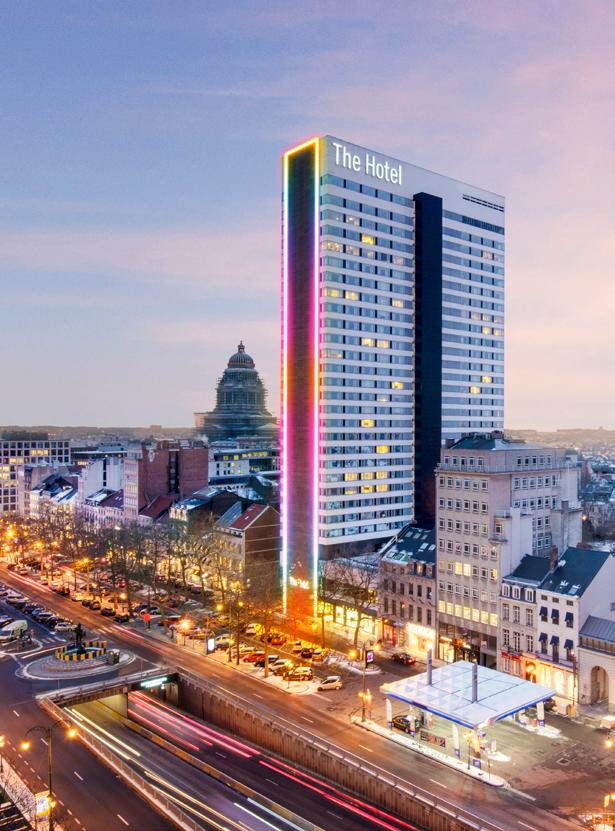

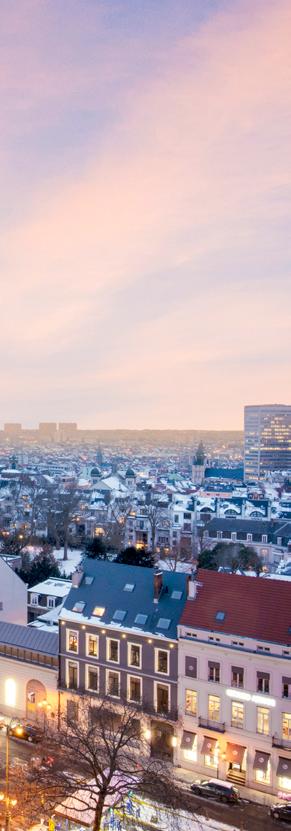

The Hotel Bruxelles | Brussels, Belgium

10 THE APPLICATIONS

APPLICATIONS PERFORMED

BY INFINITY® TECHNOLOGY • • • • •

Architectural delineation of skyscrapers Illumination of long bridges Lighting for long coves in airports, shopping malls, art centers, and casinos Wall washing and wall grazing of long facades Illumination of modern data centers (technology is moving from 48 V DC to 380 V DC)

As a member of the EMerge Alliance, GVA Lighting strives toward leading the rapid adoption of safe DC power distribution into commercial buildings through the EMerge Alliance Standards.

11 MAX RUN LENGTHS

MAXIMUM RECOMMENDED LIGHTING CIRCUIT LENGTH IN METERS/FEET HL-GEN4-MONOCHROMATIC Maximum circuit length, in meters, with 300 mm increments, per pixel resolution, per desirable refresh rate, per LED module's wattage, and per input voltage. Calculated for 100 meters of total leader or jumper cable length. The below numbers represent linear meters of fixtures.

PIXEL RESOLUTION

REFRESH RATE

INFINITY INPUT 380 V DC 2W

2.5 W

3W

5W

6841

5471

4561

2731

6841

5471

4561

2731

6002

5471

4561

2731

6841

5471

4561

2731

6002

5471

4561

2731

R75

3002

3002

3002

2731

R300

6002

5471

4561

2731

3002

3002

3002

2731

1502

1502

1502

1502

R300 R150

30 Hz

R75 R300 R150

R150

60 Hz

120 Hz

R75

HL-GEN4-MONOCHROMATIC Maximum circuit length, in feet, with 1 ft increments per pixel resolution, per desirable refresh rate, per LED module’s wattage and per input voltage. Calculated for 329 ft of total leader or jumper cable length. The below numbers represent linear feet of fixtures.

PIXEL RESOLUTION

REFRESH RATE

R300

INFINITY INPUT 380 V DC 2W

2.5 W

3W

5W

1

1,795

1

1,500

1

9001

2,2441

1,7951

1,5001

9001

R75

1,9682

1,7951

1,5001

9001

R300

2,2441

1,7951

1,5001

9001

R150

1,9682

1,7951

1,5001

9001

R75

9842

9842

9842

9001

R300

1,9682

1,7951

1,5001

9001

9842

9842

9842

9001

4922

4922

4922

4922

R150

2,244 30 Hz

1 - Limited by Power | 2 - Limited 60 Hz by Refresh Rate

R150 R75

120 Hz

1. Limited by Power | 2. Limited by Refresh Rate

12 TYPICAL SYSTEM DIAGRAM

INFINITY® SYSTEM DIAGRAM OPTIONAL CONTROL SYSTEM (INDOOR/OUTDOOR) PS-INF-SYSTEM (INDOOR/OUTDOOR) PDC-GEN5

LEADER CABLE 100 M/328 FT MAXIMUM

INFINITY LUMINAIRES MONOCHROMATIC - 2,280 COLOR-CHANGING - 2,000 DYNAMIC WHITE - 1,117

PS-INF-SYSTEM (INDOOR/OUTDOOR) OPTIONAL CONTROL SYSTEM (INDOOR/OUTDOOR) LEADER CABLE 100 M/ 328 FT MAXIMUM JUMPER CABLE 100 M/ 328 FT MAXIMUM PDC-GEN5

INFINITY LUMINAIRES MONOCHROMATIC - 2,280 COLOR-CHANGING - 2,000 DYNAMIC WHITE - 1,117

13 PRODUCTS

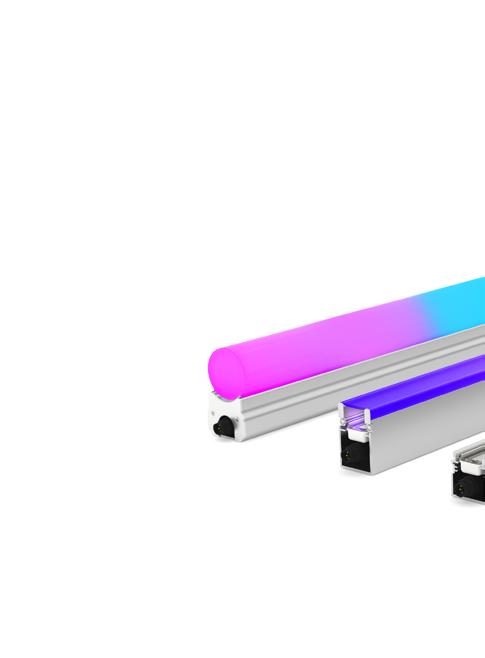

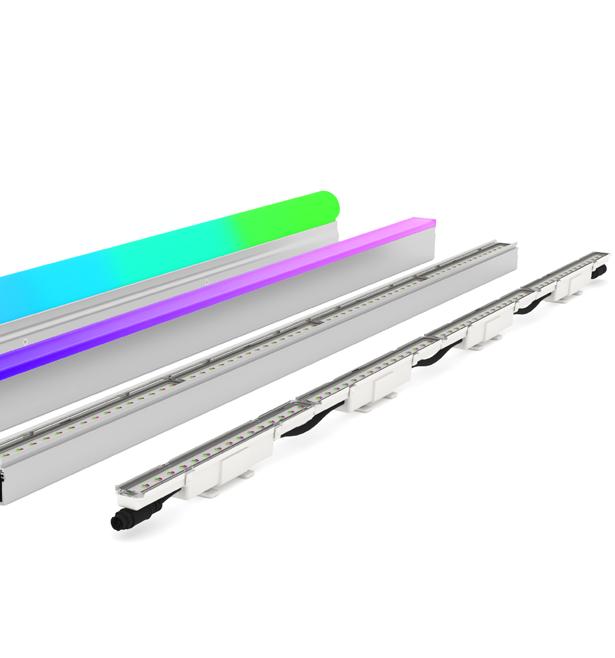

HIGHLIGHTER® GEN4 SERIES MODULAR DELINEATION AND COVE LED LIGHTING The Highlighter® product family is designed to highlight the exceptional character of large-scale architectural structures and spaces, such as skyscrapers, bridges, airports, or shopping malls. This high-performance modular system gives designers the freedom to achieve their vision by removing technical limitations thanks to the incorporated GVA's proprietary avant-garde engineering technologies.

INFINITY® enables extremely long lighting circuits (up to 684 meters or 2,244 feet) from a single power-data source.

COLOR-AMP®, GVA's award-winning technology, maximizes the light output of color-changing and dynamic white fixtures.

COLOR-STREAM®, the latest innovation, allows exceptionally fast communication and high resolution with liquid-smooth dimming and transitions.

MONOCHROMATIC Pixel resolution down to 75 mm (3”)

COLOR-CHANGING Pixel resolution down to 150 mm (6”)

14 PRODUCTS

HIGHLIGHTER® DL

HIGHLIGHTER® DL NICHE

HIGHLIGHTER® COVE

HIGHLIGHTER® COVE OUTDOOR

15 PRODUCTS

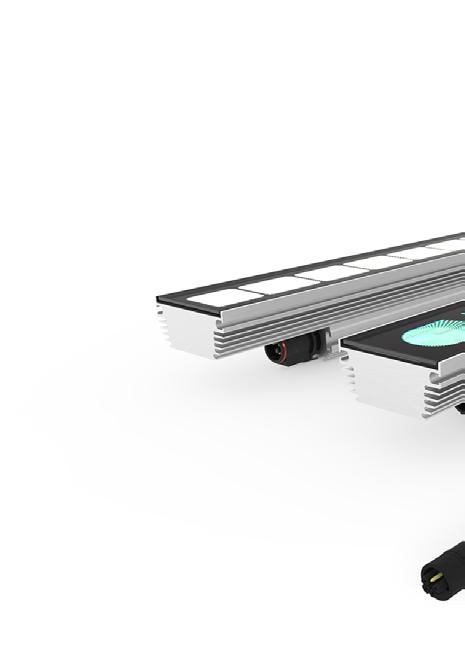

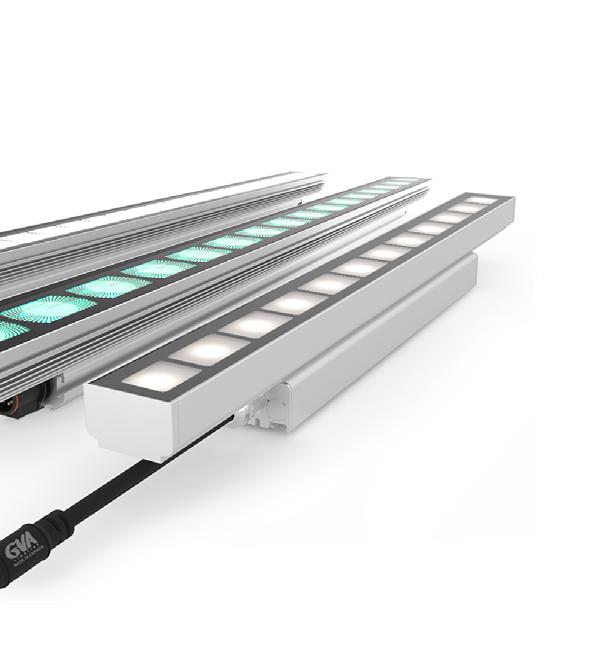

STR9® SERIES

HIGH-POWER WALL WASHING & GRAZING LINEAR LED LIGHTING Available in monochromatic or color-changing RGBW30K, RGBA, or RGB LED options. STR9® Series utilizes GVA's proprietary UNIBODY™ Technology for extremely reliable IP66 and IP67 protection against water ingress.

1. IK06 is standard; IK10 is available upon request

16 PRODUCTS

STR9® MONOCHROMATIC

STR9® COLOR-CHANGING

STR10TM MONOCHROMATIC

STR10TM SERIES STR10TM is the cutting-edge addition to the STR product series. In both Monochromatic and Color Changing configurations, this remarkable architectural wall washing/grazing luminaire is built on the new award-winning COLOR-STREAM® platform. ® Available in INFINITY , AC or ELV input voltages.

17 PRODUCTS

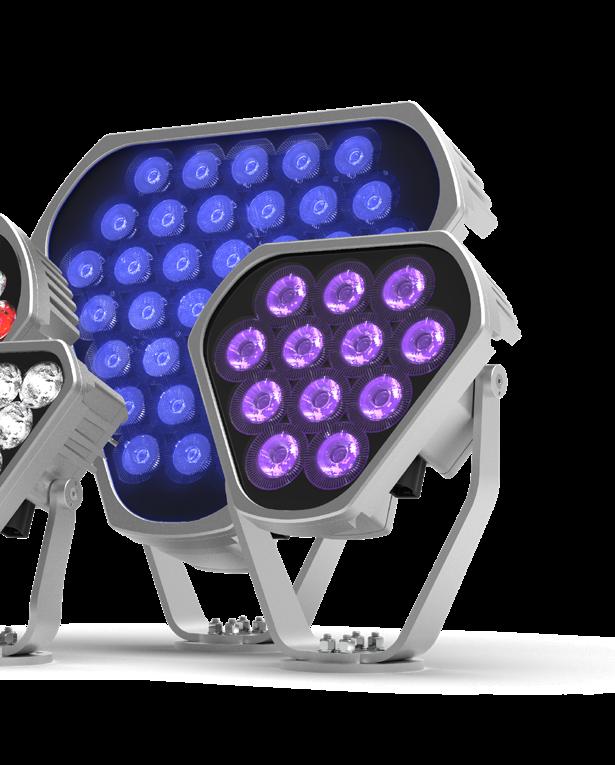

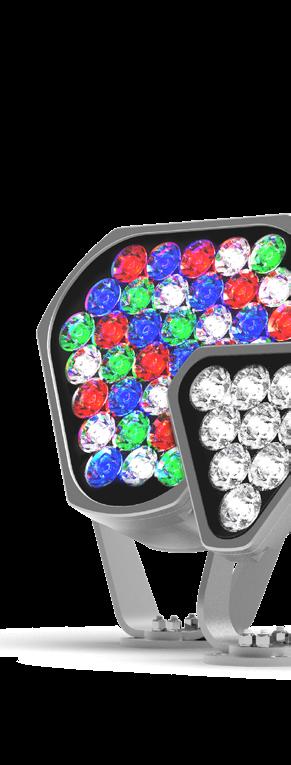

FL™ SERIES

ADVANCED ARCHITECTURAL SPOT & FLOOD LED LIGHT High-performance, specification-grade LED spot & floodlights, available in four power options and sizes significantly lighter and smaller than competing fixtures.

RGBW-IM Red, green, blue, and white 4-in-1 LEDs color mix inside the optic to achieve uniform color directly adjacent to the luminaire, and color-match with STR9® RGBW. RGBW-OM Different colored LEDs mix outside the fixture to achieve color-changing light available in an ultra-narrow 3.2° optical distribution configuration with a greater opportunity to customize LED selection.

FL100-RGBW-OM

18 PRODUCTS FL200-RGBW-IM

FL50-RGBW-IM

FL25-MONO
