ARCH 4341: MAPPING THE CITY
Spring 2023 : Seville, Spain
Brief Exploration of Social housing in Sevillas Neighborhoods

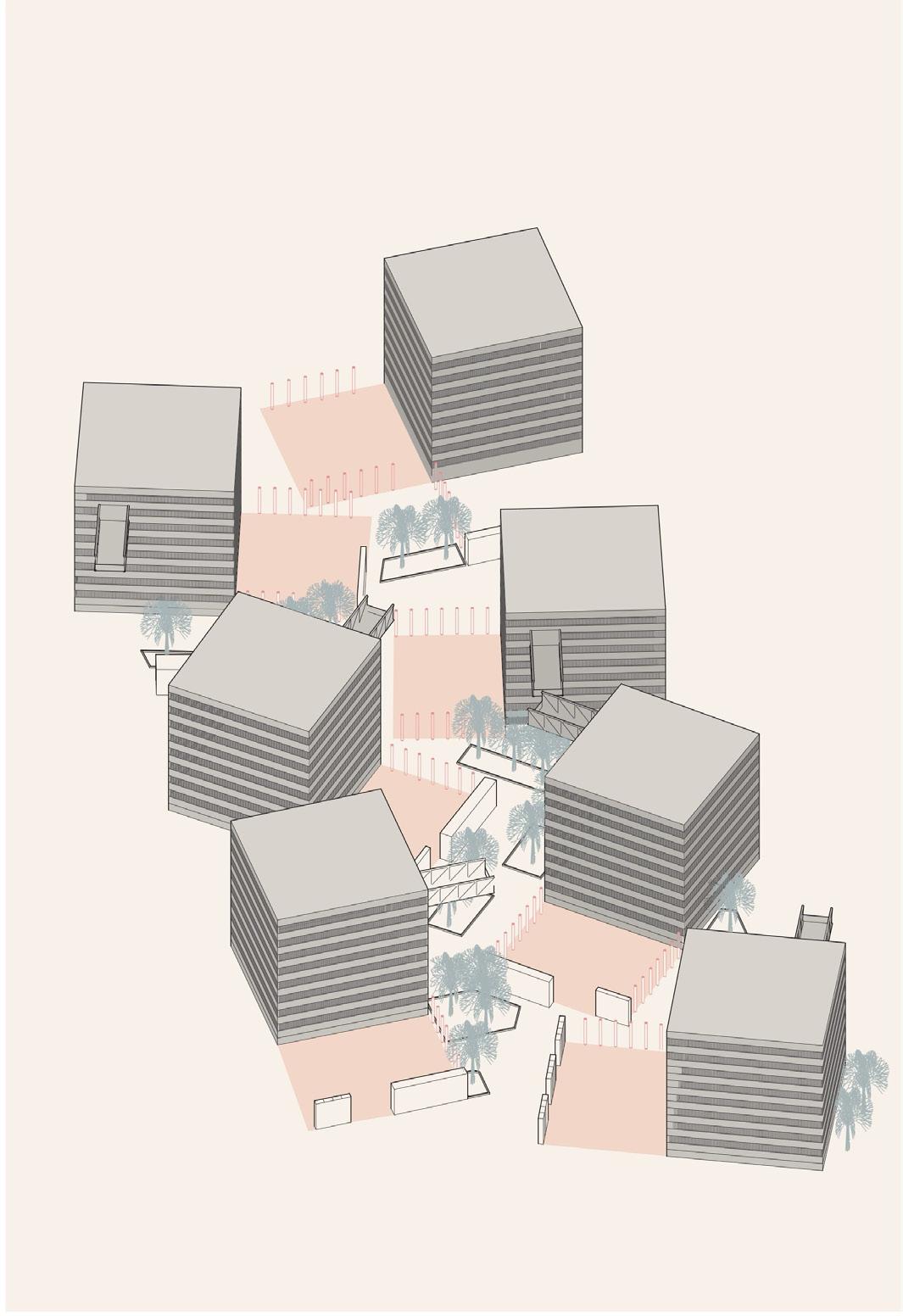

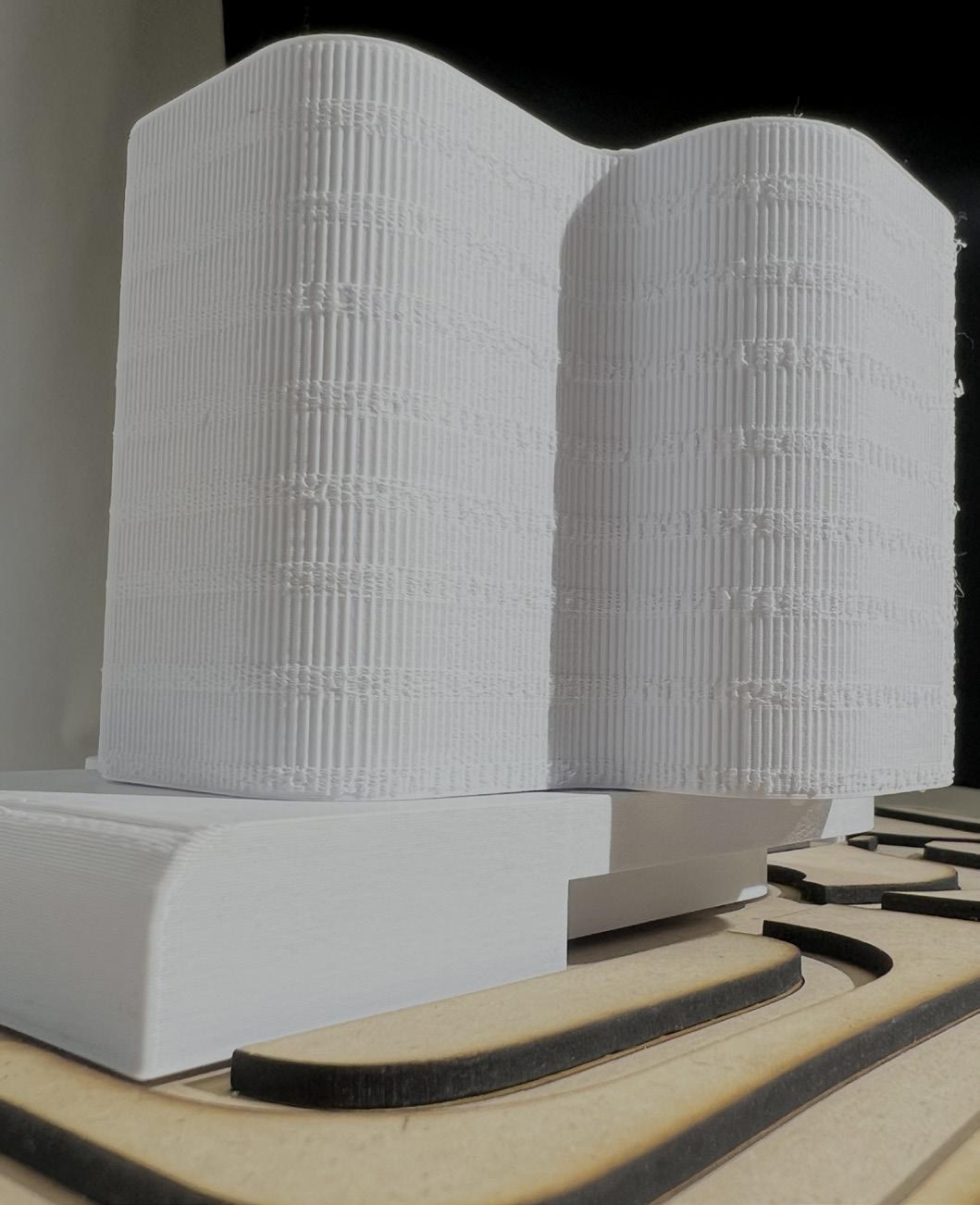

This Project of Sevilla came from a First-Place prize in an anonymous competition for the promotion of social housing in one of the most prominent neighborhoods of Sevilla. Located near the Plaza de Espana, these Apartments are in close quarters with Sevilla’s top tourist attractions along with its University. It resides right next to a student housing apartment which typically tends to be more social due to its student engagement. The proposal for this competition called for the utilization of maximum height. With this in mind, there would be more use of the ground floor, allowing for visual pedestrian permeability and more sunlight to reach the vacant spaces below. Seven towers are arranged randomly on the site, however with the intent to widen the pedestrian paths and allow for visual connections and optimum sunlight. Viviendos Por el Poveneir addresses the different relationships between its environment and its inhabitants.
1
MULTIUSE MANUFACTURING FACILITY
Fall 2024 ARCH 5600, Lubbock, TX
I N D E X
I N D E X
2
MULESHOE WRITER’S RESIDENCE
Spring 2024 ARCH 4601, Muleshoe, TX
3 4
RENOVATION OF THE HUCKABEE COLLEGE OF ARCHITECTURE,
Fall 2023 ARCH 4601 , Lubbock, TX
PROPOSAL FOR PUBLIC MARKET CENTER
Spring 2023 ARCH 3602 , Seville Spain
1 MULTIUSE MANUFACTURING FACILITY
Fall 2024 ARCH 5600, Lubbock, TX
The Nexus Project in Downtown Lubbock is an innovative Architectural endeavor focused on creating dynamic social spaces inspired by Ray Oldenburg’s concept of the “third place.” The program includes micromanufacturing facilities such as a Winery and Roastery production, offering a blend of artisanal craft and community engagement. Additionally, the project features a Business Incubator, closely tied to the local university, providing students with valuable internship experiences. By fostering connections between education, industry, and community, the Nexus Project aims to promote resilience and collaboration within the downtown area. This forward-thinking initiative enhances the urban fabric and supports a vibrant, interconnected community.
1 MULTIUSE MANUFACTURING FACILITY
Fall 2024 ARCH 5600, Lubbock, TX
1 MULTIUSE MANUFACTURING FACILITY
Fall 2024 ARCH 5600, Lubbock, TX

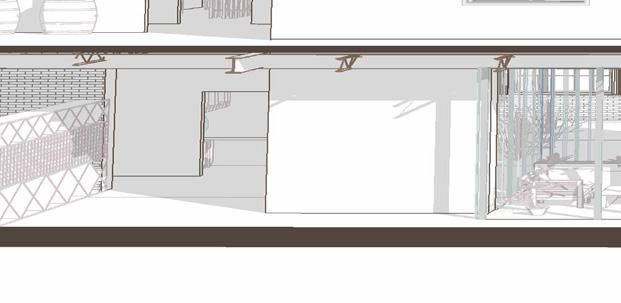

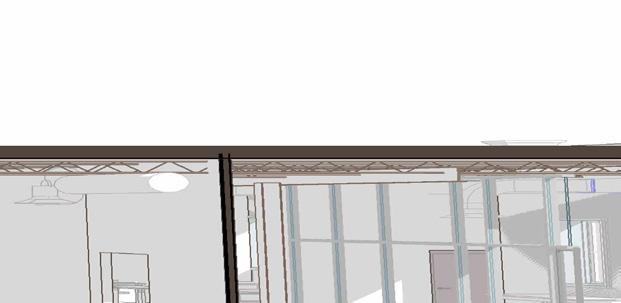

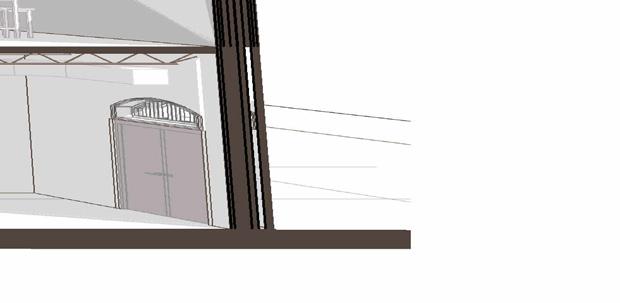

[SECTION PERSPECTIVE + WORKING DETAILS]
Fall 2024 ARCH 5600, Lubbock, TX
[ EXPLODED STRUCTURE AXONOMETRIC + ENVELOPE
Fall 2024 ARCH 5600, Lubbock, TX

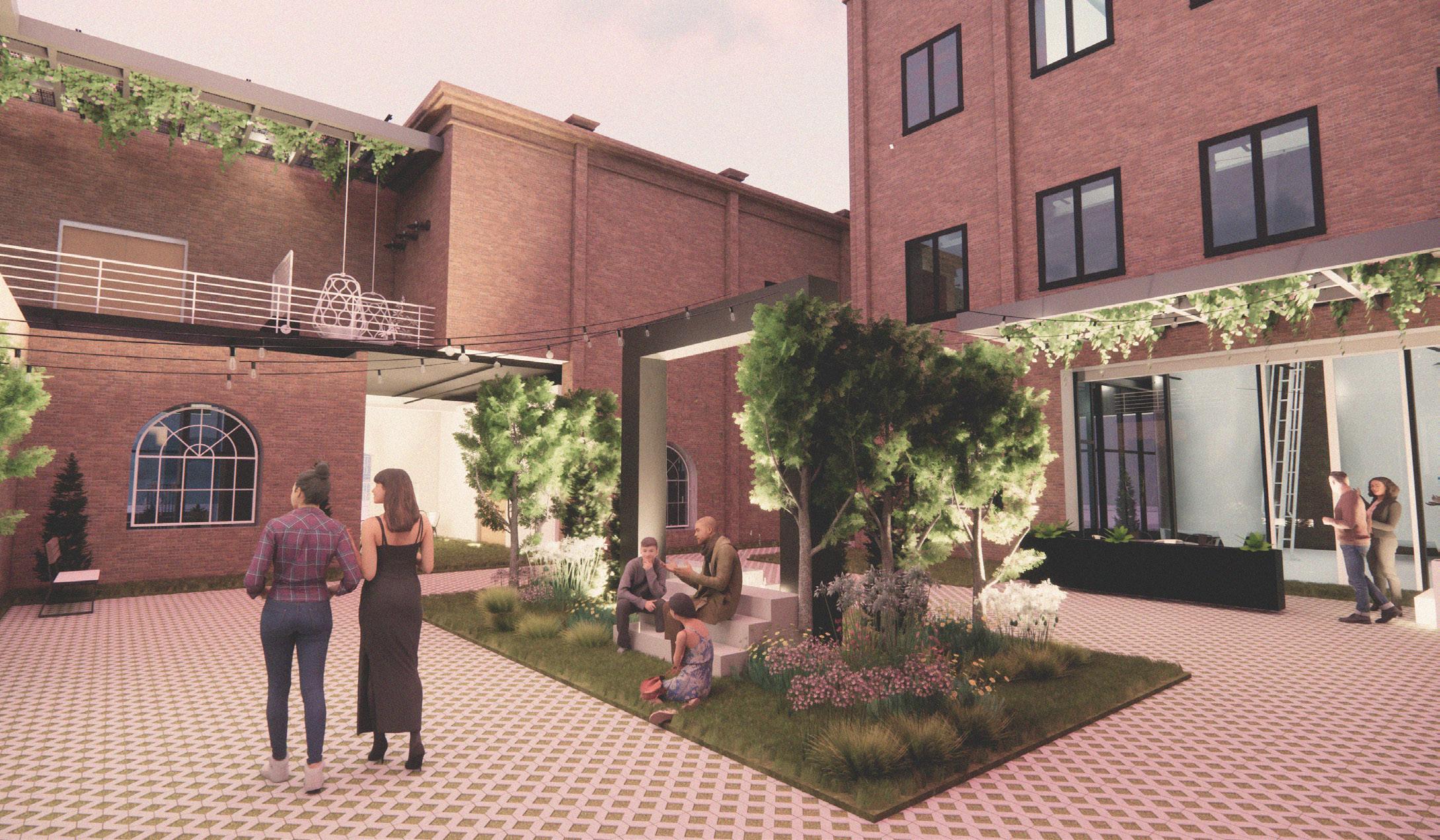

[ FINAL RENDERS FOR WINERY AND ROASTERY PRODUCTION

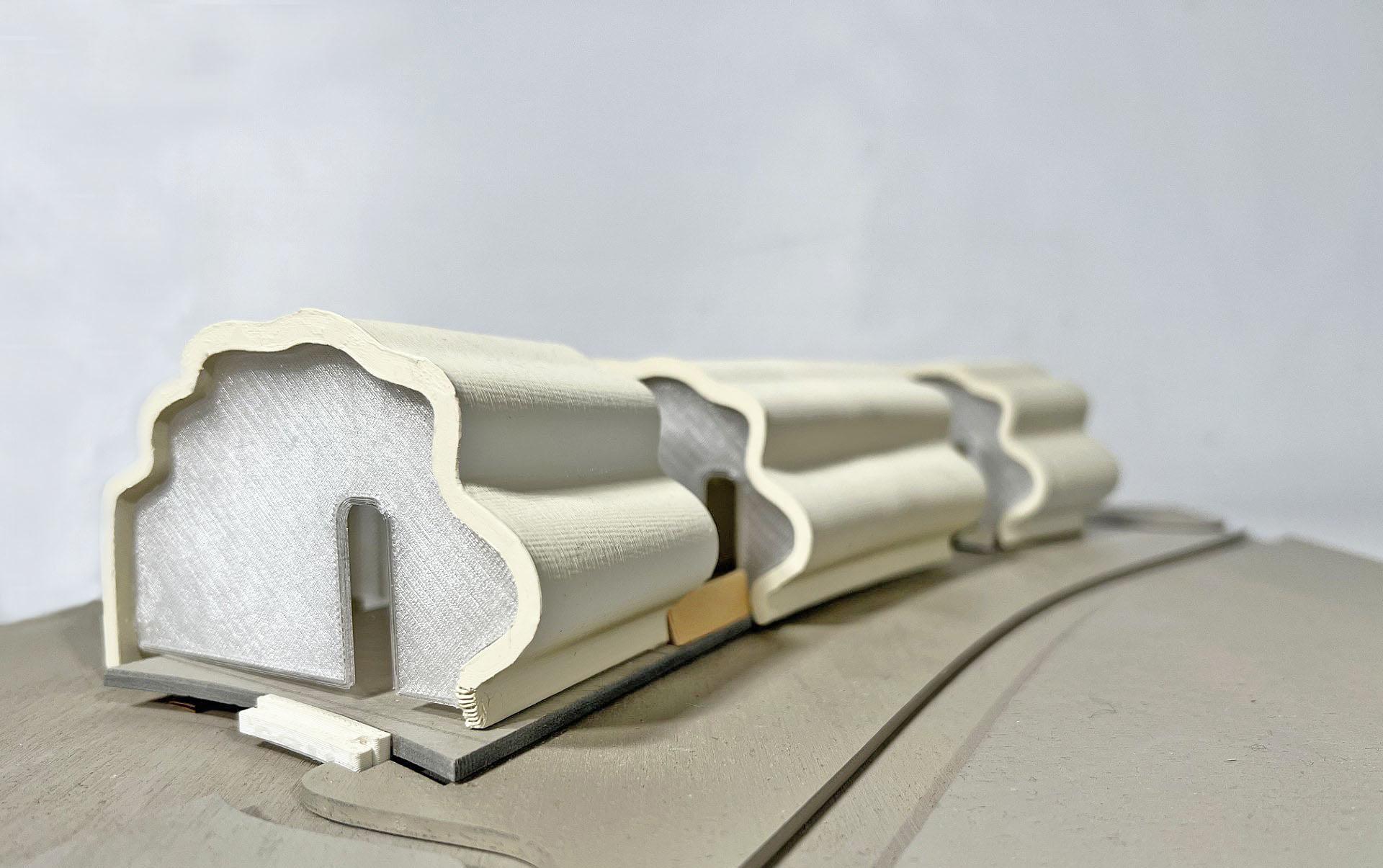

2 MULESHOE WRITER’S RESIDENCE
Spring 2024 ARCH 4601, Muleshoe, TX
The Writers’ Residence in Muleshoe, Texas, is a haven for authors and activists focused on environmental writing. It features three housing units that provide inspiring living spaces. At the core of the community is a shared space with a well-stocked library and a food court offering diverse meals. A dedicated staff, residing on-site, supports the writers’ needs. This project reflects a deep respect for nature and fosters meaningful conversations about environmental issues.
Common Sootywing
Burrowing Owl
Jackrabbit
Fourwing Saltbush
Sand Sage
Prairie Verbena
MULESHOE WRITER’S RESIDENCE
Spring 2024 ARCH 4601, Muleshoe, TX
Muleshoe
Muleshoe
MULESHOE WRITER’S RESIDENCE
Spring 2024 ARCH 4601, Muleshoe, TX
ANNEALED GLASS
Annealed glass is glass produced without internal stresses imparted by heat treatment, i.e., rapid cooling, or by toughening or heat strengthening. Annealed glass is the most common glass used in windows. It is also known as a standard sheet of float glass. The shaped glass is annealed to relieve the stresses caused by bending
FERROCEMENT
Exterior Air Film
Finish Stucco
Water Sealant
Lathe (Wire Mesh)
Rebar
Lathe (Wire Mesh)
Scratch Coat
Finish Stucco
Exterior Air Film
PERFORATED SURFACE DRAIN
A Perforated Surface Drain collects excess water from the ground, preventing waterlogging and potential damage to the house's foundation. By channeling rainwater away from the property, the collected water can be stored and reused for irrigation, promoting water conservation and reducing dependency on freshwater sources.
RENOVATION OF THE HUCKABEE COLLEGE OF ARCHITECTURE,
Fall 2023 ARCH 4601 , Lubbock, TX

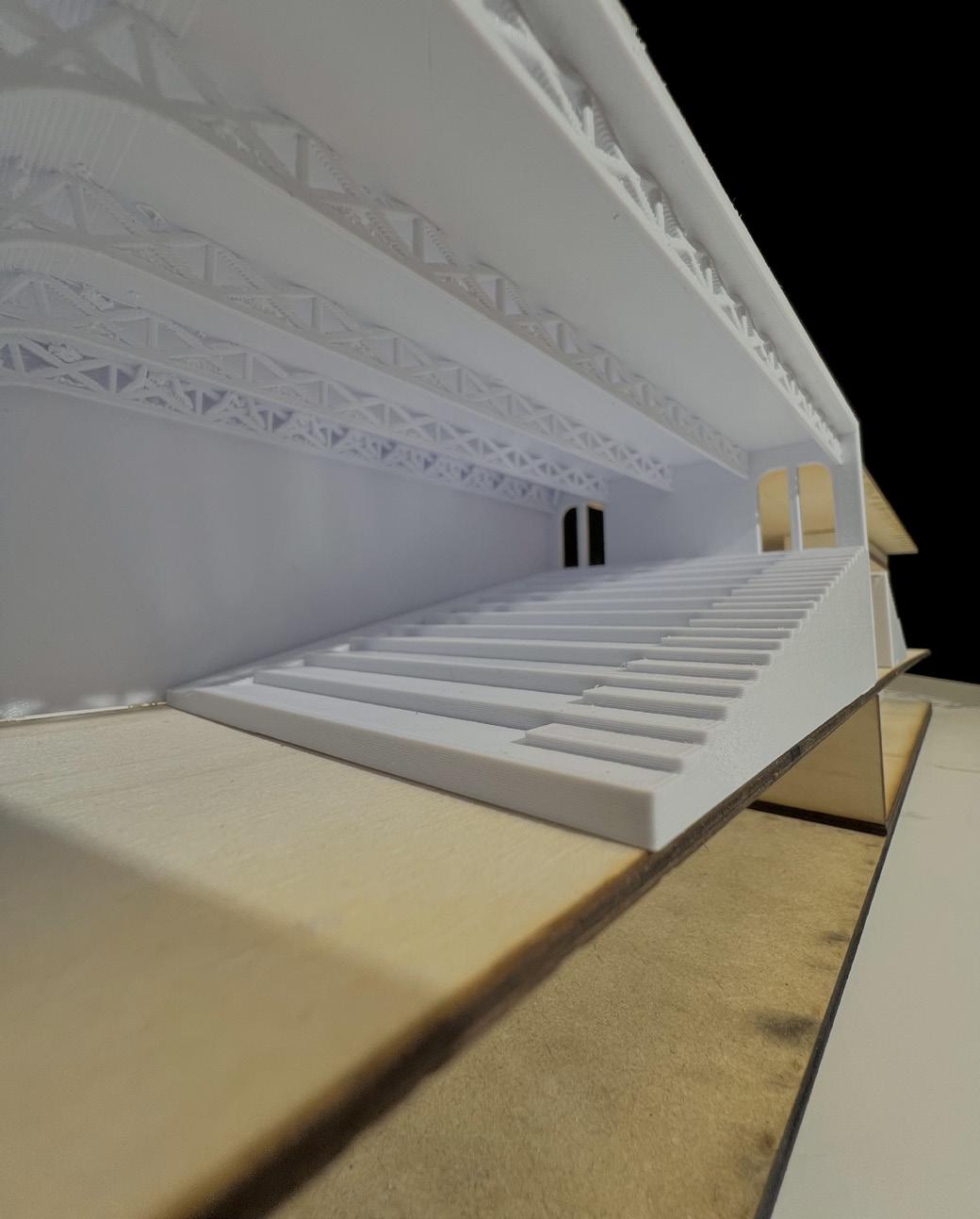

The newly named Huckabee College of Architecture received a generous grant for the underutilized space that is currently in place. Students were encouraged to use this proposal as an opportunity along with new programmatic elements to create an environment best suited for not only design students but its faculty and staff members and occasional visitors as well. The main objective was to apply social elements to reinvent the HCOA’s definition of Studio Culture.
Giselle
RENOVATION
OF THE
HUCKABEE COLLEGE
OF
ARCHITECTURE,
Fall 2023 ARCH 4601 , Lubbock, TX
Giselle
Giselle
Fall 2023 ARCH 4601 , Lubbock, TX

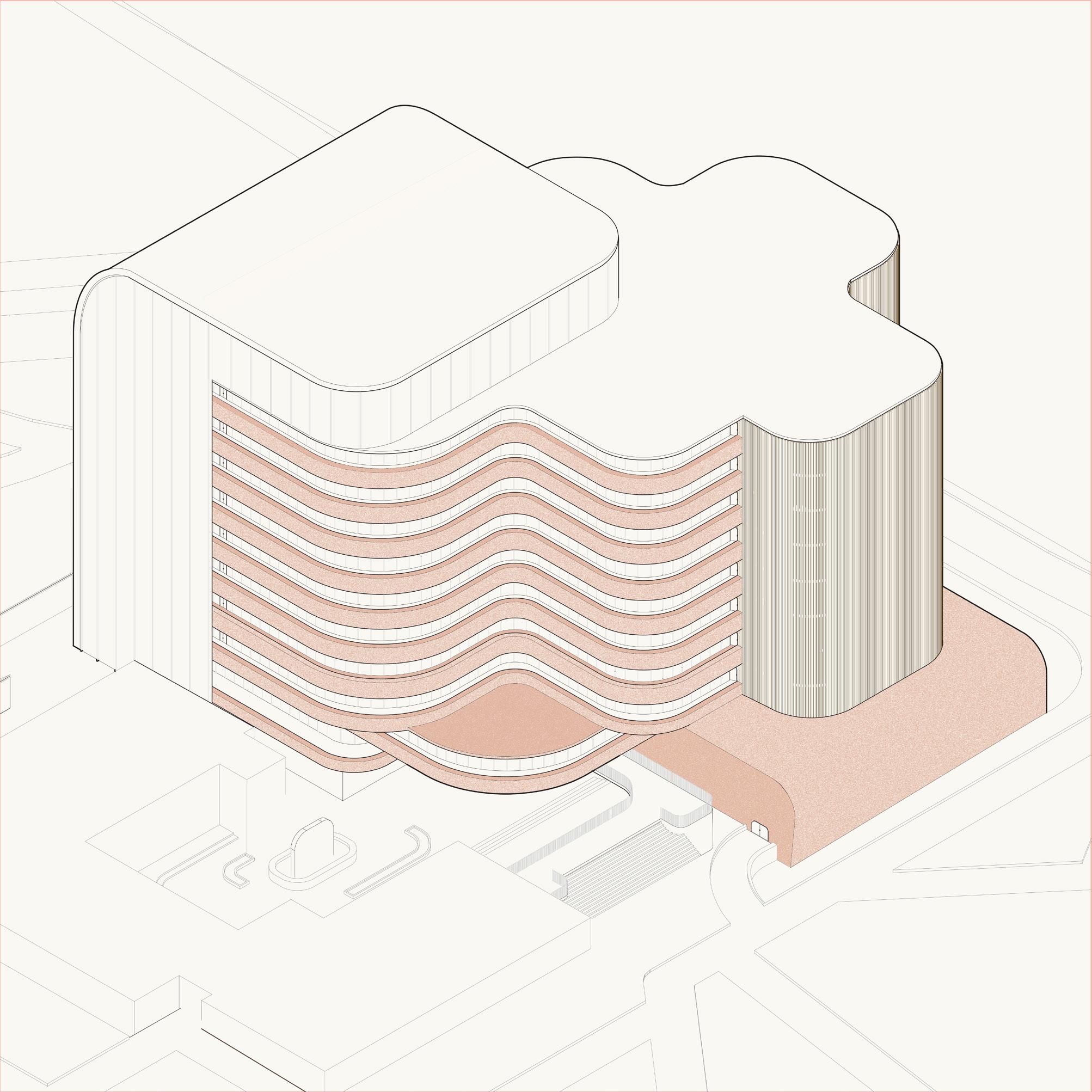

[ ISOMETRIC ILLUSTRATION ]
[ FINAL RENDERS ]

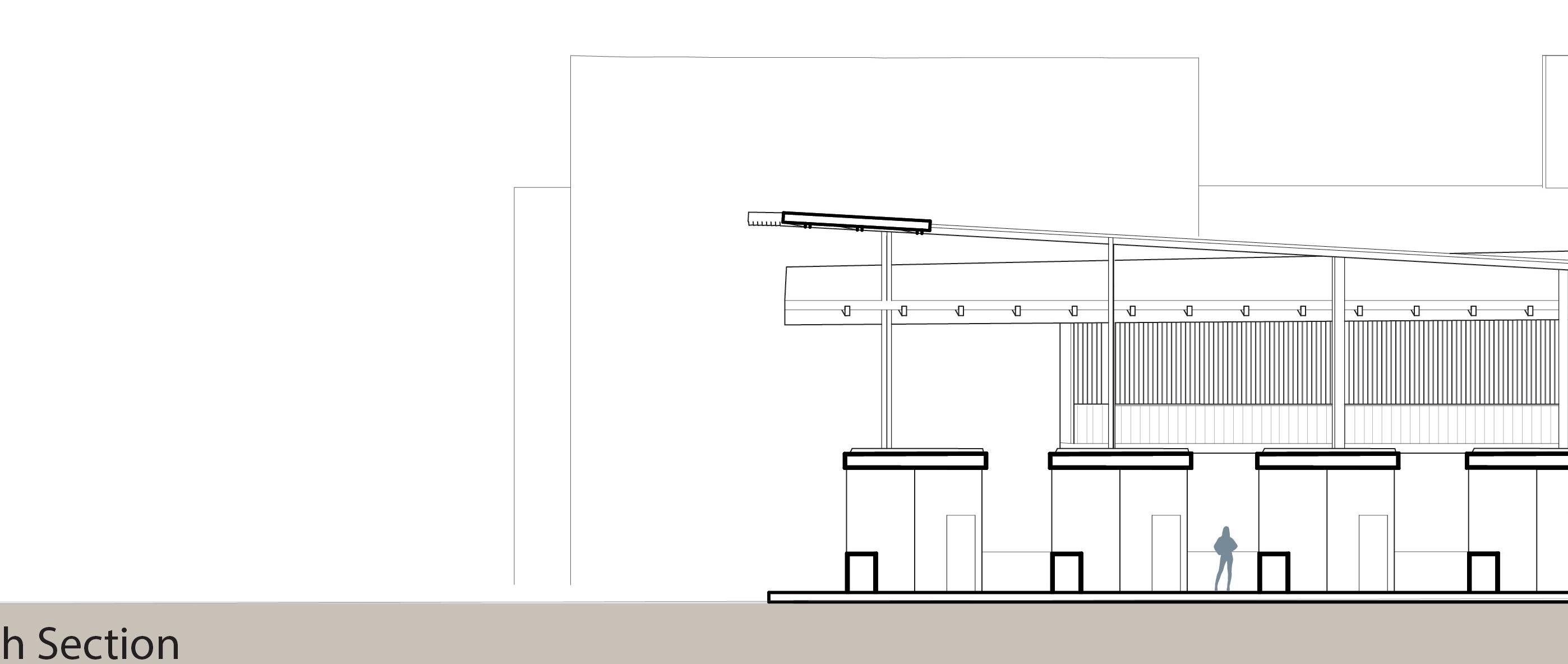

PROPOSAL FOR PUBLIC MARKET CENTER
Spring 2023 ARCH 3602 , Seville Spain
Public Markets are a crucial aspect of City Planning and Urban Design. It encourages locality and accentuates community. After extensive research of international Public Markets and site analysis, students were to propose their market in the city where they currently reside, being in Seville, Spain. The newfound culture, unit differences, and climate conditions were all new elements to consider when designing this proposal all while curating a studio abroad.

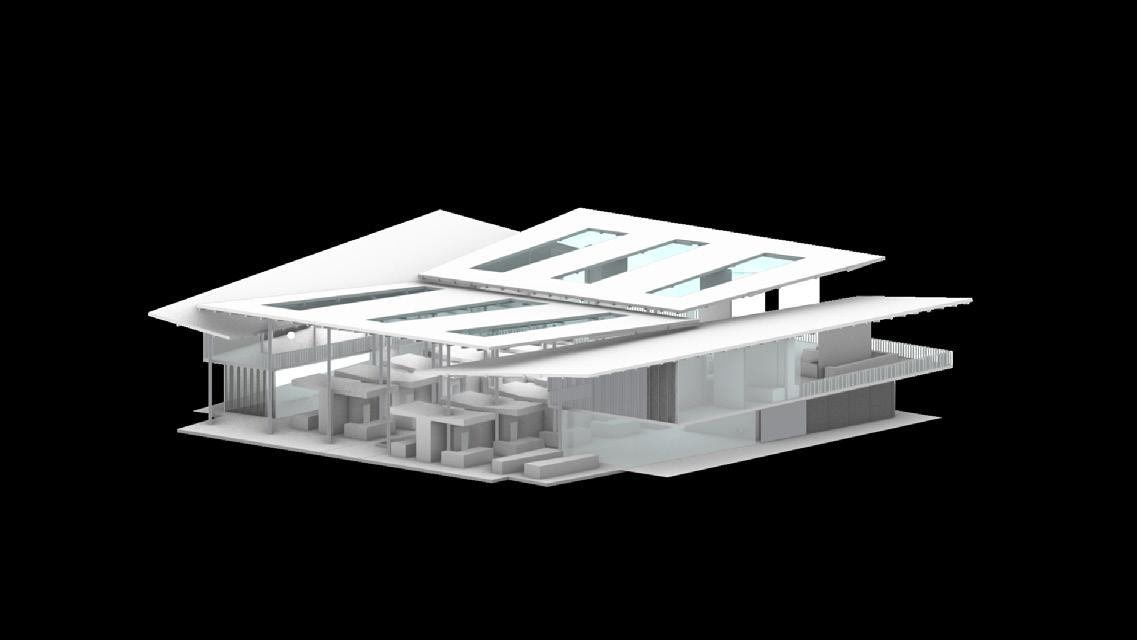

ORGANIZATION OF STRUCTURE
Giselle Herrera
Giselle Herrera
Spring 2023 ARCH 3602 , Seville Spain
EXPLODED AXONOMETRIC ] Herrera
Giselle Herrera
Spring 2023 ARCH 3602 , Seville Spain
