WORKFLOWS
IN THE PREDESIGN PROCESS
A GUANGZHOU CASE STUDY
research

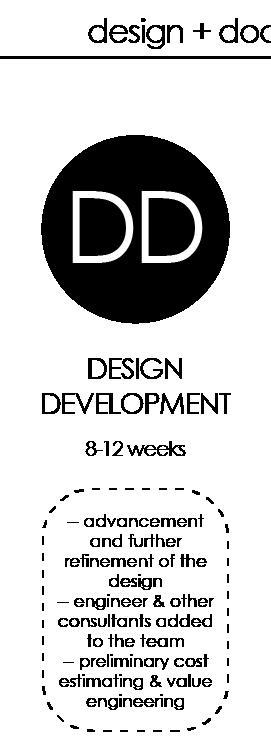

TRADITIONAL DESIGN PROCESS
design + documentation pricing construction
5/1/2024 2
MUD 606: Master’s Research Studio

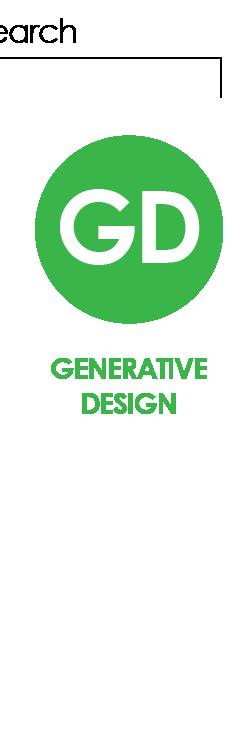

GENERATIVE WORKFLOWS IN THE DESIGN PROCESS
research design + documentation pricing construction
5/1/2024 4
MUD 606: Master’s Research Studio

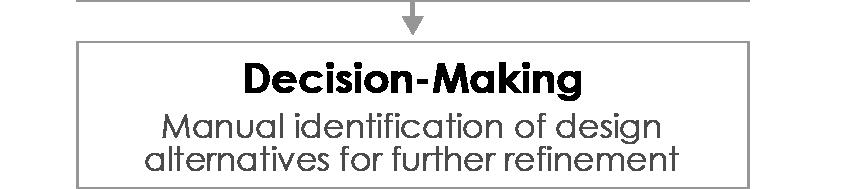

GENERATIVE DESIGN SOLUTION WORKFLOW
5/1/2024 6
MUD 606: Master’s Research Studio
DESIGN PRINCIPLES
CONNECTIVITY
Create connections to enhance current network
RESPONSE
Building, Canopy, Site Design adhere to a set of objectives
EQUITY
Programmable space is defined by the needs of the community
ADAPTATION
Site is able to adapt to a changing environment
5/1/2024 MUD 606: Master's Research Studio 17
+ + +
DESIGN OBJECTIVES
PRIMARY
1. Urban Density (FAR)
2. Green Space Area (GAR)
3. Daylight Potential
4. Construction Cost
SECONDARY
1. Heat Stress (UTCI)
2. Open Space Accessibility
3. View Access (Canal)
4. Shadow Impact
SITE DESIGN
1. Expand Street and Path Network
2. Expand Green Belt
3. Provide Safe Access to Green Spaces
4. Preserve Train Station Access
5. Preserve North and East Open Space
6. Revitalize West and South Boundaries
7. Connect Open Public Space
5/1/2024 MUD 606: Master's Research Studio 18
+
DESIGN PROGRAM
Goal
The design intent is to generate a mixed-use waterfront development in Guangzhou, China that thoughtfully integrates density while balancing a wide variety of social, environmental, and economic indicators, setting a new benchmark for communityfocused, equitable, and adaptable urban living.
Objectives
• Urban Density (FAR)
• Green Space Area (GAR)
• Daylight Potential
• Construction Cost
• Heat Stress (UTCI)
• Open Space Accessibility
• View Access (Canal)
• Shadow Impact
Fitness
Criteria
Gene Pool
• Maximize Density
• Maximize Green Space Area
• Maximize Passive Energy
• Minimize Project Cost
• Minimize Uncomfortable Spaces
• Minimize Distance to Open Areas
• Maximize Canal Views
• Minimize Development Impact
• Street Network Configuration
• Dedicated Green Space Allocation
• Building Typology Distribution
• Footprint Size of Towers and Podiums
• Height Range of Towers and Podiums
5/1/2024 MUD 606: Master's Research Studio 19
URBAN FORM GENERATION
VERTICAL STREETS
5/1/2024 MUD 606: Master's Research Studio 22
URBAN FORM GENERATION
FIXED POINTS
5/1/2024 MUD 606: Master's Research Studio 23

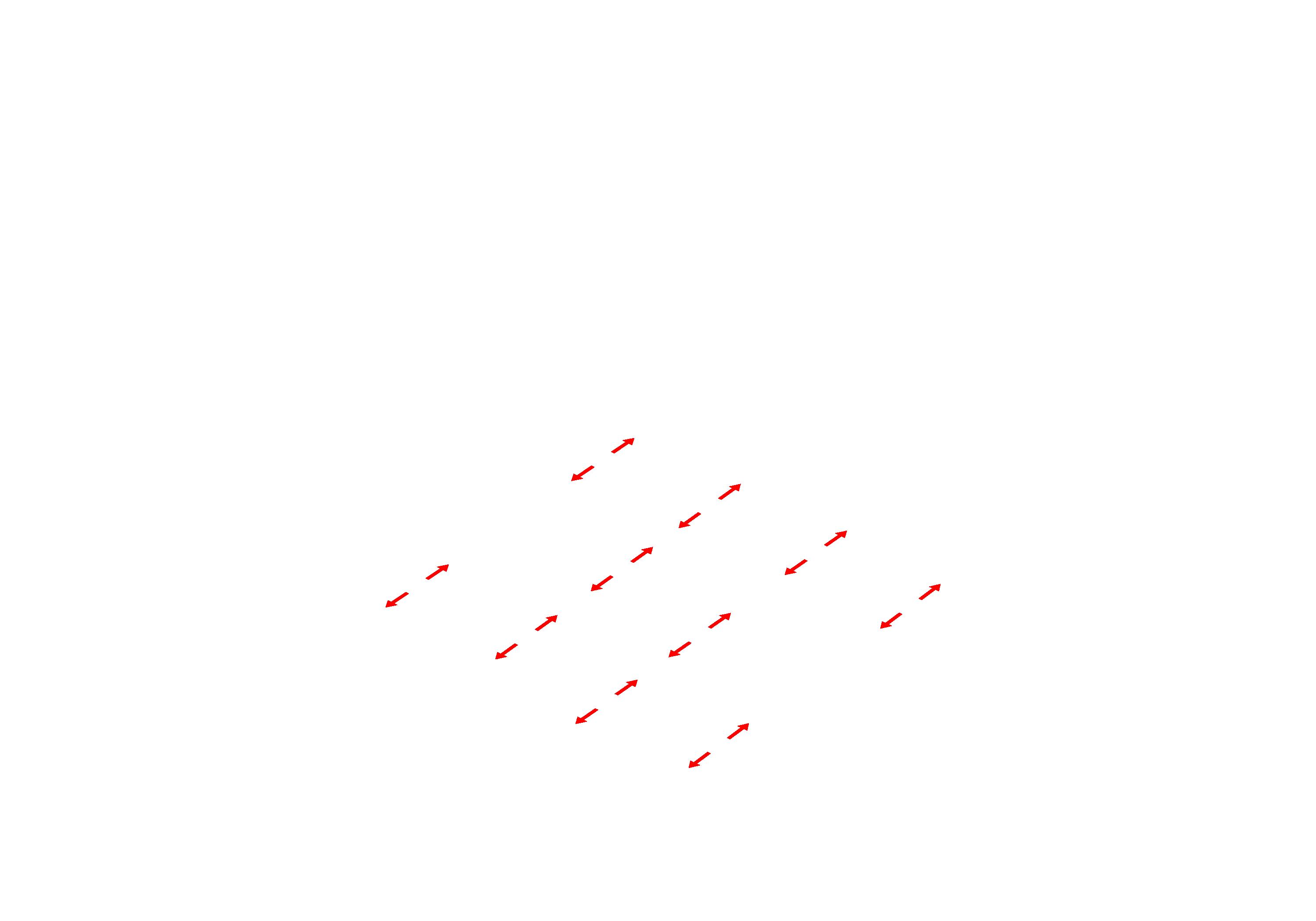

URBAN FORM GENERATION
MOVABLE INTERSECTIONS
5/1/2024 MUD 606: Master's Research Studio 24
URBAN FORM GENERATION
HORIZONTAL STREETS
5/1/2024 MUD 606: Master's Research Studio 25
URBAN FORM GENERATION
STREET NETWORK
5/1/2024 MUD 606: Master's Research Studio 26
URBAN FORM GENERATION
5/1/2024 MUD 606: Master's Research Studio 27
PARCELS
URBAN FORM GENERATION
DEDICATED GREEN PARCELS (1-3) & BUFFER
5/1/2024 MUD 606: Master's Research Studio 28
URBAN FORM GENERATION
BUILDING TYPOLOGY 1 (10%-40%)
5/1/2024 MUD 606: Master's Research Studio 29
URBAN FORM GENERATION
BUILDING TYPOLOGY 2 (10%-50%)
5/1/2024 MUD 606: Master's Research Studio 30
URBAN FORM GENERATION
BUILDING TYPOLOGY 3 (REMAINING PARCELS)
5/1/2024 MUD 606: Master's Research Studio 31
URBAN FORM GENERATION
BUILDING TYPOLOGY 1 FOOTPRINT (1225
m² – 1600 m²)
5/1/2024 MUD 606: Master's Research Studio 32
URBAN FORM GENERATION
BUILDING TYPOLOGIES 2 & 3 FOOTPRINTS (900 m² –
1225 m²)
5/1/2024 MUD 606: Master's Research Studio 33
URBAN FORM GENERATION
BUILDING PODIUM FOOTPRINTS (10 m – 25 m)
5/1/2024 MUD 606: Master's Research Studio 34
URBAN FORM GENERATION
BUILDING TYPOLOGY 1 HEIGHT (175 m
– 250 m)
5/1/2024 MUD 606: Master's Research Studio 35
URBAN FORM GENERATION
BUILDING TYPOLOGY 2 HEIGHT (75 m – 125 m)
5/1/2024 MUD 606: Master's Research Studio 36
URBAN FORM GENERATION
BUILDING TYPOLOGY 3 HEIGHT (25 m – 50 m)
5/1/2024 MUD 606: Master's Research Studio 37
URBAN FORM GENERATION
BUILDING TYPOLOGY 1 PODIUM HEIGHT (24
m – 40 m)
5/1/2024 MUD 606: Master's Research Studio 38
URBAN FORM GENERATION
BUILDING TYPOLOGY 2 & 3 PODIUM HEIGHTS (8 m – 24 m)
5/1/2024 MUD 606: Master's Research Studio 39

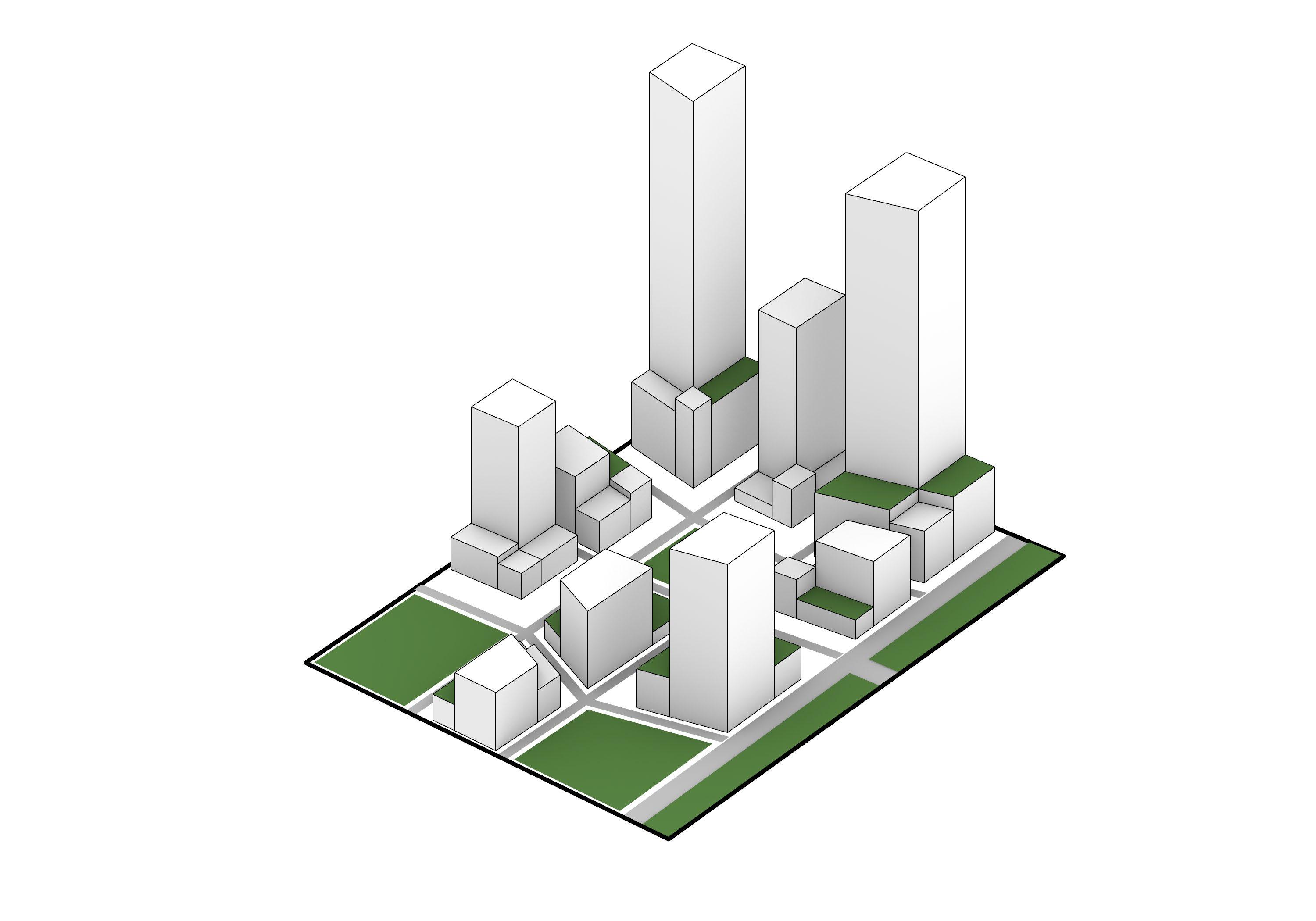

URBAN FORM GENERATION

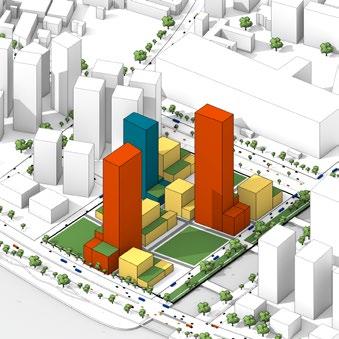

PREDESIGN URBAN FORM EXAMPLE
5/1/2024 MUD 606: Master's Research Studio 40
FAR : Floor Area Ratio
B : Total # of Buildings on the Site
GFAi : Gross Floor Area
Asite : Total Area of the Site (constant)
FLOOR AREA RATIO
5/1/2024 MUD 606: Master's Research Studio 43
MAXIMIZE
������������ = ∑���� =1 ���� ���������������� �������������������� �������� (������������1 + ������������2 + ⋯ + ���������������� ) ��������������������
OBJECTIVE:
DENSITY
OBJECTIVE:
GREEN SPACE AREA
GAR : Green Area Ratio
G : Total # of Dedicated Green Parcels on the Site
R : Total # of Roofs
GPAi : Dedicated Green Parcel Area
GRAj : Green Roof Area
Asite : Total Area of the Site (constant)
5/1/2024
������������ = ∑���� =1 ���� ���������������� + (∑���� =1 ���� ���������������� ��������������������
MAXIMIZE
DP : Daylight Potential
HPdaylight : Daylight “Hit” Points
TPdaylight : Total Potential Daylight Points
5/1/2024
�������������������������������������� ≥ 3 × ������������������������ ��������������������������������������
OBJECTIVE: MAXIMIZE PASSIVE ENERGY �������� =
CC : Cost of Construction
B : Total # of Buildings
Hi : Building Height
GFAi : Gross Floor Area
CONSTRUCTION COST
5/1/2024 MUD 606: Master's Research Studio 46
��������
OBJECTIVE: MINIMIZE PROJECT COST
= ����� =1 ���� 0.0809��������2 − 16.13�������� + 2062.6 × ����������������

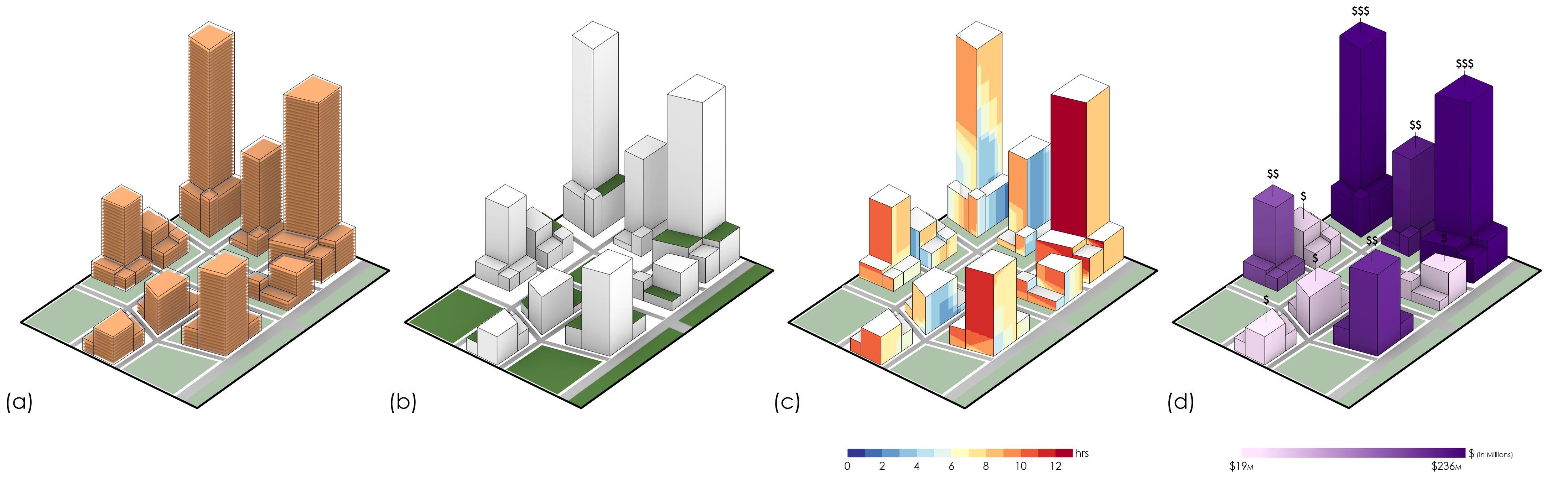

ROUND ONE ANALYSIS
PRIMARY OBJECTIVES
5/1/2024 MUD 606: Master's Research Studio 47
OBJECTIVE: MINIMIZE UNCOMFORTABLE SPACES
HS : Heat Stress
GP≥3 : Ground “Points” Representing UTCI
GPtotal : Total Ground “Points” Tested
�������� = ��������≥3 ���� ������������������������
5/1/2024
OBJECTIVE: MINIMIZE DISTANCE TO OPEN AREAS
OSA : Open Space Accessibility
G : Total # of Dedicated Green Parcels on the Site
Dij : Total Distance from Dedicated Starting Point to Dedicated Green Parcel “j”
������������ = ∑���� =1 2 ∑���� =1 ���� ������������ 2����
5/1/2024
OBJECTIVE: MAXIMIZE CANAL VIEWS
VIEW INTEREST
VI : View Interest
HPview : View “Hit” Points
TPview : Total Potential “View” Points
�������� = ������������������������ ≥ 1 × ������������������������ ������������������������
5/1/2024 MUD 606: Master's Research Studio 50
OBJECTIVE: MINIMIZE DEVELOPMENT IMPACT
SHADOW IMPACT
SI : Shadow Impact
ADHdeveloped : Average Daylight
Hours with Development Impact
ADHundeveloped : Average Daylight
Hours without Development Impact
�������� = ������������������������������������������������ − �������������������������������������������������������� ��������������������������������������������������������
5/1/2024 MUD 606: Master's Research Studio 51
ROUND TWO ANALYSIS
SECONDARY OBJECTIVES
5/1/2024 MUD 606: Master's Research Studio 52
WALLACEI ALGORITHM RESULTS
ANALYTICAL GRAPHS
5/1/2024 64 MUD 606: Master’s Research Studio
WALLACEI ALGORITHM RESULTS
PARALLEL COORDINATE PLOT
5/1/2024 65 MUD 606: Master’s Research Studio
WALLACEI ALGORITHM RESULTS
5/1/2024 66 MUD 606: Master’s Research Studio
PARETO FRONT SOLUTIONS ON PCP
WALLACEI ALGORITHM RESULTS
K-MEANS CLUSTERING OF PARETO FRONT ON PCP
5/1/2024 67 MUD 606: Master’s Research Studio
WALLACEI ALGORITHM RESULTS
OBJECTIVE SPACE
5/1/2024 68 MUD 606: Master’s Research Studio
X – Axis FAR Y – Axis GAR Z – Axis Daylight Green (fittest) – Red (least fit) Cost
WALLACEI ALGORITHM RESULTS
PARETO FRONT IN OBJECTIVE SPACE
5/1/2024 69 MUD 606: Master’s Research Studio
X – Axis FAR Y – Axis GAR Z – Axis Daylight Green (fittest) – Red (least fit) Cost

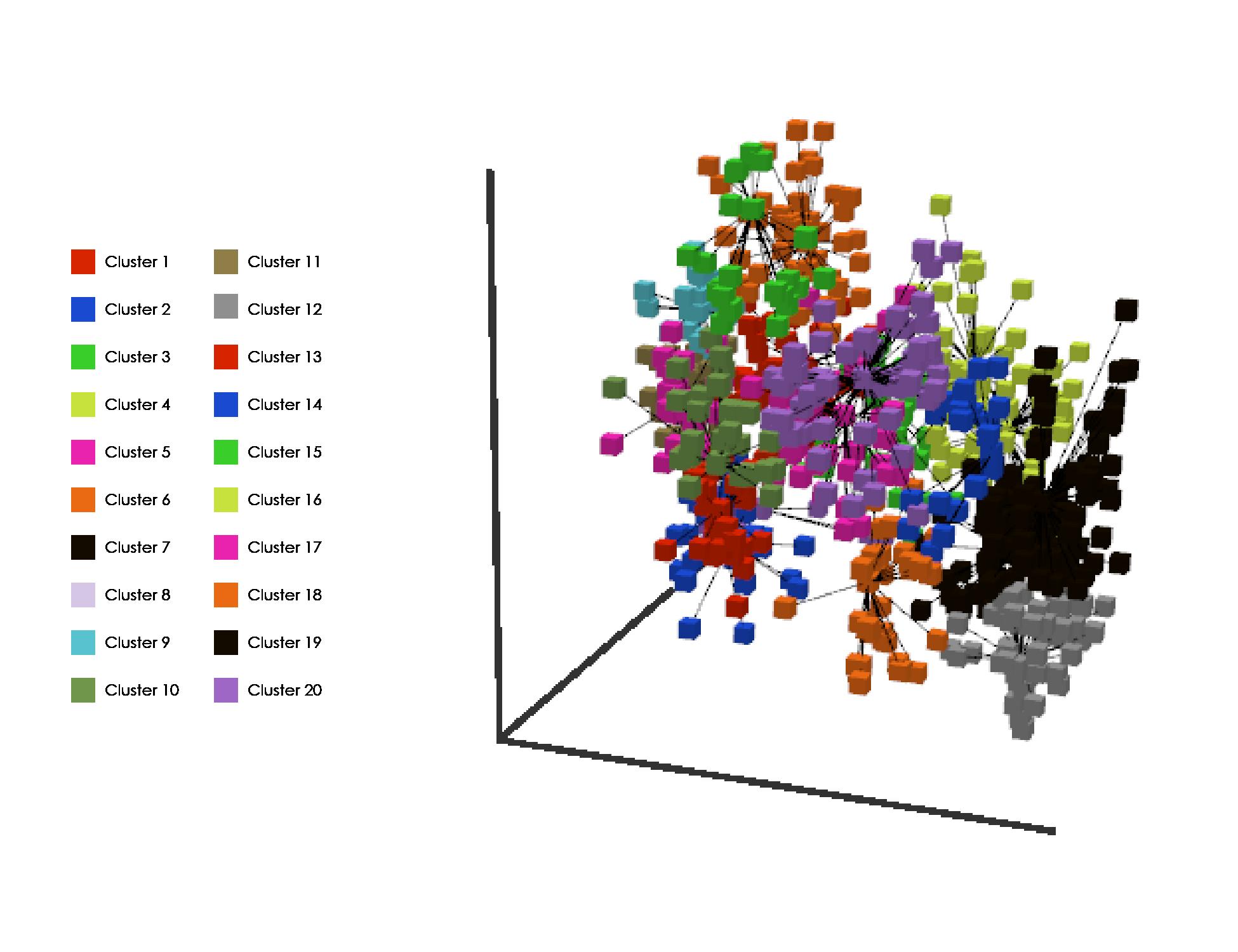

WALLACEI ALGORITHM RESULTS
K-MEANS CLUSTERING IN OBJECTIVE SPACE
5/1/2024 70
ROUND ONE SELECTION
OPTIMAL FAR, GAR, DAYLIGHT POTENTIAL
Gen. 66|Ind. 02
FAR: 7.86
Rank: 1 / 7500
GAR: 30%
Rank: 5256 / 7500
Daylight: 36%
Rank: 5102 / 7500
Cost: 1218M
Rank: 7418 / 7500
Gen. 81|Ind. 03
FAR: 5.77
Rank: 3073 / 7500
GAR: 45%
Rank: 1 / 7500
Daylight: 37%
Rank: 4874 / 7500
Cost: 850M
Rank: 5360 / 7500
Gen. 53|Ind. 02
FAR: 3.75
Rank: 6517 / 7500
GAR: 36%
Rank: 2551 / 7500
Daylight: 55%
Rank: 1 / 7500
Cost: 193M
Rank: 764 / 7500
5/1/2024 72 MUD 606: Master’s Research Studio
ROUND ONE SELECTION
OPTIMAL COST, RELATIVE DIFFERENCE, AVERAGE
Gen. 70|Ind. 06
FAR: 3.04
Rank: 7322 / 7500
GAR: 37%
Rank: 1901 / 7500
Daylight: 37%
Rank: 4697 / 7500
Cost: 150M
Rank: 1 / 7500
Gen. 68|Ind. 63
FAR: 5.33
Rank: 3741 / 7500
GAR: 32%
Rank: 4229 / 7500
Daylight: 39%
Rank: 3802 / 7500
Cost: 714M
Rank: 4171 / 7500
Gen. 53|Ind. 02
FAR: 3.75
Rank: 6517 / 7500
GAR: 36%
Rank: 2551 / 7500
Daylight: 55%
Rank: 1 / 7500
Cost: 193M
Rank: 764 / 7500
5/1/2024 73 MUD 606: Master’s Research Studio
ROUND ONE SELECTION
GENERATIONS FOR SECONDARY ANALYSIS
5/1/2024 74 MUD 606: Master’s Research Studio
FAR (1 Generation) GAR (1 Generation) Daylight (1 Generation) Cost (1 Generation) Rel. Difference (1 Generation) Average (1 Generation) K-Means
of Pareto Front (20 Generations)
Clustering
ROUND ONE SELECTION
ROUND ONE SELECTED SOLUTIONS
5/1/2024 75 MUD 606: Master’s Research Studio
ROUND TWO SELECTION
5/1/2024 76 MUD 606: Master’s Research Studio ROUND
Gen.|Ind. FAR GAR Daylight Cost UTCI GSA View Shadow 04|48 5.33 0.38 0.38 647.25 0.38 250.79 0.38 0.03 20|17 5.69 0.29 0.41 671.57 0.34 153.8 0.43 0.03 20|66 6.91 0.36 0.39 1127.39 0.37 262.92 0.4 0.06 22|52 6.3 0.4 0.43 886.4 0.37 277.82 0.45 0.05 24|61 3.97 0.39 0.38 268.44 0.38 318.16 0.45 0.04 25|72 4.74 0.29 0.38 341.41 0.36 160.82 0.41 0.03 30|35 6.33 0.29 0.32 773.57 0.36 224.9 0.35 0.03 37|67 6.47 0.36 0.46 1042.01 0.37 271.77 0.48 0.05 39|66 4.7 0.25 0.43 337.93 0.37 377.99 0.37 0.03 41|60 5.05 0.38 0.47 603.72 0.37 229.97 0.47 0.02 42|54 7.36 0.3 0.36 1077.61 0.36 153.29 0.37 0.07 53|02 3.75 0.36 0.55 193.17 0.38 270.62 0.44 0.01 59|68 6.44 0.28 0.39 820.95 0.36 153.63 0.36 0.05 61|21 5.99 0.44 0.39 809.39 0.37 328.38 0.48 0.03 66|02 7.86 0.3 0.36 1218.12 0.36 236.25 0.43 0.07 68|63 5.33 0.32 0.39 714.48 0.36 160.05 0.39 0.04 70|06 3.04 0.37 0.37 150.27 0.38 225.18 0.43 0.02 74|59 3.49 0.39 0.41 180.97 0.38 322.85 0.44 0.03 76|12 4.95 0.41 0.35 573.72 0.37 278.78 0.36 0.03 79|57 4.11 0.34 0.46 268.52 0.38 272.61 0.47 0.02 81|03 5.77 0.45 0.37 850.7 0.37 329.49 0.42 0.06 81|71 3.79 0.36 0.51 197.58 0.38 269.92 0.44 0.02 96|41 6.85 0.28 0.48 985.9 0.36 364.51 0.46 0.05 98|41 7.35 0.3 0.4 1114.21 0.35 236.25 0.38 0.07 99|73 5.93 0.41 0.27 702.67 0.38 320.42 0.38 0.04
Average Median Minimum Maximum FAR 5.43 5.51 3.04 7.86 GAR 0.35 0.36 0.25 0.45 Daylight 0.41 0.39 0.27 0.55 Cost 644.27 687.12 150.27 1218.12 UTCI 0.37 0.37 0.34 0.38 GSA 258.53 270.27 153.29 377.99 View 0.42 0.43 0.35 0.48 Shadow 0.04 0.03 0.01 0.07 Round One Round Two
ONE & ROUND TWO PERFORMANCE OBJECTIVES & STATISTICS
Round Two Performance Objectives Round One Performance Objectives
ROUND TWO SELECTION
SCORING FOR ROUND ONE & ROUND TWO PERFORMANCE OBJECTIVES
Round One Performance Objectives
Round Two Performance Objectives
5/1/2024 78 MUD 606: Master’s Research Studio
Average 5.43 0.35 0.41 644.27 0.37 258.53 0.42 0.04 Gen.|Ind. FAR GAR Daylight Cost UTCI GSA View Shadow Points 41|60 5.05 0.38 0.47 603.72 0.37 229.97 0.47 0.02 6 20|17 5.69 0.29 0.41 671.57 0.34 153.8 0.43 0.03 5 53|02 3.75 0.36 0.55 193.17 0.38 270.62 0.44 0.01 5 70|06 3.04 0.37 0.37 150.27 0.38 225.18 0.43 0.02 5 81|71 3.79 0.36 0.51 197.58 0.38 269.92 0.44 0.02 5 22|52 6.3 0.4 0.43 886.4 0.37 277.82 0.45 0.05 4 25|72 4.74 0.29 0.38 341.41 0.36 160.82 0.41 0.03 4 30|35 6.33 0.29 0.32 773.57 0.36 224.9 0.35 0.03 4 37|67 6.47 0.36 0.46 1042.01 0.37 271.77 0.48 0.05 4 39|66 4.7 0.25 0.43 337.93 0.37 377.99 0.37 0.03 4 61|21 5.99 0.44 0.39 809.39 0.37 328.38 0.48 0.03 4 66|02 7.86 0.3 0.36 1218.12 0.36 236.25 0.43 0.07 4 74|59 3.49 0.39 0.41 180.97 0.38 322.85 0.44 0.03 4 79|57 4.11 0.34 0.46 268.52 0.38 272.61 0.47 0.02 4 96|41 6.85 0.28 0.48 985.9 0.36 364.51 0.46 0.05 4 04|48 5.33 0.38 0.38 647.25 0.38 250.79 0.38 0.03 3 20|66 6.91 0.36 0.39 1127.39 0.37 262.92 0.4 0.06 3 24|61 3.97 0.39 0.38 268.44 0.38 318.16 0.45 0.04 3 42|54 7.36 0.3 0.36 1077.61 0.36 153.29 0.37 0.07 3 59|68 6.44 0.28 0.39 820.95 0.36 153.63 0.36 0.05 3 76|12 4.95 0.41 0.35 573.72 0.37 278.78 0.36 0.03 3 81|03 5.77 0.45 0.37 850.7 0.37 329.49 0.42 0.06 3 98|41 7.35 0.3 0.4 1114.21 0.35 236.25 0.38 0.07 3 99|73 5.93 0.41 0.27 702.67 0.38 320.42 0.38 0.04 3 68|63 5.33 0.32 0.39 714.48 0.36 160.05 0.39 0.04 2

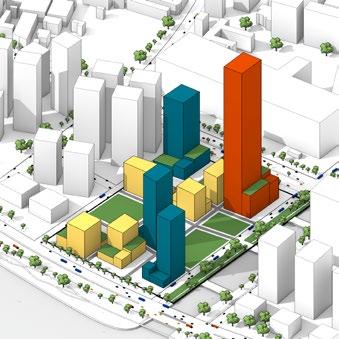

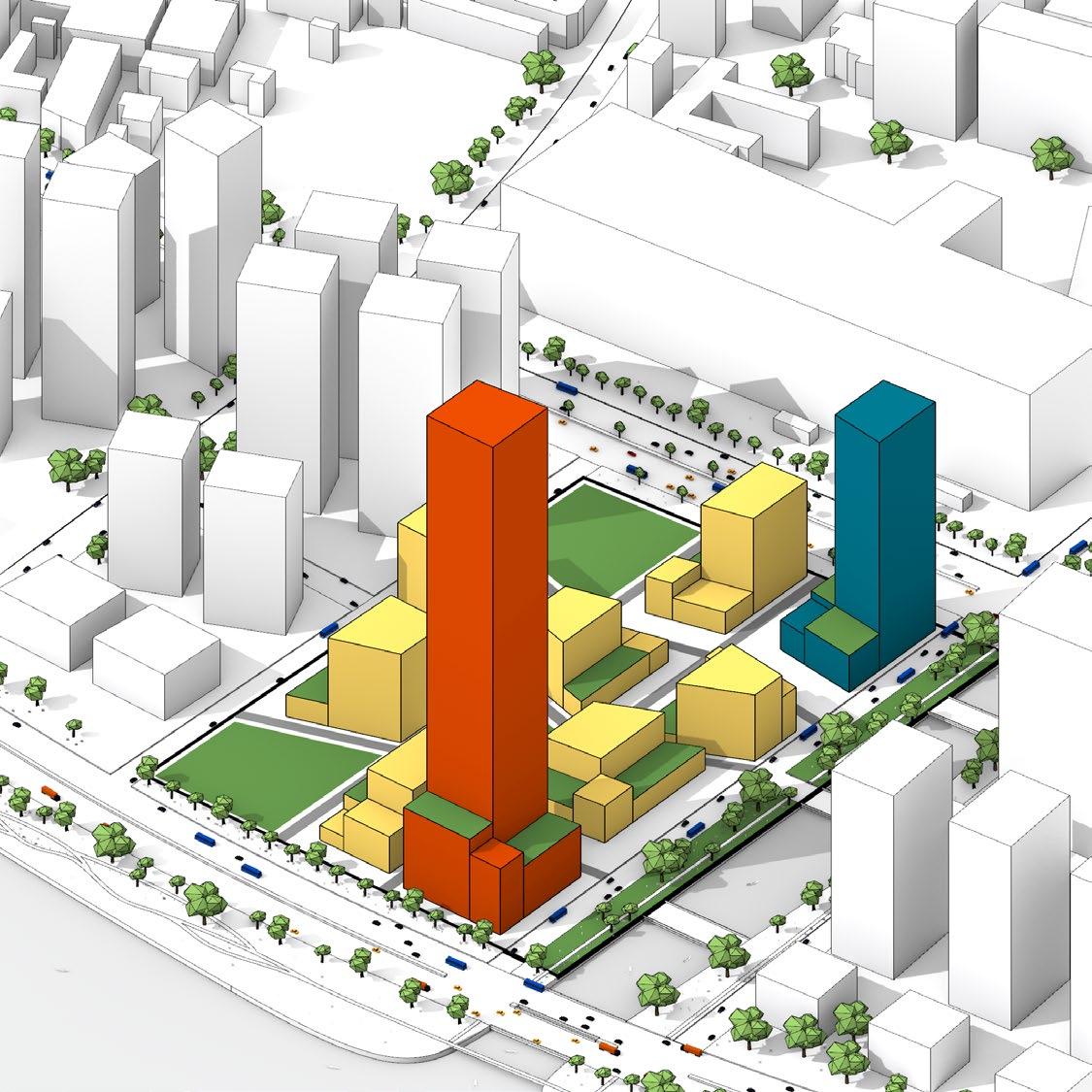

FINAL 3 SELECTIONS
DATA & SPATIAL ANALYSIS
Gen. 41|Ind. 60
FAR: 5.05
GAR: 0.38 Daylight: 0.47
UTCI: 0.37
GSA: 229.97 View: 0.47 Shadow: 0.02
Dedicated Green Spaces - 3 Building Typology
Gen. 20|Ind. 17
FAR: 5.69 GAR: 0.29
3 Green Spaces located in the NW, NE, and SE corners of the site, 2 of which are accessible
Building Typology allocation is dominated by Low-Rise towers, which are scattered around the boundary of the site
671.57 UTCI: 0.34
153.80
0.43
Gen. 53|Ind. 02
Dedicated Green Spaces - 1
1 Green Space located in the NE corner of the site, highly accessible but low allocation
Building Typology allocation is uniform across the 3 typologies, with taller towers dominating the outside boundary of the site
Dedicated Green Spaces - 3
0.36
0.03 FAR: 3.75
0.55
193.17 UTCI: 0.38
270.62 View: 0.44 Shadow: 0.01
3 Green Spaces located on the West side of the site, with one on the NW and SW corners respectively
Building Typology allocation heavily favors the Low-Rise towers, with a Mid and a High-Rise towers on the East boundary of the site
5/1/2024 79 MUD 606: Master’s Research Studio
Cost: 603.72
Cost:
GSA:
Daylight:
Cost:
Daylight: 0.41
View:
Shadow:
GAR:
GSA:
Building
Building
3
6
1 - 2
Typology 2 - 1
Typology
-
Building
Building
Building Typology 1 - 2
Typology 2 - 4
Typology 3 - 5
Typology 1 -
Building Typology 2 - 1 Building
3
7
Building
1
Typology
-
