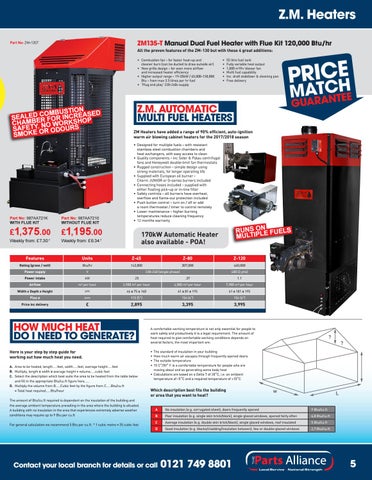

Z.M. Heaters ZM135-T Manual Dual Fuel Heater with Flue Kit 120,000 Btu/hr
Part No: ZM-135T
All the proven features of the ZM-130 but with these 4 great additions: • • • •
TION ED COMBUS AS SEALEBDER FOR INCREO P H S M K A R H C WO O N . Y T S E SAF E OR ODOUR SMOK
Part No: 987AA721K WITH FLUE KIT
£1,375.00 Weekly from: £7.30 †
Part No: 987AA7210 WITHOUT FLUE KIT
• • • • • •
55 litre fuel tank Fully variable heat output 1,000 m³/hr blower fan Multi fuel capability Inc. draft stabiliser & cleaning pan Free delivery
Z.M. AUTOMATIC MULTI FUEL HEATERS ZM Heaters have added a range of 90% efficient, auto-ignition warm air blowing cabinet heaters for the 2017/2018 season • Designed for multiple fuels - with resistant stainless steel combustion chambers and heat exchangers, with easy access to clean • Quality components - inc Soler & Palau centrifugal fans and Honeywell double-limit fan thermostats • Rugged construction - simple design using strong materials, for longer operating life • Supplied with European oil burner Citerm JUNIOR or G-series burners included • Connecting hoses included - supplied with either floating pick-up or in-line filter • Safety controls - all burners have overheat, overflow and flame-out protection included • Push button control - turn on / off or add a room thermostat / timer to control remotely • Lower maintenance - higher burning temperatures reduce cleaning frequency • 12 months warranty
£1,195.00
RUNS OLNE FUELS MULTIP
170kW Automatic Heater also available - POA!
Weekly from: £6.34 †
Features
Units
Z-45
Z-80
Rating (gross / nett)
Btu/hr
143,000
307,000
Power supply
V
Z-120 460,000 400 (3 phs)
220-240 (single phase)
Power intake
kW
.25
.37
1.1
Airflow
m³ per hour
2,900 m³ per hour
4,500 m³ per hour
7,900 m³ per hour
Width x Depth x Height
cm
46 x 75 x 160
61 x 81 x 195
61 x 101 x 195
Flue ø
mm
115 (5”)
154 (6”)
154 (6”)
Price inc delivery
£
2,895
3,395
3,995
HOW MUCH HEAT DO I NEED TO GENERATE? Here is your step by step guide for working out how much heat you need. A. B. C. D.
Combustion fan - for faster heat-up and cleaner burn (can be ducted to draw outside air) New grille design - for even more airflow and increased heater efficiency Higher output range - 19-35kW / 65,000-120,000 Btu - from max 3.5 litres per hr fuel ‘Plug and play’ 220-240v supply
Area to be heated, length.....feet, width.....feet, average height.....feet Multiply, length x width x average height = volume.....cubic feet Select the description which best suits the area to be heated from the table below and fill in the appropriate Btu/cu.ft figure here..... Multiply the volume from B.....Cubic feet by the figure from C.....Btu/cu.ft = Total heat required.....Btu/hour
The amount of Btu/cu.ft required is dependent on the insulation of the building and the average ambient temperature prevailing in the area where the building is situated. A building with no insulation in the area that experiences extremely adverse weather conditions may require up to 9 Btu per cu.ft For general calculation we recommend 5 Btu per cu.ft. * 1 cubic metre = 35 cubic feet
A comfortable working temperature is not only essential for people to work safely and productively it is a legal requirement. The amount of heat required to give comfortable working conditions depends on several factors, the most important are:
?
?
• The standard of insulation in your building • How much warm air escapes through frequently opened doors • The outside temperature • 15 C˚/59˚ F is a comfortable temperature for people who are moving about and so generating some body heat • Calculations are based on a Delta T of 20˚C, i.e. an ambient temperature of -5˚C and a required temperature of +15˚C
Which description best fits the building or area that you want to heat?
w
L
A
No insulation (e.g. corrugated sheet), doors frequently opened
9 Btu/cu.ft
B
Poor insulation (e.g. single skin brick/block), single glazed windows, opened fairly often
6,8 Btu/cu.ft
C
Average insulation (e.g. double skin brick/block), single glazed windows, roof insulated
5 Btu/cu.ft
D
Good insulation (e.g. blocks/cladding/insulation between), few or double-glazed windows
2,7 Btu/cu.ft
Contact your local branch for details or call
0121 749 8801
5
