Overview Field Environmental Instruments (FEI) offers this resource guide as an overview of the equipment, supplies and safety gear utilized in vapor intrusion and soil-vaporsampling events. Please contact FEI staff for additional instrument specifications or application assistance relative to distinct project requirements or site conditions.
Necessary Equipment and Supplies Monitoring & Sample Point Installation: The chosen installation method should be determined from on-site characteristics, overall monitoring period and required sampling data. Leak Detection: Testing for leaks ensures the collected sample’s integrity. Analytical Sample Collection: If field tests determine lab testing is necessary, vacuum chambers can be used to collect samples. Field Screening: Use of direct-read instruments can determine if collected samples require further laboratory testing. Real-time vapor monitoring: Field Data Solutions enhances decision making with wireless monitoring systems that deliver real-time data, instant alerts, and project specific reports.
FEI has you covered for all of the steps!
3
4
1
Vapor Point Installation: Create a vapor-access point by drilling a small diameter hole into the site’s foundation then installing a Vapor Pin®.
2

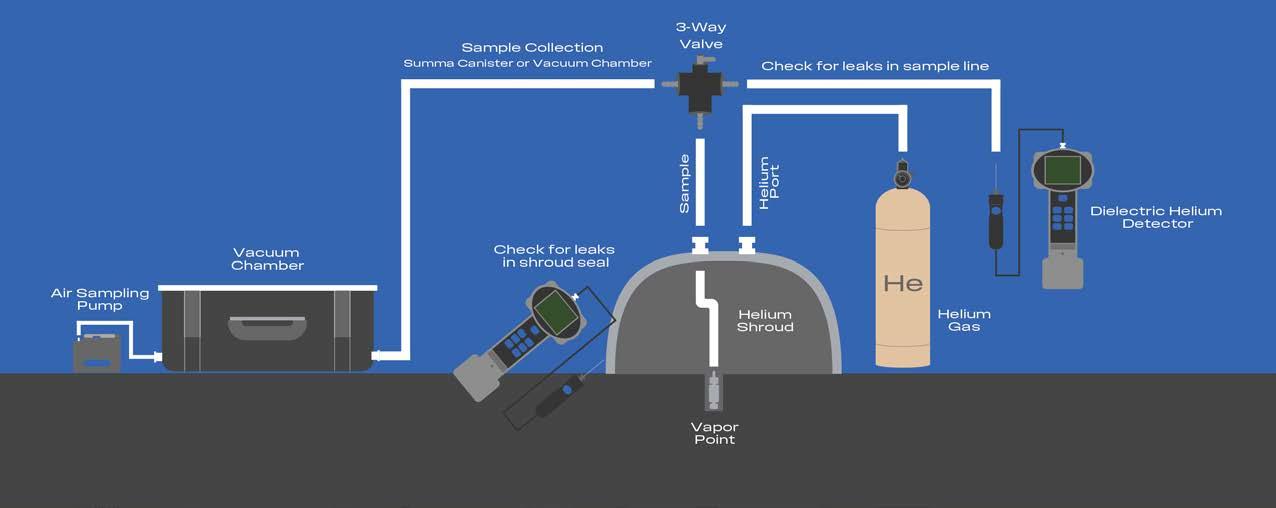

Helium Shroud Set-up: Connect tubing from the installed pin to the shroud’s interior fitting, then place the shroud over the access area. Next, connect tubing from the shroud’s exterior helium port to the helium gas’ fixed-flow regulator. Lastly, connect a second line of tubing from the shroud’s exterior sample port to a three-way valve, which will enable users to collect samples or detect leaks within the sample line.
3
Leak Check: Layer modeling clay around the shroud’s base to create an airtight seal between the external atmosphere and vapor-access point. Now, introduce the helium tracer gas into the shroud via the fixed-flow regulator. Note: A helium detector should be used to check for leaks around the helium shroud’s base. Also, connect the leak detector to one end of the three-way valve’s tubing to ensure no gas is escaping the sample system. Disconnect the helium gas and purge the shroud after completing leak detection. To ensure the sample line is free from moisture or interference, purge the sample line with a syringe or air-sampling pump and vacuum chamber.
4
Shut-in Test (if using a Summa Cannister): Connect the sample train to the sample port to perform the shut-in test. Ensure all fittings are tight and there are no leaks between the cannister and regulator. Negative pressure must be achieved from the regulator for at least one minute. Take note that requirements of the negative pressure that is achieved for one minute change per state. Three volumes of air must be purged before collecting your sample.
5 6
Sample Collection: Once the sample line is purged and no leaks are confirmed, samples can be collected using an air-sampling pump and a tedlar bag located within the vacuum chamber. Field Screening: Use a field screening device to detect VOCs or other contaminants of concern from the tedlar bag sample. See References (pg. 23)
Helium Shroud Options
5
Helium Shroud Description
ID
Helium Shroud - (1.5 qt Stainless Steel Bowl)
16640
Helium Shroud - (4 qt Stainless Steel Bowl)
18090
Helium Shroud - (6 qt Stainless Steel Bowl)
18091
Helium Shroud - (8 qt Stainless Steel Bowl)
16020
Kelron Helium Shroud (4mil Plastic with Zip Ties)
29395
3-Way Valve Fitting Description
ID
Quantity
PVC - 3-Way 1/4” Barbed Ball Valve #4757K57
17299
1
PVC - 3-Way 3/16” push to fit Ball Valve #4757K61
17341
1
ID
Quantity
Quick-Disconnect male Tube Coupling 1/4” Barbed w/ shut-off #5012K45
17300
2
Quick-Disconnect female Tube Coupling 1/4” through-wall barbed #5012K35
17302
2
Quick-Disconnect male Tube Coupling 3/16” Barbed w/ shut-off #5012K252
18298
2
Quick-Disconnect female Tube Coupling 3/16” through-wall barbed #5012K152
27719
2
Quick Disconnect Fittings Description
Tubing Description
ID
Quantity
7901
5ft
Nylaflow (.18" ID x .25" OD)
26911
10ft
Tygon Tubing
29309
5ft
Teflon-Lined Poly (1/4” ID x 3/8” OD) (1’ Length)
Modeling Clay Description Helium Shroud Clay (2.2lbs) #10228314
ID
Quantity
17498
1
ID
Quantity
10709
103L
ID
Quantity
451
1
Helium Gas Description Tracer Helium 99.99% Regulator Description Male Regulator
NOTE: Rental helium shrouds include fittings and 3-way valve
6
Monitoring & Sample Point Installation with Vapor Pin®
FEI & Vapor Pin Enterprises
In reaching a distribution agreement with Vapor Pin Enterprises, Field Environmental Instruments (FEI) continues to expand its portfolio of high-quality vapor intrusion and sub-slab soil-gas sampling solutions. Environmental consultants, remediation contractors and industrial hygiene professionals will have streamlined access through FEI to Vapor Pin Enterprises’ industryrecognized sampling products and technology.
Vapor Pin® Bundles Stainless Steel Secure Flush Mount Bundle
Vapor Pin’s Stainless Steel Flush Mount Bundle levels pins at ground surface to protect the sampling point and minimize trip hazards. This corrosionresistant stainless steel construction is recommended for longer-term or repeat sampling applications where extended service life is advantageous. Stainless Steel Bundles Include: Stainless Steel Vapor Pin®, Silicon Sleeve, Cap, and a Tygon Connector Visit vaporpin.com for more information
Brass Secure Flush Mount Bundle
Offering a practical solution for vapor-sampling installations, the Brass Flush Mount Bundle is a cost-effective choice best suited for short-term sampling projects and temporary monitoring applications. As with the stainless steel option, the brass flush-mount design installs even at ground surface for added protection and reduced site interference. Brass Bundles Include: Brass Vapor Pin®, Silicon Sleeve, Cap, and a Tygon Connector Visit vaporpin.com for more information FEI Catalog ID’s
Accessories
Stainless Steel Secure Flush Mount Bundle (ID: 29224) Brass Secure Flush Mount Bundle (ID: 29226) Stick-UP Drill Guide (ID: 29297) Stainless Steel Secured Cover (ID: 29236) Stainless Steel Drilling Guide (ID: 29271)
Vapor Pin® Sleeves (Bag of 20) (ID: 29237) Installation/Extraction Tool (ID: 29242) Vapor Pin® Caps (Bag of 20) (ID: 29244) Tygon Connectors (Bag of 10) (ID: 29250)

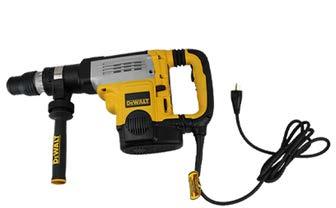

Rental Items Installation and Extraction Tool (ID: 29402) Stick-Up Drill Guide (ID: 29403) Stainless Steel Drilling Guide (Flush Mounting) (ID: 29404) SDS Max 1.5” Countersink Drill Bit (ID: 29405) SDS Drill Bit Kit (1.5”, 5/8”) (ID: 29406)
See page 16 for a list of Vapor Pin® products and use guides.
Monitoring & Sample Point Installation with Vapor Pin®
Flush Mount Vapor Pin® Installation 1. Drill Access Hole • Wearing appropriate PPE, drill a 1½-inch diameter hole approximately 1¾ inches deep into the concrete slab. 2. Remove Dust • Vacuum drilling debris and dust using a wet/dry vacuum. 3. Verify Depth • Use the Drilling Guide to confirm the hole depth until the guide sits flush with the slab surface. 4. Drill Vapor Pin® Hole • Switch to the 5/8-inch drill bit and drill the centered hole for the Vapor Pin®. The Drilling Guide helps maintain proper alignment and perpendicularity. 5. Clean the Hole • Vacuum and clean the drilled hole thoroughly to remove all remaining dust. 6. Install Vapor Pin® • Assemble the Vapor Pin® sampling device and insert it into the drilled hole. 7. Seat the Vapor Pin® • Place the Installation/Extraction Tool over the Vapor Pin® fitting and gently tap the device into position. 8. Install Secure Cover • Thread the stainless steel secure cover onto the Vapor Pin® by hand until snug. 9. Tighten Cover • Use the spanner tool to fully tighten the secure cover until flush with the floor surface. 10. Allow Equilibration • Wait a minimum of 20 minutes (or according to project-specific guidance) before collecting samples to allow subsurface conditions to re-equilibrate.
Vapor Pin® w/ flush mount installed
7
8
Monitoring & Sample Point Installation with Vapor Pin®
Stick-Up Vapor Pin® Installation 1. Drill Sampling Hole • Wearing appropriate PPE, drill a 5/8-inch diameter hole through the slab and approximately 1 inch into the underlying soil to create a sampling void. 2. Remove Dust • Vacuum drilling debris and dust using a wet/dry vacuum. 3. Clean the Hole • Brush the hole with the provided bottle brush and vacuum out any remaining cuttings or debris. 4. Install Vapor Pin® • Assemble the Vapor Pin® sampling device and insert it into the drilled hole. 5. Seat the Vapor Pin® • Place the Installation/Extraction Tool over the Vapor Pin® fitting and gently tap the device into position. 6. Cap the Vapor Pin® • Install the Vapor Pin® cap to prevent vapor loss prior to sampling. 7. Allow Equilibration • Wait a minimum of 20 minutes (or according to project-specific guidance) before collecting samples to allow subsurface conditions to re-equilibrate.
Vapor Pin® w/ stick up installed
Additional Monitoring & Sample Point Installation Options
Solinst 615 Drive Point Piezometer
The Solinst Model 615 Drive-Point Piezometer is an economical solution for shallow soil vapor and groundwater monitoring. Driven up to 20–25 feet (6–7 meters) using manual slide hammers or direct-push technology, these 3/4" NPT stainless steel points are installed as permanent monitoring points or temporary sampling locations. Soil Vapor Best Practice: For dedicated soil gas sampling, select the 615C (Compression Fitting) to establish an airtight 1/4" tubing connection under vacuum. Shielded Option: In fine-grained or cohesive soils, choose Shielded Models (615S / 615SN). The protective sleeve covers the 50-mesh screen during driving to eliminate clogging and soil smearing, sliding back only when the target depth is reached. What is Needed for Installation Drive-Point Assembly: 615C w/ 1/4" Compression Fitting (Recommended for Vapor) (FEI ID: 11458) 615 c/w 1/2" Barb (FEI ID: 04752) 615S Shielded c/w Barb (FEI ID: 11480) 615N No Barb (Water level focus) (FEI ID: 07484) 615SN Shielded No Barb (FEI ID: 07485) Extension & Hardware: 3' Stainless Steel Drive Extensions (FEI ID: 04755) SS Extension Coupling (FEI ID: 04756) Delrin NPT Well Cap (FEI ID: 13763) Drive Tooling: Drive Head Assembly (FEI ID: 20407) Tubing Bypass (FEI ID: 11474) Manual Slide Hammer (21 lb) (FEI ID: 12405) Sampling Line: 3/16" ID X 1/4" OD Teflon-lined Tubing (FEI ID: 9775) Step-by-Step Installation & Soil Vapor Sampling Procedure 1. Attach Tubing: Connect sample tubing securely to the inner fitting (compression or barb) at the top of the 615 piezometer tip before driving. 2. Setup Drive Tooling: Thread a 3/4" NPT stainless steel extension onto the piezometer tip, routing sample tubing through the extension. Attach the Drive Head Assembly and Tubing Bypass. The bypass allows the tubing to exit safely out the side of the drive string so it isn't crushed or pinched during hammering. 3. Drive to Target Depth: Place the slide hammer over the drive head and drive the piezometer down. Add 3' extensions and couplings as necessary. 4. Expose Screen (Shielded Models): If using a 615S, pull back the outer drive extension string 2–3 inches upon reaching final depth to retract the shield and expose the screen. 5. Surface Seal & Vapor Sampling: • Cap the 3/4" pipe top with a Delrin cap. • Perform a shut-in test / leak check on sample tubing connections. • Purge 3 tubing volumes, collect vapor sample via Summa canister, Tedlar bag, or sorbent tube, and protect the point for future monitoring.
9
10
Other Monitoring & Sample Point Installation Options
AMS Vapor Tip
AMS Dedicated Gas Vapor Tips are engineered specifically for long-term soil gas monitoring, perimeter soil vapor assessments, and leak detection. Each tip incorporates an expandable Fluoropolymer Umbrella. During driving, the tip sits nested inside the GVP Drive End. Once target depth is reached, pulling back the drive string deploys the tip and opens the umbrella, protecting the intake screen from silt, clay, and soil clogging. What is Needed for Installation Vapor Tip Components: GVP Dedicated Probe Tip & Umbrella (FEI ID: 4208) GVP 50-Mesh Stainless Steel Screens (Recommended for fine sand/silt) (FEI ID: 5509) Sampling Line: 3/16" ID x 1/4" OD Teflon Tubing (FEI ID: 9775) Drive & Installation Tooling: GVP Drive Extensions & Drive Adapter (FEI ID: 5777) AMS Slide Hammer (FEI ID: 434) or Rotary Hammer Drill Sealing Materials: Clean silica sand (for filter pack) and hydrated bentonite granules/chips (for surface seal). Step-by-Step Installation & Soil Vapor Sampling Procedure 1. Tubing & Umbrella Assembly: Cut 3/16" ID x 1/4" OD Teflon tubing to depth + 3 ft. Push tubing firmly over the barb stem on the GVP tip. Place the folded Fluoropolymer umbrella (and optional 50-mesh screen) over the intake. 2. Drive Assembly Setup: Seat the assembled tip into the bottom of the GVP Drive End. Thread tubing through the GVP drive extensions and Extension Drive Adapter. 3. Advance Point: Drive the assembly to the desired sampling depth using an AMS Slide Hammer or SDS-MAX Hammer Drill. Add extension rods as needed. 4. Deploy Tip: Pull up on the drive extension string ~2 to 3 inches. The extension drive end disengages from the dedicated tip, allowing the umbrella to open in the borehole and shield the vapor inlets. 5. Backfill & Seal Hole: Slowly withdraw drive extensions while feeding clean sand down around the tip area, followed by a bentonite slurry or hydrated bentonite pellet seal to surface to prevent ambient air short-circuiting. 6. Purge & Sample: Allow bentonite seal to hydrate, perform a tracer gas/leak check, purge stagnant air, and collect the soil gas sample.

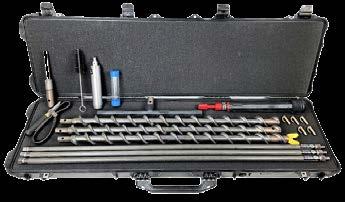

AMS Sampling Kit To simplify field deployment and penetrate hard surface layers (asphalt, concrete, rocky base material), AMS Sampling Kits provide all necessary flighted augers, hammer drills, and drive components in a single transportable system.
Available Kits & Tooling Options AMS Flighted Auger Kit (FEI ID: 18374): Includes extensions, flighted auger poles, and auger tips. Enables quick pre-drilling of small-diameter pilot holes to bypass gravel or tight soil layers prior to placing GVP tips. DeWalt SDS MAX Hammer Drill (FEI ID: 10533): High-impact rotary drill for rapid penetration through concrete and hard surface covers before soil gas sampling. Gas Vapor Probe Kit w/ Dedicated Tips & Drill (FEI ID: 4208): Complete field-ready kit including drive extensions, slide hammer, dedicated tips, flighted augers, and drill. Field Tip: Always pre-drill pilot holes using flighted augers or tile probes prior to driving delicate probe tips. This prevents tip damage on underground gravel/stones and ensures accurate placement at the intended depth.
Leak Detection
11
Kelron 3-1 Helium Detector

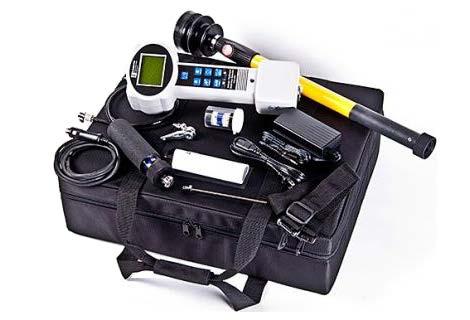

The Kelron 3-in-1 Helium Detector combines helium leak detection, sample point purging, and real-time purge volume tracking in a single portable instrument designed for soil vapor sampling. It helps verify probe and sampling system integrity, detect atmospheric air intrusion, and improve QA/QC before sample collection. For SUMMA canister and TO-15 investigations, the system supports more reliable and defensible vapor sampling by reducing the risk of sample dilution, streamlining field operations, and increasing confidence in data quality. Visit kelroninc.com for more information
FEI Catalog ID’s
Kelron 3-1 Helium Detector (ID: 29410)
Calibration & Accessories
Kelron Helium Shroud (ID: 29395)
Kelron 3 in 1 Leak Check Instructions 1. Place the shroud detector inside Helium shroud and thread the shroud cable out through port. Plug the shroud detector cable into the unit located outside of the shroud. If multiple Kelrons are in use match the shroud cable and main unit number. 2. Press the power button, unit will display warm-up countdown. Do not expose the unit or shroud detector to helium during the warm-up countdown. 3. Once warm-up is complete, attach purge tubing to the unit. 4. Press display button to show purge pump flow rate. Press again to return to Helium readings. 5. Turn the flow adjust knob clockwise and adjust flow rate. 6. Total volume purged will appear on the screen. Reset Vol button will zero the volume reading for the next sample. 7. Press the display button again to display Helium concentrations. 8. Proceed to purge and sample per your workplan. 9. Monitor the purge line at all times for moisture, do not allow droplets of water to enter device.

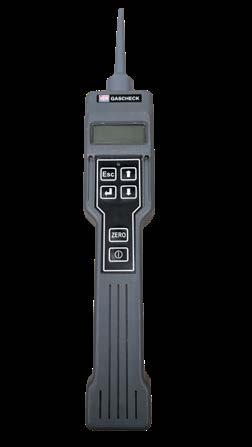

Dielectric Helium Leak Detector Dielectric helium detectors (often used in HVAC or industrial gas testing) operate using thermal conductivity. For environmental use, Dielectric offers helium detectors sensitive enough for soil vapor leak testing during tracer gas (helium) deployment. FEI Catalog ID’s
Calibration & Accessories
Dielectric Helium Leak Detector MGD-2002 (ID: 05510)
Male Demand Flow Regulator (ID:14407) Male Regulator (ID: 00451) Calibration Helium 0.50% 103L (ID: 12101) Tracer Helium 99.99% 103L (ID: 10709)
12
Analytical Sample Collection Xitech High Vacuum Air Sampler The Xitech High Vacuum Air Sampler is a portable, rugged, high-vacuum pump system designed specifically for collecting soil vapor, sub-slab, and indoor air samples in environmental investigations. It provides precise control over vacuum pressure and flow, which is essential for ensuring sample integrity during VOC analysis. FEI Catalog ID’s Xitech High Vacuum Air Sampler (ID:16281)
SKC Vac-U-Chamber
The SKC Vac-U-Chamber is a passive sampling isolation device designed to allow accurate and secure sample collection. It’s commonly used during soil vapor, subslab, or indoor air sampling to prevent direct contact between the sample media and the sampling pump, ensuring sample integrity and avoiding contamination. FEI Catalog ID’s Vacuum Chamber SKC (1 Liter) (ID: 1493)
Casella Apex 2 IS Plus
The Apex2 is a personal air sampling pump designed to draw air at controlled flow rates to assist in soil vapor sample collection when paired with a vacuum chamber. In this setup, the pump does not contact the soil vapor directly. Instead, it applies vacuum to the outside of a sealed canister housed in the chamber, drawing air into the canister through natural vacuum differential—ensuring zero pump contamination risk critical for VOC analysis.
FEI Catalog ID’s Casella - Apex 2 IS Plus Sampling Pump (1000-5000mL/min) (ID: 15921)
Gilian GilAir Plus The GilAir Plus is a high-precision personal air sampling pump used for soil vapor sampling using a vacuum chamber. In this setup, the GilAir Plus does not contact the sampled vapor directly. Instead, it is used to apply vacuum to the chamber surrounding a canister, which enables the sample to be drawn into the canister via pressure differential, protecting the sample from contamination.
FEI Catalog ID’s Gilian - GilAir Plus Personal Air Sampling Pump (ID: 25773)
Field Screening
13
RAE Systems MiniRAE 3000
The MiniRAE 3000 provides rapid PID‑based VOC screening during vapor intrusion assessments, helping technicians quickly identify elevated areas in basements, crawlspaces, utility penetrations, and sub‑slab points. While it doesn’t speciate compounds, its broad response makes it effective for locating potential intrusion pathways. Using Tedlar bag grab samples alongside the MiniRAE adds a second layer of screening: soil‑gas or indoor‑air grabs can be quickly checked on‑site, then sent for lab confirmation if they show elevated readings. Together, this workflow speeds up hotspot identification and helps determine where more detailed compound‑specific methods are needed.
FEI Catalog ID’s
Calibration & Accessories
MiniRAE 3000 10.6 eV Lamp (ID: 06206) MiniRAE 3000 11.7 eV Lamp (ID: 06456)
Female Regulator (ID: 00450) Female Demand Flow Regulator (ID: 14408) Isobutylene 100 ppm 17L (ID: 00034) Isobutylene 10 ppm 17L (ID: 01693) Zero Air 17L (ID: 00043)
Water Trap Filter (ID: 12988) Water Trap Filter w/ Connector (ID: 02609)
EN-SCAN Labrador

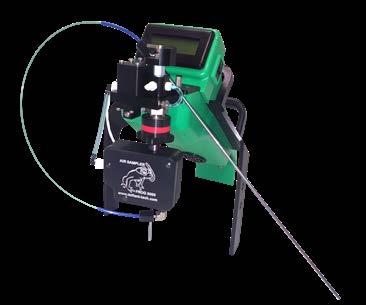

The EN‑SCAN Labrador HH‑GC supports vapor intrusion investigations by providing real-time, laboratory-grade VOC analysis directly in the field. With ppb-level sensitivity and true gas chromatography separation, it can identify and distinguish compounds commonly targeted by EPA TO‑15 and TO‑17 methods, helping investigators trace vapor intrusion pathways, confirm VOC concentrations, and make immediate decisions on sampling, mitigation, or further assessment. This rapid, defensible data accelerates investigations and improves site characterization. Visit en-scan.com for more information
FEI Catalog ID’s EN-SCAN Labrador (ID: 29106)
FROG 5000™
The Defiant FROG‑5000 provides portable, compound‑specific VOC analysis with ppb‑level sensitivity, making it ideal for rapid vapor intrusion screening. Its lightweight design lets technicians move quickly between indoor air, soil‑gas, and sub‑slab ports, while its chromatographic separation identifies key VI compounds like PCE, TCE, BTEX, and vinyl chloride in real time. By delivering defensible data on‑site, the FROG helps pinpoint vapor pathways, refine sampling plans, and support immediate mitigation decisions. FEI Catalog ID’s FROG-5000™ Gas Chromatograph Platform w/ Air Sampler (ID: 24499)
14
Real Time Vapor Monitoring Vapor Intrusion with FDS Connect®
Field Data Solutions (FDS Connect) transforms vapor intrusion investigations from periodic sampling events into a continuous, data-driven monitoring program. By integrating real-time field data, cloud-based visualization, automated alerts, and historical trend analysis, environmental professionals can better understand changing site conditions, building pressure relationships, and vapor migration potential. This continuous visibility enables faster field decisions, more efficient investigations, optimized sampling strategies, and more defensible conclusions throughout the life of a project. • Provides real-time monitoring of differential pressure, gas detection, meteorological conditions, and other critical vapor intrusion parameters. • Delivers cloud-based dashboards for remote access to live project data and site conditions. • Sends automated alerts and notifications when site conditions change, enabling rapid response. • Supports historical trend analysis to evaluate temporal variability and improve site understanding. • Helps optimize sampling locations, prioritize investigation efforts, and reduce delays associated with traditional laboratory turnaround times. • Improves data quality, strengthens conceptual site models, and supports more defensible vapor intrusion decisions.
Safeguard AQSentinel SA-4ES Environmental Emissions Monitoring System The Safeguard Gas Monitoring System provides continuous monitoring of methane, VOCs, carbon monoxide (CO), and numerous other gases commonly encountered during vapor intrusion investigations. Its flexible, multi-gas capabilities help environmental professionals track changing site conditions, identify potential vapor migration concerns, evaluate mitigation system performance, and support informed decision-making through reliable, real-time gas monitoring.
Dwyer - Magnehelic Differential Pressure Indicating Transmitter
When integrated with Field Data Solutions (FDS Connect), the Dwyer Magnehelic Differential Pressure Indicating Transmitters provide continuous monitoring of pressure relationships that are critical to understanding vapor intrusion potential. By continuously measuring pressure differentials between indoor spaces, sub-slab environments, and outdoor conditions, the system helps environmental professionals identify conditions that may promote vapor migration into buildings. Real-time data collection, remote visibility, automated alerts, and historical trend analysis allow users to track changing building pressure dynamics, evaluate mitigation system performance, document temporal variability, and make proactive, data-driven decisions.
Jerome J405 Mercury Vapor Analyzer
The Jerome J405 Mercury Vapor Analyzer provides highly sensitive, real-time monitoring of elemental mercury vapor in air, making it an ideal tool for environmental investigations, remediation projects, and vapor intrusion assessments involving mercury contamination. With low-level detection capabilities and rapid field measurements, the J405 allows environmental professionals to identify mercury vapor sources, assess exposure risks, verify remediation effectiveness, and monitor changing site conditions without waiting for laboratory results. Its portability and accuracy support faster decision-making and improved management of mercury-impacted sites.
Disposable Supplies
15 Tubing
FEI provides a tubing in various materials, diameters, and lengths for all vapor intrusion applications.
Tubing Types Teflon-lined Tygon Nylaflow
Tedlar Bags Used to collect grab samples of air or vapor for analysis of VOCs, fixed gases, or general chemical composition. In soil vapor sampling, Tedlar bags can be used as a cost-effective alternative to Summa canisters for screening-level or qualitative assessments. FEI Catalog ID’s Single Fitting, 2 mil, 1L Vol. (ID:155) Single Fitting, 2 mil, 1L Vol. (10 pack) (ID:204) Single Fitting, 2mil, 10L Vol. (ID:8413) Single Fitting, 2mil, 10L Vol. (10 pack) (ID:16816)
Nitrile Gloves
FEI supplies high-quality nitrile gloves to support environmental fieldwork, including soil vapor sampling, groundwater sampling, and surface soil investigations. Nitrile gloves are an essential part of field PPE, providing chemical resistance, durability, and sample integrity protection. FEI Catalog ID’s Light Blue Powder-free (3-4 mil) M (ID:23627) L (ID:22327) XL (ID: 22328) Sempermed Black Powder-free (5 mil) M (ID: 20412) L (ID: 17026) XL (ID: 17027) XXL (ID: 17028) Sempermed SemperShield Royal Blue, Powder-free (6 mil) L (ID: 19061) XL (ID: 19062)
Decontamination Supplies
FEI also offers a comprehensive range of decontamination supplies to support clean sampling procedures and avoid cross-contamination between locations or media types. These supplies are suitable for both standard environmental sampling and soil vapor sampling protocols. FEI Catalog ID’s
DECON-IT® 16oz Spray Bottle (ID: 15948) DECON-IT® Sachets (10 mL) 10 pack (ID: 21063) Alconox® Detergent 50 box of 1/2 oz. packets (ID: 00345) Liquinox® Detergent 1 Quart (ID: 00346)
Vapor Pin® Product List
16
Preconfigured Bundles: Ready-to-deploy assemblies that combine sampling devices and accessories into applicationspecific packages, reducing field preparation time and simplifying procurement. Product Code
Name
FEI ID #
SSSUB
Stick Up Stainless Steel Bundle
29325
BSUB
Stick Up Brass Bundle
29326
FLXSUB
Stick Up FLX Bundle
29327
QCSUB
Stick Up Quick Connect Bundle
29328
SWSUB
Stick Up Swagelok Bundle
29231
SSPFMB
Plastic Flush Mount Stainless Steel Bundle
29223
SSSCB
Stainless Steel Secure Flush Mount Bundle
29224
BPFMB
Plastic Flush Mount Brass Bundle
29225
BSCB
Brass Secure Flush Mount Bundle
29226
FLXPFMB
Plastic Flush Mount FLX Bundle
29227
FLXSCB
FLX Secure Flush Mount Bundle
29329
QCPFMB
Plastic Flush Mount Quick Connect Bundle
29228
QCSCB
Secure Flush Mount Quick Connect Bundle
29229
SWPFMB
Plastic Flush Mount Swagelok Bundle
29230
SWSCB
Swagelok Secure Flush Mount Bundle
29330
MINIAB
Flush Mount Anodized Aluminum Mini Pin
29331
MINIAQCB
Flush Mount Quick Connect AA Mini Bundle
29232
MINIASWB
Flush Mount Swagelok AA Mini Bundle
29233
MINISB
Flush mount Stainless Steel Mini Pin
29332
MINISQCB
Flush Mount Quick Sonnect SS Mini Bundle
29234
MINISSWB
Flush Mount Swagelok SS Mini Bundle
29235
SSPVCB
Stainless Steel Insert Bundle
29333
FLXPVCB
FLX Insert Bundle
29334
QCPVCB
Quick Connect Insert Bundle
29335
SWPVCB
Swagelok Insert Bundle
29336
Vapor Pin® Product List
17
Vapor Pin® Sampling Devices: Precision sampling devices engineered to create reliable access points through concrete slabs for soil gas and vapor intrusion sampling. Available in brass, stainless steel, and flexible configurations to accommodate a wide range of project requirements. Mini Vapor Pin® Sampling Devices: Compact sampling solutions for projects requiring smaller installation footprints while maintaining data quality and sample integrity. Ideal for tight locations and discrete monitoring applications. Product Code
Name
FEI ID #
VPIN0522B
Brass Vapor Pin® Sampling Device
22406
VPIN0522SS
Stainless Steel Vapor Pin® Sampling Device
19789
FLX-VPSS
Stainless Steel FLX-VP™
29293
VPM-AN001
Mini Vapor Pin® Sampling Device Anodized Aluminum
29240
VPM-SS001
Mini Vapor Pin® Sampling Device Stainless Steel
29246
BVPSET
Brass Vapor Pin® Sampling Device SET
29238
SSVPSET
Stainless Steel Vapor Pin® Sampling Device SET
29239
FLXVPSET
FLX-VP Sampling Device SET
29294
HPSET
Hand Pump Set
29295
Installation & Field Essentials: Specialized tools and accessories that support installation, extraction, maintenance, and ® protection of Vapor Pin sampling systems. These products help ensure consistent field procedures and improve sampling efficiency. Product Code
Name
FEI ID #
VPIE023
Installation/Extraction Tool
29242
VPSCSS001
Stainless Steel Secured Cover
29236
VPSPAN001
Spanner for Secured Cover
29243
VPDG001
Stainless Steel Drilling Guide
29296
HDB5/8
Hammer Drill Bit - TE - YX 5/8” Inch
29287
HDB11/2
Hammer Drill Bit - TE - YX 1 1/2” Inch
29285
VP0018.00
Stick-Up Drill Guide
29297
VPTS077-20
Vapor Pin® Sleeves (Bag of 20)
29237
VPPC010-20
Vapor Pin® Caps (Bag of 20)
29244
PVC_Insert.01
Vapor Pin® Insert
29298
VPWD004
Water Dam
29299
VPB026
Bottle Brush
29300
Vapor Pin® Product List
18
Extensions & Adaptors: Components that expand sampling capabilities by accommodating varying slab depths, site conditions, and monitoring configurations. They provide flexibility for complex vapor intrusion assessments. Product Code
Name
VPBARBEXT-SS
Vapor Pin® Barb Extension Stainless Steel
FEI ID # 29301
VPEXT 1.5-SS
Vapor Pin® 1.5” Extension Stainless Steel
29302
VPSIEVE-SS
Vapor Pin® Sieve Stainless Stee
29245
VPSEALEXT-SS
Stainless Steel Vapor Pin® Sealing Extension
29303
VPFILTER-B
Vapor Pin® Filter
29307
VPC
Vapor Pin® Capsule
29308
Tubing & Connections: High-quality tubing and connectors designed to maintain sample integrity during vapor collection. Compatible with common environmental sampling equipment and laboratory protocols. Product Code
Name
FEI ID #
Teflon
Teflon Tubing 10 Feet
29249
VPST001
Nylaflow Tubing 10 Feet
26911
VPST002
Tygon Tubing 5 Feet
29309
T-TC
Tygon Connectors Bag of 10
29250
Replacement Parts & Accessories: Support components including covers, fittings, valves, connectors, and storage solutions that extend system life and ensure operational readiness in the field. Product Code
Name
FEI ID #
VPFM_5
Bag of Plastic Flush Mount Covers (5 Pieces)
29241
VPM050
Bag of Plastic Flush Mount Covers (10 Pieces)
29310
FLX-VP-Oring
FLX-VP O-Ring (5 Pieces)
29311
VPET001
Elastrator Tool
29312
SL_FLX1_FITTING
Swagelok Fitting - Male Conn., 1/4” Tube X 5/16-24 Male SAE Str Thrd
29313
SL_FERRULE_SET
Swagelok Ferrule Set of 10 - 1/4” Tube Fitting
29314
MQT-SVPS
Quick Connect
29315
FQT-400
Female Quick Connect
29316
FLX-VPCAP
Stainless Steel FLX-VP Cap
29317
FLX-VP Barb Standalone
FLX-VP Stainless Steel Barb w/ O-Ring
29318
TFIT
Union 1/4” Inch T Fitting
29319
MFIT
1/4” Inch Male Pipe Adaptor
29320
MBV
Mini Ball Valve
29321
VGAUGE
Vacuum Gauge
29322
HPUMP
Hand pump
29324
Vapor Pin® Product Use Guide This guide is intended to help FEI staff and customers understand when to use each Vapor Pin® product type. Product selection should always account for project scope, installation style, sampling duration, site conditions, and applicable state or regulator requirements Sampling Devices Item/Product Type
Description & Use
Brass Vapor Pin® Sampling Device
Economical option for short-duration sampling events, grab samples, and temporary stick-up installations. Brass pins are useful when the pin will be installed, sampled, removed, cleaned, and reused, but they are more susceptible to corrosion than stainless steel.
Stainless Steel Vapor Pin® Sampling Device
Recommended for longer-duration monitoring, permanent installations, and most stocking situations because stainless steel is more durable than brass. Stainless steel pins are commonly paired with secure covers for flush-mount or permanent installations.
FLX-VP™ Sampling Device
Flexible Vapor Pin® option used where configuration flexibility or FLX-specific accessories are needed. Appropriate for projects requiring a stainless steel sampling point with compatible FLX caps, barbs, bundles, or insert assemblies.
Mini Vapor Pin® Sampling Device
Compact permanent sampling device that performs the same sampling function as a standard Vapor Pin® while using a smaller footprint. Strong option for thin concrete, residential buildings, apartments, schools, and projects where faster installation or a lower-profile permanent point is preferred.
Sampling Device Sets
Preassembled device sets intended to simplify ordering by combining the sampling device with common installation components. Helpful when staff or customers need a ready-touse configuration instead of selecting each part individually.
Hand Pump Set
Field support item used with sampling setups where a manual pump is needed to support purging, flow checks, or sampling preparation depending on the project method.
Installation Essentials and Covers Item/Product Type
Description & Use
Installation/Extraction Tool
Core field tool used to install and remove standard Vapor Pin® sampling devices. Important for technicians handling reusable pins or temporary stick-up sampling events.
Stainless Steel Secured Cover
Protective cover used for permanent or flush-mount installations where the sampling point needs to remain in place. High-priority stocking item because customers often reuse existing pins but need new covers for permanent installations.
Spanner for Secured Cover
Tool used to open or secure the stainless steel secured cover. Needed for secured cover installations and also useful for mini pin sampling device configurations
Stainless Steel Drilling Guide
Supports consistent hole placement and cleaner installations by helping guide drilling during Vapor Pin® installation work.
Stick-Up Drill Guide
Guide used for temporary stick-up installations where the Vapor Pin® extends above the slab for short-term sampling.
Plastic Flush Mount Covers
Plastic cover option for flush-mount configurations where a lower-cost cover is acceptable. Useful in bundles and replacement situations where the project does not require a secured stainless steel cover.
19
Vapor Pin® Product Use Guide
20
Sleeves, Caps, Inserts, and Leak Testing Item/Product Type
Description & Use
Vapor Pin® Silicone Sleeves
Critical sealing component used during Vapor Pin® installation. Vapor Pin® emphasized using their sleeves because sleeve material, curing, and preparation affect sealing performance; third-party sleeves were associated with leakage concerns.
Vapor Pin® Caps
Common replacement item used to cap sampling devices between sampling events. Caps can wear after repeated use, so they are a strong recurring stock item for customers who reuse Vapor Pins.
Vapor Pin® Insert / PVC Insert
Higher-value item used primarily for new construction and prepour projects, especially where vapor barrier or membrane systems are planned. Inserts should be identified early because they are installed before concrete is poured and may be ordered in larger quantities.
Water Dam
Used for mechanical leak testing around stick-up installations before sampling. The water dam helps hold water around the sampling point so technicians can look for air bubbles that indicate leakage.
Bottle Brush
Cleaning accessory used to help maintain reusable Vapor Pin® components and remove debris from installation or sampling equipment.
Extensions and Specialty Components Item/Product Type
Description & Use
Barb Extensions
Used to extend or adapt the sampling connection where additional reach or configuration flexibility is needed. The brass barb extension is noted as discontinued once existing stock is depleted.
1.5” Stainless Steel Extension
Used when the sampling point needs to be lowered below the slab surface, such as where concrete contamination could affect results or where a deeper sampling point is needed.
Stainless Steel Sealing Extension
Used when concrete is brittle, the hole has been drilled too deep, or the seal needs to be achieved lower in the concrete. Can serve as a field fix while maintaining the sampling point in the desired position.
Stainless Steel Sieve
Used where dust management is difficult or deeper sampling locations create particulate concerns. Helps protect the sample train and canister from dust or debris.
Vapor Pin® Filter
Specialty component used in moisture-prone, clay-rich, or groundwater-influenced conditions where clogging or water impact may be a concern. Best treated as limited specialty inventory.
Vapor Pin® Capsule
Accessory component used with Vapor Pin® configurations where protection, containment, or specialty sampling setup support is needed.
Vapor Pin® Product Use Guide Tubing, Fittings, and Sampling Connections Item/Product Type
Description & Use
Teflon Tubing
Sample train tubing used for vapor sampling connections. Meeting guidance noted Teflon tubing can be sourced from Vapor Pin® or other suppliers when compatible sizing is maintained.
Nylaflow Tubing
Rigid sample train tubing used for vapor sampling connections. Meeting guidance referenced 0.18” ID / 0.25” OD as the relevant size for Nylaflow and Teflon tubing.
Tygon Tubing
Short soft tubing connection used between the Vapor Pin® barb and sample train tubing. Meeting guidance referenced 0.187” ID / 0.312” OD and emphasized keeping this connection short to reduce leak risk
Tygon Connectors
Connector pieces used to support tubing transitions and sampling train setup. Useful as a replenishment item for field crews assembling or maintaining sample trains.
Quick Connect and Female Quick Connect
Connection hardware used to simplify sampling train attachment and disconnection. Useful for repeat sampling events and more efficient field setup.
Swagelok Fitting and Ferrule Set
Compression fitting components used for secure, leakresistant tubing connections in sampling assemblies or bundles requiring Swagelok-style hardware.
T Fitting, Male Pipe Adaptor, Mini Ball Valve, Vacuum Gauge, and Hand Pump
General sampling train components used for flow control, connection adaptation, vacuum checks, and field sampling support.
Drill Bits and Field Tools Item/Product Type
Description & Use
5/8” Hammer Drill Bit
Standard drill bit size used for Vapor Pin® installations. Recommended as a stocked field item for standard pin installation work.
1 1/2” Hammer Drill Bit
Used for flush-mount installations where a larger recess is needed for the cover. Often paired with a 5/8” hole for the pin itself.
Elastrator Tool
Field accessory used during assembly or installation tasks where sleeve, seal, or component handling requires a dedicated tool.
21
Contact or visit the full-service location near you. Pittsburgh, Pennsylvania (Corporate Headquarters) 301 Brushton Ave, Suite A Pittsburgh, PA 15221 800-393-4009 Customer Account Representatives: Anthony Visco: TVisco@FieldEnvironmental.com Melvin Turner: MTurner@FieldEnvironmental.com Ray Foerster: RFoerster@FieldEnvironmental.com Kornel Sopko: KSopko@FieldEnvironmental.com Clarissa Pinkerton: CPinkerton@FieldEnvironmental.com Russ Maxwell: RMaxwell@FieldEnvironmental.com Anthony Gaito: AGaito@FieldEnvironmental.com Sarah Palonder: SPalonder@FieldEnvironmental.com Atlanta, Georgia 3050 Business Park Drive, Suite F Norcross, GA 30071 866-620-6762
Los Angeles, California 19201 Parthenia Street, Unit D Northridge, CA 91324 866-278-2382 Customer Account Representatives: Gary Yamron: GYamron.CA@FieldEnvironmental.com Allan Miller: AMiller.CA@FieldEnvironmental.com Minneapolis, Minnesota 7600 W. 27th. Street, Suite A-7 St Louis Park, MN 55426 866-580-5512 Customer Account Representatives: Ashrene Mohammed: AMohammed.MN@FieldEnvironmental.com Samantha Rieger: SRieger.MN@FieldEnvironmental.com Adam Murch: AMurch.MN@FieldEnvironmental.com
Customer Account Representatives: Elizabeth Rogers: ERogers.GA@FieldEnvironmental.com Jeremy Sloan: JSloan.GA@FieldEnvironmental.com Angelo Pace: APace.GA@FieldEnvironmental.com
Nashville, Tennessee 475 Metroplex Drive, Suite 111 Nashville, TN 37211 866-341-1066
Chicago, Illinois 405 Eisenhower Lane South Lombard, IL 60148 844-515-9170
Customer Account Representatives: Reagan Johnson: RJohnson.TN@FieldEnvironmental.com
Customer Account Representatives: Adam McMullin: AMcMullin.IL@FieldEnvironmental.com Carlos Jimenez: CJimenez.IL@FieldEnvironmental.com Greenville, South Carolina 14B Brozzini Court Greenville, SC 29615 888-970-1550 Customer Account Representative: Glenn Turner: GTurner.SC@FieldEnvironmental.com Houston, Texas 16203 Park Row, Suite 130 Houston, TX 77084 866-323-4006 Customer Account Representative: Eric Coffey: ECoffey.TX@FieldEnvironmental.com Charlen Ellis: CEllis.TX@FieldEnvironmental.com Elizabeth Birdwell: EBirdwell.TX@FieldEnvironmental.com Kansas City, Kansas 1546 E. Spruce Street Olathe, KS 66061 866-580-5499 Customer Account Representative: John Sitler: JSitler.KC@FieldEnvironmental.com Sam Goodman: SGoodman.KC@FieldEnvironmental.com Long Beach, California 2301 E. 28th Street, Suite 305 Signal Hill, CA 90755 844-608-3344 Customer Account Representative: Christian Pinto: CPinto.CA@FieldEnvironmental.com
Philadelphia, Pennsylvania 15 E. Uwchlan Avenue, Suite 410 Exton, PA 19341 866-648-8607 Customer Account Representatives: Ed Bursich: EBursich.PA@FieldEnvironmental.com Jarrett Rockey: JRockey.PA@FieldEnvironmental.com Portland, Oregon 10130 SW Nimbus Avenue, Suite D-7 Tigard, OR 97223 844-324-9516 Customer Account Representatives: Julius Panela: JPanela.OR@FieldEnvironmental.com Mariah Loar: MLoar.OR@FieldEnvironmental.com Raleigh, North Carolina 521-B Uwharrie Court Pylon Commercial Park Raleigh, NC 27606 833-465-1001 Customer Account Representative: Luke Davis: LDavis.NC@FieldEnvironmental.com Lee Marchman: LMarchman.NC@FieldEnvironmental.com Avery Pollard: APollard.NC@FieldEnvironmental.com Seattle, Washington 11710 Airport Road, Suite A-300 Everett, WA 98204 855-398-5600 Customer Account Representative: Robert Sosin: RSosin.WA@FieldEnvironmental.com Noah Holaday: NHoladay.WA@FieldEnvironmental.com Rose Riedel: RRiedel.WA@FieldEnvironmental.com
References Standard Operating Procedure for the Collection of Soil Gas Samples from Temporary and Permanent Soil Gas Probes using SUMMA Canisters and a Helium Leak Check: https://semspub.epa.gov/work/09/1119874.pdf Standard Operating Procedure - Helium Leak testing of Installed Soil Gas Vapor Probes (SOP: ERT-PROC-2104-23): https://response.epa.gov/site/doc_list.aspx?site_id=2107&category=Field%20 Activities Association of Vapor Intrusion Professionals (AVIP) Best Practices: https://avip.memberclicks.net/best-practices
23
EQUIPMENT RENTAL
24
Rental Rates
Equipment
• Fairest rates in the industry • Flexible rental terms • Rental term STARTS the day after you receive the equipment (except for morning deliveries) • Rental term ENDS the business day before FEI receives the equipment; for LOCAL PICKUP, the rental term ends the day you call
• No calibration or maintenance fees • Instruments serviced, calibrated, and documented to manufacturers’ specifications
Delivery
Support • 24/7 technical support • Cleaning, calibrating, and servicing the industry’s most popular equipment
• FREE local delivery and pick-up of equipment • Equipment arrives the day before rental starts • Items shipped worldwide via FedEx or UPS
Are you in the GREEN ZONE?
Free Local Delivery/Pickup
Next Day Ground
2nd Day Ground
3rd Day Ground
Next day ground delivery available in certain regions
