Green Infrastructure Design and Watershed Update

Page 1


North Central Conservation District

Greater Hartford Flood Commission

Special Meeting

September 18, 2024

Presentation Overview

• Introductions: Project Team and Partners

• Project Background, Goals, and Scope

• Watershed Plan Update

• Green Infrastructure Design Development

• Next Steps

• Questions and Discussion

Project Team

• North Central Conservation District

− Joanna Shapiro, Fiscal Agent/Project Oversight

• Fuss & O’Neill

− Erik Mas, PE, Technical Lead/Project Manager

− Akta Patel, PE, Design Engineer

− Andrew Bohne, RLA, Landscape & Ecological Design

• Meri with Park Watershed

− Mary Rickel Pelletier, Project Coordinator

• Trust for Public Land

− Brian Martin, Community Organizer

− Cally Guasti-O’Donoghue, Community Engagement

North Central Conservation District

Project Partners

Funding Source

Long Island Sound Futures Fund

Project Advisory Committee

Matt Hart* CRCOG

Caitlin Palmer* CRCOG

Denise Savageau CT Conservation Districts

Alicea Charamut Rivers Alliance of CT

David Mann Bloomfield Conservation Comm.

David MacDonald Asylum Hill Neighborhood Assoc.

President West End Civic Association

Marion Griffin Hartford NEXT

Evelyn Green Resident Blue Hills

Bongi Magubane Resident West End

Janice Castle City of Hartford, Community

Randal Davis* City of Hartford, Planning

Owen Deutsch* City of Hartford, Planning

Nick Casparino* City of Hartford, DPW

Frank Dellaripa* City of Hartford, DPW

Mike McGarry Hartford Flood Commission

Greg Sommer Town of West Hartford

Duane Martin Town of West Hartford

Yaw Darko CT Land Conservation Council

Amy Patterson CT Land Conservation Council

Grady Brockway Aide to House Speaker Ritter

Kellie Guilbert Aide to Senator McCrory

Marilyn Bantz CT DAS Property Manager

Ashley Stewart CT Green Bank

Marlene Krajewski* CT DEEP

Erik Bedan* CT DEEP

Christopher Bellucci* CT DEEP

Jason Waterbury* MDC

Jeremy Galeota* MDC

Zbigniew Grabowski UConn CLEAR

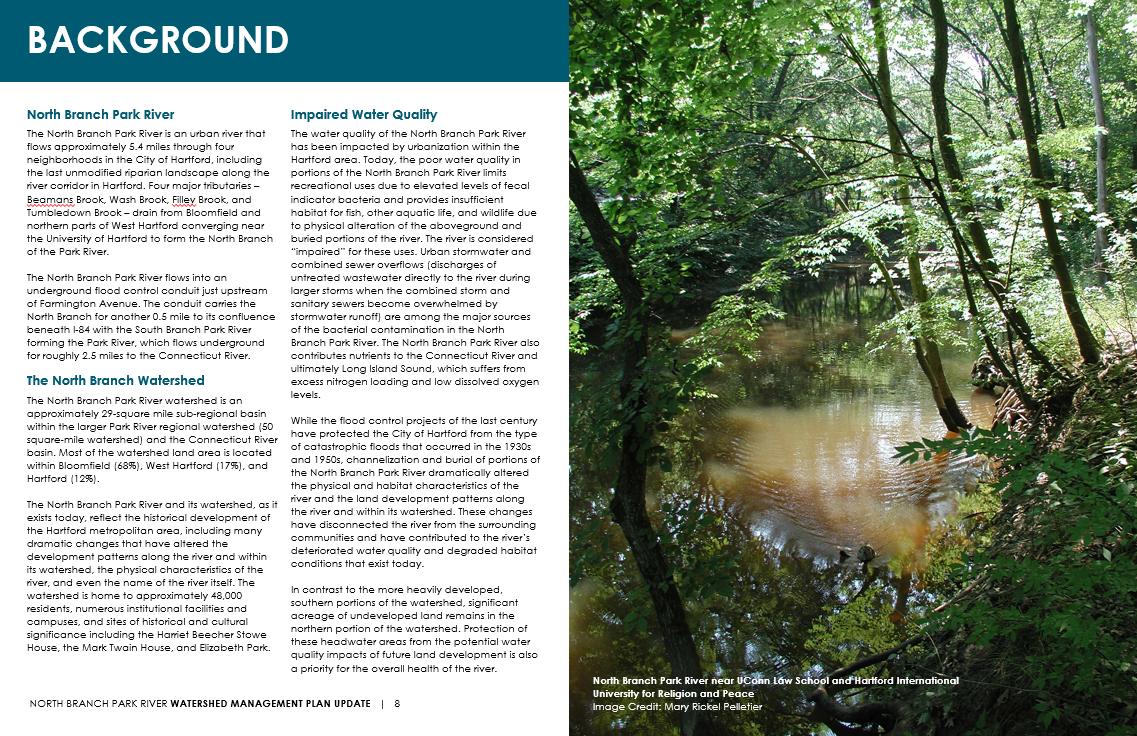

Project Background

2024 Update of the 2010 North Branch Park River Watershed Management Plan

North Branch Park River Watershed

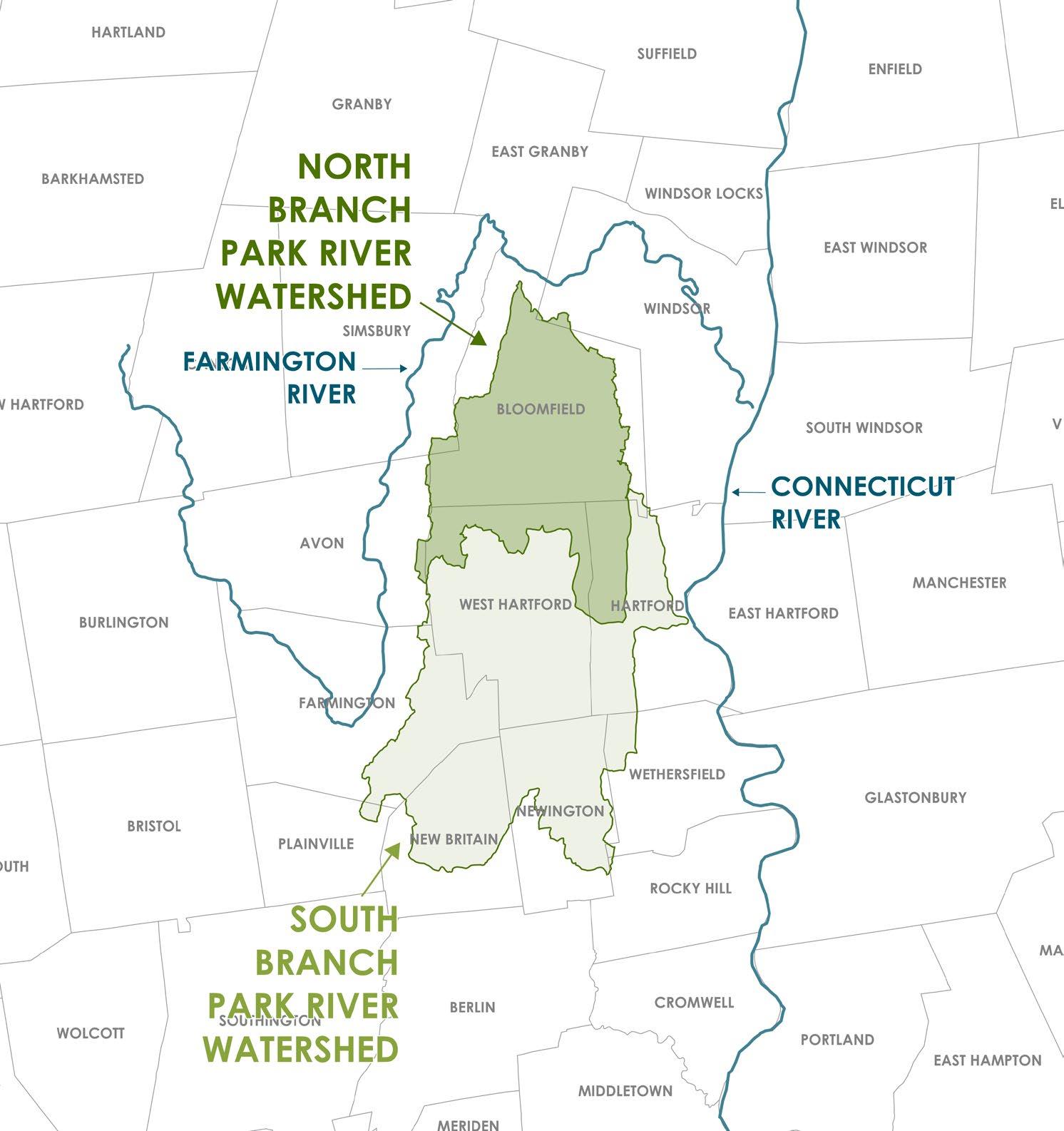

Watershed Context

North Branch Park River Watershed

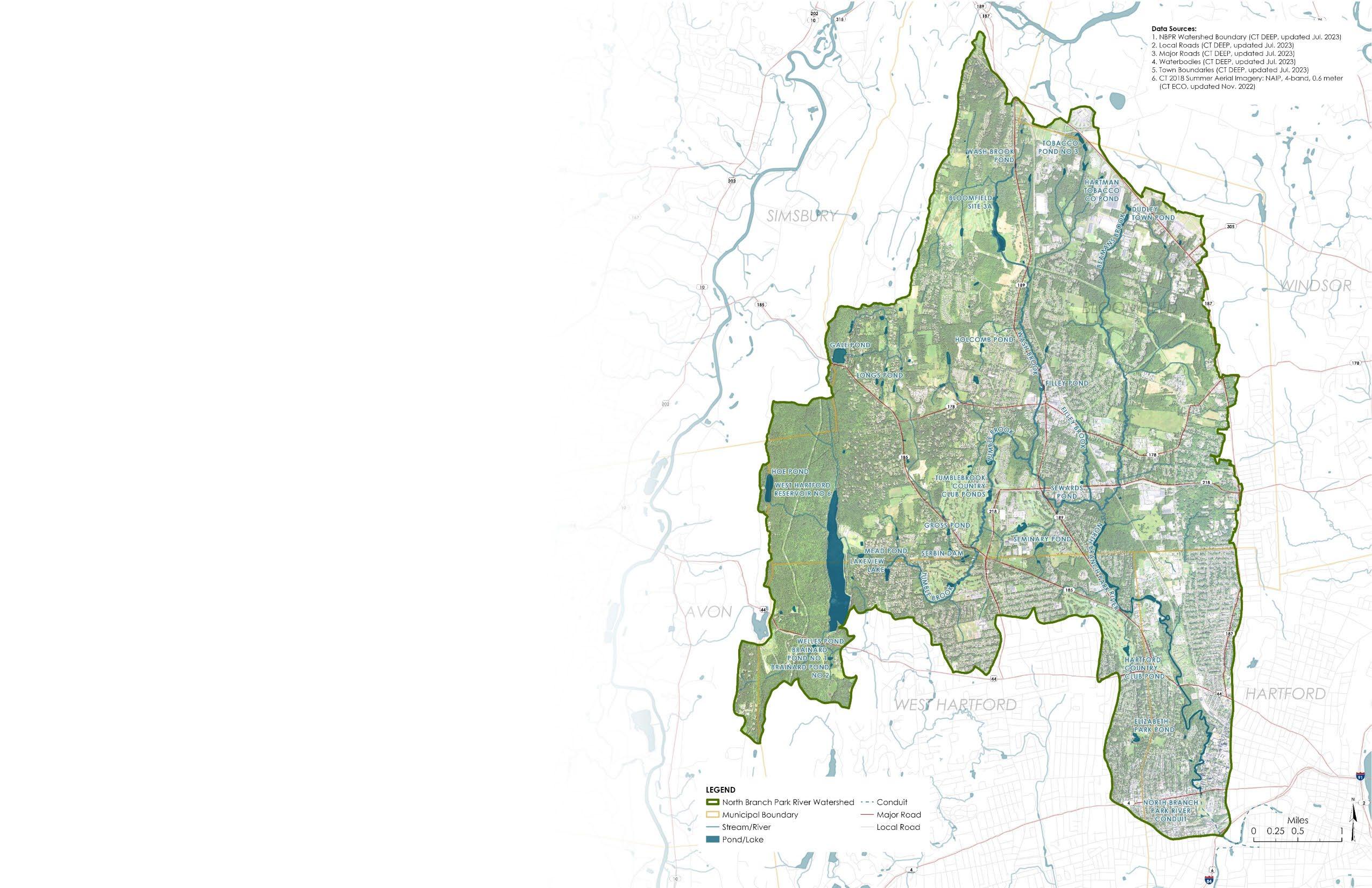

Watershed Overview

48,000 WATERSHED POPULATION

HOW MUCH OF THE WATERSHED DOES EACH MUNICIPALITY COMPRISE?

WHAT PERCENTAGE OF EACH MUNICIPALITY IS WITHIN THE NBPR WATERSHED?

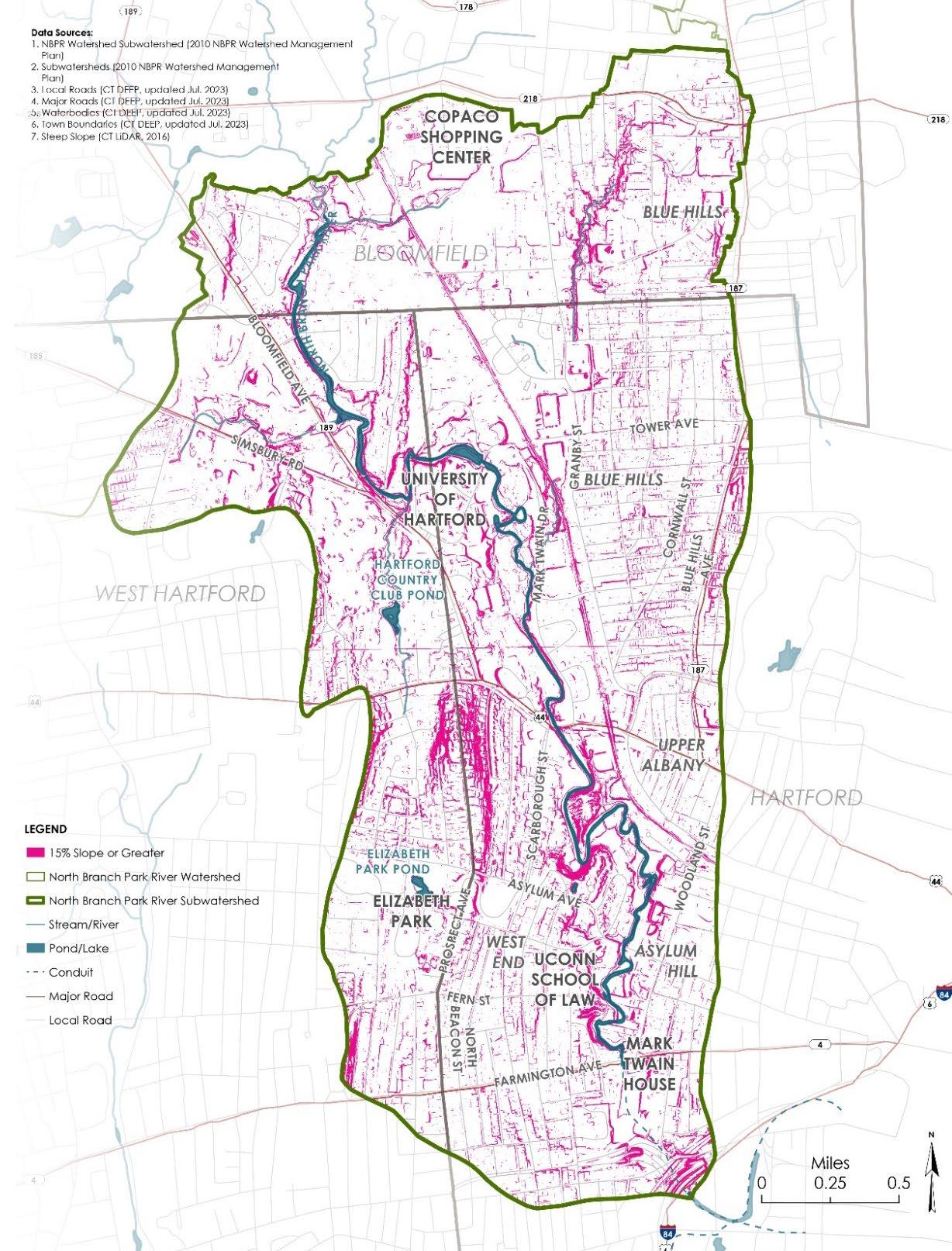

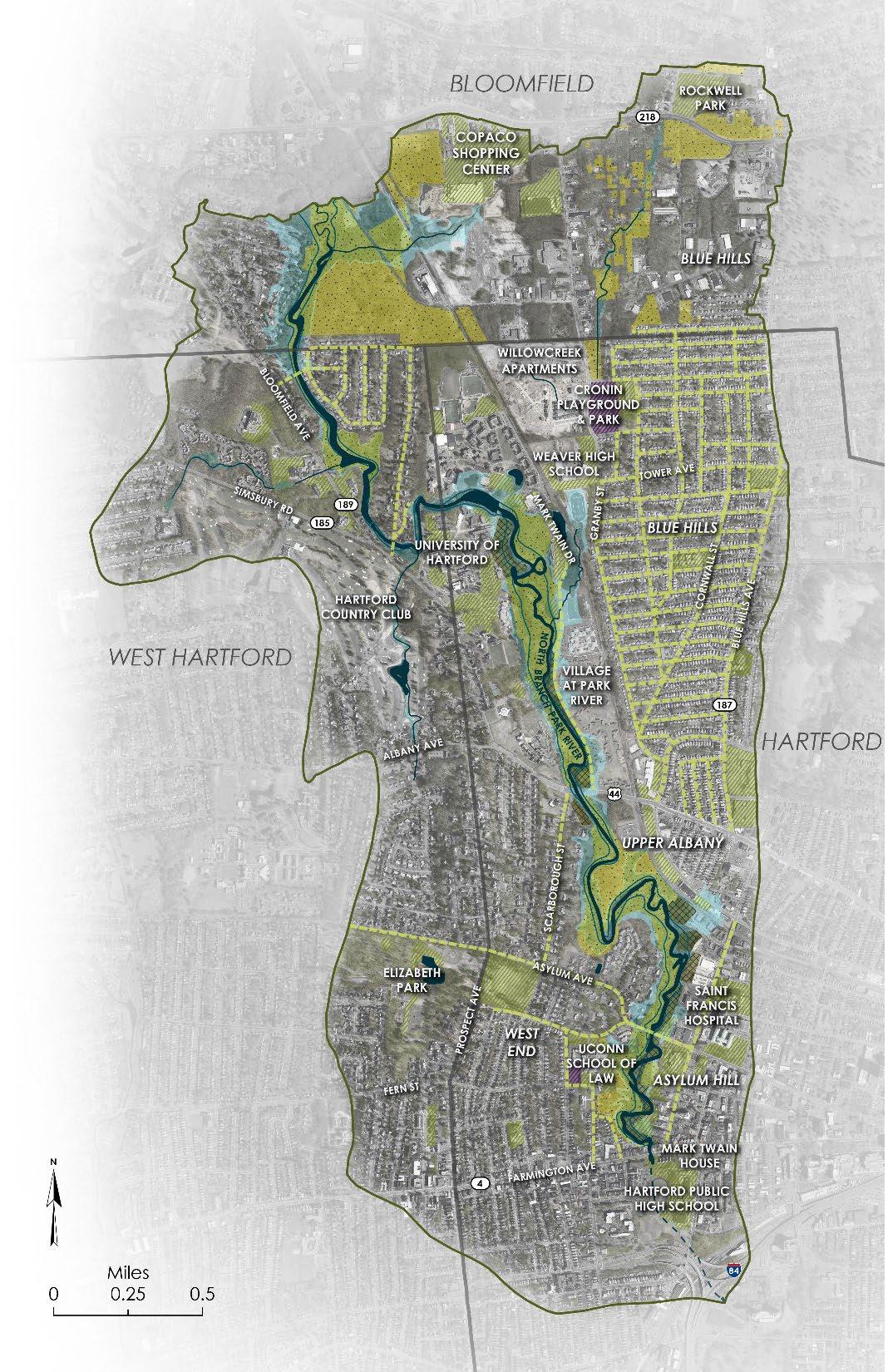

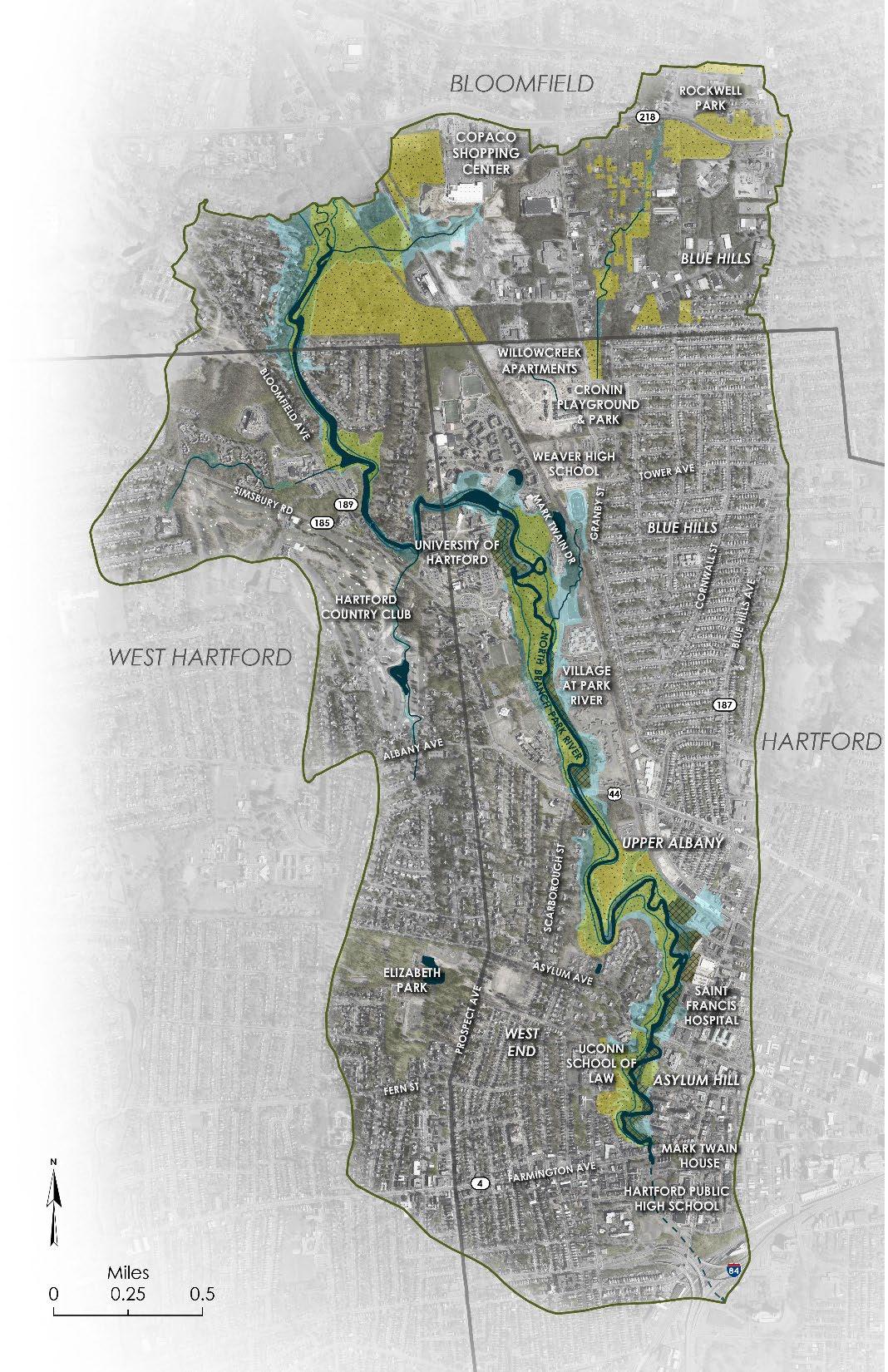

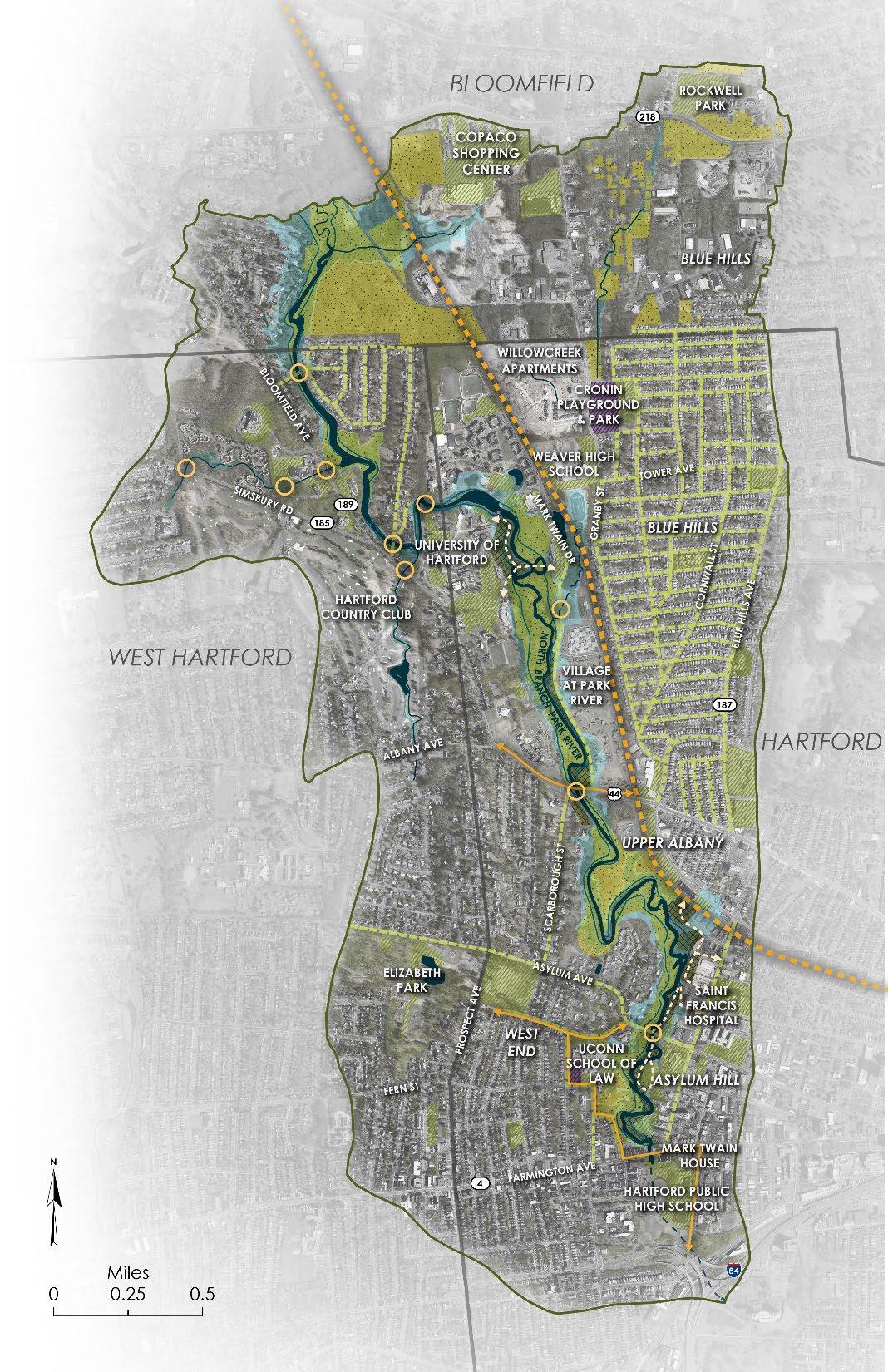

North Branch Park River Watershed

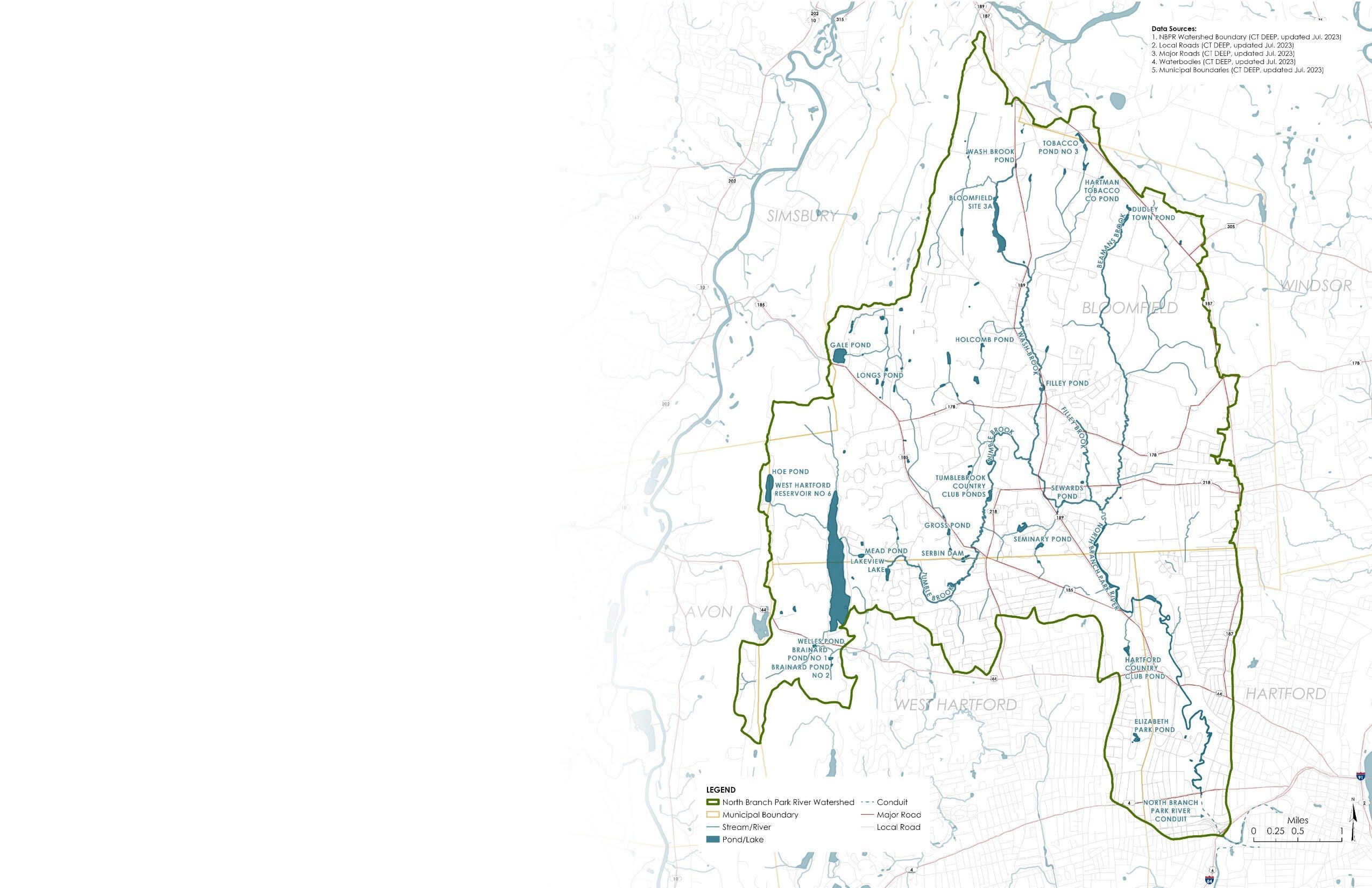

Streams and Subwatersheds

28.6 SQUARE MILES

TOTAL WATERSHED AREA

14 SUBWATERSHEDS

4 MAJOR TRIBUTARIES

5.4 MILES NORTH BRANCH MAINSTEM (ABOVE GROUND)

0.5 MILES NORTH BRANCH MAINSTEM (BURIED)

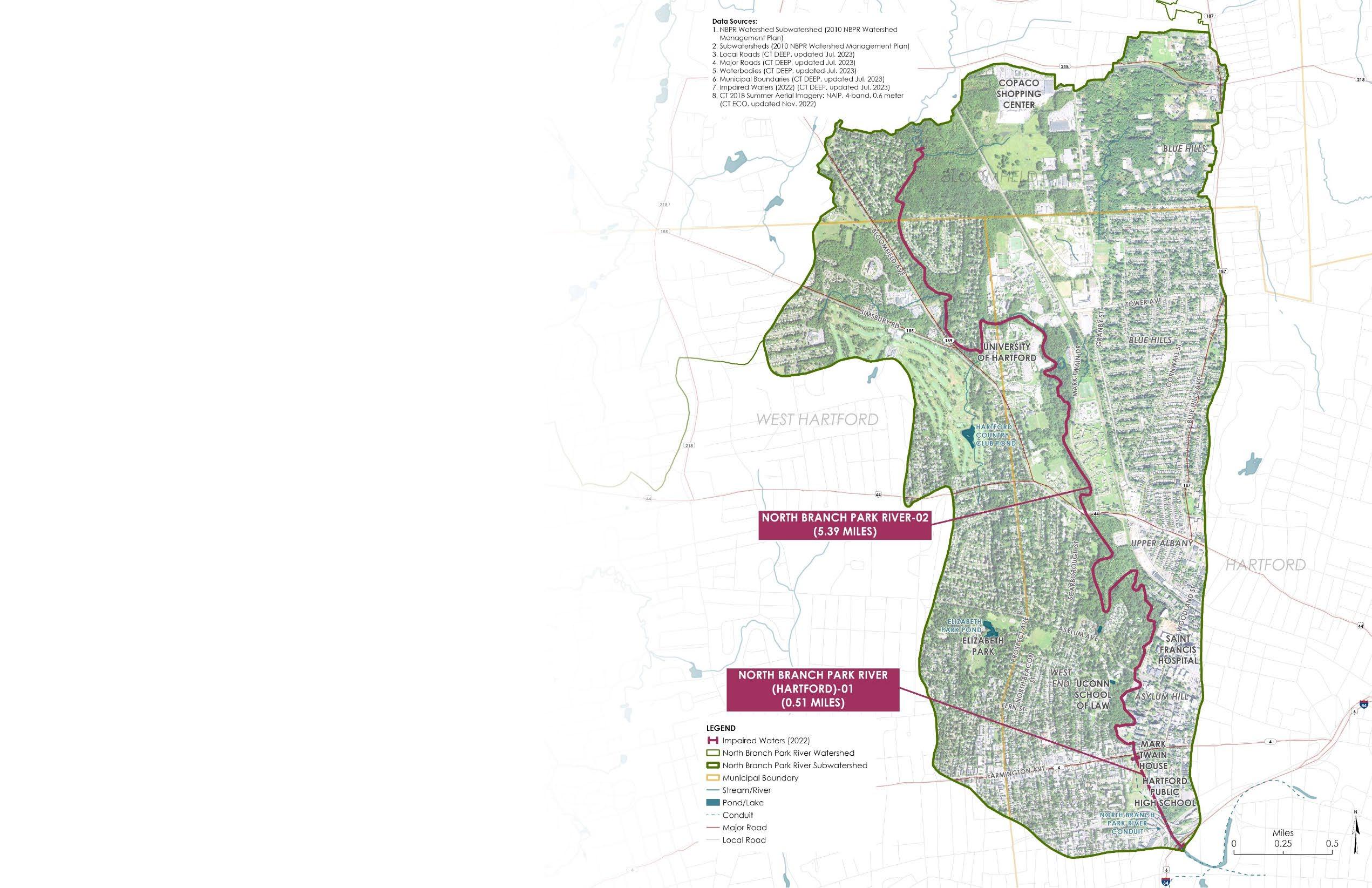

North Branch Park River Watershed

Water Quality – Impaired Urban River

• Recreation, Habitat for Fish, Other Aquatic Life and Wildlife

• Elevated Fecal Indicator Bacteria

− Stormwater runoff

− Combined sewer overflows

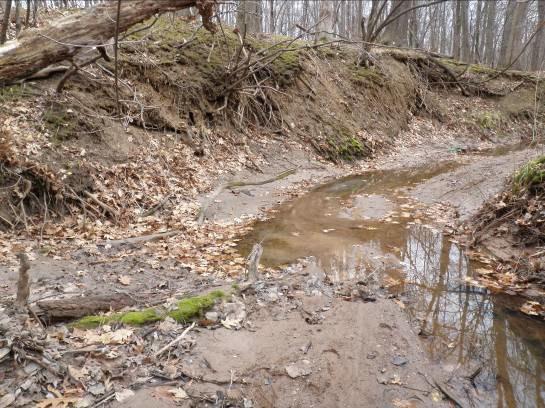

• Channelization, streambank erosion & sediment deposition

Challenging Conditions: North Branch Park River

Flooding North Branch Park River Watershed

• Areas of frequent flooding

• Development in the floodplain and riparian zone

• Unstable streambanks, downed trees, and tree dams

• Under-sized culverts and inadequate or lack of storm drain system

• Development potential in upper watershed

• Climate change impacts

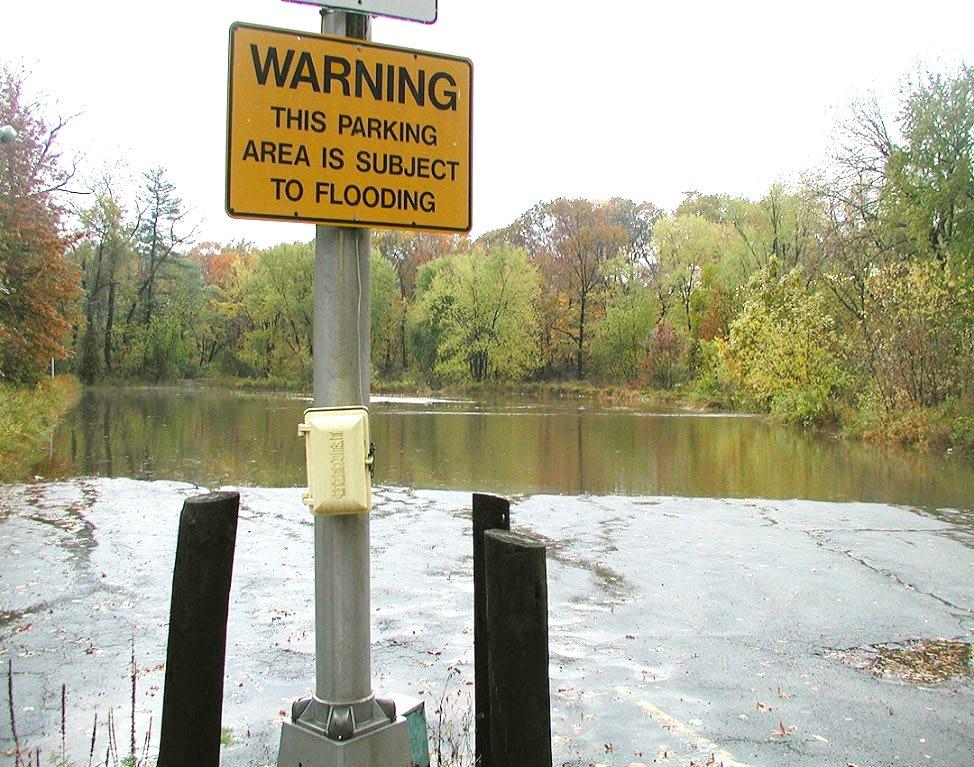

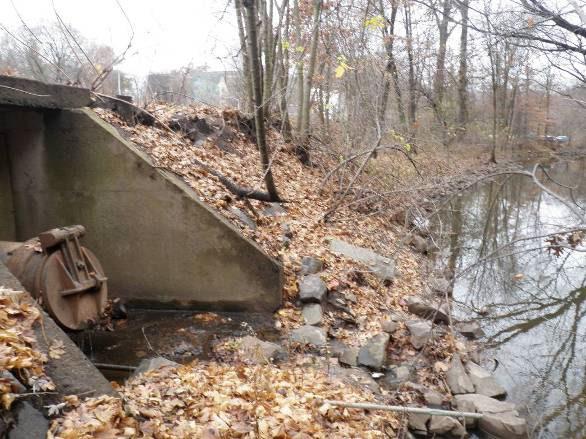

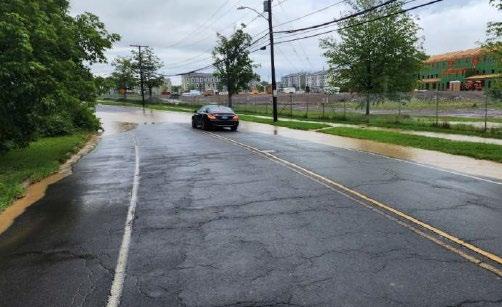

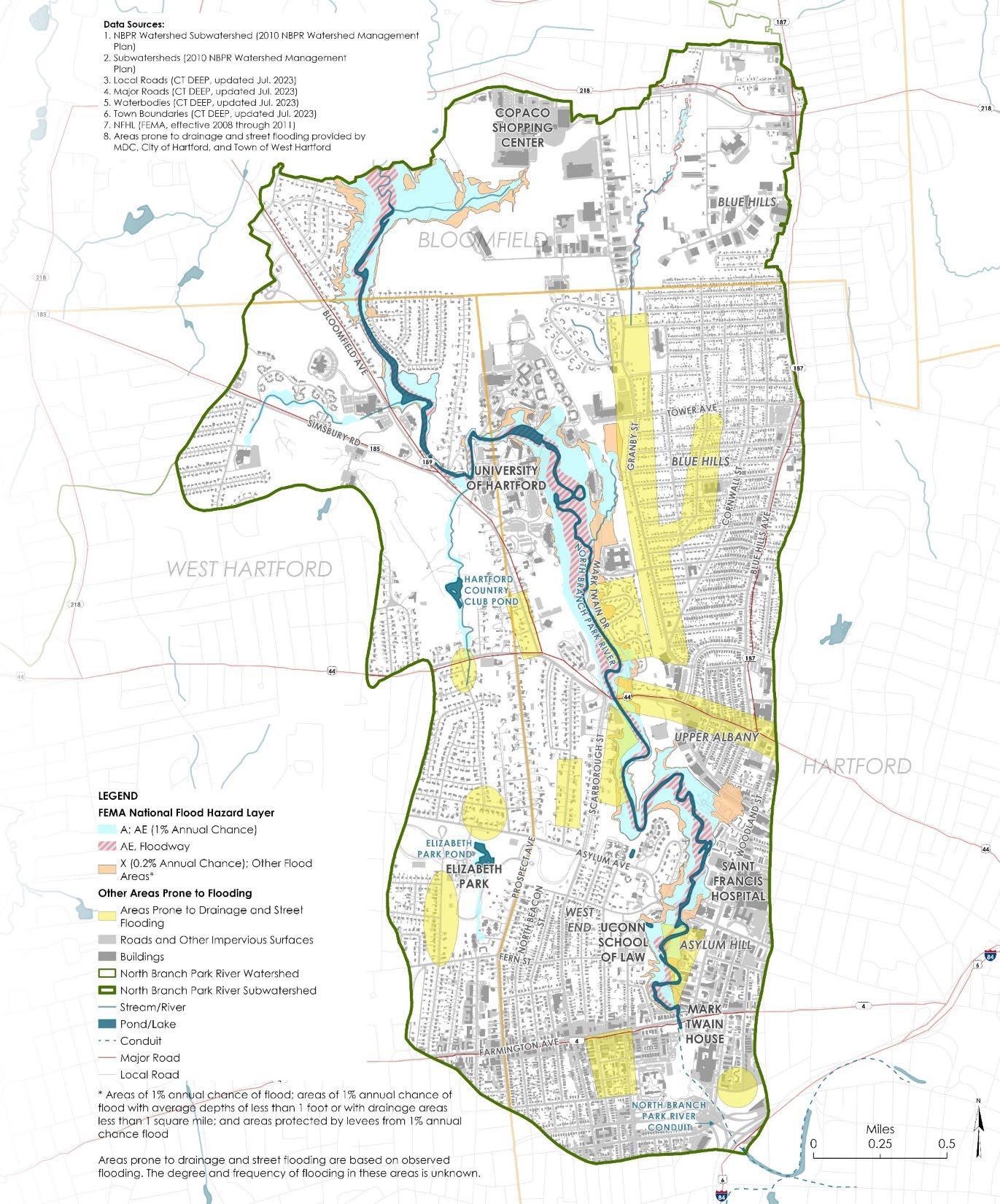

North Branch Park River Watershed Flooding

Photo Sources: Mary Rickel Pelletier and CDM Smith, Hartford MDC Blue Hills/Granby Area Drainage Study Presentation, July 18, 2024

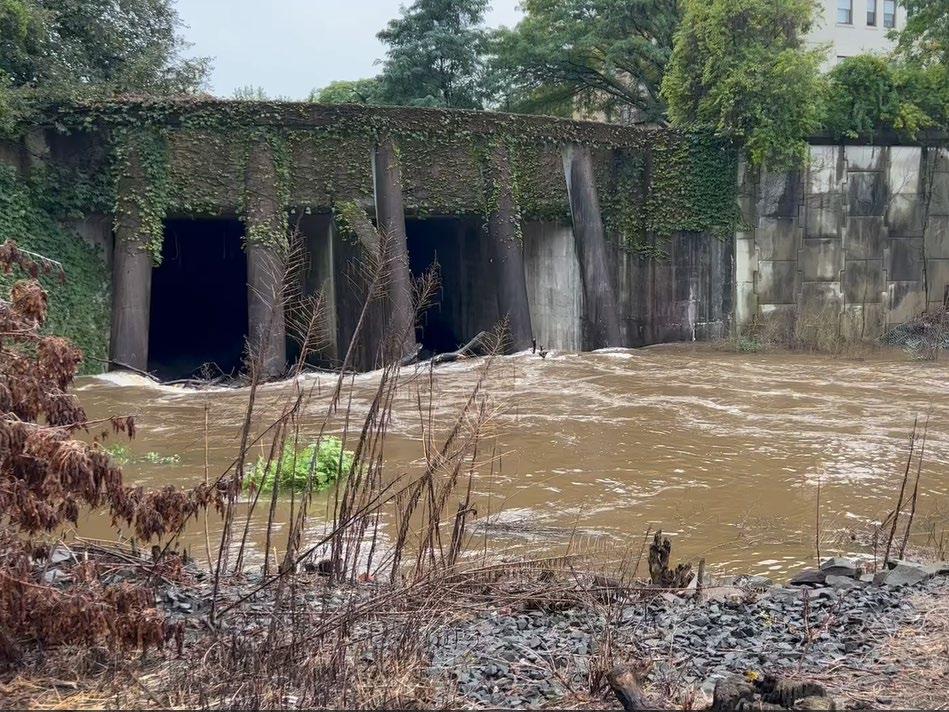

Park River Conduit Entrance

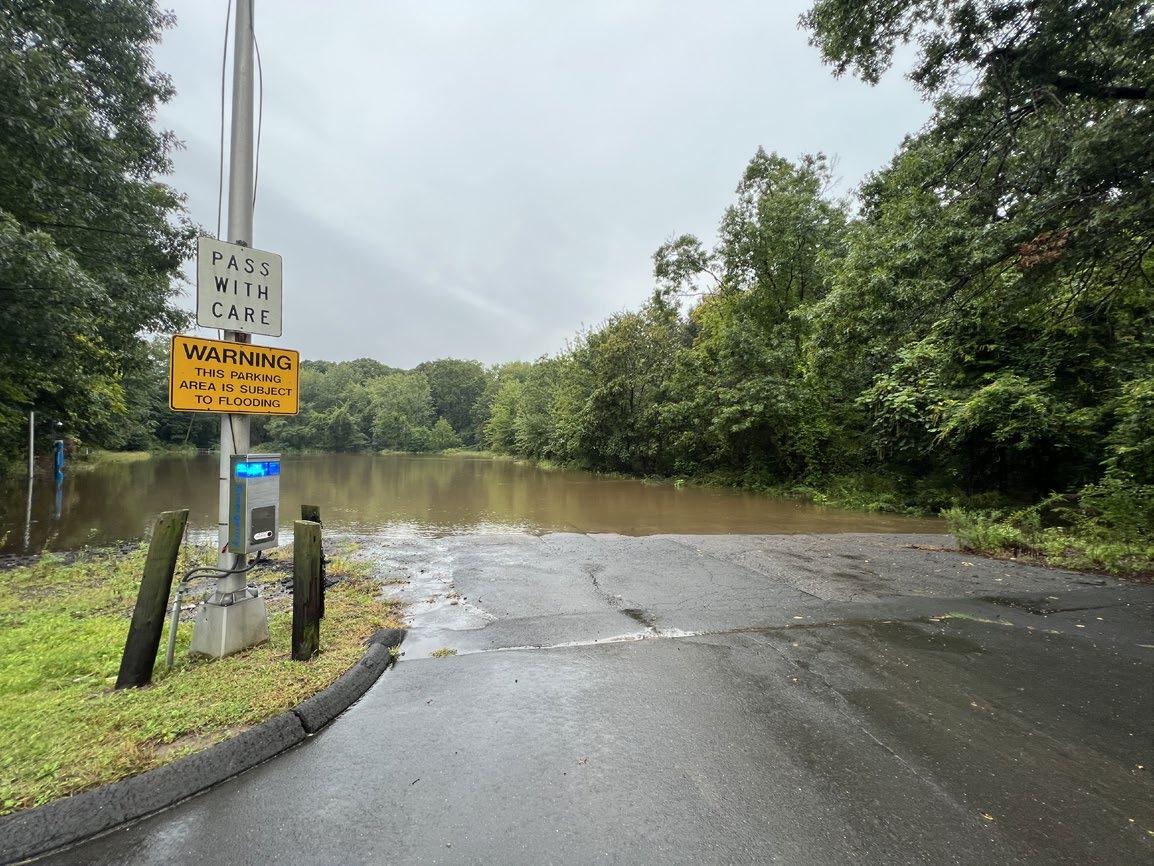

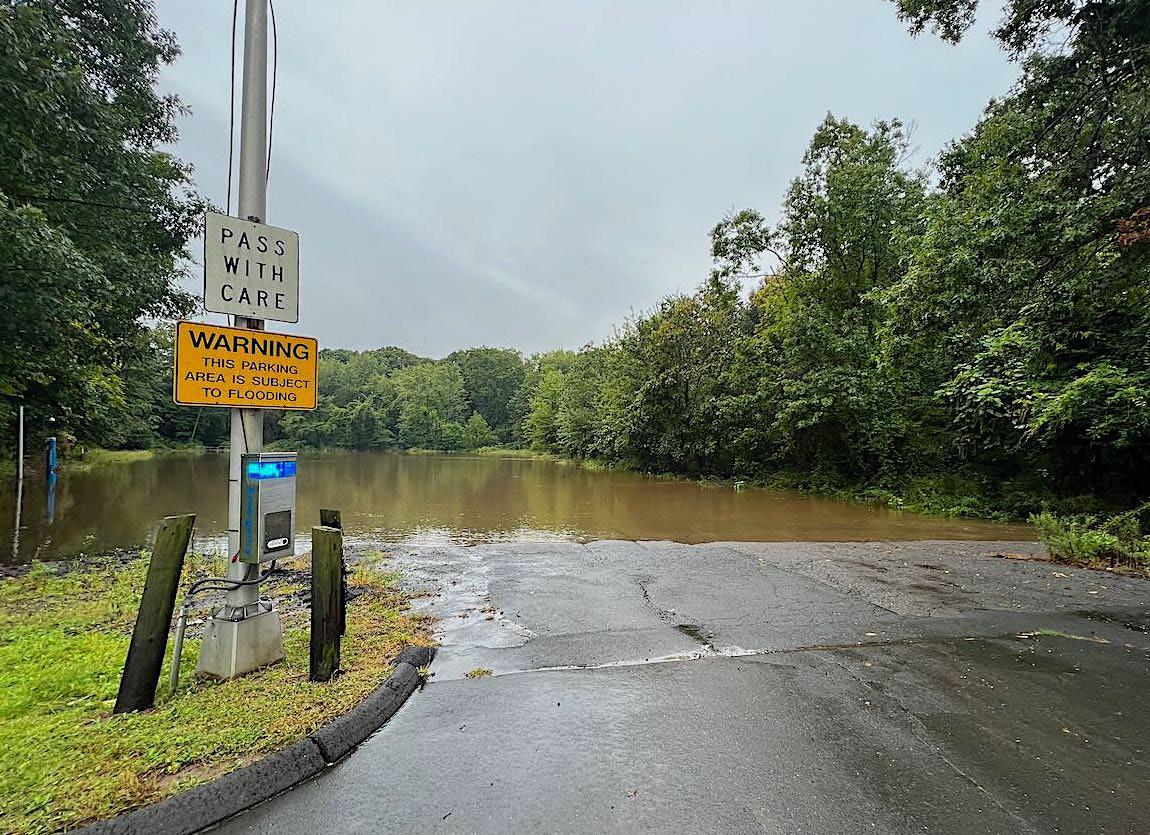

61 Woodland Street Parking Lot
Mark Twain Drive

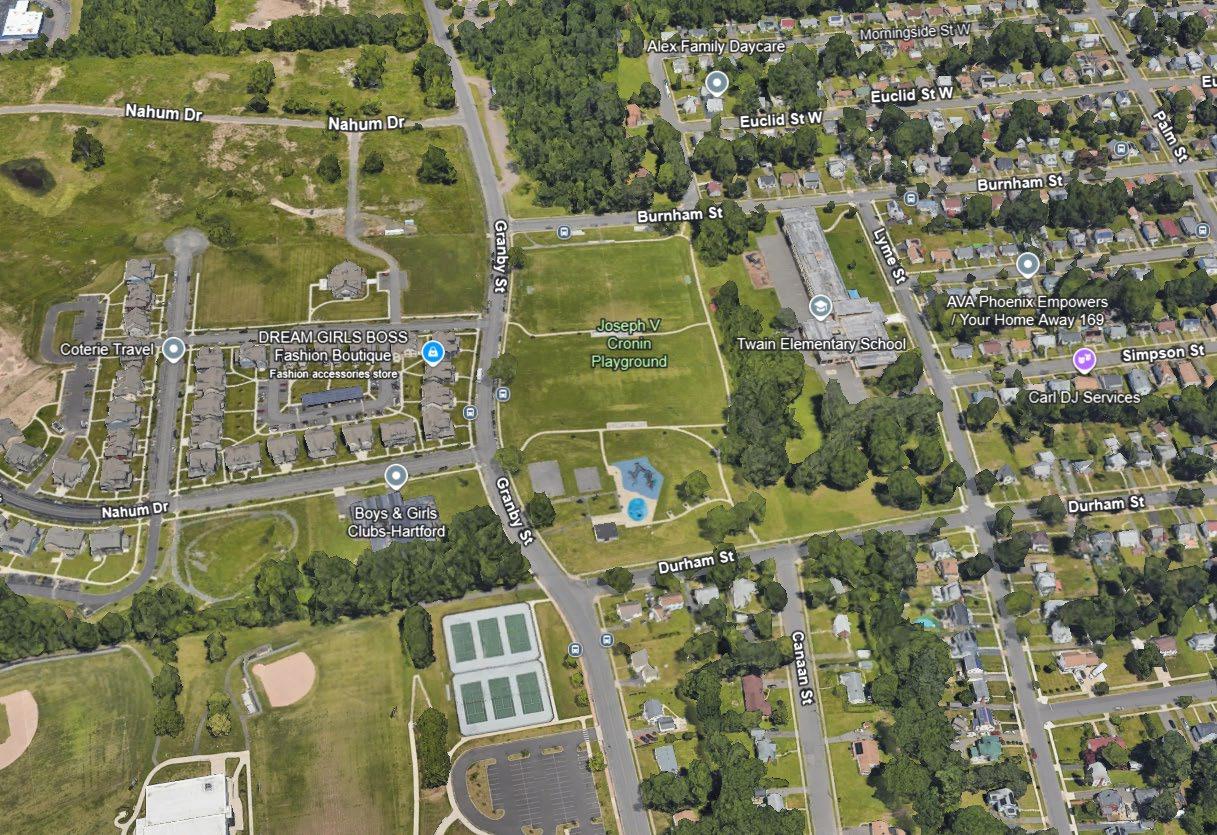

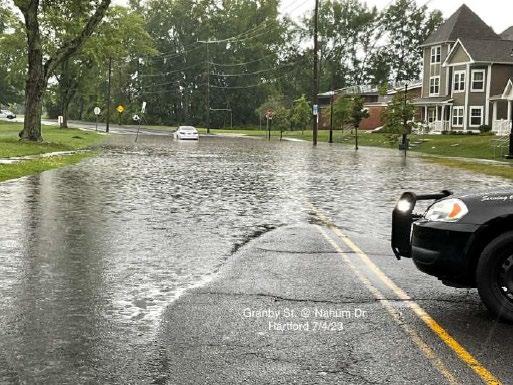

Granby Street at Nahum Drive

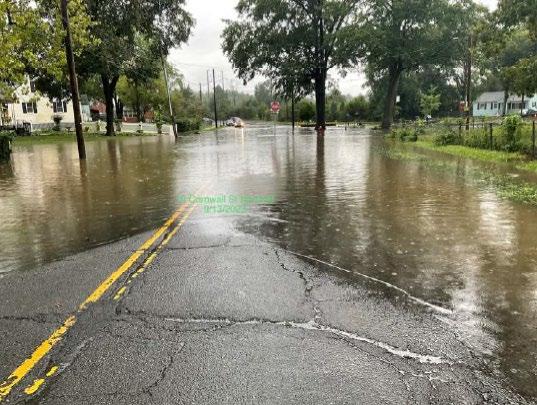

Cornwall Street Woodland Drive Apartments

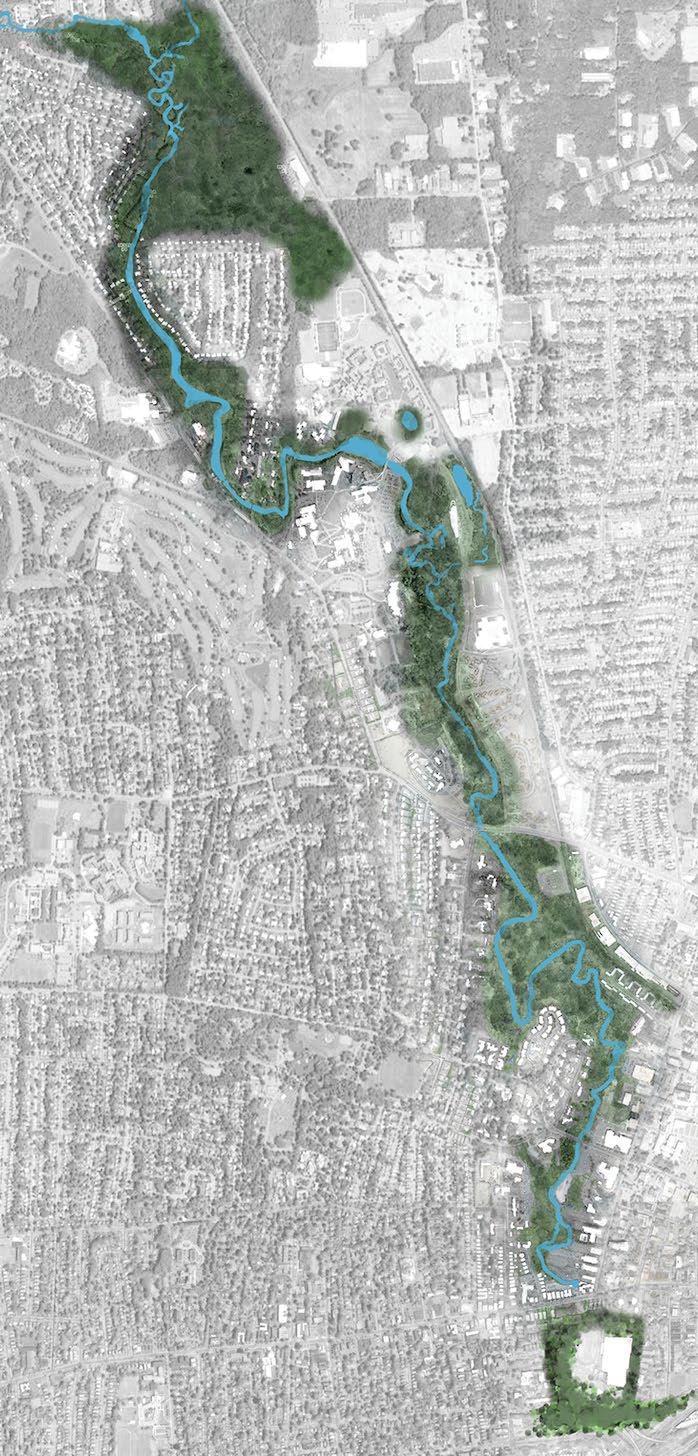

Vision for the North Branch Park River

Healthy Urban/Suburban Riparian Corridor

• Landscape scale green infrastructure that improves water quality

• Scenic riparian landscape offering healthy neighborhood amenities

• Increased ecosystem connectivity benefiting migratory and recreational paths

• Shared regional natural resource, a focus of urban/suburban collaboration

floodplain parkland vs parking lots

Precedent for North Branch Park River Revival

Frederick Law Olmsted Park Designs

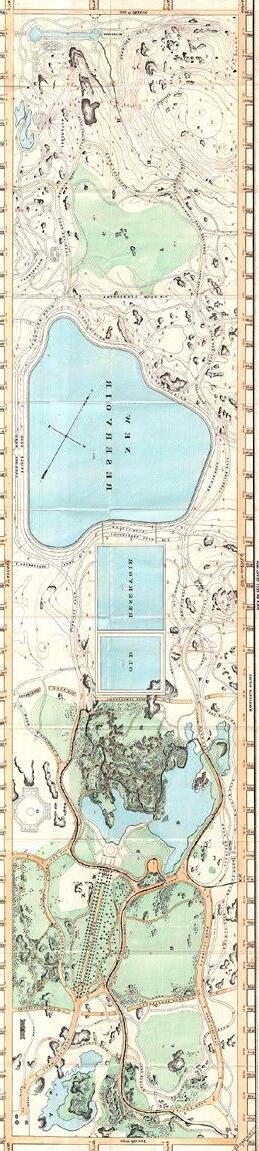

• 1857 Central Park

778 acres

New York City

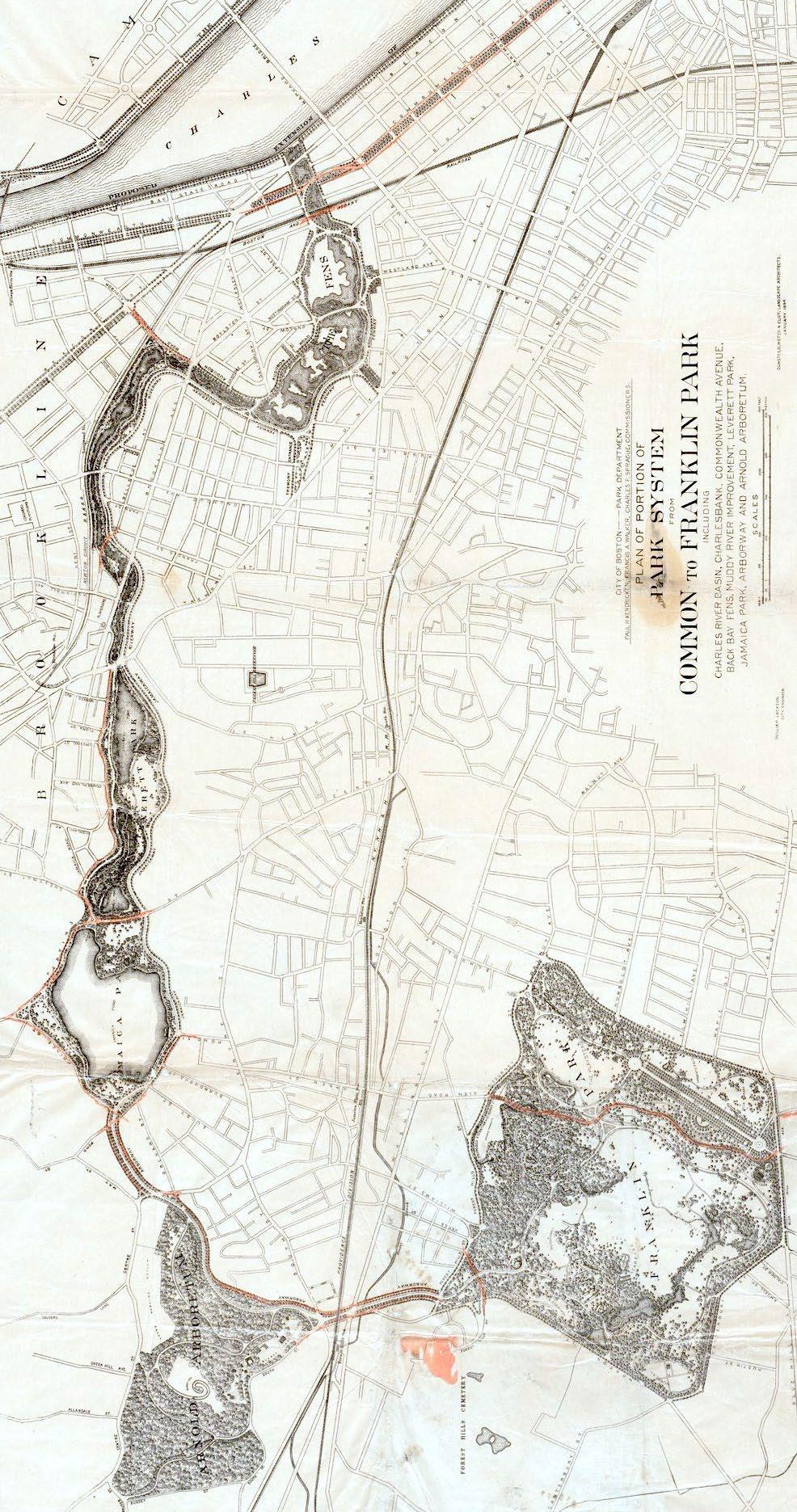

• 1880 Emerald Necklace

1,100 acres

Boston

• 1871 recommendation letter to Charles Pond North Branch, Hartford

Central Park Emerald Necklace

North Branch

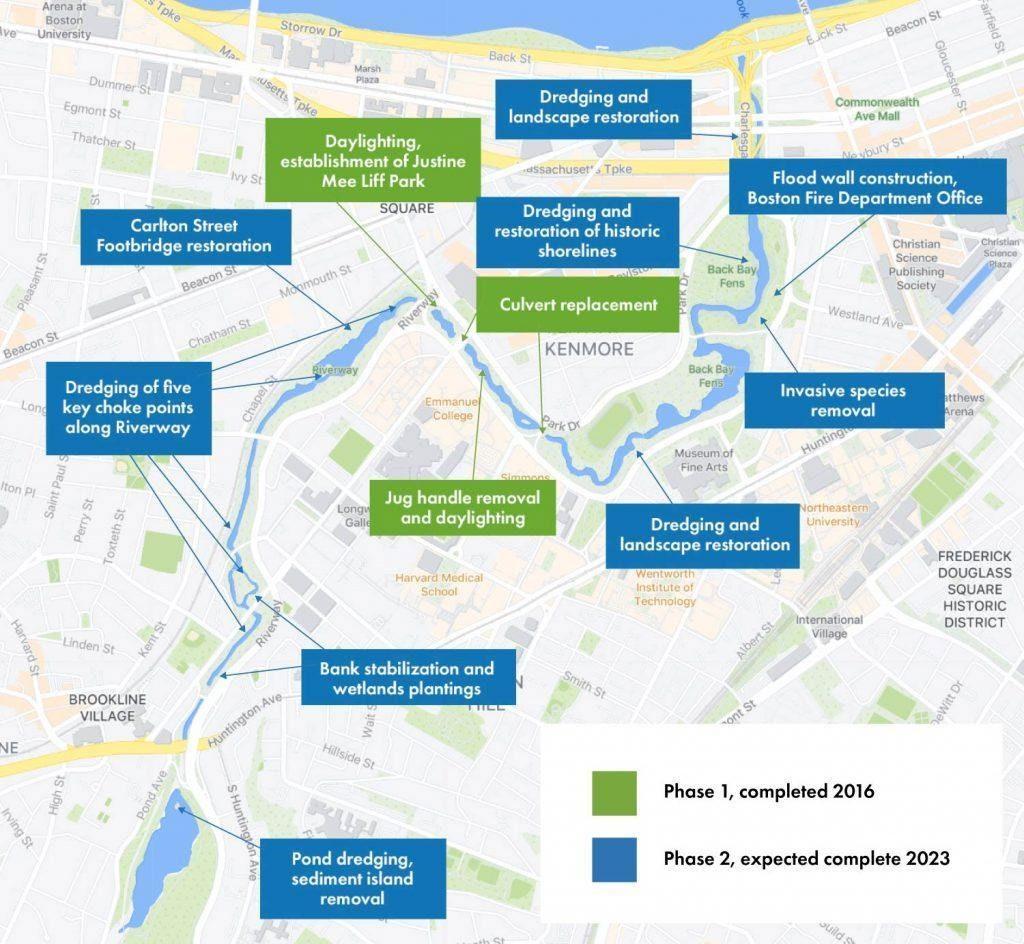

Example of Restoring Ecosystem Functionality

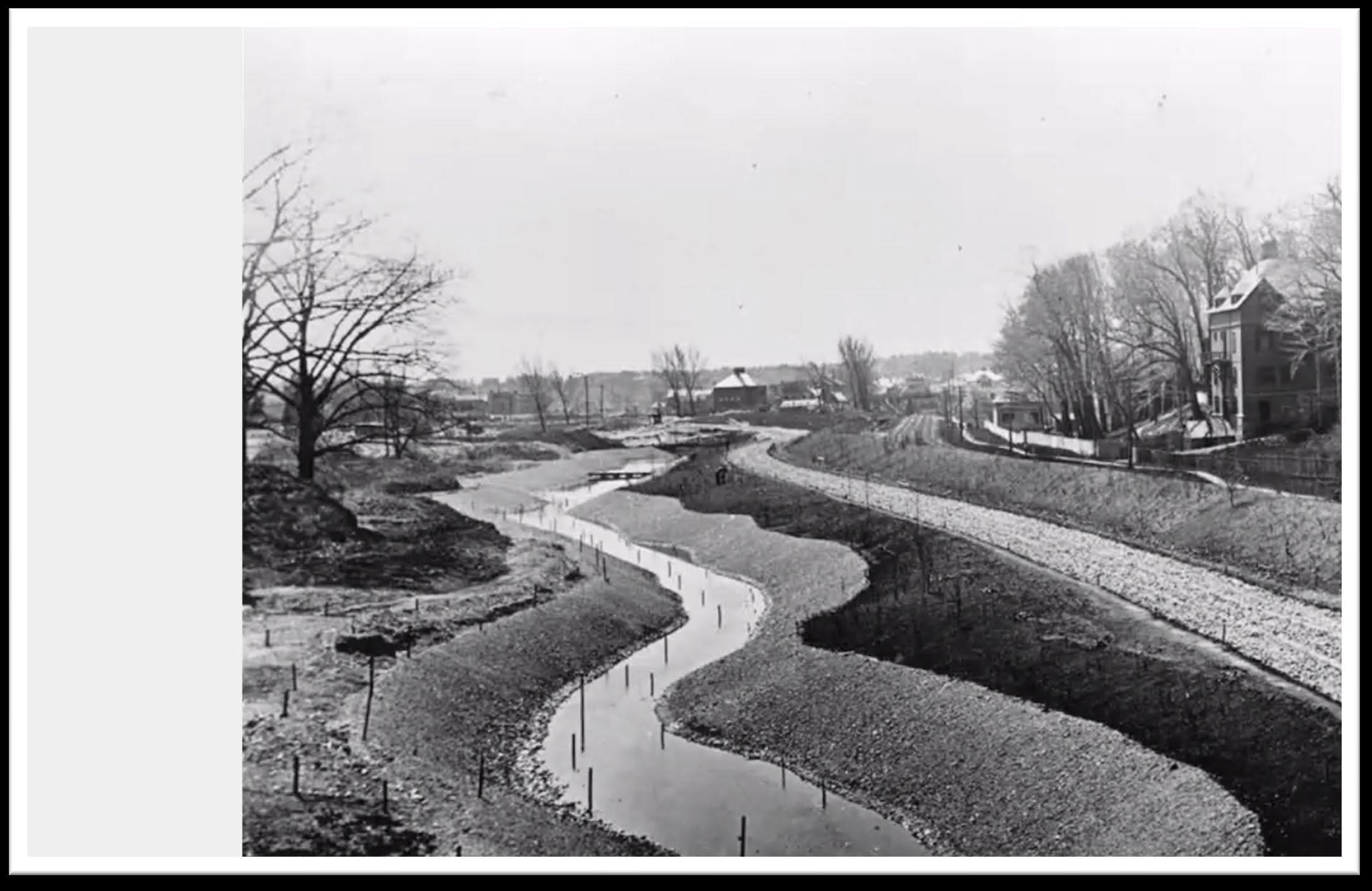

During construction

Muddy River 1892

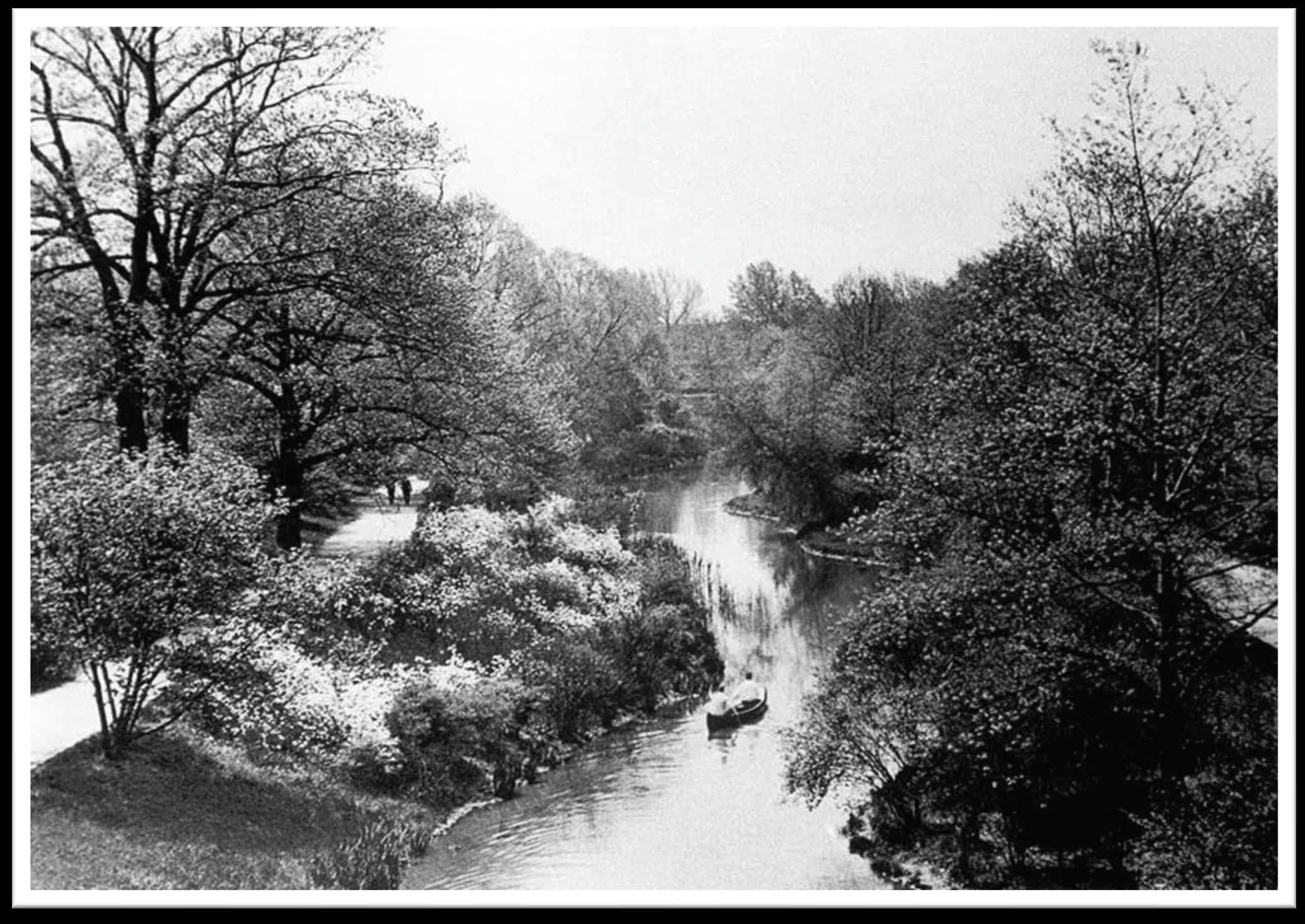

Muddy River 1920 as the Emerald Necklace

Muddy

River Restoration

• Targeted sediment removal (flooding)

• Bank stabilization and plantings

• Habitat improvements

• Historic landscape rehabilitation

• Stream daylighting

• Stormwater improvements & GSI

• Tree stewardship

2010 Watershed Management Plan

• CTDEEP Funded Planning Project

• Steering Committee, Field Assessments, Land Use Regulatory Review, Project Concepts, Public Outreach, Project Website

• Lower Watershed – Restoration Focus

• Upper Watershed – Protection Focus

https://portal.ct.gov/-

/media/DEEP/water/watershed_management/wm_plans/nbparkr/ nbprwbppdf.pdf

Ongoing NBPR Efforts

• MDC

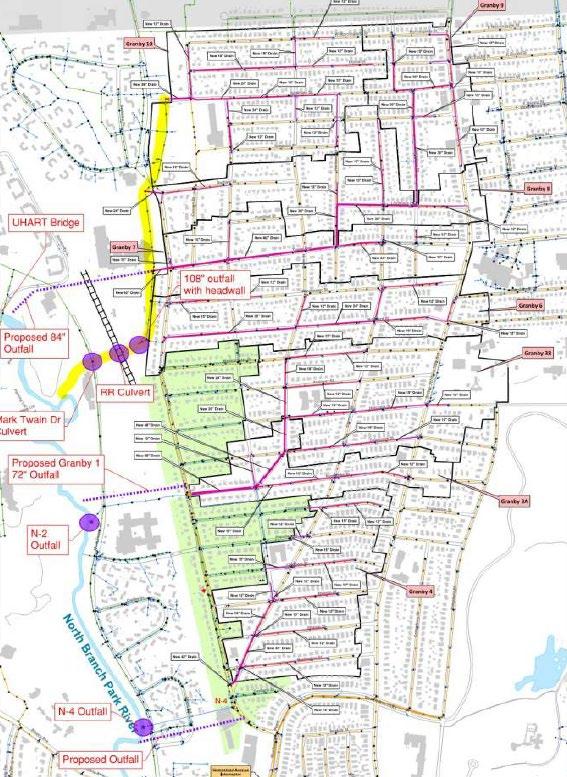

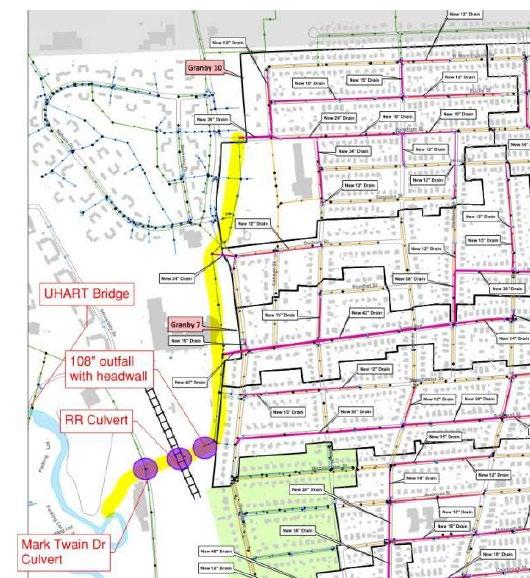

− North Branch Park River Drainage Study & Sewer Separation Design (Granby Street and Blue Hills)

− New North Branch Interceptor Replacement along lower NBPR

• City of Hartford

− Granby Street Green Infrastructure Demonstration Project (with EPA)

• Capital Region Council of Governments

− Regional Stormwater Authority Feasibility Assessment (CT DEEP Grant)

− Natural Hazard Mitigation & Climate Adaptation Plan

− Climate Pollution Reduction Plan

• CTDEEP

− Creating new Office of Planning & Resilience (October 2024)

− Climate Resilience Fund Grant Program

Project Goals and Scope

Project Goal #1

Update 2010 Watershed Plan

• Focused update of 2010 plan

• Updated watershed conditions

• Green infrastructure designs focused in lower watershed

• Watershed-wide policy & nonstructural recommendations

• Consideration of climate resilience

• Roadmap for next 10+ years

Project Goal #2

Advance Green Infrastructure Implementation

• Develop designs for impactful green infrastructure projects

• Build on 2010 concepts and other ongoing/planned projects

• Reduce pollutant loads and runoff volumes

− Bacteria, nutrients, sediment

• Secondary benefits

− Flood resilience, CSO reduction, community amenities

“Scale green infrastructure. Providing an alternative to separating the combined sewer system will preserve property values, protect agriculture and landscape, and ensure cleaner water.”

“Implement the North Branch Watershed Management Plan. Implementing this plan will improve riparian health of the North Branch and Gully Brook sub-basin in an area adjacent to the North Hartford Promise Zone.”

Hartford City Plan 2035

Green Infrastructure Design Development

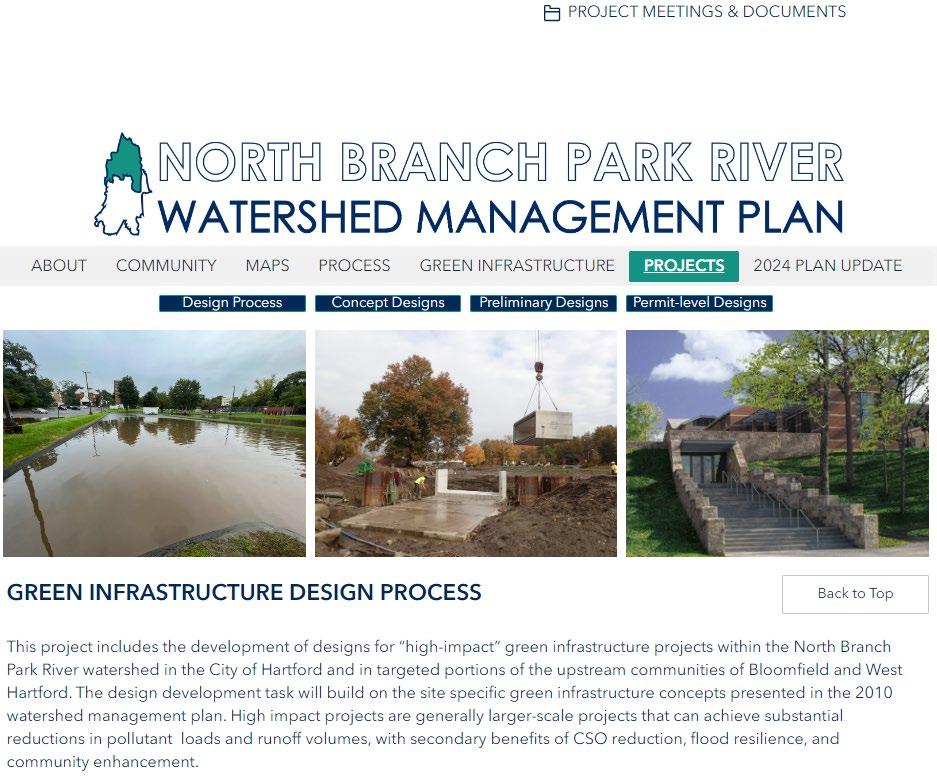

Green Infrastructure Design Process

Project Selection and Concept Phases

1. Data Gathering & Review

• Compile GIS mapping

• Inventory public and institutional properties

• Identify existing GI

• Identify planned capital improvements

2. Project Screening & Selection

• Desktop screening

• Property owner interviews

• Field inventories (20 to 40 sites)

• Green infrastructure concepts (up to 15)

• Technical Memo

3. Preliminary Design

• 5 projects

• Preliminary layout

• Opinion of cost

• Technical Memo

3. Permit Level Design

• 3 projects

• Field survey

• Test pits & infiltration testing

• Wetland delineation

• Level of detail to support local/state permitting

North Branch Park River

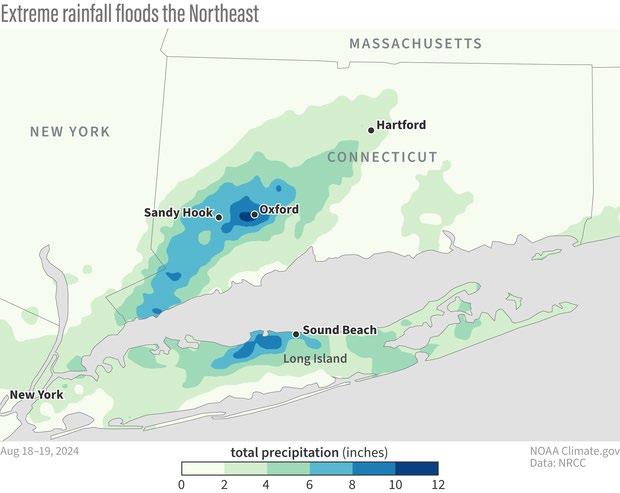

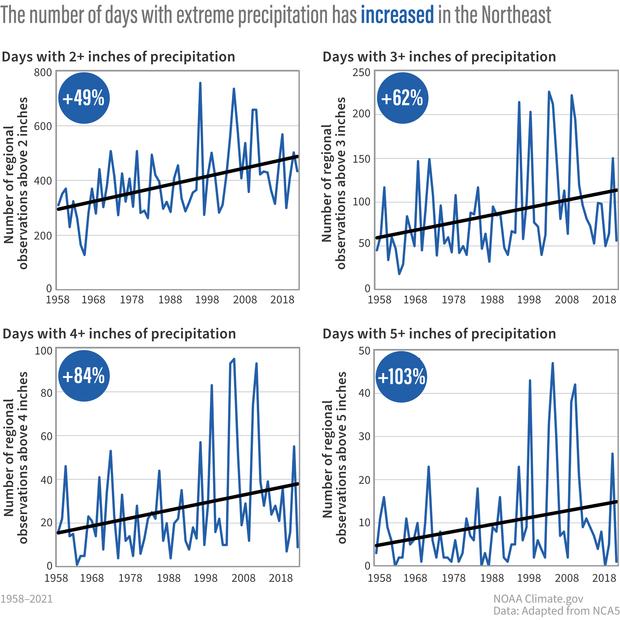

Source: NOAA, https://www.climate.gov/newsfeatures/event-tracker/extreme-rainfall-brings-

Design Strategies

Designed & Nature-like Green Infrastructure

• Riparian & floodplain restoration

• Increase vegetative buffers

• Urban tree canopy

• Urban rewilding

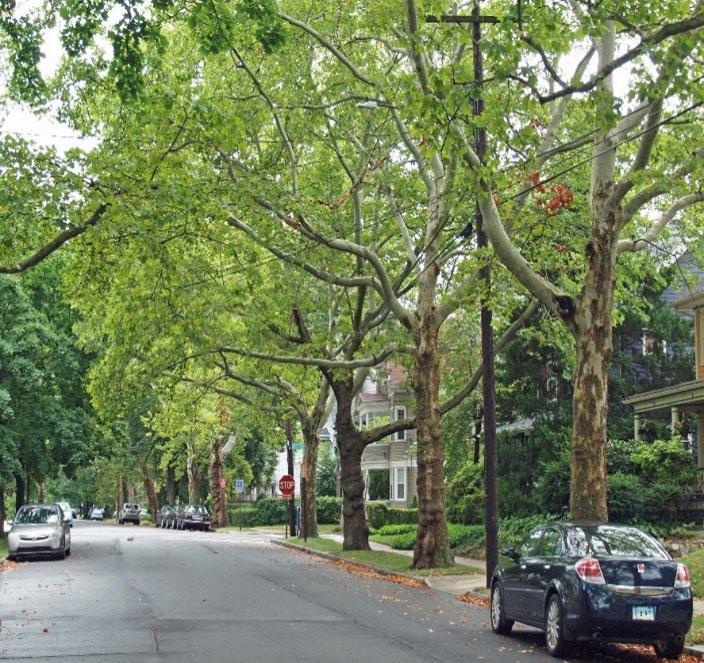

Urban Tree Canopy

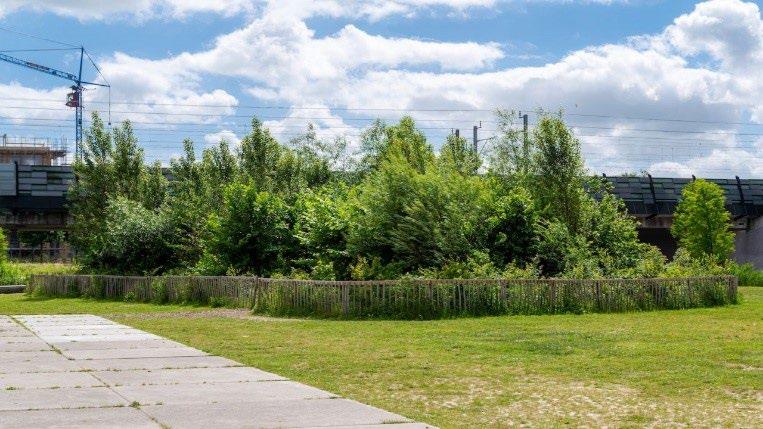

Small Urban Forests & Urban Rewilding
Riparian & Floodplain Restoration Floodplain Park

Land Conservation Design Strategies

• Conserve last remaining landscapes within the river corridor/riparian zone

• Conservation is cost-effective

• Numerous benefits

− Keeps development out of harms way and preserves floodplain

− Protects water quality

− Reduces urban heat island

− Supports biodiversity

− Supports healthy avian, aquatic, and wildlife migration pathways

Design Strategies

Green Stormwater Infrastructure (GSI)

• Public/institutional properties

• Within municipal right-of-way

• At existing outfalls such as stormwater wetlands and ponds (stormwater parks)

• Site, neighborhood, landscape scale

Infiltration basins

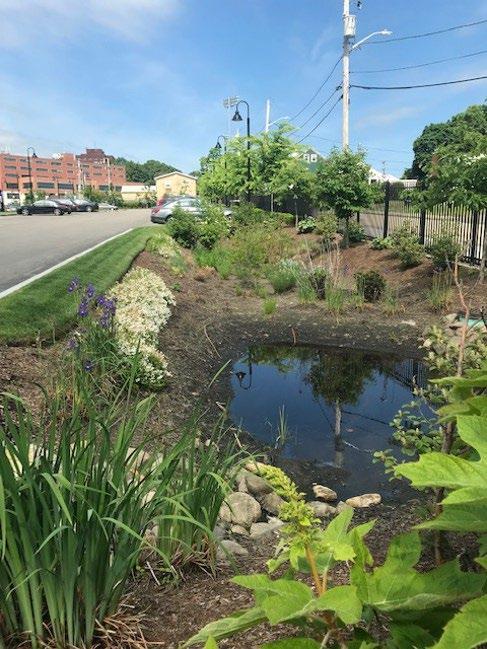

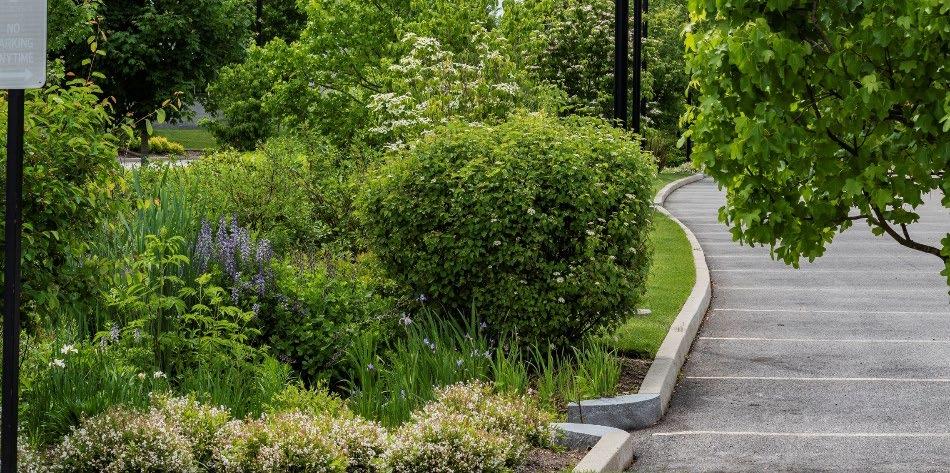

Bioretention systems

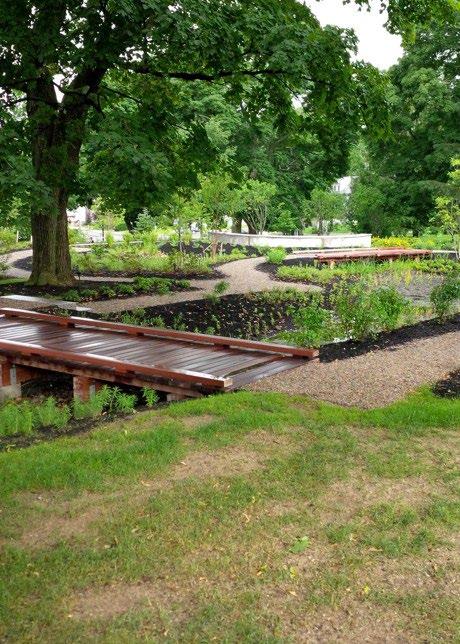

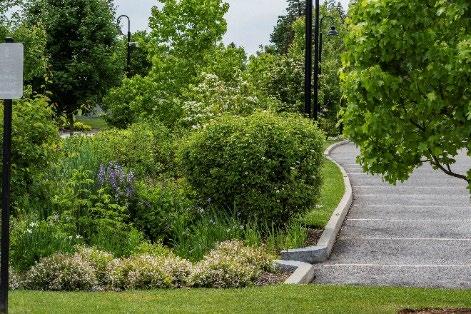

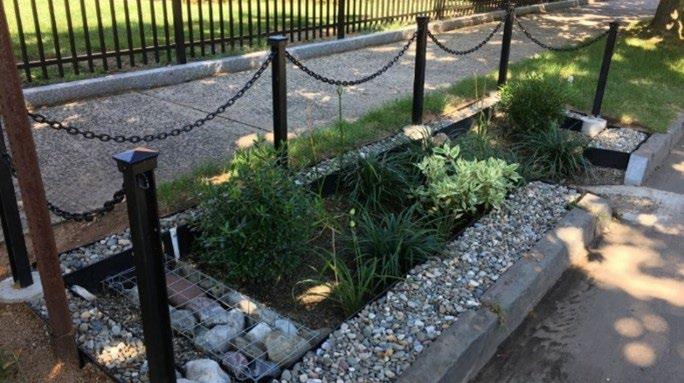

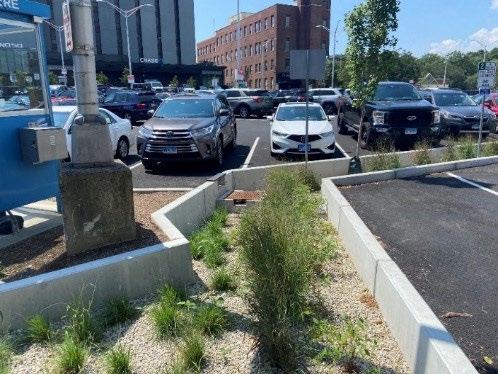

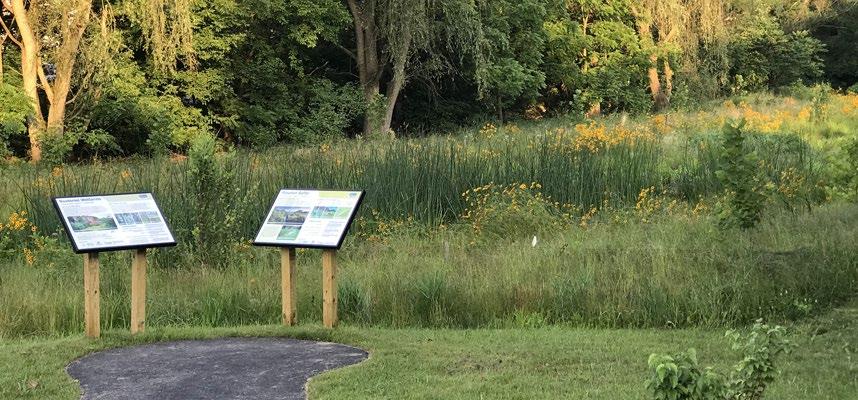

Bioretention & Walking Trails Rain Gardens

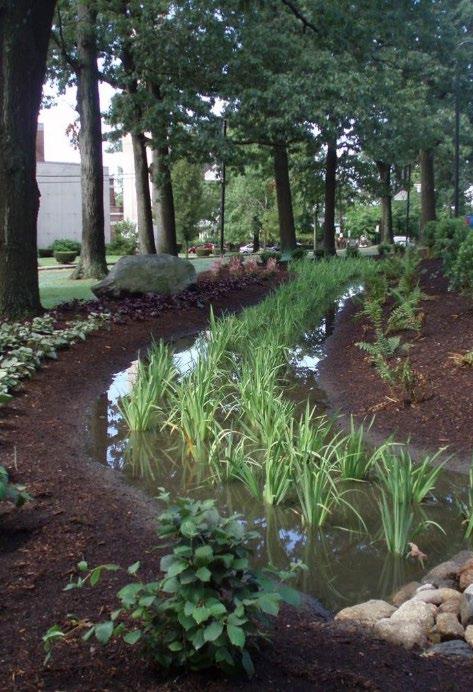

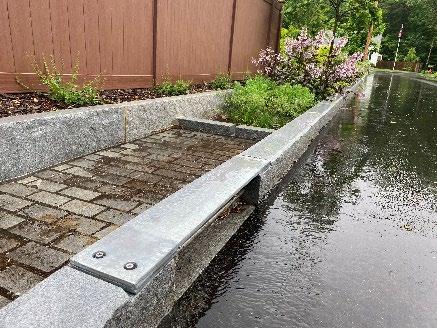

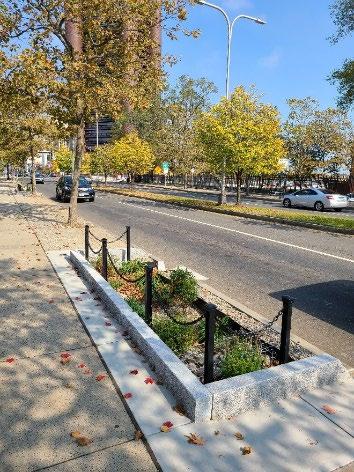

Roadside Bioswales Green Streets

Design Concept Development

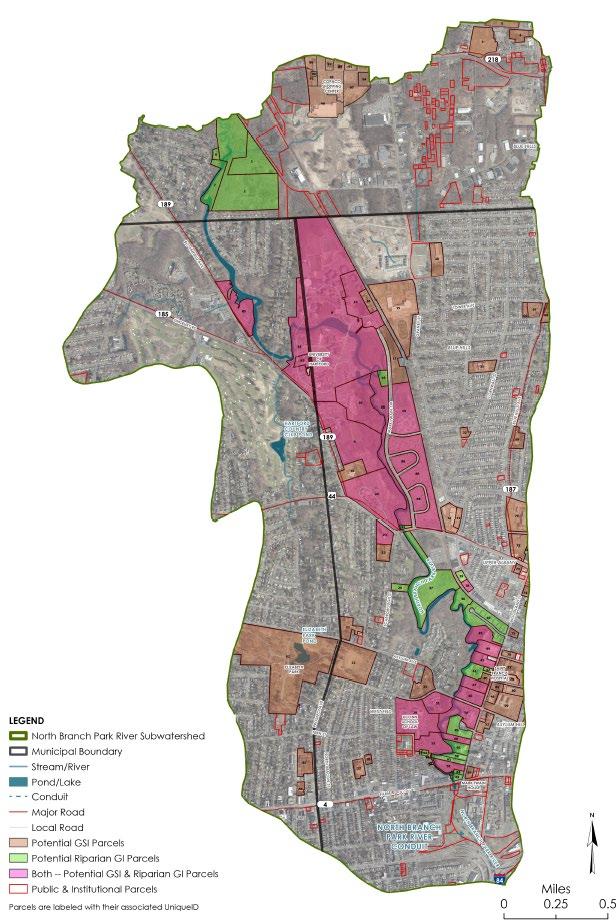

Green Infrastructure Screening

• Public & institutional properties, 98 potential parcels identified

• Green Stormwater Infrastructure (GSI)

− 0.5 acre or more of impervious area

− All soil types considered

• Riparian Corridor Green Infrastructure

− Parcels within 300-foot riparian corridor

Design Concept Development

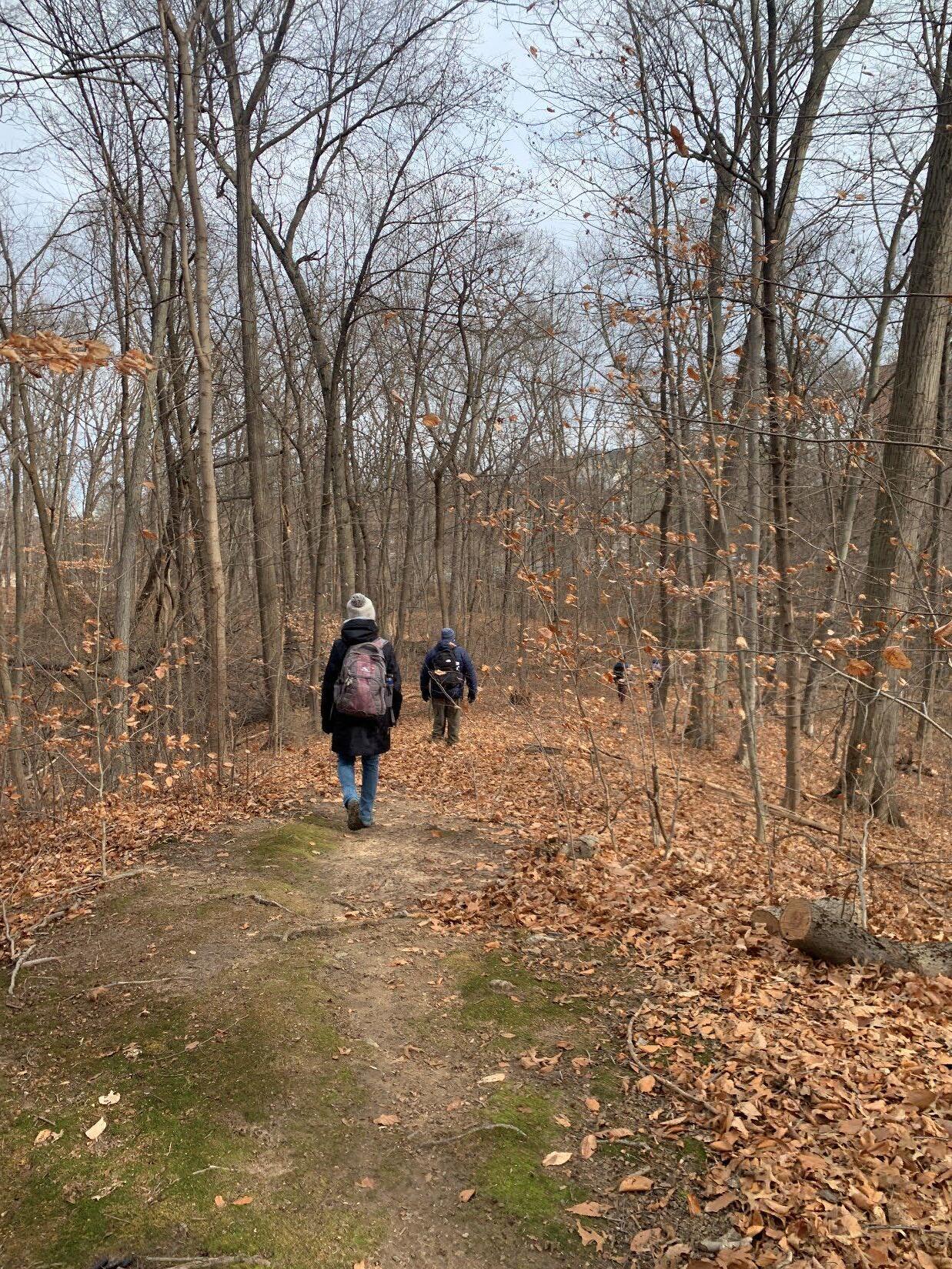

Green Infrastructure Field Work

• Field inventories in December 2023

Design Concept Development

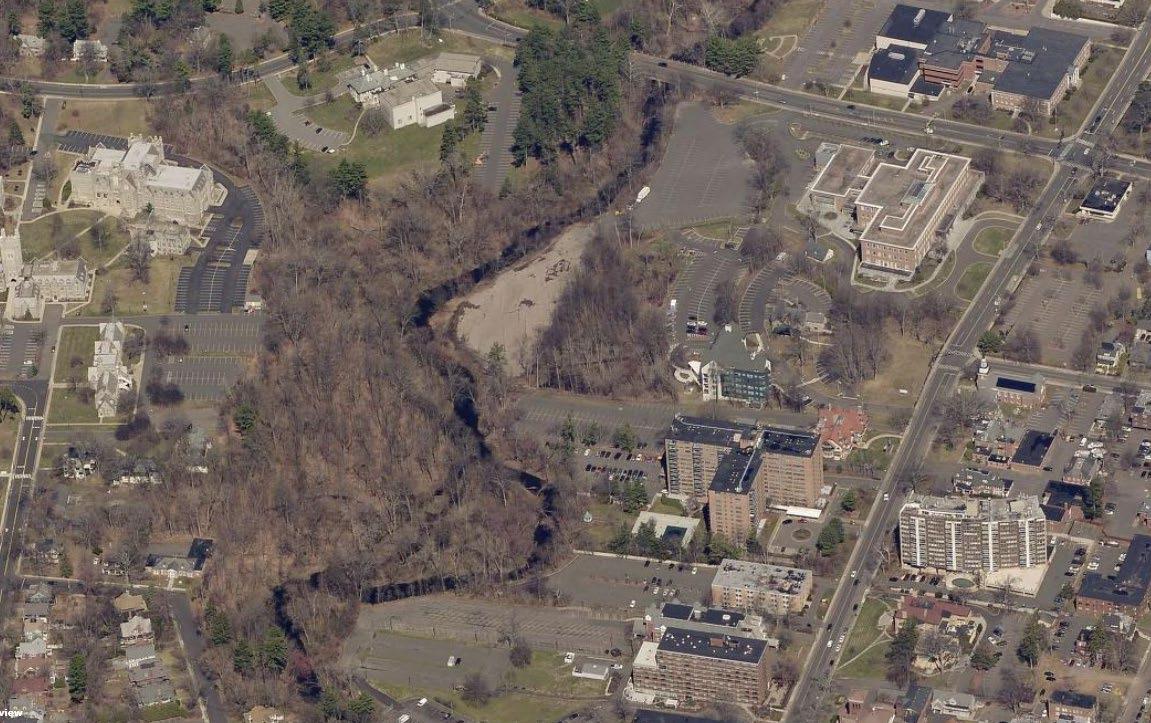

Floodplain and Riparian Corridor

WOODED FLOODPLAIN AND RIPARIAN AREA

WOODED FLOODPLAIN AND RIPARIAN AREA

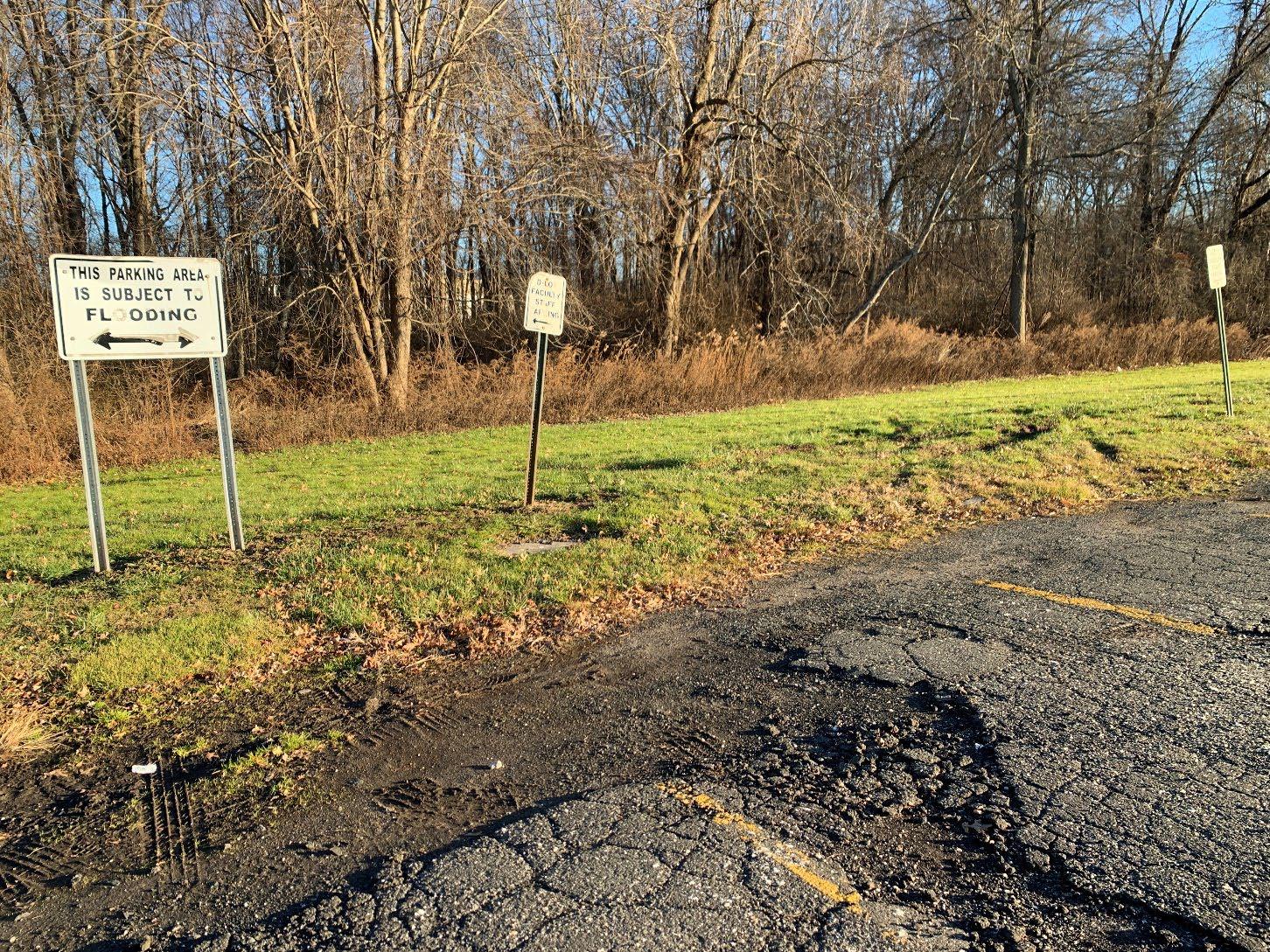

PARKING LOTS IN FLOODPLAIN

PARKING LOTS IN FLOODPLAIN

PARKING IN

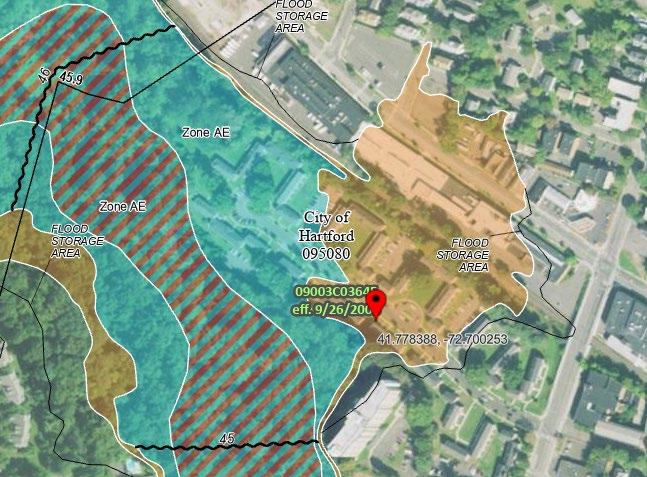

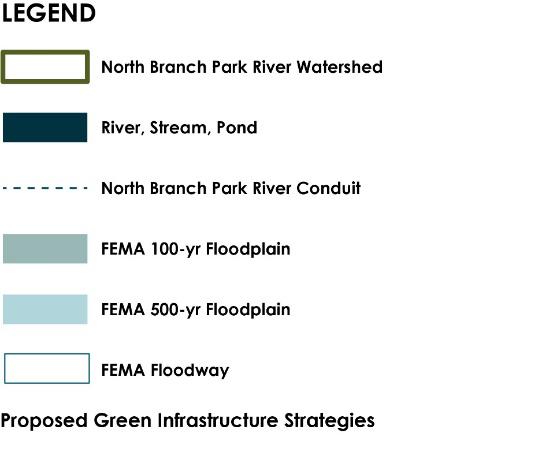

FEMA 100-YEAR FLOODPLAIN

FEMA 500-YEAR FLOODPLAIN

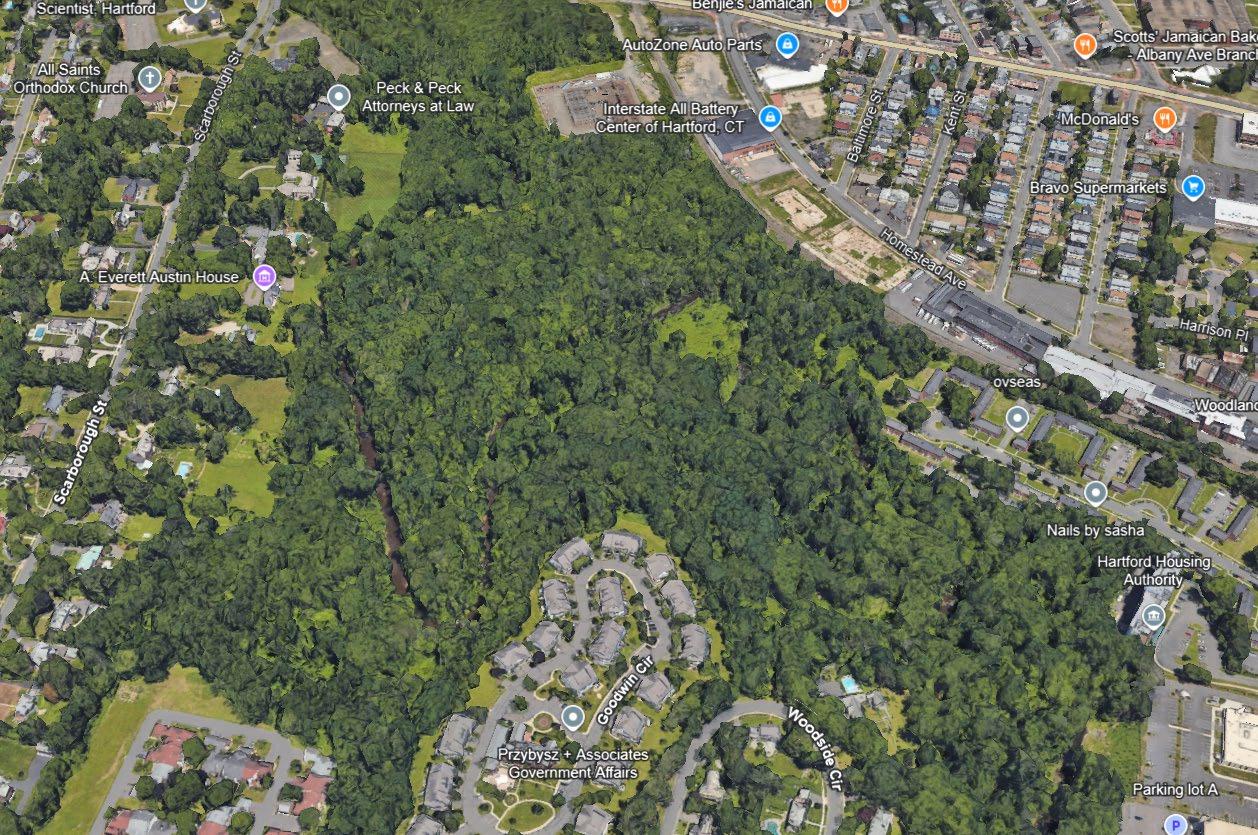

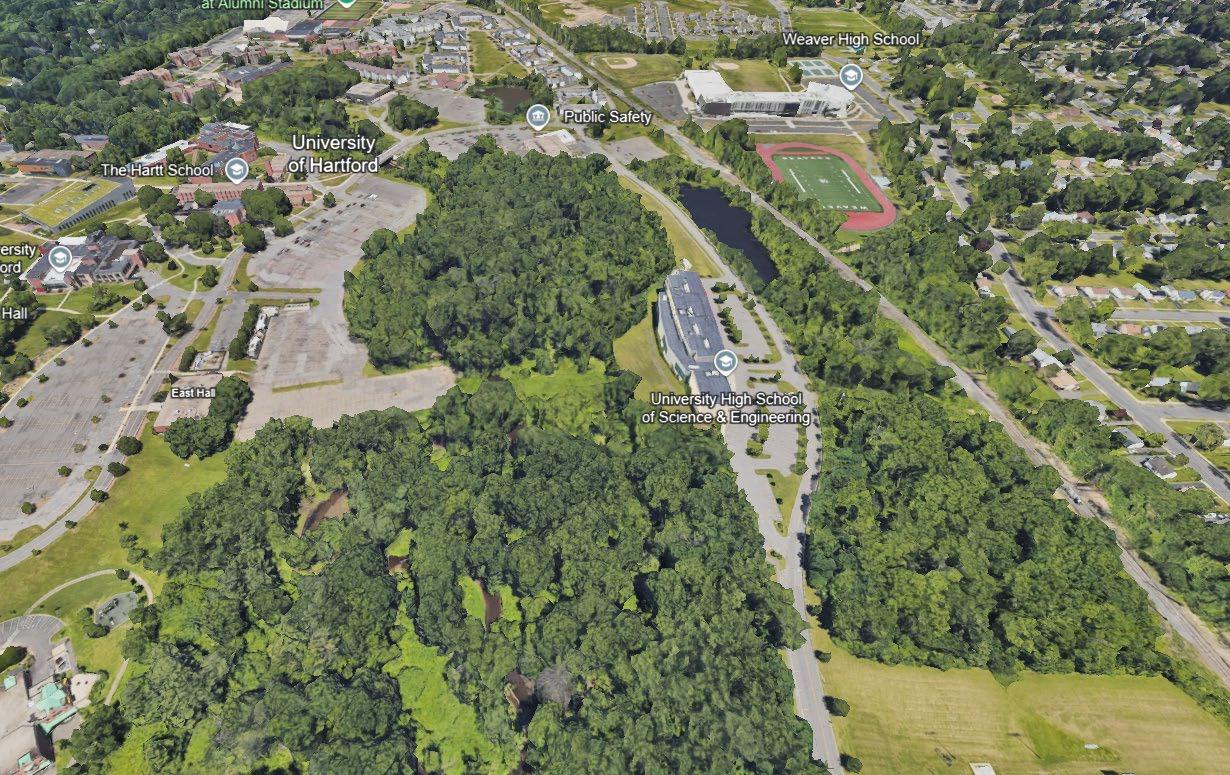

Design Concept Development

Floodplain and Riparian Corridor

WOODED FLOODPLAIN AND RIPARIAN AREA
WOODED FLOODPLAIN AND RIPARIAN AREA
STEEP WOODED SLOPES

Design Concept Development

Floodplain and Riparian Corridor

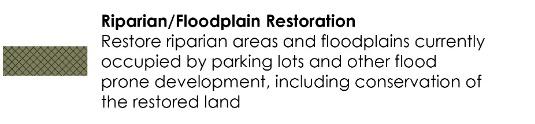

• Riparian & Floodplain Restoration

− Flood prone parking lots and development

− Wetland/meadow creation

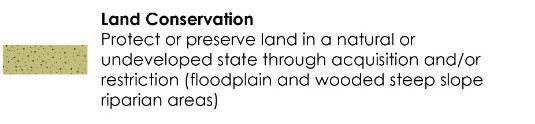

• Land Conservation

− Riparian corridor, floodplain & wooded steep slopes

− Formal permanent protection

• Challenges

− Loss of parking, future development

− Need property owner cooperation

− Incentives to reduce impervious cover

LAND CONSERVATION OF FLOODPLAIN, RIPARIAN CORRIDOR, AND WOODED STEEP SLOPES

FLOODPLAIN

RIPARIAN/FLOODPLAIN

RESTORATION OF EXISTING PARKING LOTS

Design Concept Development

Impervious Surfaces & Polluted Runoff

• Green Stormwater Infrastructure (GSI)

− Retrofit parking lots, roads (green streets), schoolyards

− Treat new separated storm drain discharges

− Subsurface stormwater storage and infiltration systems

• Challenges

− Need property owner cooperation

− Combined sewers

− Subsurface and soil conditions

− Incentives to reduce impervious cover

Design Concept Development

Improved Ecological and Recreational Connectivity

• Paths and Trails

− Walking paths within restored riparian/floodplain areas

− Connections to schools, institutions, and landscapes

− Connections to future Hartline MultiUse Trail

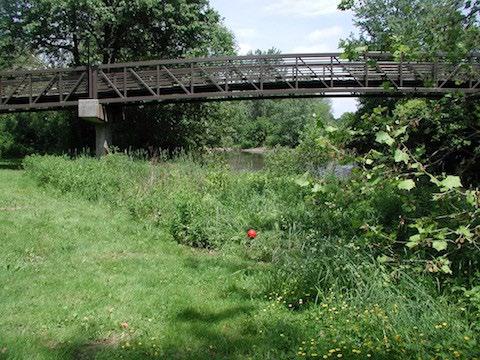

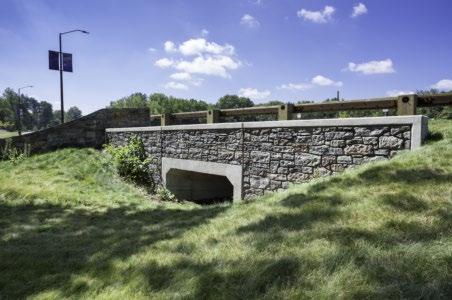

• River & Stream Crossings

− Potential replacement of undersized or restrictive culverts

− Flooding, erosion, water quality, recreational and wildlife passage

EVALUATE RIVER CROSSING FOR REPLACEMENT

WALKING PATHS IN RESTORATION AREAS

TRAIL CONNECTIONS

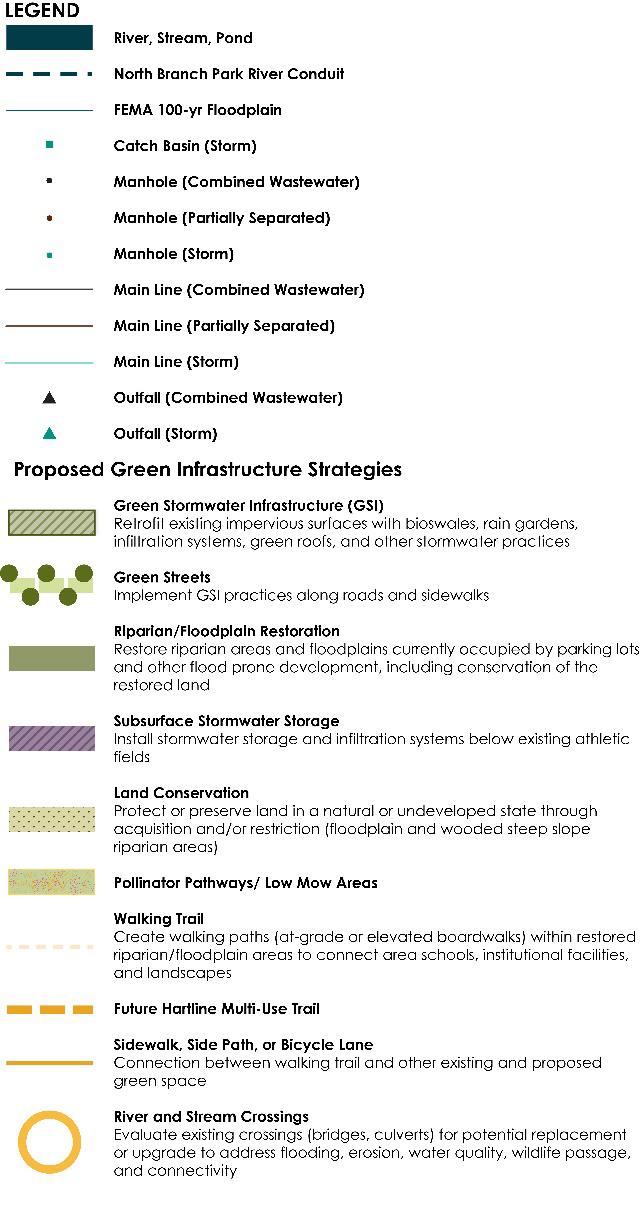

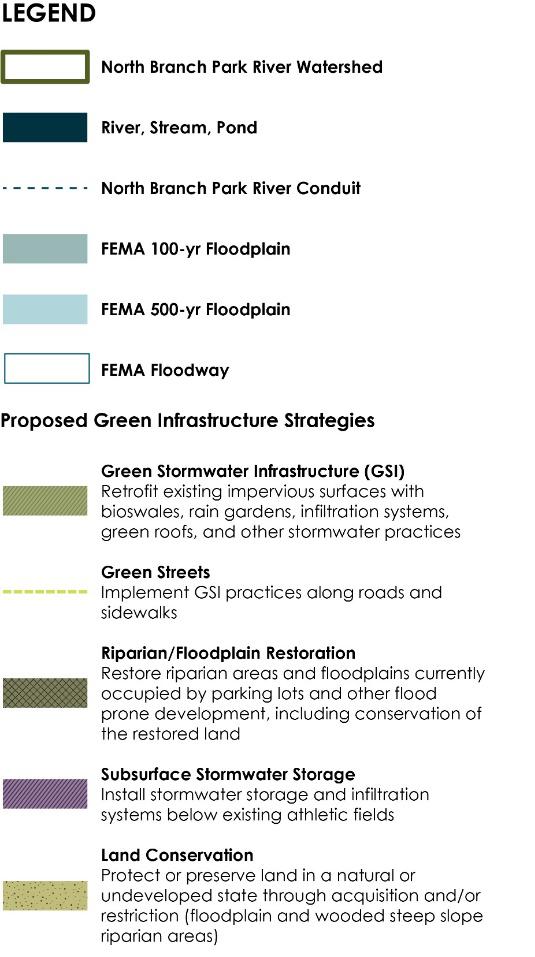

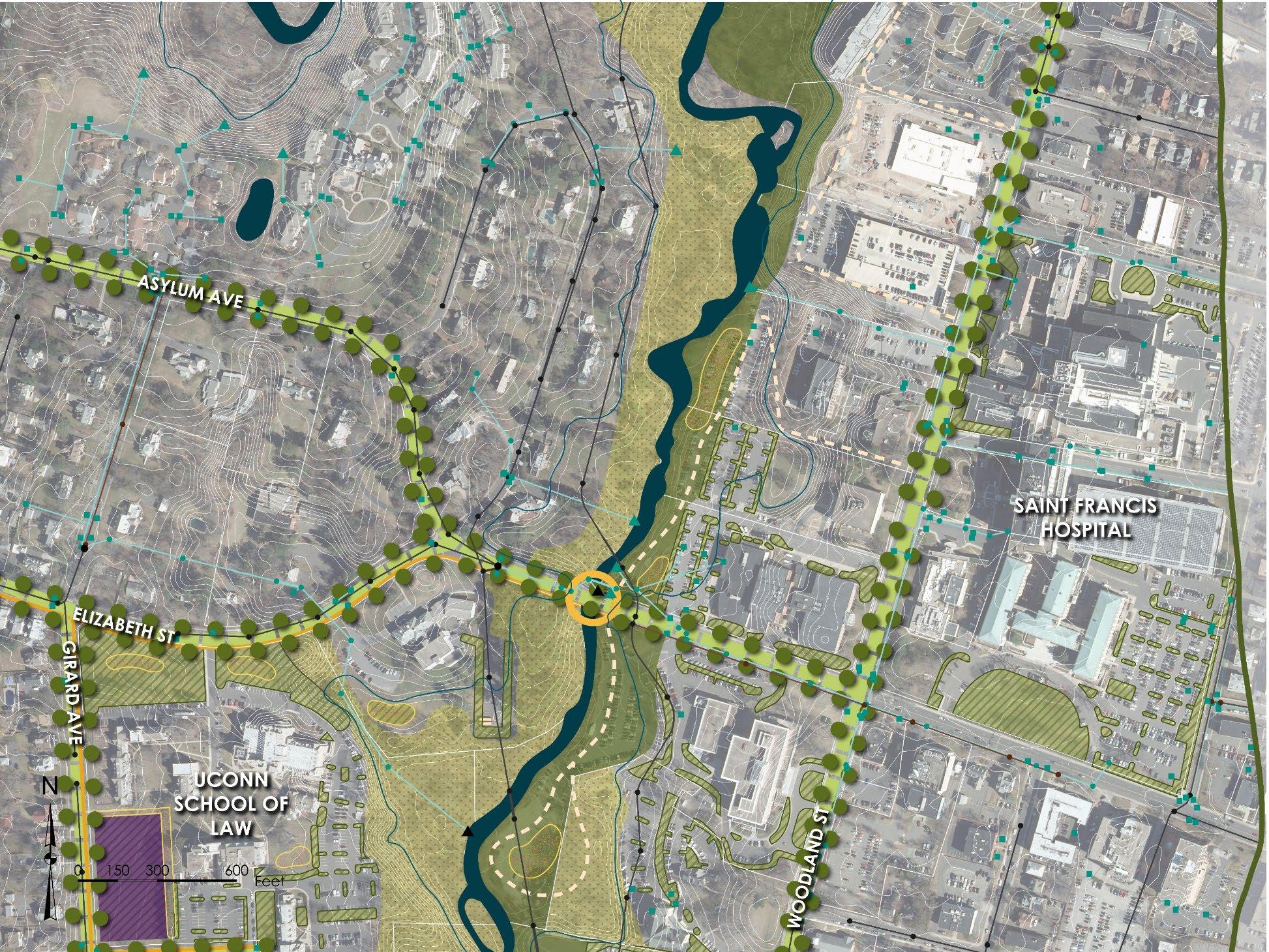

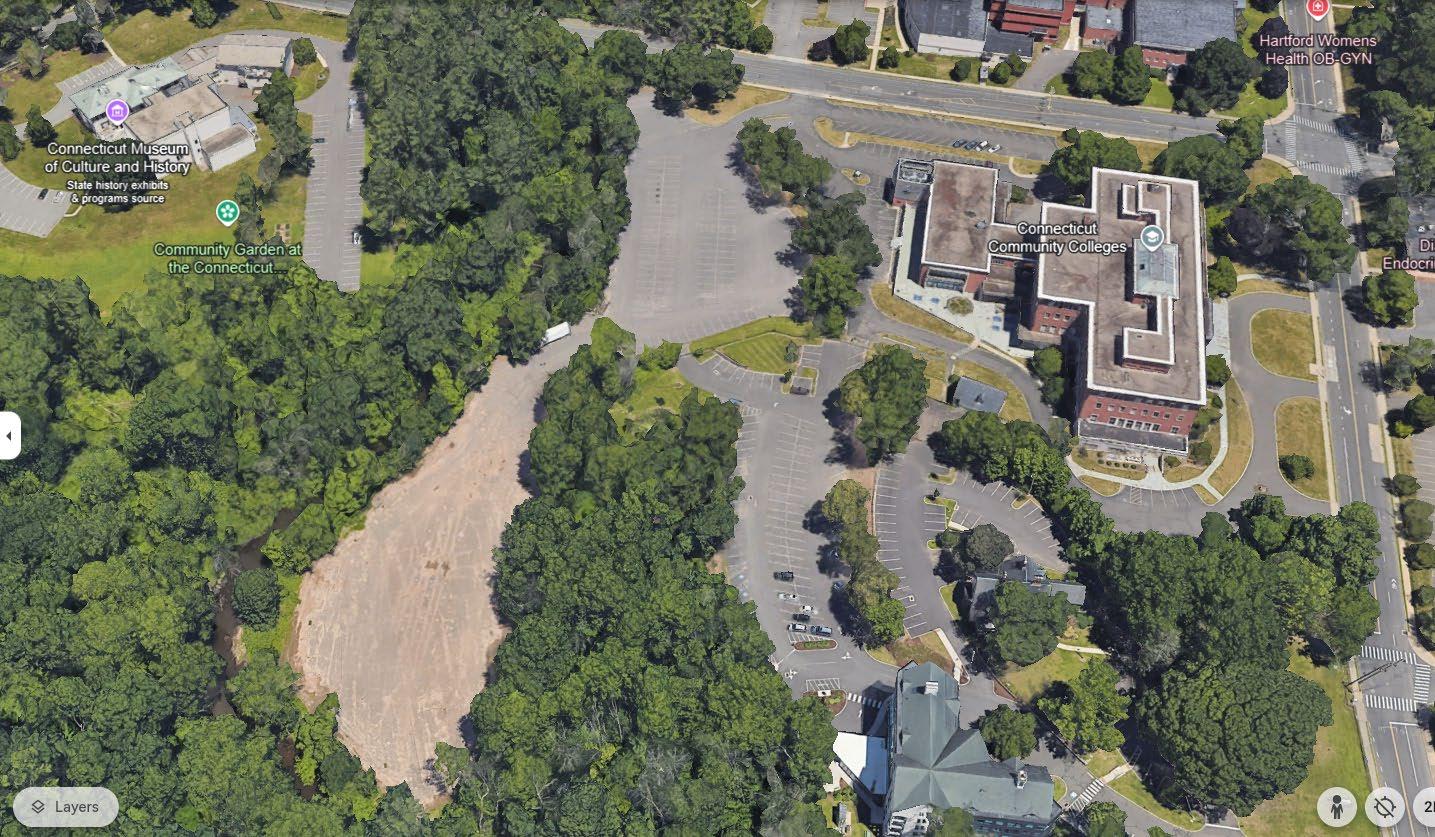

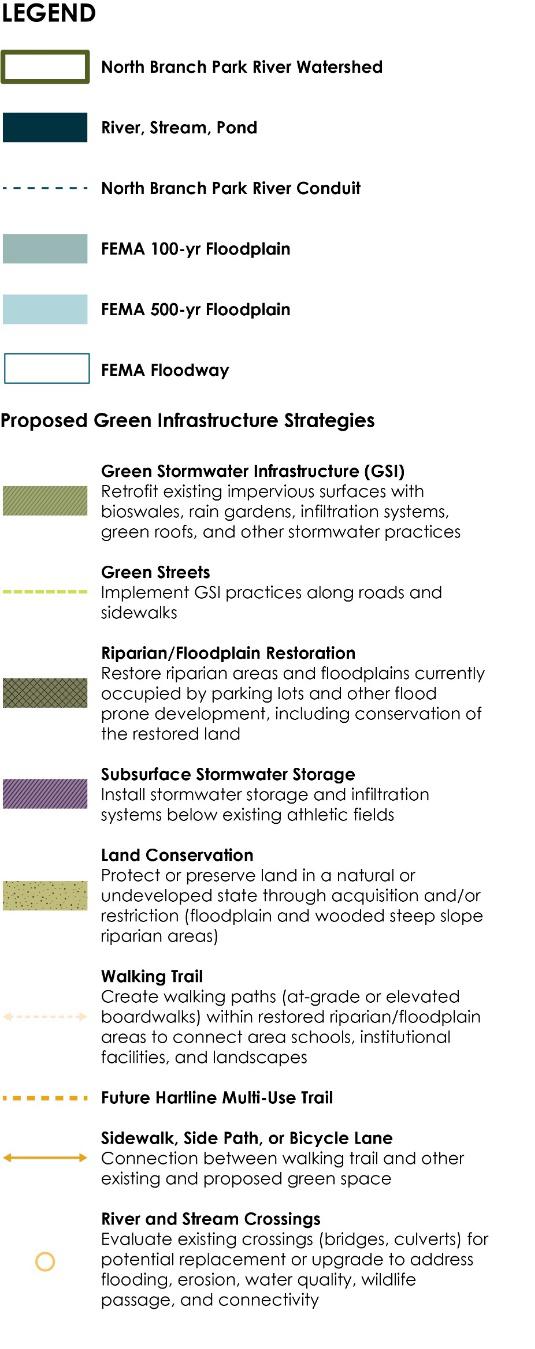

FOCUS AREA CONCEPTS

ASYLUM AVENUE TO HOMESTEAD AVENUE

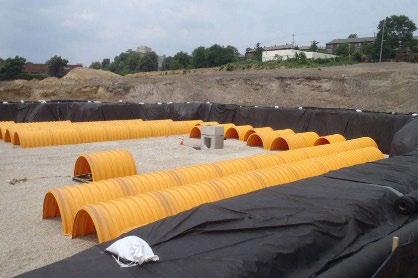

SUBSURFACE

STORMWATER STORAGE

FLOODPLAIN RESTORATION WITHIN EXISTING PARKING LOTS

WOODSIDE CIRCLE GOODWIN CIRCLE

WALKING TRAILS / LOOP

POLLINATOR GARDEN

LAND CONSERVATION

CONNECTICUT MUSEUM OF CULTURE AND HISTORY

EVALUATE EXISTING STREAM CROSSING (TYP)

CSO N-10

CLASSICAL MAGNET SCHOOL

CONNECTICUT COMMUNITY COLLEGES

CSO N-9

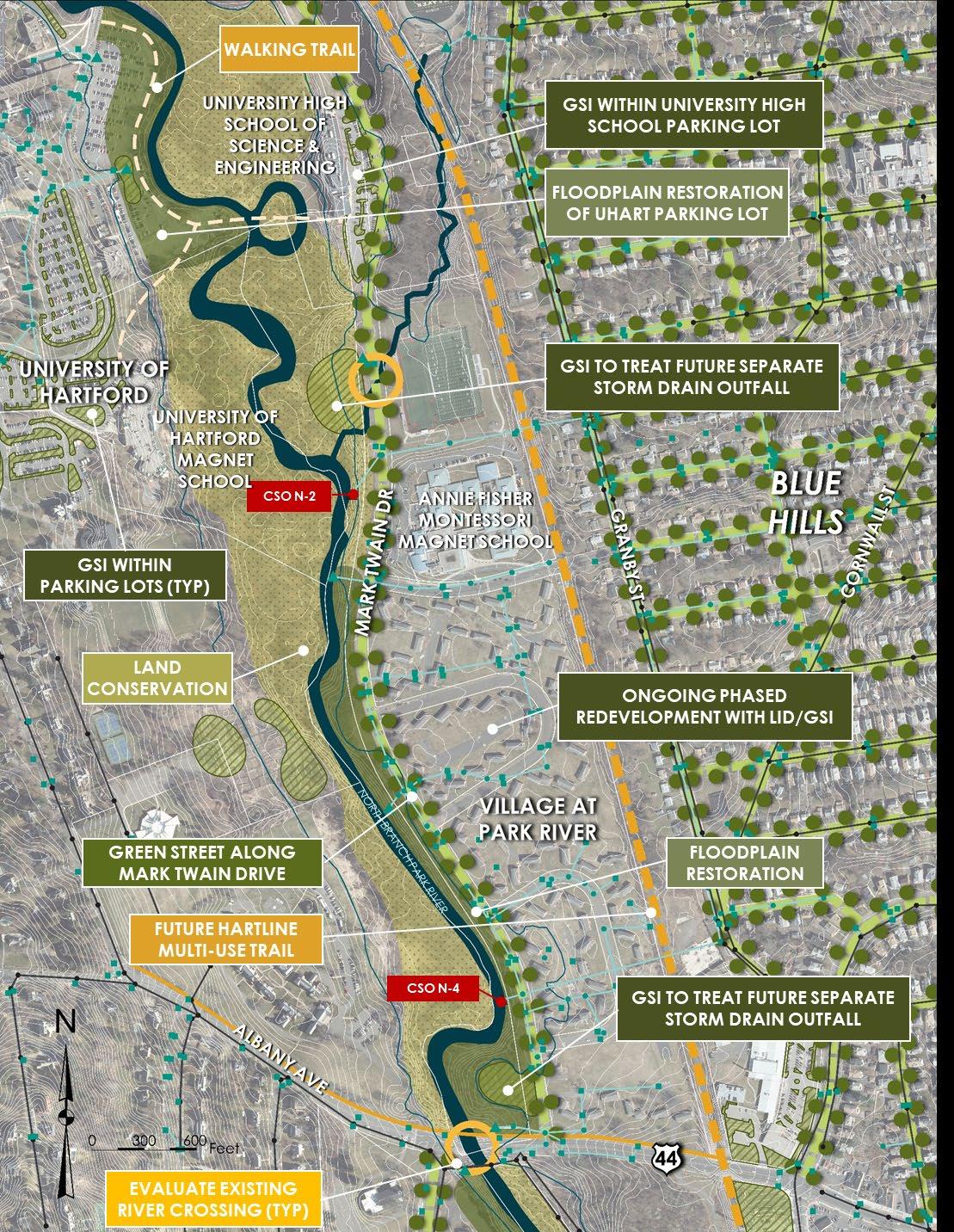

FOCUS AREA CONCEPTS

NORTH OF ALBANY AVENUE & MARK TWAIN DRIVE

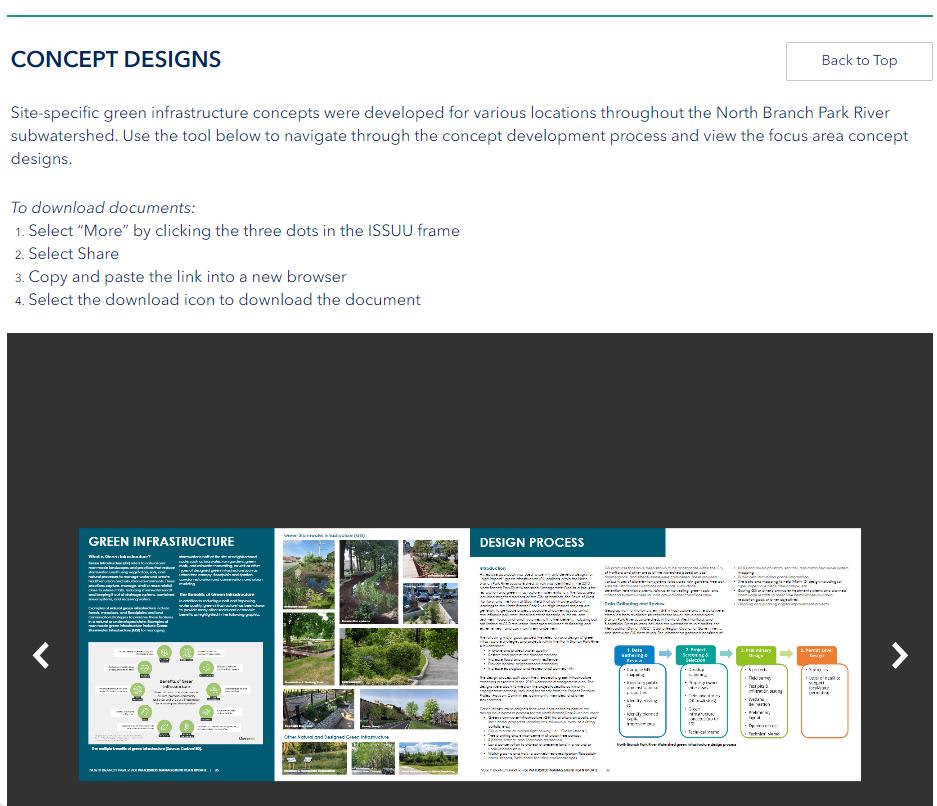

Concept Design Packet:

• 61 Woodland Street Floodplain Restoration

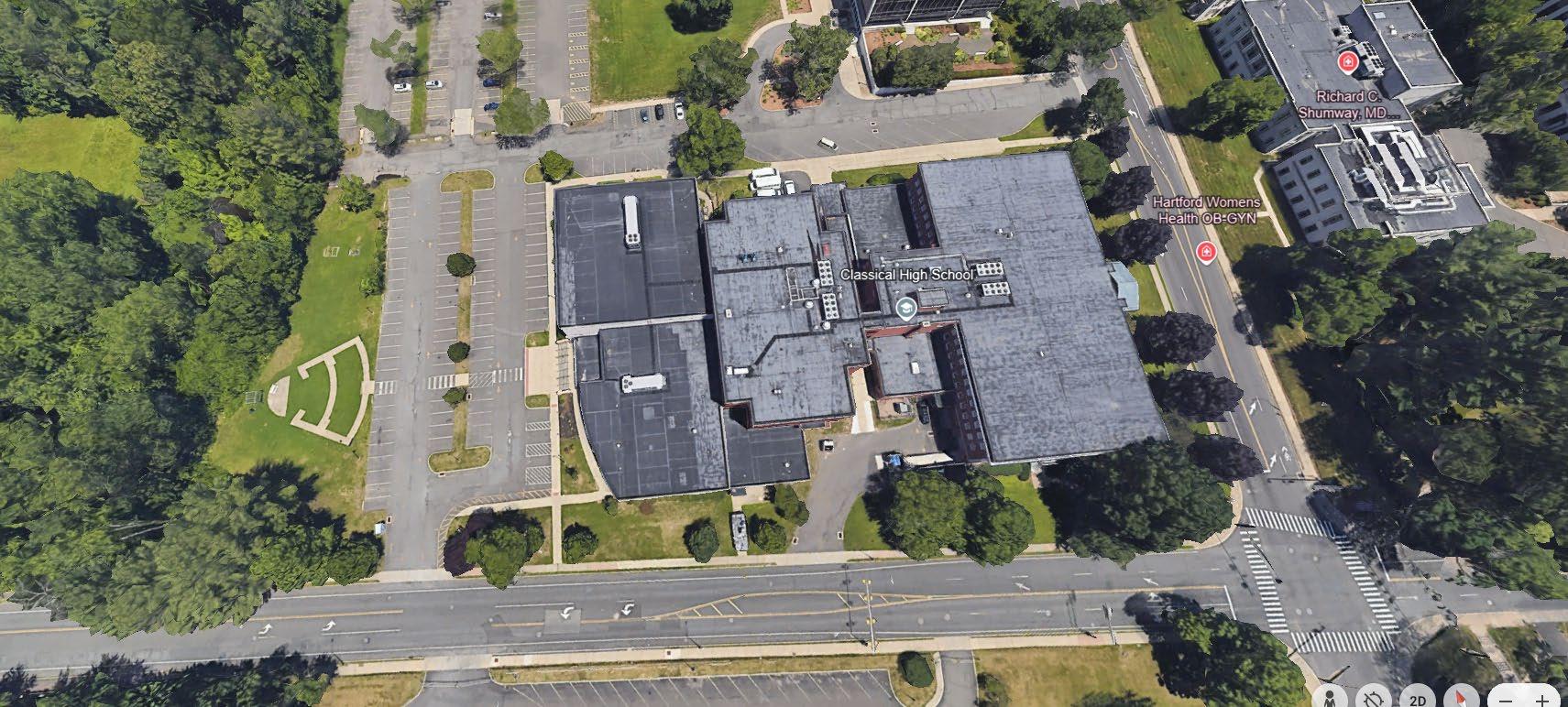

• Classical Magnet School Green Stormwater Infrastructure

• 3 other possible locations north of Albany Avenue (to be selected)

Preliminary Design

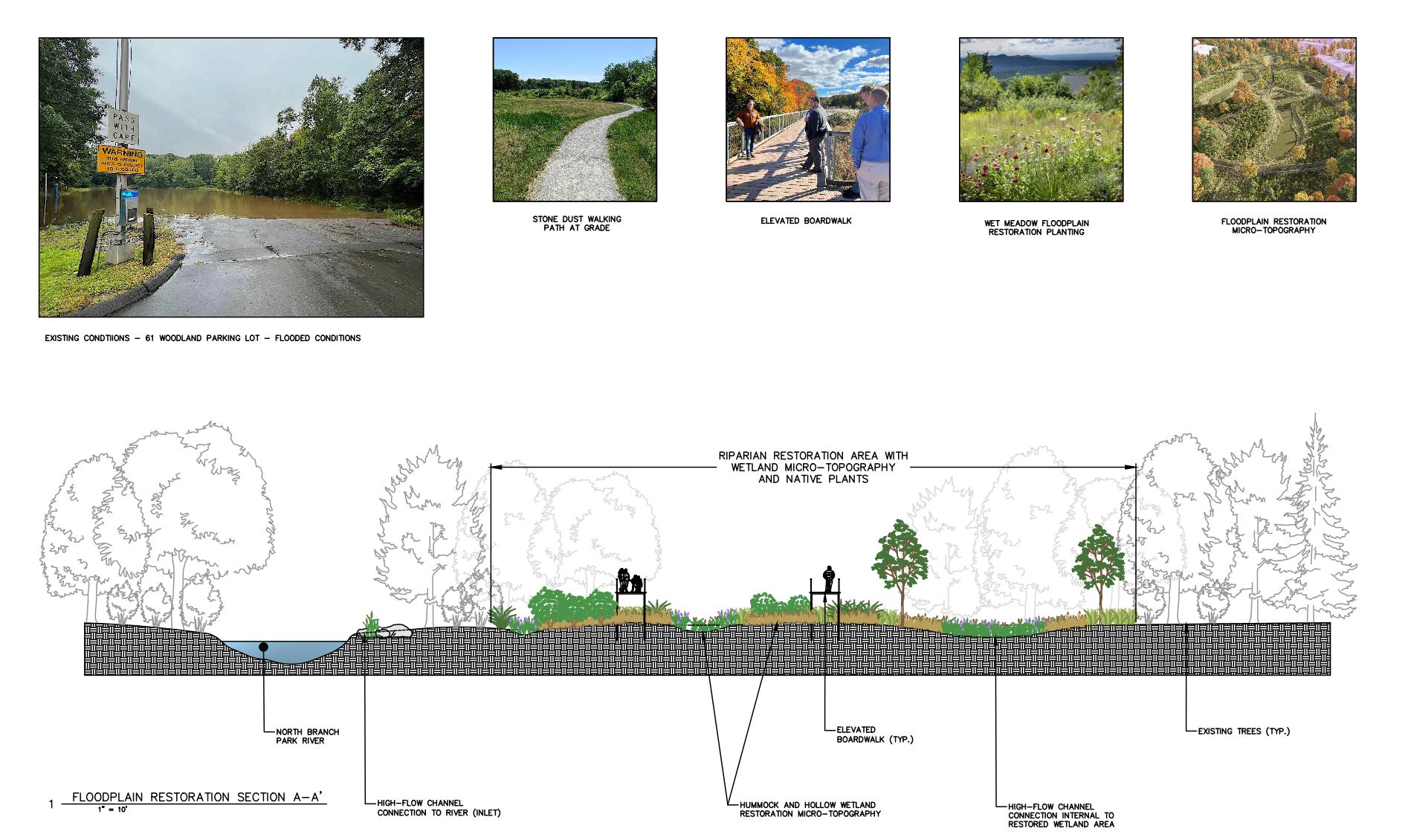

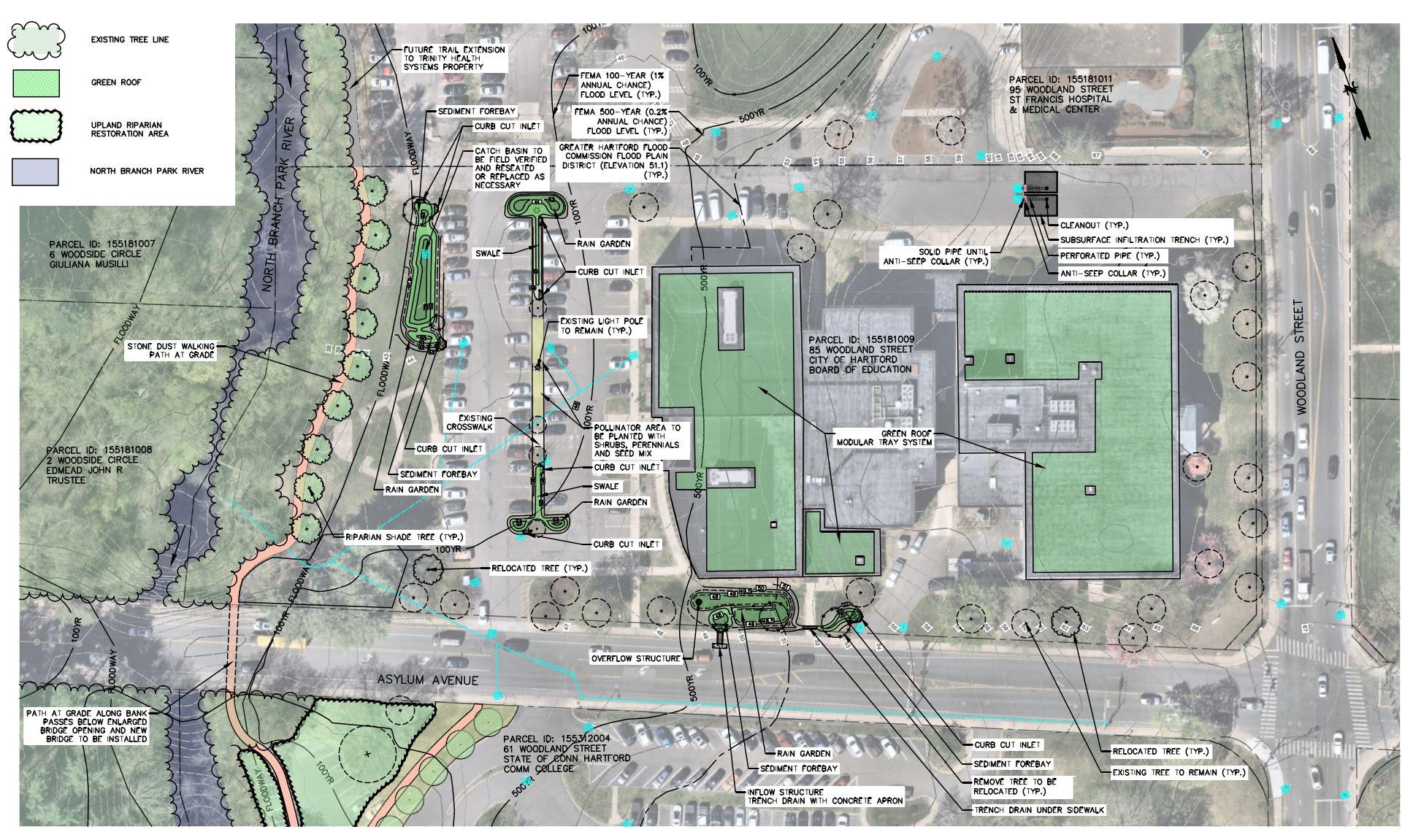

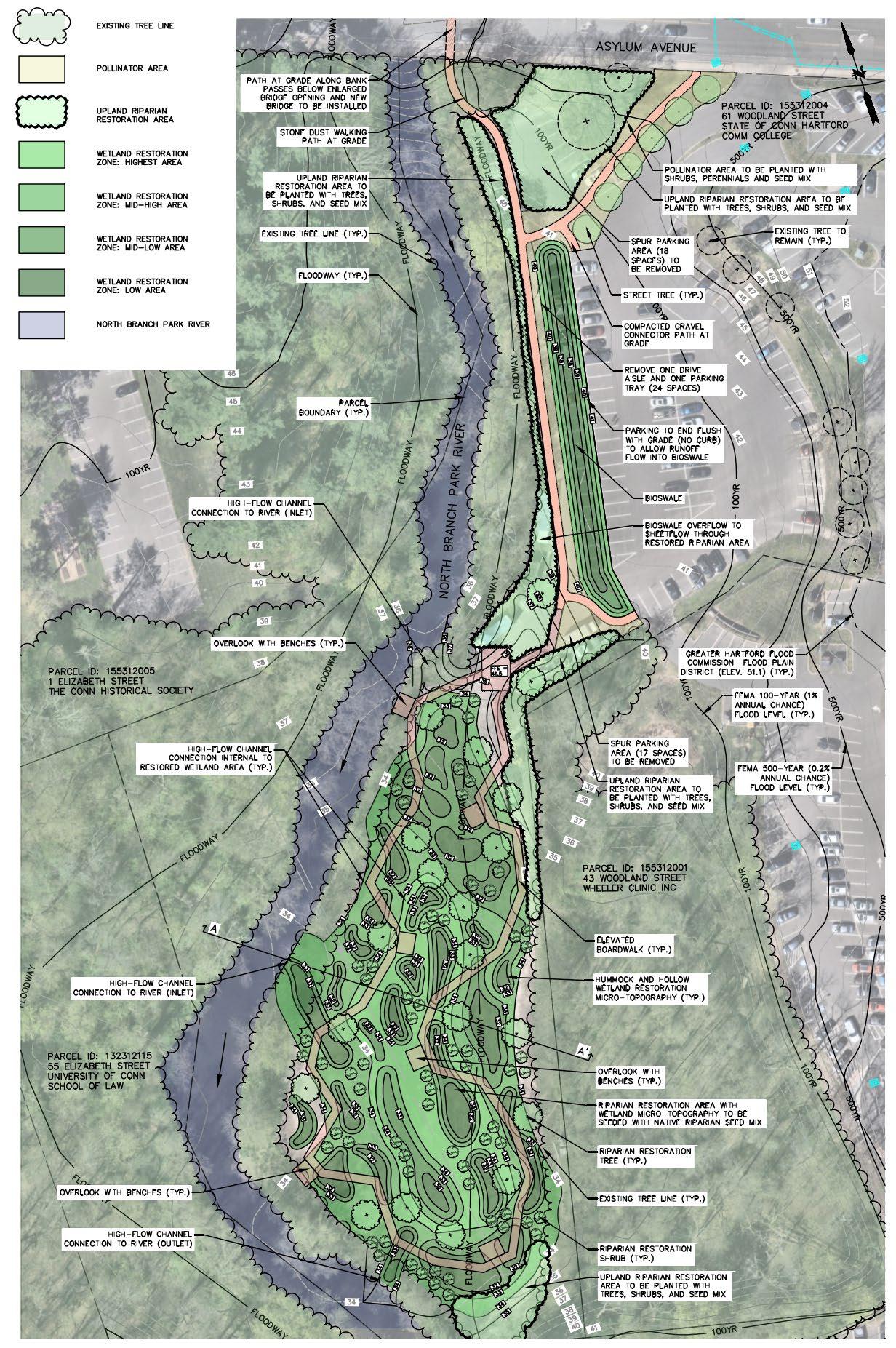

61 Woodland Street Floodplain

Preliminary Design

61 Woodland Street Floodplain

Preliminary Design Classical Magnet School

Possible Preliminary Designs

• University High School of Science and Engineering / UHART / Mark Twain Drive

− UHSSE parking lot GSI

− Mark Twain Drive GSI (green street)

− Remove UHART parking lots and convert to forested floodplain

− Trail connections

Possible Preliminary Designs

• Future Separate Stormwater Outfalls

1. 84” outfall near Tower Ave / Weaver HS

2. 72” outfall between 227 and 233 Granby St (previously designed and permitted “Granby 1”)

3. 72” to 84” outfall from 45 Granby St: Westbrook Village easement or pumping station with force main

• Off-line stormwater wetland/ponds at outfalls (“stormwater parks”)

• GSI within upgradient neighborhoods

Possible Preliminary Designs

• Cronin Park & Unnamed Stream / 108” Granby Street

Conduit

Source: CDM Smith, Hartford MDC Blue Hills/Granby Area Drainage Study Presentation, July 18, 2024

Possible Preliminary Designs

• Cronin Park & Unnamed Stream / 108” Granby Street Conduit

− Subsurface storage/infiltration below Cronin Park

− Connection to Granby St Conduit (runs below Cronin Park) or new 84” pipe and outfall

− GSI in Cronin Park, along Granby Street, and in upgradient neighborhoods

108” Granby Street Conduit
Unnamed Stream

Next Steps

Next Steps

• Green Infrastructure Design Development

− Complete 5 preliminary designs

− Develop 3 permit-level designs

• Complete Watershed Plan Update

Next Steps

• Remaining Stakeholder Engagement

− Today’s presentation

− Community Meeting (University High School of Science and Engineering)

− Walkshops

− Project Partner (2) & Advisory Committee (1) Meetings

North Central Conservation District

Questions and Discussion

Contacts: Joanna Shapiro jshapiro@conservect.org

Erik Mas, PE erik.mas@fando.com

Akta Patel, PE akta.patel@fando.com

Andrew Bohne, RLA andrew.bohne@fando.com

Mary Rickel Pelletier maryp@parkwatershed.org

Brian Martin Brian.Martin@tpl.org

Cally Guasti-O’Donoghue cally.guasti@tpl.org

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
