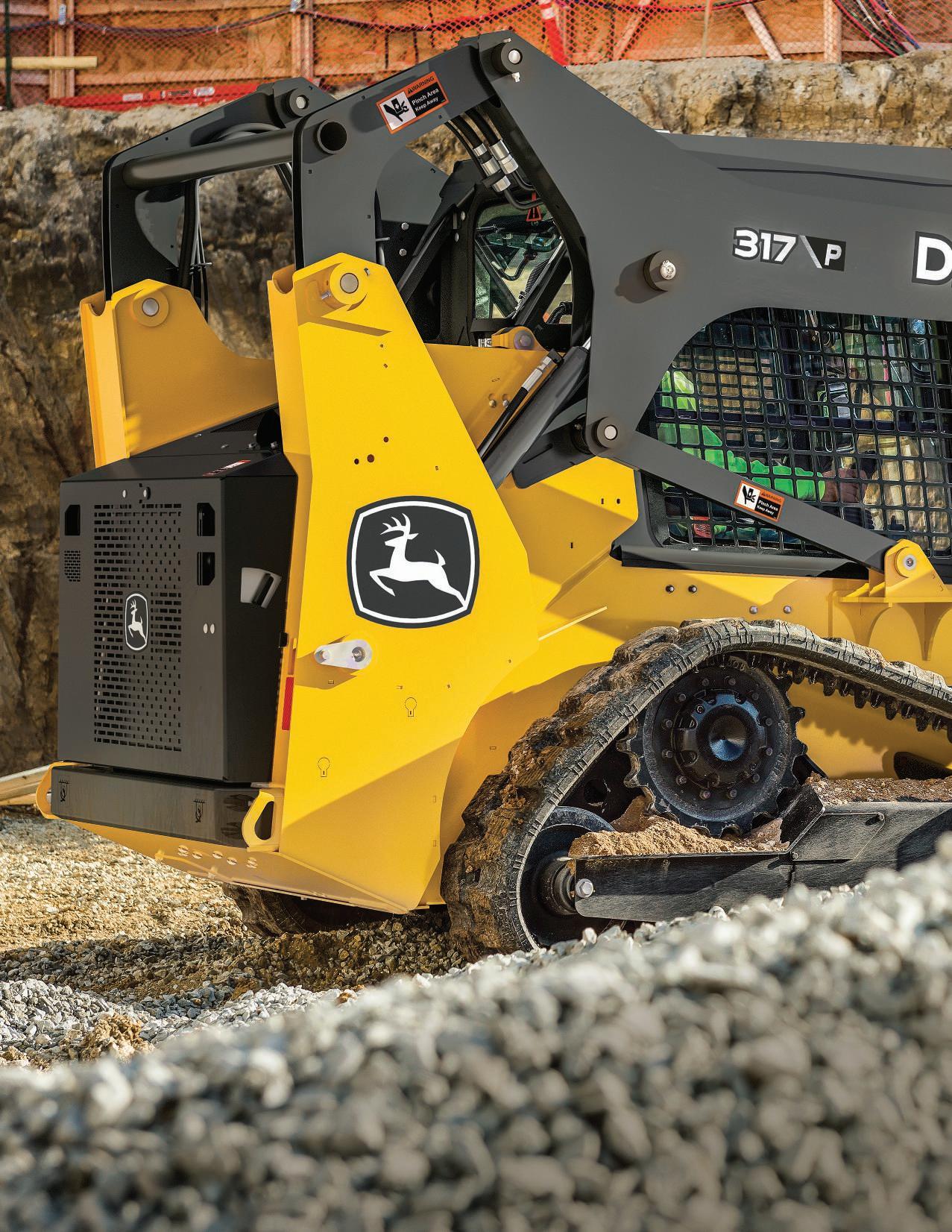

P-Tier Small-Frame and G-Series Mid-Frame Compacts
316/317/318 P-Tier Small Frames / 320G/324G/325G Mid Frames
Over the years, we’ve relied on owners and operators like you to weigh in on what makes our equipment work for the work you do. Inspired — and challenged — by what you pointed out, we’ve reimagined our small- and mid-frame compacts in some pretty big ways. We added more power under the hood. Maximized lift height, dump clearance, reach, stability, and breakout force. And amped-up the options to include LED side lighting, rearview camera, and high-flow auxiliary hydraulics. All so you can effortlessly tackle your toughest tasks and come back for more.
RELIABLEPRODUCTIVE

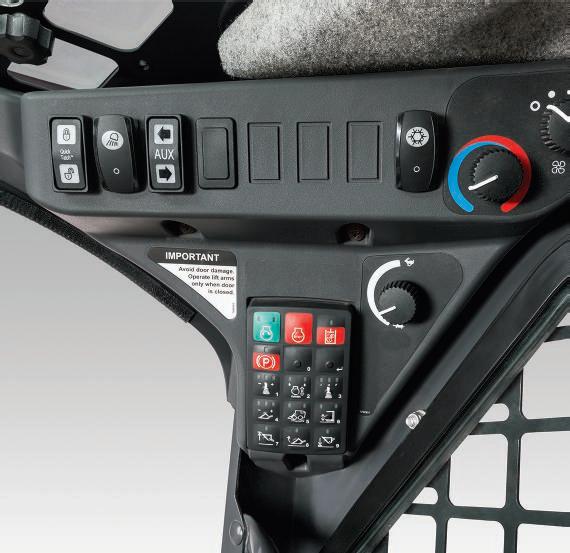

It’s easy to take control

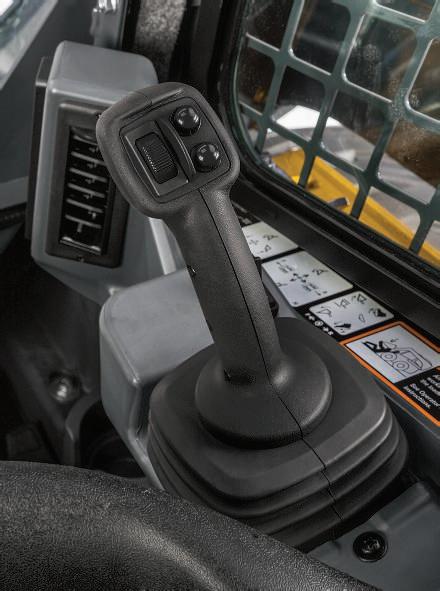

Electrohydraulic (EH) ISO-pattern joystick controls that allow customized machine operations based on operator preference are standard.
Elevated by design

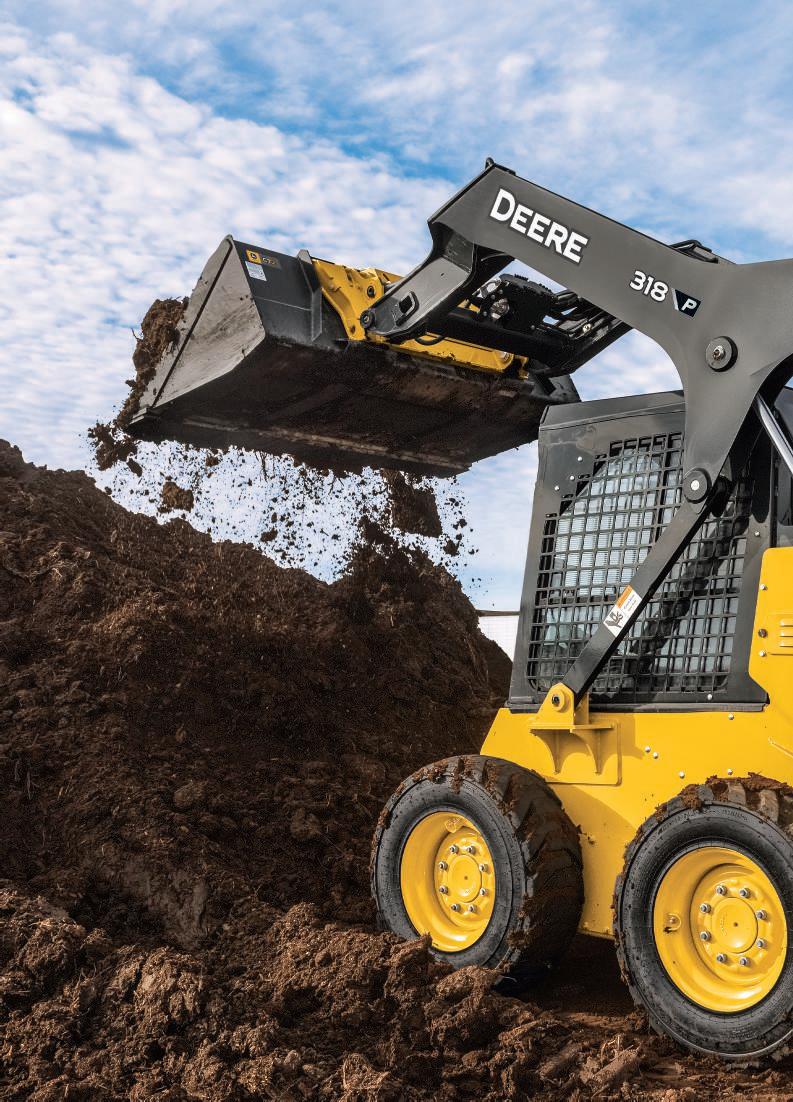

Radial-lift boom provides generous reach at mid-range lift heights and enables the 316 P-Tier Skid Steer to excel at digging, grading, and backfilling applications.
Power lifters
Vertical-lift boom combines height and reach at the top of the lift path with outstanding stability, making the 318 P-Tier, 320G, and 324G Skid Steers and 317 P-Tier and 325G Compact Track Loaders (CTLs) ideal for stacking and truck-loading applications.
Try them on for size
With their small statures, these compact models move handily around congested jobsites and are easy to transport. Heavy-duty tire option slims the 316 P-Tier down to a trim 60-inch width. Narrow-track option brings the 317 P-Tier down to a maneuverable 65-inch width.
Step up the pace
Two-speed transmission* provides transport speeds of up to 12 miles per hour on the 320G and 324G, to move around the jobsite quickly and push productivity even further.
*Standard on the 320G, 324G, and 325G; optional on the 316 P-Tier and 318 P-Tier; not available for the 317 P-Tier.
The force factor
Extreme pushing power and bucket breakout forces deliver the tractive effort and leverage to carve out clay, handle heavy loads, and plow through piles.
Power to perform
Reliable EPA Final Tier 4 (FT4) engines meet rigid emission standards, run smooth, and pack plenty of power and torque.
Tread lightly
Equipped with standard 12.6-inchwide track, ground pressure for the 325G and 317 P-Tier is 5.7 psi and under. Step even more lightly with optional 15.8-inch-wide track exerting just 4.7 psi and under, for work in soft underfoot conditions and side-slope stability.
SWITCHING ATTACHMENTS
ENABLES VERSATILITY IN ANY WEATHER OR SEASON
Work your connections
Equip your small- or mid-frame model with your choice of over 100 available John Deere attachments to expand the flexibility of your operation. Increased auxiliary hydraulic flow and power compared to some earlier models boosts attachment performance.
Packed for productivity
Low center of gravity, impressive bucket rollback, optional ride control, and optional hydraulic self-leveling help keep forks loaded and buckets full. Add capacity with additional sets of rear counterweights.
Big ideas that deliver
Large cab entryway with swingout door, generous foot- and legroom, sealing and pressurization to minimize dust and noise, and adjustable high-back sculpted seat optimize operator comfort. Easy-to-read LCD monitor reveals a wealth of vital operating info and advanced diagnostics.
Seeing is believing
Clear sightlines to the cutting edge and bucket corners, above and below the lift arms, and the jobsite ahead and behind instill confidence in close quarters. Optional LED side lighting and rearview camera further enhance visibility.
Tackle the to-do list

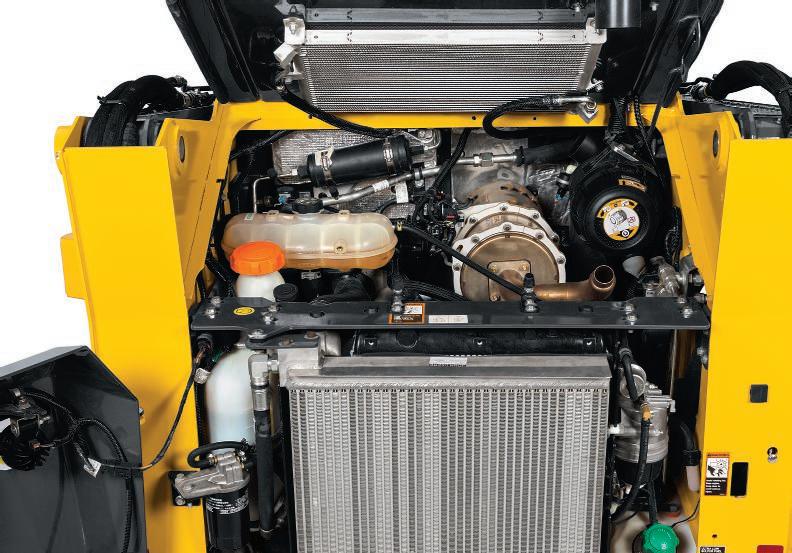

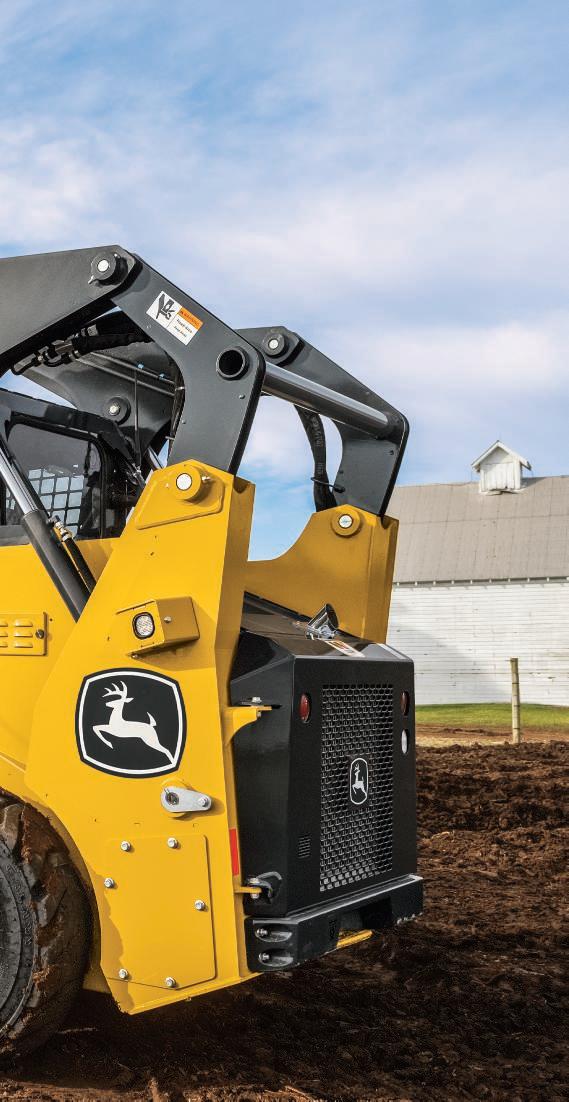

Ground-level access to daily service points and cooling system components eases routine maintenance. Neat freaks and rental yards can appreciate the convenient cab-footwell access that helps speed cleaning.
Safety first
Standard personal-protection features include in-cab-activated boom lock and triple-interlock system that detects the presence of the operator.
GROUND-LEVEL ACCESS EASES DAILY SERVICE
Connected machines
John Deere construction equipment comes with in-base connectivity — free from subscriptions or annual renewals. Analyze critical machine data, track utilization, review diagnostic alerts, and more from the John Deere Operations Center™. The Operations Center also enables John Deere Connected Support™, which uses data from thousands of connected machines to proactively address issues before they arise. With your approval, your dealer can also remotely monitor machine health, diagnose problems, and even update machine software without a trip to the jobsite.*
*Availability varies by region and product. Options not available in every country.

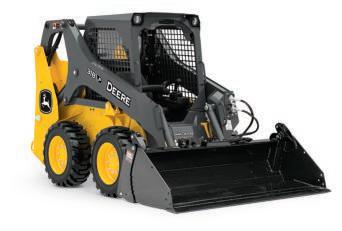

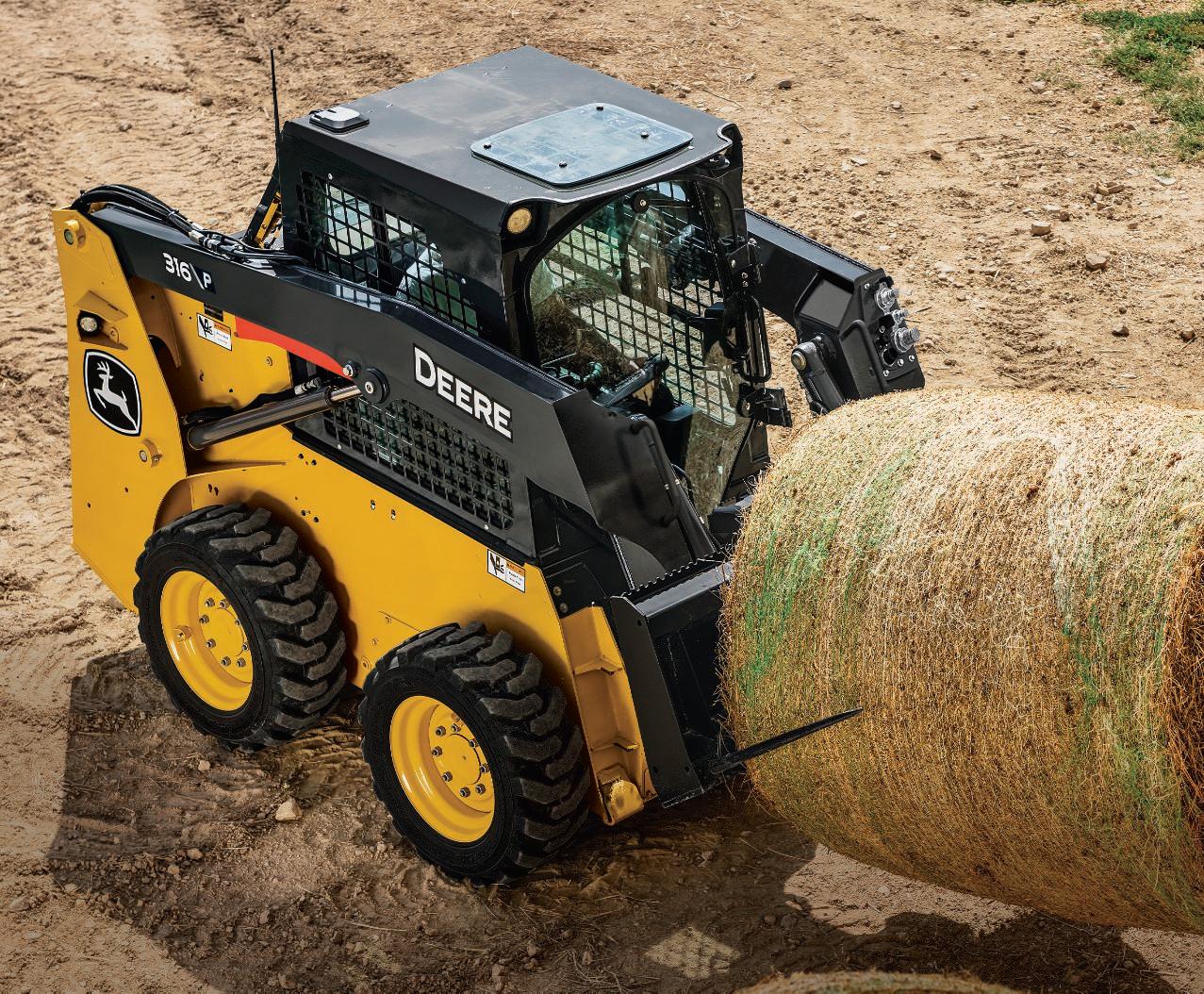

316 P-TIER
Manufacturer and Model Yanmar 4TNV86CHT Yanmar 4TNV86HT
Non-Road Emission Standard EPA Final Tier 4 Conforms to UN R96 (EU Stage IIIA equivalent)

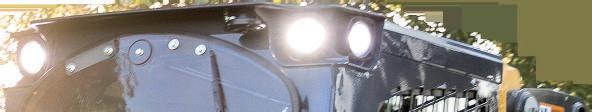

Lights Halogen: 2 front and 1 rear standard / deluxe LED (4 front and 1 rear) optional
Operator’s Station
ROPS (ISO 3471) / FOPS (ISO 3449) structure with quick-pivot standard Tires/Wheels
Loader Performance
Tipping Load
SAE Rated Operating Capacity
With Counterweight
Boom Breakout Force
With Foundry Bucket

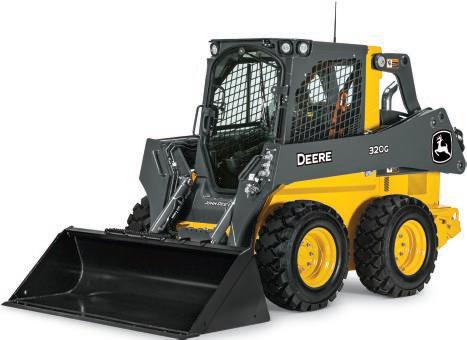

320G
kg (4,380 lb.)
kg (2,190 lb.)
kg (2,350 lb.)
kg (3,725 lb.)
Additional equipment
320GEngine
l Meets EPA Final Tier 4/EU Stage IV emissions
s Meets EPA Interim Tier 4/EU Stage IIIA emissions
l Yanmar 4TNV98C
s Yanmar 4TNV98T
l Auto-idle
l Automatic fan tensioner
l Automatic preheat
l Electronic injection system
s Engine air precleaner kit
l Fuel tank, 79 L (21 gal.)
l John Deere COOL-GARD™ II Extended-Life
Engine Coolant
l John Deere Plus-50™ 10w30 initial engine oil fillß
l 4-cylinder 51.7 kW (69 gross hp)/49.4 kW (66 net hp), 3.3-L (203 cu. in.) displacement
l 5-micron primary fuel filter and water separator
s Cold-weather starting package
Cooling System
l Coolant surge tank
l Variable-speed hydraulically driven fan cooling system
s Reversing fan drive
Powertrain
l High-strength adjustment-free final-drive chains
l Automatic spring-applied hydraulically released wet-disc park brake
l Wet-disc brakes
l Transmission, 2 speed
Hydraulic System
l John Deere hydraulic cylinders with cushioned boom cylinders
l John Deere heat-treated, chrome-plated cylinder rods with replaceable bushings
l Connect-under-pressure auxiliary couplers
l Quick-check hydraulic fluid-level sight glass
l 1,000-hour, 5-micron hydraulic filter
s High-flow hydraulics
l Axial-piston hydrostatic pump
Electrical
l Automatic engine/hydraulic shutdown protection system
l Auxiliary hydraulics operator-presence system
l Courtesy lighting
Boom Breakout Force (continued)
With Construction Bucket
Bucket Breakout Force
With Foundry Bucket
320GElectrical (continued)
l Deluxe instrumentation EMU with: Operatorselectable monitoring – Hour meter, engine rpm, battery voltage, diagnostics, EMU configuration, engine coolant temperature, hydraulic oil temperature / LED warning indicators –Glow plug, seat switch, seat belt, door open, auxiliary hydraulics, park brake engaged, 2-speed engaged, stop, low engine oil pressure, engine coolant over-temperature, battery not charging, air filter restriction, and hydraulic filter restriction
s Deluxe LED lighting package with additional cab-integrated side lights (2)
l Front and rear halogen work lights
l Triple-interlock operator-presence control system
l Backup alarm
l Battery, 750 CCA
s Battery, 925 CCA
s Hazard warning lights
s Strobe light, amber
l Horn
Operator’s Station
l Deluxe cab headliner
l Electrohydraulic (EH) ISO-pattern joystick controls
s ISO-H switchable joystick controls and EH joystick performance package*
l Keyless-start sealed-switch module with integrated anti-theft system and operator memory preference settings
l Electronic push-button auxiliary controls
l Pull-down adjustable lap bar
l Quick-pivot ROPS
l Rear window
l Removable top window
s Sliding/locking/removable glass side windows
l ROPS/FOPS operator structure
s Glass cab enclosure
l Seat belt, 51 mm (2 in.), retractable
s Shoulder belt, 51 mm (2 in.) or 76 mm (3 in.)
s Severe-duty cab door and wiper system
l Water-shedding deluxe vinyl suspension seat
kg (3,500 lb.)
kg (6,000 lb.)
kg (4,200 lb.)
Key: l Standard s Optional or special
See your John Deere dealer for further information.
320GOperator’s Station (continued)
s Air-ride cloth, heated seat
s Air-ride vinyl seat
l 12-volt power port / Dome light / Cargo storage / Beverage holder
s Air conditioning with heater/defroster
s AM/FM radio with auxiliary input and Bluetooth® for audio streaming
s Floor mat with left footrest
l Rearview mirror
s Rearview camera Loader
l In-cab boom lockout to secure loader before exiting seat
l Patented John Deere Quik-Tatch™ (no grease required)
s Power Quik-Tatch
l Patented John Deere vertical-lift boom
l Hydraulic self-leveling on/off
s Ride control
Other
l Convenient front and rear tie-downs
l Environmental drains for all fluid reservoirs
l 12 x 16.5 12 PR SKS
s Chrome exhaust stack
s Engine oil/hydraulic fluid-sampling kit
s Forestry protection packages
s Heavy-duty rear grille
s Rear counterweights (available in sets of 1, 2, or 3), 78 kg (172 lb.) (each set)
s Single-point lift kit
s SMV sign kit
s Spare tire and wheel
s Tire options: SKS Extra-Wall, Galaxy Beefy Baby III, Galaxy Hulk, and Brawler Solid-Flex
s JDLink™ wireless communication system (available in specific countries; see your dealer for details)
ß500-hour engine oil-change intervals when John Deere Plus-50 oil and John Deere oil filter are used.
*EH joystick performance package features switchable accelerator/decelerator, selectable propel speeds, creep control, boom- and bucket-speed settings, and 12-volt 3- and 14-pin attachment-control harness with dashmounted 4th-function rocker switch. While general information, pictures, and descriptions are provided, some illustrations and text may include product options and accessories NOT AVAILABLE in all regions, and in some countries products and accessories may require modifications or additions to ensure compliance with the local regulations of those countries. Net engine power is with standard equipment including air cleaner, exhaust system, alternator, and cooling fan, at standard conditions per SAE J1349 and DIN 6270B, using No. 2-D fuel at 35 API gravity. Gross power is without cooling fan. No derating is required up to 3050-m (10,000 ft.) altitude. Specifications and design subject to change without notice. Wherever applicable, specifications are in accordance with SAE standards. Except where otherwise noted, these specifications are based on a unit with standard equipment, full fuel tank, and 79-kg (175-lb.) operator.

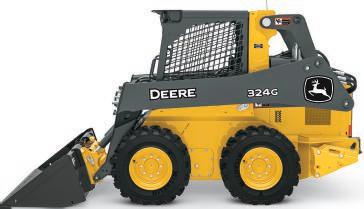

SKID STEER SPECIFICATIONS 324G
B
D
E
F
G
H
J
I
K
L
M
Cooling
Fan Type
Powertrain
Type
Variable-speed hydraulic drive standard / reversing fan drive optional
Hydrostatic-manual or electrohydraulic; 4 – 80 heavy-duty (HD) continuous-loop chain
Travel Speed, 2 Speed, High, Standard 19.3 km/h (12 mph)
Axles
Induction-hardened, 1-piece forged axle shafts with maintenance-free oil-bath lubrication of inner and outer axle bearings
Maximum Axle Torque 6771 Nm (4,994 lb.-ft.)
Tractive Effort 3220 kgf (7,491 lbf)
Final Drive
High-strength, adjustment-free chains
Brakes Integral, automatic, spring-applied, hydraulically released, wet-disc park brake Hydraulics
Pump Flow Hydraulic Horsepower Flow (calculated)
L/m (21 gpm)
Total With High-Flow Option 120 L/m (32 gpm)
System Pressure at Couplers 23 787 kPa (3,450 psi) Auxiliary Hydraulics
Connect-under-pressure with flat-faced couplers
Cylinders Type John Deere heat-treated, chrome-plated polished cylinder rods, hardened steel (replaceable bushings) pivot pins
Loader Performance 324G
Tipping Load
SAE Rated Operating Capacity
kg (5,380 lb.)
Boom Breakout Force (continued)
kg (2,690 lb.) With Construction Bucket
With Counterweight 1294 kg (2,850 lb.)
Bucket Breakout Force
Boom Breakout Force With Foundry Bucket
With Foundry Bucket
kg (5,250 lb.) With Construction Bucket
Additional equipment
324GEngine
l Meets EPA Final Tier 4/EU Stage IV emissions
l Yanmar 4TNV98CT
s Yanmar 4TNV98T
l Auto-idle
l Automatic fan tensioner
l Automatic preheat
l Electronic injection system
s Engine air precleaner kit
l Fuel tank, 79 L (21 gal.)
l John Deere COOL-GARD™ II Extended-Life Engine Coolant
l John Deere Plus-50™ 10w30 initial engine oil fillß
l 4-cylinder 55.0 kW (74 gross hp)/52.5 kW (70 net hp), 3.3-L (203 cu. in.) displacement
l 5-micron primary fuel filter and water separator
s Cold-weather starting package
Cooling System
l Coolant surge tank
l Variable-speed hydraulically driven fan cooling system
s Reversing fan drive Powertrain
l High-strength adjustment-free final-drive chains
l Automatic spring-applied hydraulically released wet-disc park brake
l Wet-disc brakes
l Transmission, 2 speed Hydraulic System
l John Deere hydraulic cylinders with cushioned boom cylinders
l John Deere heat-treated, chrome-plated cylinder rods with replaceable bushings
l Connect-under-pressure auxiliary couplers
l Quick-check hydraulic fluid-level sight glass
l 1,000-hour, 5-micron hydraulic filter
s High-flow hydraulics
l Axial-piston hydrostatic pump
Electrical
l Automatic engine/hydraulic shutdown protection system
l Auxiliary hydraulics operator-presence system
l Courtesy lighting
324GElectrical (continued)
l Deluxe instrumentation EMU with: Operatorselectable monitoring – Hour meter, engine rpm, battery voltage, diagnostics, EMU configuration, engine coolant temperature, hydraulic oil temperature / LED warning indicators –Glow plug, seat switch, seat belt, door open, auxiliary hydraulics, park brake engaged, 2-speed engaged, stop, low engine oil pressure, engine coolant over-temperature, battery not charging, air filter restriction, and hydraulic filter restriction
s Deluxe LED lighting package with additional cab-integrated side lights (2)
l Front and rear halogen work lights
l Triple-interlock operator-presence control system
l Backup alarm
l Battery, 750 CCA
s Battery, 925 CCA
s Hazard warning lights
s Strobe light, amber
l Horn
Operator’s Station
l Deluxe cab headliner
l Electrohydraulic (EH) ISO-pattern joystick controls
s ISO-H switchable joystick controls and EH joystick performance package*
l Keyless-start sealed-switch module with integrated anti-theft system and operator memory preference settings
l Electronic push-button auxiliary controls
l Pull-down adjustable lap bar
l Quick-pivot ROPS
l Rear window
l Removable top window
s Sliding/locking/removable glass side windows
l ROPS/FOPS operator structure
s Glass cab enclosure
l Seat belt, 51 mm (2 in.), retractable
s Shoulder belt, 51 mm (2 in.) or 76 mm (3 in.)
s Severe-duty cab door and wiper system
l Water-shedding deluxe vinyl suspension seat
s Air-ride cloth, heated seat
kg (4,750 lb.)
kg (8,750 lb.)
kg (6,000 lb.)
Key: l Standard s Optional or special
See your John Deere dealer for further information.
324GOperator’s Station (continued)
s Air-ride vinyl seat
l 12-volt power port / Dome light / Cargo storage / Beverage holder
s Air conditioning with heater/defroster
s AM/FM radio with auxiliary input and Bluetooth® for audio streaming
s Floor mat with left footrest
l Rearview mirror
s Rearview camera Loader
l In-cab boom lockout to secure loader before exiting seat
l Patented John Deere Quik-Tatch™ (no grease required)
s Power Quik-Tatch
l Patented John Deere vertical-lift boom
l Hydraulic self-leveling on/off
s Ride control
Other
l Convenient front and rear tie-downs
l Environmental drains for all fluid reservoirs
l 12 x 16.5 12 PR SKS
s Chrome exhaust stack
s Engine oil/hydraulic fluid-sampling kit
s Forestry protection packages
s Heavy-duty rear grille
s Rear counterweights (available in sets of 1, 2, or 3), 78 kg (172 lb.) (each set)
s Single-point lift kit
s SMV sign kit
s Spare tire and wheel
s Tire options: SKS Extra-Wall, Galaxy Beefy Baby III, Galaxy Hulk, and Brawler Solid-Flex
s JDLink™ wireless communication system (available in specific countries; see your dealer for details)
ß500-hour engine oil-change intervals when John Deere Plus-50 oil and John Deere oil filter are used.
*EH joystick performance package features switchable accelerator/decelerator, selectable propel speeds, creep control, boom- and bucket-speed settings, and 12-volt 3- and 14-pin attachment-control harness with dashmounted 4th-function rocker switch.
While general information, pictures, and descriptions are provided, some illustrations and text may include product options and accessories NOT AVAILABLE in all regions, and in some countries products and accessories may require modifications or additions to ensure compliance with the local regulations of those countries.
Net engine power is with standard equipment including air cleaner, exhaust system, alternator, and cooling fan, at standard conditions per SAE J1349 and DIN 6270B, using No. 2-D fuel at 35 API gravity. Gross power is without cooling fan. No derating is required up to 3050-m (10,000 ft.) altitude.
Specifications and design subject to change without notice. Wherever applicable, specifications are in accordance with SAE standards. Except where otherwise noted, these specifications are based on a unit with standard equipment, full fuel tank, and 79-kg (175-lb.)
COMPACT TRACK LOADER SPECIFICATIONS
C
D
E
G
H
J
I
K
Cylinders Type John Deere heat-treated, chrome-plated polished cylinder rods, hardened steel (replaceable bushings) pivot pins
Loader Performance
SAE Rated Operating Capacity With
Additional equipment
325GEngine
l Meets EPA Final Tier 4/EU Stage IV emissions
s Meets EPA Interim Tier 4/EU Stage IIIA emissions
l Yanmar 4TNV98CT
s Yanmar 4TNV98T
l Auto-idle
l Automatic fan tensioner
l Automatic preheat
l Electronic injection system
s Engine air precleaner kit
l Fuel tank, 79 L (21 gal.)
l John Deere COOL-GARD™ II Extended-Life Engine Coolant
l John Deere Plus-50™ 10w30 initial engine oil fillß
l 4-cylinder 54.8 kW (74 gross hp)/52.5 kW (70 net hp), 3.3-L (203 cu. in.) displacement
l 5-micron primary fuel filter and water separator
s Cold-weather starting package Cooling System
l Coolant surge tank
l Variable-speed hydraulically driven fan cooling system
s Reversing fan drive Powertrain
l High-torque heavy-duty planetary-reduction final drive
l Automatic spring-applied hydraulically released wet-disc park brake
l Wet-disc brakes
l Transmission, 2 speed Hydraulic System
l John Deere hydraulic cylinders with cushioned boom cylinders
l John Deere heat-treated, chrome-plated cylinder rods with replaceable bushings
l Connect-under-pressure auxiliary couplers
l Quick-check hydraulic fluid-level sight glass
l 1,000-hour, 5-micron hydraulic filter
s High-flow hydraulics
l Axial-piston hydrostatic pump Electrical
l Automatic engine/hydraulic shutdown protection system
l Auxiliary hydraulics operator-presence system
325GElectrical (continued)
l Courtesy lighting
l Deluxe instrumentation EMU with: Operatorselectable monitoring – Hour meter, engine rpm, battery voltage, diagnostics, EMU configuration, engine coolant temperature, hydraulic oil temperature / LED warning indicators –Glow plug, seat switch, seat belt, door open, auxiliary hydraulics, park brake engaged, 2-speed engaged, stop, low engine oil pressure, engine coolant over-temperature, battery not charging, air filter restriction, and hydraulic filter restriction
s Deluxe LED lighting package with additional cab-integrated side lights (2)
l Front and rear halogen work lights
l Triple-interlock operator-presence control system
l Backup alarm
l Battery, 750 CCA
s Battery, 925 CCA
l Horn
s Hazard warning lights
s Strobe light, amber Operator’s Station
l Deluxe cab headliner
l Electrohydraulic (EH) ISO-pattern joystick controls
s ISO-H switchable joystick controls and EH joystick performance package*
l Keyless-start sealed-switch module with integrated anti-theft system and operator memory preference settings
l Electronic push-button auxiliary controls
l Pull-down adjustable lap bar
l Quick-pivot ROPS
l Rear window
l Removable top window
s Sliding/locking/removable glass side windows
l ROPS/FOPS operator structure
s Glass cab enclosure
l Seat belt, 51 mm (2 in.), retractable
s Shoulder belt, 51 mm (2 in.) or 76 mm (3 in.)
s Severe-duty cab door and wiper system
Key: l Standard s Optional or special
See your John Deere dealer for further information.
325GOperator’s Station (continued)
l Water-shedding deluxe vinyl suspension seat
s Air-ride cloth, heated seat
s Air-ride vinyl seat
l 12-volt power port / Dome light / Cargo storage / Beverage holder
s Air conditioning with heater/defroster
s AM/FM radio with auxiliary input and Bluetooth® for audio streaming
s Floor mat with left footrest
l Rearview mirror
s Rearview camera
Loader
l In-cab boom lockout to secure loader before exiting seat
l Patented John Deere Quik-Tatch™ (no grease required)
s Power Quik-Tatch
l Patented John Deere vertical-lift boom
s Hydraulic self-leveling on/off and ride control
Other
l Convenient front and rear tie-downs
l Environmental drains for all fluid reservoirs
s Chrome exhaust stack
s Engine oil/hydraulic fluid-sampling kit
s Forestry protection packages
s Heavy-duty rear grille
s Rear counterweights (available in sets of 1, 2, or 3), 78 kg (172 lb.) (each set)
s Single-point lift kit
s SMV sign kit
l Track, 320-mm (12.6 in.) wide
s Track, 400-mm (15.8 in.) wide
s JDLink™ wireless communication system (available in specific countries; see your dealer for details)
ß500-hour engine oil-change intervals when John Deere Plus-50 oil and John Deere oil filter are used.
*EH joystick performance package features switchable accelerator/decelerator, selectable propel speeds, creep control, boom- and bucket-speed settings, and 12-volt 3- and 14-pin attachment-control harness with dashmounted 4th-function rocker switch.
