The information in this brochure is based on our many years of experience and extensive surveys. However, since the conditions on the building site are beyond our control, we cannot be held responsible for the end result achieved. If in doubt, a trial is recommended before the work begins.
The most recently published product information and general information about the floor laying process can be found on www.englund-gruppen.se. Industry regulations, national standards and norms, as well as information from the relevant flooring manufacturer must also be taken into account.
PRIMERS AND MOISTURE BARRIERS
ECODUR® P 10
Solvent-free
A film forming, solvent-free adhesion primer with very low emissions for use on substrates such as concrete, lightweight concrete, screeds, floor planks, chipboards, cement- and gypsum based plasters. For interior walls and floors.
Pretreatment
The substrate must be load-bearing, durable, completely dry, clean, free from water-soluble adhesive residues and other substances that may impair the adhesion.
Application
Ensure that the primer is at room temperature. Shake and pour the contents of the can into a clean bucket. Dilute with clean, cold water using the mixing ratio specified in the table. Apply the primer evenly across the surface using a roller or brush. Avoid puddle formation. Allow the primer to dry before further work. After use, immediately clean your tools with water.
Optimum application temperature is 1025°C. High temperature and low humidity
shortens the drying time, whilst the reverse is true in low temperature and high humidity environments.
Moisture
The product has normal resistance to moisture and is not suitable for use on all floor types. Therefore, it is of outmost importance that the residual moisture content of the concrete subfloor is measured, ideally by an certified moisture controller, and documented to ensure that the covering is not applied to a substrate with too high moisture content.
When laying PVC and diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %.
In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• Subsequent levelling work must start no later than 72 hours after ECODUR® P 10 has been applied.
• Never use ECODUR® P 10 as an adhesion primer directly under parquet and hardwood floor adhesive.
ECODUR® P 10 has been assessed by Byggvarubedömningen and is registered in
Pack size: 5 kg canister
Colour: Light blue
Consumption: Approx. 40-100 g/m2 depending on the absorbency of the substrate.
Mixing ratio:
Concrete (1:5)
Lightweight concrete (1:3)
Cement-based screeds (1:3)
Calcium sulphate-based screeds (1:1)
Gypsum based plasters (1:1)
Cement mortar, lime cement plasters (1:3)
Gypsum boards (1:1)
Floor planks (1:1)
Working temperature: Minimum floor temperature 10°C
Drying time: For adhesion and reduced absorption approx. 0.5 hours As moisture protection during application phase 24 hours*
Underfloor heating: Suitable
Resistance to castor wheels: Can be used
Storage: At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment, not below 0°C.
* at 20°C och 65 % RH
BASTA.
ECODUR® P 11
Primer for non-absorbent substrates
Fibre reinforced
Extremely good adhesion
Solvent-free
Ready-mixed, extremely quick-drying, solvent-free adhesion primer with very low emissions for use on most smooth, non-absorbent substrates such as ceramic tiles, epoxy resins, terrazzo, and chipboards. For use in dry, indoor environments.
For interior walls and floors.
Pretreatment
The substrate must be load-bearing, durable, completely dry, clean, free from water-soluble adhesive residues and other substances that may impair the adhesion.
Application
Ensure that the primer is at room temperature and shake the bucket thoroughly before opening. Apply a thin layer of the primer across the entire surface using a roller. Avoid puddle formation. Allow the primer to dry before further work. After use, immediately clean your tools with water. Optimum application temperature is 1025°C. High temperature and low humidity
shortens the drying time, whilst the reverse is true in low temperature and high humidity environments.
Moisture
The product has normal resistance to moisture and is not suitable for use on all floor types. Therefore, it is of outmost importance that the residual moisture content of the concrete subfloor is measured, ideally by an certified moisture controller, and documented to ensure that the covering is not applied to a substrate with too high moisture content.
When laying PVC and diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %.
In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• If you are in any doubt about adhesion, do a small test on a limited area.
• Subsequent levelling work must start no later than 72 hours after ECODUR® P 11 has been applied.
• Never use ECODUR® P 11 as an adhesion primer directly under parquet and hardwood floor adhesive.
ECODUR® P 11 has been assessed by Byggvarubedömningen and is registered in BASTA.
Pack size: 5 kg bucket
Colour: Blue
Consumption: Approx. 100 g/m2
Mixing ratio: Ready-mixed and not to be diluted
Working temperature: Minimum floor temperature 10°C
Drying time: For adhesion and reduced absorption, approx. 0.5-2 hours*
Underfloor heating: Can be used
Resistance to castor wheels: Suitable
Storage:
* at 20°C och 65 % RH
At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment, not below 0°C.
ECODUR® P 12
Primer for absorbent substrates
Extremely rapid drying
Good penetration capacity
Solvent-free
Ready-mixed, extremely rapid drying, solvent-free adhesion primer with very low emissions for use on absorbent substrates such as concrete, lightweight concrete, rapid cement mortars, gypsum based self levelling compounds, and gypsum boards. For interior and exterior use.
Pretreatment
The substrate must be load-bearing, durable, completely dry, clean, free from water-soluble adhesive residues and other substances that may impair the adhesion.
Application
Ensure that the primer is at room temperature. Shake and pour the contents of the can into a clean bucket. Apply the primer evenly in a generous layer across the surface using a roller or brush. Avoid puddle formation. Allow the primer to dry before further work. After use, immediately clean your tools with water.
Optimum application temperature is 1025°C. High temperature and low humidity shortens the drying time, whilst the reverse
is true in low temperature and high humidity environments.
Moisture
The product is highly moisture resistant, making it suitable for use on most absorbent substrates. However, it is of outmost importance that if the above used products such as levelling compounds, adhesives, and coverings are not moisture resistant, that the residual moisture content of the concrete subfloor is measured, ideally by an certified moisture controller, and documented to ensure that the covering is not applied to a substrate with too high moisture content.
When laying PVC and diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %.
In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• Subsequent levelling work must start no later than 72 hours after ECODUR® P 12 has been applied.
• Never use ECODUR® P 12 as an adhesion primer directly under parquet and hardwood floor adhesive.
• Please note that the material consumption must not be less than 100 g m2 as this can result in a deteriorated surface in the form of pinholes and orange skin in the subsequent self levelling compound.
ECODUR® P 12 has been assessed by Byggvarubedömningen and is registered in
Pack size: 5 kg canister
Colour: Purple
Consumption: Approx. 100-150 g/m2 depending on the absorbency of the substrate.
Mixing ratio: Ready-mixed and not to be diluted
Working temperature: Minimum floor temperature 10°C
Drying time: For adhesion and reduced absorption, approx. 10 minutes As moisture protection during the application phase, approx. 1 hour*
Underfloor heating: Suitable
Resistance to castor wheels: Suitable
Storage: At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment, not below 0°C.
* at 20°C och 65 % RH
BASTA.
ECODUR® P 19
Moisture barrier primer
Water
Chemical-resistant
A film forming 1-K PUR primer for use on concrete, screeds, self levelling compounds, chipboards, etc. Can be used as an adhesion primer before adhere parquet and hardwood floors with ECODUR® S 90 New - or as a moisture barrier against residual moisture in concrete floors with maximum 98% RH.
For interior and exterior use.
Pretreatment
The substrate must be load-bearing, durable, surface-dry, clean, free from adhesive residues and other substances that may impair the adhesion. Sealed and glossy surfaces must always be sanded using a grinding machine and fine sandpaper.
Application
The product can be applied in a single layer as an adhesion primer prior to adhere parquet and hardwood floors - or in two or three layers as a moisture barrier before levelling and adhering of parquet and hardwood floors.
The primer must be at room temperature. Shake the packaging well, pour the content
of the can into a clean bucket, and apply the product evenly and crosswise between the layers using a short bristle, lint-free roller.
Material use approx. 100–350 g/m2, depending on the number of layers applied. Check material use every now and again. Avoid puddle formation.
Drying time between layers is approx. 40-50 minutes, and approximately 2 hours after the last layer has dried, parquet and hardwood floors can be adhered using ECODUR® S 90 New. Used tools such as roller sleeves, brushes, etc. must be discarded and hardened material can only be removed mechanically. Ideal laying temperature is 15-25°C.
ECODUR® P 19 can also be used as a moisture barrier under self levelling compounds and, in such cases, must be primed using ECODUR® P 11 adhesive primer, alternatively directly after application of the last layer sprinkled with washed sea sand in fraction 0.4-0.8 mm. When the surface is completely dry, excess sand is vacuumed up.
Moisture
The product is suitable to use as a barrier against residual moisture, provided that residual moisture content does not exceed 98 % RH. Always contact us for consultation if the substrate is exposed to rising ground moisture.
Please observe!
• For professional use only! As of August 24, 2023, appropriate training is required before industrial or professional use.
• Drying time between layers may not exceed 72 hours.
• ECODUR® P 19 must not be applied too thickly as this will make the product brittle and increse the curing time dramatically.
Consumption
In one layer as an adhesion primer approx. 100-150 g/m2
In two layers as a moisture barrier on cement-based substrates with a residual moisture of up to 95 % approx. 200–250 g/m2
In three layers as a moisture barrier on cement-based substrates with a residual moisture of up to 98% RH approx. 300–350 g/m2
Always contact us for further consultation when applying on substrates with underfloor heating.
Pack size: 5.5 kg canister
Colour: Blue
Mixing ratio: Ready-mixed and not to be diluted
Working temperature: Minimum floor temperature 15°C
Drying time: Between layers approx. 40- 50 minutes. Before adhere parquet and of hardwood floors approx. 2 h. Before levelling approx. 12 h.
Underfloor heating: Suitable
Resistance to castor wheels: Suitable
Storage: At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment, not below 0°C.
* at 20°C och 65 % RH
SELF LEVELLING COMPOUNDS
ECODUR® E 31 New
Cross-over self levelling compound
0-20 mm thickness
Benefits of both gypsum and cement
Very low shrinkage
A fast-curing crossover levelling compound with very low shrinkage that combines the benefits of gypsum and cement. For use on concrete, lightweight concrete, cementbased screed, prefabricated concrete elements, gypsum based substrates, glued and screwed chipboards, even if these are porous or have residues of asphalt and tar glue, prior to laying of PVC, linoleum, textile floor coverings, or ceramic tiles, as well as fully adhered parquet and hardwood floors.
For application on other types of substrate, we always recommend consulting us for technical support. Suitable for use in residential areas, offices, and light industrial premises. For interior floors.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, be free from adhesive residues and other substances that may affect adhesion. Prior to levelling always use a suitable ECODUR® adhesion primer.
Mixing
Pour clean, cold water into a mixing bucket, add the powder, and mix mechanically until the compound is lumpfree and homogeneous. In layers with a thickness in excess
of 10 mm, 25 kg of ECODUR® E 31 New can be supplemented with 12.5 kg of washed quartz sand with a grain size of 0.8-1.2 mm.
Application
Only mix as much material that can be applied within the working time. ECODUR® E 31 New can be applied by hand or be pumped. Newly applied material must be protected against frost, drafts, and sunlight. Excessively fast drying may cause cracking, deformation, or impaired surface durability.
Moisture
This product is low alkali, has fast strength development, and binds the greater part of its mixing water eventually, meaning that the floor coverings can be laid quickly. However, it is vital that the amount of residual moisture in the concrete subfloor is measured and documented so that the levelling compound and subsequent covering is not installed on a substrate that is too damp. When laying PVC and diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %. In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture
barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• The product can be used as a migration barrier when applied in minimum 5 mm.
• Always use a measuring bucket to ensure that the right amount of water is added.
• Priming is required before leveling with cement-based products.
• Application of more than one layer: If an additional layer is to be applied on the same day, when the underlying surface is still dark, the surface must be scraped, vacu-
umed, and the second layer worked into the surface. The second layer must always be thinner than the first. Where an additional layer is to be applied once the underlying layer has dried and lightened, the surface must be sanded, vaccuumed, and primed using ECODUR® P 12, primer, which must be allowed to dry before the second layer is applied. The second layer must always be thinner than the first.
• Always use an expansion strip along walls where the thickness of layers exceeds 5 mm.
• The product is suitable for use under fully adhered parquet and hardwood floors, contact us for a consultation.
ECODUR® E 31 New has been assessed by Byggvarubedömningen and is registered in BASTA.
Pack size: 25 kg bag
Colour: Light grey
Layer thicknesses: 0-20 mm Contact us for advice about thicker layers.
Consumption: Approx. 1.6 kg/m2 and mm of layer thickness.
Water quantity: Approx. 5.5 l/25 kg powder
Working temperature: Minimum floor temperature 15°C
Working time: Approx. 20-30 minutes*
Ready for foot traffic: After approx. 2 hours*
Ready for covering: With PVC, linoleum, and textile after: 0-6 mm - 6 h, 7-12 mm - 12 h, 13-20 mm - 24 h. The product may remain open for a maximum of 3 days before covering.
Reinforcement: The product can be reinforced with a fibre mesh
Underfloor heating: Suitable
Resistance to castor wheels: Yes, in layers over 3 mm
Storage: At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment.
* at 20°C och 65 % RH
ECODUR® E 33 New
Cement-based self levelling compound
Very smooth surface
Exceptional flow capacity
Ready for covering after 16 hours
A cement-based self levelling compound for use on concrete, cement-based screeds, prefabricated concrete elements, etc. prior to laying of PVC, linoleum, textile floor coverings, ceramic tiles, or fully adhered parquet and hardwood floors. For application on other types of substrate, we always recommend consulting us for technical support. Suitable for use in residential areas, offices, and light industrial premises. For interior floors.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, be free from adhesive residues and other substances that may affect adhesion. Prior to levelling always use a suitable ECODUR® adhesion primer.
Mixing
Pour clean, cold water into a mixing bucket, add the powder, and mix mechanically until the compound is lumpfree and homogeneous. In layers with a thickness in excess of 10 mm, 25 kg of ECODUR® E 33 New can be supplemented with 12.5 kg of washed quartz sand with a grain size of 0.8-1.2 mm.
Application
Only mix as much material that can be applied within the working time. ECODUR® E 33 New can be applied by hand or be pumped. Newly applied material must be protected against frost, drafts, and sunlight. Excessively fast drying may cause cracking, deformation, or impaired surface durability.
Moisture
This product is low alkali, has fast strength development, and binds the greater part of its mixing water eventually, meaning that the floor coverings can be laid quickly. However, it is vital that the amount of residual moisture in the concrete subfloor is measured and documented so that the levelling compound and subsequent covering is not installed on a substrate that is too damp. When laying PVC and diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %. In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation.
The moisture content in chipboards should be between 8-12 %.
Please observe!
• Always use a measuring bucket to ensure that the right amount of water is added.
• Application of more than one layer: If an additional layer is to be applied on the same day, when the underlying surface is still dark, the surface must be scraped, vaccuumed, and the second layer worked into the surface. The second layer must always be thinner than the first.
Where an additional layer is to be applied
once the underlying layer has dried and lightened, the surface must be sanded, vaccuumed, and primed using ECODUR® P 12, primer, which must be allowed to dry before the second layer is applied. The second layer must always be thinner than the first.
• Always use an expansion strip along walls where the thickness of layers exceeds 5 mm.
• The product is suitable for use under fully adhered parquet and hardwood floors, contact us for a consultation.
ECODUR® E 33 New has been assessed by Byggvarubedömningen and is registered in BASTA.
Pack size: 25 kg bag
Colour: Grey
Layer thicknesses: 0-30 mm Contact us for advice about thicker layers.
Consumption: Approx. 1.5 kg/m2 and mm of layer thickness.
Water quantity: Approx. 6.5 l/25 kg powder
Working temperature: Minimum floor temperature 15°C
Working time: Approx. 20-30 minutes*1
Ready for foot traffic: After approx. 2 hours*1
Ready for covering: After approx. 16 hours*1 *2 The product may remain open for a maximum of 7 days before covering.
Reinforcement: The product can be reinforced with a fibre mesh
Underfloor heating: Suitable
Resistance to castor wheels: Yes, in layers over 3 mm
Storage: At least 9 months from the date of manufacture if stored in unopened packaging in a dry and cool environment.
*1 at 20°C and 65 % RH *2 with PVC, linoleum, textile floor coverings, and ceramic tiles
ECODUR® E 34
Cement-based self levelling compound
0-10 mm thickness
Extremely good flow properties
Low tension
Cement-based self levelling compound for use on concrete, lightweight concrete, cement-based screed, and prefabricated concrete elements prior to laying of PVC, linoleum, or textile floor coverings. For application on other types of substrate, we always recommend consulting us for technical support. Suitable for use in residential areas, offices, and light industrial premises. For interior floors.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, be free from adhesive residues and other substances that may affect adhesion. Prior to levelling always use a suitable ECODUR® adhesion primer.
Mixing
Pour clean, cold water into a mixing bucket, add the powder, and mix mechanically until the compound is lumpfree and homogeneous.
Application
Only mix as much material that can be applied within the working time. ECODUR® E 34 can be applied by hand or be pumped. Newly applied material must be protected against frost, drafts, and sunlight. Excessively fast drying may cause cracking, deformation, or impaired surface durability.
Moisture
This product is low alkali, has fast strength development, and binds the greater part of its mixing water eventually, meaning that the floor coverings can be laid quickly. However, it is vital that the amount of residual moisture in the concrete subfloor is measured and documented so that the levelling compound and subsequent covering is not installed on a substrate that is too damp. When laying PVC and diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %. In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation.
The moisture content in chipboards should be between 8-12 %.
Please observe!
• Always use a measuring bucket to ensure that the right amount of water is added.
• Application of more than one layer: If an additional layer is to be applied on the same day, when the underlying surface is still dark, the surface must be scraped, vaccuumed, and the second layer worked into the surface. The second layer must always be thinner than the first.
Where an additional layer is to be applied once the underlying layer has dried and lightened, the surface must be sanded, vaccuumed, and primed using ECODUR® P 12, primer, which must be allowed to dry before the second layer is applied. The second layer must always be thinner than the first.
• If parquet is to be fully adhered on the substrate, we suggest using ECODUR® E 31 New or ECODUR® E 33 New, supplemented by advice from our laying specialists.
• Always use an expansion strip along walls where the thickness of layers exceeds 5 mm.
ECODUR® E 34 has been assessed by Byggvarubedömningen and is registered in BASTA.
Pack size: 25 kg bag
Colour: Grey
Layer thicknesses: 0-10 mm Contact us for advice about thicker layers.
Consumption: Approx. 1.5 kg/m2 and mm of layer thickness.
Water quantity: Approx. 6.0 l/25 kg powder
Working temperature: Minimum floor temperature 15°C
Working time: Approx. 30 minutes*1
Ready for foot traffic: After approx. 3 hours*1
Ready for covering: After approx. 24- 36 hours*1 *2 The product may remain open for a maximum of 7 days before covering.
Reinforcement: The product can be reinforced with a fibre mesh
Underfloor heating: Suitable
Resistance to castor wheels: Yes, in layers over 3 mm
Storage: At least 6 months from the date of manufacture if stored in unopened packaging in a dry and cool environment.
*1 at 20°C and 65 % RH *2 with PVC, linoleum, textile floor coverings, and ceramic coverings
ECODUR® E 36
Fibre-reinforced levelling compound
Low tension
Suitable for levelling of slopes
Ready for covering after 24 hours
A fibre-reinforced cement-based self levelling compound for use on concrete, lightweight concrete, cement-based screed, terrazzo, prefabricated concrete elements, as well as permanently installed chipboards prior to laying of PVC, linoleum, textile floor coverings, or ceramic tiles. For application on other types of substrate, we always recommend consulting us for technical support. Suitable for use in residential areas, offices, and light industrial premises. For interior floors.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, be free from adhesive residues and other substances that may affect adhesion. Prior to levelling always use a suitable ECODUR® adhesion primer.
Mixing
Pour clean, cold water into a mixing bucket, add the powder, and mix mechanically until the compound is lumpfree and homogeneous. In layers with a thickness of more than 25 mm, 20 kg of ECODUR® E 36 can be supplemented with 10 kg of washed quartz sand with a grain size of 0.8-1.2 mm.
Application
Only mix as much material that can be applied within the working time. ECODUR® E 36 can be applied by hand or be pumped. Newly applied material must be protected against frost, drafts, and sunlight. Excessively fast drying may cause cracking, deformation, or impaired surface durability.
Moisture
This product is low alkali, has fast strength development, and binds the greater part of its mixing water eventually, meaning that the floor coverings can be laid quickly. However, it is vital that the amount of residual moisture in the concrete subfloor is measured and documented so that the levelling compound and subsequent covering is not installed on a subfloor that is too damp. When laying PVC and diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %. In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• Chipboards must be at least 22 mm thick, glued and screwed to the beams with a max. c/c distance of 600 mm. The floor surface must be primed with ECODUR® P 11. Before levelling, the floor must be reinforced with steel or fibreglass PZG reinforcement. Use expansion strips along all walls.
• Always use a measuring bucket to ensure that the right amount of water is added.
• Application of more than one layer: If an additional layer is to be applied on the same day, when the underlying surface is still dark, the surface must be scraped, vaccuumed, and the second layer worked into the
surface. The second layer must always be thinner than the first. Where an additional layer is to be applied once the underlying layer has dried and lightened, the surface must be sanded, vaccuumed, and primed using ECODUR® P 12, primer, which must be allowed to dry before the second layer is applied. The second layer must always be thinner than the first.
• If parquet is to be fully adhered on the substrate, we suggest using ECODUR® E 31 New or ECODUR® E 33 New, supplemented by advice from our laying specialists.
• Always use an expansion strip along walls where the thickness of layers exceeds 5 mm.
ECODUR® E 36 has been assessed by Byggvarubedömningen and is registered in BASTA.
Pack size: 20 kg bag
Colour: Grey
Layer thicknesses: 3-40 mm Contact us for advice about thicker layers.
Consumption: Approx. 1.7 kg/m2 and mm of layer thickness.
Water quantity: For local steep slopes use approx. 3.4 l/bag. In less steep slopes and normal levelling use approx. 3.7 l/bag.
Working temperature: Minimum floor temperature 15°C
Working time: Approx. 40 minutes*1
Ready for foot traffic: After approx. 1- 2 hours*1
Ready for covering: After approx. 24 hours*1 *2 The product may remain open for a maximum of 7 days before covering.
Reinforcement: The product can be reinforced with a fibre mesh
Underfloor heating: Suitable
Resistance to castor wheels: Not suitable
Storage: At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment.
*1 at 20°C and 65 % RH *2 with PVC, linoleum, textile floor coverings, and ceramic tiles
ECODUR® E 39
Self levelling compound, coarse
Fast-curing
Low tension
Suitable for levelling of slopes
A cement-based, slightly coarser self levelling compound for use on concrete, lightweight concrete, cement-based screed, terrazzo, prefabricated concrete elements, as well as permanently installed chipboards prior to laying of PVC, linoleum, textile floor coverings, or ceramic tiles. For application on other types of substrate, we always recommend consulting us for technical support. Suitable for use in residential areas, offices, and light industrial premises. For interior floors.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, be free from adhesive residues and other substances that may affect adhesion. Prior to levelling always use a suitable ECODUR® adhesion primer.
Mixing
Pour clean, cold water into a mixing bucket, add the powder, and mix mechanically until the compound is lumpfree and homogeneous. In layers with a thickness in excess of 25 mm, 25 kg of ECODUR® E 39 can be supplemented with 12.5 kg of washed quartz sand with a grain size of 0.8-1.2 mm.
Application
Only mix as much material that can be applied within the working time. ECODUR® E 39 can be applied by hand or be pumped. Newly applied material must be protected against frost, drafts, and sunlight. Excessively fast drying may cause cracking, deformation, or impaired surface durability.
Moisture
This product is low alkali, has fast strength development, and binds the greater part of its mixing water eventually, meaning that the floor coverings can be laid quickly. However, it is vital that the amount of residual moisture in the concrete subfloor is measured and documented so that the levelling compound and subsequent covering is not installed on a substrate that is too damp. When laying PVC and diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %. In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• Chipboards must be at least 22 mm thick, glued and screwed to the beams with a max. c/c distance of 600 mm. The floor surface must be primed with ECODUR® P 11. Before levelling, the floor must be reinforced with steel or fibreglass PZG reinforcement. Use expansion strips along all walls.
• Always use a measuring bucket to ensure that the right amount of water is added.
• Application of more than one layer: If an additional layer is to be applied on the same day, when the underlying surface is still dark, the surface must be scraped, vaccuumed, and the second layer worked into the
surface. The second layer must always be thinner than the first. Where an additional layer is to be applied once the underlying layer has dried and lightened, the surface must be sanded, vaccuumed, and primed using ECODUR® P 12, primer, which must be allowed to dry before the second layer is applied. The second layer must always be thinner than the first.
• If parquet is to be fully adhered on the substrate, we suggest using ECODUR® E 31 New or ECODUR® E 33 New, supplemented by advice from our laying specialists.
• Always use an expansion strip along walls where the thickness of layers exceeds 5 mm.
ECODUR® E 39 has been assessed by Byggvarubedömningen and is BASTA-registered.
Pack size: 25 kg bag
Colour: Grey
Layer thicknesses: 3-40 mm Contact us for advice about thicker layers.
Consumption: Approx. 1.7 kg/m2 and mm of layer thickness.
Water quantity: For local steep slopes use approx. 4.2-4.3 l/bag. In less steep slopes and normal levelling use approx. 4.5-4.8 l/bag.
Working temperature: Minimum floor temperature 15°C
Working time: Approx. 35 minutes*1
Ready for foot traffic: After approx. 1- 2 hours*1
Ready for covering: After approx. 24 hours*1 *2 The product may remain open for a maximum of 7 days before covering.
Reinforcement: The product can be reinforced with a fibre mesh
Underfloor heating: Can be used
Resistance to castor wheels: Yes, in layers over 10 mm
Storage: At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment.
*1 at 20°C and 65 % RH *2 with PVC, linoleum, textile floor coverings, and ceramic tiles
REPAIR- AND PATCHING MATERIALS
ECODUR® E 52
Cement-based repair mortar - fine
Easy to use
Can be covered after approx. 2 hours
Very smooth surface
A fine-aggregated cement-based repair mortar for use on concrete, screeds, and permanently installed chipboards, prior to laying of PVC, linoleum, textile, or ceramic tiles.
For application on other types of substrate, we always recommend consulting us for technical support. Suitable for interior floors in residential areas. Also see section Please observe!
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, be free from adhesive residues and other substances that may affect adhesion. Prior to levelling always use a suitable ECODUR® adhesion primer.
Mixing
Pour clean, cold water into a mixing bucket, add the powder, and mix mechanically until the compound is lumpfree and homogeneous. In layers with a thickness in excess of 30 mm, 15 kg of ECODUR® E 52 can be supplemented with 7.5 kg of washed quartz sand with a grain size of 0.8-1.2 mm.
Application
Only mix as much material that can be
applied within the working time. Apply the product in a suitable layer thickness, allow the material to set for approx. 5 minutes and then gently smooth the surface using a spatula. Newly applied material must be protected against frost, drafts, and sunlight. Excessively fast drying may cause cracking, deformation, or impaired surface durability.
Moisture
This product is low alkali, has fast strength development, and binds the greater part of its mixing water eventually, meaning that the floor coverings can be laid quickly. However, it is vital that the amount of residual moisture in the concrete subfloor is measured and documented so that the levelling compound and subsequent covering is not installed on a substrate that is too damp. When laying PVC and diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %. In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• Chipboards must be at least 22 mm thick, glued and screwed to the beams with a max. c/c distance of 600 mm. The floor surface must be primed with ECODUR® P 11. Before levelling, the floor must be reinforced with steel or fibreglass PZG reinforcement. Use expansion strips along all walls.
• Always use a measuring bucket to ensure that the right amount of water is added.
• Application of more than one layer: If an additional layer is to be applied on the same day, when the underlying surface is still dark, the surface must be scraped, vaccuumed, and the second layer worked into the
surface. The second layer must always be thinner than the first. Where an additional layer is to be applied once the underlying layer has dried and lightened, the surface must be sanded, vaccuumed, and primed using ECODUR® P 12, primer, which must be allowed to dry before the second layer is applied. The second layer must always be thinner than the first.
• If ECODUR® E 52 is applied in smaller local areas and in layer thickness of at least 10 mm, it can be used in public areas with normal wear and under fully adhered parquet, rubber, chlorine-free, or polyolefin coverings. In doubt, contact us for a consultation.
ECODUR® E 52 has been assessed by Byggvarubedömningen and is registered in BASTA.
Pack size: 15 kg bag
Colour: Grey
Layer thicknesses:
From 0 to 50 mm. Can be supplemented with washed quartz sand in layer thicknesses over 30 mm.
Consumption: Approx. 1.4 kg/m2 and mm of layer thickness.
Water quantity: approx. 4.0- 4.3 l/15 kg powder
Working temperature: Minimum floor temperature 15°C
Working time: Approx. 15 minutes*1
Ready for foot traffic: After approx. 30 minutes*1
Trimming of edges: After approx. 15- 20 minutes*1
Ready for covering: After approx. 2 hours*1 *2 The product may remain open for a maximum of 7 days before covering.
Reinforcement: Can be reinforced with ECODUR® P 10.
Underfloor heating: Suitable
Resistance to castor wheels: Not suitable
Storage:
At least 6 months from the date of manufacture if stored in unopened packaging in a dry and cool environment.
*1 at 20°C and 65 % RH *2 with PVC, linoleum, textile floor coverings, and ceramic tiles
ECODUR® E 54
Cement-based repair mortar - coarse
1-40 mm thickness
Can be covered after approx. 2 hours
Easy to apply
A coarse, cement-based repair mortar for use on concrete, lightweight concrete, cement-based screed, prefabricated concrete elements, as well as permanently installed chipboards prior to laying of PVC, linoleum, textile, or ceramic tiles. For application on other types of substrate, we always recommend consulting us for technical support. Suitable for interior floors in residential areas.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, be free from adhesive residues and other substances that may affect adhesion. Prior to levelling always use a suitable ECODUR® adhesion primer.
Mixing
Pour clean, cold water into a mixing bucket, add the powder, and mix mechanically until the compound is lumpfree and homogeneous. In layers with a thickness in excess of 30 mm, 15 kg of ECODUR® E 54 can be supplemented with 7.5 kg of washed quartz sand with a grain size of 0.8-1.2 mm.
Application
Only mix as much material that can be
applied within the working time. Apply the product in a suitable layer thickness, allow the material to set for approx. 5 minutes and then gently smooth the surface using a spatula. Newly applied material must be protected against frost, drafts, and sunlight. Excessively fast drying may cause cracking, deformation, or impaired surface durability.
Moisture
This product is low alkali, has fast strength development, and binds the greater part of its mixing water eventually, meaning that the floor coverings can be laid quickly. However, it is vital that the amount of residual moisture in the concrete subfloor is measured and documented so that the levelling compound and subsequent covering is not installed on a substrate that is too damp. When laying PVC and diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %. In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• Chipboards must be at least 22 mm thick, glued and screwed to the beams with a max. c/c distance of 600 mm. The floor surface must be primed with ECODUR® P 11. Before levelling, the floor must be reinforced with steel or fibreglass PZG reinforcement. Use expansion strips along all walls.
• Always use a measuring bucket to ensure that the right amount of water is added.
• Application of more than one layer: If an additional layer is to be applied on the same day, when the underlying surface is still dark, the surface must be scraped, vaccu-
umed, and the second layer worked into the surface. The second layer must always be thinner than the first.
Where an additional layer is to be applied once the underlying layer has dried and lightened, the surface must be sanded, vaccuumed, and primed using ECODUR® P 12, primer, which must be allowed to dry before the second layer is applied. The second layer must always be thinner than the first.
• ECODUR® E 54 cannot be used under fully adhered parquet, rubber, chlorine-free, or polyolefin coverings.
ECODUR® E 54 has been assessed by Byggvarubedömningen and is registered in BASTA.
Pack size: 15 kg bag
Colour: Grey
Layer thicknesses: From 1 to 40 mm. Can be supplemented with washed quartz sand in layer thicknesses over 20 mm.
Consumption: Approx. 1.5 kg/m2 and mm of layer thickness.
Water quantity: Approx. 3.6 l/15 kg powder
Working temperature: Minimum floor temperature 15°C
Working time: Approx. 15 minutes*1
Ready for foot traffic: After approx. 1 hour*1
Trimming of edges: After approx. 15- 20 minutes*1
Ready for covering: After approx. 2 hours*1 *2 The product may remain open for a maximum of 7 days before covering.
Reinforcement: Can be reinforced with ECODUR® P 10.
Underfloor heating: Suitable
Resistance to castor wheels: Not suitable
Storage: At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment.
*1 at 20°C and 65 % RH *2 with PVC, linoleum, textile floor coverings, and ceramic tiles
ECODUR® E 55
Primer-free patching compound
Very easy to use
From feather finish to 5 mm
Primer-free on most substrates
A fast-drying, mostly primer-free, cement-based patching compound for use on concrete, lightweight concrete, cement-based screed, prefabricated concrete elements, ceramic tiles, terrazzo, chipboards and gypsum boards. Use prior to laying of PVC, linoleum, or textile floor coverings.
For application on other types of substrate, we always recommend consulting us for technical support. Suitable for interior floors in residential areas.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, be free from adhesive residues and other substances that may affect adhesion. If the surface is weak, highly absorbent, or very glossy, it must be primed with the appropriate ECODUR® primer.
Mixing
Pour clean, cold water into a mixing bucket, add the powder, and mix mechanically until the compound is lumpfree and homogeneous.
Application
Only mix as much material that can be applied within the working time. ECODUR® E 55 can be spread by hand using a spatula. Newly applied material must be protected against frost, drafts, and sunlight. Excessively fast drying may cause cracking, deformation, or impaired surface durability.
Moisture
This product is low alkali, has fast strength development, and binds the greater part of its mixing water eventually, meaning that the floor coverings can be laid quickly. However, it is vital that the amount of residual moisture in the concrete subfloor is measured and documented so that the levelling compound and subsequent covering is not installed on a substrate that is too damp. When laying PVC and diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %. In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• If the product is to be applied in multiple layers, the surface of the underlying layer must be completely scraped off, vacuumed, and the subsequent layer worked into the surface.
• Always use a measuring bucket to ensure that the right amount of water is added.
• ECODUR® E 55 cannot be used under fully-adhered parquet, rubber, chlorine-free, or polyolefin coatings.
Pack size: 15 kg bag
Colour: Grey
Layer thicknesses: From 0 to 5 mm.
ECODUR® E 55 has been assessed by Byggvarubedömningen and is registered in BASTA.
Consumption: Approx. 1.3 kg/m2 and mm of layer thickness.
Water quantity: approx. 4.5 l/15 kg powder
Working temperature: Minimum floor temperature 15°C
Working time: Approx. 20 minutes*1
Ready for foot traffic: After approx. 30 minutes*1
Ready for covering: After approx. 3 hours*1 *2 The product may remain open for a maximum of 7 days before covering.
Reinforcement: Can be reinforced with ECODUR® P 10.
Underfloor heating: Suitable
Resistance to castor wheels: Not suitable
Storage: At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment.
*1 at 20°C and 65 % RH *2 with PVC, linoleum, textile floor coverings, and ceramic tiles
ADHESIVES
ECODUR® S 80
Universal dispersion adhesive
Excellent tack
Long working time
Can be re-activated
A solvent-free dispersion adhesive with very low emissions for homogeneous and heterogeneous PVC and CV coverings, linoleum up to 2.0 mm in residential areas, and textile floor coverings with PVC backing.
Suitable for use on levelled, even, absorbent and non absorbent substrates. Suitable for interior floors and walls.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, free from adhesive residues and other substances that may impair the adhesion. Uneven substrates should be primed with the suitable ECODUR® primer and levelled with the appropriate ECODUR® levelling compound.
Application
Apply the adhesive evenly on the substrate using a trowel with a recommended notched blade adapted to the substrate in question and the covering used. Apply only as much adhesive that can be covered within the working time. Put the covering in place and rub down firmly. Edges, ends, and
parts that do not lie flat must be pressed down again after approx. 10-20 minutes. If necessary, repeat this process. Then use a pressure roller crosswise over the entire surface. Clean tools with water immediately after completing work.
The ideal laying temperature is 15-25°C, and ideal moisture is between 50 % and 65 % RH/20°C.
Moisture
It is vital that the amount of residual moisture in the concrete subfloor is measured and documented so that the covering is not installed on a substrate that is too damp. When laying PVC and diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %. In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• In order to enable adhesive applied to non absorbent substrates to dry faster, the “double drop” method may be used. With this method, the adhesive is applied to the subfloor using an A5 or A1 notched blade. The covering is then laid directly into the adhesive, pressed down securely, and then immediately pulled back up. Once both sides have dried, re-lay the covering and rub down firmly.
• Joints may be welded no sooner than after approx. 24 hours.
• These recommendations are adhesive recommendations only and do not exempt the user from following the installation instructions provided by the flooring manufacturer.
Consumption
PVC
Absorbent substrate
A1/ A2 approx. 200-320 g/m2
Non-absorbent substrate
A5 approx. 180-200 g/m2
Textile floors with PVC backing
Linoleum up to 2.0 mm
Absorbent substrate
A2/ B1 approx. 250-380 g/m2
Non-absorbent substrate
A2/ A5 approx. 250-320 g/m2
Absorbent substrate
B1 approx. 320-380 g/m2
Non-absorbent substrate
A2 approx. 250-320 g/m2
ECODUR® S 80 has been assessed by Byggvarubedömningen and is registered in BASTA.
At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment, not below 0°C.
ECODUR® S 81
Dispersion adhesive allround
Higher resistance against plasticisers
Resistant to indentations
Extremely high final strength
A solvent-free dispersion adhesive with very low emissions for homogeneous and heterogeneous PVC and CV coverings, rubber up to 4.0 mm, LVT, linoleum in sheets and tiles, textile floor coverings, needle punch, and some of the chlorine-free coverings on the market.
ECODUR S 81 is extra resistant to plasticizers, allowing the product to maintain its hard adhesive film under PVC coverings. Suitable for use on levelled, even, absorbent substrates. Also suitable for use on certain types of insulating underlay - contact us for a consultation. Suitable for interior floors.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, free from adhesive residues and other substances that may impair the adhesion. Uneven substrates should be primed with the suitable ECODUR® primer and levelled with the appropriate ECODUR® levelling compound.
Application
Apply the adhesive evenly on the substrate using a trowel with a recommended notched blade adapted to the substrate
in question and the covering used. Apply only as much adhesive that can be covered within the working time. Put the covering in place and rub down firmly. Edges, ends, and parts that do not lie flat must be pressed down again after approx. 10-20 minutes. If necessary, repeat this process. Then use a pressure roller crosswise over the entire surface. Clean tools with water immediately after completing work. The ideal laying temperature is 15-25°C, and ideal moisture is between 50 % and 65 % RH/20°C.
Moisture
It is vital that the amount of residual moisture in the concrete subfloor is measured and documented so that the covering is not installed on a substrate that is too damp. When laying PVC and diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %. In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• Joints may be welded no sooner than after approx. 24 hours.
Consumption
PVC and CV
Very smooth backing
A1 approx. 250 g/m2
Lightly structured backing
A2 approx. 300 g/m2
Rubber A2 approx. 300 g/m2
LVT
Very smooth backing
A1 approx. 250 g/m2
Lightly structured backing
A2 approx. 300 g/m2
Needle punch
B1/ B2 approx. 350- 450 g/m2
Impact sound reducing underlay
A1/ A2 approx. 250-300 g/m2
• These recommendations are adhesive recommendations only and do not exempt the user from following the installation instructions provided by the flooring manufacturer.
Linoleum B1 approx. 350 g/m2
With acoustic backing
B1/ B2 approx. 350-450 g/m2
On insulating underlays
A2 approx. 300 g/m2
Textile floor coverings
Smooth PVC or foam backing
A2 approx. 300 g/m2
Structured backing
B1 approx. 350 g/m2
Very structured backing
B2 approx. 450 g/m2
ECODUR® S 81 has been assessed by Byggvarubedömningen and is registered in BASTA.
Pack size: 14 kg bucket
Colour: Off-white
Consumption: See the table above.
Working temperature: Minimum floor temperature 15°C
Pre-airing time: Approx. 5-20 minutes*
Working time: Approx. 20-30 minutes*
Loadable: 24 hours*
Welding of joints: 24 hours*
Final strength: 3 days*
Underfloor heating: Suitable
Resistance to castor wheels: Suitable
Storage: At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment, not below 0°C.
* at 20°C och 65 % RH
ECODUR® S 82
Adhesive for textile coverings
Fast tack and high final strength
For most types of textile floor coverings
Easy to apply
A solvent-free dispersion adhesive with very low emissions for most types of textile floor coverings with a synthetic or jute backing, needle punch, and coverings of sisal or coconut fibre.
Suitable for use on levelled, even, absorbent substrates. Suitable for interior floors.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, free from adhesive residues and other substances that may impair the adhesion. Uneven substrates should be primed with the suitable ECODUR® primer and levelled with the appropriate ECODUR® levelling compound.
Application
The adhesive is to be applied evenly on the substrate using a trowel with a recommended notch blade adapted to the substrate in question and the covering used. Apply only as much adhesive that can be covered within the installation time. Push firmly into place. Edges, ends, and parts that do not lie
flat must be pressed down again after approx. 10-20 minutes. If necessary, repeat this process and roll the surface. Clean tools with water immediately after completing work.
The ideal laying temperature is 15-25°C, and ideal moisture is between 50 % and 65 % RH/20°C.
Moisture
It is vital that the amount of residual moisture in the concrete subfloor is measured and documented so that the covering is not installed on a substrate that is too damp. When laying diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open textile floor coverings, a maximum of 90 %. In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• Coverings in sheets must always be rolled out in position in advance in order to allow acclimatisation and to eliminate any possible roll tension.
• These recommendations are adhesive recommendations only and do not exempt the user from following the installation instructions provided by the flooring manufacturer.
Consumption
Textile floors with smooth PVC or foam backing A2 approx. 360 g/m2
Textile floors with structured backing B1 approx. 380 g/m2
Textile floors with very structured backing B2 approx. 500 g/m2
Pack size: 14 kg bucket
Colour: Beige
Consumption: See the table above.
Working temperature:
Minimum floor temperature 15°C.
Pre-airing time: Approx. 0-10 minutes*
Working time: Approx. 20 minutes*
Loadable: 24 hours*
Final strength: 3 days*
Underfloor heating: Suitable
Resistance to castor wheels: Suitable
Storage:
* at 20°C och 65 % RH
At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment, not below 0°C.
ECODUR® S 82 has been assessed by Byggvarubedömningen and is registered in BASTA.
ECODUR® S 85
Dispersion adhesive for linoleum
Good overwetting
Excellent tack
Short pre-airing time
A solvent-free dispersion adhesive with very low emissions for linoleum with and without an acoustic backing. May also be used for textile floor coverings, carpet floor tiles and needle punch. Suitable for use on levelled, even, absorbent substrates. Suitable for interior floors.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, free from adhesive residues and other substances that may impair the adhesion. Uneven substrates should be primed with the suitable ECODUR® primer and levelled with the appropriate ECODUR® levelling compound.
Application
The adhesive is to be applied evenly on the substrate using a trowel with a recommended notch blade adapted to the substrate in question and the covering used. Apply only as much adhesive that can be covered within the working time. Push firmly into place. Edges, ends, and parts that do not lie flat must be pressed down again after ap-
prox. 10-20 minutes. If necessary, repeat this process and roll the surface. Clean tools with water immediately after completing work.
The ideal laying temperature is 15-25°C, and ideal moisture is between 50 % and 65 % RH/20°C.
Moisture
It is vital that the amount of residual moisture in the concrete subfloor is measured and documented so that the covering is not installed on a substrate that is too damp. When laying diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open linoleum and textile floor coverings, a maximum of 90 %. In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• Coverings in sheets must always be rolled out in position in advance in order to allow acclimatisation and to eliminate any possible roll tension.
• Joints may be welded no sooner than after approx. 24 hours.
• These recommendations are adhesive recommendations only and do not exempt the user from following the installation instructions provided by the flooring manufacturer.
Consumption
Linoleum B1 approx. 380 g/m2 with acoustic backing B1/ B2 approx. 380- 480 g/m2 on insulating underlays A2 ca 300 g/m2
Textile B1 approx. 380 g/m2
Needle punch B1 approx. 380 g/m2
Corkment B2 approx. 480 g/m2
ECODUR® S 85 has been assessed by Byggvarubedömningen and is registered in BASTA.
Pack size: 14 kg bucket
Colour: Beige
Consumption: See the table above.
Working temperature:
Minimum floor temperature 15°C.
Pre-airing time: Approx. 0-10 minutes*
Working time: Approx. 25 minutes*
Loadable: 24 hours*
Welding of joints: 24 hours*
Final strength: 3 days*
Underfloor heating: Suitable
Resistance to castor wheels: Suitable
Storage: At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment, not below 0°C.
* at 20°C and 65 % RH
ECODUR® S 90 New
Parquet adhesive
Impact sound improvement up to 9 dB
Sanding possible already after 24-48 hrs
Function with all surface treatments
Elastic SMP-adhesive for several types of fully adhered parquet and hardwood floors. Can be used on absorbent or non-absorbent substrates. For use only in dry, indoor environments.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, free from adhesive residues and other substances that may impair the adhesion. Uneven substrates should be primed with the suitable ECODUR® primer and self levelling compound ECODUR® E 31 alternatively E 33 or equivalent.
Application
Apply the adhesive to the substrate using a trowel with the recommended notched blade.(see table). Put the parquet into the adhesive, push and then use a pressure roller in order to achieve full overwetting of the adhesive between the substrate and the parquet/hardwood floor. Load with weights if necessary. Also follow the parquet manufacturer's instructions.
Moisture
It is vital that the amount of residual mois
ture in the concrete subfloor is measured, so that the parquet is not installed on a substrate that is too damp. For parquet and hardwood floors adhered with ECODUR® S 90 New a maximum of 65 % RH applies. In cases where the moisture content of the substrate exceeds these values, we recommend application of moisture barrier ECODUR® P 19.
If the subfloor is exposed to additional ground moisture, always contact us for a consultation.
The moisture content in chipboards should be between 8-12 %.
Please observe!
• Never use a conventional water-based primer as an adhesion primer directly below parquet and hardwood floor adhesive. If you have any questions, please contact us for technical advice.
• Subfloors with underfloor heating should always be primed with moisture barrier ECODUR® P 19.
• These recommendations are adhesive recommendations only and do not exempt the user from following the installation instructions provided by the flooring manufacturer.
ECODUR® S 90 New has been assessed by Byggvarubedömningen and is registered in BASTA.
Pack size: 16 kg bucket
Consumption: See the table above.
Working temperature: +18°C to +22°C
Humidity: 30-60 % RH.
Working time: Wet set: 0-35 minutes
Impact sound improvement: Up to 9 dB according to ISO 10140
Ready for sanding: 24-48 hours
Cleaning: Adhesive that has not cured is to be wiped off using Brutal Wipes or similar. Cured adhesive must be removed mechanically.
Storage:
* at 20°C and 65 % RH
At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment, not below 0°C.

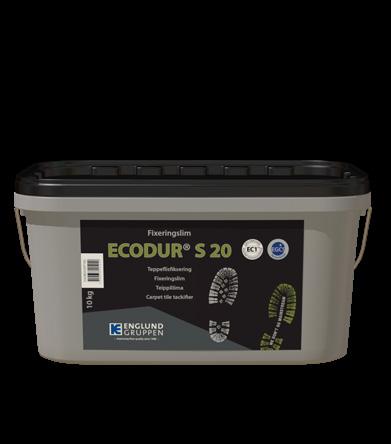

ECODUR® S 20
Tackifier
Fast drying
High tack
Roller-adapted bucket
A solvent-free tackifier with very low emissions designed to fixate carpet tiles and certain types of textile floor covering in sheets.
Suitable for use on levelled, even, absorbent substrates. Suitable for interior floors.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, free from adhesive residues and other substances that may impair the adhesion. Uneven substrates should be primed with the suitable ECODUR® primer and levelled with the appropriate ECODUR® levelling compound.
In cases where an existing covering is used as an underlay, it must be stable and free from floor care products and other substances that may impair the adhesion.
Application
Apply ECODUR® S 20 evenly using a suitable roller. Allow the adhesive to dry until it becomes transparent before laying, otherwise it produces permanent adhesion. The covering must then be laid and pressed securely into position.
The ideal laying temperature is 18-23°C, and ideal moisture is between 20 % and 70 % RH/20°C.
Moisture
It is vital that the amount of residual moisture in the concrete subfloor is measured and documented so that the covering is not installed on a substrate that is too damp. When laying diffusion-tight textile floor coverings, a maximum of 85 % RH applies and for diffusion-open textile floor coverings, a maximum of 90 %.
In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• Do not apply the tackifier in a layer that is thicker than necessary as this may, in certain circumstances, result in excessive adhesion.
• Priming using ECODUR® P 10 will reduce consumption and extend working time.
• Remember, the laid covering must be completely tension-free, as the tackifier will not keep the covering flat.
• ECODUR® S 20 is not water-soluble and therefore cannot be washed off the floor surface once it has dried.
• These recommendations are adhesive recommendations only and do not exempt the user from following the installation instructions provided by the flooring manufacturer.
ECODUR® S 20 has been assessed by Byggvarubedömningen and is registered in BASTA.
Pack size: 10 kg bucket
Colour: White, turns transparent as it dries.
Consumption: 50-200 g/m2 depending on the absorbency of the substrate and the desired adhesion effect.
Working temperature: Minimum 18°C to 23°C
Humidity: 20-70 % RH.
Working time: 60–180 minutes, depending on the substrate’s absorption capacity, temperature, and relative humidity.
Cleaning: Tackifier that has not dried can be washed off with water. Use an adhesive cleaner as Casco LimTvätt or similar to remove half or fully dried tackifier.
Underfloor heating: Suitable
Resistance to castor wheels: Suitable
Storage: At least 12 months from the date of manufacture if stored in unopened packaging in a dry and cool environment, not below 0°C.
OTHER
ECODUR® EasyTac LG
Adhesive tapes for base coves
Installation without pre-airing time
Extra heavy tack - for lino and rubber
Clean installation
A special tape that has been especially developed for quick, clean, and solvent-free installation of linoleum and rubber base coves.
Suitable for use on even surfaces such as masonry, smooth plaster, paint, metal, gypsum, wood, concrete, and ceramic. Suitable for interior use only.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, free from silicon and all other substances that may impair the adhesion.
Dusty and absorbent substrates must always be pretreated with the appropriate ECODUR® primer. Wallpapers etc. must be firmly secured. Any loose wallpaper etc must be cut at the appropriate height so that the base coves overlaps. The backing of the base cove must be clean and free from dust.
Installation of the base coves
The following is required: ECODUR® EasyTac LG, carpet knife, stair pressing tool, rubbing board, and heat gun.
1. Place the adhesive tape on the silicone paper.
2. Apply the adhesive tape on the wall approx. 2-3 mm above the floor and press securely. Ideally, mark the top edge of the base cove to make it easier to locate the height of the product.
3. Cut the sheets. Remember to take the height of the base coves into account and then place them on the floor.
4. Fold the sheets back in half, apply the adhesive, put in place, and press the covering firmly.
5. Fold the other half of the sheets, apply the adhesive, put in place, and press the covering firmly.
6. Pull off the silicone paper section by section, heat, fold, and press the base cove firmly in place.
7. Base coves with linoleum are installed either using cushioned-edge profile or 100 mm strips that are installed separately. The floor-wall angle must always be sealed using silicone or similar after installation of free-standing strips.
Please observe!
• ECODUR® EasyTac LG must always be installed in accordance with the instructions.
• Always lay or store rolls on the included silicone paper.
• The product does not require the implementation of any particular work safety measures. However, we recommend that
you do not eat, drink, or smoke when working with this product. Store out of the reach of children.
• Dry, clean packaging can be recycled. Waste product can be put into household waste.
• ECODUR® EasyTac LG must not be exposed to unusual circumstances such as chemical or mechanical influence.
• The product must never be exposed to moisture.
• In areas with strong grazing light, any transitions between the product and dispersion adhesive may be visible.
Width: 50 / 67 / 97 mm
Pack size:
ECODUR® EasyTac LG has been assessed by Byggvarubedömningen.
6 rolls, each 50 metres per box (50 mm). 4 rolls, each 50 metres per box (67 mm). 3 rolls, each 50 metres per box (97 mm).
Acclimatisation: Allow sufficient time for acclimatisation (at least 24 hours at 18°C for both ECODUR® EasyTac LG and covering).
Storage: At least 24 months. Store in a cool, dry location out of direct sunlight. Always store on the included silicone paper.
ECODUR® EasyTac VK
Adhesive tapes for base coves
Installation without pre-airing time
Heavy tack - for vinyl and chlorine-free
Clean installation
A special tape that has been especially developed for quick, clean, and solvent-free installation of PVC and chlorine-free coverings.
Suitable for use on even surfaces such as masonry, smooth plaster, paint, metal, gypsum, wood, concrete, and ceramic. Suitable for interior use only.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, free from silicon and all other substances that may impair the adhesion.
Dusty and absorbent substrates must always be pretreated with the appropriate ECODUR® primer. Wallpapers etc. must be firmly secured. Any loose wallpaper etc must be cut at the appropriate height so that the base coves overlaps. The backing of the base cove must be clean and free from dust.
Installation of the base coves
The following is required: ECODUR® EasyTac VK, carpet knife, stair pressing tool, rubbing board, and heat gun.
1. Place the adhesive tape on the silicone paper.
2. Apply the adhesive tape on the wall approx. 2-3 mm above the floor and press securely. Ideally, mark the top edge of the base cove to make it easier to locate the height of the product.
3. Cut the sheets. Remember to take the height of the base coves into account and then place them on the floor.
4. Fold the sheets back in half, apply the adhesive, put in place, and press the covering firmly.
5. Fold the other half of the sheets, apply the adhesive, put in place, and press the covering firmly.
6. Pull off the silicone paper section by section, heat, fold, and press the base cove firmly in place.
7. The joints can be welded immediately after installation.
Please observe!
• ECODUR® EasyTac VK must always be installed in accordance with the instructions.
• Always lay or store rolls on the included silicone paper.
• The product does not require the implementation of any particular work safety measures. However, we recommend that you do not eat, drink, or smoke when working with this product. Store out of the reach of children.
• Dry, clean packaging can be recycled. Waste product can be put into household waste.
• ECODUR® EasyTac VK must not be exposed to unusual circumstances such as chemical or mechanical influence.
• The product must never be exposed to moisture.
• In areas with strong grazing light, any transitions between the product and dispersion adhesive may be visible.
ECODUR® EasyTac VK has been assessed by Byggvarubedömningen.
Width:
Pack size:
97 / 150 mm
3 rolls, each 50 metres, per box (97 mm). 2 rolls, each 50 metres, per box (150 mm).
Colour: White mesh carrier, transparent glue.
Working temperature: Minimum 10°C
Pre-airing time: None
Working time: Unlimited
Final strength: Shortly after laying.
Welding of joints: Immediately after laying.
Tools:
Acclimatisation:
Storage:
Carpet knife, stair pressing tool, rubbing board, and heat gun.
Allow sufficient time for acclimatisation (at least 24 hours at 18°C for both ECODUR® EasyTac VK and covering).
At least 24 months. Store in a cool, dry location out of direct sunlight. Always store on the included sillicone paper.
ECODUR® EasyTac T 50
Adhesive tape for textile floor coverings
Direct installation – no pre-airing time
Extremely high tack
Clean installation
A special tape for quick, clean, and solvent-free fixation of carpet tiles and textile floor coverings at seams, doorways, transitions, etc.
Suitable for use on even substrates such as levelling compound, PVC, linoleum, ceramic tiles, concrete, gypsum board, paint, metal, and chipboards. Suitable for interior use only.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, free from silicon and all other substances that may impair the adhesion.
Dusty and absorbent substrates must always be pretreated with the appropriate ECODUR® primer. The backing of the covering must be clean and free from dust.
Please observe!
• Always lay or store rolls on the included silicone paper.
• The product does not require the implementation of any particular work safety measures. However, we recommend that you do not eat, drink, or smoke when working with this product. Store out of the reach of children.
• Dry, clean packaging can be recycled. Waste product can be put into household waste.
• ECODUR® EasyTac T 50 must not be exposed to unusual circumstances such as chemical or mechanical influence.
• The product must never be exposed to moisture.
• ECODUR® EasyTac T 50 is not suitable for use on stairs. Contact us for other alternative tape products.
ECODUR® EasyTac T 50 has been assessed by Byggvarubedömningen.
Width: 50 mm
Pack size: 6 rolls, each 25 metres per box.
Colour: Cream white
Working temperature: Minimum 10°C
Pre-airing time: None
Working time: Unlimited
Final strength: Shortly after laying.
Acclimatisation:
Storage:
Allow sufficient time for acclimatisation (at least 24 hours at 18°C for both ECODUR EasyTac T 50 and covering).
At least 24 months. Store in a cool, dry location out of direct sunlight. Always store on the included silicone paper.
ECODUR® K 30
Impact sound-reducing underlay
Highly elastic
Easy to cut and easy to install
Thermal insulation
An elastic impact sound-reducing underlay made from polyurethane and cork. Suitable for use under PVC,CV, rubber, textile floor coverings, and linoleum, as well as different types of LVT, parquet and hardwood floors.
Can be used on absorbent or non-absorbent substrates. Suitable for interior use only.
Subfloor preparation
The substrate must be load-bearing, durable, completely dry, clean, free from adhesive residues and other substances that may impair the adhesion. Uneven substrates should be primed with the suitable ECODUR® primer and levelled with the appropriate ECODUR® levelling compound.
Installation under PVC, CV, rubber, textile floor coverings, LVT, and linoleum
The product is to be laid, cut and placed edge to edge. Both ECODUR® K 30 and the floor covering must be laid in the same direction, but with displaced joints (min 10 cm).
A gap of a few mm should be left in connection with walls, doors, and pipes, etc.
Fold the sheets back in half, apply the adhesive (same adhesive for both floor covering and underlay) on the floor using a trowel with the recommended notched blade. Place the underlay into the adhesive bed and press firmly in position. Repeat the procedure on the other half of the sheets. Edges and ends, as well as any parts that do not lie flat, must be pressed down again after approx. 10-20 mins.
The floor covering may only be installed after 24-48 hours.
Installation under fully adhered parquet
The product is to be laid, cut and placed edge to edge. A gap of a few mm should be left in connection with walls, doors, and pipes, etc.
Fold the sheets back in half, apply the adhesive (same adhesive for both floor covering and underlay) on the floor using a trowel equipped with a B2 notched blade. Place the underlay into the adhesive bed and press firmly in position. Repeat the proce -
dure on the other half of the sheets. Edges and ends, as well as any parts that do not lie flat, must be pressed down again after approx. 10-20 mins.
The parquet may only be adhered after 24-48 hours. Choose the notched blade depending of the type of parquet. Both ECODUR® K 30 and the subsequent parquet must be adhered using ECODUR® S 90 New.
Installation under floating parquet
The product is to be laid, cut and placed edge to edge. A gap of a few mm should be left in connection with walls, doors, and pipes, etc. If the parquet is to be laid in floating construction, it is not necessary to adhere ECODUR® K 30 to the substrate. ECODUR® K 30 is not a damp proof membrane. If this is required please first lay a 0.20 mm ageing-resistant foil. The ideal laying temperature is 15-25°C, and ideal relative humidity is between 50 % and 65 %.
Moisture
It is vital that the amount of residual moisture in the concrete substrate is measured and documented so that ECODUR K 30 is not installed on a substrate that is too damp. The product itself can withstand a maximum of 85 %, and 65 % RH applies when parquet and hardwood floors are adhered on top. In cases where the moisture content of the substrate exceeds these values, we recommend application of an ECODUR® moisture barrier system. Contact us for a consultation. The moisture content in chipboards should be between 8-12 %.
Please observe!
• When installing parquet and hardwood floors without tongue and groove, e.g. Industrial, mosaic, base parquet, etc., use ECODUR® K 30 2 mm!
• Prior to installing coverings sensitive to indentation, the surface of the underlay must be further reinforced. Contact us for a consultation.
ECODUR® K 30 has been assessed by Byggvarubedömningen, Sunda Hus Material Data, and is registered in BASTA.
Thicknesses: 2 mm 3 mm
Impact sound improvement: 16 dB (acc. to ISO 10140) 17 dB (acc. to ISO 10140)
Pack size: 30 m2 (1 x 30 metre roll) 20 m2 (1 x 20 metre roll)
Colour: Brown/black mix
Weight: 33 kg/ roll
Working temperature: +18°C to +23°C and 30–60 % RH.
Underfloor heating: Suitable, but the entire construction must be taken into account in order to make a decision in each individual case.
Storage: At least 24 months. Rolls must be stored upright in a dry, cool environment, not below 0°C.
GUIDES AND SYSTEM SOLUTIONS
PRIMING, REPAIRAND PATCHING
3
Main use
3 Possible use
(4) With PVC, linoleum, textile floor coverings, and ceramic tiles
(5) Between layers approx. 40-50 mins. Prior to gluing of hardwood floors approx. 2 hours. Before levelling approx. 12 hours
This guide is to be regarded as guidance. Please find additional information in previous pages about each product.
Primers and moisture barriers
ECODUR® P 10
Universal primer
ECODUR® P 11
Primer for non-absorbent substrates
ECODUR® P 12
Primer for absorbent substrates
ECODUR® P 19
Moisture barrier primer
Repair- and patching materials
ECODUR® E 52
Cement-based repair mortar - fine
ECODUR® E 54
Cement-based repair mortar - coarse
ECODUR® E 55
Patching compound
3
3
3
3
3
3
Concrete and cement-based screed with increased residual moisture content.
Chipboard glued and screwed to studs with max c/c distance of 600 mm.
Substrate with water resistant adhesive residues Gypsumor anhydrite screeds
1. Levelling on wooden plank subfloors prior to installing
laid multilayer parquet.
Multilayer parquet
Loose laid. For indoor use on floors in both residential and public environments.
Age resistant plastic foil + underlay foam. Alternatively, combi underlay foam and vapour barrier in one.
ECODUR® E 36 has been assessed by Byggvarubedömningen and is registered in BASTA.
Fibre-reinforced levelling compound
ECODUR® E 36
Fast-drying fibre-reinforced cement-based levelling compound with low shrink stresses.
Min. layer thickness: 20 mm
Max. layer thickness: 40 mm
Working time: Approx. 40 minutes*
Ready for covering: After approx. 24 hours*
PZG Reinforcement mesh
All joints must have an overlap of at least 50 mm.
Expansion strip
Fitted against all walls and other fixed building elements
C 35
ECODUR® E 52 has been assessed by Byggvarubedömningen and is registered in BASTA.
Priming and sealing of gaps in a single step:
ECODUR® E 52 Cement-based repair mortarfine 1 x 15 kg bag of ECODUR® E 52 mixed with 3.3 litres of water and 1 litre of ECODUR® P 10
Drying time: 3 hours*
ECODUR® P 10 has been assessed by Byggvarubedömningen and is registered in BASTA.
ECODUR® P 10 Universal primer Used as an additive in this system.
Wooden plank subfloors
Sound, load-bearing, glued and screwed on studs. Residues of paint, oil, varnish, etc. has to be removed. * at 20°C and 65 % RH. Note that drying times and consumption for each product apply only in this system.
For additional product information, read the current data sheet at englund-gruppen.se
2. Levelling on chipboard in wet rooms before installing PVC floors
E CODUR® S 80 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
VT-APPROVED PVC FLOORING
ECODUR® S 80 Universal dispersion adhesive
Floor and wall adhesive with very good tack and long working time that can be heat re-activated. Consumption: approx. 200-320 g/m 2 (notched blade TKB A1/A2 depending on the structure of the backing).
Pre-airing time: approx. 10-20 mins*
Working time: Approx. 1 hour and more* Base coves can be taped by using ECODUR® EasyTac VK/VK 150.
ECODUR® E 39 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
ECODUR® E 39 Self levelling compound, coarse
Fast-drying cement-based levelling compound with low shrinkage.
Min. layer thickness: 20 mm (local deviations down to 12 mm may apply when connected to floor drains).
Max. layer thickness: 40 mm
Slopes in wet rooms: In shower areas or equivalent 7-20 mm/ length metre, other areas 2-10 mm/length metre. Between floor drain and adjacent walls the slopes can be up to 40 mm/length metre.
Working time: Approx. 35 minutes*
Ready for covering: After approx. 24 hours*
PZG Reinforcement mesh
All joints are to have an overlap of at least 50 mm. Alternatively 2.5 mm point welded steel reinforcement, spread 70 mm. All joints must be overlapped at least one square/opening.
Expansion strip
Fitted against all walls and other fixed building elements.
ECODUR® P 11 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
Primer for non-absorbent substrates
ECODUR® P 11
An extremely quick-drying, solvent-free and fibre-reinforced dispersion primer. Consumption: Approx. 100 g/m 2 Drying time: 0.5-2 hours*
Chipboards in 22 mm thickness
Glued and screwed to studs with max c/c distance of 600 mm.
* at 20°C and 65 % RH. Note that drying times and consumption for each product apply only in this system.
For additional product information, read the current data sheet at englund-gruppen.se
Systems
3. Levelling on light weight screeds
ECODUR® E 39 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
FLOOR COVERING
ECODUR® E 39 Self levelling compound, coarse Fast-drying cement-based levelling compound with low shrinkage.
Min. layer thickness: 20 mm
Max. layer thickness: 40 mm
Working time: Approx. 35 minutes*
Ready for covering: After approx. 24 hours*
PZG Reinforcement mesh
All joints must have an overlap of at least 50 mm. Alternatively 2.5 mm point welded steel reinforcement, with grid pattern 70 mm. All joints must be overlapped at least one square/opening.
Expansion strip Fitted against all walls and other fixed building elements
Primer for absorbent substrates
ECODUR® P 12
ECODUR® P 12 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
A quick-drying, solvent-free dispersion primer for use on absorbent substrates. Consumption: Approx. 100-150 g/m 2
Drying time: Approx. 60 minutes*
EC350M EPS Cement
A quick-drying lightweight screed based on cement and expanded polystyrene.
Min. layer thickness: 30 mm
Max. layer thickness: unlimited
Working time: Approx. 60 minutes*
Drying time: Approx. 12 hours*
ECODUR® P 12 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
Primer for absorbent substrates
ECODUR® P 12
A quick-drying, solvent-free dispersion primer for use on absorbent substrates. Consumption: Approx. 100-150 g/m 2 depending on the absorbency of the substrate.
Drying time: Approx. 60 minutes*
Concrete
Load-bearing, durable, clean, and free from adhesive residues and other substances that may affect the adhesion.
The moisture content may not exceed 85% RH when installing resillient coverings and 90% RH applies for textile floor coverings.
* at 20°C and 65 % RH. Note that drying times and consumption for each product apply only in this system.
For additional product information, read the current data sheet at englund-gruppen.se
4. Levelling on chipboard with warm water underfloor heating installed in heat distribution plates
ECODUR® E 39 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
Self levelling compound, coarse Fast-drying cement-based levelling compound with low shrinkage. Min. layer thickness: 20 mm (local deviations down to 12 mm may apply when connected to floor drains). Max. layer thickness: 40 mm Slopes in wet rooms: In shower areas or equivalent 7-20 mm/ length metre, other areas 2-10 mm/length metre. Between floor drain and adjacent walls the slopes can be up to 40 mm/length metre. Working time: Approx. 35 minutes* Ready for covering: After approx. 24 hours*
ECODUR® E 39
PZG Reinforcement mesh
All joints must have an overlap of at least 50 mm. Alternatively 2.5 mm point welded steel reinforcement, with grid pattern 70 mm. All joints must be overlapped at least one square/opening.
Expansion strip Fitted against all walls and other fixed building elements.
ECODUR® P 11 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
ECODUR® P 11 Primer for non-absorbent substrates
An extremely quick-drying, solvent-free and fibre-reinforced dispersion primer. The primer must be applied in a thin layer across the entire floor surface, including plates, and it is vital that the floor is completely covered. Consumption: Approx. 100 g/m 2 Drying time: 0.5-2 hours*
Warm water underfloor heating installed in heat distribution plates. The plates must be thoroughly glued with a construction adhesive, screwed down to the substrate, washed with ethyl alcohol and allowed to dry.
Profiled
chipboards in 22 mm thickness ** Glued and screwed to studs with max c/c distance of 600 mm.
* at 20°C and 65 % RH. Note that drying times and consumption for each product apply only in this system.
** In the event of a load that is more than normal, such as larger bathtubs, heating pumps, very heavy furniture, etc., always c ontact us for technical support. For additional product information, read the current data sheet at englund-gruppen.se
Systems
5. PVC on concrete with low absorption/low VCT in areas with heavy commercial use.
ECODUR® S 81 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
PVC FLOORING
ECODUR® S 81 Dispersion adhesive allround A solvent-free, fibre-reinforced dispersion adhesive that is highly resistant to plasticisers, indentation marks. The adhesive gives a very strong film.
ECODUR® E 33 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
Base coves can be taped by using ECODUR® EasyTac VK/VK 150.
ECODUR® E 33 New Cement-based self levelling compound
A cement-based quick-drying levelling compound with exceptional flow capacity, low shrinkage, and a very smooth surface.
Minimum layer thickness: 10 mm
Maximum layer thickness: 30 mm
Working time: approx. 20-30 minutes*
Ready for covering: After approx. 16 hours*
Expansion strip
Fitted against all walls and other fixed building elements.
ECODUR® P 11 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
If the surface is non-absorbent and free from dust:
Primer for non-absorbent substrates
ECODUR® P 11
An extremely quick-drying, solvent-free and fibre-reinforced dispersion primer.
Consumption: Approx. 100 g/m 2
Drying time: 0.5-2 hours*
If the surface is absorbent:
Primer for absorbent substrates
ECODUR® P 12
ECODUR® P 12 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
A quick-drying, solvent-free dispersion primer.
Consumption: Approx. 100-150 g/m 2 depending on the absorbency of the substrate.
Drying time: Approx. 60 minutes*
Dense concrete with low absorption/low VCT. Residual moisture content of max. 85 % RH.
Load-bearing, durable, clean, and free from adhesive residues and other substances that may affect the adhesion.
* at 20°C and 65 % RH. Note that drying times and consumption for each product apply only in this system.
For additional product information, read the current data sheet at englund-gruppen.se
Systems
residual moisture content
6. PVC on concrete with a
with heavy commercial use .
up to 98 % RH in areas
ECODUR® S 81 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
ECODUR® E 33 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
PVC FLOORING
Dispersion adhesive allround A solvent-free, fibre-reinforced dispersion adhesive that is highly resistant to plasticisers, indentation marks. The adhesive gives a very strong film.
Base coves can be taped by using ECODUR® EasyTac VK/VK 150.
ECODUR® E 33 New Cement-based self levelling compound
A cement-based quick-drying levelling compound with exceptional flow capacity, low shrinkage, and a very smooth surface.
Minimum layer thickness: 5 mm
Maximum layer thickness: 30 mm
Working time: approx. 20-30 minutes*
Ready for covering: After approx. 16 hours*
Primer for non-absorbent substrates
ECODUR® P 11
ECODUR® P 11 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
An extremely quick-drying, solvent-free and fibre-reinforced dispersion primer.
Consumption: Approx. 100 g/m 2
Drying time: 0.5-2 hours*
ECODUR® P 19 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
ECODUR® P 19 1-K PUR primer
Applied in two or three layers depending on the moisture content.
Consumption: On concrete with a residual moisture content of up to 95% RH, two layers should be applied with a consumption of approximately 200–250 g/m², depending on the substrate’s absorption capacity. For residual moisture content up to 98% RH, three layers should be applied with a consumption of approx. 300–350 g/m², depending on the substrate’s absorption capacity.
Drying time between the layers: approx. 40-50 minutes*
Drying time before application of ECODUR® P 11: approx. 12 hours*
Fresh concrete with residual moisture content up to 98 % RH
Cement-based, moisture-damage resistant, load-bearing (at least 1.0 MPa), and be clean, as well as free from any substances that could affect adhesion. Always contact us for consultation if the surface has a higher RH than 98% or if there is rising ground moisture.
* at 20°C and 65 % RH. Note that drying times and consumption for each product apply only in this system.
For additional product information, read the current data sheet at englund-gruppen.se
Systems
7. Installation of linoleum on weak substrates with asphalt or tar adhesive residues
LINOLEUM
Dispersion adhesive for linoleum
ECODUR® S 85
A solvent-free, very low emission dispersion adhesive with ecxellent tack and a short pre-airing time.
ECODUR® S 85 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
ECODUR® E 31 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
All joints must have an overlap of at least 50 mm.
Expansion strip
Fitted against all walls and other fixed building elements
ECODUR® P 11 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
Non-absorbent substrates, most of the surface covered by adhesive residues.
Primer for non-absorbent substrates
ECODUR® P 11
An extremely quick-drying, solvent-free and fibre-reinforced dispersion primer.
Consumption: Approx. 100 g/m 2
Drying time: 0.5-2 hours*
Absorbent substrate, small part of the surface covered by adhesive residues.
ECODUR® P 12 Primer for absorbent substrates
ECODUR® P 12 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
A quick-drying, solvent-free dispersion primer
Consumption: Approx. 100-150 g/m 2 depending on the absorbtion of the substrate.
Drying time: Approx. 60 minutes*
concrete substrates with asphalt or tar adhesive residues.
Weak
Completely dry, clean, and free from water-soluble adhesive residues and other substances that may affect the adhesion.
Moisture content measured to max. 90 % RH for linoleum.
Note that drying times and consumption for each product apply only in this system. For additional product information, read the current data sheet at englund-gruppen.se
* at 20°C and 65 % RH.
substrates with
8. Carpet tiles on concrete
residual moisture content up to 98 % RH.
ECODUR® S 20 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
Tackifier
ECODUR® S 20
Consumption: Approx. 100 g/m 2
Pre-airing time: At least 60 mins*
Working time: Up to 180 mins*
CARPET TILES
ECODUR® P 19 1-K PUR primer
Applied in two or three layers depending on the moisture content.
ECODUR® P 19 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
Consumption: On concrete with a residual moisture content of up to 95% RH, two layers should be applied with a consumption of approximately 200–250 g/m², depending on the substrate’s absorption capacity. For residual moisture content up to 98% RH, three layers should be applied with a consumption of approx. 300–350 g/m², depending on the substrate’s absorption capacity.
Drying time between the layers: approx. 40-50 minutes
Drying time before application of ECODUR® P 11: approx. 2 hours*
Fresh concrete with residual moisture content up to 98 % RH
Cement-based, moisture-damage resistant, load-bearing (at least 1.0 MPa), and be clean, as well as free from any substances that could affect adhesion. Always contact us for consultation if the surface has a higher RH than 98% or if there is rising ground moisture.
* at 20°C and 65 % RH. Note that drying times and consumption for each product apply only in this system.
For additional product information, read the current data sheet at englund-gruppen.se
9. Adhering of solid parquet blocks on concrete with warm water underfloor heating. 85% RH
SOLID PARQUET BLOCKS IN VARIOUS THICKNESSES AND SPECIES
ECODUR® S 90 NEW has been assessed by Byggvaru- bedömningen and is registered in BASTA.
ECODUR® S 90 NEW Parquet adhesive
Elastic SMP-adhesive for several types of fully adhered parquet and hardwood floors.
ECODUR® P 19 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
ECODUR® P 19 1-K PUR primer
A film forming fast drying 1-K PUR primer, specially designed to harmonize with ECODUR®parquet and hardwood adhesives.
Consumption: To be laid in two layers. First layer 100-150 g/m 2 depending on the absorbency of the substrate. Second layer 100 g/m 2 .
Drying time: Between the layers approx. 40-50 minutes and approx. 2 hours* before adhering the solid parquet blocks.
ECODUR® E 33 NEW has been assessed by Byggvaru- bedömningen and is registered in BASTA.
Cement-based self levelling compound
ECODUR® E 33 NEW
A cement-based quick-drying levelling compound with exceptional flow capacity, low shrinkage, and a very smooth surface.
Minimum layer thickness: 5 mm
Maximum layer thickness: 30 mm
Working time: approx. 20-30 minutes*
Ready for covering with fully adhered parquet and hardwood floors: After approx. 24 hours per 5 mm layer thickness*
Primer for absorbent substrates
ECODUR® P 12
ECODUR® P 12 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
A quick-drying, solvent-free dispersion primer Consumption: Approx. 100-150 g/m 2 depending on the absorption of the substrate. Drying time: Approx. 60 minutes*
Concrete substrate with warm water underfloor heating 85% RH
Sound, load-bearing, clean, and free from adhesive residues and other substances that may affect the adhesion.
* at 20°C and 65 % RH. Note that drying times and consumption for each product apply only in this system.
For additional product information, read the current data sheet at englund-gruppen.se
Systems
10. Adhering of multilayer parquet on weak concrete substrates
MULTILAYER PARQUET
ECODUR® S 90 NEW Parquet adhesive Elastic SMP-adhesive for several types of fully adhered parquet and hardwood floors. Consumption: approx. 800-1200 g/m 2 (notched blade B11)
Working time: Wet set: 0-35 minutes*
ECODUR® S 90 NEW has been assessed by Byggvaru- bedömningen and is registered in BASTA. When the surface of the levelling compound has dried, it should be sanded and vacuumed.
Ready for sanding: 24-48 hours*
ECODUR® E 31 NEW has been assessed by Byggvaru- bedömningen and is registered in BASTA.
ECODUR® E 31 NEW Cross-over self levelling compound A gypsum-based fast-drying crossover levelling compound with very low shrinkage that combines the benefits of gypsum and cement.
Layer thicknesses: 7-20 mm
Working time: Approx. 20-30 minutes*
Ready for covering with fully adhered parquet and hardwood floors: After approx. 24 hours per 5 mm layer thickness*
RENOTEX Reinforcement mesh
All joints must have an overlap of at least 50 mm.
Expansion strip
Fitted against all walls and other fixed building elements.
ECODUR® P 12 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
Primer for absorbent substrates
ECODUR® P 12
A quick-drying, solvent-free dispersion primer Consumption: Approx. 100-150 g/m 2 depending on the absorbtion of the substrate. Drying time: Approx. 60 minutes*
Weak concrete .
Completely dry, clean, and free from water-soluble adhesive residues and other substances that may affect the adhesion. Moisture content measured to max. 65 % RH for parquet and hardwood floors.
* at 20°C and 65 % RH. Note that drying times and consumption for each product apply only in this system.
For additional product information, read the current data sheet at englund-gruppen.se
11. Levelling on chipboards before applying epoxyor polyurethane coatings in public environments.
EPOXYOR POLYURETHANE COATINGS
The minimum total thickness of the levelling layers for this type of construction is 20 mm.
ECODUR® E 33 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
ECODUR® E 33 New Cement-based self levelling compound
A cement-based quick-drying levelling compound with exceptional flow capacity, low shrinkage, and a very smooth surface.
Minimum layer thickness: 5 mm
Working time: approx. 20-30 minutes*
Ready for covering: The construction must be allowed to dry for at least 72 hours before being coated with thermosetting plastic.*
ECODUR® P 12 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
ECODUR® P 12 Primer for absorbent substrates
A quick-drying, solvent-free dispersion primer
Consumption: Approx. 100-150 g/m 2 depending on the absorbtion of the substrate.
When the surface of the levelling compound has dried, it should be sanded and vacuumed.
ECODUR® E 39 Self levelling compound, coarse Fast-drying cement-based levelling compound with low shrinkage.
ECODUR® E 39 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
Min. layer thickness: 15 mm
Working time: Approx. 40 minutes*
Ready for covering: After approx. 24 hours*
PZG Reinforcement mesh
All joints must have an overlap of at least 50 mm. Alternatively 2.5 mm point welded steel reinforcement, with grid pattern 70 mm. All joints must be overlapped at least one square/opening.
Expansion strip, self-adhesive with tape Fitted against all walls and other fixed building elements.
ECODUR® P 11 has been assessed by Byggvaru- bedömningen and is registered in BASTA.
ECODUR® P 11 Primer for non-absorbent substrates
An extremely quick-drying, solvent-free and fibre-reinforced dispersion primer. Consumption: Approx. 100 g/m 2
Drying time: 0.5-2 hours*
Chipboards in 22 mm thickness
Glued and screwed to studs with max c/c distance of 300 mm.
* at 20°C and 65 % RH. Note that drying times and consumption for each product apply only in this system.
For additional product information, read the current data sheet at englund-gruppen.se
ECODUR® E 31 NEW has been assessed by Byggvarubedömningen and is registered in BASTA.
12. Different options for levelling on concrete
Cross-over self levelling compound
ECODUR® E 31 New
Layer thicknesses: 0-20 mm. For thicker layers, consult with us.
Working time: Approx. 20-30 minutes*
Ready for foot traffic: After approx. 2 hours*
Ready for covering with PVC, linoleum, and textile : 0-6 mm6 hrs, 7-12 mm12 hrs, 13-20 mm24 hrs*
ECODUR® E 33 NEW has been assessed by Byggvarubedömningen and is registered in BASTA.
alternatively
ECODUR® E 33 New Cement-based self levelling compound
Layer thicknesses: 0-30 mm. For thicker layers, consult with us.
Working time: approx. 20-30 minutes* R eady for foot traffic: After approx. 2 hours*
Ready for covering with PVC, linoleum, and textile : After approx. 16 hours*
alternatively
Cement-based self levelling compound
E CODUR® E 34
Layer thicknesses: 0-10 mm. For thicker layers, consult with us.
Working time: approx. 30 minutes* R eady for foot traffic: After approx. 3 hours*
ECODUR® E 34 has been assessed by Byggvarubedömningen and is registered in BASTA. alternatively
Ready for covering with PVC, linoleum, and textile : After approx. 24-36 hours*
Fibre-reinforced levelling compound
ECODUR® E 36
Layer thicknesses: 3-40 mm. For thicker layers, consult with us.
Working time: approx. 40 minutes*
ECODUR® E 36 has been assessed by Byggvarubedömningen and is registered in BASTA. alternatively
R eady for foot traffic: After approx. 1-2 hours*
Ready for covering with PVC, linoleum, and textile : After approx. 24 hours*
ECODUR® E 39 has been assessed by Byggvarubedömningen and is registered in BASTA.
Self levelling compound, coarse
ECODUR® E 39
Layer thicknesses: 3-40 mm. For thicker layers, consult with us.
Working time: approx. 35 minutes*
R eady for foot traffic: After approx. 1-2 hours*
Ready for covering with PVC, linoleum, and textile : After approx. 24 hours*
Expansion strip
For levelling over 5 mm, an expansion strip should be installed against all walls and other fixed building components.
ECODUR® P 12 är has been assessed by Byggvarubedömningen and is registered in BASTA.
ECODUR® P 12 Primer for absorbent substrates
A quick-drying, solvent-free dispersion primer
Consumption: Approx. 100-150 g/m 2 depending on the absorbtion of the substrate.
Drying time: Approx. 60 minutes*
Concrete substrate with warm water underfloor heating 85% RH
Sound, load-bearing, clean, and free from adhesive residues and other substances that may affect the adhesion. * at 20°C and 65 % RH. Note that drying times and consumption for each product apply only in this system. For additional product information, read the current data sheet at englund-gruppen.se
LARGER PROJECTS? WE CAN ASSIST YOU.
We have both the expertise and the equipment to help you with your pumping projects. For more than 20 years, we’ve been helping customers with pumping of self levelling compounds.
1000 m2 layed in just over an hour
Our latest pump is equipped with a 40 metre long hose and has a capacity of 4.5 tons an hour, which means that a job of approx. 1,000 m2 in a layer thickness of 3 mm will not take more than one hour to complete.
Most ECODUR® products have good flow capacity, fast curing, and a smooth surface finish - the perfect substrate on which to lay a floor.
Our pump specialists will help you
Give us a call. If in doubt wether your substrate is suitable or not, we’ll perform an onsite inspection first.
Robin Malcic
+46 (0)704 37 89 15 Gothenburg Bohuslän Halland
Jacob Tawar
+46 (0)707 38 31 13 Gothenburg Bohuslän Halland
Johan Karlsson
0704-37 89 00 Stockholm Uppland Västmanland
Patrik Brekkestö
0706-71 71 52 Småland Blekinge Östergötland
Leif Jönsson
+46 (0)707 37 07 07 Skåne Halland
Jonas Svensson
+46 (0)720 707 444 Rest of Sweden
ENGLUND-GRUPPEN FLOORING AB www.englund-gruppen.se
Kryptongatan 20
SE-431 53 Mölndal
Tel +46 (0)31 670 170 goteborg@englund-gruppen.se
Flygplansgatan 8
SE-212 39 Malmö
Tel +46 (0)40 18 47 90 malmo@englund-gruppen.se
Västbergavägen 43
SE-126 30 Hägersten
Tel +46 (0)8 556 30 880 stockholm@englund-gruppen.se
