TURNING/GRINDING MACHINE FOR CHUCKED PARTS
MODERN GEARBOXES HAVE HIGH REQUIREMENTS
Modern (hybrid) drive units are real miracles of engineering. This complex interaction of diverse components demonstrates everything that is possible with internal combustion engines. A study, “The Change in Drive Units” performed by the VDMA predicts, this drive system will still be dominant in 2030, primarily in the form of hybrid systems. Given the complex range of components and the high unit volumes required, flexible manufacturing solutions are necessary. The next few pages will go into detail on the perfect production solution for the hard machining of these components.
GEAR WHEELS
» Soft Machining (Turning)
Machines: VL 3 DUO
» Gear Hobbing of Gear Wheels
Machines: HLC 150 H
Machines: VLC 200 GT
» Hard Finishing (Hard Turning/Grinding)
» Joining and Laser Welding Machines: ELC 160
1
2
TRANSMISSION SHAFTS
» Soft Machining (Turning) of the Shaft
Machines: VT 2 / VT 4 / VTC 100 / VTC 200
» Gear Hobbing of Gear Wheels Machine: HLC 150 H
» Hard Finishing (Hard Turning/Grinding) Machines: VTC 100 GT / VTC 315 DS / HG 204 / HG 208
FOR MACHINING WORK
ELECTRIC MOTOR
» Turning Rotor/Stator Carriers
Machines: VL 6 / VL 8
» Electrochemical Deburring
Machine: CI 400
» Turning
THE VLC GT SERIES
Machines: VT 2 / VT 4 / VTC 100 / VTC 200
» Hard Finishing
(Hard Turning / Grinding)
Machines: VTC 100 GT / VTC 315 DS
Too often, finishing processes are thought of in multi-machine concepts – in the end, people rely entirely on the grinding process. Optimization potential is wasted here because those who feed parts with a large oversize to the grinding process pay for the high surface quality with long process times and higher tool costs.
With our machines from the VLC GT Series, we regularly prove to our customers that there is another way to make the combination machining of components possible. In short, where turning is possible, turning is done and where grinding is necessary, grinding is done. The time savings with the combination of turning + grinding works much faster, as there is much less excess material left after turning. The optimally adaptable machining area offers a lot of freedom in process design; even components with non-round contours can be processed in this way.
This video demonstrates more of the possibilities with the VLC 200 GT.

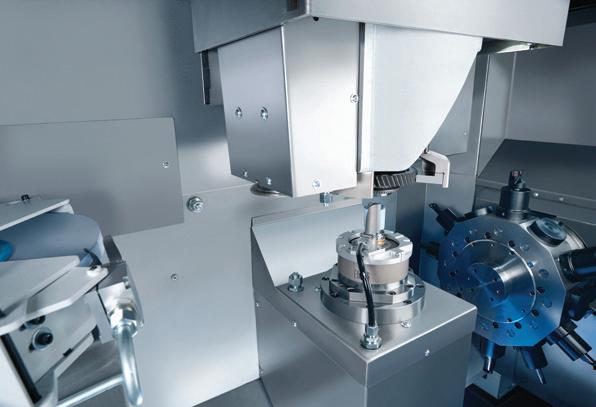

COMPLETE ALL THE HARD MACHINING PROCESSES
By combining the hard turning and grinding processes faster cycle times, higher machining quality and lower tool costs will be achieved. These benefits become obvious when we look at the production of gear wheels. First, the shoulders are hard turned, and then the borehole and the cone are pre-turned. These processes leave a residual oversize of just a few micrometers on the gear wheel allowing for a significant reduction in the grinding process using corundum or CBN grinding wheels. The machining quality also benefits from the turning/grinding combination because if there is only a small amount of material to be ground after the turning process, the grinding wheel can be designed more specifically to achieve the final quality required. Allowing us to achieve finish values with a mean peak-to-valley height Rz of less than 1.6 micrometers using the VLC 200 GT.
Integrated Pick-Up Automation
The VLC series has a parts storage area for raw and finished parts, and working spindle that is automatically loaded/unloaded. This means minimum downtimes and high productivity.
Internal Grinding Spindle
Depending on the machining requirements, the machining area may feature one or two (internal) grinding spindles. Standard spindles are availablefor the configuration, which can cover a wide range of speeds and capacities..
External Grinding Spindle
CBN can be used to increase productivity. CBNgrinding wheels are conditioned with a rotating diamond dressing roller for the machining task.
PROCESSES IN A SINGLE CLAMPING OPERATION
EMAG Tool Turret
THE BENEFITS:
+ REDUCED MACHINING TIME
The combination of hard pre-turning and grinding reduces machining time, enabling scroll-free surfaces to be achieved.
+ MINIMUM GRINDING WHEEL WEAR
The grinding wheel is subjected to less wear and is required to be dressed less frequently because the amount of material cut is minimized. This results in a significant increase in productivity.
+ FOR GRINDING WHEELS PERFECTED FOR THE PROCESS
As only a small amount of material needs to be removed with grinding, the grinding wheel can be designed specifically to achieve the desired final machining quality.
+ COMPLETE MACHINING IN A SINGLE CLAMPING OPERATION
Flat surfaces on the rear are difficult to machine by grinding due to their poor accessibility. This machining problem can be solved very simply by hard turning.
Probe
By combining the EMAG tool turret with 12 tool positions (featuring either VDI, BMT or CDI interface) and a direct drive (torque motor), it is possible to achieve machining processes that are as fast as they are accurate.
The machine can be fitted with a probe for rapid quality control while the workpiece is clamped in. This probe is located between the machining area and pick-up area to ensure that it is protected from dirt.
+ USE OF CBN GRINDING WHEELS (OPTIONAL)
CBN can also be used to increase productivity. CBN grinding wheels are optimally conditioned with a rotating diamond dressing roller for the machining task.
MANUFACTURING SYSTEMS FOR CVT GEAR BELT
The abbreviation “CVT” stands for “Continuously Variable Transmission”. This technology is frequently being used with hybrid drive systems and is an important component for the future of e-mobility.
OP
PULLEYS
CVT IN HYBRIDS
At the same time as the electrification of the drivetrain, the CVT has also become established in passenger cars. This is mainly due to the high efficiency gearbox, whose infinite adjustment of the ratio without interrupting the traction ensures the perfect use of the energy supplied to it, lowering fuel consumption values.
IMPROVED HARD MACHINING FOR SHORT CYCLE TIMES
For the production of the CVT disc, in addition to the tool turret, the VLC 200 GT has been fitted with an external grinding spindle with its capacity and the configuration of the grinding wheel customized to the workpiece.
The results of this combination of processes include lower tool costs and shorter cycle times.
The grinding wheel wears more slowly, and therefore has to be dressed less frequently. A long production cycle is made possible with an extensive tool turret with 12 tool positions. This means that sister tools can be used.
COMBINATION MACHINING FOR GREATER PRODUCTIVITY
TECHNICAL DATA
PRODUCTIVITY
The combination of multiple machining processes in a single machine makes it possible to satisfy the rising requirements for the quality of the components and the desire for maximum machine flexibility. Various technologies such as turning, internal and external grinding, milling, reaming and honing can be combined as required on this series of machines.
The use of optimal processes and machining in a single clamping operation are the basis for the best workpiece quality. This means, for example, that workpiece contours can be pre-turned to ensure a constant oversize for the grinding process. This reduces the cycle time, particularly on workpieces with large or fluctuating oversizes.
Shuttle automation for supply and removal of parts
External grinding spindle Probe
Rotating dressing roller
Pick-up working spindle
Internal grinding spindle
Turret equipped with 12 tool positions for hard turning tools
Siemens numerical control
APPLICATIONS
+ STONE HONING
Stone honing as a finishing process to reduce peak-to-valley heights and increase the level of support.
+ BOREHOLE HONING
Honing the borehole using an expanding honing tool.
+ BELT FINISHING
Belt finishing included in a VLC GT machine for very fine surface finishing
Combination machining of E-bike hollow shaft pre-turning and grinding the external and internal diameter Turning the flat surfaces.
THE SOLUTION FOR GRINDING OUT-OF-ROUND PUMP
The VLC 350 GT from EMAG delivers high productivity and quality for grinding pump components.
They play an important role in the manufacture of pumps by contributing to the precision and efficiency of hydraulic systems. The radial piston pump is just one concrete application example used widely to transport lubricants in machine tools and automatic transmissions. The main components of the radial piston pump, such as the cam ring, are machined with high precision in the VLC 350 GT. The machining direction is the same as the later direction of rotation inside the pump, which minimizes noise development and enhances the pump’s efficiency.
In addition, the machine enables the processing of a large number of workpieces of different sizes. Another special feature is the wide spectrum of technologies. External cylindrical grinding, non-cylindrical grinding and face grinding are possible on the VLC 350 GT.
Probe
A probe outside the machining area, and therefore protected from dirt, is used for interim measurements in cycles or after a tool change.
Loading and unloading
The pick-up spindle takes care of loading and unloading workpieces from the shuttle or a peripheral belt.
Work Area
The working area of the VLC 350 GT is individually adapted to the respective processing requirements. The machine can be equipped with up to three grinding spindles.
PUMP COMPONENTS
RADIAL PISTON PUMPS
These are hydraulic pumps and can generate high load pressure with little high pressure pulsation. They will also operate reliably over long periods of time. Another benefit of radial piston pumps is that they are robust and reliable even in difficult operating conditions. Furthermore, these pumps can handle a wide range of media, including highly viscous media, which makes them suitable for many different sectors, from food processing to heavy industry.
CAM RINGS FOR RADIAL PISTON PUMPS
Out-of-round grinding of the internal profile, very good profile quality, excellent results for low-noise pump operation
