Building upon our triumphant sale of SKF Avallon stage 1 earlier this year, Apex and ALLSURPLUS have secured the contract for the auction of both of these exceptional automotive production lines.
Year: 1992/1994
Year: 2000
Control: Siemens 840D
Current state: Dismantled
OD maxi: 120 / Height maxi: 60.
Turning maximum OD: 130 [mm]
Turning maximum height: 60 [mm]
Machine stroke X/Z: 723 / 200 [mm]
Spindle type: 1/2, vertical
Spindle rpm: 6000 [tr/min]
Spindle power: 30 [kW]
Max power: starting at 1500 [tr/min]
Maxi torque: 460 [N/m]
Rotating turret with 12 tools holder
Tool attachment type: Kennametal KM40
Dimensions: 3160 x 1200 x 2650 [mm]
Weight: 8500 [kg]
Other Equipment: One returner unit, shuttle to transfer part

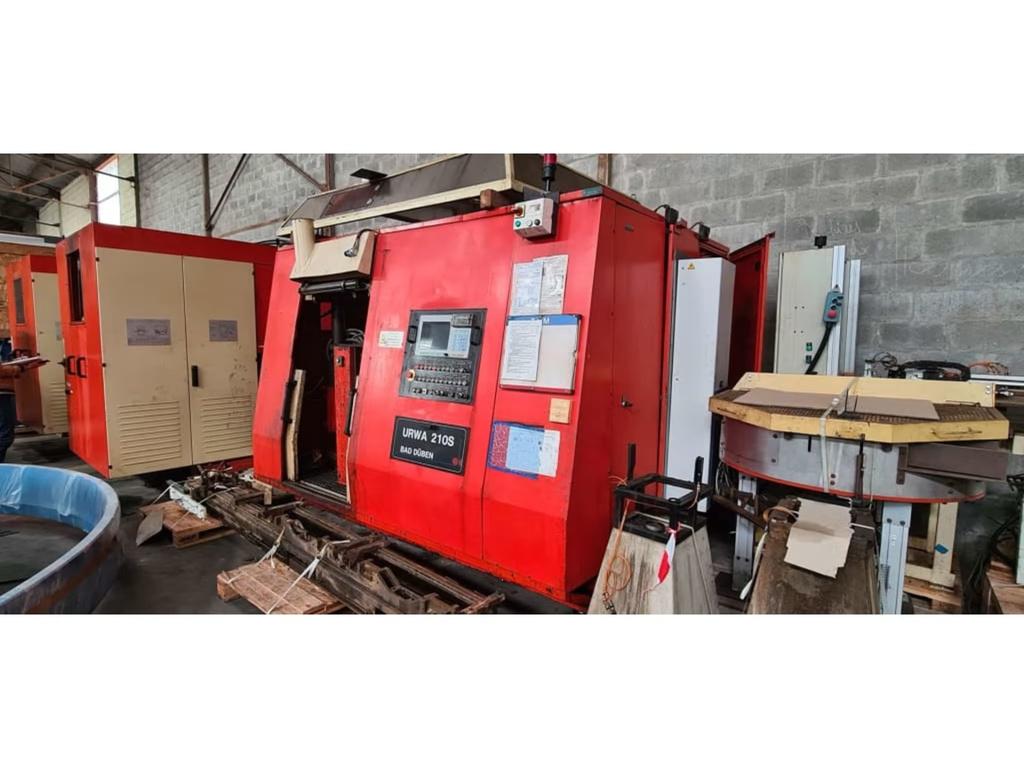

Year: 2002
CN Siemens 840DSL
Revamped in 2016
2 vertical spindles OP10 and OP20
Turning maximum OD : 260 [mm]
Turning maximum height : 200 [mm]
Machine stroke X/Z : 685 / 200 [mm]
Fast displacement : X : 45 [m/min]
Z : 30 [m/min]
Spindle type 1/2 : A2 - 6 ''
Spindle rpm : 6000 [tr/min]
Spindle power : 39 [kW]
Max power : starting at 800 [tr/min]
Maxi torque : 460 [N/m]
Fix turret with 1 tool holder
Tool type : Capto C6
Dimensions : 2290 x 3530 x 3200 [mm]
Weight : 14 800 [kg]
Equipment : - CN Siemens 840DSL - No
mandrel - One returner unit - 2 turret not refurbished

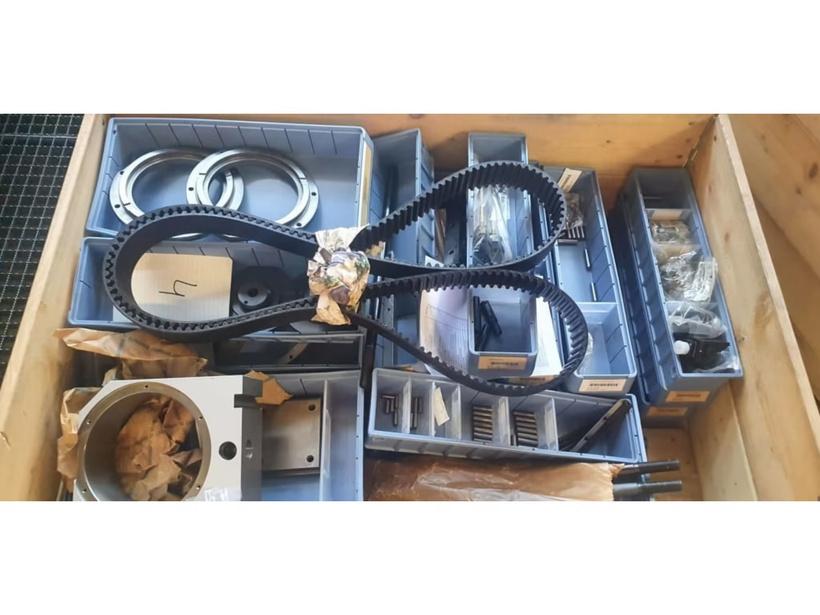

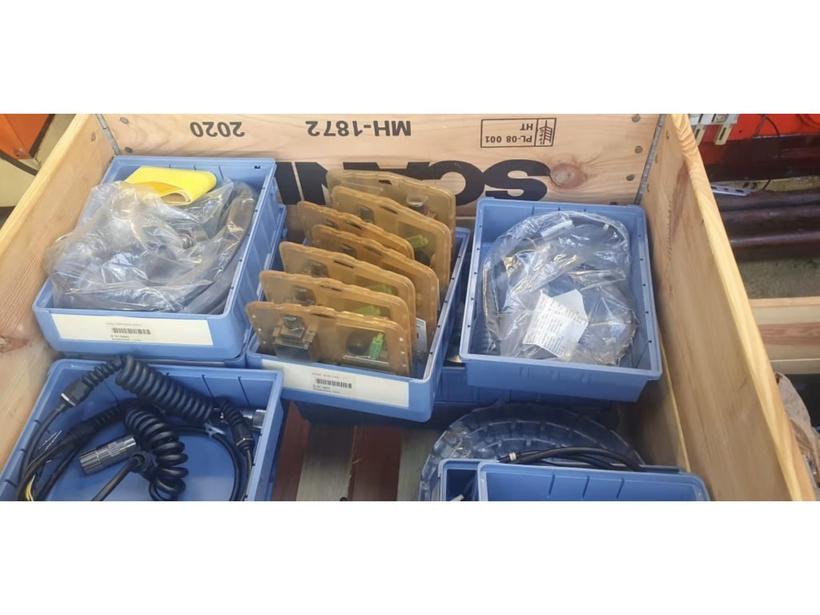

Brand new and ready-to-use spare parts, including connectors, drive belts, cables, sensors, fittings and fixtures, electrical distributors and more.
Please see the sale information section for any additional fees that may be applicable upon purchasing a lot. Vendor to approve all offer and/or closing bids prior to Apex invoicing.
