FOR IMMEDIATE SALE VIA MAKE OFFER

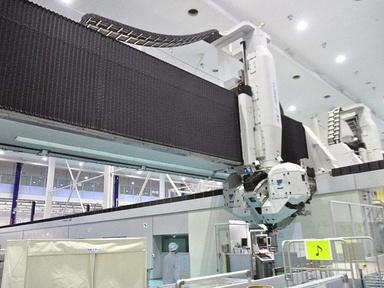

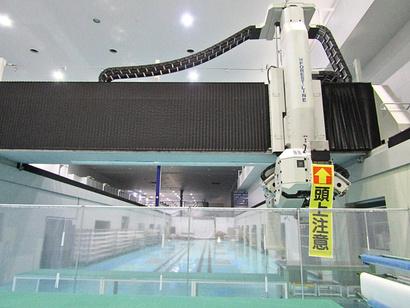

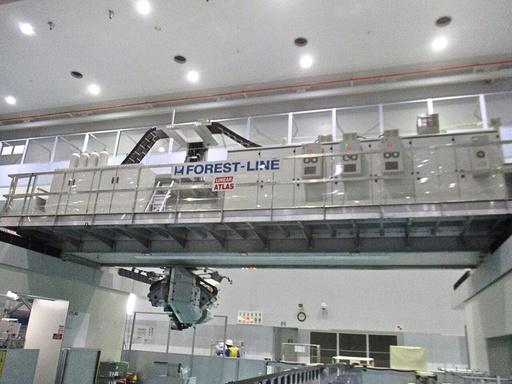

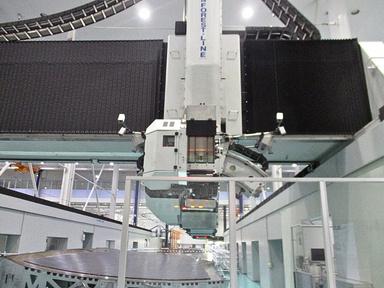

4 x Forest-Line Linear Atlas 6-Axis Gantry Type Automatic Contour Tape Laying Machine Automatic contour tape laying machines of unidirectional prepreg tape in genuine packing (150mm or 300mm wide). Previously cut machines (150mm wide) in all directions. Specifications Travels X Y Z C B A Speed X Y Z C
36,500 MM (1,437") 6,500 MM (255.91") 1,200 MM (47.244") +/- 200 deg (Head Rotation Around Z-Axis) +/- 30 deg (Head Rotation Around Y-Axis) +/- 30 deg(Head Rotation Around X-Axis) Longitudinal 60 m/min Transverse 60 m/min Vertical 60 m/min 8,500 deg/min

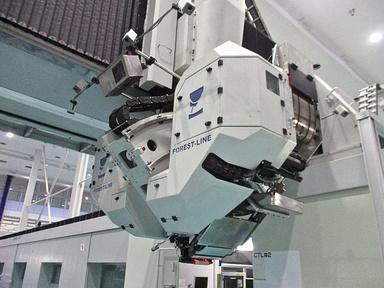

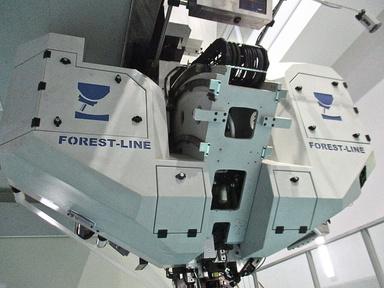

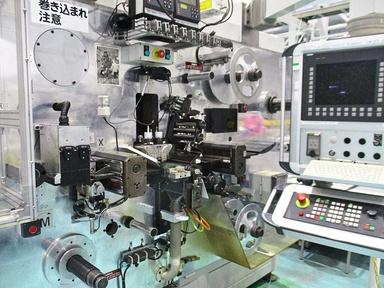

Complete with: 3-axes motion dual laying head (C-B-A) for highly contoured parts. Compliance system to optimize compaction despite local thickness (angular and normal to surface). Program offset (lay-up tool non-touch probing). Ply boundary inspection. Dust extractor around the cutting area. Paper flakes monitoring. Infra-red heating system. Siemens 8400 SL CNC control.
ALSO AVAILABLE: 2 x Forest-Line Atlas Dual Phase Tape Laying Machines
For more information, please contact Jake Josko: 630-686-1970
