Chapter 1: Introduction to concentrating solar power
Abstract
Concentrating solar power (CSP) is one of the most promising technologies that can contribute to sustainable production of electricity. Basically, a CSP system comprises a solar field (concentrator and solar receiver) and a power block (heat engine and generator). A solar receiver is a device that converts concentrated solar radiation to heat, which drives a heat engine. Nevertheless, solar radiation is intermi ent, and so, thermal storage and backup heating are strategies for enhancing the dispatchability of CSP-based electricity. One of the most important metrics of the performance of the CSP plant is the solar-to-electric efficiency. At present, the solar-to-electric efficiency is in the range of 8%–35%, which shows that there is still need for improving the efficiencies of the plant components. Consequently, some research a ention is given to the development of solar receivers.
Keywords
Electrical Engineering; Energy engineering; Materials application; Mechanical engineering; Thermodynamics
1.1. Introduction
Concentrating solar power (CSP) is one of the most promising renewable energy technologies for electricity production. It comprises the solar field (concentrator and solar receiver) and power block. The solar receiver is a linchpin between the concentrator and the power block, and it has significant influence on the performance
of the entire CSP system. In view of this, a lot of research a ention has been given to the development of solar receivers. In this chapter, broad concepts about CSP technology are introduced. Section 1.1.1 provides a general sustainability context of electricity generation. It is argued that production of electricity from renewable energy is a promising sustainable pathway for development, and solar radiation has enormous potential for sustainable electricity generation. Major technologies for solar-to-electric conversion are photovoltaic (Section 1.1.2) and CSP (Section 1.1.3).
In a CSP system, the concentration of solar radiation is achieved through the utilization of a concentrator (Section 1.2). Concentrated solar radiation is incident on a solar receiver, which transforms it to heat. Therefore, a solar receiver is one of the most critical components of a CSP system, and it is introduced in Section 1.3. It is also a well-known fact that solar radiation is an intermi ent resource, which results in relatively low capacity factors of solar technologies. So, thermal storage and backup heating are required to enhance the dispatchability of electricity. Particularly, thermal storage is an outstanding advantage of CSP over other generation technologies that are based on intermi ent renewable energy resources. Therefore, the concepts of thermal storage and backup heating are presented in Section 1.4. Heat produced by the receiver is transferred to the power block to generate electricity. In this vein, the concepts of the power block are examined in Section 1.5. Energy efficiency is an important metric for assessing the performance of electricity generation technologies. So, Section 1.6 deals with system efficiency. Finally, the various types of the CSP technology are presented in the last section of this chapter (Section 1.7).
1.1.1. Sustainable production of electricity
Electricity can be generated from different primary energy sources by using a variety of energy conversion technologies. So, there are different competing technologies in the electricity market (Kim et al., 2019), and technologies with lower costs are most preferred from an affordability standpoint. At present, most of the electricity is globally
generated by thermal power plants, and these plants are predominantly driven by fossil fuels (coal, oil, and natural gas), as shown in Fig. 1.1 (International Energy Agency, 2020). Overdependence on fossil fuels is contributing to environmental degradation, and climate change is the major environmental challenge of the 21st century. It has been established that anthropogenic activities are generating greenhouse gases (GHGs) that account for most of the rise in ambient air temperature (Saikku et al., 2008). The burning of fossil fuels is significantly contributing to climate change through the emission of carbon dioxide (major GHG) and other substances (IPCC, 2007). Consequently, the goal of augmenting access to electricity is also linked to climate change policies (van Vuuren et al., 2012) that aim at achieving a balance between anthropogenic emissions by sources and removals by sinks of GHGs by the second half of the 21st century at the global level, including decarbonization of the electricity sector. In this connection, it is argued that carbon-neutral electricity can compete against the largest carbon emi er (coal power) if its generation costs fall below approximately 0.08USD/kWh (International Renewable Energy Agency, 2013). Moreover, fossil fuels are depletable, which poses insecurity to the energy system. It has also been reported that the dominance of a single energy source and system is ultimately unsustainable even if it may be perfect at one time (Li, 2005). In contrast, renewable energy has low intensity of carbon emissions and replenishes itself by natural mechanisms. Consequently, it is perceived as a more sustainable option for developing the electricity sector.

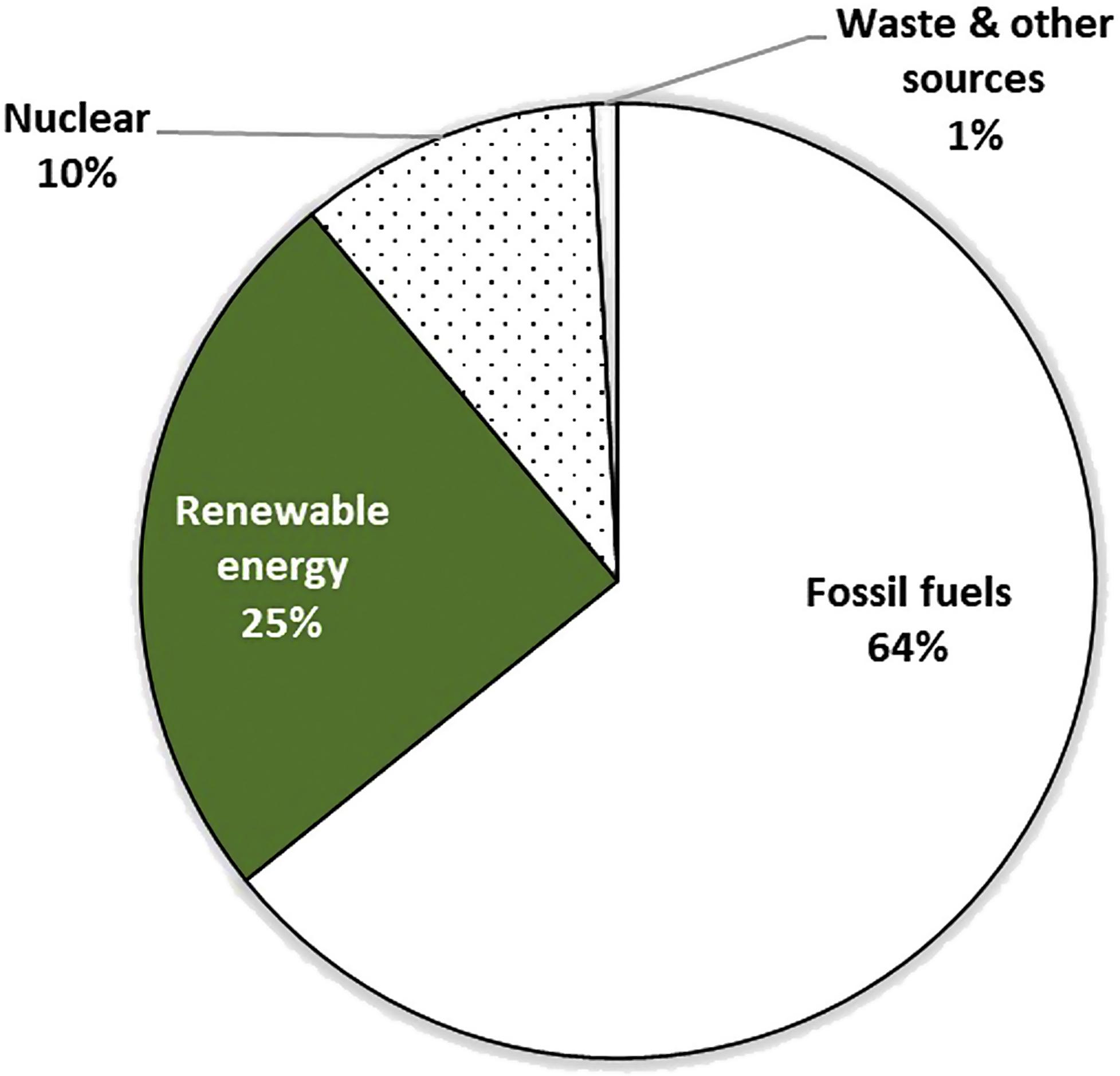

FIGURE 1.1 Global production of electricity by primary energy. Drawn by author using data from International Energy Agency. (2020).
Among the available renewable energy resources in the world, solar radiation has the greatest potential for electricity generation (Pillot et al., 2019), and the major technologies for converting solar energy to electricity are photovoltaic (PV) and CSP.
1.1.2. Photovoltaic technology
A photovoltaic (PV) technology directly converts solar radiation to electricity by using the principle of photoelectric effect (Khan & Arsalan, 2016). The basic building block of the PV system is a solar cell (Fig. 1.2), which is made up of p-type and n-type semiconductor
materials (Tyagi et al., 2013). Incident solar radiation comprises discrete energy packets called photons, and each photon contains energy that depends on the frequency of the radiation. The n-type layer absorbs part of the incident photons, resulting in the creation of excess electrons that flow through the external circuit to the p-type electrode. Thus, conventional current flows from the p-type electrode through the external circuit to the n-type electrode. A group of cells are interconnected to form a module, and modules are assembled to produce an array. The efficiency of PV modules can vary between 10% and 30% (Aberoumand et al., 2018).
To mitigate the intermi ency of the solar resource, PV systems can be integrated with storage ba eries. Thus, many microgrid projects based on PV farms have lately been developed, but only a limited number of them possess large-scale energy storage systems because of the high cost of ba eries (Cen et al., 2018). Due to these constraints, it is perceived that increasing onsite consumption of PVgenerated electricity will become important to preserve the stability of the grid when the global PV market exceeds 76GW (Akbari et al., 2019). Nonetheless, the demand profile of electricity may not match that of the fluctuating supply from PV power plants without storage. In contrast, the development of CSP with thermal storage has already a ained large-scale commercial production of electricity.
FIGURE 1.2 Schematic representation of a solar cell with an external electric load.
1.1.3. Concentrating solar power
Solar radiation can be converted to solar thermal power by using a suitable technology, and the use of solar thermal energy to generate electricity is known as solar thermal power generation. The concentrating solar power (CSP) technolgy generates electricity by utilizing heat from solar radiation (Dowling et al., 2017). A basic CSP system comprises a solar field and a power block, and the solar field is made up of a concentrator and a receiver (Fig. 1.3). The receiver
converts concentrated solar radiation to heat. Part of this heat is transferred to the engine, while a fraction of it may be stored and utilized later during the night (or when the level of insolation is low). It is also possible to integrate a CSP power plant with a backup heater in order to enhance the capacity factor of the plant (see Section 1.4). Research is still going on to improve the performance of the CSP system.
Technology is developed in stages from conceptualization of the idea to commercialization, and the degree of maturity increases with stage number. Technology maturity is a good indicator of the closeness of a technology to commercial application (Selman & Chen, 2012). In this context, CSP is a matured technology, with commercial power plants operating in different parts of the world. The weighted average levelized cost of CSP-based electricity dropped from 0.346 USD/kWh in 2010 to 0.182 USD/kWh in 2019 and predicted to decline further to 0.075 USD/kWh for projects commissioned in 2021 (International Renewable Energy Agency, 2020b). These data show that CSP is currently uncompetitive with coal (0.080 USD/kWh), but it is expected to a ain parity with this fossil fuel in future. Nevertheless, CSP is competitive with other fossil-fuel technologies such as gas turbines and diesel generators at present (Labordena et al., 2017). In this vein, the global cumulative capacity of the CSP technology has been increasing over the past decade, reaching a level of 6289MW in 2019 as shown in Fig. 1.4 that is based on data from (International Renewable Energy Agency, 2020a).

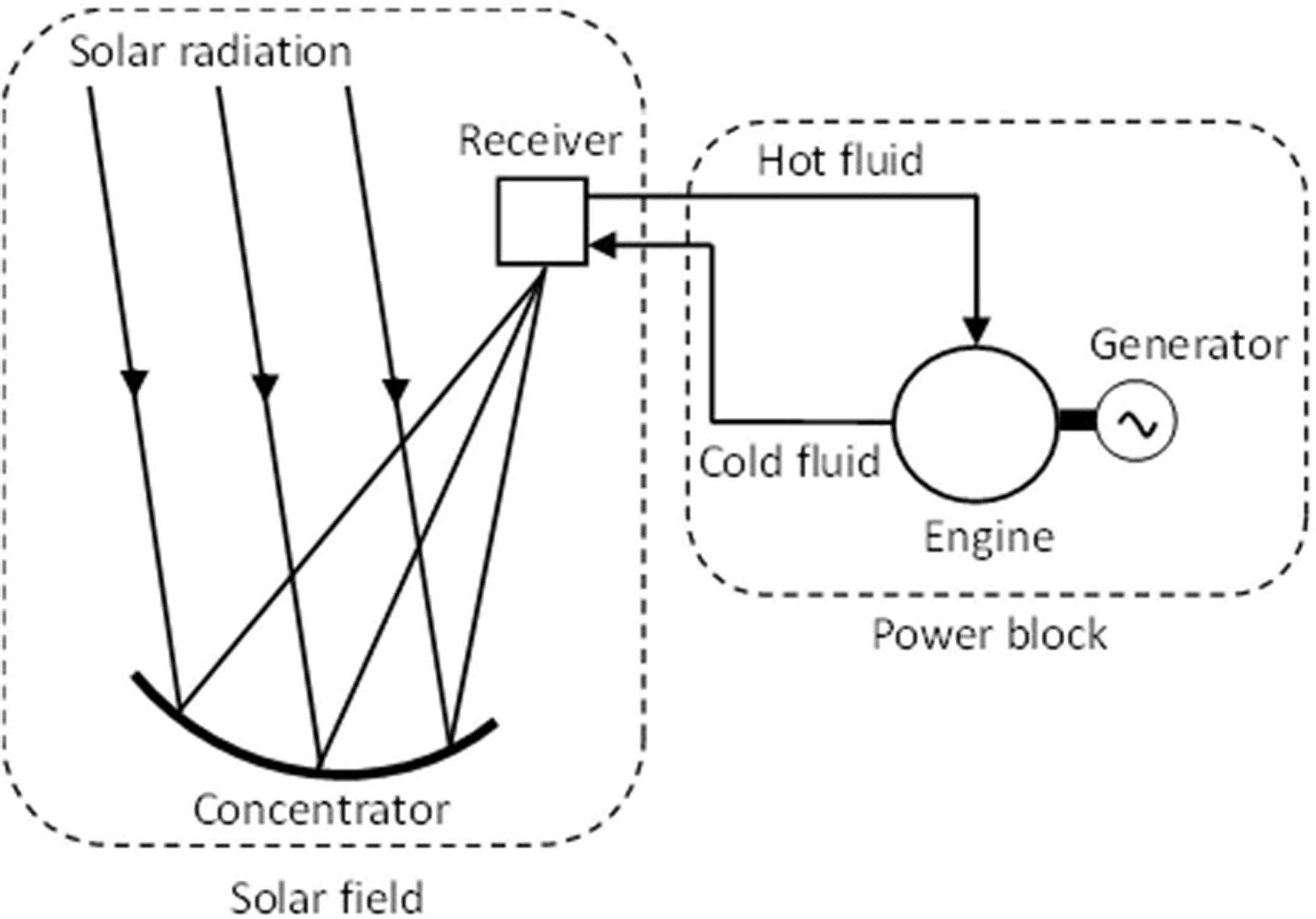

FIGURE 1.3 Components of a basic concentrating solar power system.
1.2. Concentrator
A concentrator is an optical device that focuses solar radiation from the sun onto a small area of the receiver. It is made up of a set of reflecting mirrors (or lenses). The plane opening of the concentrator through which solar radiation passes is referred to as an aperture. In this vein, the aperture of a point concentrator is characterized by the diameter of the opening, while the aperture of a linear concentrator is characterized by the width of the opening.
FIGURE 1.4 World cumulative capacity of concentrating solar power. Drawn by author using data from International Renewable Energy Agency (2020a).
1.2.1. Classification of concentrators
Concentrators are classified into imaging and nonimaging categories. In imaging systems, parallel rays from the sun are focused on a line or point. Linear concentrators such as the parabolic trough and linear Fresnel reflector (LFR) are imaging concentrators that focus solar radiation on a line. Linear imaging concentrators with parabolic cross section are exploited in applications requiring intermediate concentration ratios and temperatures. Circular concentrators such as the parabolic dish and solar tower (ST) are imaging concentrators that focus solar radiation on a point, and these systems are utilized in applications that require high concentration ratios and temperatures.
On the other hand, nonimaging concentrators do not form an image of the sun, and they have a low concentration ratio. Consequently, they are not suitable for use in industrial applications that require a high range of temperature such as driving engine
cycles to generate electricity. These concentrators can operate seasonally or annually with negligible need of tracking. In addition, nonimaging concentrators can reflect to the receiver all of the incident solar radiation on the aperture across ranges of incidence angles within broad limits (Duffie & Beckman, 2013). The acceptance angle of the concentrator is defined by these limits. Even the diffuse radiation within these angles contributes to the input solar energy to the collector because all the radiation incident within the acceptance angle is reflected to the receiver. A compound parabolic concentrator is an example of nonimaging concentrators. This system can harness both beam and diffuse components of solar radiation, and it can be operated without sun tracking.
1.2.2. Concentration ratio
The concentration ratio of a concentrator (Cr) can be defined in two ways (Ameer & Shahad, 2017). The first definition is based on the geometry of the concentrator, and it is therefore called the geometric or area concentration ratio, while the second definition is based on the radiation intensity, and it is known as the intensity or flux concentration. The area concentration (Cr,area) is the ratio of the effective area of the aperture to the surface area of the absorber:
(1.1)
The upper limit of Cr,area depends on the number of dimensions of concentration. A two-dimensional (linear) concentrator such as a parabolic trough focuses radiation on a line, while a threedimensional concentrator such as a parabolic dish focuses radiation on a point. There is an upper limit of the concentration ratio, and this limit is derived from the second law of thermodynamics applied to the radiative heat exchange between the sun and the receiver (Rabl, 1976). Suppose a circular concentrator with aperture area (Aap) focuses radiation from the sun of radius (r) onto a receiver area (Arec) as shown in Fig. 1.5. The concentrator is located at distance R from the sun that subtends an angle 2θs on the concentrator.
FIGURE 1.5 Schematic representation of sun at a temperature Ts and distance R from a concentrator with aperture area Aap and receiver area Arec. Adapted from Rabl (1976).
Assuming the concentrator is perfect, then the aperture intercepts a proportion of the radiation emi ed by the sun. For approximate analysis, the sun can be assumed to be a blackbody at a temperature T=Ts:
