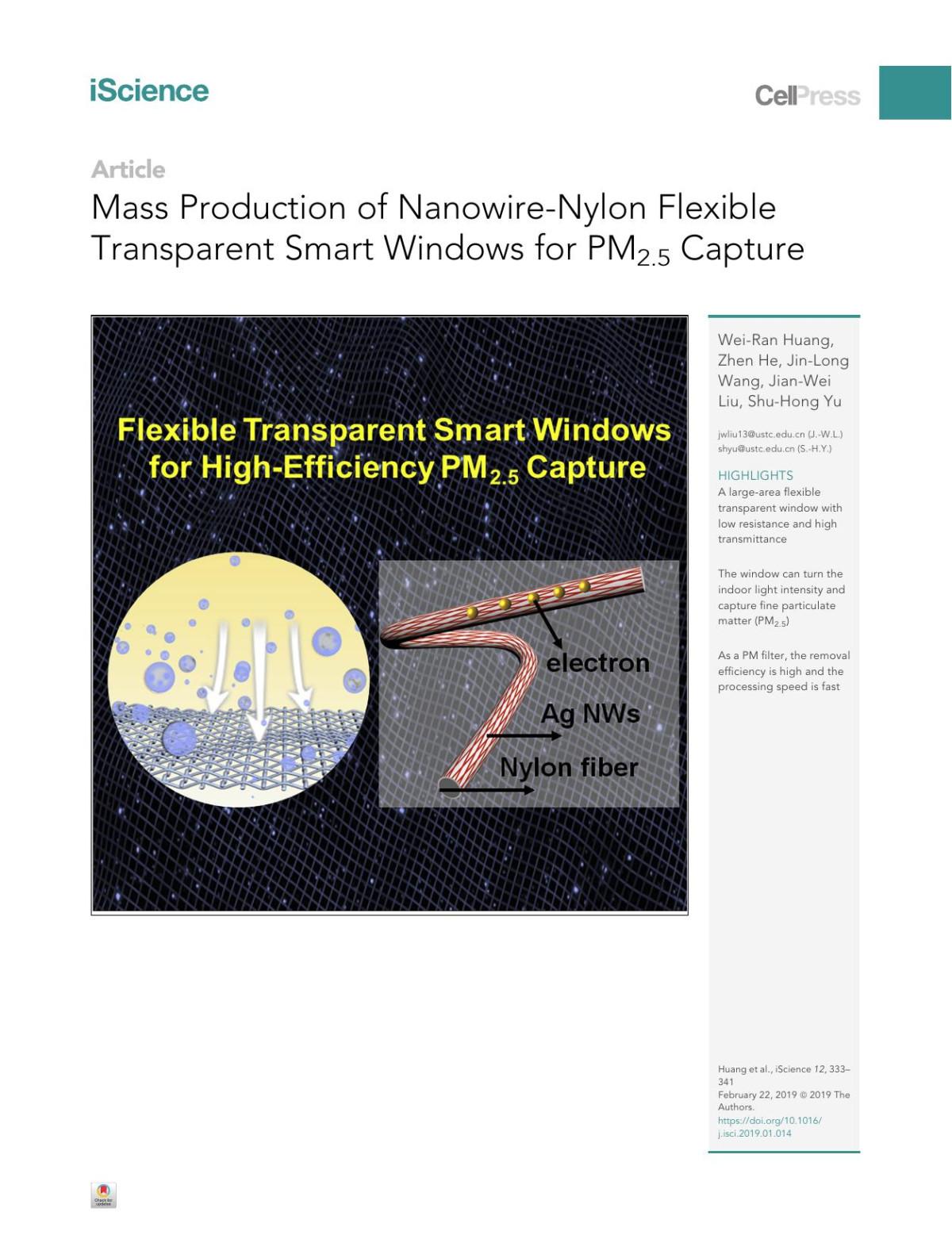

MassProductionofNanowire-Nylon FlexibleTransparentSmartWindows forPM2.5 Capture
Wei-RanHuang,1 ZhenHe,1 Jin-LongWang,1 Jian-WeiLiu,1,* andShu-HongYu1,2,*
SUMMARY
Designinglarge-areaflexibletransparentsmartwindowsforhigh-efficiencyindoorfineparticulate matter(PM2.5)captureisimportanttoguaranteesafeindoorenvironments.Inthisarticle,wedemonstratethatlarge-areafabricationofflexibletransparentAg-nylonmeshcanbeperformednotonlyto turntheindoorlightilluminationintensityasthermochromicsmartwindowsafteruniformlycoating withthermochromicdyebutalsotopurifyindoorairashigh-efficiencyPM2.5 filter.Ittakesonlyabout $15.03and20mintofabricate7.5-m2 Ag-nylonflexibletransparentwindowswithoutanymodificationwithasheetresistanceofaslowas8.87 U sq 1 andopticaltransmittanceof86.05%.AsanexcellentPMfilter(canberecycledafterPMfiltration),theremovalefficiencyisashighas99.65%andthe processingspeedishigh,whichcanreducethePM2.5 densityfromheavilypolluted(248 mg m 3,purplealert)togood(32.9 mg m 3,greenstatement)in50s.
INTRODUCTION
Flexibletransparentelectronicshavedrawngreatattentionbecauseoftheirexcellentperformancebothin mechanicalflexibilityandopticaltransmittance,whichwerewidelyusedinscreendisplay( Baeetal.,2010; Hanetal.,2014;Barietal.,2016 ),organiclight-emittingdiodes(Zhangetal.,2006;Wuetal.,2010;Lee etal.,2017 ),transparentsupercapacitors(Moonetal.,2017;Leeetal.,2016),flexibletransparentheaters ( Hongetal.,2015;Jietal.,2014 ),andsolarcells(Wangetal.,2008;Leeetal.,2012).Inrecentyears,awide scopeofstrategiesareavailabletoconstructflexibletransparentelectrodesforadvancedelectronics,such asthebubbletemplate(Tokunoetal.,2012),thecoffeeringeffecttemplate(Layanietal.,2009 ),polymer nanofibertemplate(Wuetal.,2013),nanowire(NW)assembly(Liuetal.,2013,2014),roll-to-rolltechniques ( Baeetal.,2010),inkjetprintingmethod( Jiangetal.,2016),andMayerrodcoating(Huetal.,2010).However,thesestrategiescanhardlymeettherequirementsofthemanymodernoptoelectronicdevices, becausetheirfabricationprocesseshighlyrelyonexpensivescientificequipmentorsophisticatedmaterial processingsteps.Inaddition,theseprocessesarecomplexwithhighcostandsmallarealimitation,which greatlylimittheirwideapplications.Forexample,deWithetal.reportedasolution-processedmethodto preparelarge-areagraphenefilmwithanareaof50cm2 forconductive,flexible,andtransparentelectrodes,whichshowedconductivityof800 U sq 1 andtransmittanceof45%at500nmwavelength( Arapov etal.,2015).Liuetal.reportedahexane-air-interface-inducedassemblymethodtoconstructgrapheneoxidefilmsforflexibleandtransparentelectrodeswithconductivityof476 U sq 1 andtransmittanceof76%at 550nm(50cm 2 )(Fanetal.,2015).
Meanwhile,nearlyallflexibletransparentelectrodesareconstructedbycoatingconductivenano-building blocks(nobleNWs,carbonnanotube,orgraphene)onflexiblesubstrates,whicharewindtight.Combining functionalnanoscalebuildingblockswithcommercialskeletonnotonlylowersthecostofapplicationbut alsodoesitinawaythatmanagestosolvethemajori ssuesinthefieldofnanoscienceandnanotechnology andacceleratesthepaceofpracticabilityinreality.Forexample,commercialspongewasselectedto combinewithnanomaterialsforoilspillremediation( Geetal.,2014).Inaddition,carboncloth(Liu etal.,2012)andgraphene-basedfibers( Zhouetal.,2018)werealwaysusedaselectrodesforbatteries andsupercapacitors.Thatis,NW-nylonmeshesaretransparent,flexible,andporous;havestrongaffinity toairpollutants;andthereforeshowhighremovalefficiencyatlowpressuredrop( Jeongetal.,2017).
Herein,wedevelopasimplestrategyforthefabricationoflarge-areaflexibletransparentthermochromic smartwindowsforhigh-efficiencyfineparticulatematter(PM2.5 )capture( Linetal.,2018;Liuetal.,2015).It takesonlyabout$15.03and20mintofabricate7.5-m2 Ag-nylonelectrodesinairwithoutanymodification
1DivisionofNanomaterials& Chemistry,HefeiNational LaboratoryforPhysical SciencesattheMicroscale, CASCenterforExcellencein Nanoscience,Collaborative InnovationCenterofSuzhou NanoScienceand Technology,Departmentof Chemistry,HefeiScience CenterofCAS,Universityof ScienceandTechnologyof China,Hefei230026,China 2LeadContact
*Correspondence: jwliu13@ustc.edu.cn (J.-W.L.), shyu@ustc.edu.cn (S.-H.Y.) https://doi.org/10.1016/j.isci. 2019.01.014
iScience 12,333–341,February22,2019 ª 2019TheAuthors. ThisisanopenaccessarticleundertheCCBY-NC-NDlicense(http://creativecommons.org/licenses/by-nc-nd/4.0/). 333
Figure1.FlexibleTransparentConductiveAg-NylonElectrodes
(A)Schematicillustrationofthefabrica tionofconductiveAg-nylonelectrodes.
(B)Photographofalarge-scaleconductivenylonmesh.Inset:photographofAgNWinkusingethanolasasolventwitha concentrationof3.92mgmL 1

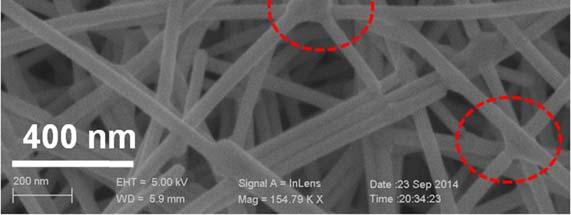

(CandD)SEMimagesofAg-nylonmesheswithdifferentmagnifi cations.Inset:SEMimageofinitialnylonmesheswithout anyAgNWs.
havingasheetresistanceofaslowas8.87 U sq 1 with86.05%opticaltransmittance,anditiseasyforusto furtherexpandproduction(TableS1 in SupplementalInformation).Thetime-dependenttemperature profilesanduniformheatdistributionshowthattheobtainedAg-nylonelectrodescanbeusedasanideal intelligentthermochromicsmartwindowwithexcellentmechanicalstabilitywhoseperformanceremains stableevenafter10,000bendingcyclesofbendingtestwithaminimumbendingradiusof2.0mmand 1,000cyclesofstretchingdeformationwithmecha nicalstrainashighas10%.Inaddition,theAg-nylon electrodescanbeconstructedforPMfiltershowingaremovalefficiencyof99.65%andmaintainingstable evenaftrer100cyclesofPMfiltrationandcleaningprocess.
RESULTS
FabricationofAg-NylonElectrodes
Ourapproachforproducinglarge-areaAg-nylonNWelectrodesisthroughaone-stepcoatingprocessusingcommerciallyavailablenylonclothassubstrateandAgNWethanolsolutionasink,whichisillustratedin Figure1A(VideoS1 in SupplementalInformation).First,high-qualityAgNWswithdiameter60–80nmand length20 m m( FigureS1)weresynthesizedusingthepolyolgrowthprocessreportedpreviouslybyYang etal.withsomemodifications(Yangetal.,2011).Beforethefabricationprocedure,commercialnylon wascleanedwithalcoholandthenacetone,thensubjectedtoultrasonictreatmentfor30min,anddried at60 C.Subsequently,AgNWethanolsolutionwithaconcentrationof3.92mgmL 1 (insetof Figure1B) wasusedasaconductiveinktodyethenylonmeshtoconstructlarge-area(7.5m 2 )conductiveandtransparentelectrodes(Figure1B).AfterfullinfiltrationintheAgNWethanolsolution,thebarenylonmeshwas
graduallycoatedwithafilmofAgNWswithincreasingdippingcycles,owingtothehydrophilicsurfaceof boththenylonfiberandAgNWs.Fromscanningelectronmicroscopic(SEM)imagesin Figures1Cand1D, itisfoundthatthedistributionofAgNWsonthefiberisveryuniform.Thewholepreparationprocessis simpleandisfeasibletooperateinairatroomtemperature.Inaddition,itdoesnotneedspecialapparatus andissuitableformassproductionandpromotionwithlowcost(seeCostaccountingofAg-nylonelectrodesin SupplementalInformation).
OpticalTransmittanceandElectricalConductivityofAg-NylonElectrodes
TheopticaltransmittanceandelectricalconductivityoftheobtainedAg-nylonelectrodescanbeoptimized bycontrollingthedensityoftheAgNWcoatingonthesurfaceofthenylonskeletonbytuningthenumberof dip-coatingcyclesortheconcentrationo ftheAgNWsolution.Afterannealingat140 Cfor15min( Figures S2 and S3),thetransmittanceandsheet resistancewererecordedbyUV-2501PC/2550(ShimadzuCorporation,Japan)andPM5AnalyticalProbeSystem(CascadeMicrotech,Inc.)coupledwithaKeithley4200SCSin ametal-shieldedboxwithfour-pointprobesinwhichthesheetresistancevaluesweretheaverageof10 measurementsonthesamesample. Figure2AshowstheopticaltransmittanceoftheAg-nylonnetworks withtheAgNWinkconcentrationof3.92mgmL 1 fordifferentdippingcycles.Itiswellknownthat 550nmisthemeanwavelengthofvisiblelightandisthemostsensitivewavelengthregionforhuman beings.Theopticaltransmittanceofbarenylon meshwithoutanyAgNWcoatingisabout98.8%at 550nm.Duringthefirst10dippingcycles(cycles1,2,3,4,6,8,and10),thetransmittancechangedfrom 95.02%to92.79%,91.35%,88.20%,86.05%,83.54%,and81.40% ,respectively.Thecorrespondingelectrical conductivitiesoftheAg-nylonelectrodesduringthedippingprocessareshownintheinsetof Figures2A and2B.WithanincreaseindippingcyclesandkeepingtheconcentrationofAgNWinkconstant,the conductivitiesoftheAg-nylonelectrodesbecomehigher,showingagradualdropinthetransmittance duringthefirst10cycles.Forthesixthdip-coating cycleofAg-nylonmesh,thetransmittancewas86.05% whilethesheetresistancewas8.87 U sq 1 ,indicatingthattheconductiveAg-nylonelectrodescancombine excellenttransmittancewithlowsheetresistance,whicharemuchbetterthanthoseof80-nmindiumtinoxides(ITO,85%,62 U sq 1 )( Kimetal.,1999).TheelectricalconductivityoftheAg-nylonnetworkcanbealso tunedbychangingtheconcentrationoftheAgNWsolution( Figure2B).WhentheconcentrationoftheAg NWsolutionchangesfrom3.92mgmL 1 to12.08mgmL 1 ,thesheetresistanceofmeshcanachieve341.25 U sq 1 aftertwodip-coatingprocessesanddecreasesto1.40 U sq 1 quicklyin10dip-coatingcycles. Figure2CillustratesthechangeintransmittanceandconductivityofAg-nylonelectrodesasafunctionofthe masscontent.ItisfoundthatthetransmittanceandsheetresistancedecreasealmostlinearlywiththeincreaseofthemasscontentofAgNWs. Figure2Ddepictsthesheetresistanceversusopticaltransmittance (at550nm)oftheAg-nylontransparentconductiveelectrodesreportedhereandAgnetworkspreparedby otherdifferentmethods( Baeetal.,2010;Hanetal.,2014;Huetal.,2010;Guoetal.,2013).Itisindicatedthat theobtainedconductiveAg-nylonelectrodesachievebettertransmittanceandconductivitythanmany othermaterials,suchasAgNWelectrode(81.7%,38 U sq 1 )(Huetal.,2010 ),CuNWelectrode(78.1%, 23.3 U sq 1 )(Guoetal.,2013),andAunanomesh(82.5%,20 U sq 1)( Guoetal.,2014).
MechanisticInvestigationofAg-NylonElectrodes
Itiswellknownthatmechanicalflexibilityandstabilityaretwoimportantfactorsforthelonglifeofflexible transparentelectronics.TheobtainedAg-nylontransparentelectrodesexhibitaconstantresistance, whichshowsalmostnodegradationevenafter10,000cyclesoffatiguetestwithaminimumbendingradius of2.0mm,indicatingtheirexcellentmechanicalflexibilityandstability. Figure2Eshowsthattheresistance valuewasconstantduringthecyclicbendingtest,whichwascarriedoutwithahigh-precisionmechanical system(Instron5565A)andaKeithley4200SCSinaclean, metal-shieldedbox.Totestthestabilityofthe Ag-nylonflexibletransparentelectrodes,fatiguetestwascarriedoutin Figure2F,whichshowsgoodconductivitywithelectricalresistanceonlychangingfrom15.2to19.3 U aftermorethan10,000bendingcycles indicatingitsexcellentstabilityandreversibility. Moreover,theAg-nylontransparentelectrodesdepict outstandingstretchableproperties.ItwasfoundthatthestructureandresistanceoftheAg-nylontransparentelectrodesshownodegradationduringthe10%tensiondeformationevenafter1,000stretching cycles( FigureS4),whichisbetterthanthoseoftraditionalITOheaterandgraphene-basedheaters,which canonlyendure1.10%and4.0%tensilestrain,respectively(Kangetal.,2011).
IntelligentThermochromicWindow
Theintelligentthermochromicwindowcanchangeitscolorortransmittanceinresponsetothermalstimulus( ParkinandManning, 2006;Seebothetal.,2014 ).Koetal.evencombinedthethermochromicdyewith

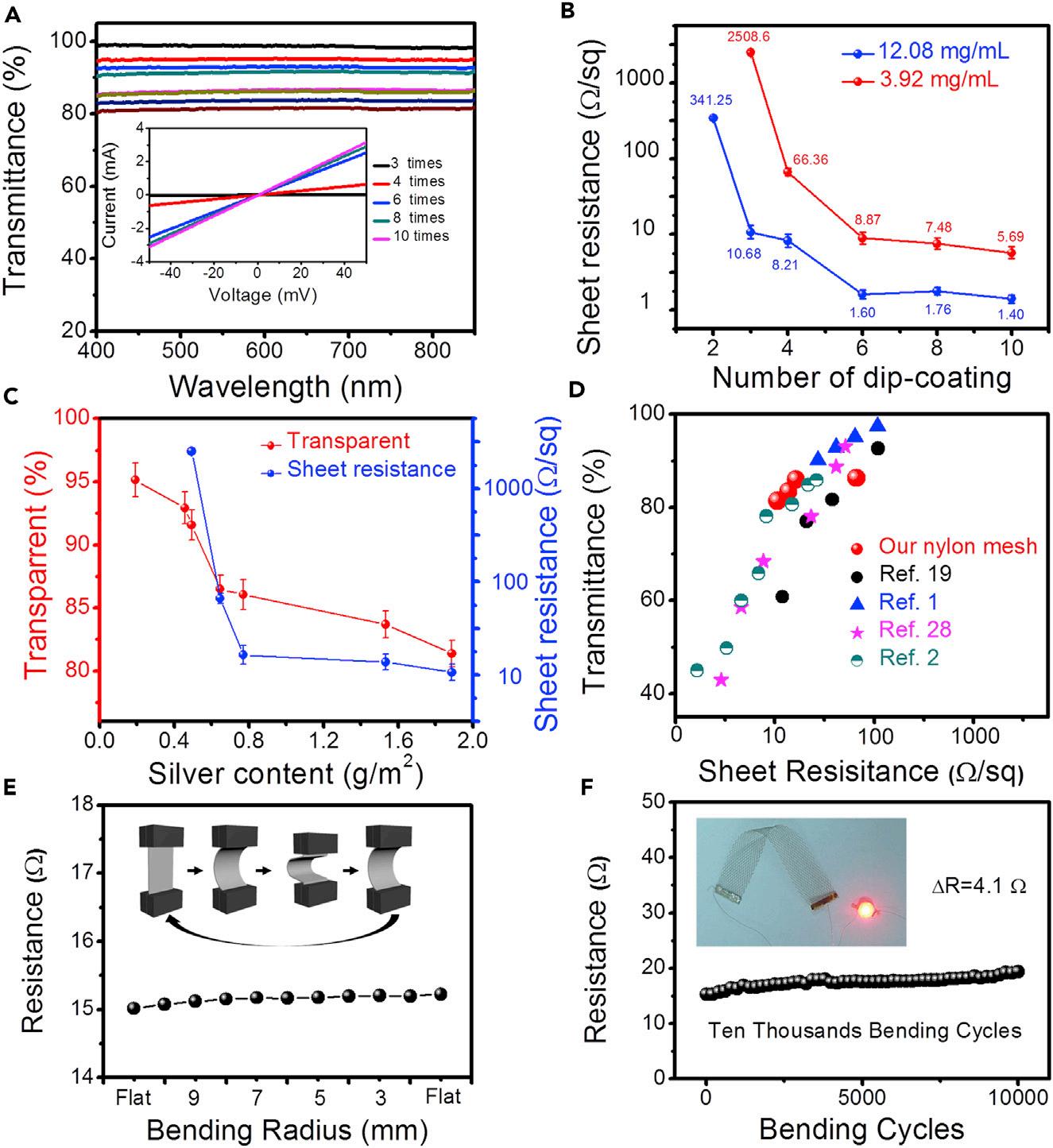

Figure2.OpticalTransmittance,Elec tricalConductivity,andMechanicalPerformanceofAg-NylonElectrodes (A)OpticaltransmittanceoftheAg-nylonelectrodeswithdifferentdippingcycleswithAgNWsolutionconcentrationof 3.92mgmL 1.Fromtoptobottom,thenumbersofdippingcyclesare0,1,2,3,4,6,8,and10.Inset:current-voltage characteristicofconductiveAg-nylonelectrodeswithdifferentdippingcycles.
(B)SheetresistanceofconductiveAg-nylonelectrodesa safunctionofdifferentdip-coatingcycleswhenthe concentrationis3.92mgmL 1 and12.08mgmL 1
(C)SilvercontentasafunctionofsheetresistanceandopticaltransmittanceofAg-nylonelectrodes.
(D)Comparisonofsheetresistanceandtransmittancetakenfromourworkandotherreportedreferences.
(E)Electricalresistancechangeasafunctionofthedifferentdegreesofbendinginthefirstbendingcycleatabending radiusofupto2.0mm.Inset:schematicillustrationof thecyclicbendingtestundermechanicaldeformation.
(F)Ag-nylonelectrodeskeepstableduring10,000bendingcyc les.Inset:photographofflexibleconductivenylonmeshes completinganelectricalcircuitwithapowersourceandaredlight-emittingdiode.Errorbarscorrespondtotheaverage takenoveratleast30measurements.
biomimeticcolor-changingandsoftrobotics(Kimetal.,2018).Ag-nylonelectrodeswithhighheating efficiencywhenapplyingadirectvoltagewereselectedastheskeletontofabricatereversiblyflexiblethermochromicsmartwindowsbysprayingthermochromicdyedispersedinacetoneat60 C,asdemonstrated in Figure3.AfterdirectvoltageisappliedtotheAg-nylonelectrodes(R s =4.2 U sq 1 ,validheatingarea: 50mm 3 50mm),thesurfacetemperatureincreasesoverti meuntilreachingasteady-statetemperatureis reached,asshownin Figure3A.Itisfoundthathigherappliedvoltagesresultinfasterheatingrate,andthe steady-statetemperatureoftheAg-nylonconductivemeshincreasesobviouslywithaslightincreaseofthe appliedvoltagefromthetime-dependenttemperatureprofiles.Indetail,thesteady-statetemperature risesfrom33.3 C,42.6 C,54.4 C,71.0 C,82.5 Cto105.1 C,whenthecorrespondingappliedvoltages are1.0V,1.5V,2.0V,2.5V,3.0V,and3.5V,whichismuchsmallerthanthoseofmosttraditionalnanostructuredheaters,suchasgraphenefilm(60V)(Suietal.,2011),trilayergraphenefilm(30V)(Baeetal.,2012), single-walledcarbonnanotubefilm(12V)(Yoonetal.,2007),AgNWfilm(7V)(Kimetal.,2013),andAg
Figure3.Ag-NylonFlexibleTran sparentThermochromicWindows
(A)Time-dependenttemperatureprofilesofflexibletran sparentAg-nylonfilmswithdi fferentappliedvoltage.
(B)ReversibletemperatureswitchingoftheAg-nylonfilms.Inset:infraredpicturesbetweenheatingandcoolingstates.
(C)Enlargedplotsfrom6,000to9,000s.
(D)Illustrationofthethermochromicprocess.
(E–G)ThermochromicswitchingperformanceofAg-nylonwindows.(E)Responsetimeofasinglethermochromictest.(F)Thermochromicswitchingtest for 7,000s.(G)Enlargedplotsfrom1,700to2,500s.
NWs/PEDOT:PSSfilm(6V)(Jietal.,2014).Mostimportantly,theresponsetimefromroomtemperatureto thesteady-statetemperatureofAg-nylonelectrodes(50s)isshorterby83.33%thanthatofgraphene (300s)(Baeetal.,2012),by16.67%thanthatoftheAgNWs(60s)( Kimetal.,2013),andby50%than thatoftheAgNWs/poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate)(PEDOT:PSS)film(100s)(Ji etal.,2014 ).TofurthercontroltheheatingpropertyoftheAg-nylonsubstrate,continuoussquare-wave voltagesareapplied,from1.0V,1.5V,2.0V,2.5V,3.0V,3.5Vto4.0V.Asexpected,thetemperatureexperiencesanorbitofregularechelonrisingasshownin FigureS5.Electricpulses(pulsewidth=60s,+3V) wereapplied,and Figures3Band3Cshowthatthedevicesgivefairlyreproducibleresultsforthehigh-and low-temperatureswitchingphenomena.Afterlong-timeswitchingcycles,thetemperatureoftheelectrode remainsuniforminthewholearea(insetof Figure3B)andisverysensitivetotheinputvoltage(dynamic responsetotemperature),showingnodegradation.In addition,asaversatilestrategy,variousAg-nylon electrodepatterns,suchasacircle,squarering,triangularring,andrectangularring,weredesigned showingauniformheatingperformanceandflexiblewaytomanipulatetheheatingarea(FigureS6).After uniformlycoatingwiththermochromicdye( FigureS7),theflexibleAg-nylonthermochromicfilmshows reversibletransmittanceswitchingwhentheinputvoltageisonandoff(Figure3D).Whenadirectvoltage of5.5Visapplied,ittakes30stochangeitscolorfromblacktowhite(orchangeblanktoblack)(Figure4 E, VideoS2 inSupplementalInformation),whichismuchfasterthanthepreviousreports,suchas
Figure4.PMFiltrationofFlexib leTransparentAg-nylonWindows
(A)AschematicdiagramillustratingthePMfiltrationprocess.
(B)OpticalphotographoftheexperimentalsetupforPMcapture.
(C)EvolutionofPM 2.5 densitiesinrealtimefrom0to30sunderanappliedvoltageof10V.
(D)EvolutionofPM 2.5 andPM 10 densitiesfrom30to120sunderthesamevoltage.

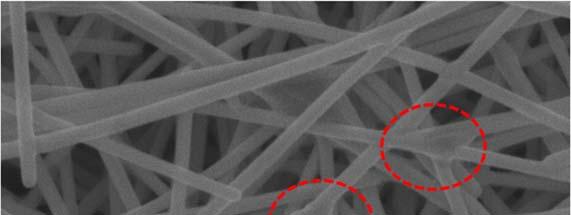

(E–G)SEMimagesofAg-nylonfilmasPMfilterfor(E)as-fabricated,(F )afterPMfiltration,and(G)aftercleaningprocess,respectively.
(H)CorrespondingFTIRspectraofas-fabricatedPMfilt er,PMfilterafterfiltration,andrecycledPMfilter. (I)RecycledPMfilterfor100cycles.
TiO2 (R)/VO2 (M)/TiO2 (A)multilayerfilm(180s)( Zhengetal.,2015),VO2 /TiNsmartcoatings(150s)(Hao etal.,2018),andsingle-wallednanotube/VO2 /micahierarchicalfilms(50s)(Chenetal.,2017a).Moreimportantly,fromthefirstcycletolong-timecycles( Figures3Fand3G),on-offratioremainsalmostconsistent (100%)withnodegradation,suggestingastab lereversiblethermochromicsmartwindow.
High-EfficiencyPM 2.5 Capture
Theobtainedlarge-areaAg-nylonthermochromicsmartwindowsalsoshowpotentialsforhigh-efficiency PM2.5 capture.Asweknow,particlepollutioninairisoneofthemostseriousissuesthatmaycause diseases,allergies,andalsodeathofhumansorotherlivingorganismssuchasanimalsandfoodcrops. ManynovelmethodshavebeenreportedtoreducethedensityofPMinair,suchasstaticelectricity adsorption( Jeongetal.,2017;Guetal.,2017;Hanetal.,2015),polymerfiberfiltration( Liuetal., 2015;Khalidetal.,2017;Xuetal.,2016;Zhangetal.,2016 ),andmetal-organicframeworkmaterials ( Chenetal.,2017b ).Seung’sgroupreportedaworkinthefieldofPM2.5 filtrationbyemployingthenegativeionizertoreducetheappliedvoltage(Jeongetal.,2017). Figures4Aand4BshowthePMfiltration processandexperimentalsetup,whiletheclose-upviewonthelowerrightin Figure4Bshowsthe transparentAg-nylonwindows.ThePMcountersensorsplacedattheleftandrightsidesofthechamber recordthePMdensityattheinletandoutlet,respectively.Inthecenterofthechamber,anegative ionizerwasplacedtochargethePM.TheflexibletransparentAg-nylonwindowsasPMfilterswere insertedatbothendsofthechambertocollectandremovePMintheair.Beforestartingtheexperiment,PMfilledtheleftsideofthechamberbyburningsandalwood.Then,sanderscontinuously
producedPMparticlestotheleftsideofthechambernearthenegativeionizer.Afterionizationbythe negativeionizer,astablevoltageof10VwasappliedtotheAg-nylonfilms. Figures4Cand4Dshowthe evolutionofPMdensitiesinrealtimeundertheappliedvoltageof10V.UsingourAg-nylonwindows,it takesonly10storeducethedensityofthePM2.5 from3,922 m g m 3 to922 mg m 3 .Moreimportantly, thePM2.5 densitywasreducedfromheavilypolluted(248 m g m 3 ,purplealert)togood(32.9 m g m 3 , greenstatement)afteronly50s(lessthan1min)whilethePM10 densitychangefollowedthesimilar trendsasshownin Figure4D.Asaresult,theefficiencyofAg-nylonwindowsforPMcapturewas morethan99.65%,whichisbetterthanthoseofnumerousreportedones,suchaspolymernanofiberfilter(98.69%)( Liuetal.,2015),ZIF-8@glasscloth(96.8%)(Chenetal.,2017b),blow-spinningofnanofibers (99%)( Khalidetal.,2017 ),andtriboelectricnanogeneratorenhancednanofiberairfilters(90.6%)(Gu etal.,2017 ).Ontheotherhand,theAg-nylonwindowscanberecycledafterPMfiltrationjustbycleaning intheethanolfor20minasshownin Figures4E–4G, S8,and S9.Anobviousyellowish-brownarea appearedatthecenterofAg-nylonelectrodeafterPMfiltrationanddisappearedafterthecleaning process( FigureS10).Thecollectedparticleswerecompletelyremovedbythesimplewashingprocess, whichwasfurtherconfirmedbythecorrespondingFouriertransforminfrared(FTIR)spectra(Figure4H) andX-rayphotoelectronspectroscopic(XPS)analysis( FigureS11).Itwasfoundthattheobviouslyweakenedsignalsfrom1,000cm 1 to1,200cm 1 inFTIRspectraandobviouslyweakenedC=Obondat287.7 eVandN-Cbondat399.5eVinXPSpatternswerereinforcedagainafterthewashingprocess.TheexcellentPMcaptureperformanceandreusabilityoftheAg-nylonwindowswerefurtherdemonstratedbythe long-timerecycling( Figure4I).After100cyclesofPM2.5 capture,theremovingefficiency(99.65%)and thesheetresistanceoftheAg-nylonwindowsremainedstablewithoutobviouspropertydegradation. Lastbutnotleast,thankstothemassproductionabilityoftheAg-nylonelectrodes,wecaneasilyexpand thespaceforPM2.5 removal.Forexample,a0.5 3 0.5-m 2 Ag-nylonwindowwasselectedtotreatair pollutioninalargecubewithsidelengthof0.5m( FigureS12)andtheefficiencywasstillashighas 99.48%,indicatingthatthesmartwindowsshowrealpotentialforindoorPM 2.5 capture.Asshownin FigureS13 ,flexibletransparentAg-nylonwindowsalsohaveaverylowpressuredropof14.43Paatgasvelocityof0.2m/s.ItensurestheexcellentventilationofPM2.5 captureindailylife.
DISCUSSION
Inconclusion,wedemonstrateaversatilestrategyforlarge-areafabricationofAg-nylonelectrode(7.5m2 ) in20minwithanopticaltransmittanceof86.05%andconductivityof8.87 U sq 1 forhigh-performance thermochromicsmartwindowsandPM2.5 capture.TheflexibletransparentandstretchableintelligentthermochromicsmartwindowwithuniformNWcoatingenablesreversiblecolorchangewithfastresponse timeunderlowdirectvoltagestimulus.Moreimportantly,thelarge-areaAg-nylonsmartwindowexhibits excellentPM2.5 removalperformancethatmainlycomesfromfourfeatures.First,ithasahighremovalefficiencyof99.65%.Ittakesonly50storeducethePM 2.5 densityfromheavilypolluted(248 mg m 3 ,purple alert)togood(32.9 m g m 3 ,greenstatement).Second,theAg-nylonwindowscanberecycledafterPM filtrationjustbydippinginethanolfor20min.Thereisnoremovalefficiencydegradationafter100cycles ofreuse.Third,itiseasytoexpandthespaceforPM2.5 capture;forexample,theremovalefficiencyremains upto99.48%whenthevolumeincreasesto0.5m 3 0.5m 3 0.5m.Finally,suchamaterialshowsexcellent mechanicalstability.Thestructureandperformanceremainstableevenafter10,000bendingcyclesof bendingtestwithaminimumbendingradiusof2.0mmand1,000cyclesofstretchingdeformationwith mechanicalstrainashighas10%.Thesuccessofthepresentdesignstrategyprovidesmorechoicesin developingnext-generationflexibletransparentsmartwindowsandairpollutionfilters.
LimitationsofStudy
WehavedesignedandfabricatedAg-nylonmeshe sasflexibletransparentsmartwindowsforPM 2.5 capture.AgNWsarenotverystableinairduetothereactionwithSelementintheatmosphere.The electrodeswouldbecomealittlepaleyellowafter1yearofexposuretoair.
METHODS
Allmethodscanbefoundintheaccompanying TransparentMethodssupplementalfile
SUPPLEMENTALINFORMATION
SupplementalInformationincludesTransparent Methods,13figures,1table,and2videosandcanbe foundwiththisarticleonlineat https://doi.org/10. 1016/j.isci.2019.01.014
ACKNOWLEDGMENTS
WeacknowledgethefundingsupportfromtheNationalNaturalScienceFoundationofChina(grants 21761132008,21771168,21431006,51471157,and21403204),theFoundationforInnovativeResearch GroupsoftheNationalNaturalScienceFoundationofChina(grant21521001),KeyResearchProgramof FrontierSciences,CAS(grantQYZDJ-SSW-SLH036),t heNationalBasicResearchProgramofChina(grant 2014CB931800,2013CB931800),andtheUsers withExcellenceandScientific ResearchGrantofHefeiScienceCenterofCAS(2015HSC-UE007)andtheFundamentalResearchFundsfortheCentralUniversities (WK2100000005).ThisworkwaspartiallycarriedoutattheUSTCCenterforMicroandNanoscaleResearch andFabrication.
AUTHORCONTRIBUTIONS
S.-H.Y.conceivedanddesignedtheexperiments.S.-H.Y.andJ.-W.Lsupervisedtheresearch.W.-R.H.,Z.H., andJ.-L.W.carriedouttheexperimentsandcharacterizations.W.-R.H.,Z.H.,J.-L.W.,J.-W.L.,andS.-H.Y. analyzedthedataandco-wrotethemanuscript.
DECLARATIONOFINTERESTS
Theauthorsdeclarethattheyhavenoconflictsofinterestwiththecontentsofthisarticle.
Received:October26,2018
Revised:December23,2018
Accepted:January8,2019
Published:February22,2019
REFERENCES
Arapov,K.,Goryachev,A.,deWith,G.,and Friedrich,H.(2015).Asimpleandflexiblerouteto large-areaconductivetransparentgraphenethinfilms.Synth.Met. 201,67–75
Bae,S.,Kim,H.,Lee,Y.,Xu,X.F.,Park,J.S.,Zheng, Y.,Balakrishnan,J.,Lei,T.,Kim,H.R.,Song,Y.I., etal.(2010).Roll-to-rollproductionof30-inch graphenefilmsfortransparentelectrodes.Nat. Nanotechnol. 5,574–578
Bae,J.J.,Lim,S.C.,Han,G.H.,Jo,Y.W.,Doung, D.L.,Kim,E.S.,Chae,S.J.,TaQuang,H.,Nguyen Van,L.,andLee,Y.H.(2012).Heatdissipationof transparentgraphenedefoggers.Adv.Funct. Mater. 22,4819–4826
Bari,B.,Lee,J.,Jang,T.,Won,P.,Ko,S.H., Alamgir,K.,Arshad,M.,andGuo,L.J.(2016). Simplehydrothermalsynthesisofvery-longand thinsilvernanowiresandtheirapplicationinhigh qualitytransparentelectrodes.J.Mater.Chem.A 4,11365–11371
Chen,Y.L.,Fan,L.L.,Fang,Q.,Xu,W.Y.,Chen,S., Zan,G.B.,Ren,H.,Song,L.,andZou,C.W. (2017a).Free-standingSWNTs/VO2/Mica hierarchicalfilmsforhigh-performance thermochromicdevices.NanoEnergy 31, 144–151
Chen,Y.,Zhang,S.,Cao,S.,Li,S.,Chen,F.,Yuan, S.,Xu,C.,Zhou,J.,Feng,X.,Ma,X.,etal.(2017b). Roll-to-rollproductionofmetal-organic frameworkcoatingsforparticulatematter removal.Adv.Mater. 29,1606221
Fan,T.J.,Yuan,C.Q.,Tang,W.,Tong,S.Z.,Liu, Y.D.,Huang,W.,Min,Y.G.,andEpstein,A.J. (2015).Anovelmethodoffabricatingflexible transparentconductivelargeareagraphenefilm. Chin.Phys.Lett. 32,076802
Ge,J.,Ye,Y.D.,Yao,H.B.,Zhu,X.,Wang,X.,Wu, L.,Wang,J.L.,Ding,H.,Yong,N.,andHe,L.H. (2014).Pumpingthroughporoushydrophobic/ oleophilicmaterials:analternativetechnologyfor oilspillremediation.Angew.Chem.Int.Ed. 53, 3612–3616
Gu,G.Q.,Han,C.B.,Lu,C.X.,He,C.,Jiang,T., Gao,Z.L.,Li,C.J.,andWang,Z.L.(2017). Triboelectricnanogeneratorenhancednanofiber airfiltersforefficientparticulatematterremoval. ACSNano 11,6211–6217
Guo,H.Z.,Lin,N.,Chen,Y.Z.,Wang,Z.W.,Xie, Q.S.,Zheng,T.C.,Gao,N.,Li,S.P.,Kang,J.Y.,Cai, D.J.,etal.(2013).Coppernanowiresasfully transparentconductiveelectrodes.Sci.Rep. 3, 2323
Guo,C.F.,Sun,T.Y.,Liu,Q.H.,Suo,Z.G.,andRen, Z.F.(2014).Highlystretchableandtransparent nanomeshelectrodesmadebygrainboundary lithography.Nat.Commun. 5,3121
Han,B.,Pei,K.,Huang,Y.L.,Zhang,X.J.,Rong, Q.K.,Lin,Q.G.,Guo,Y.F.,Sun,T.Y.,Guo,C.F., Carnahan,D.,etal.(2014).Uniformself-forming metallicnetworkasahigh-performance transparentconductiveelectrode.Adv.Mater. 26,873–877
Han,C.B.,Jiang,T.,Zhang,C.,Li,X.,Zhang,C., Cao,X.,andWang,Z.L.(2015).Removalof particulatematteremissionsfromavehicleusing aself-poweredtriboelectricfilter.ACSNano 9, 12552–12561
Hao,Q.,Li,W.,Xu,H.Y.,Wang,J.W.,Yin,Y., Wang,H.Y.,Ma,L.B.,Ma,F.,Jiang,X.C.,Schmidt, O.G.,etal.(2018).VO2/TiNplasmonic thermochromicsmartcoatingsforroomtemperatureapplications.Adv.Mater. 30, 1705421
Hong,S.,Lee,H.,Lee,J.,Kwon,J.,Han,S.,Suh, Y.D.,Cho,H.,Shin,J.,Yeo,J.,andKo,S.H.(2015). Highlystretchableandtransparentmetal nanowireheaterforwearableelectronics applications.Adv.Mater. 27,4744–4751
Hu,L.,Kim,H.S.,Lee,J.-Y.,Peumans,P.,andCui, Y.(2010).Scalablecoatingandpropertiesof transparent,flexible,silvernanowireelectrodes. ACSNano 4,2955–2963
Jeong,S.,Cho,H.,Han,S.,Won,P.,Lee,H., Hong,S.,Yeo,J.,Kwon,J.,andKo,S.H.(2017). Highefficiency,transparent,reusable,andactive PM2.5filtersbyhierarchicalAgnanowire percolationnetwork.NanoLett. 17,4339–4346
Ji,S.,He,W.,Wang,K.,Ran,Y.,andYe,C.(2014). Thermalresponseoftransparentsilvernanowire/ PEDOT:PSSfilmheaters.Small 10,4951–4960
Jiang,J.K.,Bao,B.,Li,M.Z.,Sun,J.Z.,Zhang,C., Li,Y.,Li,F.Y.,Yao,X.,andSong,Y.L.(2016). Fabricationoftransparentmultilayercircuitsby inkjetprinting.Adv.Mater. 28,1420–1426
Kang,J.,Kim,H.,Kim,K.S.,Lee,S.K.,Bae,S.,Ahn, J.H.,Kim,Y.J.,Choi,J.B.,andHong,B.H.(2011). High-performancegraphene-basedtransparent flexibleheaters.NanoLett. 11,5154–5158
Khalid,B.,Bai,X.,Wei,H.,Huang,Y.,Wu,H.,and Cui,Y.(2017).Directblow-spinningofnanofibers onawindowscreenforhighlyefficientPM2.5 removal.NanoLett. 17,1140–1148
Kim,H.,Gilmore,C.M.,Pique,A.,Horwitz,J.S., Mattoussi,H.,Murata,H.,Kafafi,Z.H.,and Chrisey,D.B.(1999).Electrical,optical,and structuralpropertiesofindium-tin-oxidethinfilms fororganiclight-emittingdevices.J.Appl.Phys. 86,6451–6461
Kim,T.,Kim,Y.W.,Lee,H.S.,Kim,H.,Yang,W.S., andSuh,K.S.(2013).Uniformlyinterconnected silver-nanowirenetworksfortransparentfilm heaters.Adv.Funct.Mater. 23,1250–1255
Kim,H.,Lee,H.,Ha,I.,Jung,J.,Won,P.,Cho,H., Yeo,J.,Hong,S.,Han,S.,Kwon,J.,etal.(2018). Biomimeticcolorchanginganisotropicsoft actuatorswithintegratedmetalnanowire percolationnetworktransparentheatersforsoft robotics.Adv.Funct.Mater. 28,1801847
Layani,M.,Gruchko,M.,Milo,O.,Balberg,I., Azulay,D.,andMagdassi,S.(2009).Transparent conductivecoatingsbyprintingcoffeeringarrays obtainedatroomtemperature.ACSNano 3, 3537–3542
Lee,K.-S.,Lim,J.-W.,Kim,H.-K.,Alford,T.L.,and Jabbour,G.E.(2012).Transparentconductive electrodesofmixedTiO2-x-indiumtinoxidefor organicphotovoltaics.Appl.Phys.Lett. 100, 213302
Lee,H.,Hong,S.,Lee,J.,Suh,Y.D.,Kwon,J., Moon,H.,Kim,H.,Yeo,J.,andKo,S.H.(2016). Highlystretchableandtransparent supercapacitorbyAg-Aucore-shellnanowire networkwithhighelectrochemicalstability.ACS Appl.Mater.Interfaces 8,15449–15458
Lee,J.,An,K.,Won,P.,Ka,Y.,Hwang,H.,Moon, H.,Kwon,Y.,Hong,S.,Kim,C.,Lee,C.,etal. (2017).Adual-scalemetalnanowirenetwork transparentconductorforhighlyefficientand flexibleorganiclightemittingdiodes.Nanoscale 9,1978–1985
Lin,J.,Lai,M.,Dou,L.,Kley,C.S.,Chen,H.,Peng, F.,Sun,J.,Lu,D.,Hawks,S.A.,Xie,C.,etal.(2018). Thermochromichalideperovskitesolarcells.Nat. Mater. 17,261–267
Liu,B.,Zhang,J.,Wang,X.F.,Chen,G.,Chen,D., Zhou,C.W.,andShen,G.Z.(2012).Hierarchical three-dimensionalZnCo2O4nanowirearrays/ carbonclothanodesforanovelclassofhigh-
performanceflexiblelithium-ionbatteries.Nano Lett. 12,3005–3011
Liu,J.-W.,Huang,W.-R.,Gong,M.,Zhang,M., Wang,J.-L.,Zheng,J.,andYu,S.-H.(2013). Ultrathinhetero-nanowire-basedflexible electronicswithtunableconductivity.Adv.Mater. 25,5910–5915
Liu,J.-W.,Wang,J.-L.,Wang,Z.-H.,Huang,W.-R., andYu,S.-H.(2014).Manipulatingnanowire assemblyforflexibletransparentelectrodes. Angew.Chem.Int.Ed. 53,13477–13482
Liu,C.,Hsu,P.C.,Lee,H.W.,Ye,M.,Zheng,G., Liu,N.,Li,W.,andCui,Y.(2015).Transparentair filterforhigh-efficiencyPM2.5capture.Nat. Commun. 6,6205
Moon,H.,Lee,H.,Kwon,J.,Suh,Y.D.,Kim,D.K., Ha,I.,Yeo,J.,Hong,S.,andKo,S.H.(2017). Ag/Au/polypyrrolecore-shellnanowirenetwork fortransparent,stretchableandflexible supercapacitorinwearableenergydevices.Sci. Rep. 7,41981
Parkin,I.P.,andManning,T.D.(2006).Intelligent thermochromicwindows.J.Chem.Educ. 83, 393–400
Seeboth,A.,Lotzsch,D.,Ruhmann,R.,and Muehling,O.(2014).Thermochromicpolymers functionbydesign.Chem.Rev. 114,3037–3068
Sui,D.,Huang,Y.,Huang,L.,Liang,J.,Ma,Y.,and Chen,Y.(2011).Flexibleandtransparent electrothermalfilmheatersbasedongraphene materials.Small 7,3186–3192
Tokuno,T.,Nogi,M.,Jiu,J.,Sugahara,T.,and Suganuma,K.(2012).Transparentelectrodes fabricatedviatheself-assemblyofsilver nanowiresusingabubbletemplate.Langmuir 28, 9298–9302
Wang,X.,Zhi,L.,andMuellen,K.(2008). Transparent,conductivegrapheneelectrodesfor dye-sensitizedsolarcells.NanoLett. 8,323–327
Wu,J.,Agrawal,M.,Becerril,H.A.,Bao,Z.,Liu,Z., Chen,Y.,andPeumans,P.(2010).Organiclightemittingdiodesonsolution-processedgraphene transparentelectrodes.ACSNano 4,43–48
Wu,H.,Kong,D.,Ruan,Z.,Hsu,P.-C.,Wang,S., Yu,Z.,Carney,T.J.,Hu,L.,Fan,S.,andCui,Y. (2013).Atransparentelectrodebasedonametal nanotroughnetwork.Nat.Nanotechnol. 8, 421–425
Xu,J.,Liu,C.,Hsu,P.C.,Liu,K.,Zhang,R.,Liu,Y., andCui,Y.(2016).Roll-to-rolltransferof electrospunnanofiberfilmforhigh-efficiency transparentairfilter.NanoLett. 16,1270–1275
Yang,C.,Gu,H.,Lin,W.,Yuen,M.M.,Wong,C.P., Xiong,M.,andGao,B.(2011).Silvernanowires: fromscalablesynthesistorecyclablefoldable electronics.Adv.Mater. 23,3052–3056
Yoon,Y.-H.,Song,J.-W.,Kim,D.,Kim,J.,Park, J.-K.,Oh,S.-K.,andHan,C.-S.(2007).Transparent filmheaterusingsingle-walledcarbon nanotubes.Adv.Mater. 19,4284–4287
Zhang,D.,Ryu,K.,Liu,X.,Polikarpov,E.,Ly,J., Tompson,M.E.,andZhou,C.(2006).Transparent, conductive,andflexiblecarbonnanotubefilms andtheirapplicationinorganiclight-emitting diodes.NanoLett. 6,1880–1886
Zhang,R.,Liu,C.,Hsu,P.-C.,Zhang,C.,Liu,N., Zhang,J.,Lee,H.R.,Lu,Y.,Qiu,Y.,Chu,S.,etal. (2016).Nanofiberairfilterswithhigh-temperature stabilityforefficientPM2.5removalfromthe pollutionsources.NanoLett. 16,3642–3649
Zheng,J.,Bao,S.,andJin,P.(2015).TiO2(R)/ VO2(M)/TiO2(A)multilayerfilmassmartwindow: combinationofenergy-saving,antifoggingand self-cleaningfunctions.NanoEnergy 11,136–145
Zhou,C.,Gao,T.,Wang,Y.,Liu,Q.,Huang,Z.,Liu, X.,Qing,M.,andXiao,D.(2018).Synthesisof P-dopedandNiCo-hybridizedgraphene-based fibersforflexibleasymmetricalsolid-statemicroenergystoragedevice.Small 15,1803469
forPM2.5 Capture
Wei-RanHuang,ZhenHe,Jin-LongWang,Jian-WeiLiu,andShu-HongYu
1. Table S1. Unit prices of the chemicals which have been used in our experiment, Related to Figure 1.
2. Cost accounting of Ag-nylon electrodes, Related to Figure 1.
The cost accounting in this manuscript includes the cost of chemicals, commercial nylon, labor and energy.
(1). the cost of energy. It take us 0.016 dollar for 180 W heating devices worked for about 1 h.
According to the Ag nanowire synthesis section mentioned above, it takes us 2.342 dollars for 1g Ag nanowires.
(2). the price of commercial nylon mesh was 0.137 dollar m-2.
(3). For the fabrication process of large-scale Ag-nylon mesh (7.5 m2), one people would spend 0.33 h to complete it and the labor cost was 1.43 dollars h-1 in Hefei.
(4). It takes 2.01 dollars to fabricate 1 m2 Ag-nylon electrodeswith the transmittance was 86.05% and conductivity of 8.87 Ω sq-1 which contains 0.769 g Ag nanowires.
Supplemental Figures
Figure S1. SEM image and XRD spectrum of Ag nanowires, Related to Figure 1. (a) SEM image of Ag nanowires. (b) XRD spectrum of Ag nanowires.
Figure S2. Influence of temperature and heating time on the conductivity of Ag-nylon electrodes, Related to Figure 2. (a) Sheet resistance of conductive Ag-nylon electrodes as a function of different temperature for 15 minutes. (b) Sheet resistance of conductive Ag-nylon electrodes as a function of different reaction time at 140 oC.
Figure S3. The SEM images of Ag-nylon electrode after 15 min annealing process under 140 oC, Related to Figure 2.
Figure S4. Resistance responses of 10% tensile strain as function of stretching cycles, Related to Figure 2.
Figure S5. Temperature profiles with consecutive inputs of regular square wave voltages from 1.0, 1.5, 2.0, 2.5, 3.0, 3.5 and 4.0 V, Related to Figure 3. Inset is optical image of an Ag-nylon flexible transparent heaters.

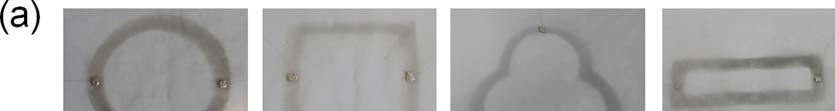

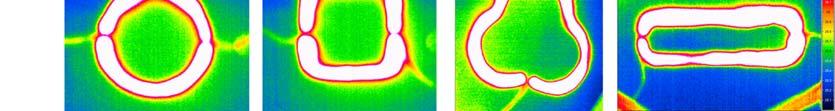

Figure S6. The uniform heating performance of different conductive patterns, Related to Figure 3. (a, b) Optical images and infrared pictures of Ag-nylon patterns with the different shapes showing their uniform heat distribution and outstanding design flexibility.
