1Cost Economy Analysis of Biomass-Based Biofuel Production
Neha
Srivastava⁎, Rahul Kumar Kharwar†, P.K. Mishra
⁎
*Department of Chemical Engineering and Technology, Indian Institute of Technology (Banaras Hindu University), Varanasi, India †Department of Economics, Banaras Hindu University, Varanasi, India
1.1 INTRODUCTION
Energy plays a vital role in the world economy by contributing ~90% of commercially made energy from nonrenewable fossil fuels used for the transporter sector (Bio diesel, http://bioethanol-np.blogspot.com/). Though the demand for fossil fuels is global, there are several drawbacks related to fossil fuels such as limited lifespan and tremendous air pollution associated with them. The huge supply and demand of energy and limited existence of fossil fuels have encouraged the search for similar or more efficient energy sources for a continuous and balanced supply of energy under sustainable environmental control (Ritchie and Roser, 2018). To reinforce energy security, several countries are emphasizing production and use of renewable energy sources corresponding to biofuels, which is increasing as an industry within the current economic surroundings. Biofuels are fuels that are derived from biomass conversion, similar to solid biomass, liquid fuel, and various biogases (U.S. Energy Information Administrator, 2018).
Biofuels are the potential green alternative to replace fossil fuels because they are eco-friendly, simply available, have low carbon content, completely combustible, and nontoxic (Wyman and Hinman, 1990). In addition, the increasing demand for energy has led to the search for substitutes in the form of biofuels for replacement of fossil fuels due to their restricted availability. Biofuel can be produced from carbon-rich sources such as plant biomass by fermentation and the photosynthesis process. Since it can be produced from plant waste biomass, biofuel production is economical too. When biofuels are burnt, they emit low amounts of carbon and simultaneously control the production of poisonous substances, contributing to low air pollution levels (Wyman and Hinman, 1990). Today, biofuels can be efficiently used in the transportation market. They are cleaner, which suggests that they produce fewer emissions on burning. Biofuel properties are suitable for all existing transportation engines under most conditions. In addition, engines that use biofuels need less maintenance, which means low cost, no pollution, and hence a longer life for vehicles as well as the environment (Limayema and Ricke, 2012). From an economic point of view, cellulose-rich agriculture waste from local areas with local labor will also contribute to reducing the cost of biofuel production because economic biofuel production depends significantly on raw materials.
Biofuel can be found in three forms: liquid, solid, and gas such as wood charcoal, bioethanol, biobutanol, biodiesel, biohydrogen, and biogas. Bioethanol is one of the simplest types and the most commonly used is bioalcohol (http://biofuel.org.uk/types-of-biofuels.html). Ethanol is obtained by the fermentation method through a biochemical process in which starch is converted to sugar followed by ethanol by fermentative microorganisms (Balan et al., 2012). The United States was the first country to use ethanol as a biofuel. In different ratios, ethanol is also used as a mixture agent with gasoline. This mixture is also used to increase the octane content, and it reduces toxic fumes
in excessive amounts, whereas butanol can be used directly in petrol engines as fuel. At present a gasoline/ethanol mixture containing 15% ethanol is used to run a gasoline engine without any technical change (Coyle, 2007).
Another future liquid fuel is biodiesel, which is a nontoxic fuel created by the chemical process between alcohol and fatty acid base-forming esters from vegetable oils, animal fats, or plant extracts (Mata et al., 2013). Unwanted products like alcohol, alkyl group and organic compounds are needed to be effectively removed for transestrification. To confirm the correct performance, fuel-grade biodiesel should be created for strict business specifications (ASTM D6751 within the United States and EN 41214 in Europe). Biodiesel is more consistent than fermentation alcohol and may be used as a fuel directly in any unmodified diesel engine; it may be mixed with mineral diesel at any level. It should also be mentioned that cleaner and greener biodiesel plays a commendable role in reducing harmful emissions (Ahindra, 2008). The attraction of biofuels in the field of transportation is not only because they are a reusable resource, but also because they decrease the emission of harmful substances and increase the performance of the engine by increasing the octane level (http://biofuel.org.uk/second-generation-biofuels.html).
Among gaseous fuels, biogas is produced by the anabolic process of organic matter such as agricultural waste, animal waste, weeds and other organic sources, which are available at no cost or at a lower cost. Biogas is basically a composition of methane, carbon dioxide, and hydrogen. To complete this process, a digester and other devices are all that is needed to develop a cheaper and healthier source of energy. Biogas is landfill gases that are mainly produced by the anabolic process, largely due to the high growth of biogas usage in developing countries.
Apart from physical status, biofuels can be categorized into three different classifications known as generations. First-generation biofuels were obtained from different primary edible sources such as vegetable oil, animal fats, rice, sugar, or starch; this is a completely nonviable technology due to the use of human edible primary crops. Therefore, focus was shifted toward starch or carbohydrate sources, which are from nonedible crops generally considered as agricultural waste. This possibility opens the door for “second-generation biofuels,” which represent nonedible food crops such as cellulosic biofuels. Cellulosic biofuels belong to a wide range of carbon-rich waste substrates such as cellulosic and lignocellulosic plant biomass, which can be efficiently converted into sugar by the bioconversion process and finally into biofuel through microbial fermentation (Fulton et al., 2004). Additionally, these waste carbon raw materials, which are used for biofuel production, are available at very low cost and are known as cellulosic ethanol, cellulosic hydrogen, and biodiesel. One of the advantages of second-generation biofuels is that there is no need to develop new crops every year for biofuel production and low waste management contributes to the development of a sustainable environment by reducing harmful emission of fossil fuels (Wyman and Hinman, 1990).
The third generation of biofuels is derived from algae; these biofuels are also called “oil-gas.” The algae can be harvested in only 5–6 days and can be converted into biohydrogen and biobutanol using the fermentation method. One healthy aspect of biofuel produced from algae is that they protect lakes and rivers, and therefore marine vegetation and other organisms, because these algae use more nitrogen and phosphorus (Biofuel, 2018). Therefore, the objective of this chapter is to evaluate and analyze the cost of bioethanol production technology to reduce the cost of ethanol and make it available in a sustainable way so it can be utilize as biofuel instead of using fossil fuels. Fig. 1.1 shows an overview of the bioethanol process (Kumar and Sharma, 2017).
1.2 PRETREATMENT PROCESS OF CELLULOSIC BIOMASS
Though lignocellulosic biomass-based biofuel is considered as a potential alternative fuel, its complex structure significantly increases major technical and economic challenges for the sustainable production process of biofuel (Claassen et al., 1999). The objective of biomass is to reduce cellulose crystallization, remove lignin and hemicellulose, and increase the void fraction of cellulose content. An effective pretreatment process ensures the following advantages: (1) improving the sugar content due to high availability of cellulose, (2) avoiding degradation or loss of carbohydrate, (3) preventing the production of subproducts, basically interceptors, and thereafter avoiding fermentation and hydrolysis, and (4) making it economically feasible (Uni Assignment, 2018). Protective methods of pretreatment can be categorized on the basis of primary characteristics such as physical (milling and grinding) and physical/chemical (steam protective) strategies, or possibly classified as physical (milling and grinding), physical/chemical (steam protective/autoreaction, hydrothermolysis, and wet oxidation), chemical (alkali, dilute acid, reaction agent, and organic solvents), and biological implant strategies (hydrolysis, hydrothermolysis, and wet oxidation). Obstetrics in many ways has made the transplantation of lignocellulosic biomass into chemicals
Lignocellulosic biomass
Cellulose Hemicellulose
Pretreatment
Physical Chemical
Mechanical extrusion
Milling
Microwave
Ultrasound
Pyrolysis
Pulsed electric field
Dilute acid
Mild alkali
Ozonolysis
Organosolv
Ionic liquids
Deep eutectic solvents
Natural deep eutectic solvents
Steam explosion
Liquid hot water
SPORL
Ammonia based
CO2 explosion
Oxidative pretreatment
Wet oxidation
Enzymatic hydrolysis
Fermentation
Bioethanol
Fungi
Brown fungi
White fungi soft rot fungi
Bacterial
Archaeal
and fuels economically feasible and achievable, in which the conversion process of biomass into fuels is biological (Che Kamarludin et al., 2014). Fig. 1.2 explains the pretreatment process of agricultural biomass (Madadi et al., 2017). The pretreatment process of lignocellulosic biomass can be divided into the following types: physical and mechanical pretreatment of lignocellulosic biomass and physical pretreatment, which explores and measures the dry matter of biomass at the first level to renovate the total strength of the downstream process. The physical method of pretreatment includes commination (mechanical reduction in size of biomass particulates).
Lignin
FIG. 1.1 The complete bioethanol process (Kumar and Sharma, 2017).
Cellulose Hemicelluloses
Lignin
1. Pretreatment
2. Hydrolysis
3. Fermentation
Monomer sugars Ethanol

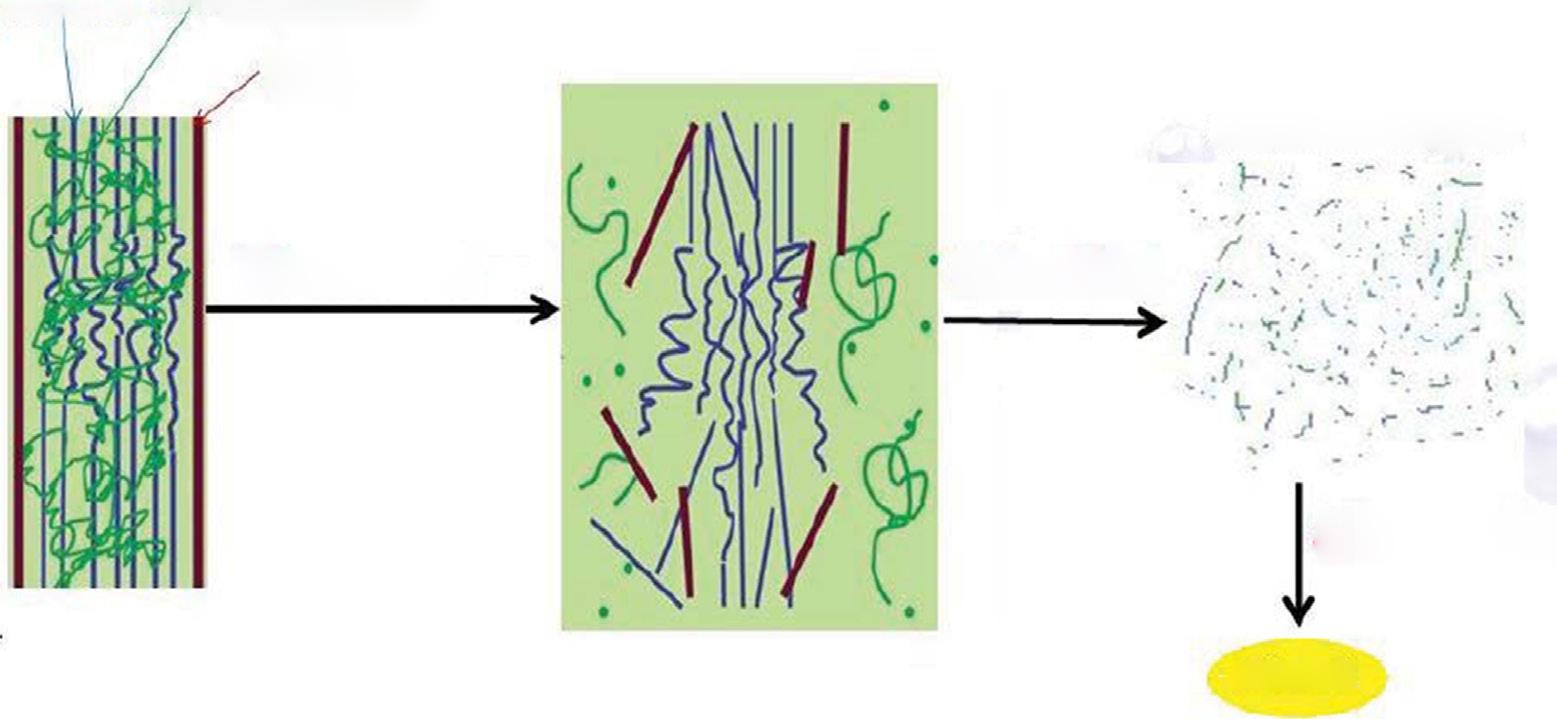

FIG. 1.2 The pretreatment process (Madadi et al., 2017).
1.3 PRETREATMENT
The method of common size is used for compression milling, vibratory ball milling, wet milling, and dry milling. The consumption of energy for grinding the LB (lignocellulosics biomass) depends on various machine variables: humidity, initial particle size, material properties content, and machine variability. The classification of grinders depends on its mechanism; the most efficient way to reduce the size of the particle is splitting or cutting with knives but this also damages the geometry of the particle due to impact or compression. Table 1.1 shows a literature report on how the size of a particle is reduced using various grinder techniques (Binod et al., 2012).
1.3.1 Microwave Treatment of Biomass
The optimal choice for conventional heating in various domains is microwave radiation because it is more efficient to use less energy and provide faster heating (Xiong et al., 2002). As explained by Azuma et al. (1984), the whole ultrastructure of cellulose is changed by breaking the layer of hemicellulose and lignin by using a process of microwave heating, which also enhances enzymatic hydrolysis (Zhu et al., 2006). Microwave heating in addition to chemical transplantation is efficient and the reaction rate is increased (Hu and Wen, 2008; Zhu et al., 2015). Microwave radiation of lignocellulosic feedstock pretreatment is widely used because: (1) it is less technical, i.e., easy to use; (2) it requires low energy input; (3) it is efficient in terms of time and production (thermal); (4) the generation of blocks is minimal; and (5) the organizational structure of the fraction is reduced. In addition, a more effective breakdown of light alkali reagents is preferred. On a microwave-based base transplant of switch grass, a study produced 70%–90% of sugars (Zhu et al., 2015). A broad study of the effect of microwave radiation on chemical pretreatment was done by Boonmanumsin et al. (2012). In comparison to the standard heating of H2SO4 and NaOH, sugar output was increased by 12 times. The use of orthogonal design in the microwave pretreatment of wheat straw optimized the ethanol yield from 2.678% to 14.8% in the study by Chang et al. (1997)
1.3.2 Breaking or Milling
Mechanical grinding (milling) is used to reduce cellulose crystallization. It mostly contains adhesive, grinding, and/or milling techniques ( Kumar and Sharma; 2017 ). By adhesion the biomass size can be reduced to only 10–30 mm, while by grinding and milling the particle size can be reduced to 0.2 mm. However, studies have shown that the reduction of biomass particles below 0.4 mm and lack of hydrolysis (Taherzadeh and Karimi, 2008 ) have no significant effect on the rate and yield. Due to the reduction of particle size and crystalline cellulose, effectively due to the shear forces generated during milling, the heat and mass transfer limitations decrease due to the adhesive. The type and duration of milling increase the specific surface area of biomass, the final degree of polymerization, and the determination of pure reduction in crystalline cellulose. Different milling methods such
TABLE 1.1 the Cost of Bioethanol by using yeast (Saccharomyces cerevisiae)
as the use of two-roll milling, hammer milling, colloid milling, and vibratory milling are performed to improve the digestive capacity of lignocellulogenic material ( Lin et al., 2010 ).
In comparison, ball milling was least efficient, while the other two were more practical for reducing the dimensions of biomass. The use of a planetary mill gave a better quantity of sugar and sucrose than other milling methods tested. There is no production of harmful compounds such as hydromethylfurfuraldehyde and levulinic acid in the process of mill pretreatment. The best possible alternative is preliminary milling pretreatment methodology for large lignocellulosic feedstocks. However, Sassner et al. (2008) suggested that it is a better method of milling than dry milling for the transplantation of corn stoves. The optimized parameters for milling were found to be ball speed of 350 rotation per minute, solid/liquid ratio of 1:10, particles size of raw material ~0.5 mm along with 20 balls (steel ball, Φ = 10 mm) and grinding time of 30 min (Lin et al., 2010). When milling was paired with the alkaline permittance method, better results were obtained.
1.3.3 Chemical Pretreatment
Although acid treatment is the most commonly used conventional treatment method for lignosurgical feedstocks, it is less attractive due to the generation of highly blocked products such as furfurals, 5-hydroxyethylfurfurals, phenolic acids, and aldehydes. In some cases, the enzyme hydrolysis phase can be easily avoided, because acid itself hydrolyzes the biomass in fermented sugar. However, extensive washing is essential to remove acid before the fermentation of sugars (Kumar and Wyman, 2009). Different types of reactors such as percolators, plug flows, scanning beds, and batch, flow-through, and countercurrent reactors have been developed. Unlike acid treatment, alkaline implant methods are usually performed at ambient temperatures and pressures. The most commonly used alkali reagents are hydroxyl derivatives of sodium, potassium, calcium, and ammonium salts. In these hydroxyl derivatives, sodium hydroxide was most effective (McIntosh and Vancov, 2010). Alkali reagents reduce the side chain of esters and glycosides, which are called lignin, cellulose swelling, cellulose decrystallization, and hemicellulose solvations (Sills and Gossett, 2011), moving toward structural modification.
On the other hand, alkaline pretreatment for low lignin material biomass shows improved function. In addition to alkaline pretreatment, the biological pretreatment method is also suitable for biomass having low lignin content. Biological pretreatments are performed by microorganisms such as brown, white, and soft-rot fungi, which mainly degrade lignin and hemicellulose and a small amount of cellulose (Kumar and Sharma; 2017). Degradation of lignin by white-rot fungi occurs due to the presence of peroxidases and laccases (lignin-degrading enzymes) (Kumar et al., 2009; Wang et al., 2012). In comparison to standard chemical and physical pretreatment methods, biological pretreatment is considered as an economical, environmentally safe, and low-energy method. Nature has extensive cellulolytic and hemicellulolytic microbes, which may be specifically targeted for effective biomass pretreatment (Vats et al., 2013).
1.4 ENZYMATIC HYDROLYSIS AND FERMENTATION
Ethanol production and distillation after pretreatment requires enzymatic hydrolysis of lignocellulosic biomass for sugar production using cellulolytic enzymes. Utilization of hydrolytic enzymes plays a crucial role in raising the overall production of ethanol. Bioethanol is mainly produced by three types of fermentation mode: batch, fade batch, and continuous (Vitolo, 1996). In batch fermentation, feedstock is added to the fermentation vessel with microorganisms, nutrients, and other ingredients at the beginning of the fermentation of the whole batch, after which the recovery of ethanol occurs after completion of the reaction, whereas in fade-batch mode, one or more contents are added in the vessel during fermentation (Gnansounou and Dauriat, 2005; Zabed et al., 2014). Continuous fermentation involves continuous input of material and removal of output from the fermentation vessel. Selection of the most suitable method of fermentation depends primarily on the dynamics of the nature of the microorganisms and feedstocks used. Batch fermentation is a simple fermentation process due to the employment of unskilled workers coupled with low control, low cost, simple sterilization, and feedstock monitoring. In addition, most ethanol production from juice feedstocks is made by batch fermentation (Wyman, 2004). Fade-batch mode is widely employed in industrial production due to the combined benefits of both batch and continuous processes. This process offers advantages over conventional batch processing such as maximum viable cell concentration, extended lifetime of cells, high product accumulation, low inhibitory effect of high substrate concentration, and pH, temperature, and control of reaction activities; oxygen is immersed at a specific level. Continuous fermentation can be performed mainly in
two basic types of reactors: the plug flow reactor and continuous stir tank reactor, which provides some advantages over fermentation. This method of fermentation requires time for cleaning the vessel and low-cost productivity increases (Zabed et al., 2014).
The incorporation of microorganisms in the fermentation of sugars is one of the important parts of bioethanol production. Some microorganisms have a strong capability to produce ethanol (Deesuth et al., 2012) for their energy using glucose with the absence of oxygen and this property makes them potential contributors for bioethanol production. Fermentation of sugar into ethanol using a single-cell microorganism such as yeast is the oldest practice in biotechnology for producing beer and renewable energy sources such as alcohol (Ingram et al., 1998). Genetically modified microorganisms are more capable of producing ethanol than natural microbes (Kosaric and Velikonja, 1995).
Some microorganisms such as dried yeast like Saccharomyces cerevisiae, Saccharomyces diastaticus, Kluyveromyces marxianus, Pichia kudriavzevii (Dhaliwal et al., 2011), Escherichia coli strain KO11, Enterobacteria oxytoca strain P2, and Zymomonas mobilis (Cazetta et al., 2007) are frequently studied for ethanol production from sugar juices (Rodríguez and Callieri, 1986). Among all these ethanol manufacturing microorganisms, S. cerevisiae is the most attractive alternative for ethanol fermentation due to its high potential to produce and its high tolerance of ethanol (Olsson and Hahn-Hägerdal, 1993). Moreover, fermentation of certain crop juices containing sucrose employs this yeast for its ability to hydrolyze sucrose into glucose and fruit sugar with a saccharase catalyst. However, the optimum temperature of S. cerevisiae used for the production of bioethanol is 30–35°C, which has led researchers to discover thermotolerant microorganisms.
Due to high ethanol production, ethanol tolerance, and high glucose uptake, Z. Mobilis, a Gram-negative bacteria, has been well studied over the last three decades (Cazetta et al., 2007). Though the ethanol yield of Jade Mobilis is high (97.0%) due to its narrow substrate range, this microbial cannot immediately replace S. cerevisiae in the production of ethanol for fuel.
Free cells of suitable microorganisms are commonly used in fermentation, which satisfies their metabolic function in fermentation broth producing ethanol from sugar. Instead of free cells in fermentation, immobilized microbial cells on different carriers have been studied for improvement in the process, due to changes in development, physical and morphological properties, and the status of catalytic activity on some free cell systems ( Prasad and Mishra, 1995 ). This technique enhances productivity and ethanol yield and reduces the blocking effect of high substrate concentration and product (Baptista et al., 2006 ). In addition, immobilization prevents continuous washing of cells in fermentation, which prevents cells from isolation or recycling (Tzeng et al., 1991 ). Many carriers for cell immobilization, including pieces of apple ( Kourkoutas et al., 2001 ), κ -carrageenan gel, poly-lymnaeidae, G-alumina ( Öztop et al., 2003 ), chrysotile, calcium-alginate, and pieces of sugarcane, have received attention ( Liang et al., 2008 ). The immobilization of S. cerevisiae can be easily done by the richness of the culture media and after being harvested in the log phase of development, the carrier is trapped (Najafpour et al., 2004 ). It was reported that in an immobilized cell reactor, high concentrations of Z. mobilis sugars could increase ethanol during fermentation. Free cells of appropriate microorganisms are usually used in fermentation from sugar; production satisfies their metabolic function in the fermentation broth, whereas the use of immobilized microbial cells on different carriers instead of free cells in fermentation has been widely studied for improvement in the process, changes in the development of physical and morphological properties, and the position of catalyst activity of some free cell systems. It has been established that a lot of energy is consumed in the recovery stages during distillation because of reduced ethanol concentration in the soured broth (Maiorella et al., 1984 ). Therefore, increasing the quantity of ethanol in the broth may cause a significant decrease in energy consumption in the distillation process by increasing the concentration of very high gravity (VHG) fermentation ethanol, and there may be a technique to use high concentrations of sugars. There is a way to utilize the fermentation of processed feedstocks containing 270 g/L of dissolved solids, i.e., free sugars. This method takes advantage of the enlarged and prolonged development of microorganisms in the presence of low-level oxygen ( Bayrock and Michael Ingledew, 2001 ) and reduces the consumption of water as well as the costs of labor and distillation thereby increasing alcohol production ( Bai et al., 2004 ). However, ethanol in yeast cells can be toxic, which can lead to cell lecithin and death under this VHG atmosphere with limited ethanol concentration. Therefore, the viable loss of cells should be evaluated throughout fermentation exploitation of the methylene blue stain technique or colony making unit technique ( Zabed et al., 2014 ).
For ethanol to be usable as a fuel, water should be removed by the distillation process. Purity is restricted to 95%–96% because of the formation of a low-boiling water/ethanol azeotrope and this may be used as fuel alone, but unlike anhydrous ethanol it is immiscible in petrol meaning it cannot be mixed, i.e., E85. The water fraction is typically removed in further treatment to burn in combination with petrol in petrol engines (Makebiofuel, 2018).
1.5 COST ANALYSIS
The cost analyses of second-generation ethanol are presented in Table 1.1. The aim is to improve the cost efficiency of the current ethanol production process. The present cost of manufacturing ethanol with bacteria is Rs. 94.80/L, but when manufactured with yeast and leaves of sugarcane bagasse the cost is optimized at Rs. 52/L (Table 1.3), which is more economical and achievable. The feedstock for scenario A is bagasse only, while in scenario B leaves are added for 2G ethanol. In this case, a conservative EH (enzymatic hydrolysis) yield was assumed for the leaves, although experimental results demonstrated better hydrolysis of leaves than bagasse (data not shown). The high WIS (water insoluble solid) content in EH results in a sugar concentration of 8.5 wt%, which suggests that the five-effect evaporation step could be avoided and replaced by a simple flash tank operating at 65 °C (Macrelli et al., 2012). The energy efficiency is the highest of both scenarios simulated. Furthermore, the 2G ethanol production costs were the lowest, with an MESP-2G (minimum ethanol selling price-2G) of 1.38 US$/L in scenario A using only bagasse, and 0.76 US$/L in scenario B using both bagasse and leaves. However, it should be noted that the amount of 2G ethanol produced is greatly reduced, due to the low EH yield, to 45 and 102 L/ton-dSC (dry sugar cane) for scenarios A and B, respectively. Bagasse (and when added) is reproduced with H3PO4 (9.5 mg acid/g dry material), and before continuous feeding to a steam transplantation reactor, it is heated to a moderate temperature of 95°C by direct injection of low-pressure secondary steam. Due to the high flow rate of feedstock, two transplant reactors are required for bagasse. In those scenarios where the leaves are also used, the third pretreatment reactor is required. The temperature in the reactor is maintained by high-pressure saturated steam injection for 10 times at 180°C, and the residence time is 10 min for both bagasse and leaves. The lack of heat is considered to be 10% of the adiabatic heat demand. The projected material is then fired into the stages of reduction at three pressures (7, 4, and 1 bar), and the received flashes are condensed to heat the other streams in the vapor plant (Macrelli et al., 2012). After polishing the water part in the solution, the WIS concentration is 16% (Fig. 1.3).
Flow chart showing the cost analysis of bioethanol.
Cost analysis of bioethanol production
FIG. 1.3
1.6 EXPECTED RESULTS
The aim of this chapter was to study cost efficiency of the production of bioethanol. The present cost of manufacturing ethanol with bacteria is Rs. 94.80/L, but when manufactured with yeast and leaves the cost is optimized at Rs. 52/L, which is cost efficient and more achievable (Tables 1.2 and 1.3).
TABLE 1.2 the Cost of Bioethanol by using yeast With sugarcane leaves
Yeast (Saccharomyces cerevisiae)
TABLE 1.3 the Cost of Bioethanol by using Bacteria (Bacillus subtilis)
1.7 CONCLUSION AND SUGGESTIONS
This chapter concluded that there is a need to shift from nonrenewable to renewable energy options, commercially available at low cost. Nowadays, world organizations are focusing on a sustainable environment and thus the shift from fossil fuel to bioethanol is highly advisable. The study showed that the present manufacturing cost of bioethanol with bacteria is Rs. 94.80/L, while the cost of manufacturing ethanol with the help of enzymes and sugarcane
leaves is just Rs. 52/L, which is much less than the current market prices of oil and petroleum. By achieving cost optimization the low cost of bioethanol is achievable as a long-term environmentally sustainable fuel.
