Finite element analysis-aided seismic behavior examination of modular underground arch bridge
Toan Van Nguyen a , Junwon Seo b , Jin-Hee Ahn c , Achintya Haldar d , Jungwon Huh a, *
a Department of Architecture & Civil Engineering, Chonnam National University, South Korea
b Department of Civil and Environmental Engineering, South Dakota State University, USA
c Department of Civil Engineering, Gyeongsang National University, Jinju 52725, South Korea
d Department of Civil Engineering and Engineering Mechanics, University of Arizona, Tucson, AZ 85721, USA
ARTICLE INFO
Keywords:
Modular Underground Arch Bridge
Prestressed Rebar
Arch Length
Arch-to-Arch Interaction
Soil–Structure Interaction
Finite Element Model-Based Seismic Behavior
ABSTRACT
In this study, a 3D finite element analysis (FEA) is performed to examine the seismic behaviors of a three-hinge modular underground arch bridge (MUAB) subjected to a series of synthetic ground motions with a wide peakground-acceleration (PGA) spectrum. The FEA model of the MUAB under longitudinal and transverse synthetic ground-motion loading is described by several modeling parameters [e.g., arch-to-arch interaction (AAI), soil–structure interaction (SSI), and stiffness of prestressed rebar], to determine its various seismic response characteristics (i.e., maximum displacement, maximum tensile and compressive stresses, and maximum crack depth). The FEA results show that the MUAB’s seismic responses differ with respect to earthquake-loading direction owing to the different levels of seismic resistance associated with the considered modeling parameters. To elucidate the influence of each modeling parameter on the seismic response, we performed MUAB parametric studies featuring different arch lengths, SSI and AAI friction coefficients, and prestressed-rebar stiffnesses. The key findings indicate that the seismic behaviors of MUABs depend on the PGAs and ground-motion directions; furthermore, they exhibited a sensitivity to the arch length and prestressed-rebar stiffness. In addition, the SSI friction coefficient exerted a minor influence on the seismic responses of MUABs, especially on their maximum compressive and tensile stresses and maximum crack depths; meanwhile, the AAI friction coefficient had a moderate influence upon seismic response.
1. Introduction
Underground precast arch bridges are a type of culvert; they have been widely implemented in underground infrastructure developments (Abe and Nakamura, 2014). In recent years, these underground arch bridges have been modularized into precast components. The construction of modular components via the assembling of modular forms has been applied in the field of structural engineering; in underground arch bridges, these forms offer several advantages in terms of construction and structural performance. For example, the modular bridges have a greater load-carrying capacity than conventional bridges owing to the efficient load sharing between the bridge and soil embankment (Abe and Nakamura, 2014; Fairless and Kirkaldie, 2008; Sawamura et al., 2011). When constructing underground arch bridges, the use of
modular precast concrete forms offers various benefits, including simpler and faster construction processes and high-quality member control.
Types of underground precast arch bridges are classified into several categories including hinge types based on the cross-section sizes of the arch and the sizes of the arch span (Miyazaki, 2019). For the hinge types of underground precast arch bridges, two-hinged arch bridges and threehinged arch bridges have been used commonly because they are most effective in soil-arching. Technically, the hinge types of underground precast arch bridges allow for motion and rotation to mobilize earth pressure compared to rigid arch bridges. The three-hinged arch bridges are made from two segmental precast units resulting in three hinge points. It harnesses passive resistance of an embankment by permitting deflection, resulting in a mechanically stable bridge structure
* Corresponding author at: Department of Architecture and Civil Engineering, Chonnam National University, 77 Yongbong-ro, Buk-gu, Gwangju 61186, South Korea.
E-mail addresses: 198047@jnu.ac.kr (T. Van Nguyen), junwon.seo@sdstate.edu (J. Seo), jahn@gnu.ac.kr (J.-H. Ahn), haldar@u.arizona.edu (A. Haldar), jwonhuh@chonnam.ac.kr (J. Huh).
https://doi.org/10.1016/j.tust.2021.104166
Received 11 September 2020; Received in revised form 12 July 2021; Accepted 24 August 2021
Availableonline21September2021 0886-7798/©2021ElsevierLtd.Allrightsreserved.
(Sawamura et al., 2019). However, there needs to be a thorough investigation into the mechanical behavior of three-hinged arch bridges under seismic loadings.
Underground arch bridges constructed from these modular components are referred to as modular underground arch bridges (MUABs). In general, the occurrence of cracks at component edges is common in MUABs (Abe and Nakamura, 2014). Numerous studies have attempted to determine the seismic responses of different bridge types (Huh et al., 2017a; Huh et al., 2017b; Jeon et al., 2015; Mangalathu et al., 2018; Rogers and Seo, 2017; Seo, 2013; Seo and Linzell, 2012, 2013; Seo and Rogers, 2017; Siqueira et al., 2014; Tavares et al., 2012); however, very few have investigated the structural behaviors of cracked MUABs under static and/or dynamic loadings. These studies have employed numerical analyses (Byrne et al., 1996; Jeon et al., 2019; Sawamura et al., 2012; Wood and Jenkins, 2000), laboratory testing (Miyazaki et al., 2017a,b, 2018; Sawamura et al., 2015; Toyota and Takagai, 1999; Sawamura et al., 2016) and field measurements (Kim et al., 2019) as the research methodology. Most recent works on cracked concrete components and embankment soils were based solely on linear elastic fracture mechanics while neglecting nonlinear behaviors (Miyazaki et al., 2018, 2020). Furthermore, Jeon et al. (2019) constructed a 3D nonlinear structural model for a slice of a multi-hinge precast underground arch bridge with outriggers to assess its structural behavior and the interactions between segmental precast arch members during backfill construction; however, this study neglected dynamic effects.
A small number of studies (Abuhajar et al., 2015; Abuhajar et al., 2017; Kang et al., 2020; Le et al., 2014; Miyazaki et al., 2020; Santos et al., 2020) have sought to simulate MUABs by partially considering the arch-to-arch and/or soil–structure interactions. In particular, Miyazaki et al. (Miyazaki et al., 2020) modeled arch segment components by considering the interactions between precast arch members and the surrounding soil. Furthermore, considerable efforts have been devoted to modeling the arch-to-arch interactions of MUABs. Abuhajar et al. (Abuhajar et al., 2015; Abuhajar et al., 2017) demonstrated the significance of soil arching in controlling the structural static load responses of MUABs by conducting 2D finite element analysis (FEA) alongside corresponding downscaled centrifuge tests. However, Abuhajar et al. (Abuhajar et al., 2015; Abuhajar et al., 2017) only tested individual samples; as a result, their study did not capture the influence of prestressed rebars on the MUAB.
This study aims to develop a sophisticated 3D FEA model of a MUAB, to evaluate its seismic behaviors. More specifically, the FEA model is used to study seismic deformation and stress development in the segmental component structure by incorporating the friction coefficients of arch-to-arch interactions (AAIs) and soil–structure interactions (SSIs) and the influence of the prestressed rebar. Parametric studies for various arch lengths, soil–structure and arch-to-arch interactions, and prestressed rebars were also conducted to examine the seismic responses of MUABs subjected to different seismic loadings. This paper is organized into five sections (including the present one). Section 2 describes the 3D FEA model of the MUAB. Section 3 presents the modal analyses and seismic responses of the MUAB model. Section 4 discusses the findings of the parametric MUAB-model studies with respect to the key modeling parameters. Finally, Section 5 presents the conclusions drawn from the work.
2. 3D FEA modeling
In this section, we describe the 3D FEA model used to conduct seismic-response evaluations of three-hinge MUABs. More specifically, in the following subsections, we describe the studied MUAB its concrete, surrounding soil, contact surface, and prestressed rebar modeling specifications as well as its design response spectrum under synthetic ground motions.
2.1. Studied MUAB
The three-hinge MUAB model previously employed by Miyazaki et al. (2020) was used for this study. This MUAB was constructed according to Korean standards (KDS, 2019); that is, it was designed to be resistant to an earthquake with a 500-year return period and another with a 1000-year return period. The peak ground acceleration (PGA) values of 500- and 1000-year-return-period earthquakes are 0.4345 g and 0.5744 g, respectively.
The three-hinge MUAB was bounded by wing walls and embankments that matched its geometrical properties; these were modeled using ABAQUS to numerically determine the MUAB seismic behavior (as shown in Fig. 1). Detailed dimensions for the MUAB (arch length: 7.5 m; outer diameter: 10.5 m) are provided in Table 1. Notably, the total length of the MUAB (including wing walls) was 8.75 m, and it consisted of 2 types of segmental arches: Segments 1 and 2. These segments featured identical thicknesses and inner/outer radii, though their widths differed (Segment 1: 1.25 m and Segment 2: 0.625 m). The MUAB was placed on a concrete invert foundation (thickness: 1.0 m), and a concrete wing-wall (thickness: 0.625 m) was placed on the wing-wall foot. The surrounding soil consisted of a 7.5 m-thick embankment and 6 m-thick subsoil lying on top of the bedrock.
The studied MUAB was generated using the eight-node brick element, C3D8 [available in ABAQUS (Abaqus, 2014)]. The first-order elements C3D8 were sufficient to obtain results with the desired accuracy for the FEA model and saved computing costs. The elements C3D8 were the most suitable for problems related to contacts between deformable bodies in nonlinear dynamic analysis. The element sizes were finalized based on the number of trial analyses and also on the stability limits, which was a function of mesh size and wavelength of the FEA model (Abaqus, 2014). Finer meshings were provided in the concrete parts, especially in the segmental arches, and other coarser meshings were provided in the surrounding soils. The most optimal meshing of MUAB (Fig. 1a) was adopted to lay a foundation for the study. The total numbers of model elements and nodes were 44,744 and 79,476, respectively. The total mass of the model was ~ 15,000 tons.
A two-step dynamic analysis was performed. In the first step (static analysis), a gravitational load was applied to the FEA model; this was used to eliminate the abrupt influence of dynamic effects when ground acceleration was applied. The lateral surfaces were fixed against translation movements in the normal direction; meanwhile, the bottom face was fixed against all translation movements. In the second step (dynamic analysis), a ground motion was applied alongside the self-weight maintenance load. Thus, the boundary condition was changed to reflect the new loading condition. A viscous-spring artificial boundary was imposed by installing springs and dampers on the truncated boundaries of the surrounding soil corresponding to excitation directions; thus, we assumed that incident waves were absorbed upon reaching the corresponding truncated boundaries. As a result of the two-step dynamic analysis, the FEA model closely reproduced the actual response of farfield soil.
2.2. Concrete and prestressed rebar
The concrete used in the MUAB was modeled using ABAQUS. We considered its nonlinearity (Hognestad, 1951) using the plastic-damage model established by Lee and Fenves (1998a, 1998b) This model can represent the damage-cracking behavior of concrete, particularly for MUABs under seismic loadings. In quasi-brittle materials, this model can be defined by evaluating the dissipated fracture energy required to generate microcracks in the concrete of the MUAB. The uniaxial compressive and tensile responses of the concrete were assumed to be influenced by the damage plasticity, and this assumption formed the basis of the model. The key components of the inviscid-concrete damage plasticity model under strain-rate decomposition were assumed for the rate-independent model. The total strain tensor was comprised of elastic
T. Van Nguyen
Table 1
Segment component characteristics.
and plastic components.
Two damage variables (in terms of failure mode: tensile cracking and compressive crushing) were considered for the MUAB model. Hardening and softening variable values were applied to determine the cracking and crushing trends, respectively. These were responsible for the loss of elastic stiffness and the development of the yield surface. Therefore, the compressive and tensile damage states were characterized independently by two hardening variables. In this section, the numerical simulation of concrete material was briefly introduced. Details can be further referred to Zhang et al. (2013)
M40-grade concrete (modeled in ABAQUS as having compressive strength f’ c = 40 MPa) was used for the segmental arch and wing wall; meanwhile, M30-grade concrete (modeled as having compressive strength f’ c = 30 MPa) was adopted for the invert foundation, as listed in Table 2 In terms of compressive behavior, the inelastic strain was initialized as 50% of f’ c. Above this point, the curve increased gradually up to f’ c. The initial crack occurred at 85% of f’ c. The stress–strain curve
descended after reaching the maximum (referred to as the softening section of the curve). After the curve descended, crushing failure occurred at an ultimate strain of 20% f’ c. However, the elastic strain increased up to the tensile strength. Cracking strain occurred beyond the tension stress peak (i.e., at the tensile strength). Stiffening failure occurred at an ultimate strain of 1% ft
The dynamic properties of M40- and M30-grade concrete were employed for nonlinear seismic analyses. Structure damping was incorporated in the FEA model by using Rayleigh’s damping and assuming mass and stiffness to be proportional. A 5% damping was considered for the fundamental vibration modes of the MUAB system to determine the mass- and stiffness-proportional damping factors. Besides, the concrete material damping values were defined for direct integration in the implicit ABAQUS application by using a mass-proportional damping α
of 0.77 and a stiffness-proportional damping βR of 0.003.
Fig. 1. Schematic of the studied MUAB.
Table 2
Properties of MUAB model concrete.
T. Van Nguyen
The static analysis (with the self-weight of the MUAB) was initially performed under the static stress state; however, nonlinear seismic analysis under ground motions was performed by considering the dynamic properties.
Two types of prestressed rebar (length: 500 mm and diameter: 36 mm) are aligned along the longitudinal (L-J) and circumferential (C-J) joints in accordance with the L-J holes and C-J holes, as illustrated in Fig. 1(c). The prestressed L-J and C-J rebars were modeled using spring elements available in ABAQUS (Abaqus, 2014), as shown in Fig. 2. The mechanical properties of the spring elements representing the rebars can be seen in Table 3 The stiffnesses (K) of the rebars can be determined using Eq. (1)
K = AE l (1)
where K = equivalent stiffness (N/m), A = cross-sectional area of rebar (m2), E = elastic modulus of material (Pa), and l = length of the rebar (m).
2.3. Surrounding soil
The surrounding soil plays an important role in maintaining the overall stability of the MUAB via efficient load sharing. Embankment shape patterns affect the seismic behavior of the MUAB. These shape patterns can cause severe damage or collapse in large earthquakes owing to the shallow soil cover (Miyazaki et al., 2017a). A symmetrical surrounding soil profile and shallow embankment cover on top of the segmental arch were adopted for seismic analysis. The soil properties considered in the FEA model of the MUAB are given in Table 4 for soil generalizability. Notably, these are common values for the soil types applied to MUAB constructions, including normal clay subsoil and highquality mixed sandy embankment soil. The FEA soil model geometries (see Fig. 1) were based on the Mohr–Coulomb plasticity model, which allows for soil hardening behaviors. We assumed the soil properties to be identical before and after seismic loadings.
2.4. Contact surface
In the FEA model, contact surfaces were used to model the shearforce resistance between segments. These surfaces were classified into two groups: arch-to-arch interactions (AAIs), representing contacts between segmental components [as shown in Fig. 3(a) and Fig. 3(b)], and soil–structure interactions (SSIs), representing contact between the concrete and surrounding soil [as shown in Fig. 3(c) and Fig. 3(d)]. These contact surfaces were modeled with surface-to-surface contact
Table 3
Mechanical properties of prestressed rebar.
Property
Unit L-J and C-J
Young’s modulus MPa 19,700
Poisson’s ratio – 0.2
Ultimate strength, Fu MPa 1860
Yield strength, Fy MPa 1339
Table 4
Properties of surrounding soil.
Property Unit Subsoil Embankment
Unit weight, γ kg/m3 1800 1750
Young’s modulus, E MPa 45 50
Poisson’s ratio, υ – 0.33 0.28
Internal friction angle, ϕ ◦ 25 35
Dilatancy angle, Ψ ◦ 1 5
Cohesive force, c KPa 100 20
interactions that incorporated their mechanical contact properties by using the hard contact and standard Coulomb friction model available in ABAQUS (Abaqus, 2014). The Coulomb friction model was defined with an interface friction coefficient of 0.6 for both the lateral and top AAI surfaces of the segments to model a normal-weight concrete cast against hardened concrete (Mattock, 1977; ACI, 2014). Interface friction coefficients of 0.3 and 0.45 were selected for the subsoil–concrete and embankment–concrete SSI interactions (Sheng et al., 2007), respectively.
Furthermore, the FEA model employed tie constraints as a semi-rigid link connecting the arch segments and concrete invert foundation. Surface-based tie constraints bind two surfaces together. The surface-tosurface discretization method was adopted (Abaqus, 2014). These constraints facilitated the modeling of kinematic relationships between the points and surfaces of the arch base and top face of the concrete foundation. The connection between the wing-walls and the concrete foundation was modeled with a rigid link based upon an assumption of castin-place construction. Note, the arch segment-foundation concrete and wall-foundation concrete were unified as a single modeling component.
2.5. Synthetic ground motions
Synthetic ground motions were generated using the procedure recommended by the Hallodorson and Papageorgiou (Halldorsson and Papageorgiou, 2005). As stated above, we assumed that the MUAB was located in Seismic Zone 1 [according to the Korean standards (KDS, 2019)] with Ground Type S4 bedrock, which has an average shear-wave velocity (at a depth of 30 m) of Vs30 = 620 m/s (Borcherdt, 1992, 1994, 2012). The ground motions were generated to simulate far-field earthquakes of magnitudes below 6.9.
The elastic spectrum with 5% damping was adopted for the calculation. The deconvolution procedure was used for matching the ground motions. The soil beneath the MUAB foundation was assumed to consist of a single-layered soil overlaying the bedrock. The accelerogram was defined starting from a synthetic one. The accelerogram was compatible with the target spectrum and adapted to its frequency content using the Fourier Transform Method (see Fig. 4). As a result, seven different synthetic ground motions were generated, which achieved convergence errors smaller than 8% [as shown in Fig. 5(a)].
The ground motions were matched to the Korean-code-based spectrum corresponding to a 500-year-return-period earthquake (KDS, 2019); these motions were then scaled up and down via intensity indices with PGAs of 0.1–1.2 g. As shown in Fig. 1, the generated ground motions were applied individually to the bottom face of the structure in the longitudinal and transverse directions of the MUAB model. The vertical direction was not considered in this study because the MUAB having

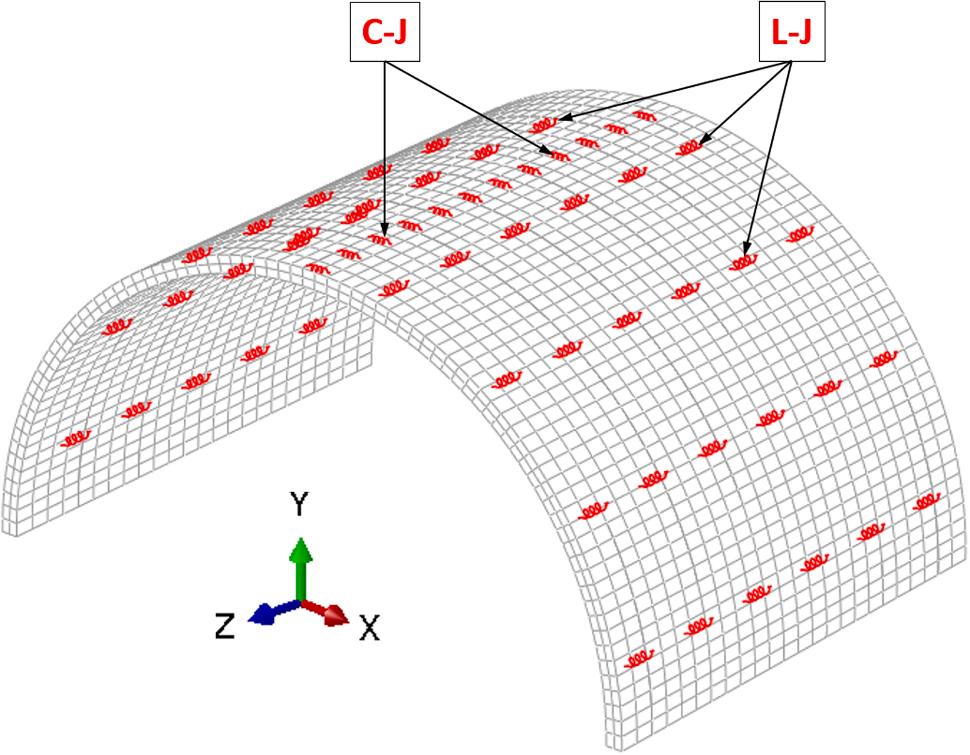

Fig. 2. Prestressed rebar arrangement with L-J and C-J holes.
T. Van Nguyen et
shallow cover depth was much more influenced under the horizontal ground motions than the vertical direction (Byrne et al., 1996; Jeon et al., 2019; Sawamura et al., 2012; Wood and Jenkins, 2000). The set of different ground motions was applied to study the maximum seismic response of the MUAB. The median ground motion was adopted as a representative, which matched well to the design spectrum and closed to the median of the generated ground motions [Fig. 5(b) and Fig. 5(c)]. The representative ground motion was used to investigate crack propagation in segment components and evaluate the influence of modeling parameters on the seismic response of the studied MUAB.
3. Results and discussion
This section summarizes the computational results obtained from FEA. The dynamic characteristics and seismic responses of the MUAB are presented and discussed below.
3.1.
Dynamic characteristics
The natural periods of the MUAB were calculated, to investigate the vibrational characteristics of the MUAB according to the Lanczos eigenvalue-extraction procedure (Lanczos, 1950; Ojalvo and Newman, 1970; Paige, 1971) available in ABAQUS (Abaqus, 2014). The periods of the first twelve modes (along with their corresponding effective masses) are listed in Table 5; these mode shapes are shown in Fig. 6. The sum of the effective masses in each component direction for the first 12 modes exceeded 90% of the MUAB total mass. The effective mass distribution characterizes the relative contributions of the modes when the MUAB is excited along a specific direction with a given frequency. These modes can contribute to the interface loads. The interface-load-based effective mass was measured to identify two target modes determining the MUAB’s dynamic behavior. The natural periods of the first and second modes were 0.430 s and 0.386 s, respectively. The figure and table show that the first two modes of the MUAB were dominated by flexural and torsional effects. On the other hand, the first two mode shapes suggest that the other modes were directly associated with the effects of surrounding soil deformation.
3.2. Seismic response
Nonlinear time-history analyses (using the generated synthetic ground motions) were performed using ABAQUS to investigate the MUAB’s seismic behavior. For these analyses, a Hilber–Hughes–Taylor time integrator with full Newton–Raphson iteration was employed to solve the nonlinear equations of motion for the MUAB. All segment components of the MUAB were evaluated at each of the arch crosssections. More specifically, the seismic responses of the segment components with respect to the angle [from 0◦ (bottom) to 90◦ (top)] for both sides of the arch were determined through nonlinear time history analyses, as indicated in Fig. 7 In this figure, the longitudinal and transversal ground motions were applied individually to the bottom face of the MUAB.
3.2.1. Maximum seismic response
Fig. 8(a) depicts the arch crack depths and extensions for different PGAs. The crack depth reached 5 cm under a longitudinal PGA of 0.47 g or under a transverse PGA of 0.59 g. Crack depths of 12.5 cm were realized for longitudinal and transverse PGAs of 0.73 g and 0.84 g, respectively. When the PGA (either longitudinal or transverse) does not

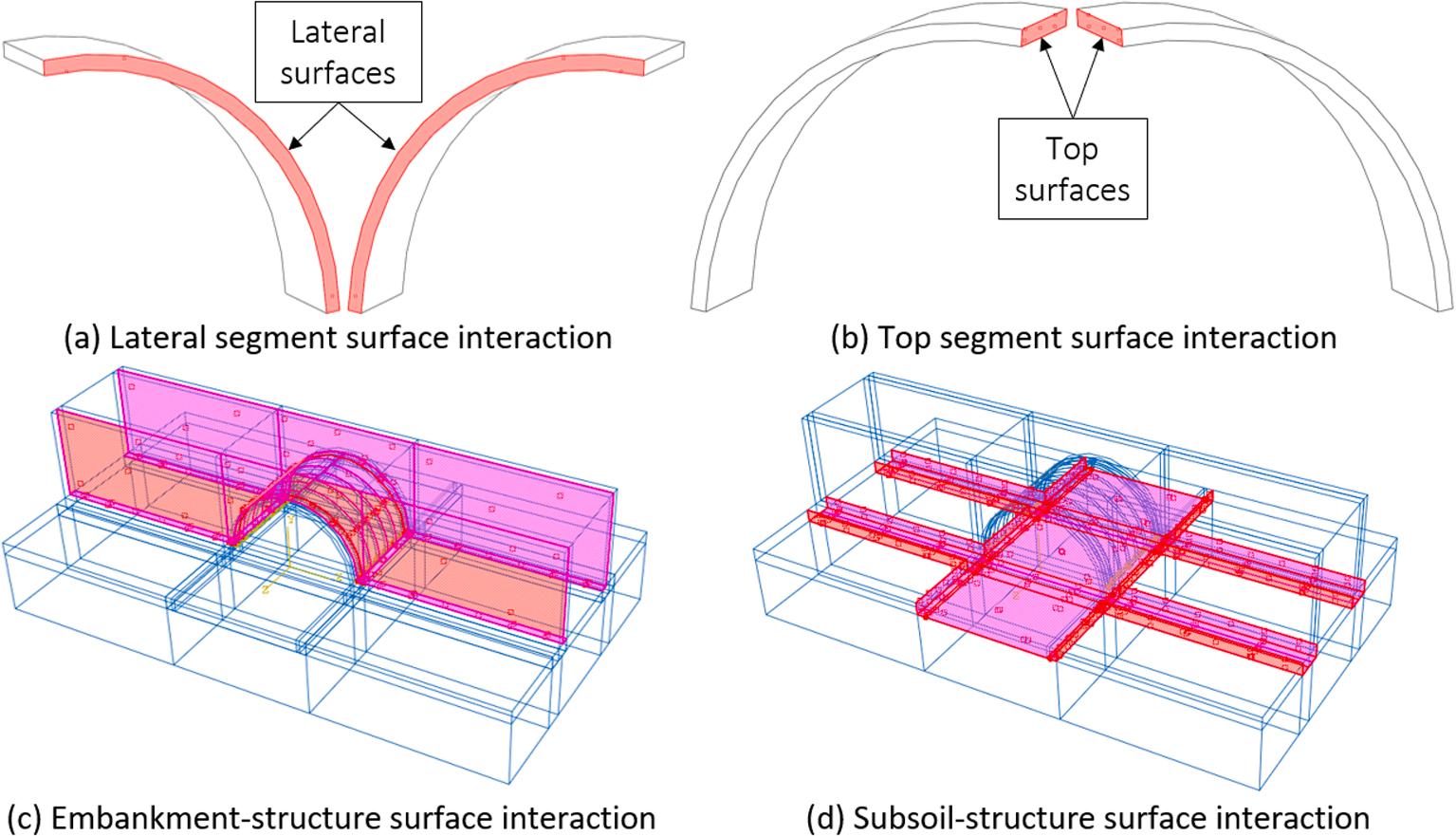

Fig. 3. Contact surfaces for AAIs and SSIs.

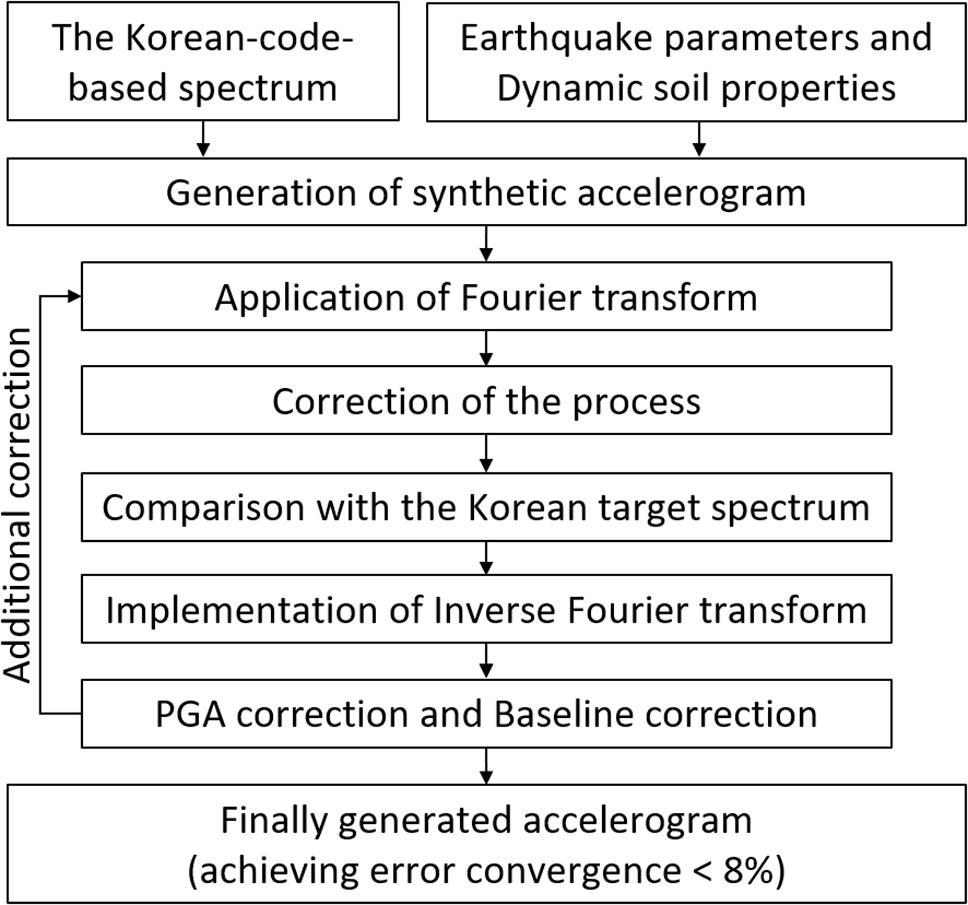

Fig. 4. Flowchart of generated synthetic ground motion.
T.

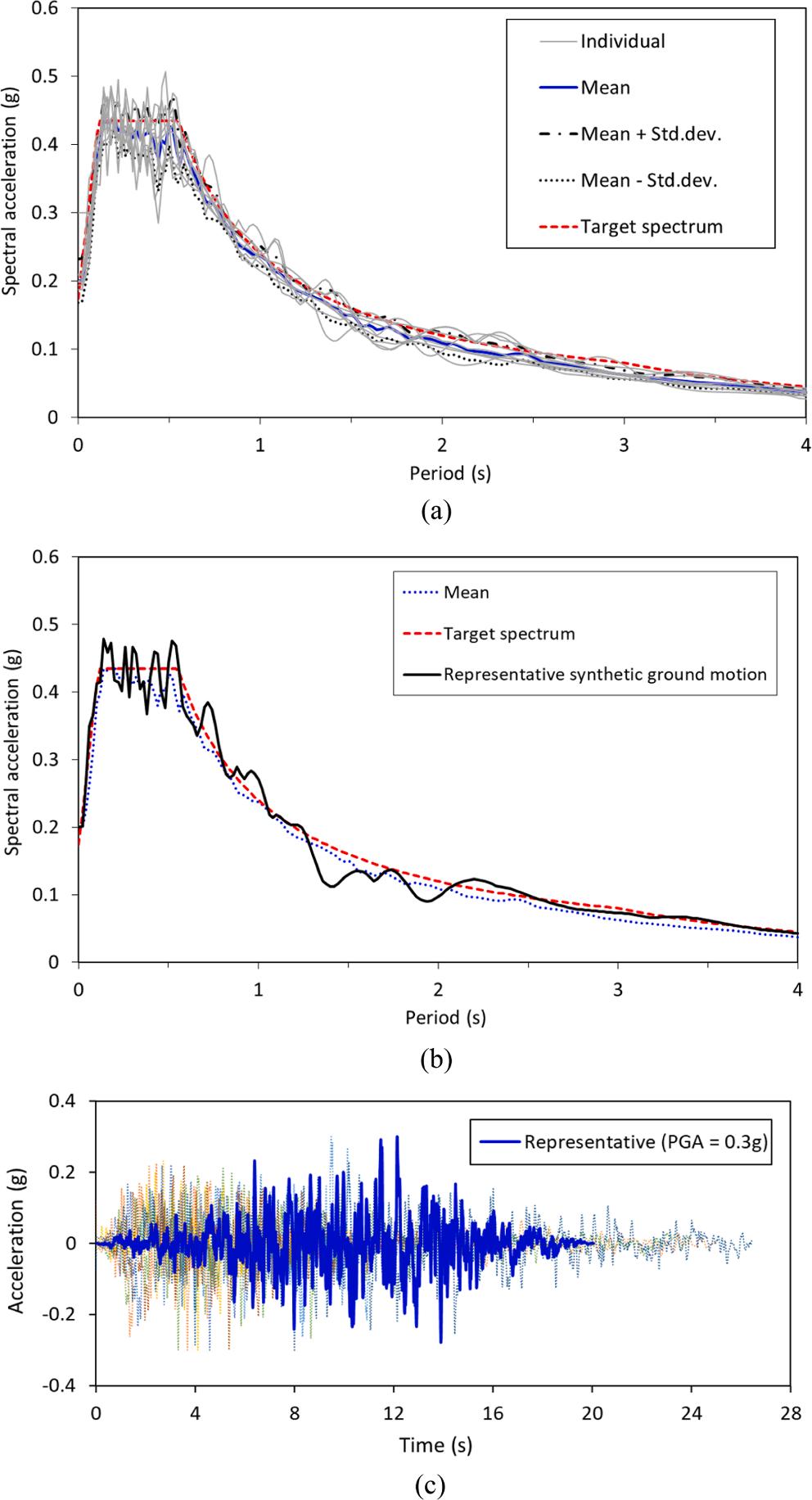

Fig. 5. (a) The elastic response spectra (5% damping) for synthetic ground motions, which matched to the Korean-code-based spectrum corresponding to a 500-year-return-period earthquake, (b) spectral acceleration of representative synthetic ground motion, and (c) time history of the representative synthetic ground motion scaled to a PGA of 0.3 g.
Table 5
Vibration periods and effective modal masses.
1
3
4
5
6
7
exceed 0.47 g, the segment components may be repairable, because the crack depth is smaller than 5 cm (equivalent to one-fifth of the arch thickness). The MUAB can be extensively damaged when the PGA exceeds 0.85 g (greater than the half-thickness of the arch components). The depth extensions of cracks produced by transverse ground motions were smaller than those arising through longitudinal motions owing to a greater seismic resistance in the transverse direction.
The stress changes in the MUAB for a spectrum of ground motions (various PGAs) are presented in Fig. 8(b) and (c). Both tensile and compressive stresses were significantly increased (compared to those generated by self-weight loads) by the ground motions under initial tensile and compressive stresses of 2.3 MPa and 7.5 MPa, respectively; this indicates that the ground motions dramatically increased the stress across the segment components. The tensile stress exceeded the tensile strength of the concrete (4 MPa) under longitudinal ground motions with a PGA of 0.3 g; meanwhile, this occurred at a PGA of 0.39 g for transverse ground motions. Generally, for normal concrete, the strain–stress curve is linearly elastic up to one-third of the maximum compressive strength; thus, the compressive stress exceeded 20 MPa (half of the compressive strength of concrete) under longitudinal and transverse PGAs of 0.61 g and 0.79 g, respectively. The initial compressive-strength-induced cracks corresponded to 34 MPa when the longitudinal and transverse PGAs were 1.04 g and 1.1 g, respectively.
The maximum displacement of the MUAB subjected to ground motions is displayed in Fig. 8(d). The displacement increased by 71% and 52% for longitudinal and transverse PGAs of 0.4 g, respectively. Furthermore, the difference in displacements between the 2 groundmotion directions was more evident when the PGA increased to ~ 0.5 g. The deflection limit for buried concrete structures (such as MUABs) should be mandatory in urban areas (AASHTO, 2012). However, no specific reference number for MUAB deflection limits is available as yet; thus, we defined the displacement criteria for MUABs as a ratio of arch span (D) to 500 mm. The MUAB’s displacement exceeded these criteria when the longitudinal and transverse PGAs exceeded 0.43 g and 0.55 g, respectively.
3.2.2. Crack propagation
Fig. 9 depicts the contour plots of the equivalent plastic strain (PEEQ), which represents the cracking patterns for the arch of a MUAB subjected to ground motions. It was assumed that macrocracks start to propagate through the arch when the PEEQ value exceeds 0.0001 (Feng et al., 2011; Pan et al., 2015; Zhang et al., 2013). The ground-motioninduced seismic behaviors of the arch differed with respect to the two seismic loading directions (i.e., longitudinal and transverse). Under longitudinal ground motions, slight cracking appeared at the bottom of component of the arch when the PGA exceeded 0.3 g. The crack propagated from bottom to top in both width and depth directions. When the PGA exceeded 0.6 g, the cracks moderately expanded at the middle of the arch; when the PGA exceeded 0.9 g, these propagated to the arch top. However, under transverse ground motions, the crack development was considerably less detrimental than that observed under longitudinal ones. No cracks were formed in the arch when the PGA was smaller than 0.2 g; cracking became notable when the PGA exceeded 0.4 g, with crack formation focused on the longitudinal center region of the structure at an angle of 22.5◦ More cracks initialized and developed under further increases in PGA. Cracks expanded from the longitudinal middle (at an angle of 22.5◦ ) to the edges, bottom, and top of the arch.
Fig. 10(a) shows a plan view of the MUAB subjected to ground motion PGAs of 1.2 g; the structure becomes significantly damaged (i.e., the cracking and peeling of segment components) under the effects of longitudinal and transversal ground motions. Under longitudinal ground motions, deep cracks (with depths exceeding 10 cm) appeared at the bottom of most segmental components at angles of 45◦ in the edge components, marked S1-1, S1-6, S2-1, and S2-2 and in the components adjacent thereto, marked S1-2, S1-5, S1-7, and S1-11. However, under transverse ground motions, deep cracks appeared in the middle
T. Van Nguyen
components at angles of 22.5◦ (see S1-3, S1-4, S1-8, S1-9, and S1-10) and in the edge components at angles of 10◦ (see S1-1, S1-6, S2-1, and S2-2). Peeling was clearly visible at the tops of all segmental components under longitudinal ground motions, though it was less prominent under transverse ground motions. It can be concluded that the longitudinal ground motions lead to significant damage because the longitudinal cross-section of each segment component is weaker than the transverse one. Furthermore, cracks scattered in many different locations (from along the bottom to the top of the segment components) under
longitudinal ground motions. Therefore, the components sustained greater damage under longitudinal ground motions than transverse ones.
Many three-hinge modular underground arch bridges suffered damage under the Great East Japan earthquake (Abe and Nakamura, 2014). Crack propagation and damage signs of MUAB from the site are shown in Fig. 10(b). Noticeable signs of recorded damage consisted of the edge defects and cracks on the arch members, damage to the waterproof sheet by peeling and penetration between the segmental

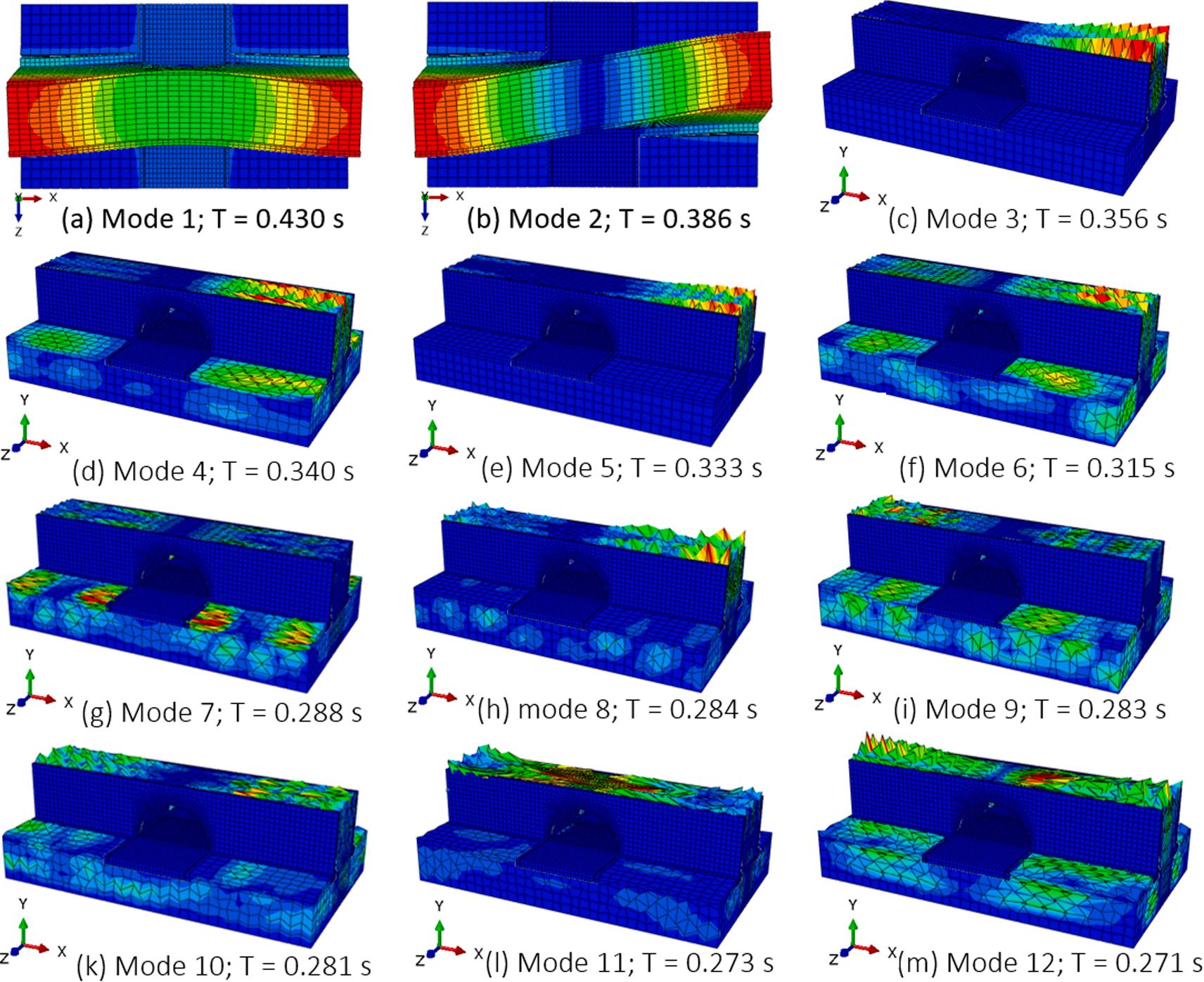

Fig. 6. Mode shapes for the first 12 modes.
Fig. 7. Sketch of critical MUAB sections and their monitoring points.
T. Van Nguyen et al.
arch members. Damage by cracks and defects appeared at the bottom of the segmental components, especially on the edge components. Besides, not only did peelings occur at the top of the arch, but they also occurred on the concrete foundations. Abe and Nakamura (2014) and Miyazaki (2019) noted that the damage levels of these MUABs were different, which might have depended on the geometry of arch cross-section, the length of the arch, the type of foundation, the height of the embankment road, and the seismic excitation direction.
4. Parametric studies
The 3D FEA-developed model was applied to evaluate the effects of arch length, SSIs, AAIs, and prestressed rebars on the seismic response of a MUAB subjected to longitudinal and transverse ground motions. Each input parameter determining the MUAB’s seismic response is discussed at length in the following sections.
4.1. Arch length
Fig. 11(a) shows the effects of arch length (L) on the maximum displacement of a MUAB subjected to longitudinal and transverse ground motions, assuming a consistent arch diameter (D) of 10 m. When L was increased from 3.75 to 18.75 m, the maximum displacement generated by the longitudinal and transverse ground motions was increased by 65% and 117%, respectively. This is because the seismic resistance of the arch in the longitudinal direction exceeds that in the transverse direction when L exceeds D. For all examined values of L,
both the longitudinal and transverse displacements increased significantly as the PGA increased. When the PGA was increased from 0.3 g to 1.2 g, the displacement difference between the longitudinal and transverse ground motions increased by 33% (from 83% to 116%). Interestingly, the displacements produced by the transverse ground motions exceeded those produced by the longitudinal ones when L exceeded 15 m. Both longitudinal and transverse displacements increased slightly when L was smaller than 11.25 m; however, they increased significantly as expected when L was increased from 11.25 to 18.75 m owing to the increase in PGA. This is because the increase of L decreases the seismic capacity of the MUAB under increased PGAs.
Fig. 11(b) and Fig. 11(c) illustrate the effects of L on the maximum compressive and tensile stresses in the segment components of the MUAB, respectively. When the PGA was increased from 0.3 g to 1.2 g, the maximum compressive stress increases generated by the longitudinal and transverse ground motions were 214% and 313%, respectively. The difference in compressive stress between the longitudinal and transverse ground motions decreased by 67% (from 105% to 38%). When the PGA was increased from 0.3 g to 0.6 g, the compressive stress generated by the longitudinal and transverse ground motions was reduced by only 5% for values of L smaller than 7.5 m. However, the longitudinal- and transverse-ground-motion-induced compressive stresses were maximally increased by 45% and 90%, respectively, when L exceeded 15 m. For all values of L, the compressive stress produced by both longitudinal and transverse ground motions was smaller than the compressive strength of M40-grade concrete (i.e., 40 MPa) when the PGA was smaller than 0.9 g. Meanwhile, the tensile stress of the

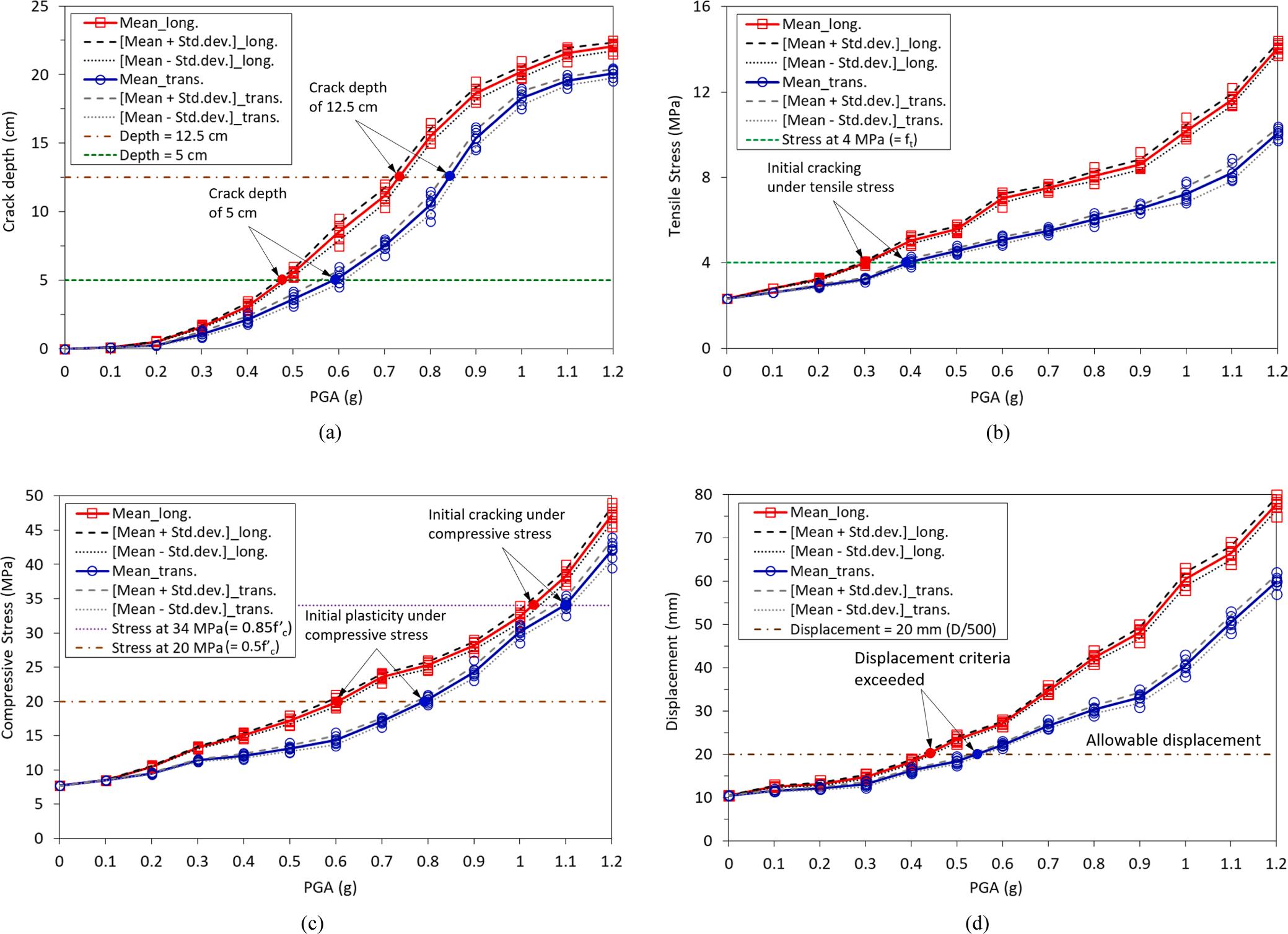

Fig. 8. Peak seismic response of MUAB subjected to ground motions with varying PGAs: (a) crack depth, (b) tensile stress, (c) compressive stress, and (d) displacement.
T. Van Nguyen
longitudinal ground motions exceeded that of the transverse ground motions, exhibiting a downward trend under increasing L. Similar to the compressive stress results, for all analyzed cases of L, the longitudinalground-motion-induced tensile stress exceeded the tensile strength of M40-grade concrete (i.e., 4 MPa). A PGA increase from 0.3 g to 1.2 g led to a maximum increase of 156% and 181% in the tensile stress generated by the longitudinal and transverse ground motions; this suggests that, for values of L exceeding 15 m, the greater the MUAB arch length, the more detrimental the ground motion’s effects.
Fig. 11(d) illustrates the effects of L on the maximum longitudinaland transverse-ground-motion-induced crack depths in the segment components. When L was below 11.25 m, the crack depth produced by longitudinal PGAs of 0.3 g was ~ 2.5 times that produced by the same ground motions in the transverse direction. However, for all intensities, when L approached 18.75 m, the crack depth maximally decreased by 26% under longitudinal ground motions; meanwhile, it maximally increased by 58% under transverse ones. This is primarily because the crack depth is determined by the tensile stress, and the longitudinal seismic resistance of the MUAB is greater if L exceeds D.
4.2. SSI
Fig. 12(a) shows the effects of the SSI coefficient on the maximum displacement of a MUAB subjected to longitudinal and transverse ground motions. For all PGA values, increasing the SSI coefficient from 0 to 0.45 led to a decrease of 20% in the ground-motion-induced displacement. In contrast, within the SSI coefficient range of 0.5–0.55, the displacement values remained almost constant. When the PGA was increased from 0.3 g to 1.2 g, the difference in displacement between the longitudinal and transverse ground motions decreased by 18% (from 25% to 7%). Moreover, the maximum displacement increases generated
by longitudinal and transverse ground motions were 427% and 440%, respectively. This indicates that the influence of SSIs on the MUAB’s displacement is relatively similar between both loading directions. In particular, the maximum displacement generated by ground motions with a PGA of 0.3 g was almost 2 cm, which is approaching the MUAB’s predefined displacement criteria. Thus, when the SSI coefficient exceeds 0.5, the MUAB’s displacement criteria can be ensured if the PGA is below 0.45 g and 0.55 g under longitudinal and transverse ground motions, respectively. This is because SSIs are fundamental in the global compaction and stability of MUABs under external loadings: larger SSI coefficients result in more compacted MUABs.
Fig. 12(b) shows the influence of the SSI coefficient on the maximum compressive stress in MUAB segment components. The influence of SSI variation on the compressive stress produced by longitudinal ground motions was more significant than that produced by transverse ones. When the PGA was increased from 0.3 g to 1.2 g, the maximum increases in the longitudinal- and transverse-ground-motion-induced compressive stresses were 218% and 280%, respectively. The difference in compressive stress between the longitudinal and transverse ground motions increased by 30% (from 93% to 123%). The longitudinalground-motion-induced compressive stress under a PGA of 0.3 g was increased by 27% when the SSI coefficient was reduced from 0 to 0.5; then, it stabilized at 15 MPa, which corresponds to 37.5% of the compressive strength of M40-grade concrete. However, when the SSI coefficient exceeded 0.3, PGAs of 0.6 g and 0.8 g were required under longitudinal and transverse ground motions. The compressive stress exceeded the compressive strength for all SSI coefficients when the PGA reached 1.2 g; thus, an increase in the SSI coefficient can increase the compressive stress owing to the increase in soil aching associated with ground motions.
As illustrated in Fig. 12(c), a significant variation of maximum

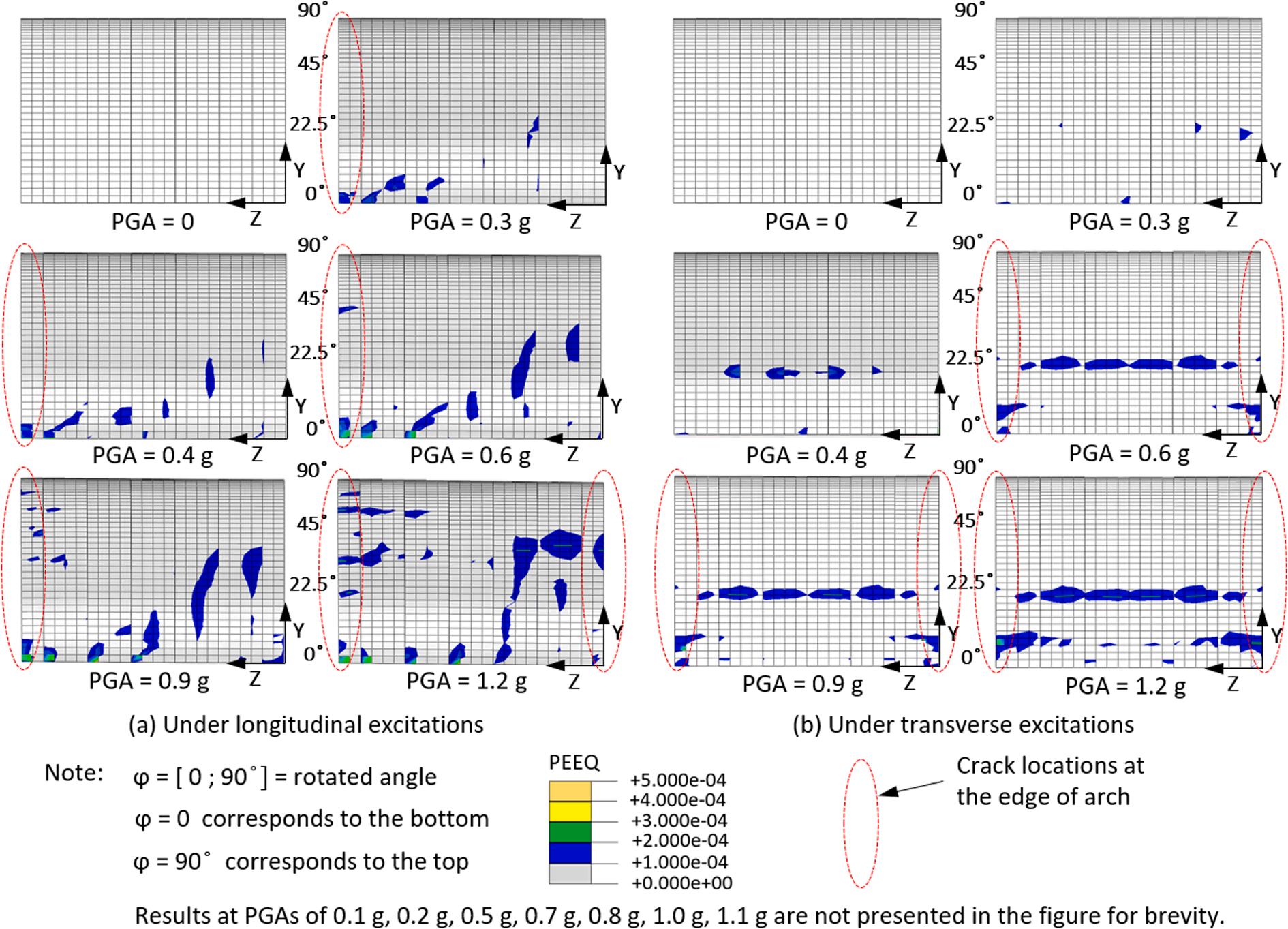

Fig. 9. Cracking patterns of MUAB loaded with longitudinal and transverse ground motions.
T. Van Nguyen et al.
tensile stress was observed with respect to the ground-motion intensity of both longitudinal and transverse ground motions. When the PGA was increased from 0.3 g to 1.2 g, the maximum tensile strength increases produced by the longitudinal and transverse ground motions were 162% and 225%, respectively. The maximum tensile stress increases for SSI coefficients ranging from 0 to 0.9 were 4% and 6% under longitudinal and transverse ground motions, respectively. This shows that an increase in SSI coefficient does not significantly reduce tensile stress in the components because the composite soil arching that arises between the arch and surrounding soils is not sustainable under the repeated shear impact of strong ground motions. Regarding all SSI coefficients, the tensile stress produced by the longitudinal and transverse ground

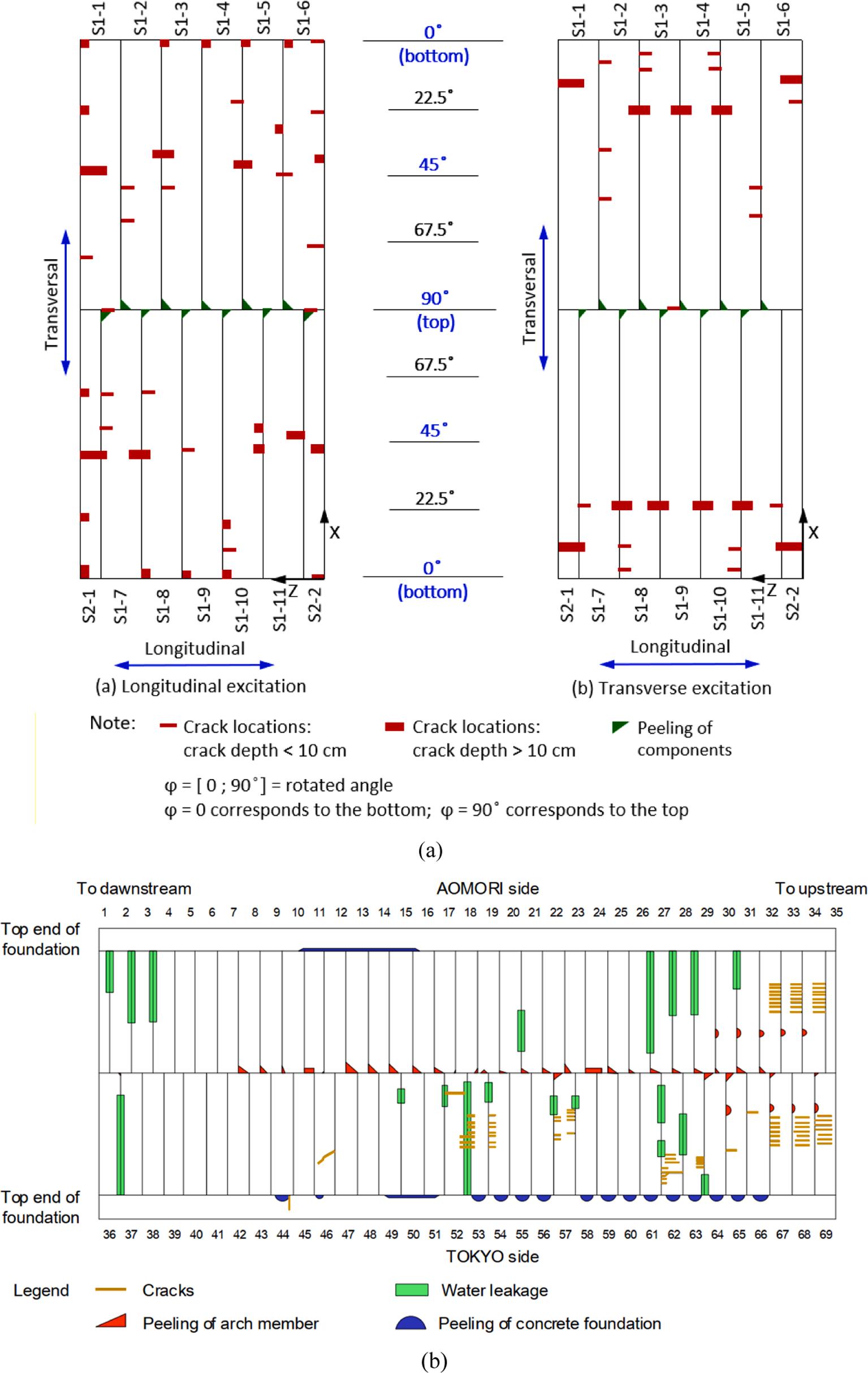

Fig. 10. (a) Plan view of MUAB subjected to ground motion with PGAs of 1.2 g, and (b) Schematic of damage to three-hinged arch bridges subjected to Great East Japan earthquake reported by Abe and Nakamura (2014) and drawn by Miyazaki et al. (2020).
T. Van Nguyen

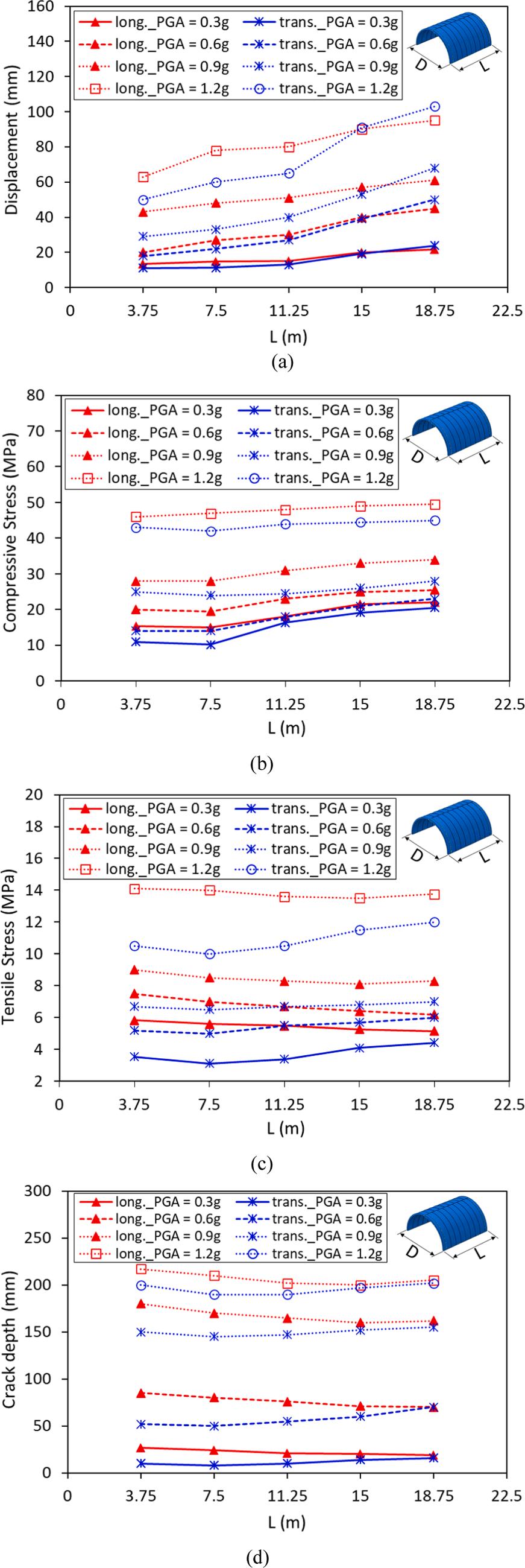

Fig. 11. Maximum seismic responses of MUAB with respect to arch length and ground motion direction: (a) displacement, (b) compressive stress, (c) tensile stress, and (d) crack depth.

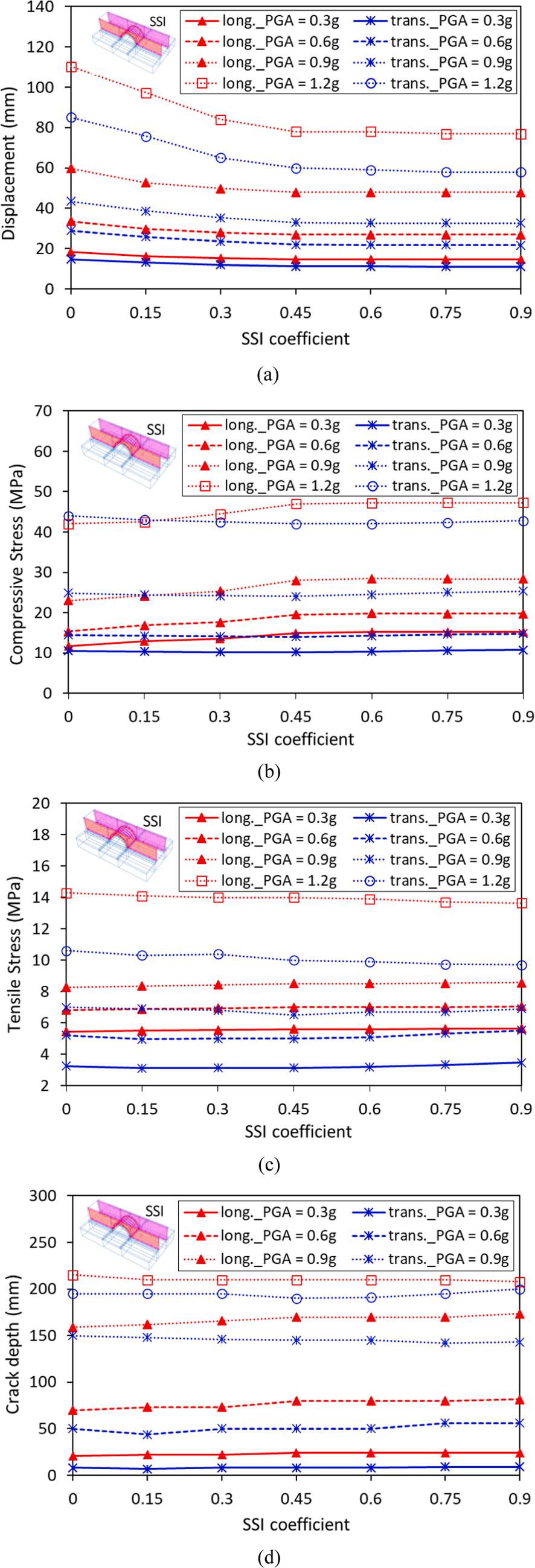

Fig. 12. Maximum seismic responses of MUAB with respect to SSI coefficient and ground motion direction: (a) displacement, (b) compressive stress, (c) tensile stress, and (d) crack depth. T.
motions exceeded the tensile strength of M40-grade concrete when the PGAs approached 0.3 g and 0.4 g, respectively.
No significant change in maximum crack depth was observed within the SSI evaluation range for any of the ground-motion intensity levels, as shown in Fig. 12(d). For all PGAs, when the SSI coefficient approached 0.9, the crack depths produced by the longitudinal and transverse ground motions increased by as much as 17% and 14%, respectively. When the PGA was increased from 0.3 g to 1.2 g, the difference in crack depth between the longitudinal and transverse ground motions increased by 72% (from 24% to 96%). Hence, the crack depth variation was almost independent of the SSI coefficient, though it depends on the ground-motion direction.
4.3. AAI
Fig. 13(a) shows the relationship between the AAI coefficient and the maximum displacement of a MUAB subjected to ground motions; an increase in the former leads to a considerable decrease in the latter. When the PGA increased from 0.3 g to 1.2 g, the maximum displacement increases produced by longitudinal and transverse ground motions were 470% and 434%, respectively; the difference in displacement between longitudinal and transverse ground motions decreased by 51% (from 93% to 42%). When the PGA was below 0.6 g and the AAI coefficient below 0.2, the displacements produced by the transversal ground motions exceeded those caused by longitudinal ones. However, when the AAI coefficient reached 0.6, the maximal decrease in transverse-groundmotion-induced displacement was 2.7 times higher than that produced by the longitudinal motions. When the AAI coefficient exceeds 0.7, the displacement criteria of the MUAB can meet for longitudinal and transverse PGAs smaller than 0.48 g or 0.59 g, respectively. Thus, the AAI coefficient can considerably strengthen the seismic capacity of MUABs subjected to strong ground motions, especially when loaded in the transverse direction.
Fig. 13(b) and Fig. 13(c) illustrate the influence of the AAI coefficient on the maximum ground-motion-induced compressive and tensile stresses in the segment components, respectively; a significant change can be seen in both owing to the change in AAI coefficient. When the PGA was increased from 0.3 g to 1.2 g, the maximum increases in maximum compressive stress were 231% and 305% for longitudinal and transverse ground motions, respectively. Meanwhile, the difference between the longitudinal- and transverse-ground-motion-induced compressive stresses increased by 46% (from 78% to 124%). In particular, for PGAs of 1.2 g, the compressive stress exceeded the compressive strength under both ground motions for all AAI coefficients, leading to significant compressive damage to the MUAB components. When the PGA was increased from 0.3 g to 1.2 g, the maximum tensile strength increases produced by longitudinal and transverse ground motions were 153% and 200%, respectively. On the other hand, for AAI coefficients from 0 to 1, the maximum decreases in tensile stress under longitudinal and transverse ground motions were 15% and 33%, respectively. The tensile stress produced by the longitudinal ground motions with PGAs of 0.3 g exceeded the tensile strength for all AAI coefficients. This shows that longitudinal ground motions pose a higher damage risk than transverse ones.
Furthermore, Fig. 13(d) shows the influence of the AAI coefficient on the maximum crack depth in segment components subjected to ground motions. For all PGAs, the crack depths under longitudinal and transverse ground motions decreased by 37% and 62%, respectively, at the maximum AAI coefficients (i.e., approaching 1). When the PGA was increased from 0.3 g to 1.2 g, the difference in crack depth between the longitudinal and transverse ground motions decreased by 34% (from 46% to 12%).
4.4. Prestressed rebar
Fig. 14(a) shows the effects of the prestressed rebar stiffness on the

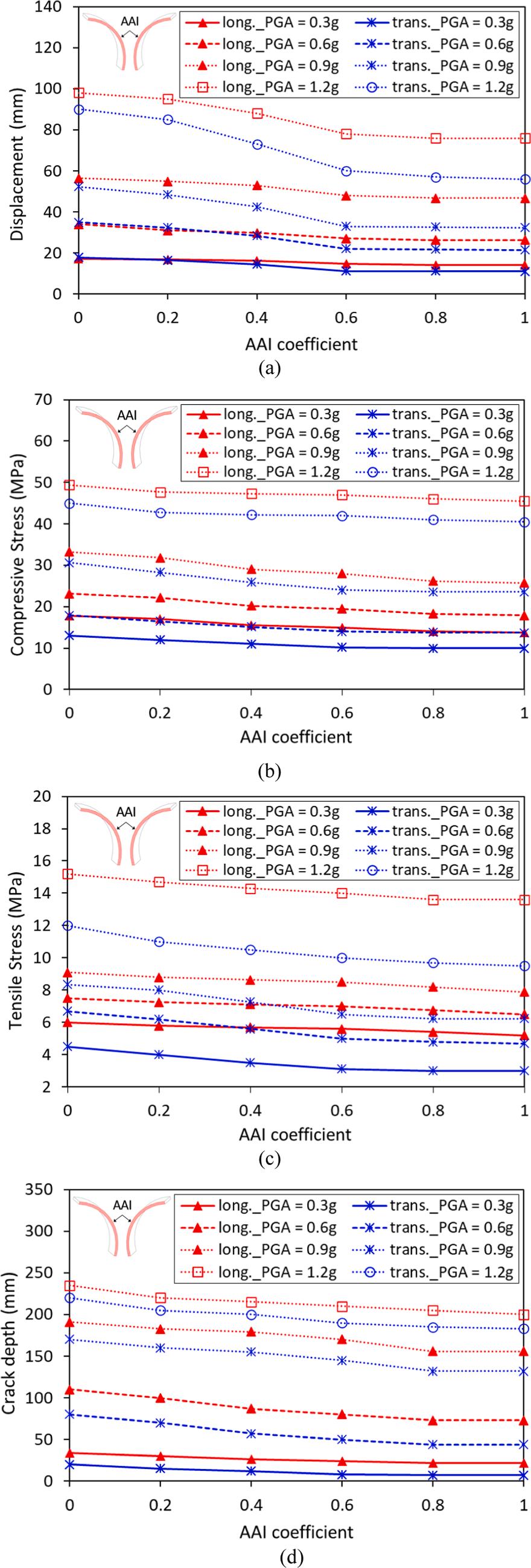

Fig. 13. Maximum seismic responses of MUAB with respect to AAI coefficient and ground motion direction: (a) displacement, (b) compressive stress, (c) tensile stress, and (d) crack depth.
T. Van Nguyen
maximum MUAB displacements under longitudinal and transverse ground motions. For all PGAs, the displacements produced by the longitudinal ground motions exceeded those produced by the transverse ones within the studied stiffness range. However, for identical PGAs (especially at larger PGAs), the longitudinal displacements tended to converge earlier than transverse ones; meanwhile, the stiffnesses increased because the connections between the L-J and C-J components were more stabilized in the longitudinal than the transversal directions. In particular, when the stiffness was increased from 0 to 40 MN/m, the displacements in all analyzed PGA cases maximally decreased by 54% and 56% under longitudinal and transverse ground motions, respectively. When the PGA was increased from 0.3 g to 1.2 g, the maximum displacement increases produced by the longitudinal and transverse ground motions were 655% and 584%, respectively. The difference in displacement between the longitudinal and transverse ground motions decreased by 12% (from 18% to 6%). This indicates that the longitudinal displacements dominate over the transverse ones. It can be generally concluded that the stiffness increase reduces both the longitudinal and transverse displacement because the strengthened joints between segment components increase the MUAB resistance.
Fig. 14(b) and (c) demonstrate the effects of the prestressed rebar stiffness on the maximum compressive and tensile stresses in the segment components. For different stiffnesses of the prestressed rebar, the tensile and compressive stresses produced by the longitudinal ground motions exceeded those produced by transverse ones. When the PGA was increased from 0.3 g to 1.2 g, the maximal compressive-stress increases produced by longitudinal and transverse ground motions were 214% and 313%, respectively. When the stiffness increased from 0 to 50 MN/m, the maximum decrease in compressive stress produced from the longitudinal and transverse ground motions is 15% and 21%, respectively. When the stiffness increased from 0 to 40 MN/m for PGAs smaller than 0.6 g, the compressive stress produced by both ground motions gradually decreased by 20%. The recorded compressive stress was much smaller than the compressive strength of M40-grade concrete for all stiffnesses. Meanwhile, when the PGA was increased from 0.3 g to 1.2 g, the maximum tensile stress increases produced by the longitudinal and transverse ground motions were 163% and 245%, respectively. The maximum tensile-stress decreases for stiffnesses ranging from 0 to 50 MN/m were 12% and 14% under longitudinal and transverse ground motions, respectively. Thus, the structural joint strength of segment components is significantly strengthened under an increase in stiffness, which enhances the component tensile and compressive strengths as well as the overall seismic capacity of the MUAB.
Fig. 14(d) shows that the prestressed rebar stiffness affects the maximum crack depth. When the PGA was increased from 0.3 g to 1.2 g, the difference in maximum crack depth between the longitudinal and transverse ground motions decreased by 34%. Within the stiffness range, when the PGA was below 0.3 g, the crack depths produced by transverse motions were unremarkable. When the PGA exceeded 0.9 g, the MUAB components exhibited substantially deep crack extensions. The crack depth decreased by 26% under a stiffness increase from 30 to 50 MN/m. This was primarily because the strengthening of joints between the segment components enhances the overall seismic capacity of the MUAB.
5. Conclusions
This paper presented a sophisticated 3D FEA of a 3-hinge MUAB with an arch diameter of 10 m and an arch length of 7.5 m. The MUAB was developed and subjected to a suite of synthetic ground motions via simulations generated to match the Korean Standard Design Response Spectrum (KDS, 2019). We performed FEA-based seismic evaluations of the MUAB under synthetic ground motions with PGAs ranging from 0.1 g to 1.2 g in the longitudinal and transverse directions, taking into account the effects of AAIs, SSIs, and prestressed rebar stiffness. Furthermore, changes in arch length, SSI and AAI friction coefficients as well as
Fig. 14. Maximum seismic responses of MUAB with respect to prestressed rebar stiffness and ground motion direction: (a) displacement, (b) compressive stress, (c) tensile stress, and (d) crack depth.
T. Van Nguyen
the prestressed rebar stiffnesses were modeled in parametric studies of various MUABs subjected to representative synthetic ground motions. Thus, the study provides valuable insights into the procedural aspects of seismic behavior evaluations for MUABs. The key conclusions drawn from this study are as follows:
(1) The FEA results show that the seismic behaviors of MUABs subjected to ground motions differ with respect to earthquake loading directions owing to the different levels of seismic resistance. The crack depth reached 5 cm when the PGA of the longitudinal ground motion was 0.47 g; meanwhile, this occurred under a PGA of 0.59 g for the transverse ground motion. A crack depth of 12.5 cm was observed for the longitudinal and transverse direction earthquakes at PGAs of 0.73 g and 0.84 g, respectively. When the PGA was below 0.47 g, the segment components of the MUAB might be repairable because the crack depth was smaller than 5 cm (equivalent to one-fifth of the arch thickness) under both longitudinal and transverse ground motions. However, the segment components were significantly damaged by compressive stresses when the PGA reached 1.2 g. The MUAB displacement exceeded the required displacement criteria when the PGA exceeded 0.43 g and 0.55 g under the longitudinal and transverse ground motions, respectively.
(2) The parametric study revealed that the seismic behavior of the MUAB depends on the PGAs and ground motion directions; furthermore, it is sensitive to changes in the arch length and prestressed rebar stiffness. When the arch length was increased from 3.75 m to 18.75 m, the maximum displacements generated by the longitudinal and transverse ground motions were increased by 65% and 117%, respectively. This was because the seismic resistance of the arch in the longitudinal direction exceeded that in the transverse direction. The influence of the prestressed rebar stiffness on the segment components depended heavily on the ground motion direction and the PGA. The increase in the prestressed rebar stiffness decreased both the longitudinal and transverse displacements because the structural joints of the segmental components were largely strengthened by the stiffness increase, resulting in an enhanced seismic resistance. The tensile and compressive stresses produced by the longitudinal ground motions exceeded those produced by the transverse ground motions for various prestressed rebar stiffnesses.
(3) From the parametric study, it was also found that the SSI coefficient had a minimal effect on the MUAB’s seismic response, especially in terms of its compressive and tensile stresses and crack depth; however, the AAI coefficient had a moderate impact on this response. For all PGAs, the increase in SSI coefficient from 0 to 0.45 led to a decrease of 20% in the MUAB displacement under both ground motions. This was because the MUABs could be more compacted and stabilized at larger SSI coefficients owing to the efficient soil arching effect of the SSI increase. The increase in AAI led to a decrease in the maximum displacement, tensile and compressive stresses, and crack depths in components because it could strengthen the seismic capacities of the MUAB, particularly under PGA increases in the transverse direction.
The present study had been limited to the number of ground motions to evaluate the seismic behavior of MUABs. Therefore, to assess the seismic performance of MUAB fully, a database of ground motion records is required. It is the key component in future attempts to overcome the uncertainty in the ground motion time history in that the selections must ensure an adequate number of ground motions to meet site characteristics. Hence, further studies could fruitfully explore this issue by investigating the seismic vulnerability of MUAB.
CRediT authorship contribution statement
Toan Van Nguyen: Investigation, Methodology, Writing – original draft, Validation, Visualization. Junwon Seo: Writing – review & editing, Methodology, Visualization. Jin-Hee Ahn: Conceptualization, Validation. Achintya Haldar: Methodology, Writing – review & editing. Jungwon Huh: Conceptualization, Methodology, Writing – review & editing, Supervision.
Declaration of
Competing Interest
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgment
This work was supported by the Korea Agency for Infrastructure Technology Advancement (KAIA) grant funded by the Ministry of Land, Infrastructure, and Transport (Grant 20CTAP-C151892-02).
