Molecular Imprinting for Nanosensors and Other Sensing Applications
Edited by
Adil Denizli Hacettepe University, Department of Chemistry, Beytepe, Ankara, Turkey
Elsevier
Radarweg 29, PO Box 211, 1000 AE Amsterdam, Netherlands
The Boulevard, Langford Lane, Kidlington, Oxford OX5 1GB, United Kingdom 50 Hampshire Street, 5th Floor, Cambridge, MA 02139, United States
Copyright © 2021 Elsevier Inc. All rights reserved.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or any information storage and retrieval system, without permission in writing from the publisher. Details on how to seek permission, further information about the Publisher’s permissions policies and our arrangements with organizations such as the Copyright Clearance Center and the Copyright Licensing Agency, can be found at our website: www.elsevier.com/permissions.
This book and the individual contributions contained in it are protected under copyright by the Publisher (other than as may be noted herein).
Notices
Knowledge and best practice in this field are constantly changing. As new research and experience broaden our understanding, changes in research methods, professional practices, or medical treatment may become necessary.
Practitioners and researchers must always rely on their own experience and knowledge in evaluating and using any information, methods, compounds, or experiments described herein. In using such information or methods they should be mindful of their own safety and the safety of others, including parties for whom they have a professional responsibility.
To the fullest extent of the law, neither the Publisher nor the authors, contributors, or editors, assume any liability for any injury and/or damage to persons or property as a matter of products liability, negligence or otherwise, or from any use or operation of any methods, products, instructions, or ideas contained in the material herein.
Library of Congress Cataloging-in-Publication Data
A catalog record for this book is available from the Library of Congress
British Library Cataloguing-in-Publication Data
A catalogue record for this book is available from the British Library
ISBN: 978-0-12-822117-4
For information on all Elsevier publications visit our website at https://www.elsevier.com/books-and-journals
Publisher: Susan Dennis
Acquisitions Editor: Kathryn Eryilmaz
Editorial Project Manager: Cole Newman
Production Project Manager: Paul Prasad Chandramohan
Designer: Victoria Pearson Esser
Typeset by Thomson Digital
Contributors
Sinan Akgöl, Biochemistry Department, Faculty of Science, Ege University, Bornova, Izmir, Turkey
Semra Akgönüllü, Hacettepe University, Department of Chemistry, Beytepe, Ankara, Turkey
Zeynep Altintas, Institute of Chemistry, Technical University of Berlin, Berlin, Germany
Elif Burcu Aydın, Namık Kemal University, Scientific and Technological Research Center, Tekirdag˘-Turkey
Muhammed Aydın, Namık Kemal University, Scientific and Technological Research Center, Tekirdag˘-Turkey
Monireh Bakhshpour, Hacettepe University, Department of Chemistry, Beytepe, Ankara, Turkey
Nilay Bereli, Hacettepe University, Department of Chemistry, Beytepe, Ankara, Turkey
M. Iqbal Bhanger, International Center for Chemical and Biological Sciences, H.E.J. Research Institute of Chemistry, University of Karachi, Pakistan
Nura Brimo, Biomedical Engineering Department, Bas¸kent University, Ankara, Turkey
Duygu Çimen, Hacettepe University, Department of Chemistry, Beytepe, Ankara, Turkey
Adil Denizli, Hacettepe University, Department of Chemistry, Beytepe, Ankara, Turkey
Faezeh Ghorbanizamani, Biochemistry Department, Faculty of Science, Ege University, Bornova, Izmir, Turkey
Emur Henden, Department of Chemistry, Faculty of Science, University of Ege, Bornova, İzmir, Turkey (Retd)
Neslihan Idil, Department of Biology, Biotechnology Division, Hacettepe University, Ankara, Turkey
Raif İlktaç, Application and Research Center for Testing and Analysis, University of Ege, Bornova, İzmir, Turkey
Rüstem Keçili, Anadolu University, Yunus Emre Vocational School of Health Services, Pharmacy Services Programme, Eskis¸ehir, Turkey
Yig˘it Kozalı, Biochemistry Department, Faculty of Science, Ege University, Bornova, Izmir, Turkey
Kevser Kusat, Turkish Ministry of Health, Turkish Medicines & Medical Devices Agency, Turkey
Sakib Hussain Laghari, National Centre of Excellence in Analytical Chemistry, University of Sindh, Jamshoro, Pakistan
Bo Mattiasson, Devision of Biotechnology, Lund University, Lund, Sweden; Indienz AB, Annebergs Gård, Billeberga, Lund, Sweden
Najma Memon, National Centre of Excellence in Analytical Chemistry, University of Sindh, Jamshoro, Pakistan
Arben Merkoçi, Catalan Institute of Nanoscience and Nanotechnology (ICN2), CSIC and BIS, Bellaterra, Barcelona, Spain; Catalan Institution for Research and Advanced Studies (ICREA), Barcelona, Spain
Hichem Moulahoum, Biochemistry Department, Faculty of Science, Ege University, Bornova, Izmir, Turkey
Is¸ık Perçin, Department of Biology, Molecular Biology Division, Hacettepe University, Ankara, Turkey
Merve Asena Özbek, Hacettepe University, Department of Chemistry, Beytepe, Ankara, Turkey
Erdog˘an Özgür, Advanced Technologies Application and Research Center, Hacettepe University, Ankara, Turkey; Department of Chemistry, Faculty of Science, Hacettepe University, Ankara, Turkey
Muqsit Pirzada, Institute of Chemistry, Technical University of Berlin, Berlin, Germany
Tahira Qureshi, National Centre of Excellence in Analytical Chemistry, University of Sindh, Jamshoro, Pakistan
Esma Sari, Vocational School of Health Services, Medical Laboratory Techniques, Yüksek Ihtisas University, Ankara, Turkey
Yes¸eren Saylan, Hacettepe University, Department of Chemistry, Beytepe, Ankara, Turkey
Dilek Çökeliler Serdaroğlu, Biomedical Engineering Department, Başkent University, Ankara, Turkey
Buse Sevgi, Biochemistry Department, Faculty of Science, Ege University, Bornova, Izmir, Turkey
Mustafa Kemal Sezgintürk, Çanakkale Onsekiz Mart University, Faculty of Engineering, Bioengineering Department, Çanakkale-Turkey
Muhammad Raza Shah, International Center for Chemical and Biological Sciences, H.E.J. Research Institute of Chemistry, University of Karachi, Pakistan
Suna Timur, Biochemistry Department, Faculty of Science, Ege University, Bornova, Izmir, Turkey; Central Research Testing and Analysis Laboratory Research and Application Center, Ege University, Bornova, Izmir, Turkey
Aykut Arif Topçu, Aksaray University, Medical Laboratory Program, Vocational School of Health Service, Aksaray, Turkey
Recep Üzek, Department of Chemistry, Faculty of Science, Hacettepe University, Ankara, Turkey
Handan Yavuz, Hacettepe University, Department of Chemistry, Beytepe, Ankara, Turkey
Figen Zihnioglu, Biochemistry Department, Faculty of Science, Ege University, Bornova, Izmir, Turkey
Chapter 1 Fundamentals and Applications of Molecularly Imprinted Systems
Yes¸eren Saylan and Adil Denizli∗
Hacettepe University, Department of Chemistry, Beytepe, Ankara, Turkey
∗Corresponding author
1 Introduction
The history of molecular imprinting is started from the introduction of the conjunction with silica particles in 1931 to organic polymers in 1972 [1] . Although molecular imprinting methods continue to evolve with renewal in every study, the concept itself has a long history. At the beginning of the 1970s, Wulff and Klotz independently published their studies about the preparation of organic polymers with predetermined ligand selectivity properties [2,3] . After then, many of the researchers from all over the world used the fascinating features and allow the prospering of this method. The molecular imprinting method principally depends on the determination interaction reaction that happens at around the target (template molecule) [4] . Template molecules are presented during polymerization and recognized by the resultant polymeric matrix. Molecularly imprinted polymer-based systems can be synthesized by the different types of template molecules, functional monomers, cross-linkers, initiators, and solvents combinations for several applications [5–8] . Besides, the quality of the molecularly imprinted polymer can be changed the monomer mixtures, the experimental conditions, the interaction mechanisms, and so on [9–12] . The molecularly imprinted polymers have a lot of important characteristics such as easy preparation, reusability and cost-friendly, high stability, high affinity, and high selectivity towards template molecules. According to these properties, the molecularly imprinted polymers can be employed in diverse fields such as sensors, chromatography, microfluidics, computational modeling systems, and so on [13–18] .
Molecular Imprinting for Nanosensors and Other Sensing Applications. http://dx.doi.org/10.1016/B978-0-12-822117-4.00001-0
Copyright
2 Fundamentals of molecular imprinting method
The selected template molecules interact with the suitable functional monomers, cross-linkers, initiators, and solvent mixtures for the preparation of the molecularly imprinted polymers (Fig. 1.1). At first, the template molecule binds to the functional monomer and then the obtained pre-complex is copolymerized in the presence of a cross-linker, initiator, and solvent that create an imprinted polymeric matrix. Following the removal of the template molecule, specific cavities are appeared for using recognition, adsorption, separation, and detection applications [19,20]
3 Preparation methods of molecularly imprinted polymers
There are some key elements (template molecules, functional monomers, crosslinkers, initiators, and solvents) for the preparation of molecularly imprinted polymers. The template selection is the most important parameter for all molecular imprinting methods and applications due to the process are occurred around the selected templates with crosslinking functional monomers [21,22] At the end of the polymerization, the template molecule is removed from the polymeric matrix with suitable desorption agents and elution process. The molecularly imprinted polymers have template specific binding sites and are ready to rebind template molecules over and over [23]
The functional monomers are especially needed for a specific interaction with the template molecule in the binding sites of the polymeric matrix. So, an optimum ratio of the template molecule and functional monomer preparation to obtain pre-complex is a crucial step. Also, it is an important parameter to figure out the suitable ratios of the functional monomers to template molecules [24]. In the polymerization step, the cross-linkers are used for binding the polymeric chains.

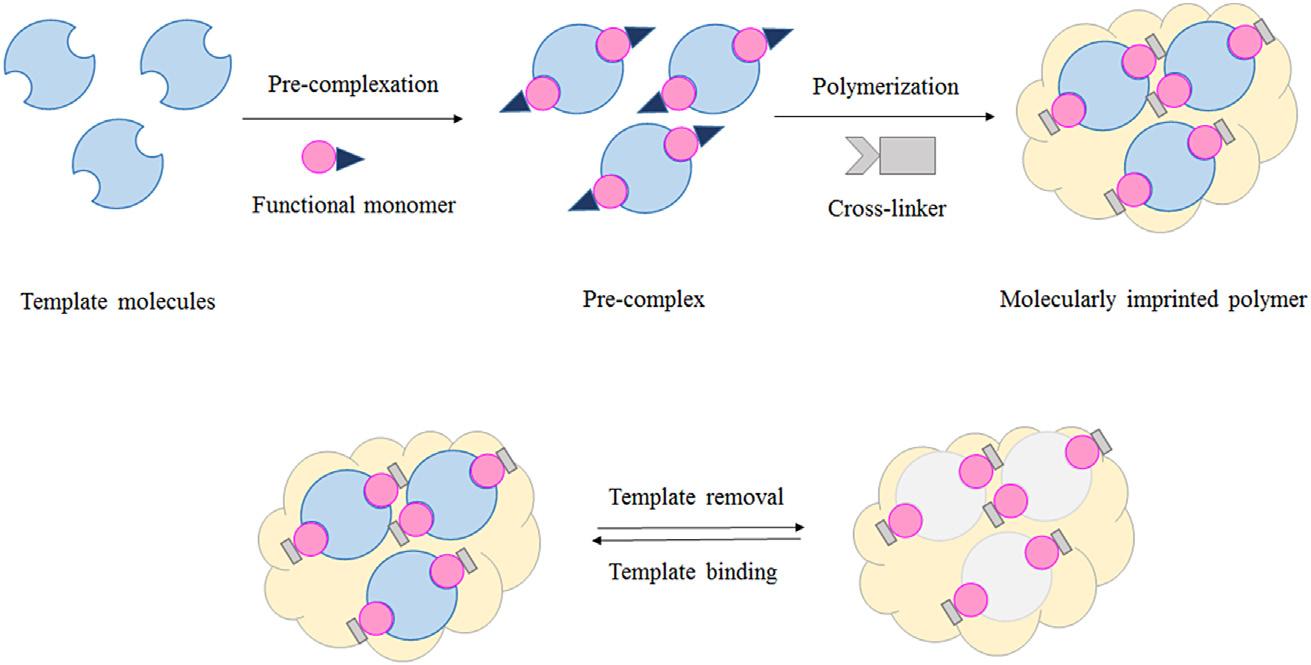

FIGURE 1.1 Steps of molecularly imprinted polymers preparation.
They play critical roles to determine the properties of imprinted polymers and to create a rigid polymeric matrix by comprising recognition sides. The high percentages of cross-linkers are required to acquire the structural unity of the binding sites of the polymeric matrix [25]. The initiators are chemical types that affect the functional monomer to create an intermediate compound by linking a large number of other functional monomers into a polymeric matrix. The choice of initiators depends on the type of polymerization and template molecules [26]. Solvents are employed for increasing or decreasing the polymeric chains of imprinted polymers. The crucial role is that the solvent participates as a porogen maker [27].
3.1 Bulk imprinting
In the bulk imprinting, the template molecules are imprinted completely in the polymeric matrix and they require to be eluted from the matrix. Then, the imprinted bulk polymer is generally crushed mechanically and fractionated to obtain small materials from these bulk polymers [28–30]. In most cases, the researchers preferred the bulk imprinting to imprinted small molecules because of the fast and reversible recognition and release of the template molecule [31] This method has some disadvantages in the case of macromolecules imprinting. During the polymerization, the conformational durability of a macromolecule is a big issue [32]. Furthermore, when the huge imprinted sites are formed, small molecules can also bind to these binding sites that cause cross-reactivity and decreased selectivity [33]. Because of the dense property of bulk imprinted polymers, template molecules are attached in the polymeric matrix that brings about the limitation or no entry to interact with the binding sites. This low accessibility causes long response times, deviation, and poor regeneration problems [34]. These drawbacks can overcome with the other imprinting methods.
3.2 Surface imprinting
In the surface imprinting, the mass transfer resistance is reduced in especially macromolecule imprinted [35]. Recently, the surface imprinting method has achieved great attention in various applications as a significant alternative to imprint macromolecules [36–38]. This method can be classified into the submethods including top-down and bottom-up that depends on the polymerization place. In the top-down method, the template molecule binds a support molecule, which is removed after formation. So, the interaction sides on the polymeric matrix surface retreat [39]. In the bottom-up method, the support molecule uses to immobilize the template molecule to increase the imprinted binding sites and remove the template molecule completely [40]
3.3 Epitope imprinting
In the epitope imprinting, stronger and more specific interactions can be acquired by employing a region of a macromolecule [41]. A small part of the
macromolecule could recognize a whole macromolecule. So, non-specific interactions can be decreased and the affinity can be increased because of various superiorities [42]. The molecularly imprinted polymers can identify the template molecule. Thermodynamic conditions propose to manage of usage a nonrigid template molecule to fewer clear binding sites in molecularly imprinted polymers, so this composition contains the molecule in the polymerization by bordering and also they have drawbacks including insufficient reproducibility and low specificity [43–45]
3.4 Micro-contact imprinting
The other alternative solution for the problem of macromolecules imprinted can be figured out using this method. In the micro-contact imprinting, a little amount of molecular mass needs to expeditiously obtain a monolayer matrix [46]. Generally, a stamp applies to obtain the template molecule moiety while imprinting [47]. One layer of the template molecule with the functional monomer on a slide is fabricated and then adhered to a slide with a cross-linker. In the end, the slide was removed from the surface, which demonstrates the wanted recognition sides [48–50].
4 Applications of molecularly imprinted polymers-based systems
Different technologies of molecularly imprinted polymers-based systems have achieved rapid growth according to continuous use and development of traditional techniques. Moreover, several molecularly imprinted polymers-based systems with excellent performances have fabricated and also more thrilling and universal applications have recognized [51]. In contrast to the conventional methods, the molecularly imprinted polymers-based systems have superior benefits including high selectivity, high stability, easy and cheap preparation, high resistance to extra-ordinary conditions, and also featured utilization to desired template molecules [52]. Because of these considerations, molecularly imprinted polymers-based systems have found application in various fields such as sensor [53], chromatography [54], microfluidic [55], computational [56], and other systems.
4.1 Sensor systems
In molecularly imprinted polymers-based sensor systems, a signal is produced upon the binding of the template molecule to the recognition molecule and a transducer converts this signal into an output. The properties of the template molecule or changes in parameters of the sensor systems upon template molecule binding are employed for specific and sensitive recognition and detection. Besides, researchers incorporate into the molecularly imprinted polymers to enhance the sensor system’s responses [57–60].
For instance, Ma et al. recently reported a study about a piezoelectric sensor for determining cytochrome c. They used the modified palmitic acid epitope of cytochrome c as a template and 3-aminopropyl triethoxysilane as a monomer to prepare a polymer by using reverse micro-emulsion polymerization and then combined the advances of imprinted polymers and quartz crystal microbalance sensors. They performed kinetic studies in a range from 0.005 µg/mL to 0.050 µg/mL and obtained a low limit of detection value as 3.6 ng/mL [61]. Fang et al. prepared a filter paper bases on an imprinted polymer for extracting 3-monochloropropane-1,2-diol which is a food processing contaminant. They showed that this paper-based system exhibited a high adsorption capacity (68.97 mg/g), an outstanding selectivity (imprinting factor: 4.5) and a low limit of detection value (0.6 ng/mL). They also reported the recoveries values ranged from 97.2% to 105.3% with relative standard deviation values below 5.6% and obtained a linear correlation to the classic GC-MS method [62]. Alizadeh et al. introduced an imprinted polymer and multi-walled carbon nanotube-based potentiometric sensor to detect lactic acid. They used allylamine and ethylene glycol dimethacrylate as a functional monomer and a cross-linker. They observed that the imprinted polymer cavities were produced during polymerization that affected the electrode potentiometric response. They coated the potentiometric sensor with a membrane consisting of the imprinted nanoparticles, multi-walled carbon nanotube, dibutyl phthalate, poly-vinyl chloride, and tetraphenyl phosphonium bromide. They obtained a slope of 30.3 ± 0.4 mV/decade in the range of 1.0 × 10 1 to 1.0 × 10 6 mol/L with a low limit of detection value (7.3 × 10 7 mol/L). They also reported that this sensor showed a stable potential response in the pH range of 5–8 and a fast response time of less than a minute [63]. Feng et al. fabricated a fluorescent sensor covering a molecularly imprinted polymer layer onto quantum dots for tetrabromobisphenol-A detection with modification steps (Fig. 1.2A). Following the characterization experiments, they optimized experiment conditions and reported that this fluorescent sensor displayed linearity with tetrabromobisphenol-A coating the range of 1.0–60.0 ng/mL with a low limit of detection value (3.6 ng/g). They also claimed that this imprinted fluorescent sensor was successfully used for the determination of tetrabromobisphenol-A in electronic waste samples. They obtained the mean recoveries were in the range from 89.6% to 107.9% with the relative standard deviation below 6.2% [64]
Erdem et al. also presented a study on Enterococcus faecalis detection by an imprinted nanoparticle-based optic sensor (Fig. 1.2B). They first prepared bacteria imprinted nanoparticles by using micro-emulsion polymerization, characterized these imprinted nanoparticles with several techniques and covered the optic sensor surface using these imprinted nanoparticles. Then, they performed a kinetic behavior of optic sensors in the range of 2 × 104–1 × 108 cfu/mL with a low detection limit value (1.05 × 102 cfu/mL). They also performed selectivity and reusability of the sensor to compare detection performances [65].
Akgönüllü et al. recently published a study about a piezoelectric sensor coated

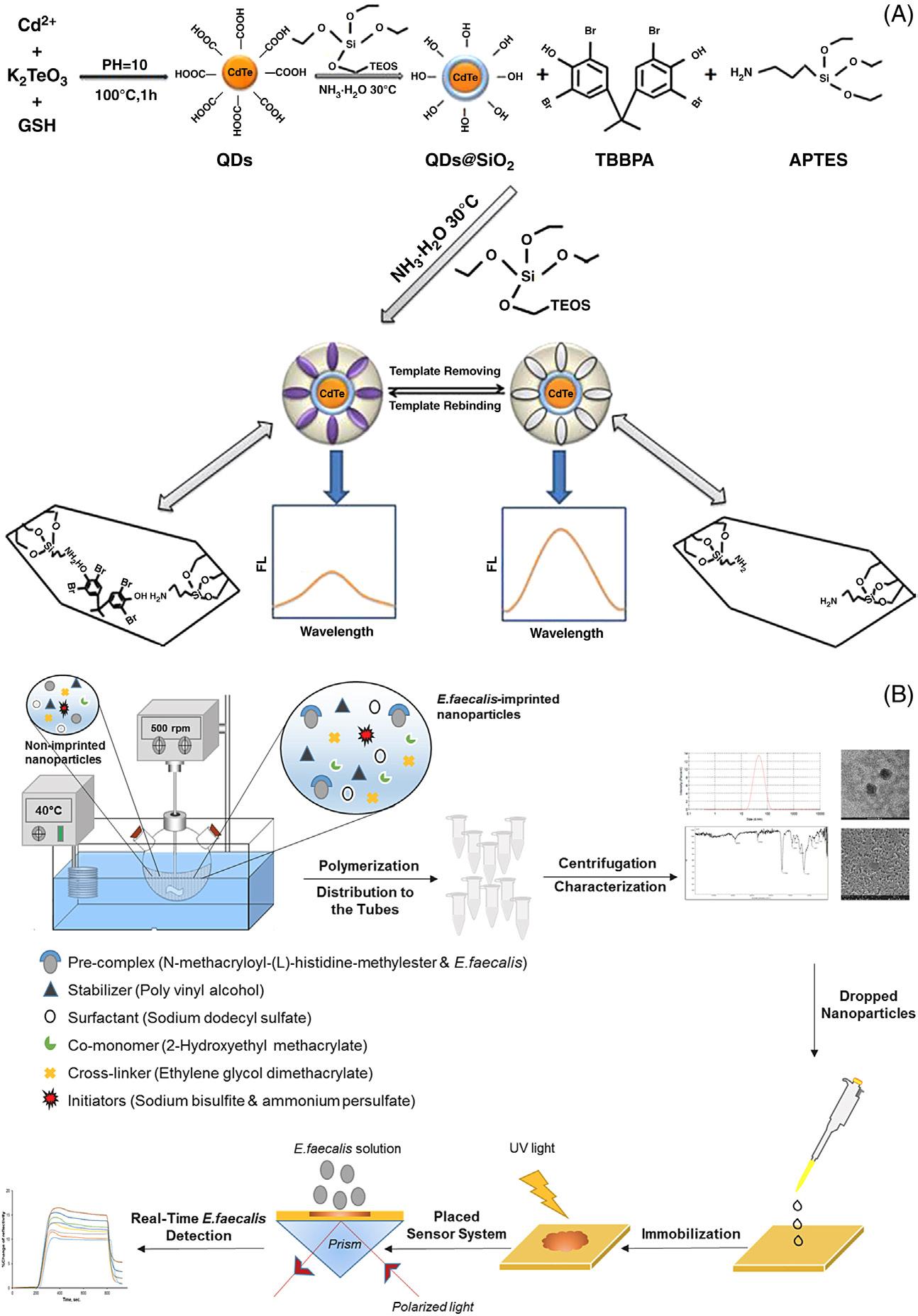

FIGURE 1.2 Steps of imprinted fluorescent (A) and optic (B) sensors preparation [64,65].
with imprinted nanoparticles for the synthetic cannabinoids (JWH-018, JWH073, JWH-018 pentanoic acid, and JWH-073 butanoic acid) detection. They first synthesized imprinted nanoparticles, characterized them by different measurements and then spread onto the nanoparticles for covering a sensor surface.
