Large-scaleinfrastructuresand processsafety
1.1Introductiontosystemapproach
Tounderstandtheproblemofprocesssafetymanagementtominimizerisks usingbigdatatechnologies,weneedtorecalltheconceptsusedinsystem analysistheory.Thebasicdefinitionofsystemanalysisisthedefinitionof theconceptofasystem.Therearemanydefinitions,andtheyreflectthe featuresofaparticularproblemsolvedintheframeworkofsystemanalysis. Inthecontextofourtasks,theelementsandrelationshipsbetweenthatform thesystemareimportant.Thus,asystemisagroupofinteractingorinterconnectedobjectsthatformasinglewhole(System,2020).
Anysystemhasitsmaingoal.Inourcase,theprocesssafetymanagement systemshouldprovideagivenlevelofsafety.Entities(elements)ofthesystemcanhavetheirowngoals,usedbythesystemtoachieveitsowngoal.
Thegoalsoftheelementsareformedbasedonthepurposeofthesystem.
Todothis,adecompositionofthegoalsofthesystemisperformed,andthe elementsandrelationshipsbetweenthemtoachievethemaredetermined.
Thepropertyofasystemtoformitsgoalbasedonthegoalsoftheelementsisdeterminedandmaintainedwithintheframeworkoftheconceptof thelifecycleofsystems:
•Atthestageofsystemdesign,theelementsofthesystemaredetermined andtherelationshipsbetweenthemaredescribed.
•Atthestageoffunctioningofthesystem,theoperabilityoftheelements ismaintainedandthequalityoftheconnectionsbetweentheelementsis controlled.
•Atthedisposalstage,elementsareidentifiedthatcanbereusedor recycled.Ifthisisnotpossible,thentheelementscanbeburiedor destroyedintheexternalspecializedsystem.
Thesystemarchitectureonthedesigningstagecanbepresentedintheform ofsubsystemsandlinksbetweenthem.
Thepurposeoftechnologicalprocessesinourcaseistheconversionof rawmaterialsintoafinalorintermediateproduct.Thatiswhytheycanbe
attributedtotheelementsoftheproductionsystemofthefinalproduct. Modernproductionsystemsaredefinedbytheirspatialboundariesandtechnologicalprocessesbytemporaryboundaries.Anysystemfunctionin anothersystemsurroundingit—forexample,theenvironment—influences ourproductionsystemandbyitselfisunderproductionsysteminfluence.
Insomecasesasystemcanbedescribedthroughthedescriptionsofits elementsandtherelationshipsbetweenthem,aswellasthroughthedescriptionsofthefunctionsitperforms.
Notethatthesystemhaspropertiesthatarenotinherentinitselements. Thisistheso-calledsynergisticeffect.
Whenclassifyingsystems,attentionispaidtointeractionwithothersystems.Ifthereisanactiveexchangeofrawmaterials,energy,orinformation withothersystems,thentheyareclassifiedasopensystems.
Anexampleofanopensystemisamodernpetrochemicalenterprise,in whichoilproductscomingfromoutsideareprocessedintothefinalproduct, andelectricitycomingfromthepowersystemisspentontechnologicalprocesses.Closedsystemsdonotexchangeenergywiththeenvironment (anothersystem).
Whendescribingsystems,afunctionalapproachisused(describingthe systemasablackbox),whenonlyitsinputvariablesandoutputvariablesare specifiedforitsdescription.Thefunctionofconvertinginputvariablesto outputdatacanbepresentedintheformofadescriptionofitsproperties, withoutrevealingthedetailsofitsimplementation.Thisapproachdoes notallowdecomposingacomplexsystemintosubsystems,butcanfacilitate itsanalysisandmodelingusingvariousmethodsofthetheoryofidentificationofsystems.
1.2Large-scaleinfrastructures
Industrialinfrastructuresarelocatedonlandorinwater,someofthemcan shifttheirlocation,andallofthemhaveanumberoftypicalfeaturesthat characterizethemasaspecialclassofcomplexsystems.Theirfeatures includethefactthattheyoccupyalargeareaandvolume,andtheirorganizationalstructureincludesmanyinterconnectedcomplextechnicalobjects. Thefunctioningofthelarge-scaleinfrastructureissupportedbyalarge groupofpeopleorganizedhierarchically.Allofthemhavedifferentqualificationsandprofessionalknowledge.
Largeindustrialinfrastructuresarestudiedandresearchedinvariousfields ofscienceandusingdifferentapproaches:
•Systemsapproach.Inthisarea,welookatsystemicpatternsthat,among otherthings,affectprocesssafetyfeatures(Leveson,2016).
•Integratedadaptivesystemsapproach.Wearelookingforsolutionsto theproblemsofadaptingthecontrolandmanagementsystemtaking intoaccountchangesinthesystem(Curry,Beaver,&Dagli,2018).
•Cyber-physicalsystemsapproach.Here,whenanalyzingandstudying thepropertiesofasystem,thefeaturesofinformationexchangebetween subsystemsandtheoptimizationoftheseprocessesbasedoncomputer networksaretakenintoaccount(Li,2016).
Anotherfeatureoflargeinfrastructuresisthattheyusealargeamountof electricity,orothertypesofenergysources.Therefore,thereisanurgent requirementtooptimizetheprocessesofenergyconsumptionandthe useofalternativeenergysources(Brennan,2012).
Onemorefeatureoflarge-scaleinfrastructureistheapplicationofmoderncomputersystemsforcontroloftechnologicalprocessandprovisionof efficientmanagementprocedures.
Dependingonthepurposeandneedforaccesstotheresources,infrastructuresarelocatedinhard-to-reachplaces,or,conversely,nearmegacities,iftheiroperationrequirestheparticipationofalargenumberof people.
Infrastructureisoftenaffectedbyvariousfactorsrelatedtocomplexclimateconditions.Forexample,oilplatformsintheArcticareexposedto lowtemperaturesandgale-forcewinds.Oneofthemaincharacteristics ofindustrialinfrastructuresisthattheyalmostalwaysposeapotentialrisk tothepersonnelworkingonthem, aswellastothepeoplewholive nearthem.
Unfortunately,therearemanyexamplesofthesehazardsevents (Sanders,2015).
Dependingonthecharacteristicsoftechnologicalprocessesinindustrial infrastructures,iftherulesforperformingtechnologicalprocessesareviolated,aswellastherulesformaintainingtechnologicalinstallationsthey can(andunfortunatelydo)causesignificantdamagetotheenvironment (Nriagu,2011).
Let’slookatexamplesofindustrieswherelargeinfrastructurefacilitiesare operated.
Petrochemicalenterprises.Productionandprocessingofoilandgasareassociatedwithcomplexandexpensivetechnologicalprocesses.Oil-producing landandseasystemsareusedtoimplementtheseprocesses.Processingof hydrocarbonrawmaterialsisimplementedatpetrochemicalenterprises.
Transportationofpetroleumproductsiscarriedoutusingpipelinesandvarioustypesoflandtransportandwatertransport.
Energysector.Petrochemistryiscloselyrelatedtotheelectricpower industry,astechnologicalprocessesrequiretheuseoflargeamountsofelectricity.Theobjectsoftheenergyindustryincludehydroelectricpowerstations,nuclearpowerplants,andreservoirsystems.Inturn,powerplantsuse naturalgasandotherhydrocarbonstogenerateelectricity.
Transportindustry. Thisincludestheaviation,railway,andautomobile industries.Theseindustries,inturn, includeairports,trainstations,bridges,roads,andriverandseaports.Thetransportindustryisoneofthemain consumersofvarioustypesoffuel: kerosene,gasoline,fueloil,and lubricants.
Industrialbranch. Consumersofpetrochemicalproductsarevarious industrialenterprisesthatproduceavarietyofhigh-techproducts,suchas cars,tires,dishes,etc.Industryisalsoaconsumeroflargeamountsofelectricity.Thedatacollection,storage,andtransmissionindustrybasedon computer-aidedinformationprocessingconsumessignificantenergy resources.Datacentersoflargecompaniesuseelectricitytocooltheirclusters,whichgenerateheatduringdataprocessing.
Weshallnowlookfurtheratvariousinfrastructureobjectsthatarethe partsoflargeindustrialinfrastructures.
1.2.1Drillingrig
Adrillingrigisacomplexmechanicalsystemthatrequiresconsiderable effortfromateamofspecialiststoinstall,maintain,anddismantleit.When performingtechnologicalprocesses,itisnecessarytocomplywithsafety rules,sincethetechnicalprocessesofdrillingoperations,installationofdrillingcolumnelements,anddeliveryofdownholeequipmentelementsare associatedwiththemovementofmechanicalstructuresoflargeweight andincludevariousmanualoperations.Amoderndrillingrigcanbeclassifiedasacomplexmechatronicsystem.Itcancontainaroboticsystemfor changingandinstallingcasingpipes,anautomatedwinch,etc.Tocontrol themanipulator,ahybridcontrolsystemisused,includinganautomatic controlsystemandcontrolbasedonoperatorcommands.Thepersonnel servingthedrillingrigmaynumbermorethan30.Sincethedrillingprocess isusuallyacontinuousprocess,theworkisperformedinshifts.Puttingawell intooperationcantakeuptoayear.Thistimedependslargelyonthetypeof wellbore.
Tomonitorthestatusofallsubsystemsofthedrillingrig,thefollowing datasourcesareused:pressuresensors,speedsensors,drillpositionsensors, temperaturesensors,andvariousactuators—electricmotors,motors,pneumaticautomationsystems,valves,etc. Fig.1.1 showsamoderndrillingrig anditssimplifiedschemeandmaintypesofhazards.
Themostdangeroussubstancesforteamonthedrillingrigincludeformationgas,hydrogensulfide,anddieselfuel.Emergenciesarerelatedto electricalequipment,cablebreakage,andgasreleasefromthewell,and destructionoftheunit’sstructuresduetocorrosionandfatiguestresses.
1.2.2Oiloffshoreplatform
Anoffshoreoilplatformfortheextractionorprocessingofhydrocarbons operatesunderextremeclimaticconditionsandtheimpactofdynamicloads onitsstructure.Thisisduetohighhumidity,exposuretosolarradiationand strongwind,seawater,andwaves.Inadditiontotheusualsubsystemsforan oilrig,itincludessubsystemsforensuringthesafetyofinfrastructurefrom theinfluenceofseaconditions,communications,andrescuevehicles (Khan&Abbassi,2018). Fig.1.2 showsanoffshoreoilproductionplatform thatincludesaplatform,logisticssupportsystems,adrillingrig,andalife supportsystem.
Theoperationoftheoilplatformisassociatedwithvarioushazards, whichmaycauseemergencysituations,withlossofperformanceandwith threattothelifeofpersonnel.Themaintypesofhazardsarepresentedin Fig.1.2.
Fig.1.1 Modernrigandmaintypesofhazards.
1.2.3Tankerfortransportationofliquefiedgas
Mostoftheoilandgasfieldsareremotefromtheplacesoftheirprocessing andconsumptionofmarketableoilandgasproducts.Oilpreparedattheoil fieldistransportedtotherefinerybypipeline,rail,orwater(seaandriver). Themaintypesofhazardsforapipelinearecausedbydamagetometalconstructionthroughthecorrosionprocesses.
Liquefiedgasistransportedonaspecializedtanker.Thetankerincludes thefollowingmainsubsystems:liquefiedgasstoragesystems,thevesselsfor transportinggasstoragefacilities,andsystemsformaintainingoptimalcharacteristicsofliquefiedgas.Transportationofliquefiedgasisrelativelydangerous(Mokhatab,Mak,Valappil,&Wood,2014). Fig.1.3 showsatanker transportingliquefiedgasandeventsthatcanleadtohazardoussituations.
Whentransportingvarioustypesoffuelbylandvehicles,specially equippedrailwaytanksorcartransportsystemsareused(see Fig.1.4). Thetransportationoftheseproductsrequiresenhancedsecuritymeasures andisassociatedwithhighrisksofcriticalsituations.
Tomaintaintheworkingpressureinthepipeline,gaspumpingsystems areused,andmaybeequippedwithgasturbineunits.Onmaingaspipelines, compressorstationsareequippedwithcentrifugalcompressorswithagas
Fig.1.2 Offshoreoilrigandeventshazardclassification.
turbinedriveoranelectricdrive.Herehazardsincludefiresandexplosions (Mokhatab,Poe,&Mak,2015).
Gaspipelinescanalsobelaidalongthebottomofthesea;thepipeline copiestheprofileoftheseabed,bendingunderitsownweight.Inorder toensurereliableoperationofamoderngaspipeline,tomonitorthepressureintheunderwaterpartofthegaspipelineandthegasvelocityinit,and tolocalizeanemergencygasleakquickly,parallelinstallationoffiberoptic cableispossible.

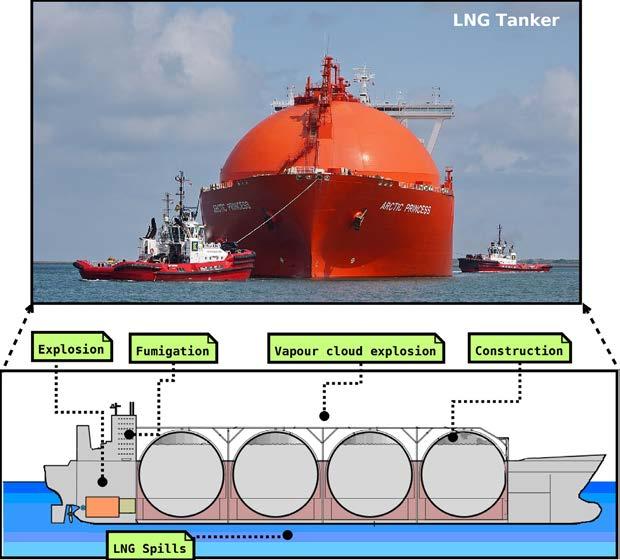

Fig.1.3 Transportationofliquefiednaturalgas.

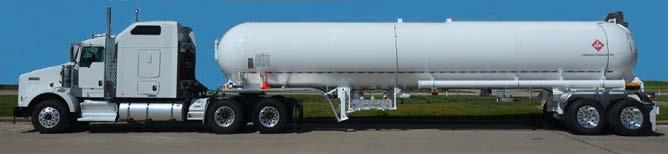

Fig.1.4 Trucksareusedforthetransportationofdieselandpetrol/gas/gasoline/benzin.
Tocontrolthestateofthepipeline,monitoringsystemsareused,which includealargenumberofdifferentdevicesformeasuringthestateofpipeline elements.Themainhazardsincludeexplosions,fires,andleaksof toxicgases.
1.2.4Petrochemicalproduction
Oilandgasprocessingareperformedatapetrochemicalplant.Thepetrochemicalplantcontainsasufficientlylargenumberofoilprocessingunits connectedbyasingletechnologicalcycle.Themainhazardsarefires,explosions,leaksoftoxicmaterials,thecomplexityofpersonnelevacuation,and largedamagetotheenvironment(Sanders,2015).
Petroleumproductsarestoredinoilstoragefacilitiesthatincludetransportinfrastructure,apipelinesystem,manylandtankers,andfiresafetysystems.Themainhazardstopersonnelandresidentsofcitiesareleaksoftoxic substancesandoilproductsenteringtheenvironment. Fig.1.5 showsadiagramoftheprimaryoiltreatmentunitandthemaintypesofhazards.
Thevariouspumpingsystems,shut-offvalves,andprocessmonitoring devicesareusedforpumpingpetrochemicalproducts.Thepetrochemical companycanincludepowersupplysystemsandby-productrecyclingsystems(Mannan,2013).

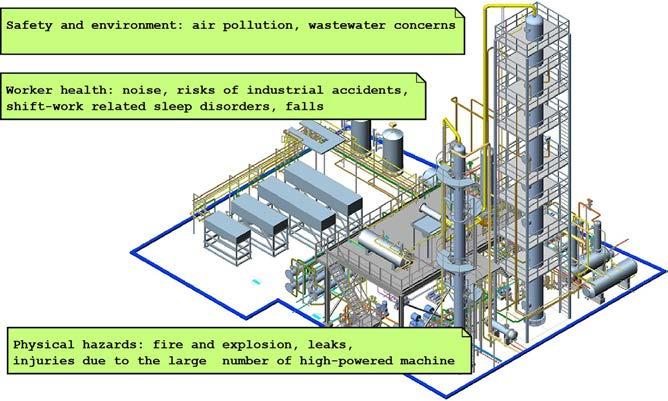

Fig.1.5 Primaryoilrefiningunit.
1.2.5Industrialenterprise
Petrochemicalproductssuchasgas,gasoline,plastics,etc.areusedinvarious industries:metallurgy,transportsystems,andpowergenerationatpower plants.Themaintypesofhazardsarefires,explosions,leaksoftoxicsubstances,damagetotheenvironment,andthedifficultyofevacuating personnel.
Inmodernindustrialenterprises,variousproductsareobtainedfromthe productsofoilrefineries.Technologicalprocessesarebasedonapplication ofdifferentindustrialunits.Theycanincludegasflaringequipment,awaste storagesystem,andaproductionwastedisposalsystem.Themaintypesof hazardstopersonnelandtheenvironmentarerelatedtothetoxicityof appliedmaterialsandpossibleemissionsofhazardoussubstancesduringtheir disposal.
1.2.6Monitoringanddatacollectionsystems
Monitoringanddatacollectionsystemsallowustomeasurethestateofthe characteristicsoftechnologicalprocesses.Thefeaturesofindustrialmeasuringsystemsarehighrequirementsfortheiraccuracyandreliability.Tocollectandtransmitdata,controllers,computers,andlocalareanetworksofthe enterpriseareused.
Forexample,firesafetysystemsareautomatedsystemsandinclude smokedetectors,heatdetectors,andfiredetectors.Intheeventofasource ofignitionusingsensors,itispossibletolocalizethesourceandsendanalarm tothecontrolcenter.Infiresafetysystems,itispossibletosuppressthe sourceofignitionusingfireextinguishingmeans.Firesafetymeansinclude sprinklers,automaticventilationsystems,automaticsystemsforblocking accesstotheroom,andsystemsofstopvalves.Alltheseelementsareused tocontrolfirepumpsandtosupplysubstancesforextinguishingfires (Fig.1.6).
Industrialplantsmonitortheenvironment.Specialequipmentestimates airqualityandthelevelofemissionsofharmfulsubstances.Tomonitorthe stateoftheenvironment(forexample,toanalyzewaterquality),distributed measuringsystemsbasedonmoderntelecommunicationsystemsareused. Thesesystemscanmeasurethestateofwaterinapipelinebyprocessing andtransmittingdataonitsquality.Solarpanelsareusedassourcesofelectricityforthemeasurementsystem.
Industrialcontrollersareusedfortechnologicalprocesses,managedby supervisorycontrolanddataacquisitionsystems(SCADAs).Information
