Mappingandmanagementof urbanshadeassets:anovel approachforpromotingclimatic urbanaction 1
OrAleksandrowicz FacultyofArchitectureandTownPlanning,Technion IsraelInstituteofTechnology,TechnionCity,Haifa,Israel
1.Urbanplanningandurbanmicroclimate:achallengeofknowledge communication
Theterm“UrbanHeatIsland”(UHI)describesmicroclimaticconditionsincitiesthatarewarmerthan insurroundingruralareas(Arnfield,2003; Landsberg,1981; Oke,1982, 1987; Stewart,2019; Voogt, 2002).UHIsformbecauseofthephysicalconfigurationofcities(includingtheirtopography,spatial morphology,andbuildingdensity),thematerialsusedfortheconstructionofbuildings,pavements, androads,theflowofairthroughthestreetnetwork,andheat-producinghumanactivitiessuchas transportationandindustry(Akbarietal.,2001; Erelletal.,2011; Gartland,2008; Grimmond,2007; Santamouris,2001; Taha,1997; Unger,2004).Themostcommonindicatorofurbanoverheatingis higherairtemperatures,usuallyrecordedatstreetlevel.Anincreaseinairtemperaturescanhave diversenegativeeffects,includingexacerbatedoutdoorheatstress(duringdaytimeandnighttime alike),deterioratedairquality,increasedenergyconsumptiononindoorcooling,andevenincreasein mortalityrates(Arnfield,2003; JohanssonandEmmanuel,2014; Kleerekoperetal.,2012; Nikolopoulouetal.,2001; Oke,1981).
Despitethesolidscientificunderstandingoftherelationbetweenthephysicalcompositionofcities andurbanclimates,climaticfactorsarerarelyconsideredinthecommonpracticeofurbanplanners anddesignersand,therefore,stillhavearelativelysmallimpactoncities(Erell,2008; Hebbertand Mackillop,2013; Mills,2014; Parsaeeetal.,2019).Thismaybepartlyattributedtoknowledgegaps amongplanningprofessionalsthatlimittheirabilitytocollect,comprehend,andanalyzequantitative microclimaticdata.Asaresult,plannersanddesignersareusuallyunabletoprojectandsimulatethe effectsofcertaindesignstrategiesonmicro-levelandlocal-levelclimaticconditionsincities(Heaphy, 2017; Hebbert,2014; Mills,2006, 2014; Oke,2006).Evenincitiesthatalreadypromoteclimatic policies(Brandenburgetal.,2018; Francisetal.,2014; OsmondandSharifi,2017; Ruefenachtand Acero,2017; Shorris,2017),actionsmainlyfocusonsettinggeneralizedguidelinesandnotondetailed planningoftheirconcreteimplementation.Detailedandsite-specificclimaticplanningisstillrequired
forenhancingoutdoorconditionsbecauseofthelocalclimaticvarianceresultingfromtheinherent morphological,physical,andland-usediversityofstreetsandneighborhoodsineverycity.
Thepersistingfailuresinintegratingscientificallysoundanddetailedclimaticconsiderationsinto urbanplanninganddesignarebecomingamajorimpedimenttogenuinelyaddressingthechallenges ofclimatechange,and,therefore,urgentlycallfornewmethodsoftranslatingscientificknowledge intoterminologies,methodologies,andtoolkitscommonlyunderstoodandusedbyplanners(Heaphy, 2017; Mauseretal.,2013; Millsetal.,2010).Themainpointofconcerninthisrespectmaylieinthe inherentlycomplexnatureofurbanclimatesandthediversityoffactorsaffectingit,includingair temperature,relativehumidity,windspeed,incomingsolarradiation,surfacealbedoandthermal absorptionofmaterials,heat-generatinghumanactivities,airpollutionlevels,andtheclimaticperformanceoftreesandvegetation(Erelletal.,2011; Mills,2014).Themainchallengeis,therefore,to findwaysforsimplifyingthetransferofclimaticknowledgetoplanningprofessionalswithout compromisingthequality,accuracy,andeffectivenessofthedecision-makingprocess.
Thischapteroutlinesanovel,quantitativeapproachtotheevaluationofcertainclimaticproperties ofurbanenvironmentsthatcouldmoreeasilybeadoptedinurbanplanninganddesignprocesses.It firstexaminestheproblematicnatureofourcurrentwaysofevaluatingurbanoverheatingandthe challengesofelucidatingtheoutcomesofevaluationindirectingconcreteandeffectiveplanningand designactions.Itthenconsiderstheapplicabilityofavarietyofcommonheatmitigationtoolsinreallifesituations,acknowledgingthelimitationsofmunicipalaction.Basedonthisanalysis,wethen argueforagreateremphasisonoutdoorshadeprovisionintheadoptionofclimate-responsiveurban policiesandsuggestasetofquantitativeindicatorsthatcansupportsuchpolicies.Thechapterconcludeswithademonstrationoftheapplicabilityofthesuggestedindicatorsinactualsituations,using TelAviv-Yafo,acityofhotsummerMediterraneanclimate,asacasestudy.
2.Correlatingthelanguageofurbanmorphologywithitsclimatic outcomes
Untilrecentyears,thequantificationofurbanoverheatingwasusuallydoneusingthesimpleindicator of“urbanheatislandintensity”(Oke,1987,p.289),reflectingthemaximumdailyairtemperature differencebetweenairtemperaturesmeasuredata“representative”urbanlocationandinacity’srural periphery.Evidently,thissingleindicatorcannotcapturetheintricatevarianceinmicroclimatic conditionsbetweendifferentcityparts,neighborhoods,andstreets.Italsoignorestheeffectofradiationfluxesonoutdoorthermalcomfort(Erell,2017; Martillietal.,2020).Therefore,additionaland morepreciseindicatorsfordescribingurbanclimateshouldbedevelopedandadoptedforclimatic urbanplanninganddesign.
Oneofthemostpromisingapproachesforenhancingtheintegrationofscientificunderstandingof microclimaticeffectsincitiesintourbanplanninganddesignisthroughtheidentificationofstatisticallysignificantrelationsbetweencertainmorphologicalaspectsofurbanenvironmentsandthe climaticpropertiesofthesameareas.Sinceplannersregularlyengagethemselvesinmorphological questionsbydeterminingthespatialconfigurationandmaterialpropertiesofbuildings,streets, neighborhoods,andcities,thelanguageandterminologiesofurbanmorphologyarewellunderstood bythem.Thus,theidentificationofstrongcorrelationsbetweenspecificurbanmorphologicalpropertiesandclimaticconditionsincitiescangreatlyenhancethecapacityofplannerstodirectdesign
2. Correlatingthelanguageofurbanmorphologywithitsclimaticoutcomes
decisionsandactionsinawaythatwillconsciouslyandintentionallyinducespecificmicroclimatic conditions.
Arecentcomprehensiveattempttorelateurbanmorphologiestoclimaticconditionswasthe developmentoftheLocalClimateZone(LCZ)classificationschemeby StewartandOke(2012).The systemwasinitiallyconceivedtoaddresstheill-definedurban ruraldichotomyprevalentinmany UHIstudies,whichisopentoavarietyofinterpretationsanddoesnotdescribewellmajordifferences inbasicphysicalcharacteristicsofcitiesandtheirenvirons(includingbuildingheightsanddensities, surfacematerials,andpatternsofvegetativeinfrastructure).Toresolvethisproblem,StewartandOke proposedaclassificationschemethatcouldbeusedtoobjectivelydefineanenvironmentbasedon severalquantifiablemorphologicalproperties,aswellasonitsmaterialcharacteristics.
StewartandOke’sunderlyingassumptionwasthateachLCZ,whichcanbedefinedasaregion“of uniformsurfacecover,structure,material,andhumanactivitythatspan[s]hundredsofmetersto severalkilometersinhorizontalscale”(StewartandOke,2012,p.1884),producesdistinctively differentpatternsofairtemperaturefluctuationsatscreenheight(usually1.2maboveground)preciselybecauseoftheuniformityofitsmainphysicalfeatures.Whileseveralcomprehensivestudies duringthelastdecadehavesupportedthisassumption(Becketal.,2018; Fenneretal.,2017; KotharkarandBagade,2018; Leconteetal.,2015, 2018, 2021; Mandelmilchetal.,2020; Middeletal., 2014; Renetal.,2019; Shietal.,2018; Skarbitetal.,2017; StewartandOke,2010),theclimatic “footprint”ofanLCZchangesfromonecitytoanotherbecauseofdifferencesinducedbytheir geographiclocationandoverallcompositionandshould,therefore,bemappedineachcityseparately (StewartandOke,2015).
TheLCZclassificationschemeconsistsof17morphologicallyhomogeneousurbanformations, dividedinto10builttypes(compacthigh-rise,compactmid-rise,compactlow-rise,openhigh-rise, openmid-rise,openlow-rise,lightweightlow-rise,largelow-rise,sparselybuilt,andheavyindustry) andsevenlandcover(orunbuilt)types(densetrees,scatteredtrees,bush/scrub,lowplants,barerock orpaved,baresoilorsand,andwater)(StewartandOke,2012, 2015).Differentiationbetweenthebuilt typesisalmostentirelybasedonbuildingmorphology:threelevelsofaveragebuildingheight(above 25m,10 25m,and3 10m)andseverallevelsofbuildingsurfacefraction(ratioofbuildingplan areatototalplanarea).Bydefinition,the“open”builttypes,aswellasthesparselybuilttype,consist ofsubstantialquantitiesoftreesandvegetationinterwovenintothebuiltfabric(StewartandOke, 2012).Itistruethatothercombinationsbetweenbuildingheights,builtdensities,surfacecover,and vegetationtypesmayexistintherealworld,buttheLZCclassificationschemeisintentionallymeant tocoveronlythemostcommonandfamiliarsituations.Thisisdonetopreventoverclassificationthat wouldreducethesystem’scapabilitytostandardizecommunicationandreportingonurbanclimatic conditions,includingintercitycomparisons(StewartandOke,2012, 2015).
WhilethedefinitionofeachoftheLCZsisprimarilygiveninverballydescriptiveterms,the classificationschemealsorelatesLCZtypestovaluerangesofseveralmorphologicalpropertiesofthe urbanenvironment,thusensuringthattheclassificationprocessisbasednotstrictlyonsubjective impressionsbutalsoonobjectiveandquantifiablefactors.Thesemorphologicalpropertiesincludesky viewfactor(SVF,theratioofthepartofskyhemispherevisiblefromgroundleveltothatofanunobstructedhemisphere),streetaspectratio(meanheight-to-widthratioofstreetcanyons),building surfacefraction,imperviousandpervioussurfacefraction,andheightof“roughnesselements” (mainlybuildings)(StewartandOke,2012).Whiletheurbanenvironmentcanbedescribedbyusing othermorphologicalmetricsanddefinitions(Dibbleetal.,2019; Serraetal.,2018; Taleghanietal.,
2015; Venerandietal.,2017),itseemsthatStewartandOkechosethemainpropertiesthatthey perceivedascontributingthemosttothecreationoflocalclimaticconditionsincities.
AccordingtoStewartandOke,thewaytheclassificationschemecorrelatesurbanmorphologyand urbanclimate“offersabasicpackageofurbanclimateprinciplesforarchitects,planners,ecologists, andengineers”(StewartandOke,2012,p.1894)andcan,therefore,behelpfulinintegratingurban climaticknowledgeintocityplanning(PereraandEmmanuel,2018).Whilethequestionwhetherthese expectationsforintegrationhasbeenmetisstillopen,itcanbearguedthattheLCZsystemalready createdapromisingpathforsuchanintegrationbycorrelatingurbanmorphologywithatleastone importantclimaticfactor(airtemperaturedistributionacrossurbanenvironments).
Notwithstandingitsapparentmerits,theLCZsystemstillsuffersfromtwomajordrawbacksthat limititsapplicationinurbanplanninganddesign.Thefirstisthatofscale:LCZsareinherentlydefined asrepresentingmorphologicalhomogeneityatthelocallevel(fromhundredsofmeterstoseveral kilometers)andare,therefore,notintendedtocapturemicro-scaleclimaticdifferencesatstreetlevel (StewartandOke,2015).TheseconddrawbackoftheLCZsystemisitsusabilityforoutdoorthermal comfortevaluation;thesystemwasoriginallydevelopedtoreflectintraurbandifferencesinairtemperaturesandnotinthermalcomfortconditions.Althoughseveralstudieshaverecentlyattemptedto correlateLCZstooutdoorthermalcomfortaccordingtocommoncomfortindices(Lauetal.,2019; Ungeretal.,2018; Verdoncketal.,2018),theyare,inaway,ignoringthefactthatoutdoorthermal comfortlevelscanshowsignificantvarianceatstreetlevel(Quanzetal.,2018)becauseofmicro-scale physicaldifferences(suchasstreetorientation,treecanopycover,etc.)thatarenotconsideredinthe LCZclassificationscheme.
Whilethemorphologicalapproachtoclimaticurbandesigncanbecomeeffectiveatcertainscales, thereisstillaneedforadditionaltoolsthatwouldhelpplannersanddesignerstoeffectivelycontrolthe negativemicroclimaticeffectsofurbanenvironments,focusingnotonlyonairtemperaturelevelsbut alsoonoutdoorthermalcomfort.Yet,suchamorphologicalapproachalsolacksinamorefundamental sense,namelyitsapplicabilitytomitigatingheatstressinoldercityparts.Whilenewdevelopments caneasilyfollowcertainmorphologicalguidelinestosecurebetterclimaticperformance,acomprehensivemorphologicaltransformationofexistingneighborhoodsandcitypartsisinmanytimes impractical.Theseolderareas,typicallylocatedatacity’score,arealsothesameareasinwhichurban overheatingisusuallymoreprofound.Forthesesituations,evaluationoftheapplicabilityandeffectivenessofavailableheatmitigationmeasuresis,therefore,required.
3.Urbanheatislandmitigationmeasures:thelimitsofintervention
TheconceptofUHImitigationdescribesstrategies,measures,oractionsthataremeanttoameliorate thenegativeeffectsofurbanoverheatingthroughmodificationsofthephysicalenvironmentsofcities (Aleksandrowiczetal.,2017; Gagoetal.,2013; Soleckietal.,2005).Itsoriginsprobablydatebackto thepioneeringworkofHashemAkbari,ArthurRosenfeld,andHaiderTahaattheLawrenceBerkeley NationalLaboratory.In1985,theyfoundedtheHeatIslandResearchProjectandin1989,organizeda firstworkshopthatfocusednotonlyonthephenomenonofUHIitself,butalsoonthewaystomitigate it(Huangetal.,1990; Rosenfeld,1999).Sincethen,researchonthepossiblestrategiestomitigateUHI intensityhassignificantlyexpandedanddeveloped,creatingasolidandrigorousbodyofknowledge thatcouldpotentiallybenefiturbanplannersanddesigners.
Contemporaryscientificliteraturedocumentsmultiplemitigationmeasuresthatmaybeappliedto combaturbanoverheating,withdiverseperspectivesorclassificationsystemssuggestedbydifferent authors(Gagoetal.,2013; Gartland,2008; Gigue ` re,2009; Jameietal.,2016; Kleerekoperetal.,2012; Nuruzzaman,2015; WongandJusuf,2013).Followingapreviousworkby Aleksandrowiczetal. (2017),thissectionclassifiesthecentralmitigationmeasuresaccordingtothe physicaldomainof intervention:buildingenvelopes;pavementsandroads;urbanlandscapeelements;andthegeometric andmorphologicalaspectsofstreets.Thistypeofcategorizationreflectsapracticalapproachtoward UHImitigation,focusingonconcreteactionsthatcanberealizedaspartofclimaticurbanpolicy.
3.1Buildingenvelopes
Coolroofs: Theterm“coolroof”describesroofswhosefinishingmaterialisrelativelyreflective.The highreflectanceoftheroofsurfaceresultsinlowerabsorptionofheatintheroofsurfaceitselfandin thebuilding’senvelope,aslongasthesolarradiationisreflectedtotheskyandnottowardadjacent buildingparts.Theapplicationof“cool”surfacefinishes(forexample,whitepaint)canthusreducethe heatemittedbythebuildingenvelopeatnight,aswellastheheatemittedbyairconditioningunits becauseofindooroverheating.
Coolwalls: “Cool”(i.e.,relativelyreflective)surfacefinishescanalsobeappliedtoexteriorwalls. Theresultofusingcoolfinishingmaterialsforexteriorwallsissimilartoapplyingthesamematerials toroofs,althoughthedegreeofrelativeimprovementexpectedfromtheirapplicationissmaller comparedtoroofs,duetothesignificantdifferenceinsunincidenceangle(wallsabsorblesssolar radiationcomparedtoroofs,assumingtheapplicationofsimilarfinishingmaterials).Inaddition,the efficacyofsolarreflectancefromwallsintermsofurbanoverheatingreductioncanbesignificantly reducedindenselybuiltareas,sincethesolarradiationreflectedfromthewallsisusuallyabsorbedby adjacentsurfacesofneighboringbuildings.
Greenroofs: Greenroofsareroofscoveredwithvegetation.Greenroofsareexpectedtosignificantlyreducetheheatloadonindoorspacesbelowtheroof,duetotheirthermalinsulationproperties andtheabsorptionofsolarradiationinthevegetatedlayerontheroof.Theycanalsolocallycoolthe airaroundthembecauseofevapotranspirationfromthevegetativelayer.Comparedtocoolroofs,the maindownsideofgreenroofsistheiradditionalmaintenanceandirrigationrequirements.
Greenwalls: Greenwallsareverticalbuildingpartswhoseexternalsurfaceiscoveredwithan expansivelayerofvegetation.Likegreenroofs,greenwallsblocktheincidenceofsolarradiationon partsofthebuildingenvelopeandcanthushelpinreducingthebuilding’sheatloadandtheheata buildingemitstoitssurroundings.Inaddition,evapotranspirationfromthevegetativeverticallayeris expectedtoreduceairtemperatureinclosevicinitytothegreenwallitself.
3.2Pavementsandroads
Coolpavements: Likecoolroofs,theapplicationofreflectivematerialstosidewalksandroadsis expectedtoreducetheirheatabsorptionandtheirresultingheatrelease.However,andunlikethe applicationofcoolmaterialstoroofs,theuseofhighlyreflectivematerialsatstreetlevelmaycause undesirablelevelsofglareandheatstressthroughtheincreasedexposureofroaduserstoreflected shortwaveradiation.Thismaylimittheuseofhighlyreflectivepavingmaterialsand,asaresult,the practicalcoolingcapacitycoolpavements.
Water-retentivepavements: Inclimateswherethehotseasonisalsocharacterizedbyfrequent rainfall,perviouspavingmaterialsthatareappliedaboveawater-retentivesublayercanhelpin reducingairtemperaturesintheirvicinitythroughevaporation.Thepavement’sexposuretodirect solarradiationcausesitsupperlayertoheatduringdaytime,which,inturn,leadstotheevaporationof thewaterstoredinthesublayerandthecoolingoftheupperlayer.Thecoolerthepavement,thecooler istheambientairnearit.
3.3Urbanlandscapingelements
Shadetrees: Shade-givingtrees(asopposedtotreeswithunderdevelopedtreecanopies)canplayan importantroleinreducingurbanheat,especiallybyshadingstreetsinawaythatabsorbssolarradiationbeforeitaffectssidewalks,roads,andbuildingfacades.Shadingcanalsoplayanimportantrole inrelievingheatstressinurbanspacesduringthehotseasonsincetheyblocksolarradiationthat affectsthehumanbody.Inaddition,evapotranspirationfromtreesexposedtosolarradiationcanhelp inreducingairtemperaturesintheirimmediatevicinity.
Groundcoverthroughvegetation: Unlikesyntheticflooringmaterials,vegetation(grass,shrubs) absorbssolarradiationinawaythatdoesnotreleaseheatintotheairbutrathercoolstheairaroundit throughevapotranspiration.Nevertheless,thisimmediatecoolingeffectdependsonthewatercontent ofthesoiland,therefore,maybelesseffectiveinplantsthatrequiresmallamountsofirrigation. Lakes,streams,andponds: Watersourcesmaylowerairtemperaturemainlythroughwater evaporation.Streamsorcanalsthatpassthroughtheheartofacitymayalsohelpintransportingheat awayfromwithinthecitycenterduetowatermovement,whilelargewaterreservoirsmayhelpin reducingairtemperatureintheirvicinitybecauseoftheheatcapacityofthewater.
3.4Streetgeometry
Skyviewfactor: Thegeometricproportionbetweentheheightofbuildingsalongastreetanditswidth (the“height-to-widthratio”)canhavethepositiveeffectofreducingairtemperaturesatstreetlevel dependingonastreet’sdegreeof“openness”totheskyorits“skyviewfactor”.Streetsoflowersky viewfactor,inwhichthestreetsectionisdeepandnarrow,maybecomecoolerduringtheday,because theyarelessexposedtoincomingsolarradiation.However,extremelydeepandnarrowstreetsections maybecometoodarkforlongperiods,creatinggloomyindoors(infringingtheresidents’“solar rights”)andundesirablydarkoutdoorsduringthecoldseason.Anotherpossibledownsideofdeepand narrowstreetsectionsisthelowerheatreleasecapacityofstreetsurfacestotheskypreciselybecause ofrelativelylowproportionoftheirexposuretothesky.
Windcorridors: Windsenteringtheurbanareafromcontiguousopenspacestendtocarrycooler airwiththem,andwindspassingthroughthecitymaythusremovehotairfromit.Tosecureeffective passageofwindthroughacity,caremustbetakentothewaythestreetnetworkislaidout.Mainstreets should,therefore,beorientedtowardtheprevailingwinddirections,inawaythatmaintainseffective “corridors”throughwhichwindcanpenetratethecitycore.
Solarorientationofstreets: Insubtropicallatitudes,streetsorientedalonganorth-southaxiswill usuallyprovidesignificantshadingfrombuildingsatstreetlevelduringthehotseason,thusreducing street-levelairtemperatureandpedestrianthermaldiscomfortduringdaytime.Ontheotherhand, streetsorientedalonganeast-westaxiswillbealmostfullyunshadedwithouttheuseofadditional
shadingelements(trees,arcades,pergolas).Therefore,cleverdesignofastreetnetworkthatisbased onstreet-levelshadingthroughtheorientationandmassingofthebuiltvolumescangeneratecooler urbanenvironmentswithlesserrelianceonadditionalmitigationmeasures.
Thebroadrangeoftoolsformitigatingthenegativeeffectsofurbanheatmaycreatethefalse impressionthatanurbanplannerenjoysgreatflexibilityinformulatinganeffectiveclimaticaction strategy.Yet,theapplicabilityofeachofthemeasuresdescribedabovevariesfromonelocationto anotherinawaythatmayleaveaplannerwithlessthanahandfuloftoolsforfacingthechallengeof overheatingurbanenvironments.Astheabovedescriptionmaysuggest,thefourdifferentdomainsof interventioncallfordifferentscalesofapplicationanddirection,asfollows:
•Actionsdirectedtobuildingenvelopescanbringaboutgenuineurbanchangeonlywhenapplied onalargescaleand,therefore,seemtobelesseffectivewithoutthecooperationofnumerous propertyowners.Inreal-lifesituations,whilemunicipalplannerscanregulateanddirectthe applicationofcoolor“green”materialstobuildingenvelopes,theymaynothavethemeansfor supportingtheircomprehensiveapplicationbytheprivatesector.
•Applyingreflectivematerialstopavementsandroadscanbeeffectivelydirectedasa“top-down” solutionbutmayintroduceonlylocalandminorreductioninairtemperaturessincethe reflectivityoftheappliedmaterialsshouldbekeptlowtopreventglare.Thereflectivityof pavementscanalsocauseundesirableheatstressforpedestrianssinceitmaysignificantly increasetheoverallradiationfluxonthehumanbodyduringdaytime.Water-retentivepavements, ontheotherhand,canbeeffectiveonlyinnonaridlocations,wherefrequentrainfallistypicalto thehotseason.
•UsinglandscapingelementsforUHImitigationisprobablythemosteffectivemitigationstrategy inmanyurbanlocations.Landscapingelementscanbecomprehensivelyintroducedintopublic spacesandcaninducechangeatdifferentscales,fromtheverylocaltotheurban.Thisis especiallytrueinrespecttotrees,whichcanbeplantedinavarietyoflocations,includingstreets, plazas,gardens,andparks.Whiletreesmayhaveanegativeeffectonthecoolingcapacityof streetsatnightbecausetheircanopiesmayreducetheflowofwindandheatreleasedtothesky fromstreetsurfaces,itseemsthattheiroverallpositiveeffectofdaytimeshadingand evapotranspirationisinmanytimesmuchmoresignificant.Properpruningoftreecanopiesmay improvewindflow,aslongasthetreesareallowedtogrowtheircanopieshighenough. Additionally,desealingofpavedsurfacesandtheirreplacementwithvegetatedlandcoverare anotheractionthatcanbeeasilyappliedtoexistingcitiesinacomprehensivewayandasa“topdown”policydirectedbymunicipalities.
•Asforstreetgeometry,itsmodificationtoimproveclimaticconditionsisalmostimpossibleto realizeinoldercityparts.Whilemunicipalplannershaveadecisivecontrolovertheregulationof streetgeometry,incitieswheretherateofurbantransformationandrebuildingisloworwhere newconstructionconcentratesintheoutskirtsofcities,thiscontrolcannotbetranslatedinto effectivemitigationofurbanoverheating.
Itcan,therefore,beconcludedthatthemostclimaticallyeffectivedomainofinterventionforurban plannersanddesignersattemptingtocombattheclimaticchallengeofurbanoverheatingisthatof urbanlandscaping.Morespecifically,thegreeninfrastructureofacity,andespeciallythecleveruseof trees,isessentialtothesuccessofanurbanoverheatingmitigationstrategy(Bowleretal.,2010; dela BarreraandReyes-Paecke,2021; Hiemstraetal.,2017; Saaronietal.,2018).Yettreescanberegarded 3.
asanalmostidealdesignelementforurbancoolingnotonlybecauseoftheireffectonairtemperatures.Whileairtemperaturesarecommonlyusedasanindicatorofurbanoverheatingintensity,in manycasestheeffectofaslightincreaseofairtemperatureisnotthedecisivefactorgenerating outdoorthermalstress,especiallyduringdaytime.Inthatrespect,thebenefitsoftreesasshadeprovidersatstreetlevelmaybemoreimportantforimprovingtheclimaticconditionsincitiesthantheir directaircoolingeffects(Jameietal.,2016; Rahmanetal.,2020; Sanusietal.,2017; Taleghani,2018).
4.Shade’spivotaleffectonoutdoorthermalcomfortanditsurban-scale mapping
Outdoorthermalcomfortcanbeevaluatedusingcomfortindicesthatcorrelateobjectivelyquantifiable climaticvariableswiththermalstress.Twoofthemostprevalentindicesincurrentscientificliterature arethePhysiologicallyEquivalentTemperature(PET)andtheUniversalThermalClimateIndex (UTCI),whichfollowanalmostsimilarapproach,calculatingan“equivalenttemperature”basedon climaticvariablesandprovidinganestimatedthermalcomfortordiscomfortlevelsforarangeof equivalenttemperatures.Bothindicesuseairtemperature,meanradianttemperature(MRT),relative humidity,windspeed,clothinglevel,andmetabolicrateforcalculatingtheequivalenttemperature. UTCIindexissimplertocalculatesinceitpresupposesclothingandmetabolicratevalues(Brode etal.,2013; Ho ¨ ppe,1999; Matzarakisetal.,1999, 2015).
Recentstudieshaveconsistentlydemonstratedthatinmultiplegeographiclocations,duringthehot season,directanddiffusesolarradiationlargelycontributestoexcessivedaytimeheatstress,making shadeprovisionaviabletoolforheatstressmitigation(Balslevetal.,2015; ChenandNg,2012; Colter etal.,2019; Couttsetal.,2015; deAbreu-Harbichetal.,2015; Duetal.,2020; Hiemstraetal.,2017; Huangetal.,2020; Leeetal.,2013, 2018; Middeletal.,2021, 2016; Shashua-Baretal.,2010, 2011). Shadehasalsothepotentialtoreducestreet-levelairtemperaturesandcoolingloadsinbuildings becauseitdecreasesirradiationofsurfacesincities(roads,pavements,buildingfacades),thereby reducingtheamountofheatabsorbedandreleasedbyman-madeelementsinthebuiltenvironment (Erelletal.,2011,pp.48 54).
ThepotentialofshadeprovisiontosubstantiallyreduceheatstressisimplicitinthePETandUTCI indices.Bothindicesconsidertheeffectofexposuretoshortwaveandlongwaveradiationthrough inputssuchasthemeanradiantfluxintensityoritsderivative,MRT,whichcanbedefinedas“the uniformtemperatureofanimaginaryenclosureinwhichradiantenergyexchangewiththebodyequals theradiantexchangeintheactualnon-uniformenclosure”(Erelletal.,2011,p.119).Exposureto directanddiffusesolarradiationsignificantlyincreasesMRTvaluesand,thus,alsotheperceivedheat stressaccordingtoeachofthetwoindices.Shadequantificationcan,thus,enableustogiveagood descriptionofoutdoorthermalcomfortduringthehotseasoninmanygeographiclocations(Aleksandrowiczetal.,2020).
Inpractice,thecapacityofurbandesigntocontrolotherfactorsconsideredbythePETandUTCI comfortindices,suchasairtemperature,relativehumidity,andwindspeed,isratherlimited(Aleksandrowiczetal.,2017).Shade,ontheotherhand,isalmostentirelydeterminedbyhowurbanstreets andopenspacesaredesignedandmaintained,evenataratherlocallevel.Therefore,inmanylocations,onecanarguethattacklinginadequateoutdoorshadingmaybethesinglemostimportantclimatictaskanurbanplannercanengageinforreducingurbanheatstress.
Despitetheacknowledgedimportanceofshadeprovisionatstreetlevel,untilrecentlyattemptsto quantitativelyanalyzesolarexposurelevelsonanurbanscalewererare.Thiscanbeattributedtothe computationalpowerrequiredforhigh-resolutionshadequantification,butalsotolimitationin obtaininghigh-resolution3Dgeographicmappingofurbanareas.Oneoftheearlydemonstrationsof thepotentialofusing3Dmappingforurbanshadecalculationsappearedadecadeagoin Yuetal. (2009),whobasedtheirstudyonLIDARmappingandinfraredaerialphotographyofdowntown Houston.Byimprovinganalgorithmby Kumaretal.(1997),Yuetal.produced1m-per-pixelmaps showingshadingpatterninthecitybycalculatingcumulativevaluesofsolarradiationexposurefor eachmonthandeachseason.Thesecalculationsenabledthemtoassesstheeffectofurbanmorphology onsolarexposurepatternsaswellasthepotentialexposureofvegetationtosolarradiation.
Duringthelastdecade,algorithmsforcalculatingtheexposureofhorizontalsurfacesindigital GeographicInformationSystem(GIS)platformsweredevelopedby LindbergandGrimmond(2011) aspartoftheSOLWEIG/UMEPmicroclimaticcalculationmodel(Lindbergetal.,2008, 2018)andby Hammerberg(2014).Asimplertoolthatfacilitatesthecalculationofstreetirradiancevalues(area solarradiationfunction)isembeddedintheArcGISplatform(ESRI,2020),basedonamethod developedby Richetal.(1994) and FuandRich(2002).Unliketheothertwocomputationaltools,the ArcMapfunctionisnotcapableofcalculatingirradiancevaluesbelowtreecanopies.Allthesetools userasterdigitalsurfacemodels(DSMs)forcalculation.Byusingeachofthesetoolsitis,therefore, possibletocreatestreet-levelmapsinwhichasingleirradiancevalue(giveninWh/m2)iscalculated foreachpixeloftheoriginalDSM.
5.Quantifyingshadelevelsandtreeplanting:suggestedindicators
Thenewcomputationaltoolsholdagenuinepotentialforhigh-resolutionmappingofshadeinlarge urbanareas.Nevertheless,thereisstillaneedforacomprehensiveframeworkormethodologyfor translatingtherawcalculationresultsintoindicatorsandbenchmarksthatcouldbeappliedfor directingmunicipalactiontowardtheconservationorimprovementofthe“shadeassets”ofacity:the integrativeconfigurationofbuildings,trees,arcades,pergolas,oranyotherdevicesthataffectshading inpublicspaces.Theseindicatorsshouldenableustodirectefficientandeffectiveactionsto thelocationswhereinterventionisneededthemostintermsofstreet-levelshadeprovision.Inthe followingsections,severaloftheseindicatorsarediscussed,mostofwhichweredevelopedbythe author,aswellastheirapplicationinanalysingoutdoorshadeinTelAviv-Yafo(Aleksandrowiczetal., 2019, 2020),aMediterraneancoastalcityexposedtorelativelyhighlevelsofsolarradiation(about 3300annualsunhours,averagedailyglobalradiationof5.33kWh/m2 throughouttheyearor 7.03kWh/m2 betweentheendofMarchandtheendofSeptember).
5.1Shadeindex
Thefirstandmostbasicshadeindicatoristhatofashadeindex(SI),whichdescribes,onascaleof 0 1,theratiobetweentheblockedinsolationatgroundlevelatacertainlocationandthemaximum insolationofanunobstructedhorizontalsurfaceatthesametimeandlocation.Thehigherthevalue, thehighertheshading.Thisindicatorconsidersshadeproducedbyallelementsinanurbanenvironment:buildings,trees,andothershade-givingelements.Itcanbeformulatedasfollows:
where SIp istheSIatacertainpoint,Insolationp istheinsolationatthatpoint,andInsolationr isthe insolationatanunobstructedreferencepoint.
TheSIdependsonthedateofcalculation:differentdateswillproducedifferentSIvaluesforthe samelocationandurbanmorphology.WhileitisbettertocalculateSIvaluesformid-summer,when dailyairtemperaturesareattheirpeak,itispossibletouseotherdatesasreferencedatesforshade evaluation.UsingtheGIScalculationtoolsdescribedabove,itispossibletocalculateSIvaluesfor eachpixelofaDSMforanhouroraday(basedonthecumulativedailyinsolationatthatpoint)and thentocalculate spatial SIvaluesofstreetsegmentsorneighborhoodsbyaveragingtheSIvaluesfor allthepixelscontainedwithineachspatialunit,asfollows:
where SIa istheaverageSIvalueofanarea,and n isthenumberofpixelscontainedwithinthatarea.If calculatedforanentireneighborhood,theaveragedSIvaluecalculationshouldexcludepixelscontainedwithinbuildingfootprints,sincetheydonotrepresentstreet-levelshade.
Whencalculatedforarelativelylargenumberofstreetsegmentsandneighborhoods,theSIcan revealthevarianceinstreet-levelinsolationacrossanentireurbanareaand,therefore,canbeusedby plannersanddesignersforprioritizinginterventionsfocusingonoutdoorshadeprovision.Through shademapping,amunicipalitymaydecidetodesignatecertainstreetsfor“shadeintensification”(in streetsoflowshadevalues)or“shadeconservation”(instreetsofexceptionallevelsofshade).The prioritizationcanintegrateadditionalquantifiablefactors,suchasthelikelihoodofastreettoattract pedestriansorthesocioeconomicconditionofaneighborhood.Forexample,streetsprioritizedfor “shadeintensification”canbedefinedasonlythestreetswithlowSIvalues and highlikelihoodto becomepedestrianattractors.
5.2Treecanopycover
Thesecondsuggestedindicatoristhatoftreecanopycover(TCC)forstreet-leveloutdoorspace.It describes,onascaleof0 1,theratiobetweenthehorizontalprojectionofalltreecanopieslocated withinacertainspaceandthetotalareaofthesamespace.Thus,TCCequals Tp Ap whereTpisthe numberoftree-canopypixelswithinaspecificarea,andApisthetotalnumberofpixelsofthatarea. Thehigherthevalue,thehigheristheTCCofthearea.TCCvaluescangiveanindicationforthe likelihoodofstreetsegmentsorneighborhoodstoenjoyhighlevelsofstreet-levelshadingcastby wide-canopiedtrees.Nevertheless,sincestreet-levelshadedependsalsoontheshadecastbybuildings,TCCalonemaynotdescribewelltheoverallshadeconditionsinacertainstreetorneighborhood, especiallywhereTCCvaluesarelow.
5.3Treeshadeefficacyindex
ThecalculationofbothSIandTCCvaluesforaspecificspatialunitcanalsohelpinevaluatingthe relativecontributionofshadingfromtreestotheoverallshadingatstreetlevel.Forthispurpose,we
suggestathirdindicatoroftreeshadeefficacyindex(TSEI),calculatedbyraisingthepoweroftheSI bytheTCCvalueforthesamespatialunit(SITCC).TSEIdescribestheefficacyofusingtreesforurban shading:thehigherthevalue,thelowerthedependencyofthebuiltenvironmentonshadeprovidedby treesforachievinghigherSIvalues.Sincethecostoftreeplantingandmaintenanceisnotnegligible,it isimportanttominimizetherelianceontreesforstreetshadingandtodesignstreetsthatreceive shadingalsofrombuildings.
5.4Streettreedensity
Thefourthindicatorsuggestedhereisthatofstreettreedensity(STD),whichdescribesthenumberof streettreesperstreetarea(here,per1000m2 ofstreetarea,whichincludespavementandroadspace). STDvalueisindependentoftreecanopyarea,sinceitonlycountsthenumberoftrees(ortreetrunks) inacertainstreetsegmentand,therefore,maynotdirectlyreflectshadingconditions.Nevertheless,it canbeusedforsettingbenchmarksforstreettreeintensificationwhencombinedwiththeSIvalueof thesamestreetsegment.Theintegrativeanalysisofthetwoindicatorsmayshow,forexample,thatthe STDofstreetswithrelativelyhighSIvaluesisusuallyhigherthanacertainnumber;thisnumbercan thenbeusedasabenchmarkforfutureimprovementsinrelativelyunshadedstreets.Ananalysisofall thestreetsinthecitycan,therefore,revealnotonlythenumberofpoorlyshadedstreets,butalsothe roughnumberoftreesrequiredtosignificantlyimprovetheirshadingconditions.
6.Casestudy:usingtheindicatorsforurbanshadeanalysisinTelAvivYafo
Thefourindicatorsdescribedabovewereusedby theauthorinarecentstudyconductedinTelAvivYafo,partiallyreportedonin Aleksandrowiczetal.(2020) .Centraltothestudywasthegeneration ofshademapsandtreemapsthatwereusedforgraphicallypresentingthespatialdistributionof shadeandtreesacrosstheentirecity.Resultssh owedthatthecity’shistoriccore(referredto sometimesasthe“WhiteCityofTelAviv”)hasrelativelyhighlevelsofoutdoorshadeandaunique combination(comparedwithotherpartsofthecity)betweenarelativelydensebuiltmorphology, whichprovidesshadingfrombuildings,andacomprehensiveinfrastructure ofwide-canopiedtrees thatisanessentialcomponentofitsurbandesign.Analysisalsoshowedstrongcorrelationbetweena denseurbanfabric(reflectedinastreetheight-t o-widthratioabove1)andhighsummershadingof streetsandpublicspaces.Nevertheless,besidessomeexceptionalneighborhoods,thesehighshade levelsalsorelyonintensiveplantingofwide-c anopiedandstreet-linedtreesortreesgrowingin frontyards.

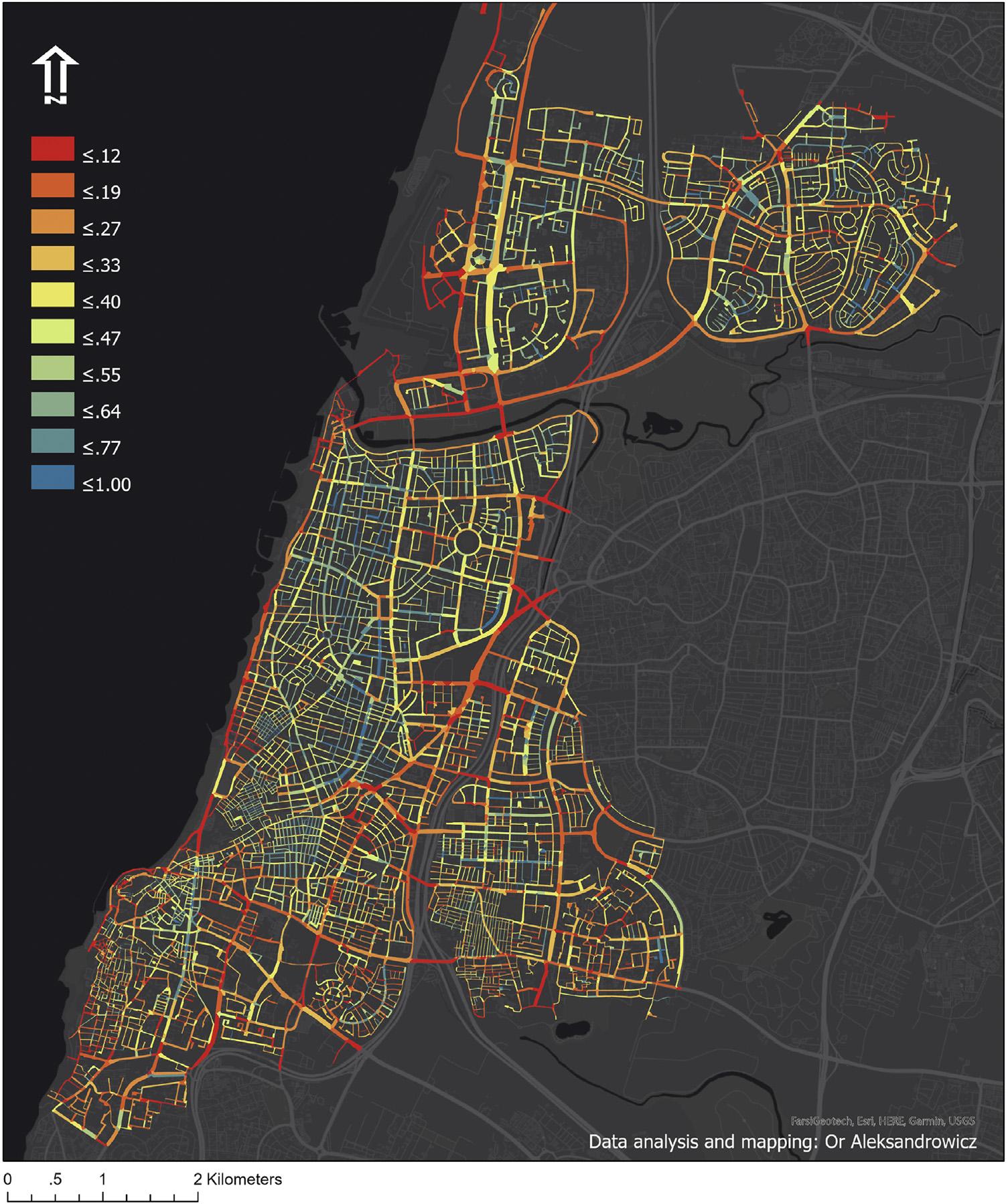

Oneofthecity-scalemapsweproducedusingtheSIcalculationprocedurewasamapshowing averageSIvaluesforeverystreetsegmentinthecityduringsummer(specifically,inthemonthof August, Fig.1.1).Themaphighlightedtheclimaticadvantagesofnorth-southorientedstreetsover east-westorientedstreetsintermsofsummershade.Thisisaresultofthelocalcharacteristicsofthe sunpath:ineast-westorientedstreets,buildings’effectonstreetshadingisminor(sincethesummer southernsunappearshighinthesky),and,therefore,reasonableSIvaluescannotbeachievedwithout theapplicationofasubstantialandcontinuouslayerofwidetreecanopies(orsimilarartificialshading elements).InTelAviv-Yafo,theeffectofstreetorientationonshadingishighlyevidentinaseriesof 6. Casestudy:usingtheindicatorsforurbanshadeanalysisinTelAviv-Yafo
FIGURE1.1 SummershadeindexvaluesperstreetsegmentinTelAviv-Yafo(2017data).
Credit:Theauthor.
