PROJECT 1

BANK OF ENGLAND MODEL

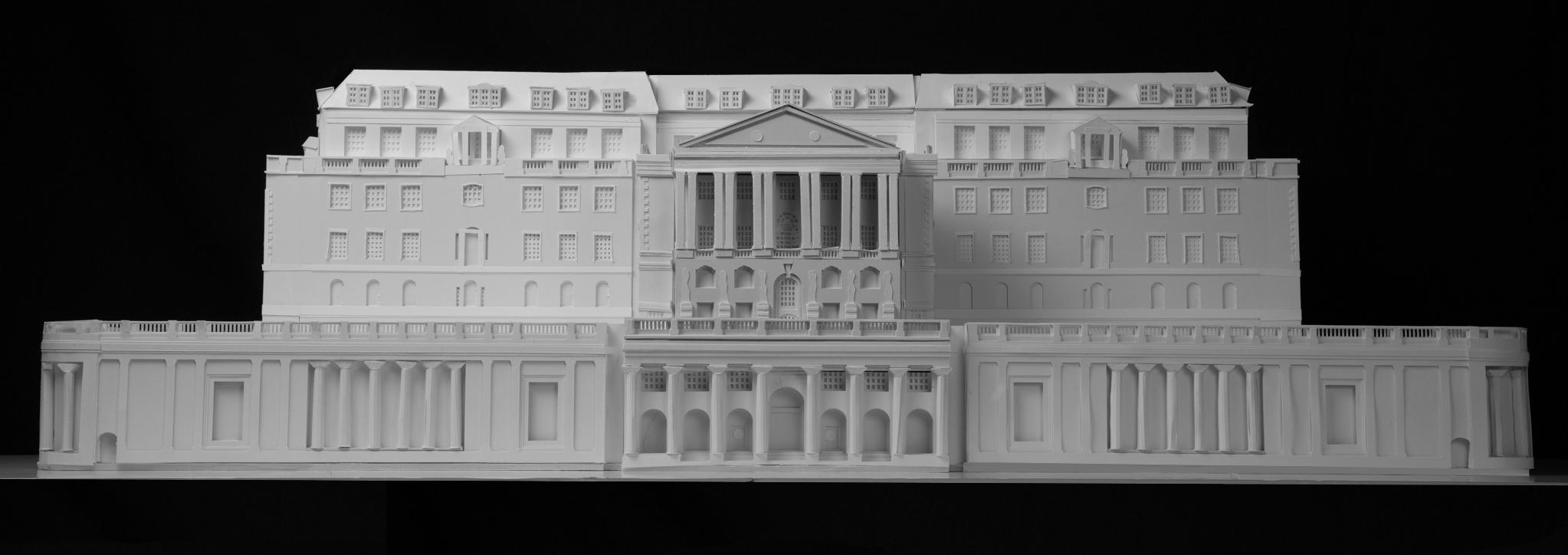

PHYSICAL MODEL

Working in a team to create a 1:100 scaled physical model of the Bank of England. Through collectively carrying out a site survey along with scaling images on softwares, we created detailed elevations of the building. We then used these elevations and details to create a physical model.

Materials used: foam board, mountboard, card, paper

1:100 scale model

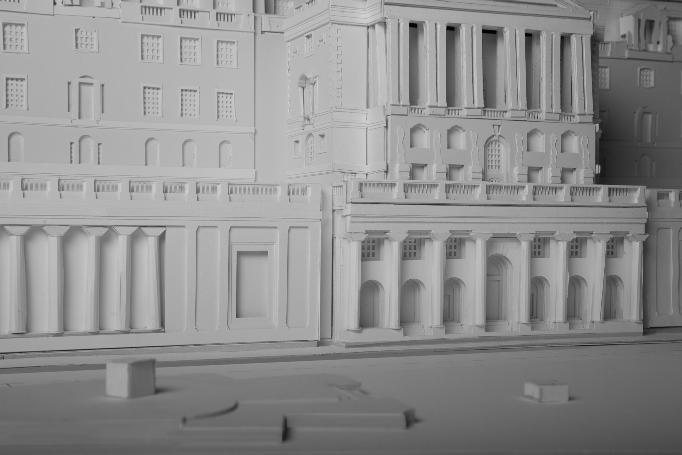

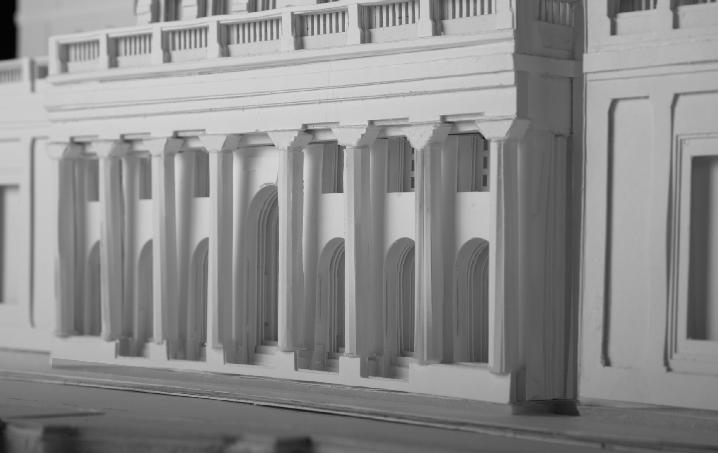

MODEL PHOTOGRAPHY

PROJECT 2

LADYWELL GARDENS

Ladywell Gardens is conceptual project. Located in the site of Ladywell, Lewisham. the aim of this project was to provide sustainable, social-housing for low income families struggling with the cost of living crisis. Through research and inclusive design, the project provides an opportunity for residents to live, work and thrive in a close-knit community, promoting social connection to improve qaulity of living.

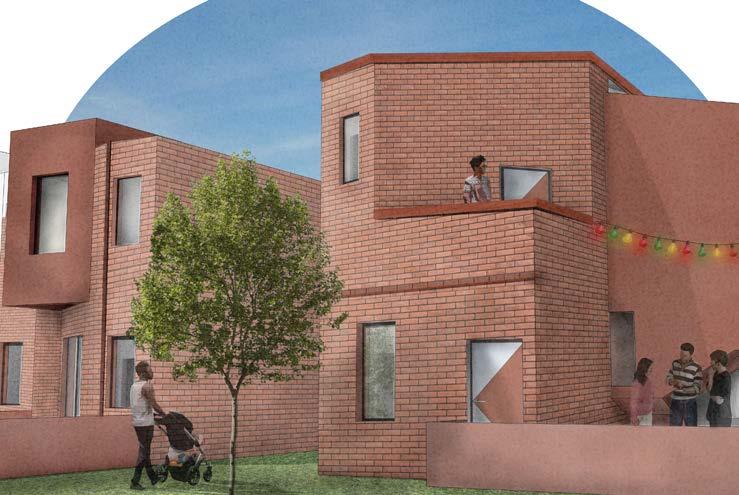

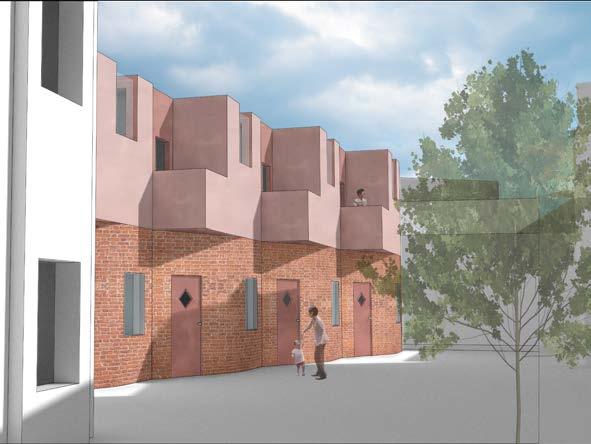

RENDERED EXTERIOR VIEWS

Renders produced using Rhino and Photoshop

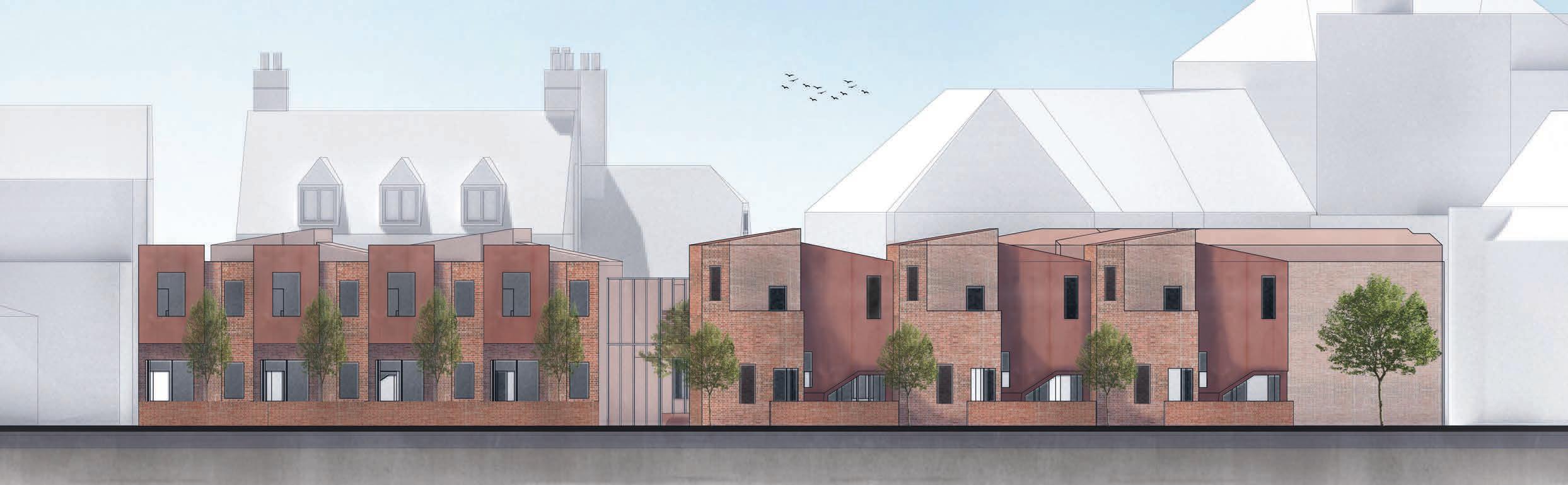

Rear Elevation of proposal

RIBA London Award Winning Project for Diversity and Inclusion

PROJECT 2

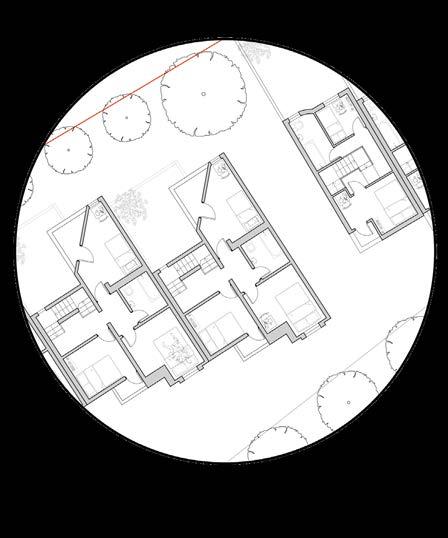

Experimenting with different ways of diagramtic views through rendered plans and contextual diagrams.

Presenting the final proposal along with the surrounding context for visualisation and to understand the design’s relation to it’s context.

SITE - 7.2m

RESIDENTIAL

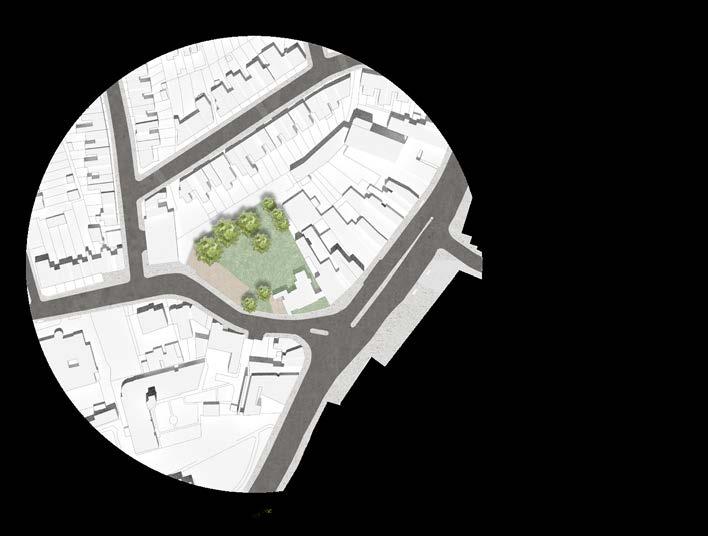

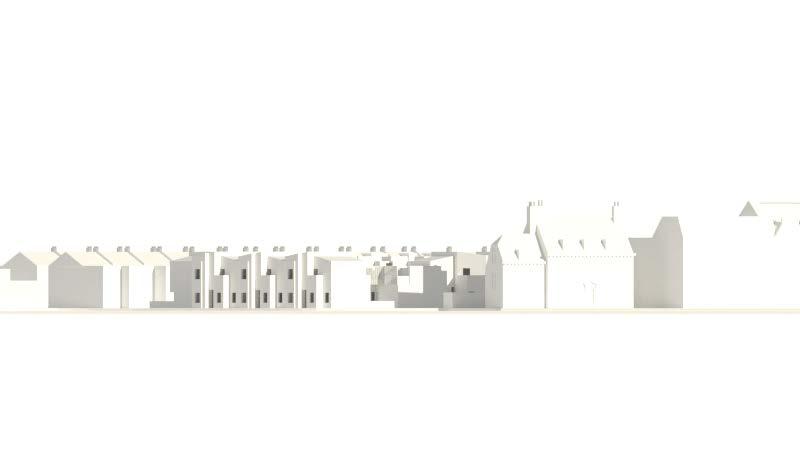

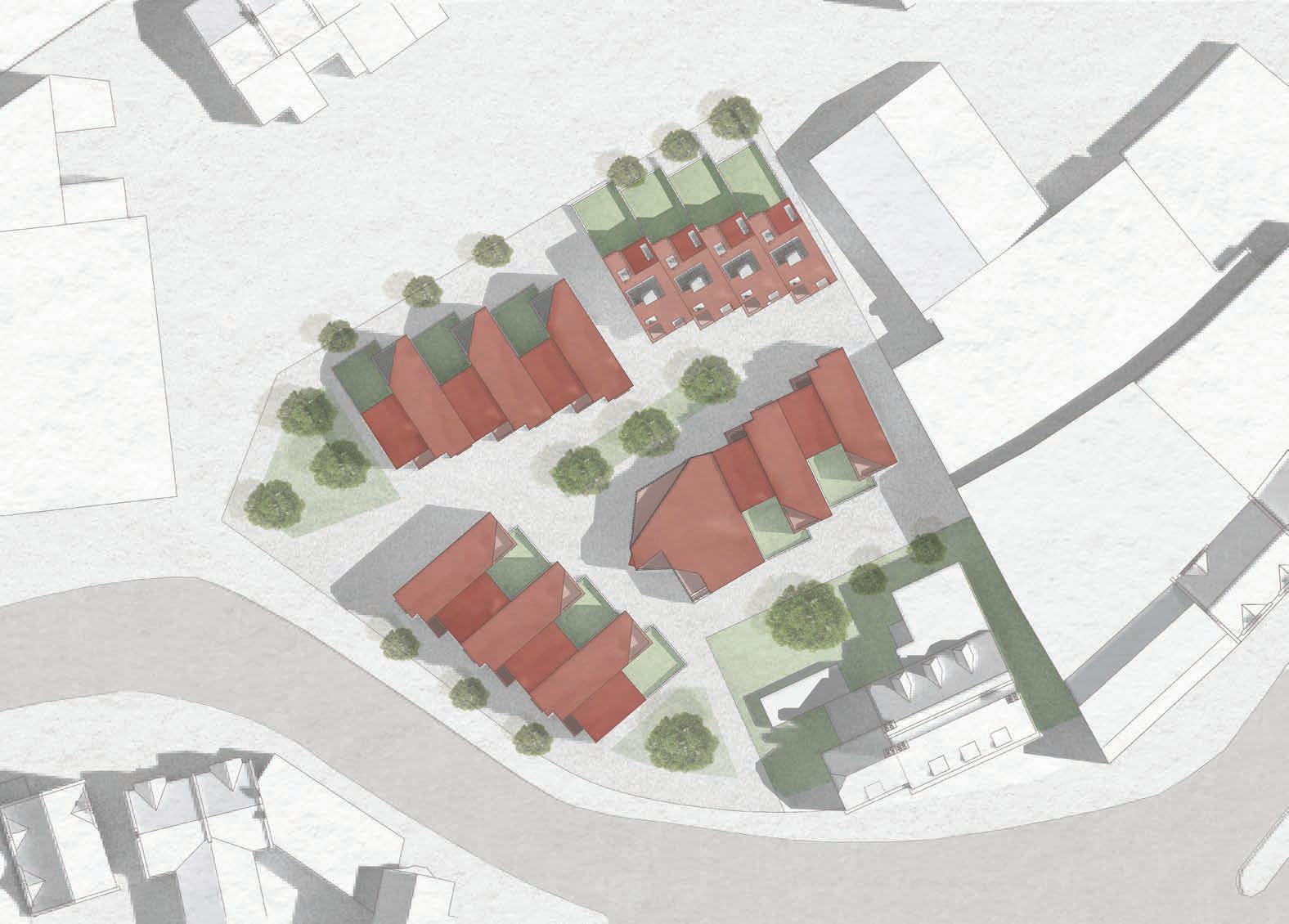

SITE LOCATION PLAN RENDERS

Aerial View

PROJECT 2

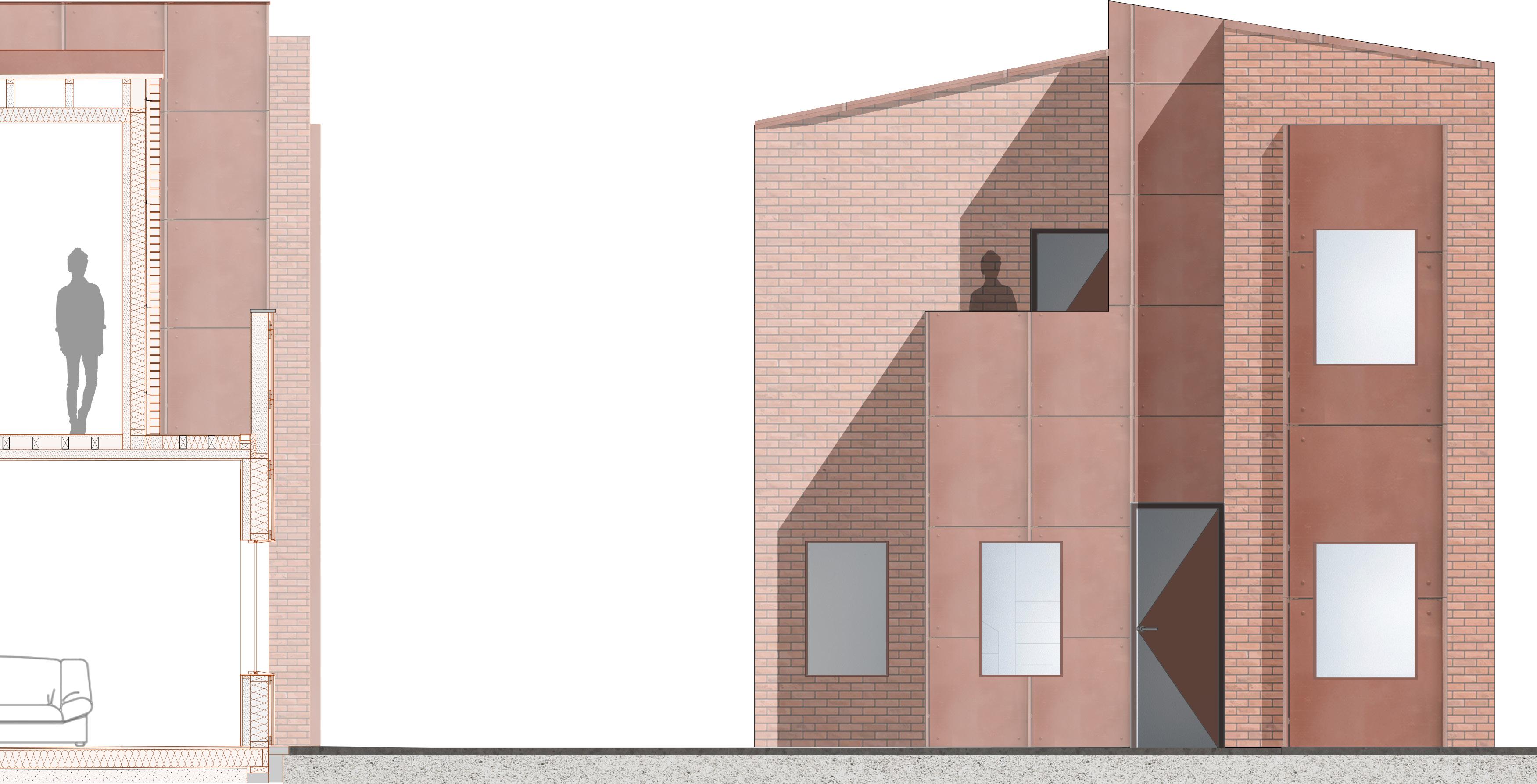

SECTION AND ELEVATION RENDER

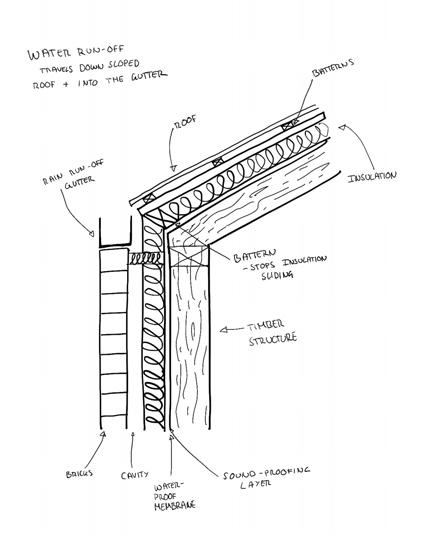

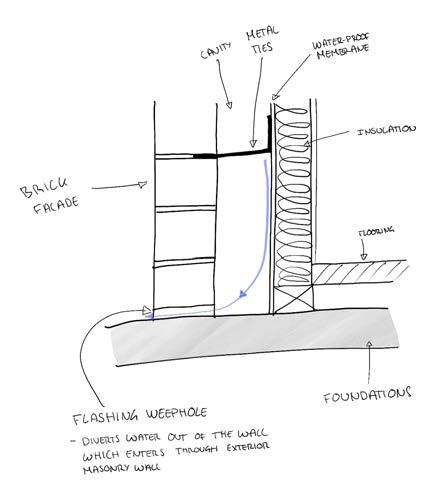

Understanding the internal structure of the design through sustainable and low-cost solutions. The overall internal detailing has a timber structure, thermally insulated to prevent loss of energy and a brick facade. In addition, sections of the facade are cladded with recycled, fibre-cement cladding.

Renders and details produced using Rhino and Photoshop. The detailing has been designed through observing precedants and conceptual sketches.

PROJECT 3

ICELAND MOVIE PAVILION

COMPETITION PROJECT

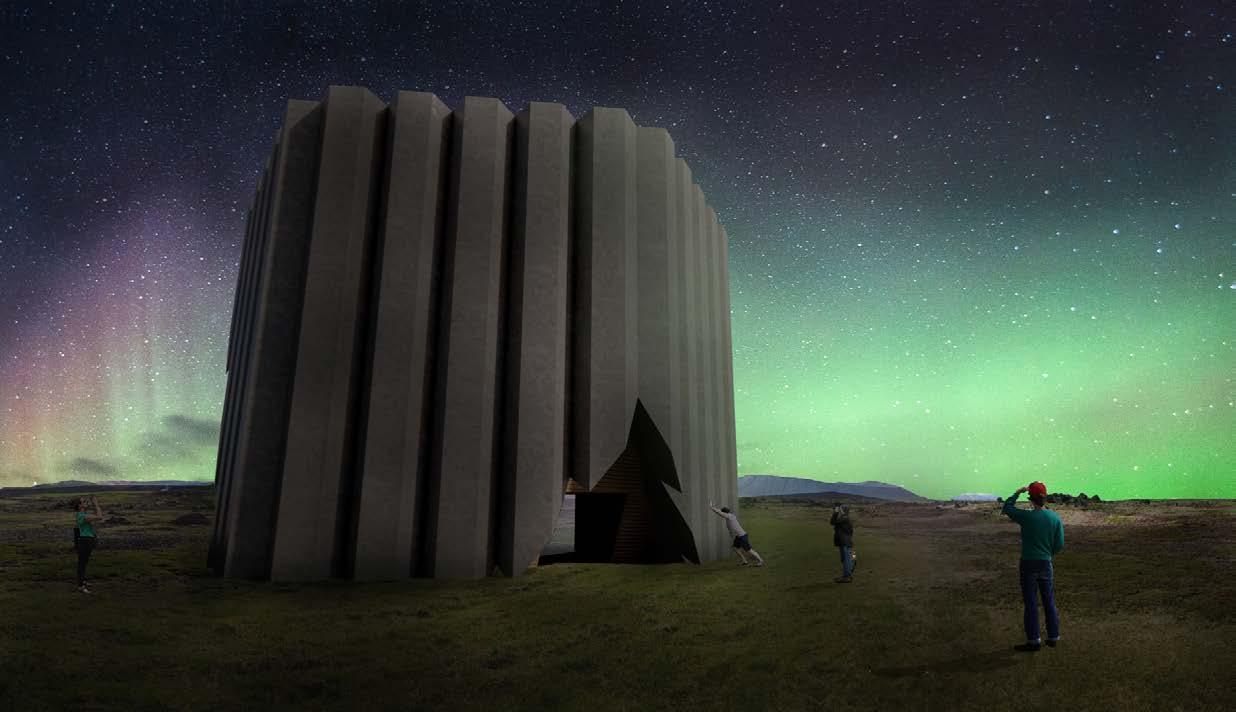

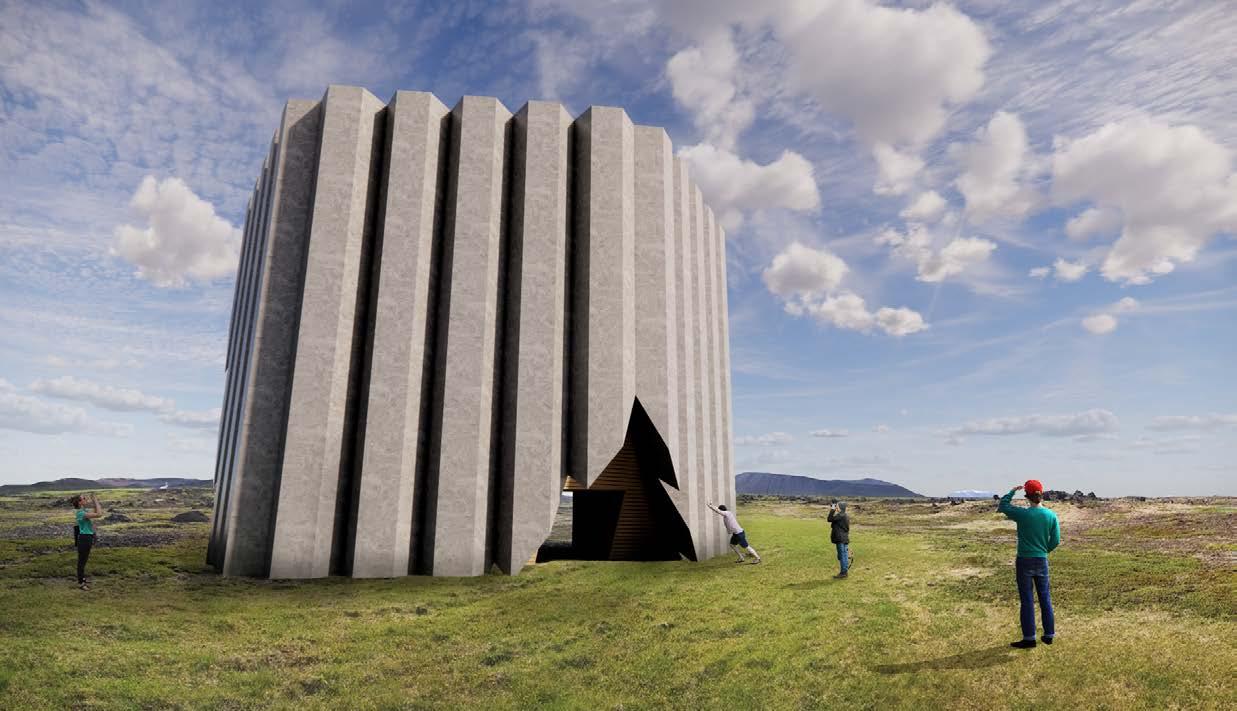

RENDERED VIEWS

Shortlisted for the Buildner Iceland Movie Pavilion competition

Renders produced using Rhino, Enscape and Photoshop

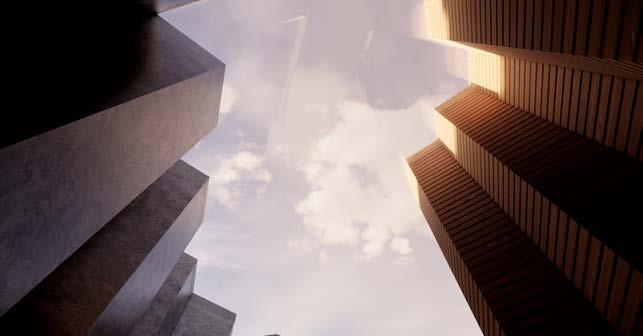

INTERIOR VIEW LOOKING UP

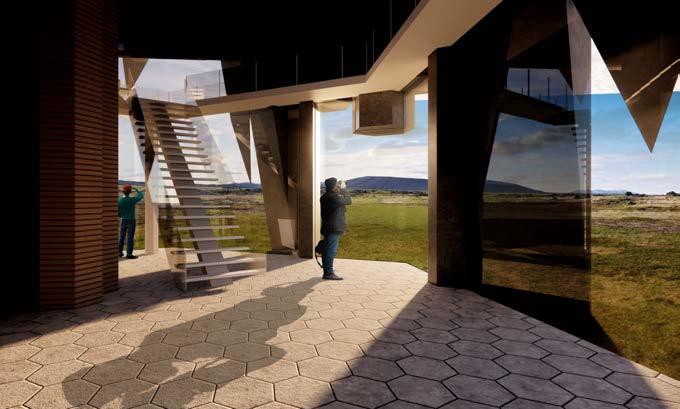

GROUND FLOOR INTERIOR LANDSCAPE VIEW

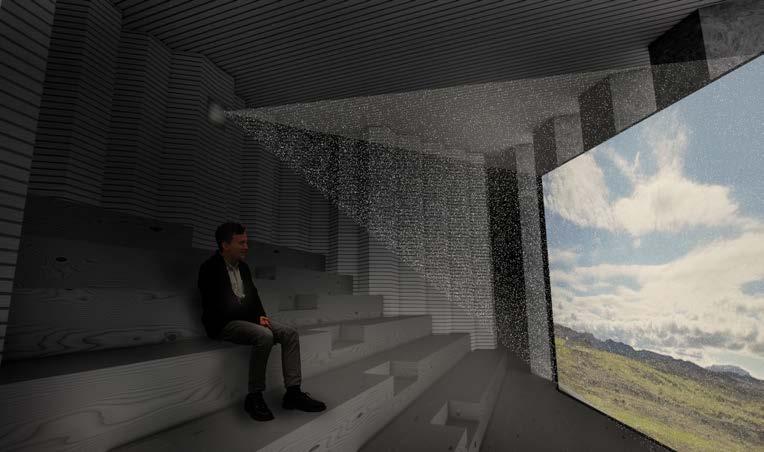

FIRST FLOOR CINEMA ROOM

PROJECT 3

2022

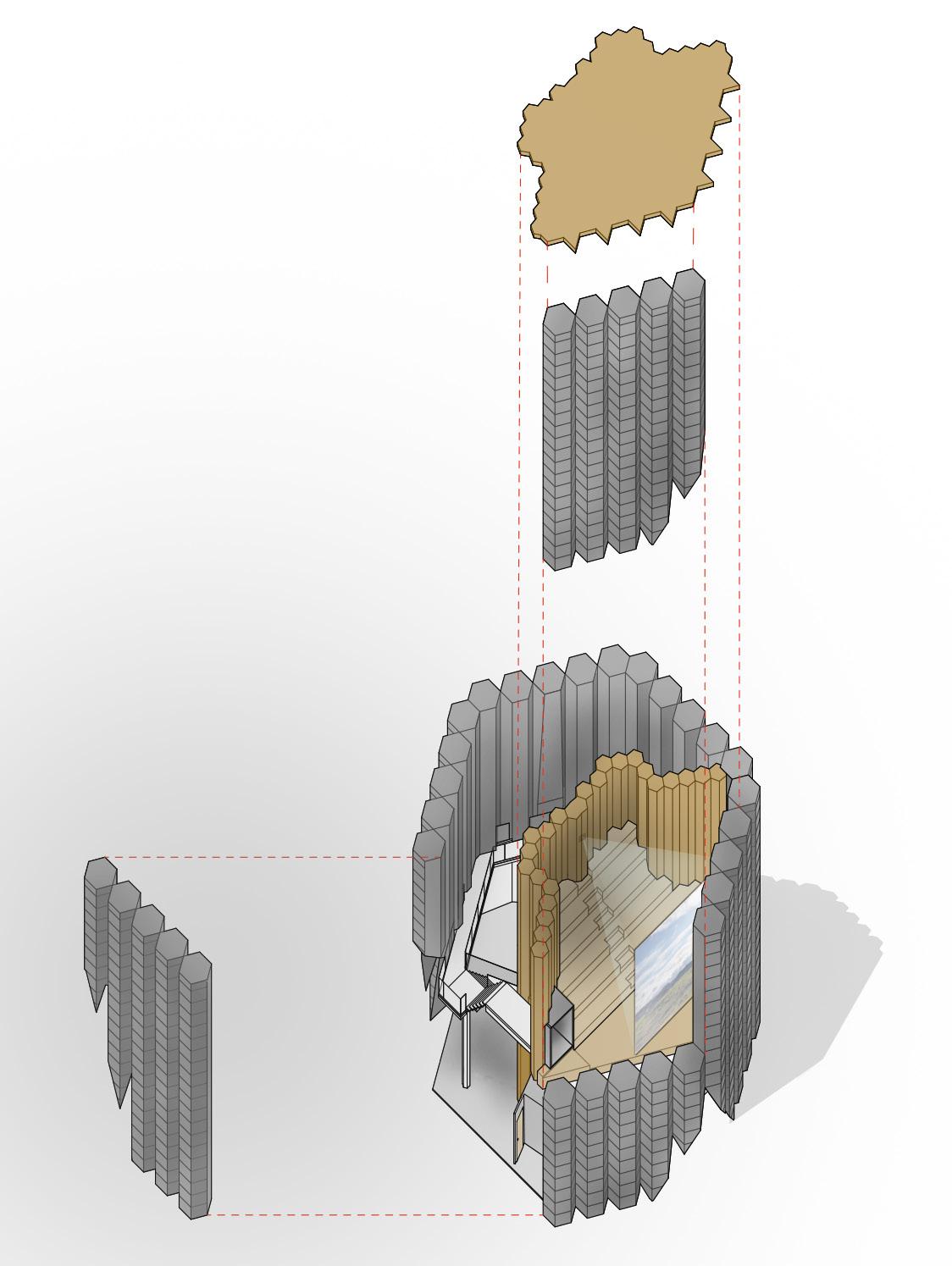

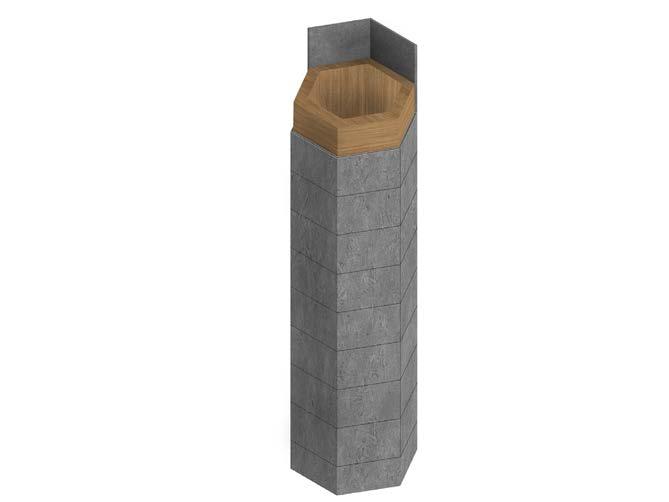

EXPLODED AXONOMETRIC Showing function and materiality

This project was part of a Buildner competition brief to create a multipurpose movie pavilion within the Icelandic landscape.

MATERIALITY AND SUSTAINABILTY

The primary structure is made of pine wood, sourced from nearby surrounding countries in Scandinavia. This is due to Icelands lack of forests currently, making sourcing locally unsustainable and immoral. The hexagonal timber structure will be cladded with locally sourced basalt, highly resistant to weathering.

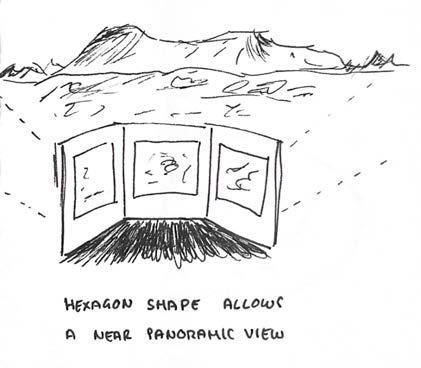

The design, inspired by the basalt columns, proposes a hexagonal pavilion which has the use of a cinema room, cafe and viewing gallery. The viewing gallery is an area for users to have framed views of the beautiful Icelandic landscape which captures different moments of it’s surrounding natural environment.

The cinema room located on the first floor presents educational movies of Iceland and its historical landscape.

PROJECT 3 2022

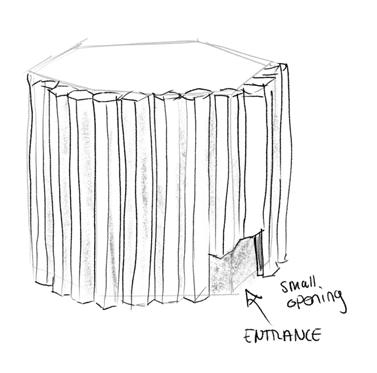

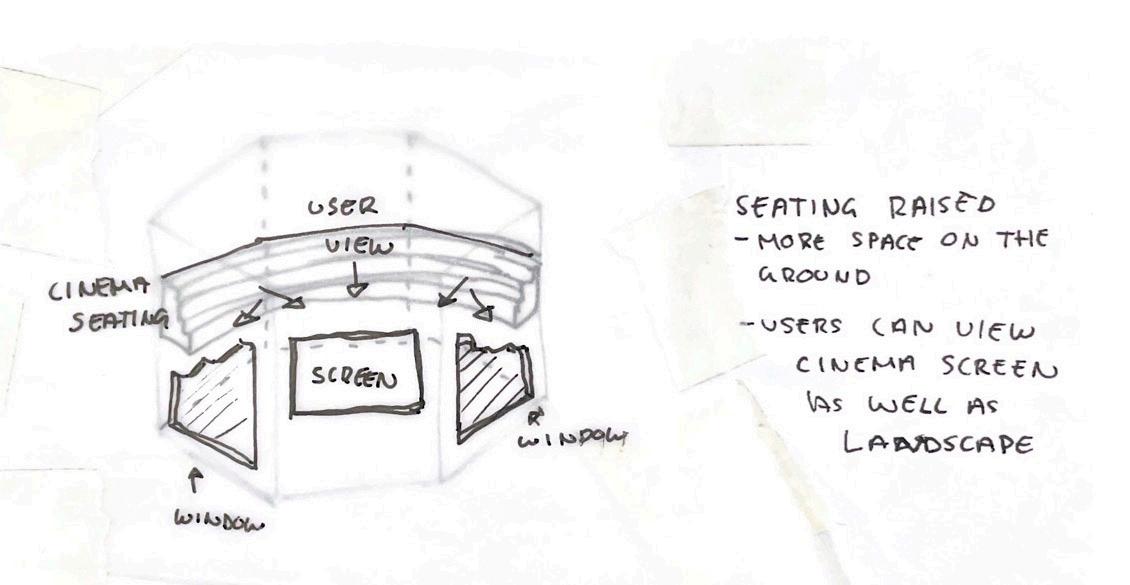

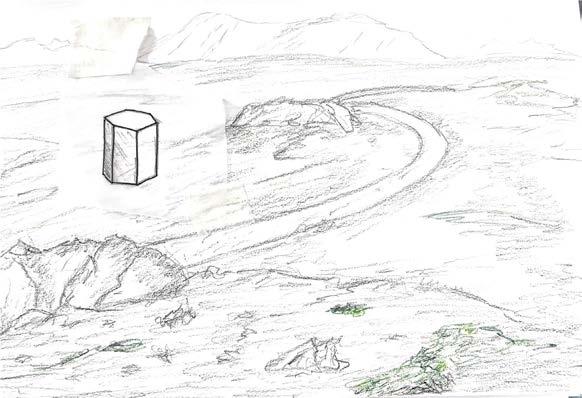

DEVELOPMENT STAGE

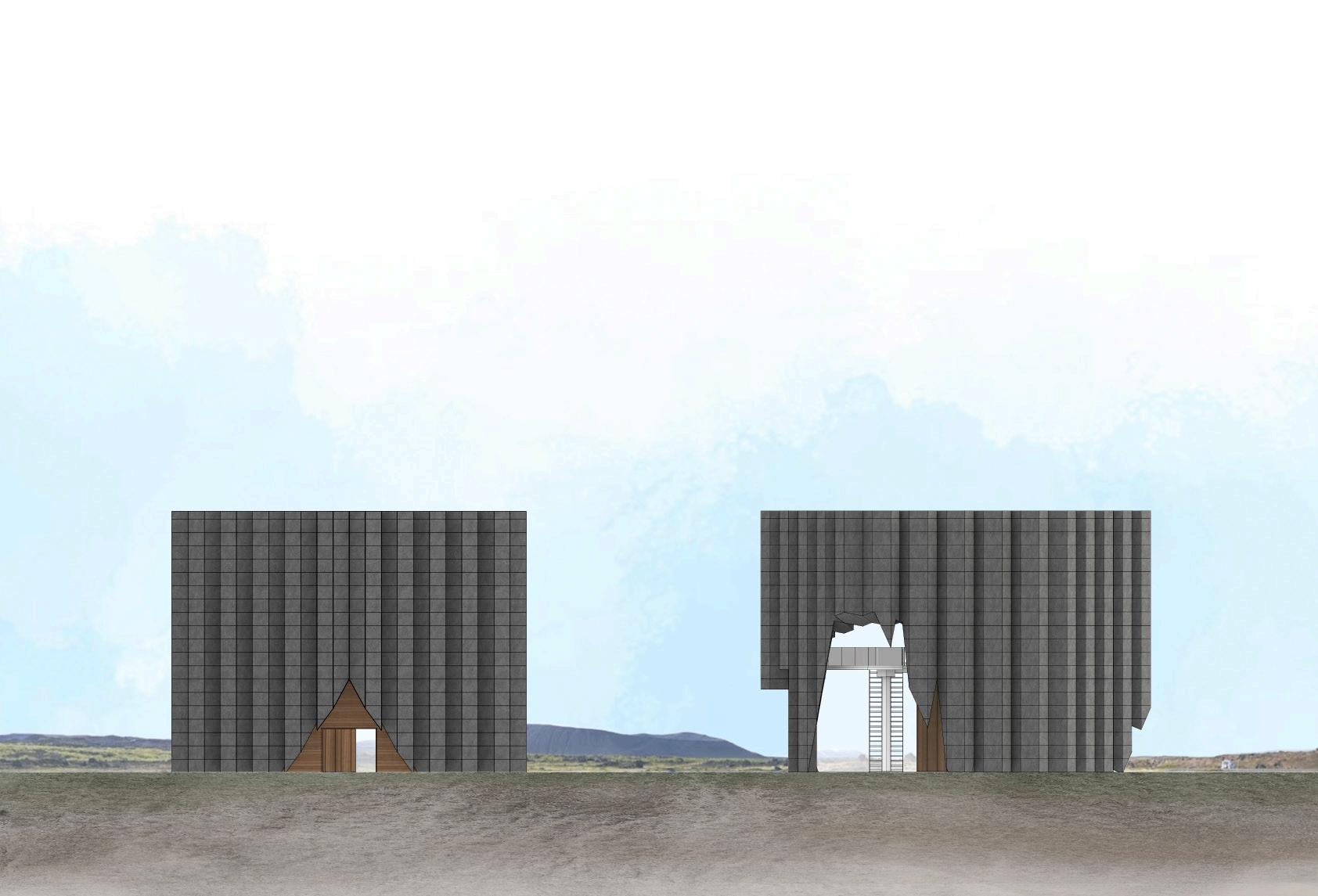

Front Elevation

Left Elevation

PROJECT 4

MUSIC THEATRE PROPOSAL

Location: Ridley Road Market, Hackney

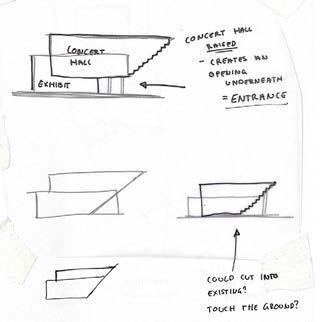

This was a conceptual regeneration project for Ridley Road Market. The proposal is a facade extension to an existing, un-used building. It provides a multi-use function being a music theatre, cultural exhibition and a cafe. The music theatre and cultural exhibition offers users to experience and embrace different cultural music and artifacts from cultures and ethnicities, which thrive and make up the community within Ridley Road Market.

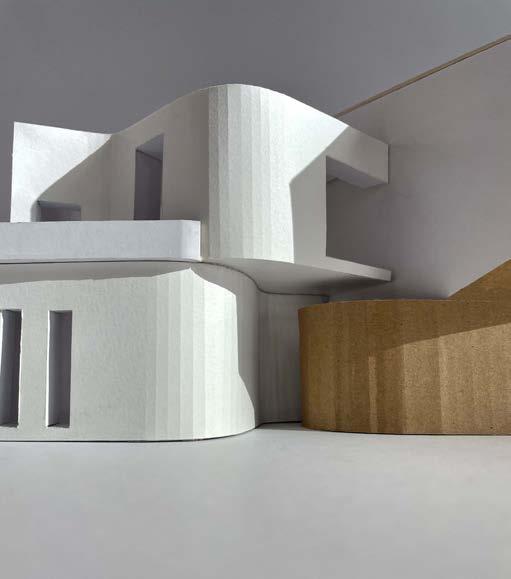

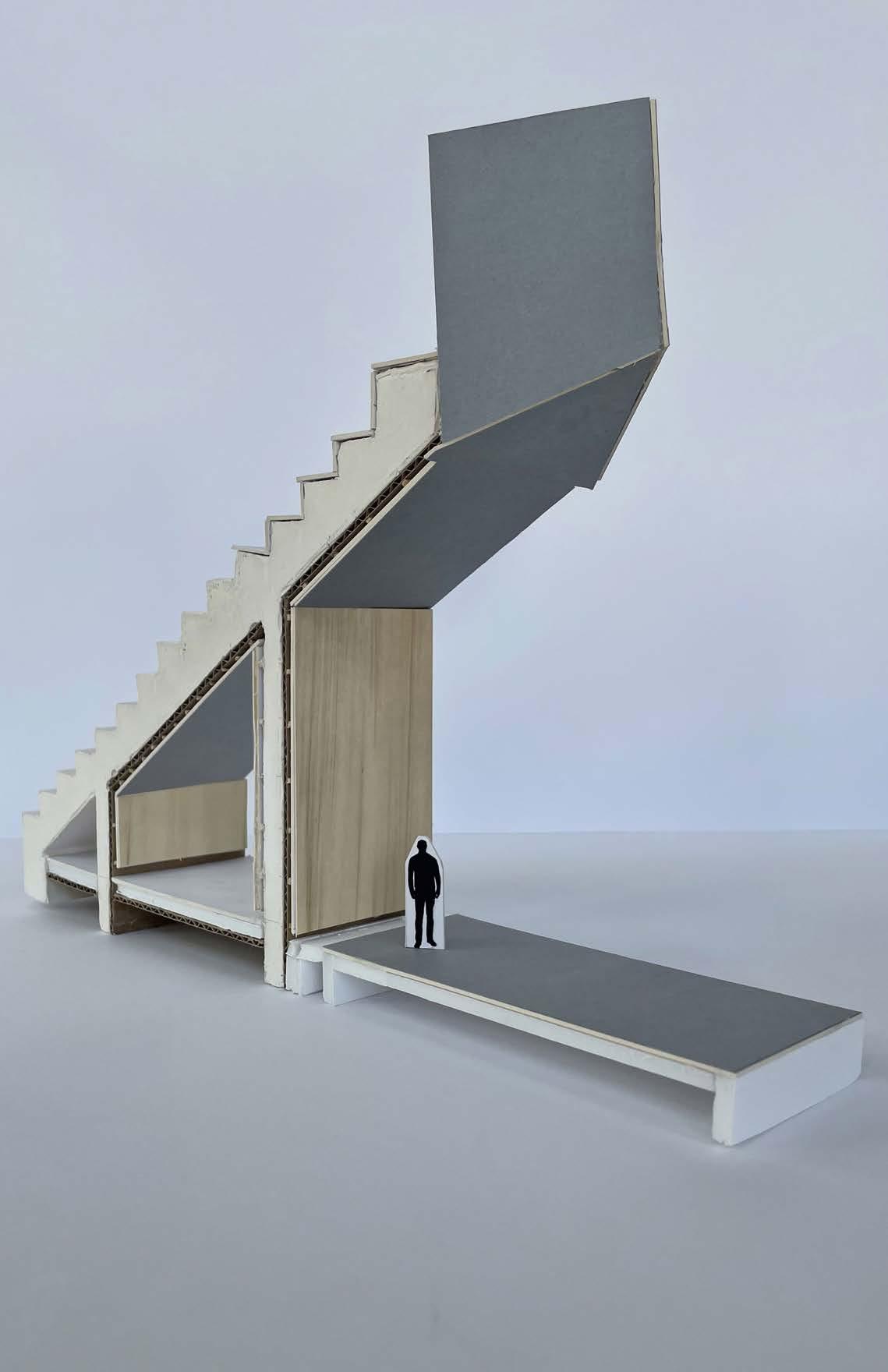

MODEL1:50

Plaster casted structure, with detail layering showing insulation and cladding

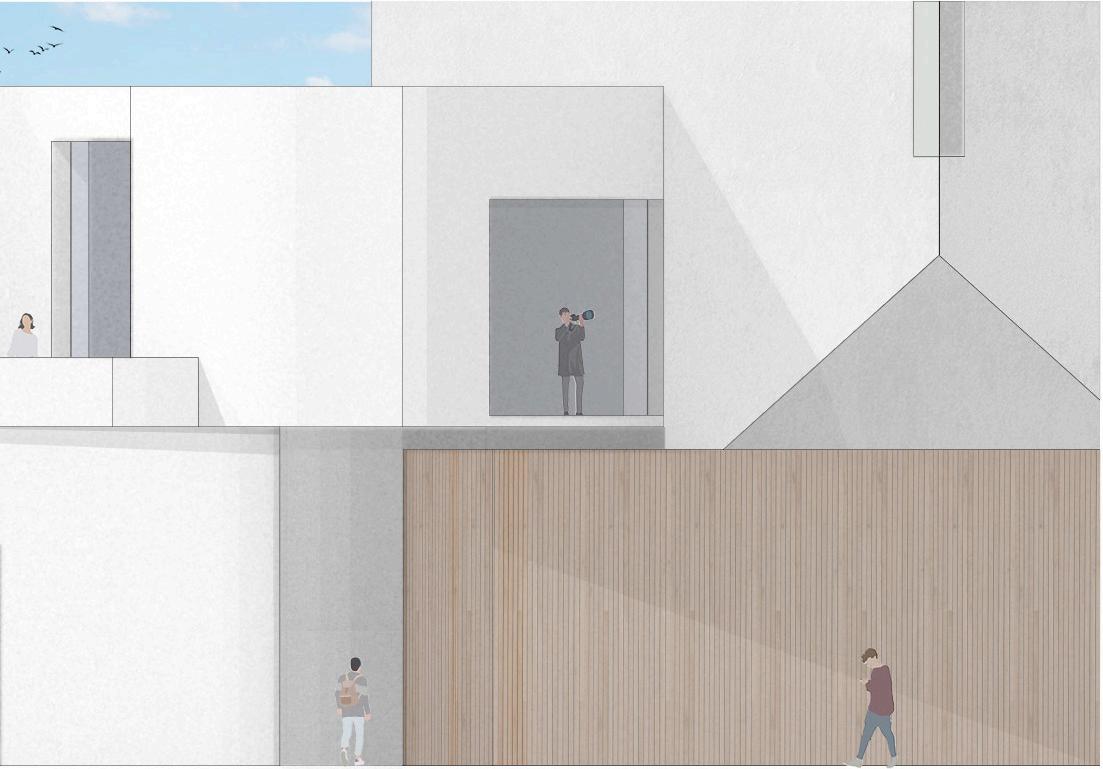

Front Segment Elevation
