2021 Project PROJECT 1

1:100 scale model

BANK OF ENGLAND MODEL - GROUP PROJECT

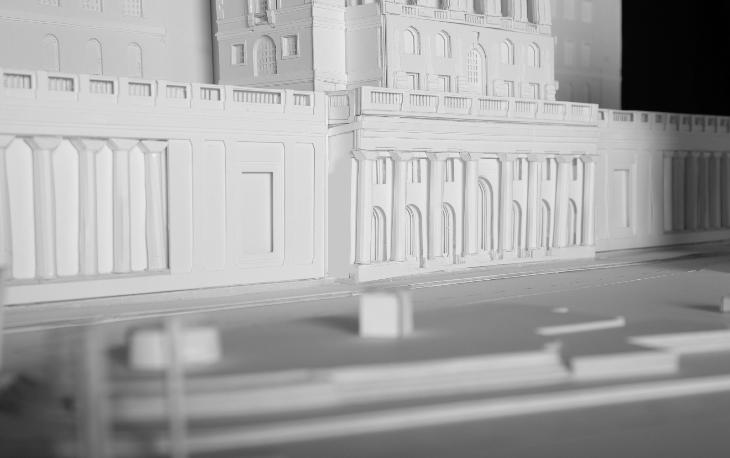

Working as a group to create a 1:100 scaled model of the Bank of England. Through collectively measuring parts of the building and scaling images on softwares we created detailed elevations of the building. We then used these elevations to create a model

SIDE SECTION - BANK OF ENGLAND

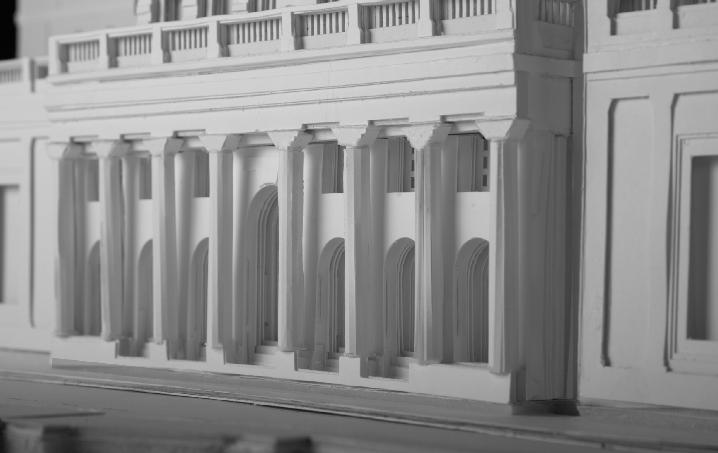

MODEL PHOTOGRAPHY

2022 Project PROJECT 2

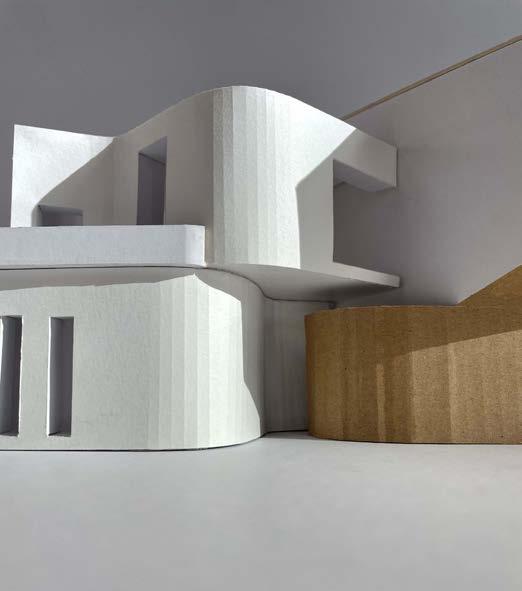

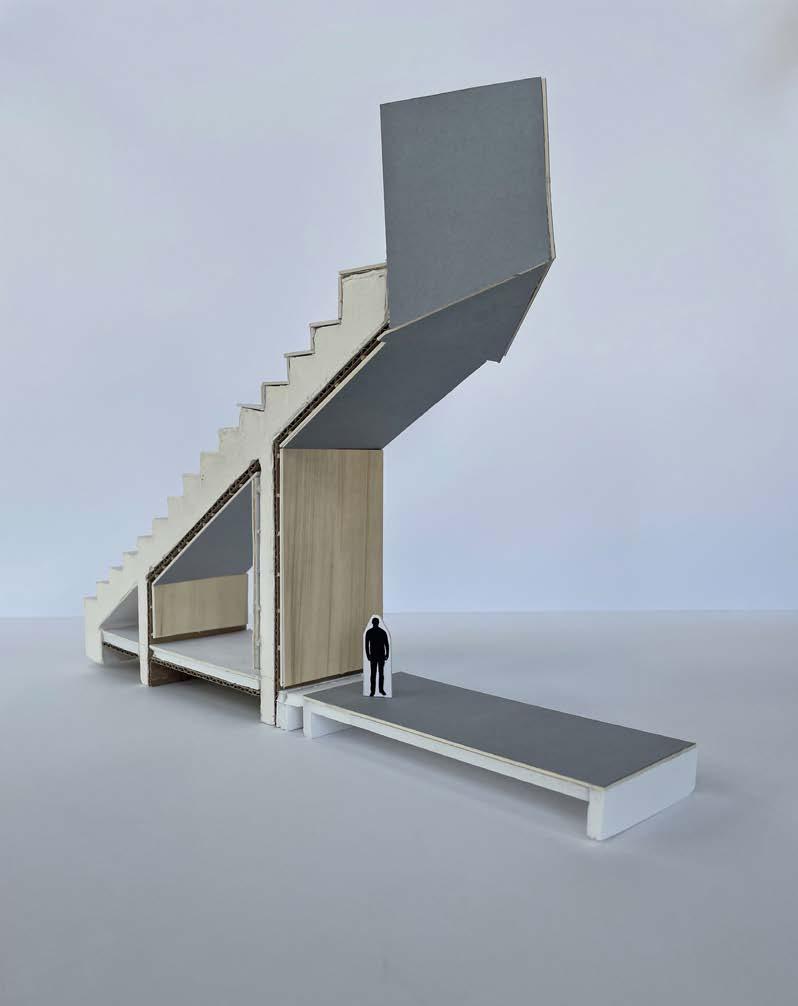

SECTION MODEL 1:50 Plaster casted structure, with detail layering showing insulation and cladding

Front Segment Elevation

This project was for a regeneration project for Ridley Road in Hackney.

The project was to create a multi-use proposal for an existing building. After choosing the existing site I added an extention to the front facade which allowed invitation and interaction with the urban context surrounding

MUSIC THEATRE PROPOSAL Location: Ridley Road Market, Hackney

2022 Project PROJECT 3

DAY

NIGHT

ICELAND MOVIE PAVILION Shortlisted for the Buildner Iceland Movie Pavilion competition The aim of this project was to create a multi-purpose space with its primary function as a cinema. Most importantly taking into acount the Icelandic context. I wanted to design a pavilion with a monumental approach, something simple, yet extraordinary which captures different moments of the beautiful Icelandic Landscape day and night, and allows users to experience and appreciate nature. The inspiration for the design of the project was the basalt coloumns, a common natural formation found in Iceland, as a result of the volcanoes. The pavilion uses a timber structure which is cladded with basalt tiles for sustainability and authenticity.

FRONT

REAR

Development Stage

SUN INTERACTION

USER INTERACTION

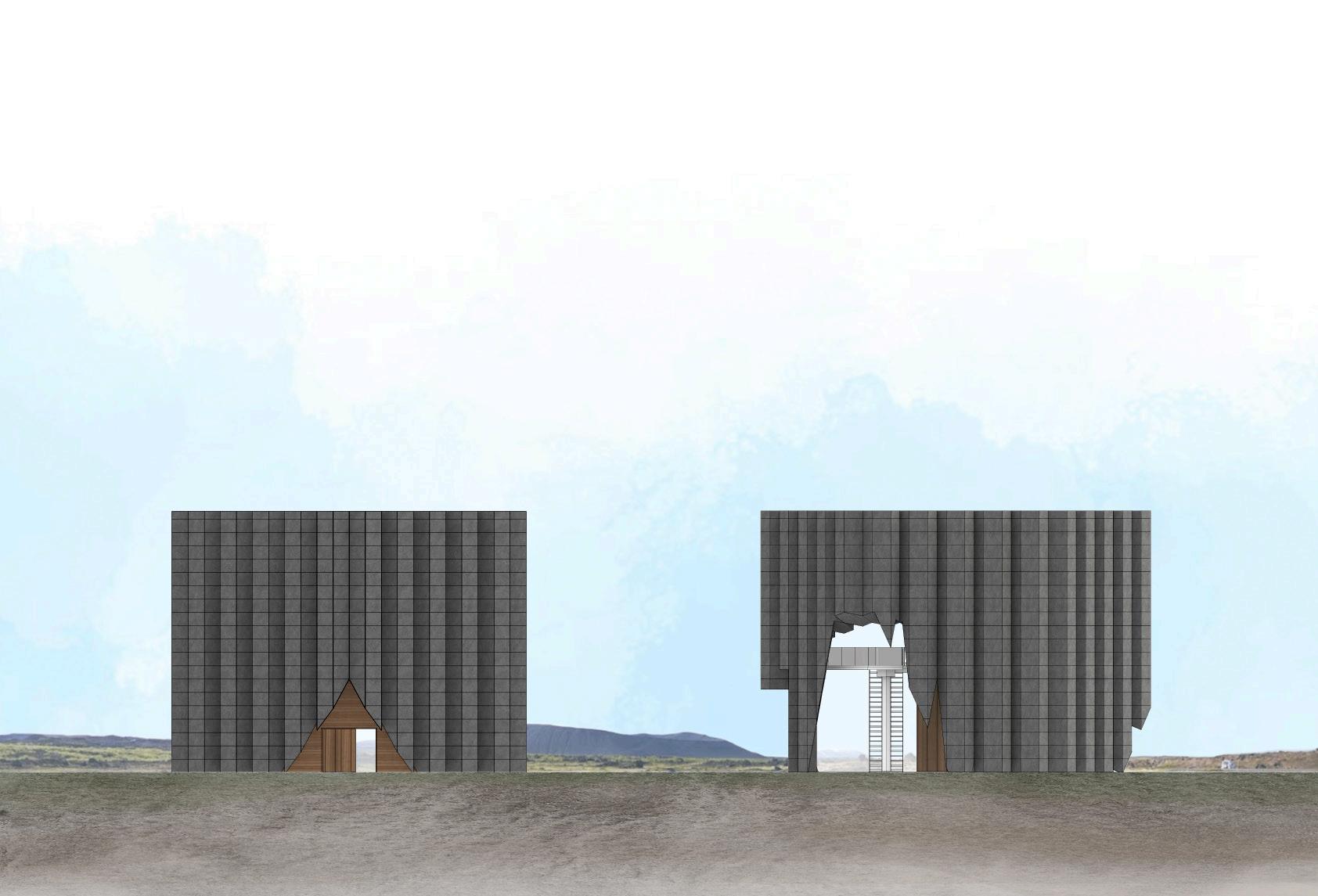

Finalised Elevations

Front Elevation

Left Elevation

2023 Project PROJECT 4

Rear Elevation of proposal

Ladywell Gardens - Final Major Project

Massing Design Development Stages

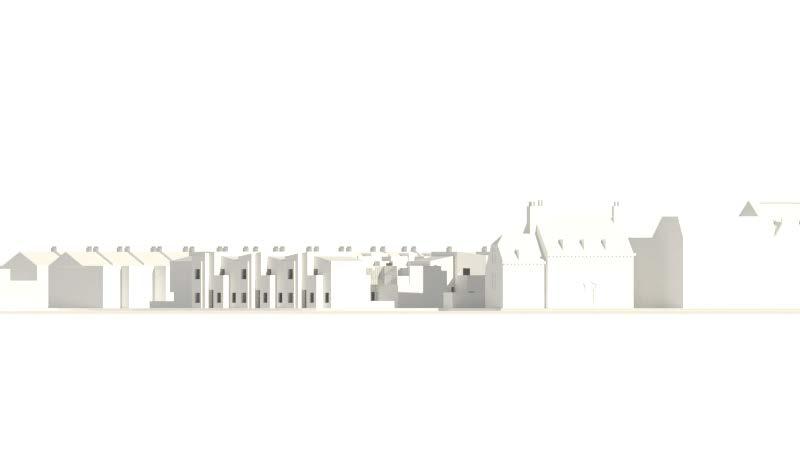

Ways of Access Receeding facades

Balcony views

3 Bed

DIAGRAMS

2 Bed

Community Centre

access from street

access from street

Play Area

SITE - 7.2m

RESIDENTIAL HOMES - HEIGHT 7.4m

PUBLIC BUILDINGS -13M

SECTION DETAIL 2

1:20 Section Detail 4 1. Insulation 150mm-200mm 2. Bricks 3. Timber structure 4. Cavity 5. Vapour barrier 6. Metal brick ties 7. Timber floor joists 8. Cold bridge 9. Timber wall panel 10. Fibre cement cladding 11. Stainless steel support bracket 12. Screed 13. Waterproof membrane 14. Balcony drainage gutter 15. Balcony wall fibre cement cap 16. Sill overhang 17. Breather membrane 18. Interior finish - Fire retardant varnish 19. Weephole 20. Insulated cavity closer

5

6

1 15

18

7 14

8

19 3

17

9 11

16 20

13

12

10

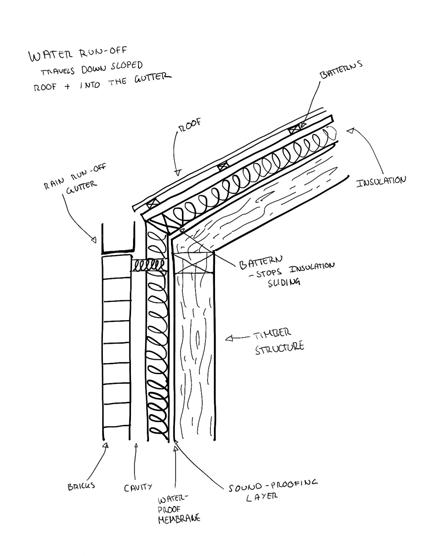

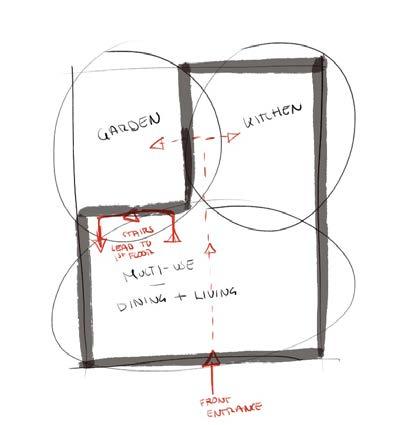

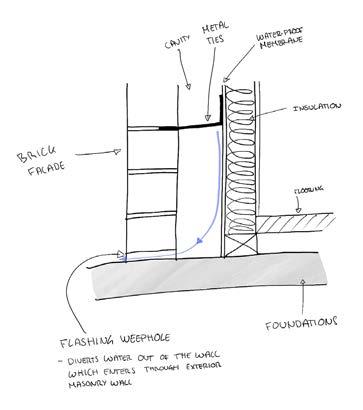

Detail Sketches

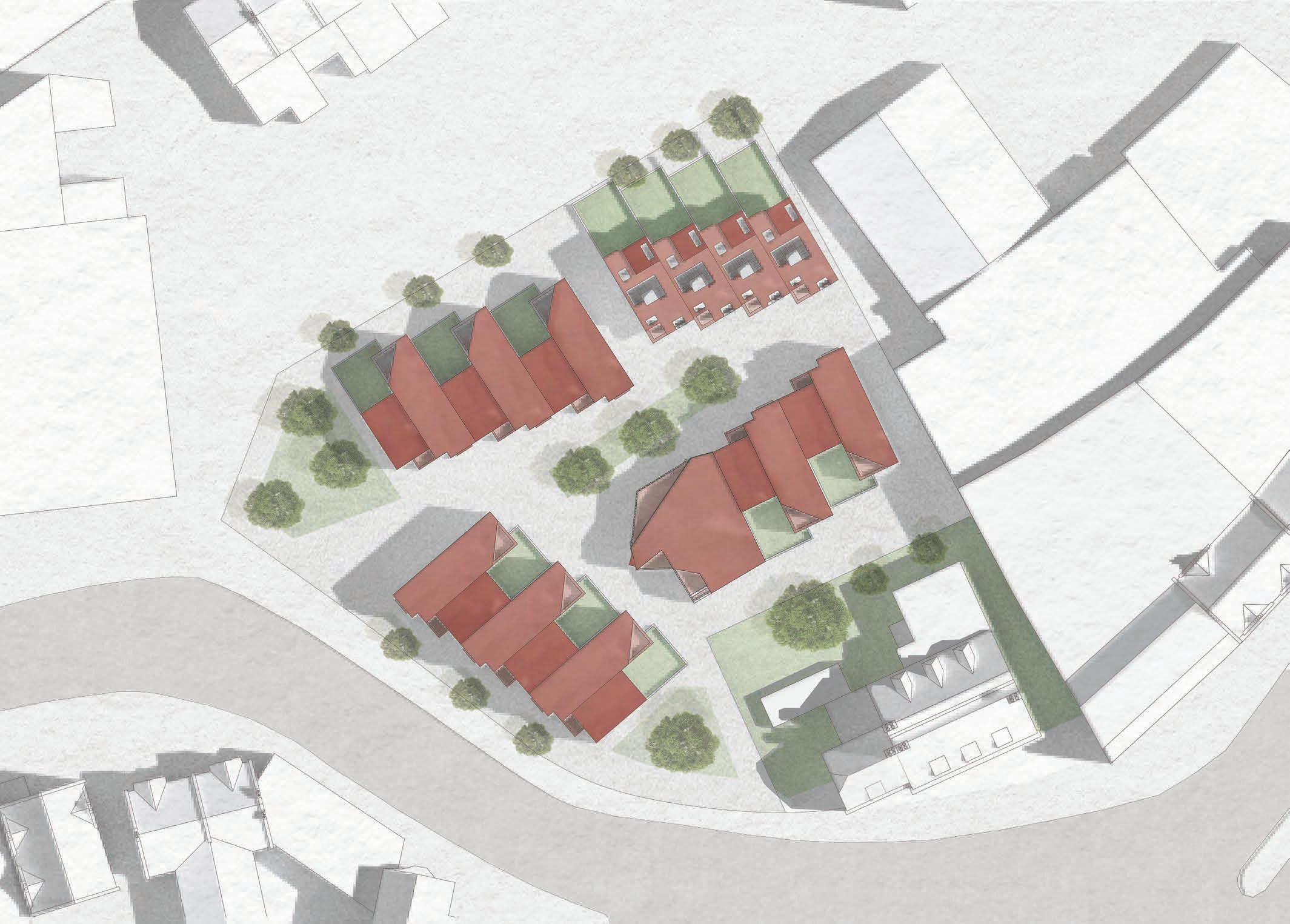

Aerial View
