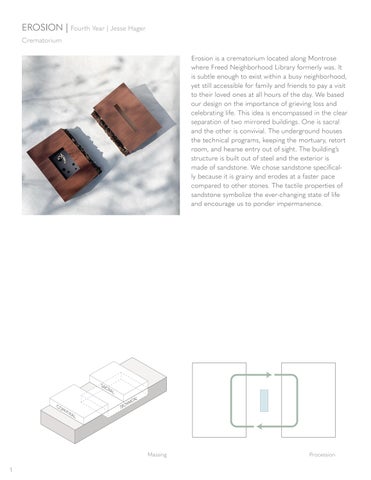

Erosion is a crematorium located along Montrose where Freed Neighborhood Library formerly was. It is subtle enough to exist within a busy neighborhood, yet still accessible for family and friends to pay a visit to their loved ones at all hours of the day. We based our design on the importance of grieving loss and celebrating life. This idea is encompassed in the clear separation of two mirrored buildings. One is sacral and the other is convivial. The underground houses the technical programs, keeping the mortuary, retort room, and hearse entry out of sight. The building’s structure is built out of steel and the exterior is made of sandstone. We chose sandstone specifically because it is grainy and erodes at a faster pace compared to other stones. The tactile properties of sandstone symbolize the ever-changing state of life and encourage us to ponder impermanence.

EROSION | Fourth Year | Jesse Hager Crematorium

2.

3.

ROOF ASSEMBLY

- 2” Sandstone Shingles on Shims

- R-60 Batt Insulation

- Ice & Water Shield

- 1/2” Cover Board

- Metal Deck

- Steel Rods

- 1.5ft Sandstone

Blocks

FLOOR ASSEMBLY

- Stone Pavers

- Setting Bed Mortar

- Roofing Membrane

- Thermal Insulation

- Concrete Slab

FOUNDATION FLOOR ASSEMBLY

- 6” Sealed Concrete Ground Slab

- Premolded Filler and Sealant

- 2” Expanded Polystyrene

- Waterproofing Membrane

- 3” Unreinforced Concrete

FIRST FLOOR WALL ASSEMBLY

- 1.5ft Sandstone Cladding, Sawn Top and Bottom

- Type N Mortar

- Masonry Ties @18” OC

- 2” Air Gap

- Weather Resistant Barrier

- 2” Polyisocyanurate Rigid Insulation

- 1/2” Gypsum Sheathing

- R-19 Batt Insulation with 2x6 Steel Studs @16” OC

- 5/8 Painted Level 5 Drywall

Physical Model 1/16”=1’0”

Water Recycling Facility and Community Pool + Washateria

This recycling facility is tailored to its industrial surroundings. This project investigates the flood vulnerability in the neighborhoods adjacent to Brays Bayou and offers water recycling as a solution to mitigate flooding. The building consist of 4 underground cisterns which collect water that runs downstream from the neighborhood streets into a rock garden that stretches along the southern side of the building. Once storm-water reaches the site it is distributed in 3 of the cisterns where it is then filtered and sent to the community pool. When this pool overflows, the water returns to the bayou. The fourth cistern is used for greywater which

recycles the internal building water used in the washateria.

The arrangement of the cisterns dictates the ground level passageways, where people are literally filtered through portals.

Due to the building’s stereotomic nature it may appear rigid and intimidating. To make it make it more inviting, a ceramic latticework facade was applied to the main entry. When residents walk by or drive through they are able to get a glimpse into the organic shaped pool where the rest of the community cools off during summer.

Ground Floor Plan

Greywater Cistern

Greywater Cistern

Stormwater Cistern

Stormwater Cistern

1. Storm Collectors

2. Parking

3. Laundromat

4. Lockers

5. Changing Rooms

6. Bathrooms

7. Showers

8. Drying Area

9. Adult Pool

10. Kid Pool

Structural Frame

Transverse Section

Render of Main Portal

Ceramic Latticework

Timber Frame Bracing Steel Lintel

Storm Collector

Water Drain - Gargoyle

Galvanized Steel - Industrial Grating

Cast in Place Concrete - Retaining Wall

Wall Section

Beam

Glue Laminated Beam

Transverse Beam

Wooden Slats

Ceramic Brick

Timber

18” Concrete Column

12” Timber Column Steel Tube Storm Collectors

Bridge

South Elevation

BAT OBSERVATORY |

Second Year | Kevin Barden

Due to the chaotic and noisy traffic surrounding Allen Parkway, visitors are not able to experience the full essence of nature. This building serves as an education oasis that encourages visitors to connect more intimately with the ecosystem that exists in the Buffalo Bayou park.

1. Entry / Book Shop

2. Restrooms

3. Janitor’s Closet/Storage

4. Offices

5. Exhibit

6. Observation Deck

7. Mechanical Space

8. Assembly

9. Boat Rental

Physical Model 1/16”=1’0”

BREATHING VESSEL | Second year | Kevin Barden

Rare document archive / Greenhouse + tearoom

The two main programs are greenhouse and rare document archivist+tea room. I focused on the organization of spaces according to each program’s necessities. The greenhouse houses plants, therefore it needed to be closer to the sun. The archives need to be preserved, therefore they were placed on the ground floor, away from direct sunlight. As for the tea room, it was specifically placed in the middle level where both programs come together. The concept for this project embodies the idea of time. The relationship between programs and inhabitants of the space represent past, present, and future. The rare document archives preserve history, a life that once was. The inhabitants of the structure are now in the present time and plants in the greenhouse are in constant bloom, sprouting new life representing the future.

Physical Model 1/16”=1’0”

Neighborhood

Scale

City Scale

City Scale

GRAPHICAL, PHYSICAL , AND PHOTOGRAPHIC EXPLORATIONS OF ICE

WORKS |

Material Practices | Ophelia Mantz

Material exploration in the domestic space.

Documenting the temporary manipulation of Ice.

Half Assembly

Complete Assembly Photographs

Beginners guide to woodworking for myself
