Public Utility Company Schönebeck
1

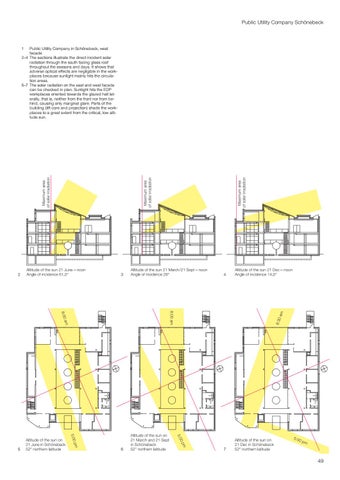

Public Utility Company in Schönebeck, west facade 2–4 The sections illustrate the direct incident solar radiation through the south facing glass roof throughout the seasons and days. It shows that adverse optical effects are negligible in the workplaces because sunlight mainly hits the circulation areas. 5–7 The solar radiation on the east and west facade can be checked in plan. Sunlight hits the EDP workplaces oriented towards the glazed hall laterally, that is, neither from the front nor from behind, causing only marginal glare. Parts of the building (lift core and projection) shade the workplaces to a great extent from the critical, low altitude sun.
2
3
4
5
6
7
49
