01 deepak residence

Chhauni, Kathmandu

I ntroduction:

Deepak Residence is a Residential project whose site is located in Chhauni, Kathmandu. Owner of this project is Mr. Deepak Rana. Area of site given is 1846 Sq. ft. which is almost five Aana and one Paisa and the nature of site is flat. Road is in both south and west side of site. road width of such road is 15 ft wide. Shape of site is irregular with diagonal side inclined towards road which was one of benefit for planning and making more area usable which are on the rear end of site. Since one of the side of the site is inclined with road which makes difficulty in planning. Client, also wanted to make more rental spaces in front end of building so, making rental space is another job.

According to the bylaws ko Kathmandu

Metropolitan city, Floor area Ratio (FAR) for that site is 2.5, Ground coverage for Residence is 70% of overall site, 5 feet setback from all of the sides of site land etc. Design phase is ongoing is present status of the project

Project involvement

• Planning and Designing

• Facade Design

• 3D Visualization

• Renderings

Conceptual ideas:

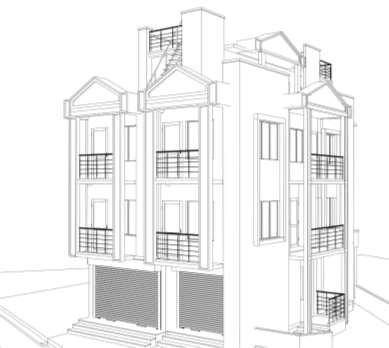

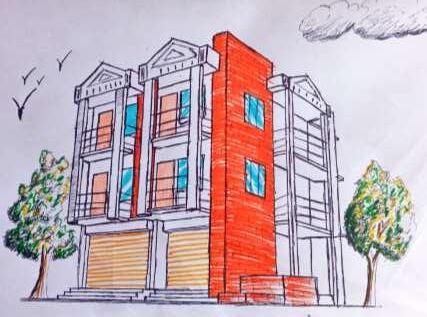

Client wanted Rental space in front of site with living areas in rear end of site and also from the nature of site and surrounding, zoning of spaces was initiated. Site was in irregular shape which gives the concept of planning in sector of different rectangles s which gives the several no. of prism and addition of neoclassical elements gives the final concept.
